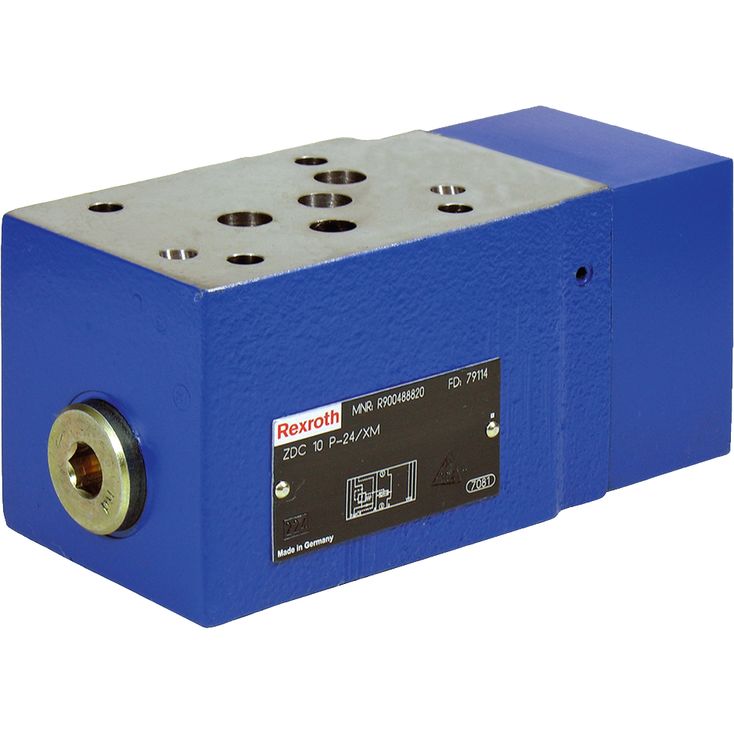

ZDC 10 P-2X/M
Rexroth
R900488023
叠加板式阀。
油口布置符合ISO 4401。
通过内置梭阀，对P→A或P→B通道进行负载补偿。
二通“P”型式。
三通“PT”型式（NG10…25）。
与比例换向阀配合时可实现流量控制。
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | ||
Z | DC | - | 2X | / | * |
01 | Sandwich plate valve | Z |
02 | Meter-in pressure compensator | DC |
03 | Size 10 | 10 |
Size 16 | 16 | |
Size 25 | 25 | |
Size 32 | 32 | |
04 | 2-way version (pressure reducing function) | P |
3-way version (pressure limiting function) | PT | |
05 | Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6 | 2X |
06 | Internal pilot oil supply | no code |
External pilot oil supply | X | |
Pilot oil supply extern, port X closed on the component side (only NG10) | XL | |
07 | Without special type of protection | no code |
Sea water-resistant | J | |
Seal material | ||
08 | NBR seals | M |
FKM seals | V | |
09 | Further details in the plain text | * |
Nenngröße | 10 | 16 | 25 | 32 | |
Geräteserie | 2X | ||||
Einbaulage | Any | ||||
Masse | kg | 3 | 3.5 | 8.9 | 64.7 |
Maximaler Betriebsdruck | bar | 350 | ||||
Maximaler Betriebsdruck | Anschluss A | bar | 350 | |||
Anschluss B | bar | 350 | ||||
Port P | bar | 350 | ||||
Port T | bar | 250 | ||||
Port Y 1) | bar | 150 | ||||
Betriebsdruckbereich | Anschluss X | bar | 30 ... 100 | |||
Maximum flow | l/min | 85 | 150 | 325 | 520 | |
Druckflüssigkeit | see table | |||||
Druckflüssigkeitstemperaturbereich | °C | -20 … +70 | ||||
Maximal zulässiger Verschmutzungsgrad der Druckflüssigkeit; Reinheitsklasse nach ISO 4406 (c) 2) | Class 20/18/15 according to ISO 4406 (c) | |||||
Viskositätsbereich | mm²/s | 15 … 380 | ||||
| 1) | up to 30 bar in connection with pilot-operated proportional directional valve |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid | Classification | Suitable sealing materials | Standards |
Mineral oils and related hydrocarbons | HL, HLP, HLPD, HVLP, HVLPD | NBR | DIN 51524 |
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). | |||
Dimensions in mm
1 | Name plate |
4 | Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y (plate side) |
5 | Porting pattern according to ISO 4401-05-05-0-05 |
6 | Valve mounting bores |
Valve mounting screws (separate order) | |
Dimensions in mm
1 | Name plate |
2 | Locating pin |
3 | Bore for locating pin |
4 | Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y (plate side) |
5 | Porting pattern according to ISO 4401-07-07-0-05 |
6 | Valve mounting bores |
Valve mounting screws (separate order) | |
Dimensions in mm
1 | Name plate |
2 | Locating pin |
3 | Bore for locating pin |
4 | Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y (plate side) |
5 | Porting pattern according to ISO 4401-08-08-0-05 |
6 | Valve mounting bores |
Valve mounting screws (separate order) | |
Dimensions in mm
1 | Name plate |
2 | Locating pin |
3 | Bore for locating pin |
4 | Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y (plate side) |
5 | Porting pattern according to ISO 4401-10-09-0-05 |
6 | Valve mounting bores |
Valve mounting screws (separate order) | |
ZDC型阀是二通或三通结构的直动式供油压力补偿器。
它们在P通道中作为供油压力补偿器，用于负载补偿。
该阀主要由阀体（1）、控制阀芯（2）、带弹簧座（4）的压缩弹簧（3），以及装有梭阀（6）的盖板（5）组成。
当压差P1→A1或P1→B1小于10 bar时，压缩弹簧（3）使控制阀芯（2）保持在P2至P1的开启位置。
若压差超过 10 bar，控制阀芯（2）将向左移动，直至恢复规定压差。
与进油压力补偿器配合使用时，先导式比例换向阀必须采用“外部先导供油”！
外部先导供油时，与P通道的连接封闭，先导油取自独立控制回路。
内部先导供油时，与P通道的连接开启，先导油取自压力补偿器节流侧上游，底板中的X口封闭。
