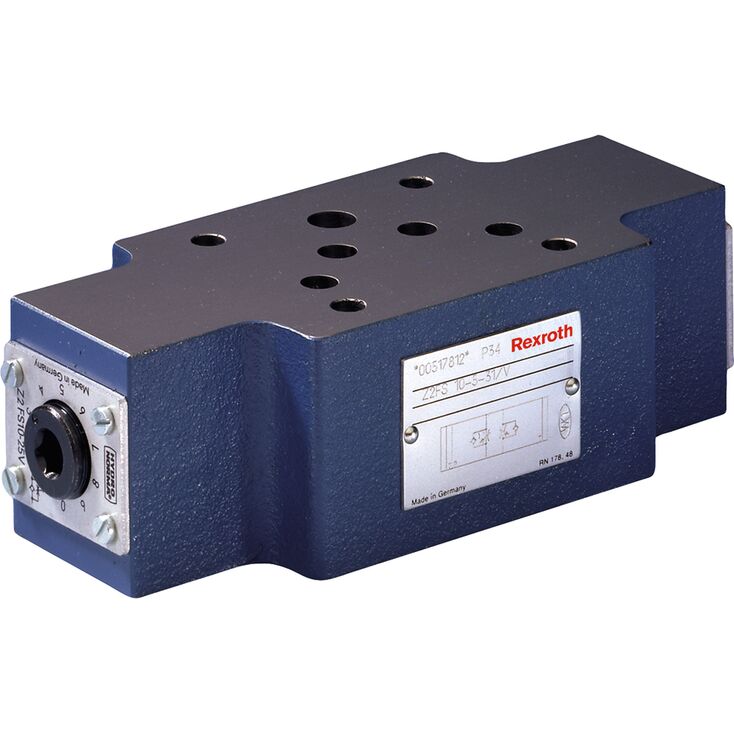

Z2FS10-5-3X/V
Rexroth
R900517812
叠加板式阀。
油口布置符合ISO 4401-05-04-0-05。
用于限制两个执行器油口的主流量或先导流量。
三种调节方式：
• 带刻度的可锁定旋钮。
• 带内六角及刻度的调节螺杆。
• 带刻度旋钮。
进油节流或回油节流。
防腐蚀结构。
Z2FS 10型阀是叠加板式单向节流阀，用于限制一个或两个执行器油口的主流量或先导流量。
两个相互对称布置的单向节流阀限制一个方向的流量，并允许反向自由回流。
采用进油节流时，液压油从通道 A1 经控制边（2）与节流阀芯（3.1）形成的节流点（1），流向执行器 A2。可通过螺杆（4）轴向调节节流阀芯（3.1），以改变节流点（1）的开度。
同时，通道 A1 中的液压油经孔（5）导向活塞侧（6）。液压力和弹簧力共同使节流阀芯（3.1）保持在节流位置。
执行器B2的回油推动节流阀芯（3.2）克服弹簧（7），使其作为单向阀允许无阻流动。根据安装位置，节流作用可发生在进油或回油方向。
主油流限制
为调节执行器速度（限制主油流），节流单向阀安装在换向阀与底板之间。
先导油流量限制
用于先导式换向阀时，单向节流阀可通过限制先导流量来调节切换时间，此时安装于先导控制阀与主阀之间。
进油节流
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | ||
Z2FS | 10 | – | 3X | / | * |
01 | Throttle check valve, sandwich plate design | Z2FS |
02 | Size 10 | 10 |
03 | Throttle check valve side A and B | – 1) |
Throttle check valve side A | A | |
Throttle check valve side B | B | |
Adjustment type | ||
04 | Lockable rotary knob with scale | 3 2) |
Spindle with internal hexagon and scale | 5 | |
Rotary knob with scale | 7 | |
05 | Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) | 3X |
06 | With two throttle check valves, supply or discharge throttling (the valve can be rotated) | no code |
Supply throttling on side A (…A.–3X/S) | S | |
Supply throttling on side B (…B.–3X/S) | ||
Discharge throttling on side A (…A.–3X/S2) | S2 | |
Discharge throttling on side B (…B.–3X/S2) | ||
Corrosion resistance | ||
07 | None | no code |
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) | J3 | |
Seal material | ||
08 | NBR seals | no code |
FKM seals | V | |
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | ||
Pilot oil duct | ||
09 | None | no code |
Via channel X and Y | SO30 | |
10 | Further details in the plain text | * |
| 1) | Identical adjustment types on sides A and B. |
| 2) | Key with material no. R900008158 is included in the scope of delivery. |
Size | 10 | ||
Weight (approx.) | kg | 3.1 | |
Installation position | any | ||
Ambient temperature range | NBR seals | °C | -30 … +80 |
FKM seals | °C | -20 … +80 | |
Size | 10 | ||
Maximum operating pressure | bar | 315 | |
Maximum flow | l/min | 160 | |
Hydraulic fluid | see table | ||
Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 |
FKM seals | °C | -20 … +80 | |
Viscosity range | mm²/s | 10 … 800 | |
Maximum admissible degree of contamination of the hydraulic fluid 1) | Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid | Classification | Suitable sealing materials | Standards | Data sheet | |
Mineral oil | HL, HLP | FKM, NBR | DIN 51524 | 90220 | |
Bio-degradable 1) | Insoluble in water | HETG | FKM | ISO 15380 | 90221 |
HEES | FKM | ||||
Soluble in water | HEPG | FKM | ISO 15380 | ||
Flame-resistant | Water-free | HFDU (glycol base) | FKM | ISO 12922 | 90222 |
HFDU (ester base) 1) | FKM | ||||
Containing water | HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) | NBR | ISO 12922 | 90223 | |
Important information on hydraulic fluids:
| |||||
| 1) | Not recommended for corrosion-protected version "J3" (contains zinc) |
(dimensions in mm)
Dimensions in mm
1 | Name plate |
2 | Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8)
|
3 | Adjustment type "3" |
4 | Adjustment type "7" |
5 | 4 through holes for valve mounting |
6 | Identical seal rings for ports A, B, P, TA, TB |
7 | R-ring plate |
8 | Modification from supply to discharge throttling is realized by rotation of the device around axis "X" – "X" (version "–" only) |
9 | Space required to remove the key |
10 | Porting pattern according to ISO 4401-05-04-0-05 |
11 | Version "J" |
(dimensions in mm)
Dimensions in mm
1 | Name plate |
2 | Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8)
|
3 | Adjustment type "3" |
4 | Adjustment type "7" |
5 | 4 through holes for valve mounting |
6 | Identical seal rings for ports A, B, P, TA, TB |
7 | R-ring plate |
9 | Space required to remove the key |
10 | Porting pattern according to ISO 4401-05-04-0-05 |
11 | Version "J" |
(dimensions in mm)
Dimensions in mm
1 | Name plate |
2 | Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8)
|
3 | Adjustment type "3" |
4 | Adjustment type "7" |
5 | 4 through holes for valve mounting |
6 | Identical seal rings for ports A, B, P, TA, TB |
7 | R-ring plate |
9 | Space required to remove the key |
10 | Porting pattern according to ISO 4401-05-04-0-05 |
11 | Version "J" |
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet.
The dimensions are nominal dimensions which are subject to tolerances.
Version "SO30" is shown. The standard version does not have ports X and Y.
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
4 hexagon socket head cap screws 1/4-2 UNC
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Dimensions in mm
Dimensions in mm
