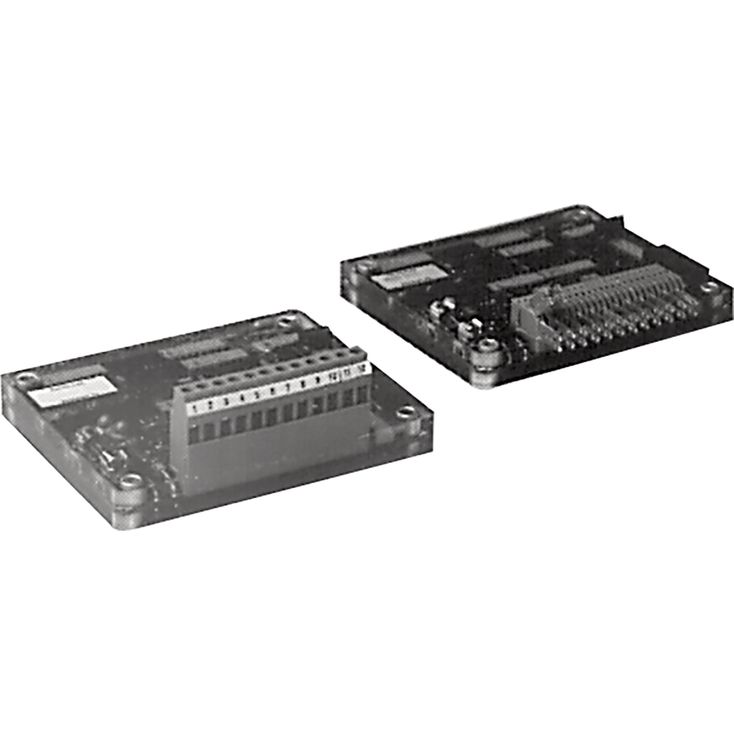

MDSD

元件系列2X。
供电电压范围宽，为10–28 VDC。
PWM频率可在75–275 Hz之间调节。

01	02	03		04		05	06	07	08
MDSD	1		\u2012	2X	/				*

01	Mobile dual valve control module	MDSD
Electrical dead band
02	+/\u2013 10% neutral dead band, for joysticks	no code
02	No dead band (for other applications) ¹⁾	1
Connector
03	Flat connector (standard)	no code
	Screw terminals	K
	Exposed lines	L
Design series
04	Series 20 to 29	20 to 29
Ramp type
05	Solenoid ramp A/B	no code
05	Ramp up/down	W
Ramp type
06	0.2 \u2012 10 sec.	no code
	1.2 \u2012 60 sec.	R60
	2.4 \u2012 120 sec.	R120
Adjustment options for MDSD-2X/
07	All other models	0
07	See default settings	1, 2, 3, 4
08	Further details in the plain text	*

¹⁾	Minimum connections P5, P6 allow for a setting for the removal of spool overlaps at cards of type MDSD 1.
	Only valid for MDSD\u20132X/1, MDSD\u20132X/2, MDSD\u20132X/3 and MDSD\u20132X/4.

(如需在规定数值以外的工况下使用，请联系我们！)

Power supply		VDC	10 \u2026 28
Power requirement		W	P = I²_max * R_SOL *1.2 (See valve or pump data sheet for max. solenoid current and hot solenoid resistance)
Supply current		Amp	I = P/V_DC
Ramp time	Standard	s	0,2 \u2026 10
	R60	s	1,2 \u2026 60
	R120	s	2,4 \u2026 120
Control potentiometer		kΩ	1 \u2026 10
Impulse frequency	P7	Hz	75 \u2026 275
Fuse \u2013 M5 x 20 mm, quick-switching		A	4
Ambient temperature		°C	-25 \u2026 \u200b80
Weight		kg	0.163

Dimensions in mm

Dimensions in mm

Dimensions in mm

The line types are 18 AWG UL 1429 or similar, PVC cross-linked by irradiation

Typical terminal types

Connector according to DIN 46249

Suitable for socket connectors 6,35 mm and 2.794 mm
