结构紧凑、坚固。
直接安装于Hägglunds马达。
结构紧凑、坚固。
直接安装于Hägglunds马达。
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 1) | 06 1) |
VQC | B | 800 |

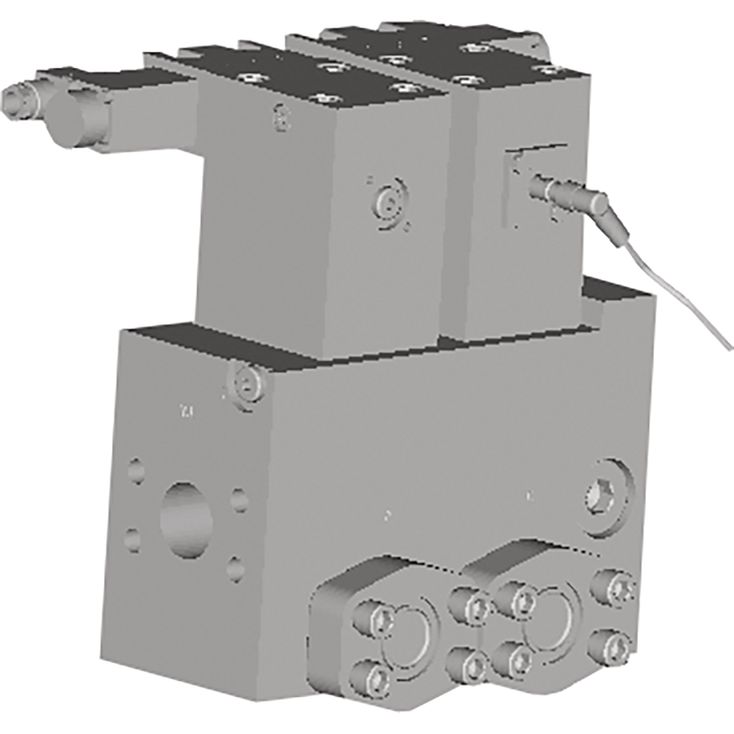

01 | Hydraulic quick stop valve VQC | VQC |
02 | Version | B |
Nominal flow | ||
03 | 800 l/min | 800 |
Control voltage | ||
04 | Standard 24 VDC | 1 |
110 VAC (not in combination with QEC) | 2 | |
Modification | ||
05 1) | 0 ... 9 | |
Design | ||
06 1) | Standard | 00 |
Special index (Customer specific adaption) | 01 ... 99 | |
| 1) | To be filled in by Bosch Rexroth AB, Mellansel. |
Maximum operating pressure | bar | 350 |
Pilot pressure | bar | \u200b7 ... 350 |
Maximum flow | l/min | 800 |
Pilot valve interface | NG6 | |
Temperature range | °C | -25 \u2026 +70 |
Viscosity range | mm²/s | 20 \u2026 380 |
Weight | kg | 57 |
Position | Description | Pcs |
1 | Solenoid valve | 2 |
2 | Inductive sensor | 1 |
3 | O-ring 40.87x3.53 NBR90 | 4 |
4 | Screw ASME B18.3-1/2-13UNC-2AX6 1/2 | 8 |
5 | Protective cover | 2 |
6 | Valve | 1 |
采用 Hägglunds 液压辊磨机传动。
概述
橡胶辊磨机为手动操作，因此轧辊的停止时间至关重要。
轧辊停止过程可按以下方法计算：
φ | Stop angle | ° |
n | Speed | rpm |
Jmachine | Moment of inertia machine | kg\u2022m2 |
Jmotor | Moment of inertia motor | kg\u2022m2 |
Ts | Specific torque | Nm/bar |
Δp | Pressure over motor | bar |
ts | Response time hydraulic valve | s |
φ = (π\u2022 n 2 \u2022(J machine + J motor )/(10 \u2022 Ts \u2022 Δp)) + 6 \u2022 n \u2022ts
示例：
CB400 在橡胶辊磨机中的典型应用
n = 15 rpm
J machine = 350 kgm 2
J motor = 18.3 kgm 2
φ = (π\u202215 2 \u2022(350+18.3)/(10\u2022400\u2022350))+6\u202215\u20220.15=13.7°
| |
Wrong polarity Wrong polarity will destroy the transient supressor
|
Supply voltage | VDC | 24 |
Power consumption | W | 30 |
Electric contact | DIN 43650 |
用于电气动作指示的触点，内置瞬态抑制器和指示灯。
Supply voltage | Ub | VDC | 10 \u2026 30 |
Rated operational voltage | Ue | VDC | 24 |
Voltage drop Ud at le | Ud | V | ≤ 2.5 |
Rated operational current | le | mA | 200 |
IEC 60529 protection | IP | IP68 | |
Connection | M12x1 | L=3 m |
尺寸单位为 mm
A | mm | 30 |
B | M12x1 | |
C | mm | 56 |
L | m | 3 |
1 | Brown (1) |
2 | Black (4) |
3 | Blue (3) |
Dimensions in mm
1 | Not painted area |
Position | Type of connection | Dimensions |
A | OUT | SAE 1 1/2\u201c |
B | A, A1, C, C1 | SAE 1 1/4\u201c |
C | T | G 1/4\u201c |
D | Thread | 5/8\u201c UNC depth 32 mm |
E | INL | SAE 1 1/2\u201c |
