Compact and robust design
Mounted directly on Hägglunds motors
Availability: | |
---|---|
Quantity: | |
Compact and robust design
Mounted directly on Hägglunds motors
Compact and robust design
Mounted directly on Hägglunds motors
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 1) | 06 1) |
VQC | B | 800 |

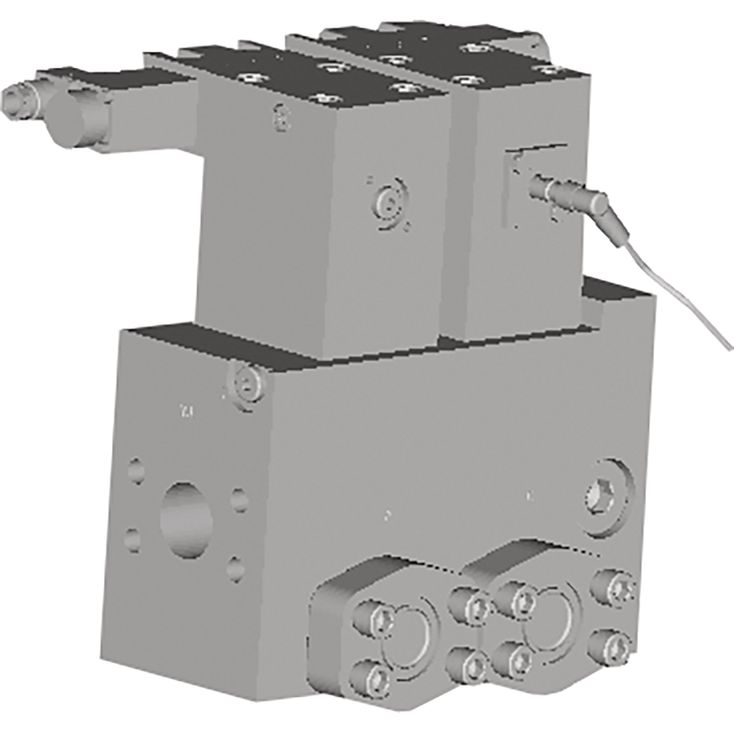

01 | Hydraulic quick stop valve VQC | VQC |
02 | Version | B |
Nominal flow | ||
03 | 800 l/min | 800 |
Control voltage | ||
04 | Standard 24 VDC | 1 |
110 VAC (not in combination with QEC) | 2 | |
Modification | ||
05 1) | 0 ... 9 | |
Design | ||
06 1) | Standard | 00 |
Special index (Customer specific adaption) | 01 ... 99 |
1) | To be filled in by Bosch Rexroth AB, Mellansel. |
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 1) | 06 1) |
VQC | B | 800 |
01 | Hydraulic quick stop valve VQC | VQC |
02 | Version | B |
Nominal flow | ||
03 | 800 l/min | 800 |
Control voltage | ||
04 | Standard 24 VDC | 1 |
110 VAC (not in combination with QEC) | 2 | |
Modification | ||
05 1) | 0 ... 9 | |
Design | ||
06 1) | Standard | 00 |
Special index (Customer specific adaption) | 01 ... 99 |
1) | To be filled in by Bosch Rexroth AB, Mellansel. |
Maximum operating pressure | bar | 350 |
Pilot pressure | bar | \u200b7 ... 350 |
Maximum flow | l/min | 800 |
Pilot valve interface | NG6 | |
Temperature range | °C | -25 \u2026 +70 |
Viscosity range | mm²/s | 20 \u2026 380 |
Weight | kg | 57 |
Position | Description | Pcs |
1 | Solenoid valve | 2 |
2 | Inductive sensor | 1 |
3 | O-ring 40.87x3.53 NBR90 | 4 |
4 | Screw ASME B18.3-1/2-13UNC-2AX6 1/2 | 8 |
5 | Protective cover | 2 |
6 | Valve | 1 |
With Hägglunds hydraulic roll mill drive.
General
As the rubber roll mills are manually operated the time to stop the rolles is of utmost importance.
Stopping of the roll can be calculated according to following:
φ | Stop angle | ° |
n | Speed | rpm |
Jmachine | Moment of inertia machine | kg\u2022m2 |
Jmotor | Moment of inertia motor | kg\u2022m2 |
Ts | Specific torque | Nm/bar |
Δp | Pressure over motor | bar |
ts | Response time hydraulic valve | s |
φ = (π\u2022 n2 \u2022(Jmachine + Jmotor)/(10 \u2022 Ts \u2022 Δp)) + 6 \u2022 n \u2022ts
Example:
CB400 typical application for a rubber roll mill
n = 15 rpm
Jmachine = 350 kgm2
Jmotor = 18.3 kgm2
φ = (π\u2022152\u2022(350+18.3)/(10\u2022400\u2022350))+6\u202215\u20220.15=13.7°
|
Wrong polarity Wrong polarity will destroy the transient supressor
|
Supply voltage | VDC | 24 |
Power consumption | W | 30 |
Electric contact | DIN 43650 |
Contact with built-in transient supressor and indicator for electrical activation.
Supply voltage | Ub | VDC | 10 \u2026 30 |
Rated operational voltage | Ue | VDC | 24 |
Voltage drop Ud at le | Ud | V | ≤ 2.5 |
Rated operational current | le | mA | 200 |
IEC 60529 protection | IP | IP68 | |
Connection | M12x1 | L=3 m |
Dimensions in mm
A | mm | 30 |
B | M12x1 | |
C | mm | 56 |
L | m | 3 |
1 | Brown (1) |
2 | Black (4) |
3 | Blue (3) |
Maximum operating pressure | bar | 350 |
Pilot pressure | bar | \u200b7 ... 350 |
Maximum flow | l/min | 800 |
Pilot valve interface | NG6 | |
Temperature range | °C | -25 \u2026 +70 |
Viscosity range | mm²/s | 20 \u2026 380 |
Weight | kg | 57 |
Position | Description | Pcs |
1 | Solenoid valve | 2 |
2 | Inductive sensor | 1 |
3 | O-ring 40.87x3.53 NBR90 | 4 |
4 | Screw ASME B18.3-1/2-13UNC-2AX6 1/2 | 8 |
5 | Protective cover | 2 |
6 | Valve | 1 |
With Hägglunds hydraulic roll mill drive.
General
As the rubber roll mills are manually operated the time to stop the rolles is of utmost importance.
Stopping of the roll can be calculated according to following:
φ | Stop angle | ° |
n | Speed | rpm |
Jmachine | Moment of inertia machine | kg\u2022m2 |
Jmotor | Moment of inertia motor | kg\u2022m2 |
Ts | Specific torque | Nm/bar |
Δp | Pressure over motor | bar |
ts | Response time hydraulic valve | s |
φ = (π\u2022 n2 \u2022(Jmachine + Jmotor)/(10 \u2022 Ts \u2022 Δp)) + 6 \u2022 n \u2022ts
Example:
CB400 typical application for a rubber roll mill
n = 15 rpm
Jmachine = 350 kgm2
Jmotor = 18.3 kgm2
φ = (π\u2022152\u2022(350+18.3)/(10\u2022400\u2022350))+6\u202215\u20220.15=13.7°
|
Wrong polarity Wrong polarity will destroy the transient supressor
|
Supply voltage | VDC | 24 |
Power consumption | W | 30 |
Electric contact | DIN 43650 |
Contact with built-in transient supressor and indicator for electrical activation.
Supply voltage | Ub | VDC | 10 \u2026 30 |
Rated operational voltage | Ue | VDC | 24 |
Voltage drop Ud at le | Ud | V | ≤ 2.5 |
Rated operational current | le | mA | 200 |
IEC 60529 protection | IP | IP68 | |
Connection | M12x1 | L=3 m |
Dimensions in mm
A | mm | 30 |
B | M12x1 | |
C | mm | 56 |
L | m | 3 |
1 | Brown (1) |
2 | Black (4) |
3 | Blue (3) |
Dimensions in mm
1 | Not painted area |
Position | Type of connection | Dimensions |
A | OUT | SAE 1 1/2\u201c |
B | A, A1, C, C1 | SAE 1 1/4\u201c |
C | T | G 1/4\u201c |
D | Thread | 5/8\u201c UNC depth 32 mm |
E | INL | SAE 1 1/2\u201c |
Dimensions in mm
1 | Not painted area |
Position | Type of connection | Dimensions |
A | OUT | SAE 1 1/2\u201c |
B | A, A1, C, C1 | SAE 1 1/4\u201c |
C | T | G 1/4\u201c |
D | Thread | 5/8\u201c UNC depth 32 mm |
E | INL | SAE 1 1/2\u201c |
