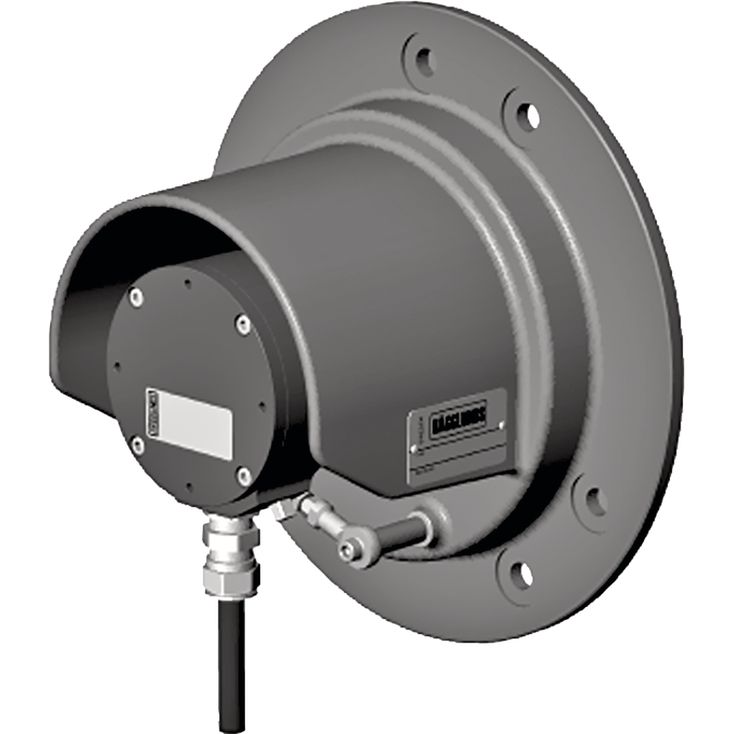

通过ATEX／IECEx认证。
每转1000或3600个脉冲，可实现良好的转速控制。
可从传感器读取旋转方向。
传感器带零位脉冲。
防护等级IP65。
可选带接线盒的电缆套件，以简化连接。
通过ATEX／IECEx认证。
每转1000或3600个脉冲，可实现良好的转速控制。
可从传感器读取旋转方向。
传感器带零位脉冲。
防护等级IP65。
可选带接线盒的电缆套件，以简化连接。
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
Speed sensor with mounting set replaces former SPDB2 + SMCB2 or SMCB3
01 | 02 | 03 | 04 | 05 | 06 1) | 07 1) |
SPD | B | 2 |
01 | Speed sensor | SPD |
02 | Type / Version | B |
Type of sensor | ||
03 | Explosion proof | 2 |
Pulse rate | ||
04 | 1000 puls/rev | 1000 |
3600 puls/rev | 3600 | |
Mounting set for motor type | ||
05 | CA | 2 |
CB, CBP | 3 | |
CBM | 4 | |
Modification 1) | ||
06 | 0 ... 9 | |
Design | ||
07 | Standard | 00 |
Special index 1) | 01 ... 99 | |
| 1) | To be filled in by Bosch Rexroth AB, Mellansel. |
Supply voltage +Ub | 24 VDC (9 ... 30 V) Polarity protected | ||
Current consumption at no-load | 60 mA @ 24V Max 80 mA | ||
Pulses per revolution | 1000, 3600 ppr | ||
Accuracy | Dividing error | ± 50° el | |
Channel separation | 90° ± 25° el | ||
Outputs | Push-pull, Short circuit protected | ||
Max Load | mA | ± 40 | |
Max cable length | m | 350 | |
Uhigh (at 10 mA load) | V | > +Ub -4.0 | |
Ulow (at 10 mA load) | V | < 2.5 | |
Connection | Screw terminals | ||
Shaft, Stainless steel - Hollow-shaft ⌀ | mm | 16 |
Housing | Aluminium, anodized | |
Code disc | Glass | |
Gland opening | M20 | |
Protection class according to IEC 529 | IP 65 | |
Operating temperature | °C | -20 \u2026 +70 |
Storage temperature | °C | -25 \u2026 +80 |
ATEX | II 2 GD Ex d IIC T5 Ex tD A21 IP65 |
IECEx | Ex d IIC T5 Ex tD A21 IP65 T95°C |
1 | Zero pulse: |
2 | Grounding point |
1 | Clockwise, seen from motor shaft side |
2 | 360° el. (1 period) |
3 | 90° el. (channel separation) |
Terminal | |
1 | Supply +Ub |
2 | 0VDC |
3 | Output signal 0 |
4 | Output signal 0 inverse |
5 | Output signal 1 |
6 | Output signal 1 inverse |
7 | Output signal 2 |
8 | Output signal 2 inverse |
Earth connection outside housing | Grounding point |
Dimensions in mm
1 | Example contour for CB motor |
2 | Total length see dimension drawing for each motor type |
For motor type | A |
mm | |
| CA 50 to CA 210 | 128.5 |
| CB 280 to CB 1120 | 142 |
| CBP 280 to CBP 840 | 154 |
| CBM 2000 to CBM 6000 | 142 |
