ATEX/IECEx approved
1000 and 3600 pulses per revolution for good speed control possibility
Possibility to read directions of rotation from sensor
Sensor is equipped with zero pulse
Protection class IP65
Optional cable set with junction box to simplify connection
ATEX/IECEx approved
1000 and 3600 pulses per revolution for good speed control possibility
Possibility to read directions of rotation from sensor
Sensor is equipped with zero pulse
Protection class IP65
Optional cable set with junction box to simplify connection
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.

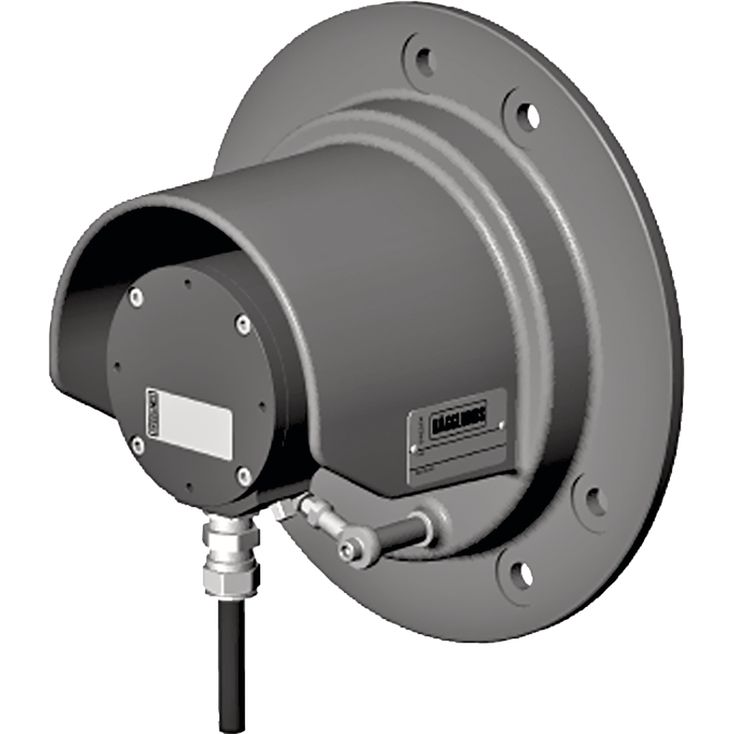

Speed sensor with mounting set replaces former SPDB2 + SMCB2 or SMCB3
01 | 02 | 03 | 04 | 05 | 06 1) | 07 1) |
SPD | B | 2 |
01 | Speed sensor | SPD |
02 | Type / Version | B |
Type of sensor | ||
03 | Explosion proof | 2 |
Pulse rate | ||
04 | 1000 puls/rev | 1000 |
3600 puls/rev | 3600 | |
Mounting set for motor type | ||
05 | CA | 2 |
CB, CBP | 3 | |
CBM | 4 | |
Modification 1) | ||
06 | 0 ... 9 | |
Design | ||
07 | Standard | 00 |
Special index 1) | 01 ... 99 | |
| 1) | To be filled in by Bosch Rexroth AB, Mellansel. |
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
Speed sensor with mounting set replaces former SPDB2 + SMCB2 or SMCB3
01 | 02 | 03 | 04 | 05 | 06 1) | 07 1) |
SPD | B | 2 |
01 | Speed sensor | SPD |
02 | Type / Version | B |
Type of sensor | ||
03 | Explosion proof | 2 |
Pulse rate | ||
04 | 1000 puls/rev | 1000 |
3600 puls/rev | 3600 | |
Mounting set for motor type | ||
05 | CA | 2 |
CB, CBP | 3 | |
CBM | 4 | |
Modification 1) | ||
06 | 0 ... 9 | |
Design | ||
07 | Standard | 00 |
Special index 1) | 01 ... 99 | |
| 1) | To be filled in by Bosch Rexroth AB, Mellansel. |
Supply voltage +Ub | 24 VDC (9 ... 30 V) Polarity protected | ||
Current consumption at no-load | 60 mA @ 24V Max 80 mA | ||
Pulses per revolution | 1000, 3600 ppr | ||
Accuracy | Dividing error | ± 50° el | |
Channel separation | 90° ± 25° el | ||
Outputs | Push-pull, Short circuit protected | ||
Max Load | mA | ± 40 | |
Max cable length | m | 350 | |
Uhigh (at 10 mA load) | V | > +Ub -4.0 | |
Ulow (at 10 mA load) | V | < 2.5 | |
Connection | Screw terminals | ||
Shaft, Stainless steel - Hollow-shaft ⌀ | mm | 16 |
Housing | Aluminium, anodized | |
Code disc | Glass | |
Gland opening | M20 | |
Protection class according to IEC 529 | IP 65 | |
Operating temperature | °C | -20 \u2026 +70 |
Storage temperature | °C | -25 \u2026 +80 |
ATEX | II 2 GD Ex d IIC T5 Ex tD A21 IP65 |
IECEx | Ex d IIC T5 Ex tD A21 IP65 T95°C |
1 | Zero pulse: |
2 | Grounding point |
1 | Clockwise, seen from motor shaft side |
2 | 360° el. (1 period) |
3 | 90° el. (channel separation) |
Terminal | |
1 | Supply +Ub |
2 | 0VDC |
3 | Output signal 0 |
4 | Output signal 0 inverse |
5 | Output signal 1 |
6 | Output signal 1 inverse |
7 | Output signal 2 |
8 | Output signal 2 inverse |
Earth connection outside housing | Grounding point |
Supply voltage +Ub | 24 VDC (9 ... 30 V) Polarity protected | ||
Current consumption at no-load | 60 mA @ 24V Max 80 mA | ||
Pulses per revolution | 1000, 3600 ppr | ||
Accuracy | Dividing error | ± 50° el | |
Channel separation | 90° ± 25° el | ||
Outputs | Push-pull, Short circuit protected | ||
Max Load | mA | ± 40 | |
Max cable length | m | 350 | |
Uhigh (at 10 mA load) | V | > +Ub -4.0 | |
Ulow (at 10 mA load) | V | < 2.5 | |
Connection | Screw terminals | ||
Shaft, Stainless steel - Hollow-shaft ⌀ | mm | 16 |
Housing | Aluminium, anodized | |
Code disc | Glass | |
Gland opening | M20 | |
Protection class according to IEC 529 | IP 65 | |
Operating temperature | °C | -20 \u2026 +70 |
Storage temperature | °C | -25 \u2026 +80 |
ATEX | II 2 GD Ex d IIC T5 Ex tD A21 IP65 |
IECEx | Ex d IIC T5 Ex tD A21 IP65 T95°C |
1 | Zero pulse: |
2 | Grounding point |
1 | Clockwise, seen from motor shaft side |
2 | 360° el. (1 period) |
3 | 90° el. (channel separation) |
Terminal | |
1 | Supply +Ub |
2 | 0VDC |
3 | Output signal 0 |
4 | Output signal 0 inverse |
5 | Output signal 1 |
6 | Output signal 1 inverse |
7 | Output signal 2 |
8 | Output signal 2 inverse |
Earth connection outside housing | Grounding point |
Dimensions in mm
1 | Example contour for CB motor |
2 | Total length see dimension drawing for each motor type |
For motor type | A |
mm | |
| CA 50 to CA 210 | 128.5 |
| CB 280 to CB 1120 | 142 |
| CBP 280 to CBP 840 | 154 |
| CBM 2000 to CBM 6000 | 142 |
Dimensions in mm
1 | Example contour for CB motor |
2 | Total length see dimension drawing for each motor type |
For motor type | A |
mm | |
| CA 50 to CA 210 | 128.5 |
| CB 280 to CB 1120 | 142 |
| CBP 280 to CBP 840 | 154 |
| CBM 2000 to CBM 6000 | 142 |
Warning signs
In this manual you will find the following signs which indicate a potential hazard, which can or will cause personal injury or substantial property damage. Depending on the probability if the hazard, and how serious the injury or property damage could be, there are three levels if classification.
Warning sign (warning triangle) | Draws attention to the hazard |
Signal word | Identifies the degree of hazard |
Type of risk | Specifies the type or source of the hazard |
Consequences | Describes the consequences of non-compliance |
Precautions | Specifies how the hazard can be prevented |
Warning sign, signal word | Meaning |
 | Indicates a dangerous situation which will cause death or severe personal injuries if not avoided. |
 | Indicates a dangerous situation which may cause death or severe personal injuries if not avoided. |
 | Indicates a dangerous situation which may cause minor or medium personal injuries if not avoided. |
 | Material damage: the product or its environment could be damaged. |
Warning signs
In this manual you will find the following signs which indicate a potential hazard, which can or will cause personal injury or substantial property damage. Depending on the probability if the hazard, and how serious the injury or property damage could be, there are three levels if classification.
Warning sign (warning triangle) | Draws attention to the hazard |
Signal word | Identifies the degree of hazard |
Type of risk | Specifies the type or source of the hazard |
Consequences | Describes the consequences of non-compliance |
Precautions | Specifies how the hazard can be prevented |
Warning sign, signal word | Meaning |
| | Indicates a dangerous situation which will cause death or severe personal injuries if not avoided. |
| | Indicates a dangerous situation which may cause death or severe personal injuries if not avoided. |
| | Indicates a dangerous situation which may cause minor or medium personal injuries if not avoided. |
| | Material damage: the product or its environment could be damaged. |
