性能等级PL d。
安全完整性等级SIL 2。
性能等级PL d。
安全完整性等级SIL 2。
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 |
QEC | B |

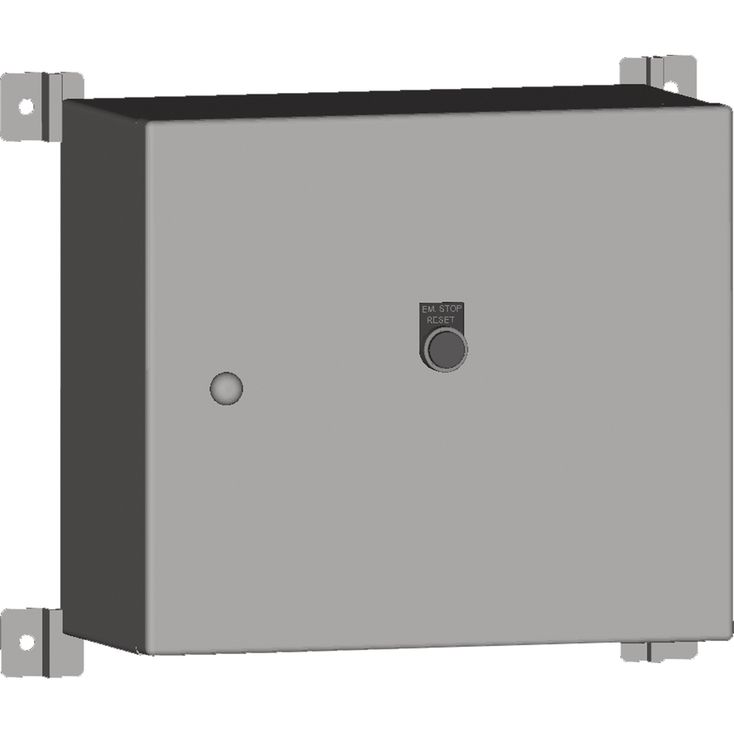

01 | Quickstop electronic control | QEC |
02 | Version | B |
Main voltage | ||
03 | 100 / 200 VAC | 1 |
115 / 230 VAC | 2 | |
F5 | F6 | |||||||||||||||||||||||||
9 | 11 | 802 | 804 | 808 | 814 | 816 | 818 | 828 | 852 | 854 | 855 | 864 | 898 | 902 | 904 | 906 | 908 | F3 | F4 | F1 | F2 | |||||
10 | 12 | 801 | 803 | 807 | 813 | 815 | 817 | 827 | 851 | 853 | 855 | 863 | 897 | 901 | 903 | 905 | 907 | 404 | 410 | L | N | PE | ||||
Fuse | Function | Comment |
F1 | Main supply Line | 2A Slow blow |
F2 | Main supply Neutral | |
F3 | Quick stop actuator supply | 315mA Slow blow |
F4 | 24VDC supply | 8A Slow blow |
F5 | Stop valve supply | 4A Slow blow |
F6 | Bypass valve supply |
Pin | Function | Comment | |
9 | Supply voltage for Mains VAC water valve | Neutral | |
10 | Line | ||
11 | Supply voltage for 24 VDC water valve | 0VDC | |
12 | +24VDC out | ||
801 | Input electric motor(s) started | +24VDC in | |
802 | not used | ||
803 | Output quick stop indication (open at quick stop) | Indication contact | |
804 | |||
807 | Input drive started | +24VDC in | |
808 | Input 0VDC | (For #801 & 807) | |
813 | Inductive sensor master stop valve (jumper #813 to 815 if not used) | Reset signal out (+V to sensor) | |
814 | 0VDC | ||
815 | | Reset signal in from sensor | |
816 | Inductive sensor slave stop valve (jumper #816 to 818 if not used) | Reset signal out (+V to sensor) | |
817 | 0VDC | ||
818 | Reset signal in from sensor | ||
827 | Quick stop actuator 1 | ||
828 | | ||
851 | Quick stop actuator 2 | Factory jumpered | |
852 | | ||
853 | Quick stop actuator 3 | Factory jumpered | |
854 | | ||
855 | Quick stop actuator 4 | Factory jumpered | |
856 | |||
863 | External reset | ||
864 | |||
897 | Quick stop active (open at quick stop) | Safety contact | |
898 | |||
901 | Master stop valve solenoid | +24VDC out | |
902 | 0VDC | ||
903 | Master bypass valve solenoid | +24VDC out | |
904 | 0VDC | ||
905 | Slave stop valve solenoid | +24VDC | |
906 | 0VDC | ||
907 | Slave bypass valve solenoid | +24VDC out | |
908 | 0VDC | ||
404 | Supply for internal use | 0VDC | |
410 | +24VDC | ||
L | Main supply input | Line | |
N | Neutral | ||
PE | Protective earth | ||
Supply voltage | 100/200VAC or 115/230VAC (see order code) | ||
Temp area | °C | -20 \u2026 +50 | |
Protection | IP65 | ||
Max Load | Valve outputs | 2A each | |
Indication outputs | A | 1 | |
Water valve outputs | A | 2 | |
Safety | PLd or SIL2 | ||
Dimensions in mm
