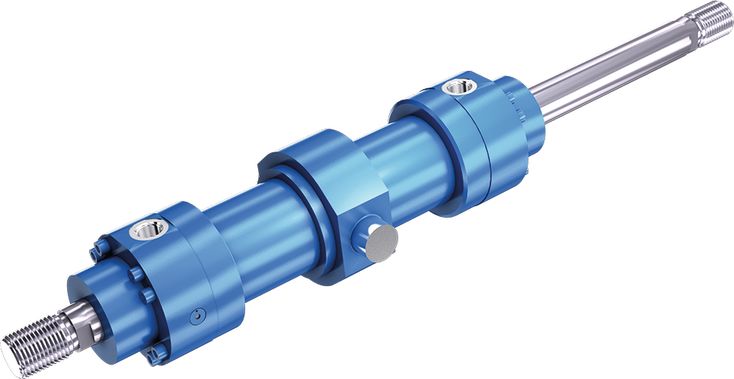

CGH3

H3系列。
元件系列3X。
额定压力350 bar。
活塞直径40…320 mm。
活塞杆直径28…220 mm。
行程长度可达6000 mm。

数量：
库存状态：





询价加入询价篮

三种安装方式。
自适应及可调式行程终端缓冲。

Ordering code

01	02	03		04		05		06	07	08		09	10	11	12	13	14	15	16
CG	H3		/		/		/		A	3X	/

01	Double-acting cylinder¹⁸⁾		CG
02	Series		H3
Types of mounting
03	Round flange at the cylinder head		MF3
	Trunnion		MT4²⁾
	Foot mounting		MS2
04	Piston Ø (ØAL) 40 \u2026 320 mm		...
05	Piston rod Ø (ØMM) 28 \u2026 220 mm		...
06	Stroke length in mm³⁾		...
Design principle
07	Head and base flanged		A
08	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)		3X
Line connection / version
09	According to ISO 1179-1 (pipe thread ISO 228-1)		B
	According to ISO 9974-1 (metric thread ISO 261)		M
	Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI)		D²⁵⁾
	Flange connection according to ISO 6164 tab. 2		H
	according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange		C³¹⁾
Line connection/position at cylinder head
10	View to piston rod³⁰⁾		1
			2
			3
			4
Line connection/position at cylinder base
11	View to piston rod³⁰⁾		1
			2
			3
			4
Piston rod design
12	Hard chromium-plated		C
12	Hardened and hard chromium-plated		H²⁴⁾
Piston rod end
13	Thread for swivel head CGKD		H
	Thread for swivel head CGA, CGAK, plain clevis CSA		G²⁶⁾
	With mounted swivel head CGAS		S^{17; 26)}
	With mounted swivel head CGA		L^{17; 26)}
	With mounted swivel head CGAK		M^{17; 26)}
	With mounted plain clevis CSA		N^{1; 17)}
End position cushioning
14	Without end position cushioning		U
	Both sides, self-adjusting		D¹⁾
	Both sides, adjustable		E
Seal design
15	For mineral oil HL, HLP and oil-in-water emulsion HFA	Standard seal system	M
		Standard seal system with guide rings	L
		Reduced friction heavy industry	R
	For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC	Standard seal system HFC	G
		Servo quality/reduced friction	T
		Chevron seal kits	A
	For HDFR phosphate ester and HFDU polyol ester	Servo quality/reduced friction	S
		Standard seal system FKM	V
		Chevron seal kits	B
Option
16	Additional options, fill fields for additional options		Z
16	Without additional options, do not fill fields for additional options		W

		Fields for additional options
		17	18	19	20	21
	Z						-P³⁸⁾
17	Inductive proximity switches without mating connector - separate order						E³⁷⁾
17	Without inductive proximity switches						W
18	Additional guide rings						F^{10; 28)}
18	Without additional guide rings						W
19	Measuring coupling, on both sides						A
19	Without measuring coupling						W
20	Spherical bearing, maintenance-free						A
	Flanged grease nipple						B
	Standard conical grease nipple						W
21	Piston rod extension \u201cLY\u201d, specify in mm in plain text						Y¹⁶⁾
21	Without piston rod extension						W

¹⁾	Only piston Ø 40 \u2026 200 mm
²⁾	Trunnion position freely selectable. When ordering, always specify the "XV" dimensions in the plain text in mm
³⁾	For max. available stroke length see Technical data and for admissible stroke length (according to the kinking calculation) see Project planning information.
⁹⁾	Only piston Ø 80 \u2026 320 mm
¹⁰⁾	Seal designs A, B not possible; piston Ø 220 \u2026 320 mm standard
¹⁴⁾	Not possible with piston rod end "N"
¹⁶⁾	Only at left piston rod side (orientation: see figures Dimensions)
¹⁷⁾	Only one swivel head/plain clevis mounted, left piston rod side (orientation: see figures Accessories)
¹⁸⁾	Not standardized
²⁴⁾	Only piston rod Ø 28 \u2026 140 mm
²⁵⁾	Only piston Ø 63 \u2026 320 mm
²⁶⁾	Only piston Ø 40 \u2026 250 mm
²⁷⁾	Maximum operatign pressure 315 bar
²⁸⁾	With seal design "L" standard
³⁰⁾	All graphical representations in the data sheet show position 1
³¹⁾	With MS2, only position 11 is possible
³³⁾	Version does not comply with ISO 6022
³⁷⁾	Min. stroke length = 20 mm
³⁸⁾	Marks order-relevant information which cannot be represented in the ordering code. These must be specified for each order.

	Order example:
	Without additional options:
	CGH3MF3/100/56/300A3X/B11CADMW
	With additional options:
	CGHMF3/100/56/300A3X/B11CADMZ EWABW
	With order-relevant information:
	CGH3MF3/100/56/300A3X/B11CADMW-P
	CGHMF3/100/56/300A3X/B11CADMZ EWABW-P

一般

Installation position		any
Primer coat		Gentian blue (RAL 5010)
Minimum layer thickness of the priming ¹⁾	µm	40

¹⁾

Other colors upon request. With cylinders and attachment parts, the following surfaces are not primed or painted:
▶ All fit diameters to the customer\u2019s side
▶ Sealing surfaces for line connection
▶ Sealing surfaces for flange connection
▶ Mounting surface for valve mounting
▶ Inductive proximity switches
▶ Position measurement system
The unpainted surfaces are protected using a corrosion protection agent which is free from solvents.

液压

Nominal pressure ¹⁾	bar	350
Minimum operating pressure (without load) ²⁾	bar	10
Static test pressure	bar	525
Reduced test pressure	bar	315
Operating viscosity range	mm²/s	12 \u2026 380
Optimum viscosity at operating temperature	mm²/s	20 \u2026 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) ³⁾		Class 20/18/15 according to ISO 4406 (c)
Bleeding		By default secured against screwing out

¹⁾	Higher operating pressures upon request. The specified operating pressures apply to applications with shock-free operation with reference to excess pressure and/or external loads. With extreme loads like e. g. high sequence cycle, mounting elements and threaded piston rod connections must be designed for durability.
²⁾	Depending on the application, a certain minimum pressure is required in order to guarantee good functioning of the cylinder. Without load, a minimum pressure of 10 bar is recommended for differential cylinders; for lower pressures as well as double-acting cylinders, please contact us.
³⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid¹⁾	Classification	Suitable sealing materials	Standards
Mineral oils	HL, HLP	FKM, NBR	DIN 51524
Oil-in-water emulsion	HFA	FKM, NBR	ISO 12922
Water glycol	HFC	upon request
Phosphate ester	HFDR	FKM	ISO 12922
Polyol ester	HFDU	FKM	ISO 12922

¹⁾	For further information on hydraulic fluids refer to data sheet R.90223.

重量

Piston	Piston rod	with 0 mm stroke length
ØAL	ØMM	MF3	MT4	MS2
mm		kg	kg	kg
40	28 mm / -	12	12	10
50	36 mm / -	19	17	17
63	45 mm / -	37	35	36
80	56 mm / -	49	46	48
100	70 mm / -	80	79	81
125	90 mm / -	170	166	171
140	100 mm / -	236	233	236
160	110 mm / -	316	316	315
180	125 mm / -	456	455	473
200	140 mm / -	562	560	587
220	160 mm / -	753	671	690
250	180 mm / -	1057	972	948
280	200 mm / -	1224	1179	1135
320	220 mm / -	1431	1369	1369

密封件选择标准

	Work and environmental conditions	Seal versions
	Work and environmental conditions	M	G	V	L	A	B	T	R	S
Medium/temperature	Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C	++	++	++	++	++	++	++	++	++
	Medium HFA/operating temperature of medium +5 \u2026 +55 °C	+/\u2012	+/\u2012	+/-	+/-	+	+/\u2012	++	+/-	+/\u2012
	Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C	\u2012	++	\u2012	\u2012	+/\u2012	\u2012	++	\u2012	\u2012
	Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
	Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
	Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C¹⁾	++	+	+²⁾	++	++	+²⁾	+	++	++²⁾
	Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C	\u2012	\u2012	++	\u2012	\u2012	+	\u2012	\u2012	++
Function/velocity \u2026	Static holding function more than 10 minutes: Attention! Application- and temperature-dependent	++	+	+	+	++	++	+	+	+
	Static holding function short-time < 1 minute	++	++	++	++	++	++	++	++	++
	Robust application conditions: steel works, mining, thin ice	++	++	++	++	++	++	\u2012	++	\u2012
	Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes	\u2012	\u2012	\u2012	+/\u2012	\u2012	\u2012	++	+	++
	Cylinder velocity ≥ 0.001 m/s stick-slip behavior	++	+	+	++	\u2012	\u2012	++	++	++
	Cylinder velocity 0.01 \u2026 0.5 m/s³⁾	++	+	+	++	+	+	++	++	++
	Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s³⁾	\u2012	+/\u2012	+/\u2012	++	\u2012	\u2012	++	+	++
	Stroke length > 1.0 m	+/\u2012	++	++	++	++	++	++	++	++
	Standstill period (wear)	++	+/\u2012	+/\u2012	++	+/\u2012	\u2012	++	++	++
	Undissolved air in the oil⁴⁾	\u2012	+	+	+	\u2012	\u2012	+	+	+

	++ = very good + = good +/\u2013 = conditional, depending on the application parameters \u2013 = inappropriate General technical data in corresponding data sheets will remain valid! Generally, a medium temperature of approx. 40 °C is recommended. The specified values are to be regarded as guidelines; depending on the case of application, it may be necessary to check the suitability of the seal system.
¹⁾	Moreover, observe the corresponding medium temperature range
²⁾	Lower temperature limit \u201315 °C
³⁾	Standard line connections not designed for that velocity
⁴⁾	\u2012 = Seal is destroyed, + Seal is not directly destroyed, leakage may occur

行程速度

Piston Ø	Line connection	Maximum stroke velocity ¹⁾
mm		m/s
40	G1/2	0.31
50	G1/2	0.2031
63	G3/4	0.28
80	G3/4	0.18
100	G1	0.2
125	G1 1/4	0.2
140	G1 1/4	0.16
160	G1 1/2	0.18
180	G1 1/2	0.141
200	G1 1/2	0.1131
220	G1 1/2	0.09
250	G1 1/2	0.07
280	G1 1/2	0.06
320	G1 1/2	0.04

¹⁾

Please observe the guideline on max. stroke velocities (with recommended flow velocity of 5 m/s in the line connection) in the table. Higher stroke velocities upon request. If the extension velocity is considerably higher than the retraction velocity of the piston rod, drag-out losses of the medium may result. If necessary, please consult us.

使用寿命：

Rexroth 油缸符合工业应用的可靠性建议。在额定压力的 70 %、活塞杆不承受负载、最大速度 0.5 m/s 的条件下，连续空载运行可达到 ≥ 10,000,000 次往复行程，或活塞累计行程 3,000 km，故障率低于 5 %。

注意事项：

边界条件与应用条件：

必须确保运动轴线，以及液压缸和活塞杆安装点的机械对中。应避免活塞杆与活塞导向部位承受侧向力。必要时，应考虑液压缸（MP3/MP5 或 MT4）或活塞杆的自重。

必须注意活塞杆和/或液压缸的屈曲长度/屈曲载荷（见“屈曲”）。

必须遵守与密封件适用性及负载有关的最大允许行程速度，同时确保密封件与所用流体类型的特性相容（见“密封件”）。

运动至终端位置时，必须遵守最大允许速度/动能，并考虑外部载荷。危险：超压

液压缸在任何运行状态下，都必须遵守最大允许工作压力。应考虑环形面积与活塞面积之比所造成的压力增压，以及可能存在的节流部位。

应避免腐蚀性微细颗粒、蒸气、高温等有害环境影响，以及液压油的污染和劣化。

标准：

Bosch Rexroth 标准；活塞 Ø 和活塞杆 Ø 等主要尺寸符合 ISO 3320。

验收：

每个油缸均按 Bosch Rexroth 标准测试，并符合 ISO 10100: 2001。

安全说明：

液压缸的装配、调试和维护必须遵守操作说明 07100-B！

保养和维修必须由 Bosch Rexroth AG 或为此经过专门培训的人员执行。因非 Bosch Rexroth AG 执行的装配、维护或维修造成的损坏，不予保修。

液压缸检查清单：

若油缸的特性和/或应用参数偏离数据表所列数值，则只能按要求作为特殊型号提供。询价时，必须在液压缸检查清单（07200）中说明特性和/或应用参数的变化。

本清单不保证完整。如对介质相容性，或超出边界条件、应用条件的情况有疑问，请联系我们。

数据表中的所有图示均为示例，因此实际交付产品可能与图形不同。

项目规划软件 ICS（交互式目录系统）

ICS（交互式目录系统）是液压缸选型与项目规划辅助工具。它通过逻辑引导的型号代码查询，帮助机械和系统设计人员快速、可靠地找到合适的液压缸方案，使设计与项目规划工作更快捷高效。完成引导式产品选择后，用户即可快速、可靠地获得所选元件的准确技术参数，以及适用于各种常见 CAD 系统、采用相应文件格式的 2D 和 3D CAD 数据。

这使用户能够在降低成本的同时提升竞争力。

www.boschrexroth.com/ics

直径、面积、作用力和流量

Piston	Piston rod	Area ratio	Areas			Force at 350 bar			Flow at 0.1 m/s			Maximum available stroke length
Piston	Piston rod	Area ratio	Piston	Rod	Ring	Pressure	Differential	Traction	Off	Differential	On	Maximum available stroke length
ØAL	ØMM	φ A₁/A₃	A₁	A₂	A₃	F₁	F₂	F₃	q_V1	q_V2	q_V3
mm			cm²	cm²	cm²	kN	kN	kN	l/min	l/min	l/min	mm
40	28 mm / -	1.96	12.56	6.16	6.4	43.96 ¹⁾	21.56	22.4	7.5 ²⁾	3.7	3.8	2000
50	36 mm / -	2.08	19.63	10.18	9.45	68.71 ¹⁾	35.63	33.08	11.8 ²⁾	6.1	5.7	2000
63	45 mm / -	2.04	31.17	15.9	15.27	109.1 ¹⁾	55.65	53.45	18.7 ²⁾	9.5	9.2	2000
80	56 mm / -	1.96	50.26	24.63	25.63	175.91 ¹⁾	86.21	89.71	30.2 ²⁾	14.8	15.4	2000
100	70 mm / -	1.96	78.54	38.48	40.06	274.89 ¹⁾	134.68	140.21	47.1 ²⁾	23.1	24	3000
125	90 mm / -	2.08	122.72	63.62	59.1	429.52 ¹⁾	222.67	206.85	73.6 ²⁾	38.2	35.4	3000
140	100 mm / -	2.04	153.94	78.54	75.4	538.79 ¹⁾	274.89	263.9	92.4 ²⁾	47.1	45.3	3000
160	110 mm / -	1.9	201.06	95.06	106	703.71 ¹⁾	332.71	371	120.6 ²⁾	57	63.6	3000
180	125 mm / -	1.93	254.47	122.72	131.75	890.65 ¹⁾	429.52	461.13	152.7 ²⁾	73.6	79.1	3000
200	140 mm / -	1.96	314.16	153.96	160.2	1099.56 ¹⁾	538.86	560.7	188.5 ²⁾	92.4	96.1	3000
220	160 mm / -	2.12	380.1	201	179.1	1330.5 ¹⁾	703.7	626.8	228.1 ²⁾	120.7	107.4	6000
250	180 mm / -	2.08	490.8	254.4	236.4	1718.1 ¹⁾	890.6	827.4	294.5 ²⁾	152.7	141.8	6000
280	200 mm / -	2.04	615.7	314.1	301.6	2155.1 ¹⁾	1099.6	1055.6	369.4 ²⁾	188.5	180.9	6000
320	220 mm / -	1.9	804.2	380.1	424.2	2814.9 ¹⁾	1330.5	1484.4	482.5 ²⁾	228.1	254.4	6000

¹⁾	Theoretical static cylinder force (without consideration of the efficiency and admissible load for attachment parts such as swivel heads, plates, or valves, etc.)
²⁾	Stroke velocity

按 ISO 6020-1 的公差

Installation dimensions	WC	XC²⁾	XO²⁾	XS^{1; 2)}	XV²⁾	ZP²⁾
Mounting type	MF3	MP3	MP5	MS2	MT4	MF4
Stroke length in mm	Tolerances in mm						Stroke tolerances in mm
≤ 1.250	±2	±1,5	±1,5	±2	±2	±1,5	+2
> 1.250 \u2026 ≤ 3.150	±4	±3	±3	±4	±4	±3	+5
> 3.150 \u2026 ≤ 6.000	±8	±5	±5	±8	±8	±5	+8

¹⁾	Not standardized
²⁾	Including stroke length
³⁾	Stroke tolerances must not be added to the tolerances listed in this table.

安装方式 MF3：缸头圆形法兰

安装方式 MT4：耳轴

安装方式 MS2：底脚安装

排气/测量接头

所有油缸默认在缸头和缸底配备专利安全排气装置，以防意外旋出。

该接口可安装带单向阀的测量接头，用于测压或无污染排气。测量接头具有单向阀功能，因此也可在系统带压时连接。

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)

供货范围：测量接头 G1/4

MESSKUPPLUNG AB 20-11/K1 G1/4，配 NBR 密封圈

物料号 R900009090

MESSKUPPLUNG AB 20-11/K1V G1/4，配 FKM 密封圈

物料号 R900001264

接近开关

电感式接近开关用于可靠检测液压缸的终端位置。它通过输出信号，安全、精确地监控安全装置、锁定机构和/或其他机器功能的终端位置，是其中的重要元件。该接近开关耐压可达 500 bar，采用非接触式工作方式，因此无磨损。接近开关已在工厂设定，不得调整开关距离。接近开关锁紧螺母在工厂使用封蜡作了标记。带接近开关的型号在油缸两侧均配有接近开关。

接近开关技术参数

Function type			PNP normally open contact
Admissible pressure		bar	500
Operating voltage		V DC	10 ... 30
Operating voltage	including residual ripple	%	≤ 15
Voltage drop		V	≤ 1.5
Rated operating voltage		V DC	24
Rated operating current		mA	200
Idle current		mA	≤ 8
Residual current		μA	≤ 10
Repetition accuracy		%	≤ 5
Hysteresis		%	≤ 15
Ambient temperature range		°C	-25 \u2026 +80
Temperature drift		%	≤ 10
Switching frequency		Hz	1000
Protection class	active area		IP68	IP68 according to DIN 40050
Protection class	Proximity switch		IP67
Housing material			Material no. 1.4104

引脚分配

Type of mounting MF3: Round flange at the cylinder head

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	For piston Ø 160 ... 280 mm, 8 mounting bores For piston Ø 320 mm, 12 mounting bores

MF3: with seal design \u201cA\u201d, \u201cB\u201d and AL Ø 160 \u2026 320 mm

type of mounting MF3

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	X1	ØRD		WC	VD	NF	PK	A1	ZM	X	ØFB		ØFC		ØUC		α	WA	ØRA ⁷⁾	VE ⁷⁾	ØRA ⁸⁾	VE ⁸⁾
																						min.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm		mm		mm	mm	°	mm	mm	mm	mm	mm
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	43	95	e8	23	5	35	120	0	302	-	13.5	H13	120	js13	145	0 - 1	60	18	52	45	52	20
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	51.5	115	e8	20	5	40	120	0	300	-	13.5	H13	140	js13	165	0 - 1	60	18	70	47	70	19
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	67	150	e8	20	5	40	133	0	367	-	17.5	H13	180	js13	210	0 - 1	60	22	88	43	88	13
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	71.5	160	e8	20	5	50	146	0	394	-	17.5	H13	195	js13	230	0 - 1	60	22	98	53	98	15
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	90.5	200	e8	20	5	55	171	0	409	-	22	H13	230	js13	270	0 - 1	60	25	120	55	120	17
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	114	245	e8	25	5	70	205	0	545	-	26	H13	290	js13	335	0 - 1	60	32	150	68	150	20
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	126	280	e8	30	10	70	219	0	591	-	30	H13	330	js13	380	0 - 1	60	35	170	75	170	23
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48 x 2	210	142.5	300	e8	40	10	80	240	0	660	-	30	H13	360	js13	420	0 - 1	45	40	200	90	200	90
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48 x 2	241	159.5	335	e8	40	10	95	264	0	746	-	36	H13	400	js13	470	0 - 1	45	45	230	100	230	100
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48 x 2	262	172.5	360	e8	40	10	105	278	0	802	-	36	H13	430	js13	500	0 - 1	45	45	250	110	250	110
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	375	292	65	G1 1/2	M48 x 2	262	185	400	e8	40	10	115	326	0	850	-	39	H13	475	js13	550	0 - 1	45	40	275	125	275	125
250	180 mm / -	M130 x 3	130	M150 x 4	190	160	440	324	65	G1 1/2	M48 x 2	272	218	450	e8	40	10	125	336	0	880	20	45	H13	530	js13	610	0 - 1	45	40	320	135	320	135
280	200 mm / -	-	-	M160 x 4	200	180	460	368	65	G1 1/2	M48 x 2	282	228	470	e8	50	10	130	366	0	930	-	45	H13	550	js13	630	0 - 1	45	40	335	150	335	150
320	220 mm / -	-	-	M180 x 4	220	200	490	406	65	G1 1/2	M48 x 2	287	243	510	e8	55	10	140	391	5	965	340	45	H13	590	js13	670	0 - 1	30	40	350	165	350	165

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
⁸⁾	Dimensions for cylinders with seal design A and B

Type of mounting MT4: Trunnion

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV).

MT4: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

¹⁾	Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV).

Dimensions for cylinder with piston rod extension \u201cLY\u201c in retracted condition

type of mounting MT4

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	X1	WA	PK	ZM	X	XV ⁷⁾	XV	XV	BD	UV ⁸⁾	ØTD		TL		TM		r	ØRA ⁹⁾	VE ⁹⁾	ØRA ¹⁰⁾	VE ¹⁰⁾
																	min.	average	min.	max.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm		mm	mm	mm	mm	mm
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	43	18	120	302	42	151 + X/2	172	138 + X	48	101	40	e8	30	js16	95	h13	2	52	45	52	20
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	51.5	18	120	300	50	150 + X/2	175	134 + X	48	117	40	e8	30	js16	120	h13	2	70	47	70	19
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	67	22	133	367	64	183.5 + X/2	215.5	163.5 + X	53	153	45	e8	35	js16	150	h13	2	88	43	88	13
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	71.5	22	146	384	82	197 + X/2	238	168 + X	68	169	55	e8	50	js16	160	h13	2	98	53	98	15
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	90.5	25	171	409	109	204.5 + X/2	259	165 + X	88	203	60	e8	55	js16	200	h13	2	120	55	120	17
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	114	32	205	545	131	272.5 + X/2	338	207 + X	118	252	75	e8	60	js16	245	h13	2.5	150	68	150	20
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	126	35	219	591	147	295.5 + X/2	369	222 + X	128	282	85	e8	70	js16	280	h13	2.5	170	75	170	23
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48 x 2	210	142.5	40	240	660	186	330 + X/2	423	237 + X	148	310	95	e8	80	js16	300	h13	2.5	200	90	200	90
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48 x 2	241	159.5	45	264	746	212	373 + X/2	479	267 + X	168	348	110	e8	90	js16	335	h13	2.5	230	100	230	100
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48 x 2	262	172.5	45	278	802	228	401 + X/2	515	287 + X	188	373	120	e8	100	js16	360	h13	2.5	250	110	250	110
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	375	292	65	G1 1/2	M48 x 2	262	185	40	326	850	205	425 + X/2	527.5	322.5 + X	165	398	130	e8	100	js16	400	h13	2.5	275	125	275	125
250	180 mm / -	M130 x 3	130	M150 x 4	190	160	440	324	65	G1 1/2	M48 x 2	272	218	40	336	880	245	440 + X/2	562.5	317.5 + X	175	463	140	e8	100	js16	450	h13	5	320	135	320	135
280	200 mm / -	-	-	M160 x 4	200	180	460	368	65	G1 1/2	M48 x 2	282	228	40	366	930	245	465 + X/2	587.5	342.5 + X	205	486	170	e8	125	js16	480	h13	5	335	150	335	150
320	220 mm / -	-	-	M180 x 4	220	200	490	406	65	G1 1/2	M48 x 2	287	243	40	391	965	600	482.5 + X/2	782.5	182.5 + X	245	537	200	e8	150	js16	500	h13	5	350	165	350	165

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	XV_cent. Recommendation: Trunnion position in cylinder center
⁸⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
⁹⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
¹⁰⁾	Dimensions for cylinders with seal design A and B

Important installation information:

During installation, it must be ensured that the trunnion bearings are installed up to the trunnion shoulders. Any variation may reduce the product's service life.

Type of mounting MS2: Foot mounting

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	Recess 2 mm deep, for hexagon socket head cap screws; ISO 4762 (with piston Ø 320 mm DIN 931) \u2012 The screws must not be subjected to shear force. Force distribution via additional external fitting strip.

MS2: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

type of mounting MS2

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	X1	WA	PK	XS	ZM	SS	X	S	S1	ØSB		ST	TS		US ⁷⁾	LH	L1 ⁷⁾	ØRA ⁸⁾	VE ⁸⁾	ØRA ⁹⁾	VE ⁹⁾
																			min.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	43	18	120	126	302	50	-	30	15	17.5	H13	32	125	js13	164	50	100	52	45	52	20
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	51.5	18	120	130	300	40	4	40	20	22	H13	37	150	js13	197	60	118	70	47	70	19
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	67	22	133	164	367	39	15	50	25	24	H13	47	185	js13	235	75	149	88	43	88	13
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	71.5	22	146	176	394	42	22	60	30	26	H13	52	210	js13	270	80	160	98	53	98	15
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	90.5	25	171	179	409	51	23	70	35	33	H13	62	250	js13	320	100	200	120	55	120	17
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	114	32	205	245	545	55	39	90	45	40	H13	72	310	js13	392	120	245	150	68	150	20
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	126	35	219	265.5	591	60	39	95	47.5	40	H13	77	340	js13	422	135	271	170	75	170	23
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48 x 2	210	142.5	40	240	302.5	660	55	64	115	57.5	45	H13	87	370	js13	462	150	305	200	90	200	90
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48 x 2	241	159.5	45	264	353.5	746	39	110	145	72.5	45	H13	79	415	js13	515	165	337	230	100	230	100
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48 x 2	262	172.5	45	278	379.5	802	43	116	155	77.5	52	H13	112	460	js13	570	180	366	250	110	250	110
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	375	292	65	G1 1/2	M48 x 2	262	185	40	326	387.5	850	75	100	155	77.5	52	H13	112	500	js13	610	200	398	275	125	275	125
250	180 mm / -	M130 x 3	130	M150 x 4	190	160	440	324	65	G1 1/2	M48 x 2	272	218	40	336	397.5	880	85	90	155	77.5	52	H13	122	550	js13	660	225	456	320	135	320	135
280	200 mm / -	-	-	M160 x 4	200	180	460	368	65	G1 1/2	M48 x 2	282	228	40	366	410	930	110	70	160	80	62	H13	142	600	js13	722	235	476	335	150	335	150
320	220 mm / -	-	-	M180 x 4	220	200	490	406	65	G1 1/2	M48 x 2	287	243	40	391	440	965	85	400	190	95	74	H13	162	650	js13	785	255	512	350	165	350	165

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
⁸⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
⁹⁾	Dimensions for cylinders with seal design A and B

Flange ports

Dimensions for rectangular flange according to ISO 6162-2 tab. 2 type 1

Dimensions for square flange according to ISO 6164 tab. 2

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

ØAL	Y	PK	X1	Ød₃	Ød₃ ¹⁾	c		w		d₁	t₁ ²⁾	p ³⁾
mm	mm	mm	mm	mm		mm	mm	mm	mm		mm	bar
63	113	141	65	13	1/2\u2033	40.5	± 0.25	18.2	± 18.2	M8	16	400
80	120	154	69	13	1/2\u2033	40.5	± 0.25	18.2	± 0.25	M8	16	400
100	114	181	87	19	3/4\u2033	50.8	± 0.25	23.8	± 0.25	M10	20	400
125	162.5	220	111.5	25	1\u2033	57.2	± 0.25	27.8	± 0.25	M12	24	400
140	179.5	232	121.5	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	400
160	197.5	265	139.5	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	400
180	233.5	279	156.5	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	400
200	254.5	293	167.5	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	400
220	262	326	178	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	400
250	272	336	212	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	400
280	282	366	222	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	400
320	287	391	236	51	2\u2033	96.8	± 0.25	44.5	± 0.25	M20	36	400

¹⁾	Flange connection according to ISO 6162-2 tab. 2 type 1 corresponds to flange connection according to SAE 6000 PSI
²⁾	Thread depth
³⁾	Max. operating pressure for related flanges in bar

Version \u201cH\u201d
ISO 6164

ØAL	Y	PK	X1	Ød₃	w		d₁	t₁ ¹⁾	p ²⁾
mm	mm	mm	mm	mm	mm	mm		mm	bar
40	90	122	42.5	10	24	± 0.25	M6	12.5	400
50	89	122	51	10	24.7	± 0.25	M6	12.5	400
63	113	141	66	19	35.4	± 0.25	M8	16	400
80	120	154	70	19	35.4	± 0.25	M8	16	400
100	118	173	89.5	19	35.4	± 0.25	M8	16	400
125	162.5	220	112.5	32	51.6	± 0.25	M12	24	400
140	179.5	232	124.5	32	51.6	± 0.25	M12	24	400
180	197.5	265	140.5	38	60.1	± 0.25	M16	30	400
160	233.5	279	156.5	38	60.1	± 0.25	M16	30	400
200	254.5	293	170.5	38	60.1	± 0.25	M16	30	400
220	262	326	182	38	60.1	± 0.25	M16	30	400
250	272	336	216	38	60.1	± 0.25	M16	30	400
280	282	366	226	38	60.1	± 0.25	M16	30	400
320	287	391	240	51	69.3	± 0.25	M16	30	400

¹⁾	Thread depth
²⁾	Max. operating pressure for related flanges in bar

Throttle valve

ØAL	mm	40	50	63	80	100	125	140	160	180	200	220	250	280	320
Nominal width	mm	4			5		8					20

ØAL	=	Piston Ø

¹⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)

Proximity switch

¹⁾	The proximity switch is always located opposite of the line connection

Installation space for mating connector

¹⁾	Piston Ø 220 ... 320 mm Angled mating connector not possible

Proximity switch

ØAL	ØMM	PM	L7	X3	X4	X5
mm		mm	mm	mm	mm	mm
40	28 mm / -	112	95	94	170	125
50	36 mm / -	110	95	98	175	130
63	45 mm / -	125	121	103	180	135
80	56 mm / -	138	128	108	185	140
100	70 mm / -	161	124	116	195	150
125	90 mm / -	189	178	126	205	160
140	100 mm / -	209	191	146	225	180
160	110 mm / -	228	216	151	230	185
180	125 mm / -	254	246	159 ¹⁾	235	190
200	140 mm / -	264	269	166 ¹⁾	245	200
220	160 mm / -	310	270	177 ¹⁾	255	-
250	180 mm / -	320	280	187 ¹⁾	265
280	200 mm / -	360	285	199 ¹⁾	275
320	220 mm / -	375	295	209 ¹⁾	285

¹⁾	Piston Ø 220 ... 320 mm Proximity switch not protruding

屈曲

对于柔性导向负载，以及抗屈曲安全系数为 3.5 的情况，允许行程长度请参见相应表格。油缸采用其他安装位置时，允许行程长度必须通过插值确定。

无导向负载情况下的允许行程长度，请咨询。

按以下公式进行屈曲计算：

1. 按 Euler 公式计算

当 λ > λ g 时

2. 按 Tetmajer 公式计算

当 λ ≤ λ g 时

说明

E	=	module of elasticity in N/mm²
E	=	2.1 x 105 for steel
l	=	Geometrical moment of inertia in mm⁴
l		for circular cross-section
v	=	3.5 (safety factor)
L_K	=	free kinking length in mm (dependent on type of mounting; see sketches A, B, C)
d	=	Piston rod Ø in mm
λ	=	Slenderness ratio
λ	=
R_e	=	Yield strength of the piston rod material

安装方式对屈曲长度的影响：

允许行程长度，安装方式 MF3

ØAL	ØMM	admissible stroke length with
		100 bar			210 bar			350 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	1370	1415	1600	1020	1035	1075	795	800	810
50	36 mm / -	1755	1825	2135	1345	1370	1440	1060	1070	1090
63	45 mm / -	2000	2000	2000	1660	1695	1800	1320	1330	1365
80	56 mm / -	2000	2000	2000	2000	2000	2000	1600	1620	1665
100	70 mm / -	3000	3000	3000	2470	2530	2740	1900	2010	2085
125	90 mm / -	3000	3000	3000	3000	3000	3000	2615	2660	2785
140	100 mm / -	3000	3000	3000	3000	3000	3000	2875	2920	3000
160	110 mm / -	3000	3000	3000	3000	3000	3000	2775	3000	3000
180	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	140 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
220	160 mm / -	6000	6000	6000	5410	5630	6000	4575	4675	5055
250	180 mm / -	6000	6000	6000	5950	6000	6000	4815	5160	5605
280	200 mm / -	6000	6000	6000	6000	6000	6000	5005	5565	6000
320	220 mm / -	6000	6000	6000	6000	6000	6000	4560	5060	6000

安装位置

¹⁾	Adm. stroke length

允许行程长度，安装方式 MT4

ØAL	ØMM	admissible stroke length with
		100 bar			210 bar			350 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	560	580	640	380	385	395	265	270	275
50	36 mm / -	760	790	890	353	545	565	390	395	400
63	45 mm / -	930	965	1105	665	675	705	490	495	505
80	56 mm / -	1125	1170	1365	815	830	875	610	615	625
100	70 mm / -	1390	1450	1730	1030	1050	1120	785	790	810
125	90 mm / -	1755	1845	2300	1345	1380	1500	1040	1050	1090
140	100 mm / -	1935	2030	2545	1485	1525	1660	1150	1165	1210
160	110 mm / -	2020	2125	2660	1545	1585	1725	1190	1205	1250
180	125 mm / -	2300	2420	3000	1770	1820	1990	1370	1390	1445
200	140 mm / -	2555	2695	3000	1990	2050	2270	1555	1580	1655
220	160 mm / -	2870	3045	4185	2320	2410	2760	1865	1905	2035
250	180 mm / -	3180	3380	4665	2580	2680	3080	2080	2125	2270
280	200 mm / -	3430	3645	5130	2800	2915	3390	2270	2325	2500
320	220 mm / -	3700	3925	5435	3000	3115	3585	2065	2295	2640

安装位置

¹⁾	Adm. stroke length

允许行程长度，安装方式 MS2

ØAL	ØMM	admissible stroke length with
		100 bar			210 bar			350 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	1265	1310	1500	920	935	970	690	695	710
50	36 mm / -	1650	1715	2000	1235	1260	1330	950	960	980
63	45 mm / -	1995	2000	2000	1520	1550	1655	1180	1190	1220
80	56 mm / -	2000	2000	2000	1850	1895	2000	1445	1460	1510
100	70 mm / -	2940	3000	3000	2310	2370	2585	1830	1855	1925
125	90 mm / -	3000	3000	3000	3000	3000	3000	2640	2685	2810
140	100 mm / -	3000	3000	3000	3000	3000	3000	2640	2690	2840
160	110 mm / -	3000	3000	3000	3000	3000	3000	2510	2760	2955
180	125 mm / -	3000	3000	3000	3000	3000	3000	2900	3000	3000
200	140 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
220	160 mm / -	6000	6000	6000	5065	5280	6000	4225	4330	4705
250	180 mm / -	6000	6000	6000	5590	5835	6000	4455	4805	5250
280	200 mm / -	6000	6000	6000	6000	6000	6000	4645	5205	5790
320	220 mm / -	6000	6000	6000	6000	6000	6000	4175	4680	6000

安装位置

¹⁾	Adm. stroke length

行程较长时，根据具体应用和安装位置，可考虑延长导向和/或使用导向环，以提高使用寿命。有关建议请咨询。

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

产品分类

CGH3

Ordering code

一般

液压

重量

密封件选择标准

行程速度

使用寿命：

注意事项：

项目规划软件 ICS（交互式目录系统）

直径、面积、作用力和流量

按 ISO 6020-1 的公差

安装方式 MF3：缸头圆形法兰

安装方式 MT4：耳轴

安装方式 MS2：底脚安装

排气/测量接头

接近开关

接近开关技术参数

Type of mounting MF3: Round flange at the cylinder head

type of mounting MF3

Type of mounting MT4: Trunnion

type of mounting MT4

Type of mounting MS2: Foot mounting

type of mounting MS2

Flange ports

Version \u201cD\u201dISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201dISO 6164

Throttle valve

Proximity switch

Installation space for mating connector

Proximity switch

屈曲

说明

安装方式对屈曲长度的影响：

允许行程长度，安装方式 MF3

安装位置

允许行程长度，安装方式 MT4

安装位置

允许行程长度，安装方式 MS2

安装位置

公司

产品

联系我们

在线留言

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201d
ISO 6164
