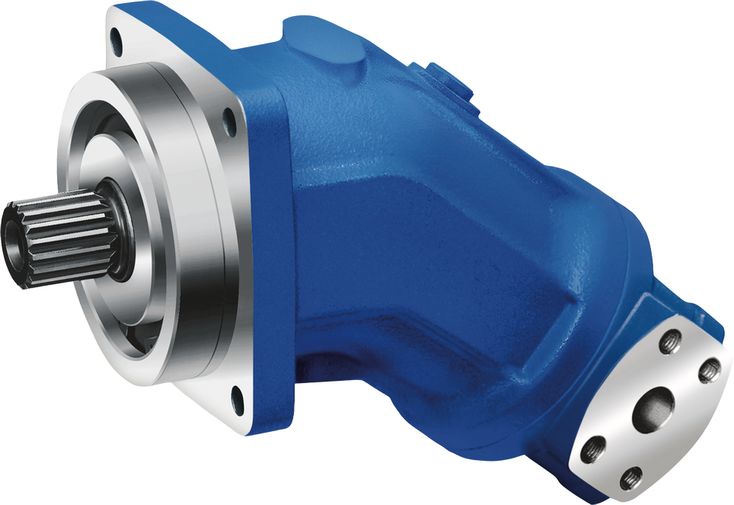

A2FO 6x 系列

坚固耐用、寿命长的泵。
总效率很高。
功率密度高。
额定规格范围广，可准确匹配应用。
规格250至1000可选长寿命轴承。
斜轴式结构。

数值表

Size				5	10	12	16	23	28	32	45	56	63	80	90	107	125	160	180	200	250	355	500	710	1000
Displacement geometric, per revolution		V_g	cm³	4.93	10.3	12	16	22.9	28.1	32	45.6	56.1	63	80.4	90	106.7	125	160.4	180	200	250	355	500	710	1000
Nominal pressure		p_nom	bar	315	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	350	350	350	350	350
Maximum pressure		p_max	bar	350	450	450	450	450	450	450	450	450	450	450	450	450	450	450	450	450	400	400	400	400	400
Maximum speed		n_nom ¹⁾	rpm	5600	3150	3150	3150	2500	2500	2500	2240	2000	2000	1800	1800	1600	1600	1450	1450	1550	1500	1320	1200	1200	950
Maximum speed		n_max ²⁾	rpm	8000	6000	6000	6000	4750	4750	4750	4250	3750	3750	3350	3350	3000	3000	2650	2650	2750	1800	1600	1500	1500	1200
Flow	at n_nom	q_V	l/min	27.6	32	38	50	57	70	80	102	112	126	145	162	171	200	233	261	310	375	469	600	852	950
Power	at n_nom and p_nom	P	kW	14.5	22	25	34	38	47	53	68	75	84	96	108	114	133	155	174	207	219	273	350	497	554
Torque ³⁾	at p_nom	M	Nm	24.7	66	76	102	146	179	204	290	357	401	512	573	679	796	1021	1146	1273	1393	1978	2785	3955	5570
Rotary stiffness		c	kNm/rad	0.63	0.92	1.25	1.59	2.56	2.93	3.12	4.18	5.94	6.25	8.73	9.14	11.2	11.9	17.4	18.2	57.3	73.1	96.1	144	270	324
Moment of inertia for rotary group		J_TW	kg·m²	0.00006	0.0004	0.0004	0.0004	0.0012	0.0012	0.0012	0.0024	0.0042	0.0042	0.0072	0.0072	0.0116	0.0116	0.022	0.022	0.0353	0.061	0.102	0.178	0.55	0.55
Maximum angular acceleration		ɑ	rad/s²	5000	5000	5000	5000	6500	6500	6500	14600	7500	7500	6000	6000	4500	4500	3500	3500	11000	10000	8300	5500	4300	4500
Case volume		V	l		0.17	0.17	0.17	0.2	0.2	0.2	0.33	0.45	0.45	0.55	0.55	0.8	0.8	1.1	1.1	2.7	2.5	3.5	4.2	8	8
Weight (approx.)		m	kg	2.5	6	6	6	9.5	9.5	9.5	13.5	18	18	23	23	32	32	45	45	66	73	110	155	325	336

¹⁾	These values are valid at: - an absolute pressure of p_abs = 1 bar at suction port S - for the optimum viscosity range from v_opt = 36 to 16 mm²/s - with hydraulic fluid based on mineral oils
²⁾	Maximum speed (limiting speed) with increased inlet pressure p_abs at suction port S, see the following diagram.
³⁾	Torque without radial force, with radial force see table "Permissible radial and axial forces of the drive shafts"

最高转速

注意

表中数值为理论值，未考虑效率和公差，并已取整。

超过允许最大值或低于允许最小值，可能导致轴向柱塞单元功能丧失、工作寿命缩短或完全损坏。其他允许极限值，例如转速变化、随频率变化而降低的角加速度，以及起动时允许的角加速度（低于最大角加速度），请参见数据表 90261。

Determining the operating characteristics
Flow		[l/min]
Torque		[Nm]
Power		[kW]

Key
V_g	Displacement per revolution [cm³]
Δp	Differential pressure [bar]
n	Rotational speed [rpm]
η_v	Volumetric efficiency
η_hm	Hydraulic-mechanical efficiency
η_t	Total efficiency (η_t = η_v \u2022 η_hm)

液压油

轴向柱塞单元设计用于符合 DIN 51524 的 HLP 矿物油。

开始项目规划之前，应查阅以下数据表，了解液压油的应用说明与要求：

90220: 矿物油及相关烃类液压油

90221: 环境友好型液压油

90222: 难燃无水液压液 (HFDR, HFDU)

90223: 难燃含水液压液 (HFAE, HFAS, HFB, HFC)

90225: 使用难燃液压液时受限制的技术参数

液压油的黏度与温度

	Viscosity	Shaft seal	Temperature¹⁾	Comment
Cold start	ν_max ≤ 1600 mm²/s	NBR²⁾	ϑ_St ≥ -40 °C	t ≤ 3 min, without load (p ≤ 50 bar), n ≤ 1000 rpm, permissible temperature difference between axial piston unit and hydraulic fluid max. 25 K
Cold start	ν_max ≤ 1600 mm²/s	FKM	ϑ_St ≥ -25 °C
Warm-up phase	ν = 400 \u2026 1600 mm²/s			t ≤ 15 min, p ≤ 0.7 \u2022 p_nom and n ≤ 0.5 \u2022 n_nom
Continuous operation	ν = 10 \u2026 400 mm²/s³⁾	NBR²⁾	ϑ ≤ +78 °C	measured at port T
	ν = 10 \u2026 400 mm²/s³⁾	FKM	ϑ ≤ +103 °C	measured at port T
	ν_opt = 16 \u2026 36 mm²/s			range of optimum operating viscosity and efficiency
Short-term operation	ν_min = 7 \u2026 10 mm²/s	NBR²⁾	ϑ ≤ +78 °C	t ≤ 3 min, p ≤ 0.3 \u2022 p_nom measured at port T
Short-term operation	ν_min = 7 \u2026 10 mm²/s	FKM	ϑ ≤ +103 °C	t ≤ 3 min, p ≤ 0.3 \u2022 p_nom measured at port T

¹⁾	If the specified temperatures cannot be maintained due to extreme operating parameters, please contact us.
²⁾	Special version, please contact us.
³⁾	Equates e.g. with the VG 46 a temperature range of +5 °C to +85 °C (see selection diagram)

液压油选择

Bosch Rexroth 按技术数据表 90235 中的液压油评级方法评估液压油。

以下技术数据表列出了在液压油评级中获得正面评价的液压油：

90245: Bosch Rexroth 液压元件（泵和马达）的液压油评级清单

选择液压油时，应使工作温度范围内的工作黏度处于最佳范围 (ν opt；见选择图)。

选择图

液压油过滤

更精细的过滤可提高液压油清洁度，从而延长轴向柱塞单元的寿命。

应按 ISO 4406 保持至少 20/18/15 的清洁度等级。

当泄油口处液压油黏度低于 10 mm²/s 时（例如高温短时运行），要求按 ISO 4406 达到至少 19/17/14 的清洁度等级。

例如，在以下情况下，黏度为 10 mm²/s：

HLP 32，温度为 73°C

HLP 46，温度为 85°C

工作压力范围

Pressure at working port A or B (high-pressure side)			Definition
Nominal pressure	p_nom	see table of values	The nominal pressure corresponds to the maximum design pressure.
Maximum pressure	p_max	see table of values	The maximum pressure corresponds to the maximum operating pressure within the single operating period. The sum of the single operating periods must not exceed the total operating period.
Single operating period		10 s
Total operating period		300 h
Minimum pressure	p_HP min	25 bar	Minimum pressure on high-pressure side (port A or B) required to prevent damage to the axial piston unit.
Rate of pressure change	R_A max	16000 bar/s	Maximum permissible rate of pressure build-up and reduction during a pressure change over the entire pressure range.
Pressure at suction port S (inlet)			Definition
Minimum pressure	p_s min	0.8 bar absolute	Minimum pressure at inlet (suction port S) that is required to avoid damage to the axial piston unit. The minimum required pressure is dependent on the speed of the axial piston unit. (see diagram "Maximum speed")
Maximum pressure	p_s max	30 bar absolute
Case pressure at port T			Definition
Continuous differential pressure	Δp_T _cont	2 bar	Maximum averaged differential pressure at the shaft seal (case to ambient)
Maximum differential pressure	Δp_T _max	see diagram "Maximum differential pressure at the shaft seal"	Intermittent differential pressure at the shaft seal (permitted at reduced speed)
Pressure peaks	p_T _peak	10 bar	t < 0.1 s

注意

工作压力范围适用于矿物油基液压油。其他液压液的适用值请联系我们。

压力定义

¹⁾	Total operating period = t₁ + t₂ + ... + t_n

压力变化率

轴封处的最大压差

注意

轴封寿命受轴向柱塞单元转速和壳体压力影响。

壳体与环境之间的平均压差增加，或压力峰值出现频率升高时，使用寿命会缩短。

壳体压力必须等于或高于环境压力。

流动方向

Direction of rotation, viewed on drive shaft	clockwise	counter-clockwise
Direction of flow	S to B	S to A

传动轴允许的径向力和轴向力

Size			5	10		12		16	23		28		32	45	56			63	80			90	107		125	160		180	200	250	355	500	710	1000
Drive shaft	Code		B, C	Z, P	A, B	Z, P	A, B	A, B	Z, P	A, B	Z, P	A, B	A, B	Z, P	Z	P	A, B	A, B	Z	P	A, B	A, B	Z, P	A, B	A, B	Z, P	A, B	A, B	A, B	Z, P	Z, P	Z, P	Z, P	Z, P
Drive shaft	⌀	mm	12	20	25	20	25	25	25	30	25	30	30	30	30	30	35	35	35	35	40	40	40	45	45	45	45	50	50	50	60	70	90	90
Maximum radial force at distance a (from shaft collar)	F_q max	kN	1.6	3	3.2	3	3.2	3.2	5.7	5.4	5.7	5.4	5.4	7.6	7.8	9.5	9.1	9.1	11.1	11.6	11.4	11.4	13.6	14.1	14.1	18.1	18.3	18.3	20.3	1.2 ¹⁾	1.5 ¹⁾	1.9 ¹⁾	3 ¹⁾	2.6 ¹⁾
Maximum radial force at distance a (from shaft collar)	a	mm	12	16	16	16	16	16	16	16	16	16	16	18	18	18	18	18	20	20	20	20	20	20	20	25	25	25	25	41	52.5	52.5	67.5	67.5
Permitted torque at F_q max	T_q max	Nm	24.7	66	66	76	76	102	146	146	179	179	204	290	294	357	357	401	488	512	512	573	679	679	796	1021	1021	1146	1273
Permitted differential pressure at F_q max	Δp_q max	bar	315	400	400	400	400	400	400	400	400	400	400	400	330	400	400	400	380	400	400	400	400	400	400	400	400	400	400
Maximum axial force, when standstill or in non-pressurized conditions	+ F_ax max	N	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
	- F_ax max	N	180	320	320	320	320	320	500	500	500	500	500	630	800	800	800	800	1000	1000	1000	1000	1250	1250	1250	1600	1600	1600	1600	2000	2500	3000	4400	4400
Maximum axial force, per bar operating pressure	+ F_ax max	N/bar	1.5	3	3	3	3	3	5.2	5.2	5.2	5.2	5.2	7	8.7	8.7	8.7	9.7	10.6	10.6	10.6	10.6	12.9	12.9	12.9	16.7	16.7	16.7	5.2

¹⁾	When at a standstill or when axial piston unit operating in non-pressurized conditions. Higher forces are permissible when under pressure, please contact us.

一般信息

所列数值为最大参数，不允许用于连续运行。

应避免作用方向为 -F ax 的轴向力，否则会缩短轴承寿命。

通过传动带输出动力时，需要满足特殊条件。请咨询我们。

规格 250 ... 1000 的说明：

存在径向力时，适用受限制的性能参数。请联系我们。

若单元运行时存在轴向力，请联系我们。

径向力 F q 对轴承寿命的影响

选择合适的径向力 F q 方向，可减小内部旋转组件作用力对轴承产生的载荷，从而优化轴承寿命。配对齿轮的推荐安装位置取决于旋转方向。示例：

齿轮传动，规格 5 \u2026 180

齿轮传动，规格 200 \u2026 1000

1	Direction of rotation "clockwise", pressure at port B
2	Direction of rotation "counter-clockwise", pressure at port A

长寿命轴承

规格 250 至 1000

适用于长寿命要求及 HF 液压液。外形尺寸与标准轴承型号相同，可在之后改装为长寿命轴承。建议通过 U 接口冲洗轴承和壳体。

轴承冲洗。

冲洗流量（推荐值）

Size		250	355	500	710	1000
Flushing flow q_v	l/min	10	16	16	16	16

Size 5

¹⁾	To shaft collar

Drive shafts

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)
²⁾	Thread according to DIN 3852, maximum tightening torque: 30 Nm

Ports

Size			5
B (A)	Working port	Size	M18 × 1.5; 12 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery	With protective cover (must be connected)
S	Suction port	Size	M22 × 1.5; 14 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery	With protective cover (must be connected)
T₁	Drain port	Size	M10 × 1; 8 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery ²⁾	Plugged (observe installation instructions)
T₂	Drain port	Size	M10 × 1; 8 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery ²⁾	With protective cover (observe installation instructions)

¹⁾	The spot face can be deeper than specified in the appropriate standard.
²⁾	Unless otherwise specified. Other layouts on request.

Size 10 \u2026 16

¹⁾	To shaft collar

Drive shafts Z and A

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)

Drive shafts P and B

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)

Ports

Size			10	12	16
B (A)	Working port	Size	M22 × 1.5; 14 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery	With protective cover (must be connected)
S	Suction port	Size	M33 × 2; 18 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery	With protective cover (must be connected)
T₁	Drain port	Size	M12 × 1.5; 12 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery ²⁾	Plugged (observe installation instructions)
T₂	Drain port	Size	M12 × 1.5; 12 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery ²⁾	With protective cover (observe installation instructions)
R	Air bleed port	Size	M8 × 1; 8 mm deep
		Standard ¹⁾	DIN 3852
		State on delivery	Plugged

¹⁾	The spot face can be deeper than specified in the appropriate standard.
²⁾	Unless otherwise specified. Other layouts on request.

Size 23 \u2026 180

¹⁾	To shaft collar

Size	D1		D3	D4	D6	D8	D9	D10	D11	D12	D13	D14	D15	D16	D17	D18	D19	D20	D21	D22	D25	D28	D29	D32	D40	D41	D42	D43	D44
Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
23	100	0 - 0.022	190	117	60	18	8	25	23.2	70	144	88	166	14	25	106	56	42	61	9	118	125	11	106	18.2	40.5	13	22.2	47.6
28	100	0 - 0.022	190	117	60	18	8	25	23.2	70	144	88	166	14	25	106	56	42	61	9	118	125	11	106	18.2	40.5	13	22.2	47.6
32	100	0 - 0.022	190	117	60	18	8	25	23.2	70	144	88	166	14	25	106	56	42	61	9	118	125	11	106	18.2	40.5	13	22.2	47.6
45	125	0 - 0.025	207	133	64	20	12	32	30	80	155	100	179	20	28	108	63	42	78	11	150	160	13.5	118	23.8	50.8	19	26.2	52.4
56	125	0 - 0.025	225	142	68	20	10	32	30	87	171	107	195	23	31	117	70	50	78	11	150	160	13.5	128	23.8	50.8	19	26.2	52.4
63	125	0 - 0.025	225	142	68	20	10	32	30	87	171	107	195	23	31	117	70	50	78	11	150	160	13.5	128	23.8	50.8	19	26.2	52.4
80	140	0 - 0.025	257	162	73	20	10	32	29	99	196	122	224	25	41	132	83	63	86	11	165	180	13.5	138	27.8	57.2	25	30.2	58.7
90	140	0 - 0.025	257	162	73	20	10	32	29	99	196	136	224	25	41	132	83	63	86	11	165	180	13.5	138	27.8	57.2	25	30.2	58.7
107	160	0 - 0.025	275	174	89	23	10	40	85	110	213	136	245	20	40	140	85	65	98	12	190	200	17.5	150	27.8	57.2	25	35.7	69.9
125	160	0 - 0.025	275	174	89	23	10	40	36.5	110	213	136	245	20	40	140	85	65	98	12	190	200	17.5	150	31.8	66.7	32	35.7	69.9
160	180	0 - 0.025	294	188	101	25	10	40	37.2	121	237	149	271	15	47	158	96	72	108	13	210	224	17.5	180	31.8	66.7	32	35.7	69.9
180	180	0 - 0.025	294	188	101	25	10	40	37.2	121	237	149	271	15	47	158	96	72	108	13	210	224	17.5	180	31.8	66.7	32	35.7	69.9

Drive shafts Z and A

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)

Splined shaft DIN 5480

NG	Code	Designation	Thread G	N2	N3	N4	N5	ØN6
NG	Code	Designation	Thread G	mm	mm	mm	mm	mm
23	Z	W25×1.25×18×9g	M8 × 1.25	6	19	28	43	35
23	A	W30×2×14×9g	M10 × 1.5	7.5	22	27	35	35
28	Z	W25×1.25×18×9g	M8 × 1.25	6	19	28	43	35
28	A	W30×2×14×9g	M10 × 1.5	7.5	22	27	35	35
32	A	W30×2×14×9g	M10 × 1.5	7.5	22	27	35	35
45	Z	W30×2×14×9g	M12 × 1.75	9.5	28	27	35	35
56	Z	W30×2×14×9g	M12 × 1.75	9.5	28	27	35	40
56	A	W35×2×16×9g	M12 × 1.75	9.5	28	32	40	40
63	A	W35×2×16×9g	M12 × 1.75	9.5	28	32	40	40
80	Z	W35×2×16×9g	M12 × 1.75	9.5	28	32	40	45
80	A	W40×2×18×9g	M16 × 2	12	36	37	45	45
90	A	W40×2×18×9g	M16 × 2	12	36	37	45	45
107	Z	W40×2×18×9g	M12 × 1.75	9.5	28	37	45	50
107	A	W45×2×21×9g	M16 × 2	12	36	42	50	50
125	A	W45×2×21×9g	M16 × 2	12	36	42	50	50
160	Z	W45×2×21×9g	M16 × 2	12	36	42	50	60
160	A	W50×2×24×9g	M16 × 2	12	36	44	55	60
180	A	W50×2×24×9g	M16 × 2	12	36	44	55	60

Drive shafts P and B

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)

Parallel keyed shaft DIN 6885

NG	Code	Designation	Thread G	⌀N1		N2	N3	N5	⌀N6	N7	N8
NG	Code	Designation	Thread G	mm	mm	mm	mm	mm	mm	mm	mm
23	P	⌀25, AS8×7×40	M8 × 1.25	25	+ 0.015 + 0.002	6	19	50	35	28	8
23	B	⌀30, AS8×7×40	M10 × 1.5	30	+ 0.015 + 0.002	7.5	22	50	35	33	8
28	P	⌀25, AS8×7×40	M8 × 1.25	25	+ 0.015 + 0.002	6	19	50	35	28	8
28	B	⌀30, AS8×7×40	M10 × 1.5	30	+ 0.015 + 0.002	7.5	22	50	35	33	8
32	B	⌀30, AS8×7×40	M10 × 1.5	30	+ 0.015 + 0.002	7.5	22	50	35	33	8
45	P	⌀30, AS8×7×50	M12 × 1.75	30	+ 0.015 + 0.002	9.5	28	60	35	33	8
56	P	⌀30, AS8×7×50	M12 × 1.75	30	+ 0.015 + 0.002	9.5	28	60	40	33	8
56	B	⌀35, AS10×8×50	M12 × 1.75	35	+ 0.018 + 0.002	9.5	28	60	40	38	10
63	B	⌀35, AS10×8×50	M12 × 1.75	35	+ 0.018 + 0.002	9.5	28	60	40	38	10
80	P	⌀35, AS10×8×56	M12 × 1.75	35	+ 0.018 + 0.002	9.5	28	70	45	38	10
80	B	⌀40, AS12×8×56	M16 × 2	40	+ 0.018 + 0.002	12	36	70	45	43	12
90	B	⌀40, AS12×8×56	M16 × 2	40	+ 0.018 + 0.002	12	36	70	45	43	12
107	P	⌀40, AS12×8×63	M12 × 1.75	40	+ 0.018 + 0.002	9.5	28	80	50	43	12
107	B	⌀45, AS14×9×63	M16 × 2	45	+ 0.018 + 0.002	12	36	80	50	48.5	14
125	B	⌀45, AS14×9×63	M16 × 2	45	+ 0.018 + 0.002	12	36	80	50	48.5	14
160	P	⌀45, AS14×9×70	M16 × 2	45	+ 0.018 + 0.002	12	36	90	60	48.5	14
160	B	⌀50, AS14×9×70	M16 × 2	50	+ 0.018 + 0.002	12	36	90	60	53.5	14
180	B	⌀50, AS14×9×70	M16 × 2	50	+ 0.018 + 0.002	12	36	90	60	53.5	14

Ports

Size			23	28	32	45	56	63	80	90	107	125	160	180
B (A)	Working port	Size	1/2 in			3/4 in			1 in			1 1/4 in
		Standard	Dimensions according to SAE J518
		Fastening thread ¹⁾	M8 × 1.25; 15 mm deep			M10 × 1.5; 17 mm deep			M12 × 1.75; 17 mm deep			M14 × 2; 19 mm deep
		State on delivery	With protective cover (must be connected)
S	Suction port	Size	3/4 in			1 in			1 1/4 in		1 1/2 in
		Standard	Dimensions according to SAE J518
		Fastening thread ¹⁾	M10 × 1.5; 17 mm deep								M12 × 1.75; 20 mm deep
		State on delivery	With protective cover (must be connected)
T₁	Drain port	Size	M16 × 1.5; 12 mm deep			M18 × 1.5; 12 mm deep							M22 × 1.5; 14 mm deep
		Standard ²⁾	DIN 3852
		State on delivery ³⁾	Plugged (observe installation instructions)
T₂	Drain port	Size	M16 × 1.5; 12 mm deep			M18 × 1.5; 12 mm deep							M22 × 1.5; 14 mm deep
		Standard ²⁾	DIN 3852
		State on delivery ³⁾	With protective cover (observe installation instructions)
R	Air bleed port	Size	M10 × 1; 12 mm deep			M12 × 1.5; 12 mm deep					M14 × 1.5; 12 mm deep
		Standard ²⁾	DIN 3852
		State on delivery	Plugged

¹⁾	Thread according to DIN 13
²⁾	The spot face can be deeper than specified in the appropriate standard.
³⁾	Unless otherwise specified. Other layouts on request.

Size 200

¹⁾	To shaft collar

Drive shafts

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)

Ports

Size			200
B (A)	Working port	Size	1 1/4 in
		Standard	Dimensions according to SAE J518
		Fastening thread ¹⁾	M14 × 2; 19 mm deep
		State on delivery	With protective cover (must be connected)
S	Suction port	Size	3 1/2 in
		Standard	Dimensions according to SAE J518
		Fastening thread ¹⁾	M16 × 2; 24 mm deep
		State on delivery	With protective cover (must be connected)
T₁	Drain port	Size	M22 × 1.5; 14 mm deep
		Standard ²⁾	DIN 3852
		State on delivery ³⁾	Plugged (observe installation instructions)
T₂	Drain port	Size	M22 × 1.5; 14 mm deep
		Standard ²⁾	DIN 3852
		State on delivery ³⁾	With protective cover (observe installation instructions)
R	Air bleed port	Size	M14 × 1.5; 12 mm deep
		Standard ²⁾	DIN 3852
		State on delivery	Plugged

¹⁾	Thread according to DIN 13
²⁾	The spot face can be deeper than specified in the appropriate standard.
³⁾	Unless otherwise specified. Other layouts on request.

Size 250

¹⁾	To shaft collar

Drive shafts

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)

Ports

Size			250
B (A)	Working port	Size	1 1/4 in
		Standard	Dimensions according to SAE J518
		Fastening thread ¹⁾	M14 × 2; 19 mm deep
		State on delivery	With protective cover (must be connected)
S	Suction port	Size	2 1/2 in
		Standard	Dimensions according to SAE J518
		Fastening thread ¹⁾	M12 × 1.75; 17 mm deep
		State on delivery	With protective cover (must be connected)
T₁	Drain port	Size	M22 × 1.5; 14 mm deep
		Standard ²⁾	DIN 3852
		State on delivery ³⁾	With protective cover (observe installation instructions)
T₂	Drain port	Size	M22 × 1.5; 14 mm deep
		Standard ²⁾	DIN 3852
		State on delivery ³⁾	Plugged (observe installation instructions)
U	Bearing flushing	Size	M14 × 1.5; 12 mm deep
		Standard ²⁾	DIN 3852
		State on delivery	Plugged

¹⁾	Thread according to DIN 13
²⁾	The spot face can be deeper than specified in the appropriate standard.
³⁾	Unless otherwise specified. Other layouts on request.

Size 355 \u2026 1000

¹⁾	To shaft collar

Size	D1		D3	D4	D5	D7	D8	D9	D10	D11	D12	D14	D15	D18	D20	D24	D25	D27	D28	D29	D30	D32	D40	D41	D42	D43	D44	D45	D47	D48
Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
355	280	0 - 0.081	350	198	171	250	28	14	50	48	128	102	320	83	83	23.5	335	360	320	18	M18	245	36.5	79.4	40	50.8	88.9	63	60	50
500	315	0 - 0.081	396	220	192	276	30	14	50	48	142	112.5	362	98	111	27.5	375	400	360	22	M20	270	36.6	79.4	40	62	106.4	75	65	55
710	400	0 - 0.089	507	249	236	344	35	14	50	47	183	102	485	131	156	41.5	465	500	450	22	M24	340	44.5	96.8	50	77.8	130.2	100	85	70
1000	400	0 - 0.089	511	277	236	344	35	14	50	47	183	143	468	131	156	41.5	465	500	450	22	M24	340	44.5	96.8	50	77.8	130.2	100	85	70

Drive shaft Z

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)

Splined shaft DIN 5480

NG	Code	Designation	Thread G	N2	N3	N4	N5	⌀N6
NG	Code	Designation	Thread G	mm	mm	mm	mm	mm
355	Z	W60×2×28×9g	M20 × 2.5	15	42	71	82	70
500	Z	W70×3×22×9g	M20 × 2.5	15	42	67	80	80
710	Z	W90×3×28×9g	M24 × 3	18	50	91	105	100
1000	Z	W90×3×28×9g	M24 × 3	18	50	91	105	100

Drive shaft P

¹⁾	Center bore according to DIN 332 (thread according to DIN 13)

Parallel keyed shaft DIN 6885

NG	Code	Designation	Thread G	⌀N1		N2	N3	N5	⌀N6	N7	N8
NG	Code	Designation	Thread G	mm	mm	mm	mm	mm	mm	mm	mm
355	P	⌀60, AS18×11×100	M20 × 2.5	60	+ 0.03 + 0.011	15	42	105	70	64	18
500	P	⌀70, AS20×12×100	M20 × 2.5	70	+ 0.03 + 0.011	15	42	105	80	74.5	20
710	P	⌀90, AS25×14×125	M24 × 3	90	+ 0.035 + 0.013	18	50	130	100	95	25
1000	P	⌀90, AS25×14×125	M24 × 3	90	+ 0.035 + 0.013	18	50	130	100	95	25

Ports

Size			355	500	710	1000
B (A)	Working port	Size	1 1/2 in		2 in
		Standard	Dimensions according to SAE J518
		Fastening thread ¹⁾	M16 × 2; 21 mm deep		M20 × 2.5; 30 mm deep
		State on delivery	With protective cover (must be connected)
S	Suction port	Size	2 1/2 in	3 in	4 in
		Standard	Dimensions according to SAE J518
		Fastening thread ¹⁾	M12 × 1.75; 17 mm deep	M16 × 2; 24 mm deep
		State on delivery	With protective cover (must be connected)
T₁	Drain port	Size	M33 × 2; 18 mm deep		M42 × 2; 20 mm deep
		Standard ²⁾	DIN 3852
		State on delivery ³⁾	With protective cover (observe installation instructions)
T₂	Drain port	Size	M33 × 2; 18 mm deep		M42 × 2; 20 mm deep
		Standard ²⁾	DIN 3852
		State on delivery ³⁾	Plugged (observe installation instructions)
U	Bearing flushing	Size	M14 × 1.5; 12 mm deep	M18 × 1.5; 12 mm deep
		Standard ²⁾	DIN 3852
		State on delivery	Plugged
M_B (M_A)	Measuring port pressure A, B	Size	M14 × 1.5; 12 mm deep
		Standard ²⁾	DIN 3852
		State on delivery	Plugged
M_S	Measuring port suction pressure	Size	M14 × 1.5; 12 mm deep
		Standard ²⁾	DIN 3852
		State on delivery	Plugged

¹⁾	Thread according to DIN 13
²⁾	The spot face can be deeper than specified in the appropriate standard.
³⁾	Unless otherwise specified. Other layouts on request.

安装说明

概述

调试和运行期间，轴向柱塞单元必须充满液压油并排尽空气。较长时间停机后也必须注意这一点，因为单元内的油液可能经液压管路流回油箱。

尤其在“传动轴朝上”的安装位置，必须完全充油并排尽空气，否则例如存在干运转的危险。

壳体内的泄油必须经位置最高的可用泄油口（T 1、T 2）引至油箱。

多个单元共用一条泄油管路时，必须确保不超过各单元相应的壳体压力。共用泄油管路的尺寸必须保证，在任何运行条件下，尤其是冷启动时，所有连接单元的最大允许壳体压力均不会被超过。如果无法满足，必须根据需要敷设独立的回油管路。

为获得较低的噪声，应使用弹性元件将所有连接管路解耦，并避免采用油箱上方安装。

在任何运行条件下，吸油管路与泄油管路都必须接入油箱最低液面以下。允许吸油高度 h S 取决于总压力损失，但不得高于 h S max = 800 mm。在运行和冷启动期间，油口 S 的最低吸油压力也不得低于 0,8 bar（绝对压力）。

设计油箱时，应确保吸油管与泄油管之间有足够间距，以便油液减速和脱气，并防止较热的回油被直接吸回吸油管。

安装位置

参见下列示例 1 至 8。

其他安装位置可按要求提供。建议安装位置：1 和 2。

油箱下方安装（标准）

油箱下方安装，是指轴向柱塞单元安装在油箱外部、最低液面以下。

Installation position	Air bleeding	Filling
1	\u2012	T₁
2	\u2012	T₂
3	\u2012	T₁
4	R (U)	T₂

油箱上方安装

油箱上方安装，是指轴向柱塞单元安装在油箱最低液面以上。

安装位置 8（传动轴朝上）的建议：在泄油管路中设置单向阀，开启压力为 0,5 bar，可防止泵壳内油液排空。

Installation position	Air bleeding	Filling
5	F	T₁ (F)
6	F	T₂ (F)
7	F	T₁ (F)
8	R (U)	T₂ (F)

Key
F	Filling / Air bleeding
R	Air bleed port
U	Bearing flushing / air bleed port
S	Suction port
T₁, T₂	Drain port
h_t min	Minimum required immersion depth (200 mm)
h_min	Minimum required spacing to reservoir bottom (100 mm)
SB	Baffle (baffle plate)
h_S max	Maximum permissible suction height (800 mm)

Note: Connection F is part of the external piping and must be provided on the customer side to simplify the filling and bleeding.

注意

接口 F 属于外部管路的一部分，必须由客户设置，以便简化充油与排气。

一般项目规划说明

轴向柱塞单元设计用于开式回路。

轴向柱塞单元的项目规划、安装和调试，必须由具备资质的专业人员参与。

使用轴向柱塞单元前，请完整、仔细地阅读相应操作手册。必要时可向 Bosch Rexroth 索取。

最终确定设计前，请索取具有约束力的安装图。

必须遵守规定的数据及说明。

防锈保护：我们的轴向柱塞单元标准供货时，提供最长 12 个月的防锈保护。如需更长的保护时间，最长可达 24 个月，请在订购时以文字注明。上述保护时间仅适用于最佳储存条件；相关条件的详细说明参见数据表 90312 或操作手册。

液压系统中必须设置溢流阀。

必须遵守操作手册中有关连接螺纹及其他螺纹接头拧紧力矩的说明。

必须遵守操作手册中有关油口螺纹及其他螺纹连接拧紧力矩的规定。

油口和安装螺纹按允许的最大压力 p max 设计，参见操作手册。机器或系统制造商必须确保连接元件及管路，在必要安全系数下满足规定的运行条件，包括压力、流量、液压油及温度。

工作油口和功能油口仅用于连接液压管路。

数量：
库存状态：





询价加入询价篮

产品分类

数值表

最高转速

注意

液压油

液压油的黏度与温度

液压油选择

选择图

液压油过滤

工作压力范围

注意

压力定义

压力变化率

轴封处的最大压差

注意

流动方向

传动轴允许的径向力和轴向力

一般信息

径向力 F q 对轴承寿命的影响

齿轮传动，规格 5 \u2026 180

齿轮传动，规格 200 \u2026 1000

长寿命轴承

规格 250 至 1000

轴承冲洗。

冲洗流量（推荐值）

Size 5

Drive shafts

Ports

Size 10 \u2026 16

Drive shafts Z and A

Drive shafts P and B

Ports

Size 23 \u2026 180

Drive shafts Z and A

Splined shaft DIN 5480

Drive shafts P and B

Parallel keyed shaft DIN 6885

Ports

Size 200

Drive shafts

Ports

Size 250

Drive shafts

Ports

Size 355 \u2026 1000

Drive shaft Z

Splined shaft DIN 5480

Drive shaft P

Parallel keyed shaft DIN 6885

Ports

安装说明

概述

安装位置

油箱下方安装（标准）

油箱上方安装

注意

一般项目规划说明

公司

产品

联系我们

在线留言
