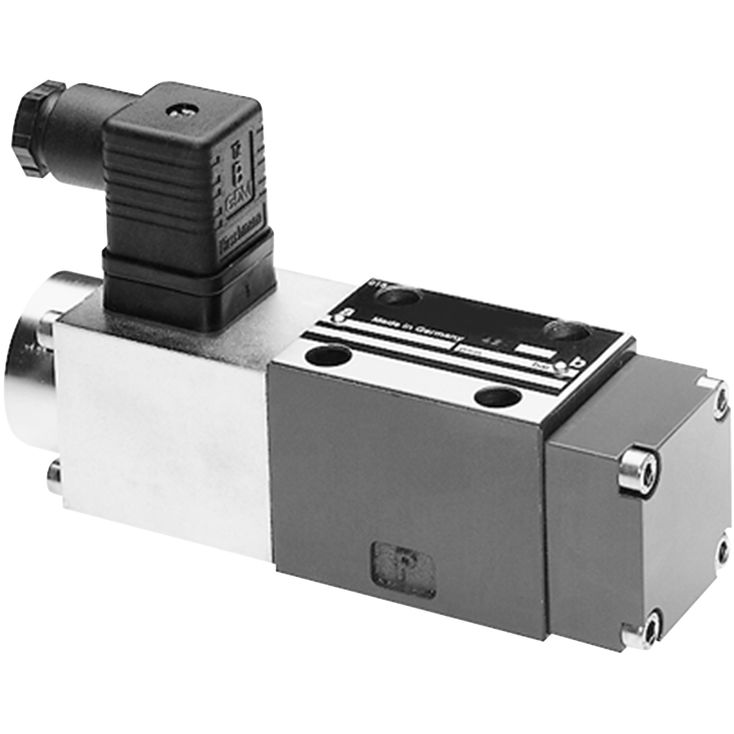

2FREX 10 B-1X/70L1G24-25N9Z4MM
Rexroth
0811403013
NG6及NG10规格的直动式流量控制阀。
液压油口的分配决定二通或三通功能；三通时剩余流量经P口（第三通路）流出。“NO”常开机能仅能实现二通功能。
通过电磁铁电流进行调节。
用于底板安装，油口布置符合ISO 4401。
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | |||
FRE | X | B | ‒ | 1X | / | L | G24 | ‒ | 25 | Z4 | M | M |
01 | 3-way | 3 |
2-way | 2 | |
02 | Proportional flow control valve, without position control | FRE |
03 | Without inductive position transducer | X |
04 | Size 6 | 6 |
Size 10 | 10 | |
05 | Without external closing of the pressure compensator | B |
06 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10 | 1X |
Nominal flow | ||
07 | Size 6 | |
7,5 l/min | 7,5 | |
15 l/min | 15 | |
35 l/min | 35 | |
Size 10 | ||
60 l/min | 60 | |
70 l/min | 70 | |
Flow characteristic | ||
08 | Linear | L |
09 | Command value presetting + 10 V, Qmin (NO) | 1 |
Command value presetting + 10 V, Qmax (NC) | 2 | |
Supply voltage of the control electronics | ||
10 | Direct voltage 24 V | G24 |
Solenoid type (current) | ||
11 | Solenoid current maximum 2.5 A | 25 |
12 | Concealed manual override | N9 |
Manual override, screwable with lock nut | N12 | |
Electrical connection | ||
13 | Connector according to DIN 43650-AM2 | Z4 |
14 | Without check valve | M |
Seal material | ||
15 | NBR seals | M |
Type | 3(2)FREX | ||
Size | 6 | 10 | |
Component series | 1X | ||
Installation position | Any | ||
Weight | kg | 2 | 5.8 |
Ambient temperature range | °C | -20 … +50 | |
Type | 3(2)FREX | |||
Size | 6 | 10 | ||
Maximum operating pressure | bar | 250 | ||
Maximum operating pressure | Anschluss A | bar | 250 | |
Port B | bar | 250 | ||
Hydraulic fluid temperature range | °C | -20 … +80 | ||
Viscosity range | mm²/s | 10 … 800 | ||
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) | Class 18/16/13 according to ISO 4406 (c) | |||
Hysteresis | % | ≤ 5 | ||
Range of inversion | % | ≤ 3 | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Type | 3(2)FREX | ||
Maximum solenoid current | A | 2.5 | |
Solenoid coil resistance | Cold value at 20 °C | Ω | 3 |
Duty cycle | % | 100 | |
Protection class according to DIN EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | ||
3(2)FREX 型不带位置控制的比例流量阀提供规格 6 和 10，采用比例电磁铁操作，滞环 < 5 %。阀用放大器电子装置可选不同结构。“NO”（常开）机能只能用作二通流量阀，即 2FREX 型；“NC”（常闭）机能可用作三通或二通流量阀。由于阀体结构所限，三通型的剩余流量经 P 口导出。二通型的流路为 A 至 B，P、T 口封闭。
