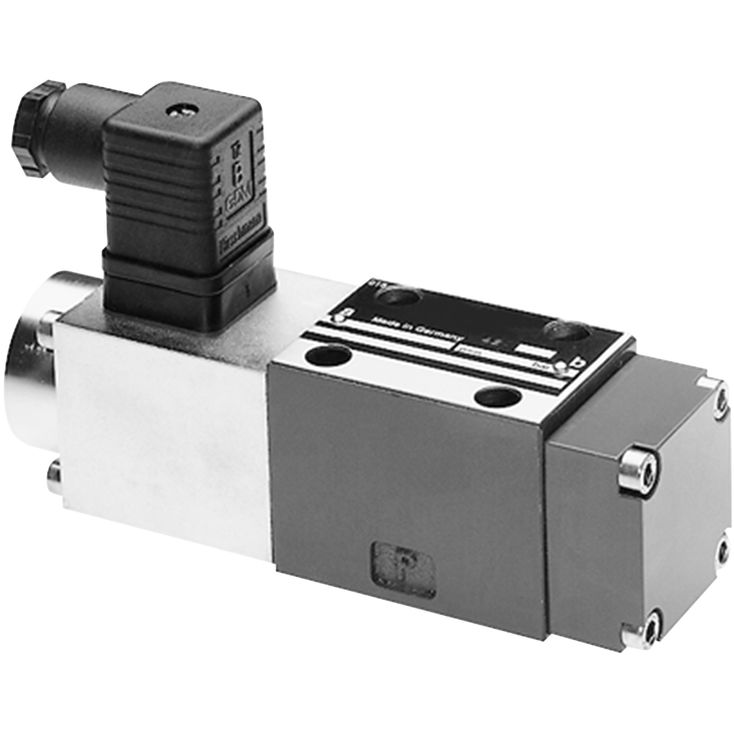

2FREX 10 B-1X/70L1G24-25N9Z4MM
Rexroth
0811403013
Direct operated flow control valves NG6 and NG10
The assignment of the hydraulic ports determines the 2-way or 3-way function (the residual current flows via port P, 3rd way), symbol “NO” (normally open) can only be realized as 2-way function
Adjustable by means of the solenoid current
For subplate mounting: Porting pattern according to ISO 4401
Direct operated flow control valves NG6 and NG10
The assignment of the hydraulic ports determines the 2-way or 3-way function (the residual current flows via port P, 3rd way), symbol “NO” (normally open) can only be realized as 2-way function
Adjustable by means of the solenoid current
For subplate mounting: Porting pattern according to ISO 4401
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | |||
FRE | X | B | ‒ | 1X | / | L | G24 | ‒ | 25 | Z4 | M | M |
01 | 3-way | 3 |
2-way | 2 | |
02 | Proportional flow control valve, without position control | FRE |
03 | Without inductive position transducer | X |
04 | Size 6 | 6 |
Size 10 | 10 | |
05 | Without external closing of the pressure compensator | B |
06 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10 | 1X |
Nominal flow | ||
07 | Size 6 | |
7,5 l/min | 7,5 | |
15 l/min | 15 | |
35 l/min | 35 | |
Size 10 | ||
60 l/min | 60 | |
70 l/min | 70 | |
Flow characteristic | ||
08 | Linear | L |
09 | Command value presetting + 10 V, Qmin (NO) | 1 |
Command value presetting + 10 V, Qmax (NC) | 2 | |
Supply voltage of the control electronics | ||
10 | Direct voltage 24 V | G24 |
Solenoid type (current) | ||
11 | Solenoid current maximum 2.5 A | 25 |
12 | Concealed manual override | N9 |
Manual override, screwable with lock nut | N12 | |
Electrical connection | ||
13 | Connector according to DIN 43650-AM2 | Z4 |
14 | Without check valve | M |
Seal material | ||
15 | NBR seals | M |
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | |||
FRE | X | B | ‒ | 1X | / | L | G24 | ‒ | 25 | Z4 | M | M |
01 | 3-way | 3 |
2-way | 2 | |
02 | Proportional flow control valve, without position control | FRE |
03 | Without inductive position transducer | X |
04 | Size 6 | 6 |
Size 10 | 10 | |
05 | Without external closing of the pressure compensator | B |
06 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10 | 1X |
Nominal flow | ||
07 | Size 6 | |
7,5 l/min | 7,5 | |
15 l/min | 15 | |
35 l/min | 35 | |
Size 10 | ||
60 l/min | 60 | |
70 l/min | 70 | |
Flow characteristic | ||
08 | Linear | L |
09 | Command value presetting + 10 V, Qmin (NO) | 1 |
Command value presetting + 10 V, Qmax (NC) | 2 | |
Supply voltage of the control electronics | ||
10 | Direct voltage 24 V | G24 |
Solenoid type (current) | ||
11 | Solenoid current maximum 2.5 A | 25 |
12 | Concealed manual override | N9 |
Manual override, screwable with lock nut | N12 | |
Electrical connection | ||
13 | Connector according to DIN 43650-AM2 | Z4 |
14 | Without check valve | M |
Seal material | ||
15 | NBR seals | M |
Type | 3(2)FREX | ||
Size | 6 | 10 | |
Component series | 1X | ||
Installation position | Any | ||
Weight | kg | 2 | 5.8 |
Ambient temperature range | °C | -20 … +50 | |
Type | 3(2)FREX | |||
Size | 6 | 10 | ||
Maximum operating pressure | bar | 250 | ||
Maximum operating pressure | Anschluss A | bar | 250 | |
Port B | bar | 250 | ||
Hydraulic fluid temperature range | °C | -20 … +80 | ||
Viscosity range | mm²/s | 10 … 800 | ||
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) | Class 18/16/13 according to ISO 4406 (c) | |||
Hysteresis | % | ≤ 5 | ||
Range of inversion | % | ≤ 3 | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Type | 3(2)FREX | ||
Maximum solenoid current | A | 2.5 | |
Solenoid coil resistance | Cold value at 20 °C | Ω | 3 |
Duty cycle | % | 100 | |
Protection class according to DIN EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | ||
Type | 3(2)FREX | ||
Size | 6 | 10 | |
Component series | 1X | ||
Installation position | Any | ||
Weight | kg | 2 | 5.8 |
Ambient temperature range | °C | -20 … +50 | |
Type | 3(2)FREX | |||
Size | 6 | 10 | ||
Maximum operating pressure | bar | 250 | ||
Maximum operating pressure | Anschluss A | bar | 250 | |
Port B | bar | 250 | ||
Hydraulic fluid temperature range | °C | -20 … +80 | ||
Viscosity range | mm²/s | 10 … 800 | ||
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) | Class 18/16/13 according to ISO 4406 (c) | |||
Hysteresis | % | ≤ 5 | ||
Range of inversion | % | ≤ 3 | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Type | 3(2)FREX | ||
Maximum solenoid current | A | 2.5 | |
Solenoid coil resistance | Cold value at 20 °C | Ω | 3 |
Duty cycle | % | 100 | |
Protection class according to DIN EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | ||
Proportional flow control valves of type 3(2)FREX without position control are offered in sizes 6 and 10. Operation is effected by means of proportional solenoid. The hysteresis is < 5 %. The valve amplifier electronics are available in different designs. The “NO” (normally open) symbol can only be used as 2-way flow control valve (type 2FREX). The “NC” (normally closed” symbol can be used as 3-way or 2-way flow control valve. Due to the valve housing, the residual flow in the 3-way version is guided via port P. For the 2-way version, the following is true: A to B (P and T are closed).
Proportional flow control valves of type 3(2)FREX without position control are offered in sizes 6 and 10. Operation is effected by means of proportional solenoid. The hysteresis is < 5 %. The valve amplifier electronics are available in different designs. The “NO” (normally open) symbol can only be used as 2-way flow control valve (type 2FREX). The “NC” (normally closed” symbol can be used as 3-way or 2-way flow control valve. Due to the valve housing, the residual flow in the 3-way version is guided via port P. For the 2-way version, the following is true: A to B (P and T are closed).
