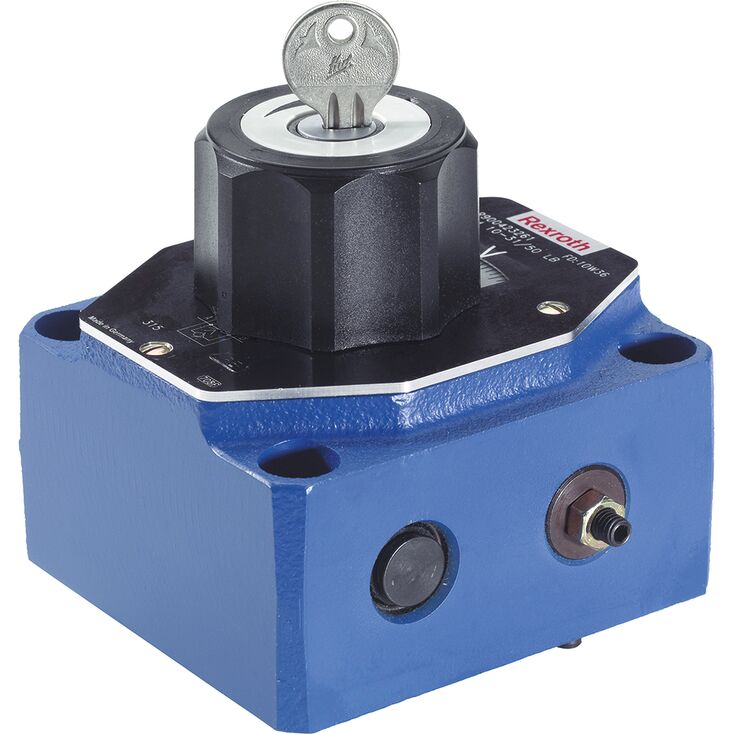

2FRM16-3X/160LB
Rexroth
R900424902
用于底板安装。
油口布置符合DIN 24340 G型及ISO 6263。
机械驱动。
可选压力补偿器行程限制。
减小启动阶跃。
通过整流叠加板，实现双向流量控制。
2FRM 型流量控制阀为二通流量控制阀，用于保持恒定流量，其流量基本不受压力和温度影响。
阀通常由阀体（1）、节流孔套（2）、可选带行程限制（3.1）的压力补偿器（3）、单向阀（4）、2FRM 型的调节元件（5），以及齿条活塞驱动装置（6）和换向阀（7）组成。从通道 A 至通道 B 的油流在节流点（9）处被节流。2FRM 型的节流截面通过调节元件（5）机械旋转曲线螺栓（10）设定。调节速度可通过节流单向阀（6.3 和 6.4）设定。为限定所需调节范围，齿条活塞驱动装置（6）的两侧均设有可调行程限制（6.1 和 6.2）。上游设置压力补偿器（3），以确保节流点（9）处的流量恒定且不受压力影响。
节流点的孔口设计使流量基本不受温度影响。
由B通道至A通道的自由回流，经单向阀（4）通过。
受控流量仅由A通道流向B通道。
对于往复流动（正向与回流），可在流量控制阀下方安装 Z4S 型整流叠加板。
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | ||
2FR | – | 3X | / | * |
01 | 2-way flow control valve | 2FR |
Type of actuation | ||
02 | Mechanical | M |
Hydraulic | H | |
Electro-hydraulic | W | |
03 | Size 10 | 10 |
Size 16 | 16 | |
04 | Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) | 3X |
Flow range A to B | ||
05 | Size 10, linear | |
Up to 10 l/min | 10L | |
Up to 16 l/min | 16L | |
Up to 25 l/min | 25L | |
Up to 50 l/min | 50L | |
Size 16, linear | ||
Up to 60 l/min | 60L | |
Up to 100 l/min | 100L | |
Up to 160 l/min | 160L | |
06 | Without pressure compensator stroke limitation | no code |
With pressure compensator stroke limitation | B | |
07 | Without actual value potentiometer | no code |
With actual value potentiometer (only types 2FRH and 2FRW) | P | |
08 | With concealed manual override (standard) | N9 |
With manual override | N | |
Without manual override | no code | |
Electrical connection | ||
09 | Individual connection | |
Without mating connector; connector DIN EN 175301-803 | K4 1) | |
Seal material | ||
10 | NBR seals | no code |
FKM seals | V | |
Observe compatibility of seals with hydraulic fluid used. | ||
11 | Further details in the plain text | * |
1) Mating connectors, separate order.
Preferred types and standard units are contained in the EPS (standard price list).
Size | 10 | 16 | ||
Weight | kg | 5.6 | 11.3 | |
Installation position | any | |||
Ambient temperature range | NBR seals | °C | -30 … +80 | |
FKM seals | °C | -20 … +80 | ||
Size | 10 | 16 | |||||||
Maximum flow | l/min | 10 16 25 50 | 60 100 160 | ||||||
Maximum operating pressure | Anschluss A | bar | 315 | ||||||
Pressure differential with free return flow B to A, qV-dependent | bar | 2 | 2.5 | 3.5 | 6 | 2.8 | 4.3 | 7.3 | |
Minimum pressure differential | bar | 3 … 7 | 5 … 12 | ||||||
Flow control | Thermally stable (qV max) at –20 … +80 °C | % | ± 2 | ||||||
Pressure stable (qV max) to Δp = 315 bar | % | ± 2 | < ± 5 | ||||||
Hydraulic fluid | see table | ||||||||
Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 | ||||||
FKM seals | °C | -20 … +80 | |||||||
Viscosity range | mm²/s | 10 … 800 | |||||||
Maximum admissible degree of contamination of the hydraulic fluid 1) | Class 20/18/15 according to ISO 4406 (c) | ||||||||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
Mineral oils | HL, HLP | NBR, FKM | DIN 51524 | |
Bio-degradable | Insoluble in water | HETG | NBR, FKM | VDMA 24568 |
HEES | FKM | |||
Soluble in water | HEPG | FKM | VDMA 24568 | |
Containing water | Water-free | HFDU | FKM | ISO 12922 |
Containing water | HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) | NBR | ISO 12922 | |
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum pressure differential per control edge 50 bar. Pressure pre-loading at the tank port >20% of the pressure differential; otherwise, increased cavitation Life cycle compared to operation with mineral oil HL, HLP 50 to 100 % Bio-degradable: When using bio-degradable hydraulic fluids that are zinc-solving, zinc may accumulate in the fluid (700 mg zinc per pole tube) | ||||
Resistance | Ω | 1000 |
Load capacity | W | 5 |
Maximum wiper current | A | 0.12 |
Protection class according to EN 60529 | IP65 | |
Control limit error at 10°/s (depending on the positioning velocity) | ° | ± 1.5 |
Dimensions in mm
NG | B1 | B2 | B3 | B4 | B5 | B6 | ØD1 | ØD2 | D3 | H1 | H2 | H3 | H4 | H5 | L1 | L2 | L3 | L4 | T1 |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| 10 | 101.5 | 82.5 | 9.5 | 68 | 58.7 | 35.5 | 9 | 15 | 6 | 125 | 95 | 26 | 51 | 60 | 95 | 76 | 9.5 | 79.4 | 13 |
| 16 | 123.5 | 101.5 | 11 | 81.5 | 72.5 | 41.5 | 11 | 18 | 6 | 147 | 117 | 34 | 72 | 82 | 123.5 | 101.5 | 11 | 102.4 | 12 |
Subplates (separate order)
Size 10:
G 279/01 (G 1/2)
G 280/01 (G 3/4)
Size 16:
G 281/01 (G 1)
G 282/01 (G 1 1/4)
Valve mounting screws (separate order)
Size 10:
4 hexagon socket head cap screws ISO 4762 - M8 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 30 Nm ± 10 %,
Material no. R913000543
Size 16:
4 hexagon socket head cap screws ISO 4762 - M10 x 80 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 64 Nm ±10 %,
Material no. R913000496
