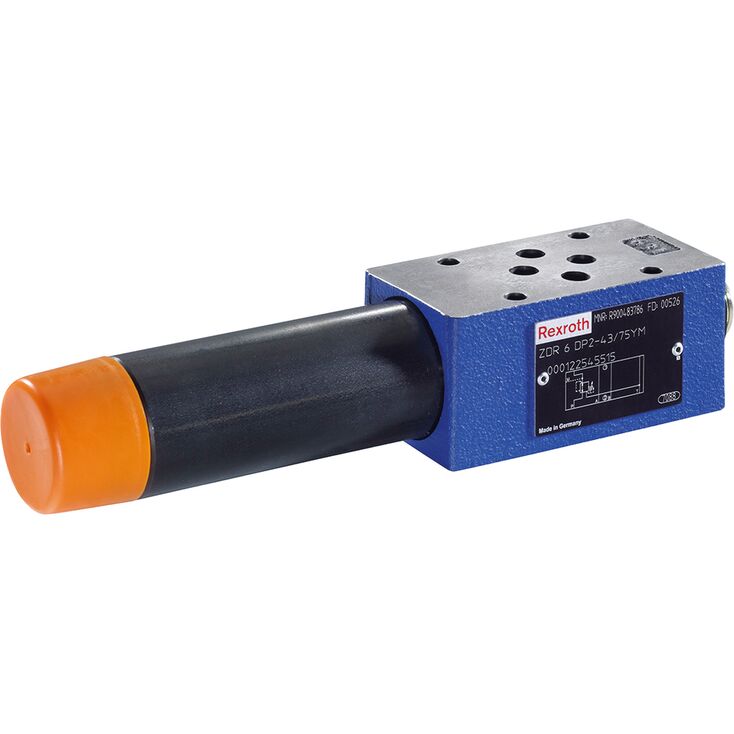

ZDR10DP2-5X/150YM

叠加板式阀。
油口布置符合ISO 4401-05-04-0-05。
四种压力等级。
四种可选调节方式：

• 旋钮。

• 带六角及保护帽的调节套。

• 带刻度的可锁定旋钮。

• 带刻度旋钮。
可选单向阀，适用于“A”型。
在A、B或P通道中减压。
防腐蚀结构。

ZDR型阀是带二次回路限压功能的叠加板式直动减压阀，用于降低系统压力。

减压阀主要包括阀体（1）、控制阀芯（2）、压缩弹簧（3）、调节装置（4）以及可选单向阀。

通过调节装置（4）设定二次压力。

“A”版本。

阀在初始位置开启，液压油可由A➀无阻流向A➁。同时，A➁通道压力经控制管路（5）作用于压缩弹簧（3）对侧的活塞面积。压力超过弹簧（3）设定值时，控制阀芯（2）克服弹簧移至控制位置，使A➁通道压力保持设定值。

控制信号和先导油通过控制油路（5）从通道 A➁ 内部引入。

若执行器受到外力，导致通道 A➁ 中的压力继续升高，压力会推动控制阀芯（2）进一步克服压缩弹簧（3）的作用而移动。

由此，通道 A➁ 经控制阀芯（2）上的控制边（6）及阀体（1）与油箱（TB 通道）连通。足量液压油排入油箱，使压力不再继续升高。

弹簧腔（7）的泄漏油始终通过TA通道外部排出。

压力表接口（8）可用于检查阀的二次压力。

对于“A”型，可使用单向阀实现从通道 A➁ 至 A➀ 的自由回流。

“P”及“B”版本。

对于“P”型，在通道 P➀ 中减压。控制信号和先导油均由通道 P➀ 内部引入。

对于“B”型，在通道 P➀ 中减压，但先导油取自通道 B。若换向阀处于 P 至 A 的阀位，通道 B 的压力不得超过设定的二次压力，否则通道 A 中会发生减压。

注意：

若不配换向阀使用，则将 TA 和 TB 通道相互连接，例如在盖板中连通。

安装 NG 10 座阀式换向阀时，必须使用 HSZ10A078-3X/M00 型叠加板（物料号 R900537264）。

ZDR 10 DA …型。

①	component side
②	plate side

01	02	03	04	05	06		07		08	09	10	11	12	13
Z	DR	10	D			-	5X	/		Y				*

01	Sandwich plate valve	Z
02	Pressure reducing valve	DR
03	Size 10	10
04	Direct operated	D
05	Pressure reduction in channel A➁	A
	Pressure reduction in channel P➁ (pilot oil supply from channel B)	B
	Pressure reduction in channel P➁	P
Adjustment type
06	Rotary knob	1
	Sleeve with hexagon and protective cap ("J3" version without protective cap)	2
	Lockable rotary knob with scale	3 1)
	Rotary knob with scale	7
07	Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)	5X
08	Secondary pressure up to 25 bar	25
	Secondary pressure up to 75 bar	75
	Secondary pressure up to 150 bar	150
	Secondary pressure 210 bar	210
09	Internal pilot oil supply, external pilot oil return	Y
10	With check valve (only version "A")	no code
10	Without check valve	M
Corrosion resistance
11	None	no code
11	Improved corrosion protection (240 h salt spray test according to EN ISO 9227) (only version "1" and "2")	J3
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
12	NBR seals	no code
12	FKM seals	V
13	Further details in the plain text	*

1)	H-Key with material no. R900008158 is included in the scope of delivery.

Notice:

For port X and Y bored according to ISO 4401-05-05-0-05 (e.g. for pilot operated directional valve size 10), version "SO30" at the end of the order code applies.

一般

Size			10
Weight (approx.)		kg	2.8
Installation position			any
Ambient temperature range	NBR seals	°C	-30 … +80
Ambient temperature range	FKM seal	°C	-20 … +80

液压

Size			10
Maximum operating pressure	Inlet	bar	315
Maximum secondary pressure	Outlet	bar	25 75 150 210
Maximum counter pressure	Port T	bar	160
Maximum flow		l/min	80
Hydraulic fluid			see table "Hydraulic fluid"
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seal	°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)			Class 20/18/15

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

(如需在这些数值以外的工况下使用，请咨询我们！)

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP	NBR, FKM	DIN?51524	90220
Bio-degradable	Insoluble in water	HETG	NBR, FKM	ISO?15380	90221
	Insoluble in water	HEES	FKM	ISO?15380
	Soluble in water	HEPG	FKM	ISO?15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO?12922	90222
		HFDU (ester base)	FKM
		HFDR	FKM
	Containing water	HFC (Fuchs: Hydrotherm 46M, Renosafe 500;?Petrofer: Ultra Safe 620;?Houghton: Safe 620;?Union: Carbide HP5046)	NBR	ISO?12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Bio-degradable and flame-resistant – containing water: If components with galvanic zinc coating (e.g. version "J3" or "J5") or parts containing zinc are used, small amounts of dissolved zinc may get into the hydraulic system and cause accelerated aging of the hydraulic fluid. Zinc soap may form as a chemical reaction product, which may clog filters, nozzles and solenoid valves - particularly in connection with local heat input. Flame-resistant – containing water: Due to increased cavitation tendency with HFC hydraulic fluids, the life cycle of the component may be reduced by up to 30% as compared to the use with mineral oil HLP. In order to reduce the cavitation effect, it is recommended - if possible specific to the installation - to back up the return flow pressure in ports T to approx. 20% of the pressure differential at the component.

Dimensions in mm

Required surface quality of the valve contact surface

Version	L1	L2	L3	L4	L5	L6	L7	B1	B2	B3
Version	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
A	254	230	210	104	93	31.5	3.8	32.9	51	12
B, P	242	218	198	91	-	18.5	15.8	35	-	-

?	component side – Porting pattern according to ISO 4401-05-04-0-05
?	plate side – Porting pattern according to ISO 4401-05-04-0-05
1	Name plate
2	Adjustment type "1"
3	Adjustment type "2"
4	Adjustment type "3"
5	Adjustment type "7"
6	Space required to remove the key
7	Valve mounting bores
8	Lock nut SW24
9	Hexagon SW10
10	Identical seal rings for ports A, B, P, TA, TB
11	Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6

Notices:

For port X and Y bored according to ISO 4401-05-05-0-05 (e.g. for pilot operated directional valve size 10), version "SO30" at the end of the order code applies.

Deviating from ISO 4401, port T is called TA, port T1 is called TB.

Valve mounting screws (separate order)

4 hexagon socket head cap screws ISO 4762 - M6 - 10.9

Notice:

Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
