ZDC 6

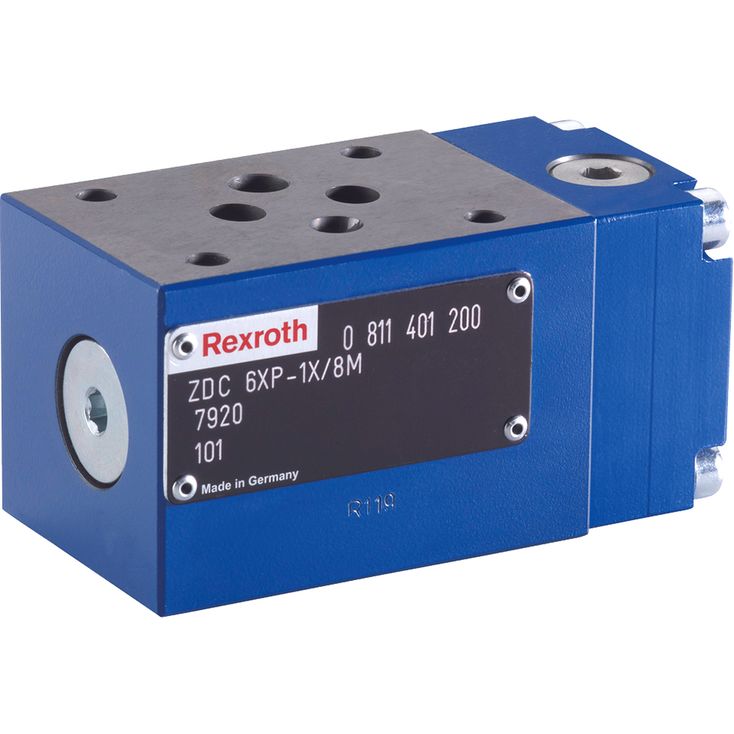

规格6。元件系列1X。最高工作压力250 bar。最大流量35 l/min。叠加板式阀。油口布置符合DIN 24340 A型。通过内置梭阀，对P→A或P→B通道进行负载补偿。

01	02	03	04	05		06		07	08	09	10
Z	DC	6	X		-	1X	/		M		*

01	Sandwich plate valve	Z
02	Meter-in pressure compensator	DC
03	Size 6	6
04	Porting pattern according to DIN 24340 form A	X
05	Load compensation in channel P	P
05	Load compensation in channel A	A
06	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10	1X
Pressure differential
07	8 bar	8
	14 bar	14
	25 bar	25
Seal material
08	NBR seals	M
09	No special version	no code
	Special setting with directional valve 4WRPE	-291
	Control in P on component side; supply optionally A or P; pilot pressure from B	-287
	Flow in A; pilot pressure from T	-292
10	Further details in the plain text	*

Maximaler Betriebsdruck	bar	250
Maximum flow 1)	l/min	35
Druckflüssigkeitstemperaturbereich	°C	-20 … +70
Maximal zulässiger Verschmutzungsgrad der Druckflüssigkeit; Reinheitsklasse nach ISO 4406 (c) 2)		Class 20/18/15
Viskositätsbereich	mm²/s	15 … 380

1)	depending on the pressure differential
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid	Classification	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons	HL, HLP, HLPD, HVLP, HVLPD	NBR	DIN 51524
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oils and related hydrocarbons

HL, HLP, HLPD, HVLP, HVLPD

NBR

DIN 51524

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids please contact us.

There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

Dimensions in mm

➀	component side - porting pattern according to DIN 24340 form A
➁	plate side - porting pattern according to DIN 24340 form A
1	Name plate
2	Valve mounting bores
3	Identical seal rings for ports A, B, P, and T
Valve mounting screws (separate order) 4 hexagon socket head cap screws ISO 4762 - M5 - 10.9 Notice: Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
