Z2FS 22-8-3X/S2

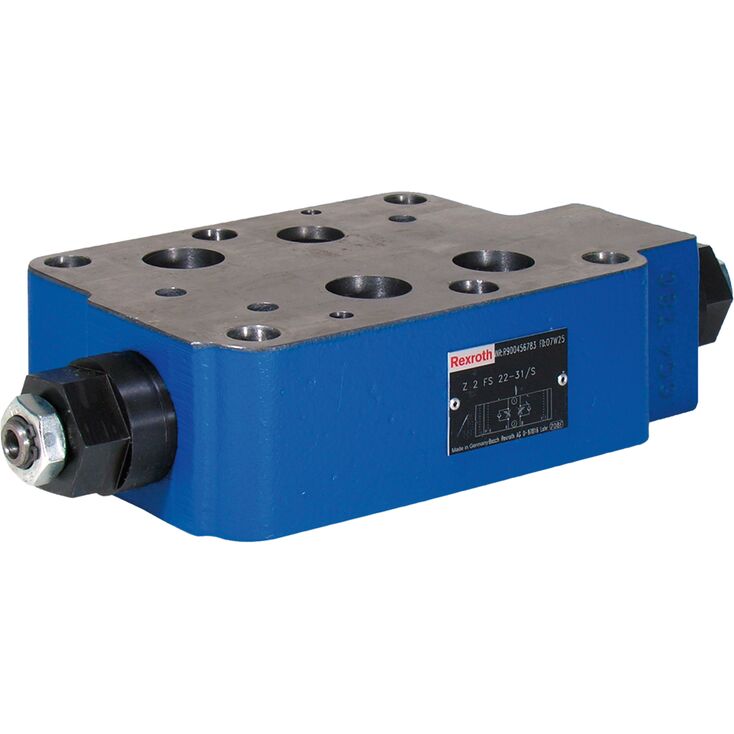

规格25。元件系列3X。最高工作压力350 bar。最大流量360 l/min。叠加板式阀。油口布置符合ISO 4401-08-08-0-05。用于限制两个执行器油口的主流量或先导流量。

数量：
库存状态：





询价加入询价篮

型号：
Z2FS 22-8-3X/S2
品牌：
Rexroth
订货号：
R900443176

叠加板式阀。
油口布置符合ISO 4401-08-08-0-05。
用于限制两个执行器油口的主流量或先导流量。
调节方式：内六角调节螺杆。
用于进油或回油节流。
防腐蚀结构。

Z2S型截止阀是叠加板式液控单向阀。

用于对一个或两个执行器油口进行无泄漏截止，即使长时间停机也能保持截止。

从 A① 至 A② 或从 B① 至 B② 可自由流动，反方向则截止。

例如，当油流经阀由 A① 流向 A② 时，控制阀芯（1）向 B 侧移动，打开球座阀（2），随后将锥阀（3）推离阀座，使液压油能够从 B➁ 流向 B➀。

为确保球座阀（2）能够可靠关闭，控制阀芯（1）必须卸除液压力，参见回路示例。

预开启

通过预开启，可对受压油液进行阻尼卸压，从而避免可能的切换冲击。

具有较大控制开启比的两级结构，可在较低先导压力下可靠卸荷。

Z2S 10 ‒…型，带预开启。

Z2S 10 A…型。

Z2S 10 A…SO40型。

Z2S 10 A…SO60型。

Z2S 10 ‒…SO41型，不带预开启。

Z2S 10 ‒…SO14型。

回路示例，示意图

1	Control spool, area A2
2	Ball, area A3
4	Poppet, area A1
5	Stop
6	Control spool, area A4

①	component side
②	plate side

注意：

不带预开启功能的阀可能使封闭的受压容积突然卸压，由此产生的切换冲击可能造成所装元件过早磨损，并产生噪声。

注意：

与 ISO 4401 的命名不同，T 口称为 TA，T1 口称为 TB。

01	02	03	04		05		06	07	08	09
Z2FS	22		8	–	3X	/				*

01	Throttle check valve, sandwich plate design	Z2FS
02	Size 25	22
03	Throttle check valve side A and B	–
	Throttle check valve side A	A
	Throttle check valve side B	B
Adjustment type
04	Spindle with internal hexagon	8
05	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
06	Supply throttling	S
06	Discharge throttling	S2
Corrosion resistance (outside)
07	None (valve housing primed)	no code
07	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Seal material
08	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
09	Further details in the plain text	*

一般

Size			25
Weight (approx.)		kg	8
Installation position			any
Ambient temperature range	NBR seals	°C	-30 … +50
Ambient temperature range	FKM seals	°C	-20 … +50

液压

Size			25
Maximum operating pressure		bar	350
Maximum flow		l/min	360
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seals	°C	-20 … +50
Viscosity range		mm²/s	2.8 … 380
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)			Class 20/18/15

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG 1)	NBR, FKM	ISO 15380	90221
	Insoluble in water	HEES 1)	FKM	ISO 15380
	Soluble in water	HEPG 1)	FKM	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO 12922	90222
		HFDU (ester base) 1)	FKM
		HFDR	FKM
	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) 1)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Flame-resistant – containing water: Maximum pressure differential 210 bar, otherwise, increased cavitation erosion Life cycle as compared to operation with mineral oil HL, HLP 30 … 100%. Maximum hydraulic fluid temperature 60 °C Bio-degradable and flame-resistant – containing water: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system.

1)	Not recommended for corrosion-protected version "J3" (contains zinc)

(如需在这些数值以外的工况下使用，请咨询我们！)

Dimensions in mm


Required surface quality of the valve contact surface

1	Name plate
2	Adjustment type "8“ Spindle for changing the flow cross-section (internal hexagon SW6) Left rotation = higher flow Right rotation = lower flow
3	Through holes for valve mounting
4	Identical seal rings for ports A, B, P, T
5	Identical seal rings for ports X, Y, L
6	Locking pin (included in the scope of delivery)
7	Hexagon SW22, tightening torque MA = 25 Nm
8	Porting pattern according to ISO 4401-08-08-0-05
9.1	Plug screw with version "B"
9.2	Plug screw with version "A"

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
25	6	ISO 4762 - M12 - 10.9-flZn-240h-L	-

Notice:

Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
