VT-SVTSY-1-1X
Rexroth
R900962017

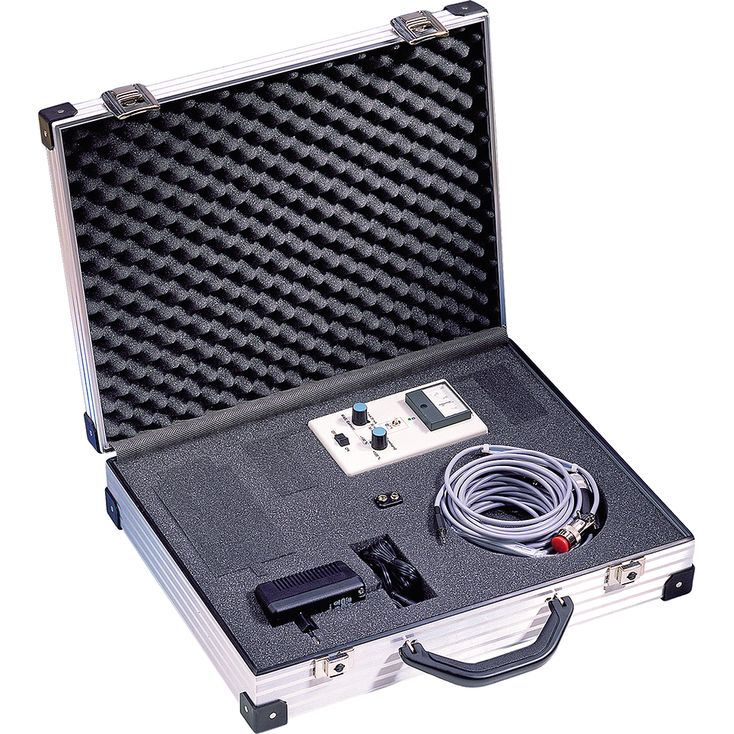

维修工具箱：测试装置、电源单元及连接电缆。
测试装置适用于不带集成电子装置的伺服阀液压系统的调试与维修；机器动作异常时，无需拆卸伺服阀即可检查功能并定位故障；采用9 V方形电池或12 V电源单元供电。
测试装置适用于控制和功能测试不带集成电子装置的伺服阀。
测试装置由9 V方形电池供电，电池不随货提供；也可选用VT-SVTNT-2-2X/G12型12 V电源单元。
注意：
测试装置仅可由熟悉装置、阀及液压系统的人员使用。采用相应设置时，装置会忽略系统控制信号，从而使控制侧原有安全防范失效。
对于操作不当造成的损坏，不承担责任。
阀测试。
将电源装置的连接电缆接至测试仪插座（6），或装入电池。
将功能开关（1）设为“ON”→“Power”电源 LED（8）点亮。
使用电池运行时，请执行电池检查：
将选择开关（3）设为“50 mA”
将指令值电位器（4）设为“–100%”
按下按钮（2）进行电池检查
测试装置指示器以百分比显示电池电量。
用测试仪上的选择开关（3）选择阀的线圈类型。
将指令值电位器（4）调至中间位置。
采用合适的阀连接电缆，参见订货代码，连接测试装置插孔（7）与伺服阀。连接电缆的接线使伺服阀两个线圈串联。
缓慢向左或向右旋转指令值电位器（4），同时观察马达或油缸的运动。
伺服阀工作平稳时，可使受控马达或油缸灵敏地向所需方向移动，或到达所需位置。
1 | Functional switch |
2 | Push-button for battery test |
3 | Selector switch for coil type |
4 | Command value potentiometer |
5 | Coil current indication (in %) |
6 | Socket for power supply unit cable |
7 | Socket for valve connection cable |
8 | "Power" LED display |
Rated current per coil | Resistance per coil | Valve type |
5 mA | 500 Ω | 4WS2E.10-4X 1) |
7,5 mA | 200 Ω | |
20 mA | 80 Ω | 4WS2E.10A-4X 1) |
30 mA | 40 Ω | 4DS1EO2-1X 1) |
50 mA | 28 Ω | 3DS2EH10-2X 1) |
30 mA | 85 Ω | 4WS2EM6-2X/... 4WS2EM10-5X/... |
30 mA | 100 Ω | 4WS2EM6-2X/... |
50 mA | 80 Ω | |
50 mA | 85 Ω | 4WS2EM10-5X/... |
| 1) | Not for new applications |
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | |||||||
VT-SVTSY-1 | – | 1X | / | 1 | – | – | – | – | / | * |
01 | Service case with test unit for servo valves without integrated electronics | VT-SVTSY-1 |
02 | Component series 10 ... 19 (10 ... 19: unchanged technical data and pin assignment) | 1X |
03 | Test device type VT-SVT-1-1X | 1 |
Connection cable for valves with electrical connection "K31" | ||
04 | Without connection cable | 0 |
With connection cable type VT-SVTK-1-1X | 1 | |
Connection cable for valves with electrical connection "K17" | ||
05 | Without connection cable | 0 |
With connection cable type VT-SVTK-2-1X | 1 | |
Connection cable for valves with electrical connection "K8" | ||
06 | Without connection cable | 0 |
With connection cable type VT-SVTK-3-1X | 1 | |
Power supply unit | ||
07 | Without power supply unit | 0 |
With power supply unit type VT-SVTNT-2-2X/G12 | 1 | |
08 | Further details in the plain text | |
Ambient temperature range | °C | 0 … +50 |
Dimensions (W x H x D) | mm | 95 x 158 x 45 |
Weight | g | 0.34 |
Conformity | CE according to EMC directive 2014/30/EU, tested according to EN 61326-2-1 and EN 61326-1 RoHS directive 2011/65/EU |
Battery operation 1) | V | 9 |
Power supply unit operation | VDC | 12 ±5 % |
Current consumption of the test device 2) | mA | 20 |
Protection class according to EN 60529 | IP20 |
| 1) | E block, not included in the scope of delivery |
| 2) | additional valve flow |
1 | Functional switch |
2 | Push-button for battery test |
3 | Selector switch for coil type |
4 | Command value potentiometer |
5 | Coil current indication (in %) |
6 | Socket for power supply unit cable |
7 | Socket for valve connection cable |
8 | "Power" LED display |
9 | Voltage regulator |
10 | Output stage |
11 | 9V block battery |
12 | Pluggable power supply VT-SVTNT-2-2X/G12 |
13 | Servo valve |
