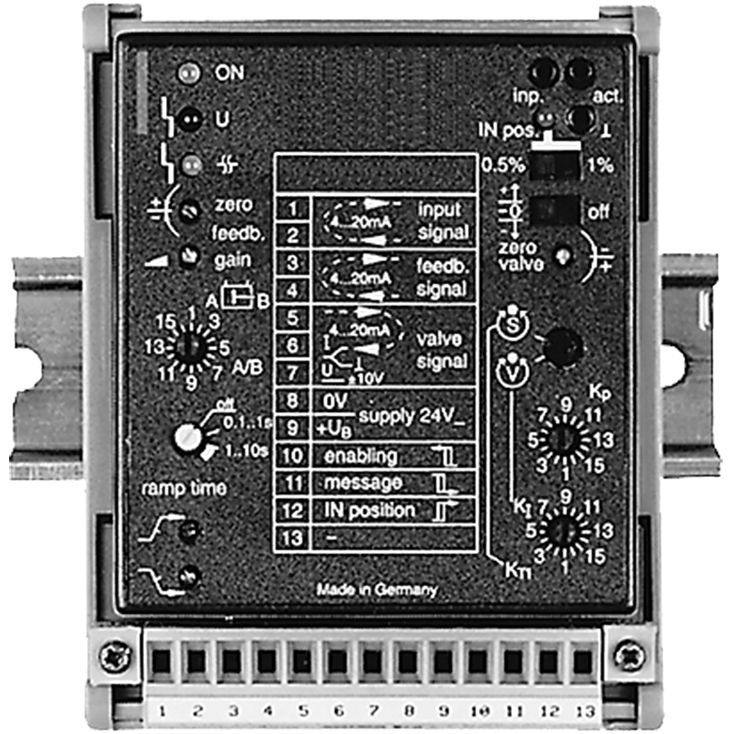

Power supply |
|
| nominal 24 V=
battery voltage 21...40 V,
rectified alternating voltage Ueff = 21...28 V
(single-phase, full-wave rectifier) |
Current consumption, max. |
| mA | 200 |
Signal input | VT-MACAS-500-10/V0 |
|
| Ucommand: ±10 V, differential amplifier
Ri= 100 kΩ |
VT-MACAS-500-10/V0/l |
|
| Iist: 4...20 mA
Rsh = 200 Ω |
Actual value signal | VT-MACAS-500-10/V0 |
|
| Uactual: ±10 V, differential amplifier
Ri= 100 kΩ |
VT-MACAS-500-10/V0/l |
|
| Iist: 4...20 mA
Rsh = 200 Ω |
Valve signal |
|
| UV= ±10 V (max. 10 mA) or
IV= 4...20 mA (middle 12 mA) |
Compensation step |
|
| can be switched off;
effective in a range of ±4 % |
Enable signal | V= |
| 8,5...40 V |
Error message |
|
| no error: 24 Vnom (UB) max. 50 mA
error: < 2 V |
IN POS message |
|
| IN POS: 24 Vnom (UB) max. 50 mA
not IN POS: < 2 V |
Ramp ranges |
|
| I: 0,1...1 s
II: 1...10 s |
Area adjustment AK : AR |
|
| min. 1:1; max. 1:4 |
Actual value adjustment |
|
| Zero point: -5...10 %
Gain: 50...110 % |
Controller type |
|
| Position: PT1
Velocity: PI |
Zero point valve |
| % | ± 5 |
Special features |
|
| – Switchable from position to velocity control
– Switchable position window
– Test points on front plate
– Interfaces short-circuit-proof |
Fastening |
|
| Top hat rail TH35-7.5 or G rail G32 according to EN 60715 |
Connection |
|
| Connectors + terminals |
Operating temperature |
| °C | 0 … +70 |
Storage temperature range |
| °C | -20 … +70 |
Weight | m | kg | 0.38 |
