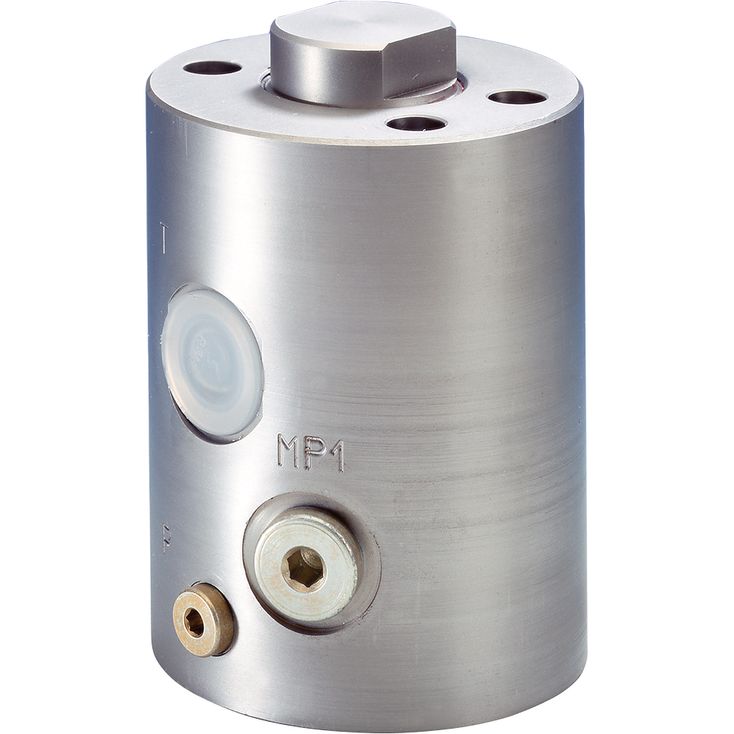

NG | ØA | B | C | D | E | F | G | ØK | L | M | ØO | PP 1) | P1 | P | MP1 | T 2) |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
|
|
|
|
|
|
| 18/28 | 75 | 115 | 104 | 60.5 | 30 | 14 | 30 | 34 | 22.2 | 47.6 | 4 x 10,5 mm | SAE 3/4\u201c | G1/2 | G1/8 | G1/4 | G3/8 |
| 45 | 80 | 115 | 104 | 60.5 | 29 | 15 | 33 | 34 | 26.2 | 52.4 | 4 x 10,5 mm | SAE 1\u201c | G3/4 | G1/8 | G1/4 | G3/8 |
The following is not included in the scope of delivery:
Valve mounting screws
for NG18, 28 and 45
4 hexagon socket head cap screws
ISO4762-M10X120-10.9-flZn-240h-L,
friction coefficient μtotal = 0.09 to 0.14 according to VDA 235-101,
Tightening torque MA = 50 Nm,
material number: R913000074
NG | A | B | C | D | E | F | G | H | ØK | L | M | N | ØO | PP | P1 | P | MP1 | T 3) |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
|
|
|
|
|
|
| 71 | 85 | 150 | 134 | 94 | 55 | 24 | 56 | 44 | 45 | 30.2 | 58.7 | 4.5 | 4 x 10,5 mm | SAE 1 1/4\u201c 1) |
| G1/8 | G1/4 | G3/4 |
| 100/140 | 85 | 147 | 131 | 91 | 52 | 24 | 56.5 | 48 | 45 | 31.8 | 66.7 | 4.5 | 4 x 15 mm | SAE 1 1/4\u201c 2) | SAE 1 1/4\u201c 2) | G1/8 | G1/4 | G3/4 |
The following is not included in the scope of delivery:
Valve mounting screws
for NG71:
4 hexagon socket head cap screws
ISO4762-M10X150-10.9-flZn-240h-L,
friction coefficient μtotal = 0.09 to 0.14 according to VDA 235-101,
Tightening torque MA = 55 Nm,
material number: R913000071
for NG100 and 140:
4 hexagon socket head cap screws
ISO4762-M14X150-10.9-flZn-240h-L,
friction coefficient μtotal = 0.09 to 0.14 according to VDA 235-101,
Tightening torque MA = 100 Nm,
material number: R913000073
