01 | 02 | 03 | 04 | 05 | 06 | |||

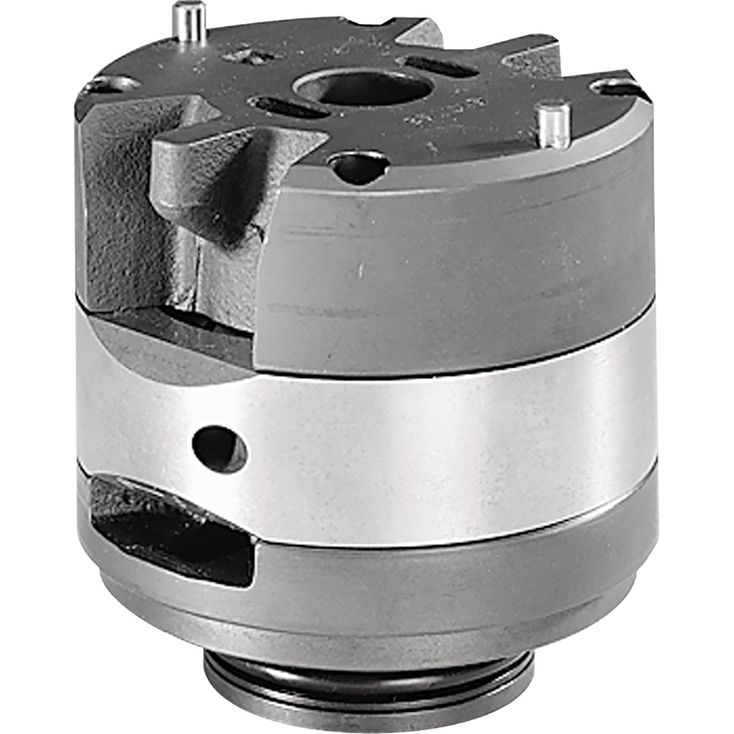

INSTALLATION KIT | PVV | \u2013 | 1X | / |
Pump type | |||
01 | Industrial version | PVV | |
Frame size | |||
02 | Frame Size 1 | 1 | |
Frame Size 2 | 2 | ||
Frame size 4 | 4 | ||
Frame size 5 | 5 | ||
Component series | |||
03 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X | |
Size / displacement | |||
04 | Frame Size 1 | 18,0 cm3 | 018 |
27,4 cm3 | 027 | ||
45,4 cm3 | 036 | ||
39,5 cm3 | 040 | ||
45,9 cm3 | 046 | ||
Frame Size 2 | 40,1 cm3 | 040 | |
45,4 cm3 | 045 | ||
55,2 cm3 | 055 | ||
60,0 cm3 | 060 | ||
67,5 cm3 | 068 | ||
Frame size 4 | 69,0 cm3 | 069 | |
81,6 cm3 | 082 | ||
97,7 cm3 | 098 | ||
112,7 cm3 | 113 | ||
121,6 cm3 | 122 | ||
Frame size 5 | 138,6 cm3 | 139 | |
153,5 cm3 | 154 | ||
162,2 cm3 | 162 | ||
183,4 cm3 | 183 | ||
193,4 cm3 | 193 | ||
Direction of rotation | |||
05 | clockwise | R | |
counterclockwise rotation | L | ||
06 | Installation kit for single pumps or flange-side for double pump | no code | |
Installation kit for cover-side installation in double pumps | D | ||
