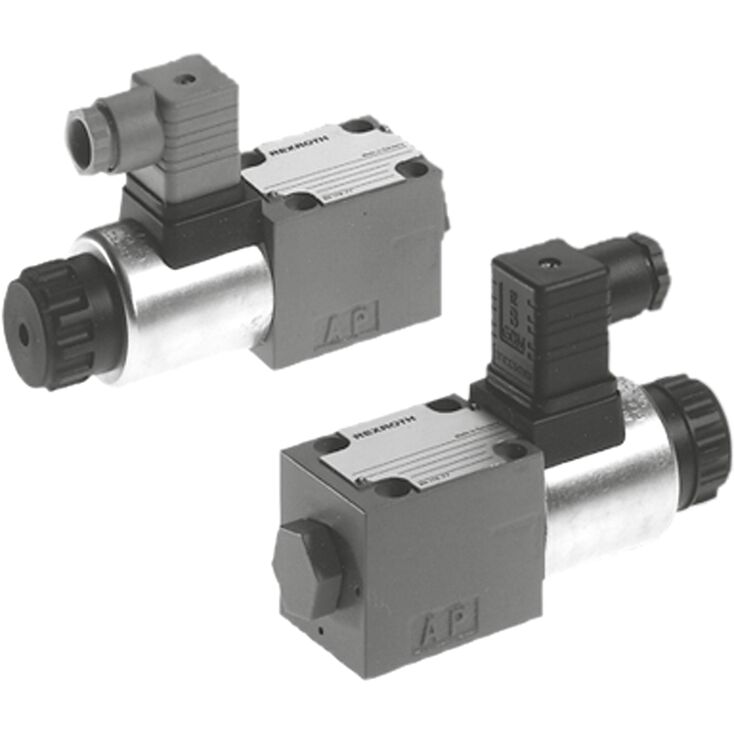

M-3SED6CK1X/350CG24N9K4
Rexroth
R900052392
电磁驱动的直动式座阀换向阀。
油口布置符合DIN 24340 A型，不带定位孔。
油口布置符合ISO 4401-03-02-0-05，带定位孔。
即使长时间带压停机后，也能安全切换。
湿式直流电磁铁，线圈可拆卸；通过整流器也可使用交流电源。
电磁线圈可旋转90°。
更换线圈无需打开耐压密封腔。
采用独立电气连接。
可选隐蔽式手动应急操作。
感应式位置开关，非接触检测。
概述
M-.SED型换向阀是电磁驱动的直动式座阀换向阀，用于控制流动的启动、停止及方向，主要由阀体（1）、电磁铁（2）、阀座（7）、（11）以及关闭元件（4）组成。
手动应急操作（6）可在电磁铁未通电时切换阀。
基本原理（二位三通座阀式换向阀）
阀的初始状态为常开UK或常闭CK，由弹簧（5）的布置决定。关闭元件（4）后方的腔室（3）与P口相连，并与T口密封隔离，因此阀相对于电磁铁与弹簧驱动力实现压力补偿。
采用特殊关闭元件（4），P、A、T口均可承受350 bar最高工作压力，油液也可双向流动，参见符号！
初始位置时，关闭元件（4）由弹簧（5）压在阀座（11）上；切换后，则由电磁铁（2）压在阀座（7）上，流路截止。
二位二通座阀式换向阀的油箱口在内部封闭。
2/2 directional seat valve | 3/3 directional seat valve | ||
„PK“ | | „UK“ | |
„NK“ | | „CK“ | |
在二位三通座阀式换向阀下方安装Plus-1叠加板，可实现二位四通座阀式换向阀功能。
Plus-1 叠加板的功能
初始位置：
主阀未动作时，弹簧（5）使关闭元件（4）压在阀座（11）上，P口封闭，A与T相通。由A连接至控制阀芯（8）大端面的控制管路卸压至油箱。P口压力将球（9）压向阀座（10），因此P与B相通，A与T相通。
过渡位置：
主阀动作时，关闭元件（4）克服弹簧（5）移向阀座（7）并压紧。过程中T口封闭，而P、A、B会短暂互通。
切换位置：
P 与 A 连通。泵压经 A 口作用于控制阀芯（8）的大面积上，将钢球（9）压在阀座（12）上，从而使 B 与 T 连通、P 与 A 连通。Plus-1 叠加板中的钢球（9）具有“正遮盖”。
注意！
使用差动缸时，为避免压力放大，必须将油缸的环形面积一侧连接至 A 口。
The use of the Plus-1 plate and the seat arrangement offer the following options: | |
Symbol “D” | |
Symbol “Y” | |
M-4SED 6 Y1X/350CG24N9K4型。
若运行条件导致切换过程中可能出现超过阀性能极限的流量，则必须使用节流插芯。
示例：
蓄能器运行，
作为内部先导取油的先导控制阀使用。
二位二通和二位三通座阀式换向阀
节流插芯装入座阀的P口。
二位四通座阀式换向阀
节流插芯装入Plus-1板的P口。
单向阀插芯允许油液由P自由流向A，并以无泄漏方式封闭由A至P的流动。
二位二通和二位三通座阀式换向阀
单向阀插芯装入座阀的P口。
二位四通座阀式换向阀
单向阀插芯装入Plus-1板的P口。
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | ||||
M | – | SED | 6 | – | 1X | / | 350 | C | K4 | / | * |
01 | Mineral oil | M | ||||
02 | 2 main ports | 2 | ||||
3 main ports | 3 | |||||
4 main ports | 4 | |||||
03 | Seat valve | SED | ||||
04 | Size 6 | 6 | ||||
05 | Main ports | 2 | 3 | 4 | ||
Symbols | | ● | – | – | PK | |
| | ● | – | – | NK | ||
| | – | ● | – | UK | ||
| | – | ● | – | CK | ||
| | – | – | ● | D | ||
| | – | – | ● | Y | ||
● = available | ||||||
06 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X | ||||
07 | Operating pressure up to 350 bar | 350 bar | ||||
08 | Solenoid, wet-pin, with detachable coil | C | ||||
09 | Direct voltage 24 V | G24 | ||||
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G2051) | |||||
Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G96 | |||||
Further ordering codes for other voltages are provided in the technical data | ||||||
10 | With concealed manual override | N9 | ||||
Without manual override | no code | |||||
Electrical connection | ||||||
11 | Individual connection | |||||
without mating connector, individual connection with connector according to DIN EN 175301-803 | K4 2) | |||||
With M12x1 plug-in connection, high-performance version 5-pole, integrated interference protection circuit, operating display with LED | K72L3) | |||||
Spool position monitoring | ||||||
12 | Without position switch | no code | ||||
Monitored spool position "a" | QMAG24 | |||||
Monitored spool position "b" | QMBG24 | |||||
13 | Without check valve insert, without throttle insert | no code | ||||
With check valve insert | P | |||||
Throttle Ø 1.2 mm | B12 | |||||
Throttle Ø 1.5 mm | B15 | |||||
Throttle Ø 1.8 mm | B18 | |||||
Throttle Ø 2.0 mm | B20 | |||||
Throttle Ø 2.2 mm | B22 | |||||
14 | NBR seals | no code | ||||
FKM seals (other seals upon request) | V | |||||
Observe compatibility of seals with hydraulic fluid used. | ||||||
15 | Without locating hole | no code | ||||
With locating hole and locking pin ISO 8752-3x8-St | /62 | |||||
16 | Further details in the plain text | * | ||||
| 1) For the connection to the AC voltage mains, a DC solenoid must be used, which is controlled via a rectifier (see AC voltage mains table). | |
| A mating connector with integrated rectifier can be used (separate order). | |
| 2) Mating connectors, separate order. | |
| 3) Version “G24” only, see data sheet 12345 |
Preferred types and standard units are contained in the EPS (standard price list).
Size | 6 | ||
Weight | 2/2 directional seat valve | kg | 1.5 |
3/2 directional seat valve | kg | 1.5 | |
4/3 directional seat valve | kg | 2.3 | |
Installation position | any | ||
Ambient temperature range | NBR seals | °C | -30 … +50 |
FKM seals | °C | -20 … +50 | |
Size | 6 | ||
Maximum operating pressure | Port P | bar | 350 |
Port A | bar | 350 | |
Port B | bar | 350 | |
Maximum flow | l/min | 25 | |
Hydraulic fluid | see table | ||
Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 |
FKM seals | °C | -20 … +80 | |
Viscosity range | mm²/s | 2.8 … 500 | |
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) | Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
Mineral oil | HL, HLP | FKM, NBR | DIN 51524 | |
Bio-degradable | Insoluble in water | HEES (synthetic esters) | FKM | VDMA 24568 |
HETG (rape seed oil) | FKM, NBR | |||
Soluble in water | HEPG (polyglycols) | FKM | VDMA 24568 | |
Other hydraulic fluids on request | ||||
Voltage type | Direct voltage | AC voltage | ||
Available voltages 1) | V | 12 / 24 / 42 / 96 / 110 / 205 / 220 | 110 / 120 / 230 | |
Voltage tolerance (nominal voltage) | % | ± 10 | ||
Power consumption | W | 30 | ||
Duty cycle | % | 100 | ||
Switching time according to ISO 6403 | ON | ms | 40 … 70 | |
OFF (without rectifier) | ms | 10 … 20 | ||
OFF (with rectifier) | ms | 30 … 45 | ||
Maximum switching frequency | Operating pressure ≤350 bar | 1/h | 15000 | |
Operating pressure >350 bar | 1/h | 3600 | ||
Protection class according to EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | |||
Maximum surface temperature of the coil 2) | °C | 120 | ||
| 1) | Special voltages available upon request |
| 2) | Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to! |
电气连接通过带 M12 x 1 连接螺纹的 4 极配套连接器实现，连接器需单独订购。
Connection voltage (DC voltage) | V | 24 | ||
Voltage tolerance (connection voltage) | +30 %/-15 % | |||
Admissible residual ripple | % | ≤ 10 | ||
Max. load capacity | mA | 400 | ||
Switching outputs | PNP transistor outputs, load between switching outputs and GND | |||
Pinout | 1 | V | 24 | |
2, 4 | Switching output | mA | 400 | |
3 | Earthing (GND) | V | 0 | |
M12x1 plug-in connections 1) | K72L | ||
Available voltages 2) | V | 24 | |
Limited switch-off voltage peak | V | -44 … -55 | |
Voltage tolerance (nominal voltage) | % | ± 10 | |
Power consumption | W | 30 | |
Duty cycle | % | 100 | |
Switching time according to ISO 6403 | ON | ms | 40 … 70 |
OFF (without rectifier) | ms | 10 … 20 | |
OFF (with rectifier) | ms | 30 … 45 | |
Maximum switching frequency | Standard | 1/h | 15000 |
Protection class according to EN 60529 3) | IP65 | ||
Protection class according to DIN EN 61140 | III | ||
Maximum coil temperature 4) | °C | 150 | |
| 1) | Mating connectors according to IEC 60947-5-2, separate order, see data sheet 08006 |
| 2) | Connection to functional low voltage with secure separation only = PELV/SELV |
| 3) | Only with the use of the mating connectors indicated by us and with correct installation. |
| 4) | Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to! |
电气连接时，应按规定连接保护接地导线（PE，接地）。
Dimensions in mm
Dimensions in mm
| 1) | 1) Depth of fit |
1 | Solenoid “a” |
2.1 | Dimension for valve with concealed manual override "N9" |
2.2 | Dimension for valve without manual override |
3 | Mating connector without circuitry (separate order) |
4 | Mating connector with circuitry (separate order) |
5 | Space required to remove the coil |
6 | Space required to remove the mating connector |
7 | Attention! |
8 | Name plate |
9 | Identical seal rings for ports A, B, and T; seal ring for port P |
10 | Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery) |
Dimensions in mm
| 1) | 1) Depth of fit |
Dimensions in mm
1 | Solenoid “b” |
2.1 | Dimension for valve with concealed manual override "N9" |
2.2 | Dimension for valve without manual override |
3 | Mating connector without circuitry (separate order) |
4 | Mating connector with circuitry (separate order) |
5 | Space required to remove the coil |
6 | Space required to remove the mating connector |
7 | Attention! |
8 | Name plate |
9 | Identical seal rings for ports A, B, and T; seal ring for port P |
10 | Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery) |
Dimensions in mm
Dimensions in mm
1 | Solenoid “a” |
2.1 | Dimension for valve with concealed manual override "N9" |
2.2 | Dimension for valve without manual override |
3 | Mating connector without circuitry (separate order) |
4 | Mating connector with circuitry (separate order) |
5 | Space required to remove the coil |
6 | Space required to remove the mating connector |
7 | Plus-1 plate |
8 | Name plate |
9 | Identical seal rings for ports A, B, and T; seal ring for port P |
10 | Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery) |
Dimensions in mm
Dimensions in mm
1 | Solenoid “b” |
2.1 | Dimension for valve with concealed manual override "N9" |
2.2 | Dimension for valve without manual override |
3 | Mating connector without circuitry (separate order) |
4 | Mating connector with circuitry (separate order) |
5 | Space required to remove the coil |
6 | Space required to remove the mating connector |
7 | Plus-1 plate |
8 | Name plate |
9 | Identical seal rings for ports A, B, and T; seal ring for port P |
10 | Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery) |
2/2 and 3/2 directional seat valve
4 hexagon socket head cap screws, metric
ISO 4762 - M5 x 50 - 10.9-flZn-240h-L (separate order)
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 7 Nm ± 10 %,
material no. R913000064
or
4 hexagon socket head cap screws
ISO 4762 - M5 x 50 - 10.9 (self procurement)
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8,1 Nm ± 10 %
4 hexagon socket head cap screws UNC
10-24 UNC x 2″ (self procurement)
(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);
tightening torque MA = 11 Nm ± 15 %,
(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);
tightening torque MA = 8 Nm ± 10 %,
material no. R978833365
4/2 directional seat valve
4 hexagon socket head cap screws metric
ISO 4762 - M5 x 95 - 10.9-flZn-240h-L (included in the scope of delivery)
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 7 Nm ± 10 %,
material no. R913000223
or
4 hexagon socket head cap screws
ISO 4762 - M5 x 95 - 10.9 (self procurement)
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8.1 Nm ± 10 %
4 hexagon socket head cap screws UNC
10-24 UNC x 3 3/4″ (self procurement)
(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);
tightening torque MA = 11 Nm ± 15 %,
(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);
tightening torque MA = 8 Nm ± 10 %,
material no. R978881682
Dimensions in mm
| 1) | only NG150 |
Dimensions in mm
| 1) | For dimensions, see valve dimensions |
The dimensions are nominal dimensions which are subject to tolerances.
