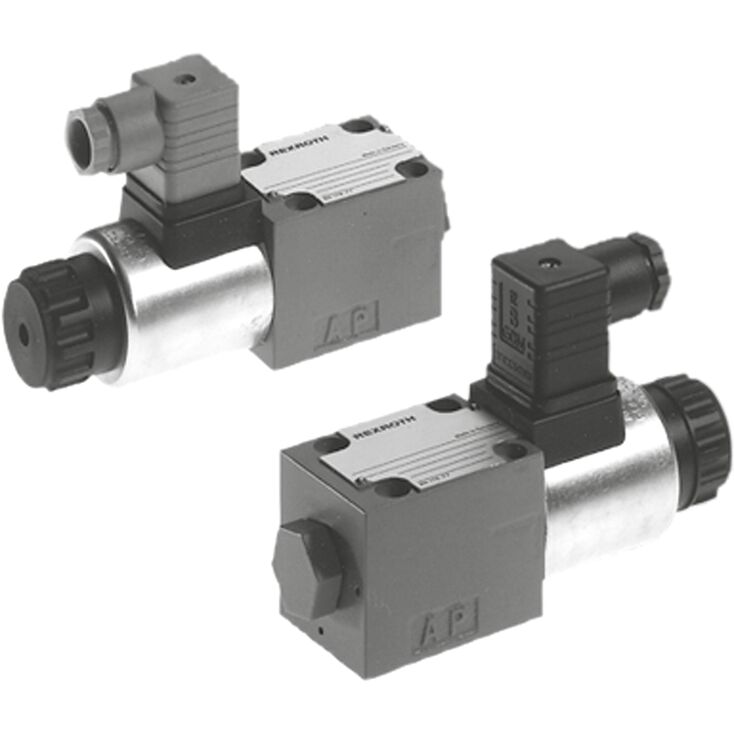

M-3SED 6 UK1X/350CG24N9K4

电磁驱动的二位二通、二位三通及二位四通座阀式换向阀。
规格6。
元件系列1X。
最高工作压力350 bar。
最大流量25 l/min。
库存状态：
数量：
询价 加入询价篮

分享本页

  • M-3SED 6 UK1X/350CG24N9K4

  • Rexroth

  • R900052621

  • 电磁驱动的直动式座阀换向阀。

  • 油口布置符合DIN 24340 A型，不带定位孔。

  • 油口布置符合ISO 4401-03-02-0-05，带定位孔。

  • 即使长时间带压停机后，也能安全切换。

  • 湿式直流电磁铁，线圈可拆卸；通过整流器也可使用交流电源。

  • 电磁线圈可旋转90°。

  • 更换线圈无需打开耐压密封腔。

  • 采用独立电气连接。

  • 可选隐蔽式手动应急操作。

  • 感应式位置开关，非接触检测。


二位四通座阀式换向阀

二位二通和二位三通座阀式换向阀

概述

M-.SED型换向阀是电磁驱动的直动式座阀换向阀，用于控制流动的启动、停止及方向，主要由阀体（1）、电磁铁（2）、阀座（7）、（11）以及关闭元件（4）组成。

手动应急操作（6）可在电磁铁未通电时切换阀。

基本原理（二位三通座阀式换向阀）

阀的初始状态为常开UK或常闭CK，由弹簧（5）的布置决定。关闭元件（4）后方的腔室（3）与P口相连，并与T口密封隔离，因此阀相对于电磁铁与弹簧驱动力实现压力补偿。

采用特殊关闭元件（4），P、A、T口均可承受350 bar最高工作压力，油液也可双向流动，参见符号！

初始位置时，关闭元件（4）由弹簧（5）压在阀座（11）上；切换后，则由电磁铁（2）压在阀座（7）上，流路截止。

二位二通座阀式换向阀的油箱口在内部封闭。

2/2 directional seat valve

3/3 directional seat valve

„PK“

„UK“

„NK“

„CK“

上图为M-3SED 6 UK1X/350CG24N9K4型，下图为M-3SED 6 CK1X/350CG24N9K4型。

二位四通座阀式换向阀

二位二通和二位三通座阀式换向阀

在二位三通座阀式换向阀下方安装Plus-1叠加板，可实现二位四通座阀式换向阀功能。

Plus-1 叠加板的功能

  • 初始位置：

主阀未动作时，弹簧（5）使关闭元件（4）压在阀座（11）上，P口封闭，A与T相通。由A连接至控制阀芯（8）大端面的控制管路卸压至油箱。P口压力将球（9）压向阀座（10），因此P与B相通，A与T相通。

  • 过渡位置：

主阀动作时，关闭元件（4）克服弹簧（5）移向阀座（7）并压紧。过程中T口封闭，而P、A、B会短暂互通。

  • 切换位置：

P 与 A 连通。泵压经 A 口作用于控制阀芯（8）的大面积上，将钢球（9）压在阀座（12）上，从而使 B 与 T 连通、P 与 A 连通。Plus-1 叠加板中的钢球（9）具有“正遮盖”。



注意！

使用差动缸时，为避免压力放大，必须将油缸的环形面积一侧连接至 A 口。

The use of the Plus-1 plate and the seat arrangement offer the following options:

Symbol “D”

Symbol “Y”

M-4SED 6 Y1X/350CG24N9K4型。

节流插芯。

若运行条件导致切换过程中可能出现超过阀性能极限的流量，则必须使用节流插芯。

示例：

  • 蓄能器运行，

  • 作为内部先导取油的先导控制阀使用。

二位二通和二位三通座阀式换向阀

节流插芯装入座阀的P口。

二位四通座阀式换向阀

节流插芯装入Plus-1板的P口。



单向阀插装件

单向阀插芯允许油液由P自由流向A，并以无泄漏方式封闭由A至P的流动。



二位二通和二位三通座阀式换向阀

单向阀插芯装入座阀的P口。

二位四通座阀式换向阀

单向阀插芯装入Plus-1板的P口。


01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

M

–

SED

6

–

1X

/

350

C

K4

/


*

01

Mineral oil

M

02

2 main ports

2

3 main ports

3

4 main ports

4

03

Seat valve

SED

04

Size 6

6

05

Main ports

2

3

4

Symbols

●

–

–

PK

●

–

–

NK

–

●

–

UK

–

●

–

CK

–

–

●

D

–

–

●

Y

● = available

06

Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)

1X

07

Operating pressure up to 350 bar

350 bar

08

Solenoid, wet-pin, with detachable coil

C

09

Direct voltage 24 V

G24

Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %)

G2051)

Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)

G96

Further ordering codes for other voltages are provided in the technical data

10

With concealed manual override

N9

Without manual override

no code

Electrical connection

11

Individual connection

without mating connector, individual connection with connector according to DIN EN 175301-803

K4 2)

With M12x1 plug-in connection, high-performance version 5-pole, integrated interference protection circuit, operating display with LED

K72L3)

Spool position monitoring

12

Without position switch

no code

Monitored spool position "a"

QMAG24

Monitored spool position "b"

QMBG24

13

Without check valve insert, without throttle insert

no code

With check valve insert

P

Throttle Ø 1.2 mm

B12

Throttle Ø 1.5 mm

B15

Throttle Ø 1.8 mm

B18

Throttle Ø 2.0 mm

B20

Throttle Ø 2.2 mm

B22

14

NBR seals

no code

FKM seals (other seals upon request)

V

Observe compatibility of seals with hydraulic fluid used.

15

Without locating hole

no code

With locating hole and locking pin ISO 8752-3x8-St

/62

16

Further details in the plain text

*

1) For the connection to the AC voltage mains, a DC solenoid must be used, which is controlled via a rectifier (see AC voltage mains table).

A mating connector with integrated rectifier can be used (separate order).

2) Mating connectors, separate order.

3) Version “G24” only, see data sheet 12345


一般

Size

 6

Weight

2/2 directional seat valve

kg

 1.5

3/2 directional seat valve

kg

 1.5

4/3 directional seat valve

kg

 2.3

Installation position

any

Ambient temperature range

NBR seals

°C

 -30 … +50

FKM seals

°C

 -20 … +50

液压

Size

 6

Maximum operating pressure

Port P

bar

 350

Port A

bar

 350

Port B

bar

 350

Maximum flow

l/min

 25

Hydraulic fluid
see table

Hydraulic fluid temperature range

NBR seals

°C

 -30 … +80

FKM seals

°C

 -20 … +80

Viscosity range

mm²/s

 2.8 … 500

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)

Class 20/18/15 according to ISO 4406 (c)
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oil

HL, HLP

FKM, NBR

DIN 51524

Bio-degradable

Insoluble in water

HEES (synthetic esters)

FKM

VDMA 24568

HETG (rape seed oil)

FKM, NBR

Soluble in water

HEPG (polyglycols)

FKM

VDMA 24568

Other hydraulic fluids on request

电气

Voltage type

 Direct voltage AC voltage

Available voltages 1)

V

 12 / 24 / 42 / 96 / 110 / 205 / 220 110 / 120 / 230

Voltage tolerance (nominal voltage)

%

 ± 10

Power consumption

W

 30

Duty cycle

%

 100

Switching time according to ISO 6403

ON

ms

 40 … 70

OFF (without rectifier)

ms

 10 … 20

OFF (with rectifier)

ms

 30 … 45

Maximum switching frequency

Operating pressure ≤350 bar

1/h

 15000

Operating pressure >350 bar

1/h

 3600

Protection class according to EN 60529

IP65 (If a suitable and a correctly mounted mating connector are used.)

Maximum surface temperature of the coil 2)

°C

 120
1) Special voltages available upon request
2) Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!

电气连接通过带 M12 x 1 连接螺纹的 4 极配套连接器实现，连接器需单独订购。

电气

Connection voltage (DC voltage)

V

 24

Voltage tolerance (connection voltage)
+30 %/-15 %

Admissible residual ripple

%

 ≤ 10

Max. load capacity

mA

 400

Switching outputs


PNP transistor outputs, load between switching outputs and GND

Pinout

1

V

 24

2, 4

Switching output

mA

 400

3

Earthing (GND)

V

 0

M12x1 插接连接

电气

M12x1 plug-in connections 1)

 K72L

Available voltages 2)

V

 24

Limited switch-off voltage peak

V

 -44 … -55

Voltage tolerance (nominal voltage)

%

 ± 10

Power consumption

W

 30

Duty cycle

%

 100

Switching time according to ISO 6403

ON

ms

 40 … 70

OFF (without rectifier)

ms

 10 … 20

OFF (with rectifier)

ms

 30 … 45

Maximum switching frequency

Standard

1/h

 15000

Protection class according to EN 60529 3)

IP65

Protection class according to DIN EN 61140

III

Maximum coil temperature 4)

°C

 150
1) Mating connectors according to IEC 60947-5-2, separate order, see data sheet 08006
2) Connection to functional low voltage with secure separation only = PELV/SELV
3) Only with the use of the mating connectors indicated by us and with correct installation.
4) Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!

电气连接时，应按规定连接保护接地导线（PE，接地）。

(如需在这些数值以外的工况下使用，请咨询我们！)


2/2 directional seat valve (“PK”) and 3/2 directional seat valve (“UK”)

Dimensions in mm

2/2 directional seat valve (“PK”) and 3/2 directional seat valve (“UK”)

Dimensions in mm

1) 1) Depth of fit

1

Solenoid “a”

2.1

Dimension for valve with concealed manual override "N9"

2.2

Dimension for valve without manual override

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Attention!
With 2/2 and 3/2 directional seat valves, port B is present as blind counterbore. With 2/2 directional seat valves, port T is closed internally.

8

Name plate

9

Identical seal rings for ports A, B, and T; seal ring for port P

10

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

2/2 directional seat valve (“NK”) and 3/2 directional seat valve (“CK”)

Dimensions in mm

1) 1) Depth of fit

2/2 directional seat valve (“NK”) and 3/2 directional seat valve (“CK”)

Dimensions in mm

1

Solenoid “b”

2.1

Dimension for valve with concealed manual override "N9"

2.2

Dimension for valve without manual override

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Attention!
With 2/2 and 3/2 directional seat valves, port B is present as blind counterbore. With 2/2 directional seat valves, port T is closed internally.

8

Name plate

9

Identical seal rings for ports A, B, and T; seal ring for port P

10

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

4/2 directional seat valve (“D”)

Dimensions in mm

4/2 directional seat valve (“D”)

Dimensions in mm

1

Solenoid “a”

2.1

Dimension for valve with concealed manual override "N9"

2.2

Dimension for valve without manual override

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Plus-1 plate

8

Name plate

9

Identical seal rings for ports A, B, and T; seal ring for port P

10

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

4/2 directional seat valve (“Y”)

Dimensions in mm

4/2 directional seat valve (“Y”)

Dimensions in mm

1

Solenoid “b”

2.1

Dimension for valve with concealed manual override "N9"

2.2

Dimension for valve without manual override

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Plus-1 plate

8

Name plate

9

Identical seal rings for ports A, B, and T; seal ring for port P

10

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

2/2 and 3/2 directional seat valve

4 hexagon socket head cap screws, metric

ISO 4762 - M5 x 50 - 10.9-flZn-240h-L (separate order)

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 7 Nm ± 10 %,

material no. R913000064

or

4 hexagon socket head cap screws

ISO 4762 - M5 x 50 - 10.9 (self procurement)

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 8,1 Nm ± 10 %



4 hexagon socket head cap screws UNC

10-24 UNC x 2″ (self procurement)

(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);

tightening torque MA = 11 Nm ± 15 %,

(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);

tightening torque MA = 8 Nm ± 10 %,

material no. R978833365



4/2 directional seat valve

4 hexagon socket head cap screws metric

ISO 4762 - M5 x 95 - 10.9-flZn-240h-L (included in the scope of delivery)

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 7 Nm ± 10 %,

material no. R913000223

or

4 hexagon socket head cap screws

ISO 4762 - M5 x 95 - 10.9 (self procurement)

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 8.1 Nm ± 10 %



4 hexagon socket head cap screws UNC

10-24 UNC x 3 3/4″ (self procurement)

(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);

tightening torque MA = 11 Nm ± 15 %,

(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);

tightening torque MA = 8 Nm ± 10 %,

material no. R978881682



Spool position monitoring

Dimensions in mm

1) only NG150

Inductive position switch type QM

Dimensions in mm

1) For dimensions, see valve dimensions

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

M12x1 plug-in connection

Dimensions in mm

M-.SED 6 .-1X/350CG24.K72L…

Dimensions in mm


用心工作，真诚服务。
如有任何问题，欢迎联系我们的销售团队

公司

产品

联系我们

WhatsApp：+86 13302251218
微信：suziexie
邮箱：sales@zyhydraulics.com
地址：广州市黄埔区茅岗路828号14栋501室

在线留言

© 2019 广州智远液压有限公司 版权所有。网站地图 设计： Growthofficer.cn
