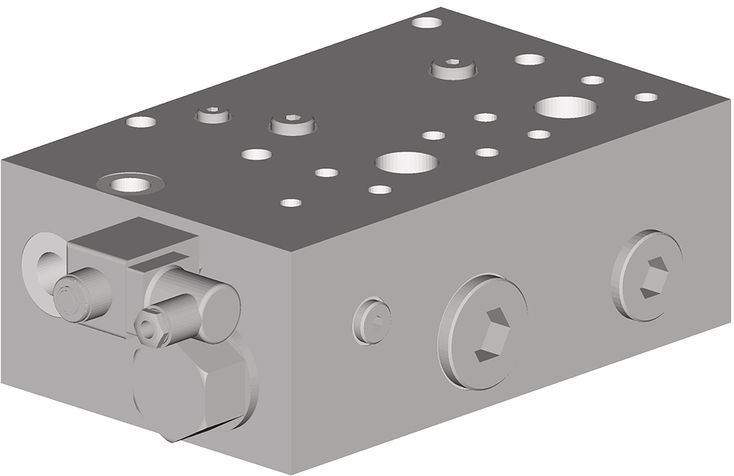

用于Hägglunds CA马达的排量切换。
结构紧凑、坚固。
多功能。
可直接安装于Hägglunds马达。
内置制动控制功能。
更换马达壳体内的油液。
可采用内部控制压力。
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 |
VT | C | A | 600 |
01 | 2-speed valve | VT |
02 | For motors CA 50 to CA 210 5) | C |
03 | Version | A |
Maximum flow | ||
04 | 600 l/min | 600 |
Brake function | ||
05 | Without brake function | 0 |
With brake function 3) | B | |
Operation | ||
06 | Electrical operated 24VDC 4) | E |
Hydraulic actuated | H | |
Exchange of oil in motor case | ||
07 | Not prepared | 0 |
Prepared | 1 | |
Explosive environment | ||
08 | Non explosive environment | 0 |
Explosive environment 2) | 1 | |
Modification 1) | ||
09 | 0 ... 9 | |
Design | ||
10 | Standard | 00 |
Mirror inverted 6) 7) | 05 | |
Special index 1) | 01 ... 99 | |
| 1) | To be filled in by Bosch Rexroth DC-HD/ENG |
| 2) | Only valid for attribute 05 code 0 and attribute 06 code H |
| 3) | Only in combination with electric operated valve |
| 4) | Other than 24VDC, must be ordered separately |
| 5) | Only valid for two speed motors (R/L) |
| 6) | In combination with Special index motor 06 |
| 7) | Not allowed to be used in suspended load applications |
| |
Load drop Danger to life or risk of injury, damage to equipment!
|
Type | VTCA 600 0 H | VTCA 600 0 E | VTCA 600 B E | ||
Mechanical specification | Maximum operating pressure | bar | 350 | ||
Maximum operating pressure reversed direction | bar | 210 | |||
Pilot pressure | bar | \u200b7 ... 350 | |||
Maximum flow (see section "Pressure loss diagram") | l/min | 600 | |||
Hydraulic fluid (see data sheet RE 15414 Hydraulic fluid quick reference) | Fluid temperature range | °C | -25 \u2026 +70 | ||
Viscosity range | mm²/s | 20 \u2026 380 | |||
Recommended operating viscosity | mm²/s | 40 | |||
Weights | 2-speed valve | kg | 29 | 29.3 | 36 |
Pilot valve: Connectors EN 175301-803 / Sea water protected | Supply voltage | VDC | 24 | ||
Solenoid power | W | 12 | |||
Solenoid current | A | 0.5 | |||
Solenoid protection class (EN 175301-803) | IP65 | ||||
Surface protection | Standard Painting System | SS-EN ISO 12944 C3, durability range M (Std colour RAL 2002) | |||
Area of application according to ATEX directive 2014/34/EU | I M2, II 2G, II 2D, II 3G, II 3D | |
Protection of the valve by liquid immersion according to | k (EN 13463-8) | |
Constructional safety according to | c (EN 13463-5) | |
Maximum surface temperature | °C | + 100 |
Temperature class | T4 | |
Conforms to \u201cEquipment and components intended for use in potentially explosive atmospheres and in underground mines\u201d | EN 1710 | |
ATEX Classification of valve | II 2 G D c k T4 / I M2 c k T4 | |
Ambient temperature range | °C | -25 \u2026 +50 |
| 1) | Pressure loss in bar |
| 2) | Speed in rpm |
| 1) | Pressure loss in bar |
| 2) | Speed in rpm |
| 1) | Pressure loss in bar |
| 2) | Speed in rpm |
| 1) | Pressure loss in bar |
| 2) | Speed in rpm |
| 1) | Required charge pressure in bar |
| 2) | Speed in rpm |
| 1) | Required charge pressure in bar |
| 2) | Speed in rpm |
Dimensions in mm
Dimensions in mm
Dimensions in mm
Dimensions in mm
Dimensions in mm
警告标志
本手册使用以下标志提示潜在危险，这些危险可能或必然造成人身伤害或重大财产损失。根据危险发生的可能性，以及可能造成的人身伤害或财产损失的严重程度，共分为三个等级。
Warning sign (warning triangle) | Draws attention to the hazard |
Signal word | Identifies the degree of hazard |
Type of risk | Specifies the type or source of the hazard |
Consequences | Describes the consequences of non-compliance |
Precautions | Specifies how the hazard can be prevented |
Warning sign, signal word | Meaning |
| | Indicates a dangerous situation which will cause death or severe personal injuries if not avoided. |
| | Indicates a dangerous situation which may cause death or severe personal injuries if not avoided. |
| | Indicates a dangerous situation which may cause minor or medium personal injuries if not avoided. |
| | Material damage: the product or its environment could be damaged. |
| |
Danger from excessively high pressure! Danger to life or risk of injury, damage to equipment! Using the valve above the permissible maximum pressure can cause valve burst and hydraulic fluid to escape under high pressure.
|
Pressurized valve Danger to life risk of injuries when working on valve in system not being depressurized.
|
| |
Unsafe work on the valve Danger to life or risk of injury, damage to equipment!
|
| |
Escaping oil mist! Risk of explosion, fire health hazard, environmental pollution.
|
Static discharge Cleaning the valve with a dry rug may lead to explosions through electrostatic discharge that may cause severe injuries and even death.
|
Lack of grounding Risk of explosion that may cause severe injuries and even death.
|
Painting Risk of explosion that may cause severe injuries and even death.
|
