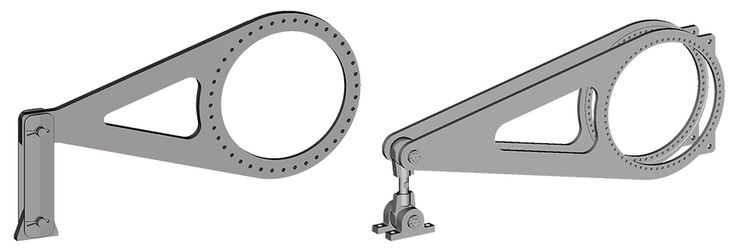

安装简便，无需对中，并可省去联轴器和底板。
马达可快速安装于被驱动轴。
转矩传递可靠坚固。
对被驱动轴上的外力进行控制。
节省空间，可紧贴被驱动机械安装。
可吸收被驱动轴的径向及轴向位移。
可选电气隔离结构，避免电流通过液压马达。
安装简便，无需对中，并可省去联轴器和底板。
马达可快速安装于被驱动轴。
转矩传递可靠坚固。
对被驱动轴上的外力进行控制。
节省空间，可紧贴被驱动机械安装。
可吸收被驱动轴的径向及轴向位移。
可选电气隔离结构，避免电流通过液压马达。
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 | 06 |
TC | A |
01 | Torque arm (see chapter "Product Description") | TC |
02 | Type | A |
For motor frame size | ||
03 | CA 50 | 0050 |
CA 70 | 0070 | |
CA 100 | 0100 | |
CA 140, CA 210, CBP 140 | 0210 | |
CB 280, CB 400, CBP 280, CBP 400 F | 0400 | |
CB 560, CB 840, CBP 400 C, CBP 560, CBP 840 | 0840 | |
CB 1120 | 1120 | |
CBM 2000 | 2000 | |
CBM 3000/4000 | 4000 | |
CBM 5000/6000 | 6000 | |
Attachment 4) | ||
04 | Without attachment (see chapter "Product Description" - Figure "Single ended torque arm without articulated connection, TCA 0050 to 4000" and Figure "Single ended torque arm without articulated connection, TCA 6000") | 0 |
Without attachment, with mounting screws and washers (see chapter "Product Description" - Figure "Single ended torque arm with mounting screws and washers,TCA 0050 to 4000") 1)2)\u200b | 1 | |
Standard: With mounting screws, washers and articulated connection (see chapter "Product Description" - Figure "Standard, single ended torque arm with mounting screws, washers and articulated connection, TCA 0050 to 4000" and Figure "Single ended torque arm with mounting screws, washers and articulated connection, TCA 6000") | 2 | |
Option: Electrical isolated articulated connection with mounting screws and washers (see chapter "Project Planning Information") 3) | 4 | |
Modification 5) | ||
05 | 0 ... 9 | |
Design | ||
06 | Standard | 00 |
Special index 5) | 01 ... 99 | |
| 1) | Mounting screws part of the motor for frame sizes CA 50, CA 70, CB 280, CB 400, CBP 280 |
| 2) | Not available for TCA 6000 |
| 3) | Prepared for TCA 0040, TCA 0840, TCA 2000 and TCA 4000. For other sizes on request. |
| 4) | If a special design on the torque arm is required, the articulated connection and the screws have to be ordered separately on request. |
| 5) | To be filled in by Bosch Rexroth DC-IA/EHD |
C = Centre mounted
F = Front mounted
Torque arm | Max torque for alternating or pulsating torque | Max torque static | Weight 1) |
Nm | Nm | kg | |
| TCA 0050 | 17500 | 21000 | 28 |
| TCA 0070 | 24500 | 29400 | 31 |
| TCA 0100 | 35000 | 42000 | 91 |
| TCA 0210 | 70000 | 84000 | 81 |
| TCA 0400 | 140000 | 168000 | 162 |
| TCA 0840 | 294000 | 352800 | 223 |
| TCA 1120 | 392000 | 470400 | 344 |
| TCA 2000 | 700000 | 840000 | 450 |
| TCA 4000 | 1400000 | 1680000 | 875 |
| TCA 6000 | 2100000 | 2520000 | 1860 |
| 1) | Single ended torque arm with articulated connection |
Hägglunds 马达和附件的涂装体系按 SS-EN ISO 12944 防腐要求，提供两种不同的腐蚀性等级：
C3 - 中等腐蚀性等级 - 推荐用于一般城市和工业大气环境。
C5M - 极高腐蚀性等级 - 推荐用于含盐量高的海洋环境或其他腐蚀性大气环境。
Hägglunds 马达和附件的标准颜色为橙色 (RAL 2002)
1 | Pushing |
2 | T = Torque direction driven shaft |
Torque arm | Motor | Force Fb | Force Fr 1) |
N | N | ||
| TCA 0050 | CA 50 50 | 35000 | 33077 |
| TCA 0070 | CA 70 70 | 49000 | 46754 |
| TCA 0100 | CA 100 100 | 52500 | 49164 |
| TCA 0210 | CA 140 140 | 73500 | 69517 |
| CA 210 210 | 110250 | 105384 | |
| CBP 140 140 | 73500 | 68977 | |
| TCA 0400 | CB 280 280, CBP 280 280 | 94080 | 86046 |
| CB 400 400, CBP 400 400 F | 134400 | 122883 | |
| CBP 280 280 F | 94080 | 77462 | |
| CBP 400 400C | 134400 | 114839 | |
| TCA 0840 | CB 560 560 | 156800 | 143674 |
| CBP 560 C | 136071 | ||
| CB 840 840 | 235200 | 218837 | |
| CBP 840 840 C | 211724 | ||
| TCA 1120 | CB 1120 1120 | 214792 | |
| TCA 2000 | CBM 2000 2000 | 420000 | 375845 |
| TCA 4000 | CBM 3000 3000 | 308000 | 251553 |
| CBM 4000 4000 | 560000 | 495705 | |
| TCA 6000 | CBM 5000 5000 | 700000 | 619585 |
| CBM 6000 5000 | 840000 | 751737 |
| 1) | The force Fr is calculated including the weight of splines motor and torque arm. |
Dimensions in mm
D = | Thread |
T = | Thickness |
Dimensions in mm
Torque arm | F 1) | G 1) | H 1) |
mm | mm | mm | |
| TCA 0050 | 25 | 77 | 100 |
| TCA 0070 | |||
| TCA 0100 | 40 | 118 | 170 |
| TCA 0210 | |||
| TCA 0400 | 135 | 210 | |
| TCA 0400 electrical isolated | 144 | ||
| TCA 0840 | 135 | ||
| TCA 0840 electrical isolated | 144 | ||
| TCA 1120 | 135 | ||
| TCA 2000 | 360 | ||
| TCA 2000 electrical isolated | 144 | ||
| TCA 4000 | 50 | 180 | 450 |
| TCA 4000 electrical isolated | 190 | ||
| TCA 6000 | - | - | - |
| 1) | Dimensions articulated connection TCA 6000 see figure below |
Dimensions in mm
If there is a risk of current passes through the hydraulic motor an electrical isolated articulated connection is one solution to prevent damage of the bearing interfaces in the hydraulic motor.
Dimensions for electrical isolated TCA, see Figure "Torque arm TCA", Figure "Articulated connection TCA 0050 to TCA 4000" and table below these two figures.
1 | Electrical isolated |
警告标志
本手册使用以下标志提示潜在危险，这些危险可能或必然造成人身伤害或重大财产损失。根据危险发生的可能性，以及可能造成的人身伤害或财产损失的严重程度，共分为三个等级。
Warning sign (warning triangle) | Draws attention to the hazard |
Signal word | Identifies the degree of hazard |
Type of risk | Specifies the type or source of the hazard |
Consequences | Describes the consequences of non-compliance |
Precautions | Specifies how the hazard can be prevented |
Warning sign, signal word | Meaning |
| | Indicates a dangerous situation which will cause death or severe personal injuries if not avoided. |
| | Indicates a dangerous situation which may cause death or severe personal injuries if not avoided. |
| | Indicates a dangerous situation which may cause minor or medium personal injuries if not avoided. |
| | Material damage: the product or its environment could be damaged. |
