结构紧凑、坚固。
直接安装于Hägglunds马达。

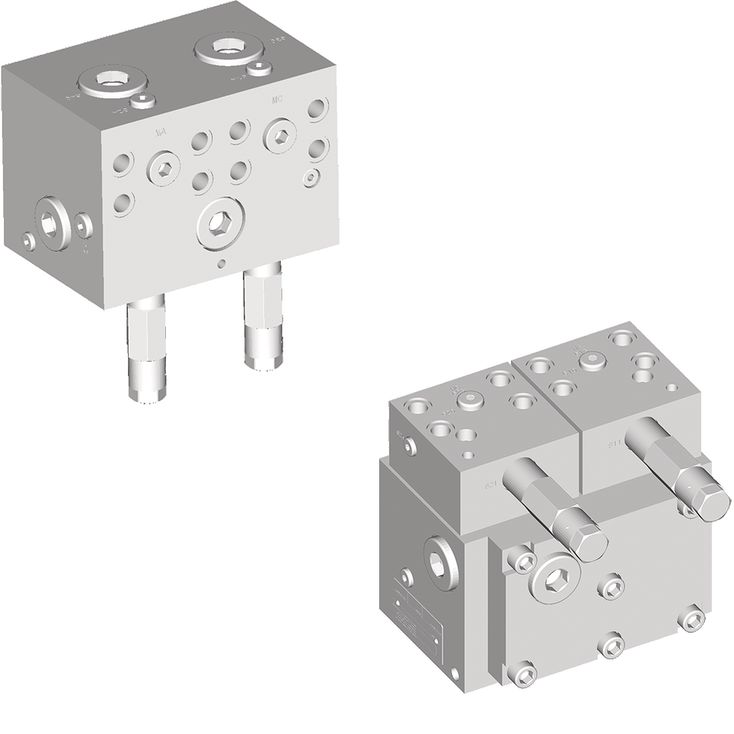

闭式回路油液更换系统（COCB 1000-3）。
保护马达免受高压峰值影响。
提供气蚀防护。
结构紧凑、坚固。
直接安装于Hägglunds马达。
闭式回路油液更换系统（COCB 1000-3）。
保护马达免受高压峰值影响。
提供气蚀防护。
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 |
COC | B |
01 | Cross-over valve | COC |
02 | Version | B |
Maximum flow | ||
03 | 700 l/min | 0700 |
1000 l/min | 1000 | |
Main pressure relief settings | ||
04 | 280 bar | 280 |
300 bar | 300 | |
330 bar | 330 | |
350 bar | 350 | |
Type of valve | ||
05 | Cross-over valve | 1 |
Cross-over valve with Oil exchange system (only for 1000 l/min, charge pressure 15 bar) | 3 | |
Explosive environment | ||
06 | Non explosive environment | 0 |
Explosive environment | 1 | |
Modification 1) | ||
07 | 00 | |
Design | ||
08 | Standard | 00 |
Special index 1) | 01 ... 99 | |
| 1) | To be filled in by Bosch Rexroth DC-IA/EHD |
Note!
Mounting the valve on CBM, an adapter must be ordered separately, see chapter "Mounting" - section "Fitting the valve on Hägglunds CBM"
Maximum operating pressure | bar | 350 |
Pilot pressure | bar | \u200b7 ... 350 |
Maximum flow | l/min | 800 |
Pilot valve interface | NG6 | |
Temperature range | °C | -25 \u2026 +70 |
Viscosity range | mm²/s | 20 \u2026 380 |
Weight | kg | 57 |
Position | Description | Pcs |
1 | Solenoid valve | 2 |
2 | Inductive sensor | 1 |
3 | O-ring 40.87x3.53 NBR90 | 4 |
4 | Screw ASME B18.3-1/2-13UNC-2AX6 1/2 | 8 |
5 | Protective cover | 2 |
6 | Valve | 1 |
采用 Hägglunds 液压辊磨机传动。
概述
橡胶辊磨机为手动操作，因此轧辊的停止时间至关重要。
轧辊停止过程可按以下方法计算：
φ | Stop angle | ° |
n | Speed | rpm |
Jmachine | Moment of inertia machine | kg\u2022m2 |
Jmotor | Moment of inertia motor | kg\u2022m2 |
Ts | Specific torque | Nm/bar |
Δp | Pressure over motor | bar |
ts | Response time hydraulic valve | s |
φ = (π\u2022 n 2 \u2022(J machine + J motor )/(10 \u2022 Ts \u2022 Δp)) + 6 \u2022 n \u2022ts
示例：
CB400 在橡胶辊磨机中的典型应用
n = 15 rpm
J machine = 350 kgm 2
J motor = 18.3 kgm 2
φ = (π\u202215 2 \u2022(350+18.3)/(10\u2022400\u2022350))+6\u202215\u20220.15=13.7°
| |
Wrong polarity Wrong polarity will destroy the transient supressor
|
Supply voltage | VDC | 24 |
Power consumption | W | 30 |
Electric contact | DIN 43650 |
用于电气动作指示的触点，内置瞬态抑制器和指示灯。
Supply voltage | Ub | VDC | 10 \u2026 30 |
Rated operational voltage | Ue | VDC | 24 |
Voltage drop Ud at le | Ud | V | ≤ 2.5 |
Rated operational current | le | mA | 200 |
IEC 60529 protection | IP | IP68 | |
Connection | M12x1 | L=3 m |
尺寸单位为 mm
A | mm | 30 |
B | M12x1 | |
C | mm | 56 |
L | m | 3 |
1 | Brown (1) |
2 | Black (4) |
3 | Blue (3) |
Dimensions in mm
Dimensions in mm
Dimensions in mm
警告标志
本手册使用以下标志提示潜在危险，这些危险可能或必然造成人身伤害或重大财产损失。根据危险发生的可能性，以及可能造成的人身伤害或财产损失的严重程度，共分为三个等级。
Warning sign (warning triangle) | Draws attention to the hazard |
Signal word | Identifies the degree of hazard |
Type of risk | Specifies the type or source of the hazard |
Consequences | Describes the consequences of non-compliance |
Precautions | Specifies how the hazard can be prevented |
Warning sign, signal word | Meaning |
| | Indicates a dangerous situation which will cause death or severe personal injuries if not avoided. |
| | Indicates a dangerous situation which may cause death or severe personal injuries if not avoided. |
| | Indicates a dangerous situation which may cause minor or medium personal injuries if not avoided. |
| | Material damage: the product or its environment could be damaged. |
| |
Danger from excessively high pressure! Danger to life or risk of injury, damage to equipment! Using the valve above the permissible maximum pressure can cause valve burst and hydraulic fluid to escape under high pressure.
|
Pressurized valve Danger to life risk of injuries when working on valve in system not being depressurized.
|
Unsafe work on the valve Danger to life or risk of injury, damage to equipment!
|
| |
Unsafe work on the valve Danger to life or risk of injury, damage to equipment!
|
| |
Escaping oil mist! Risk of explosion, fire health hazard, environmental pollution.
|
Static discharge Cleaning the valve with a dry rug may lead to explosions through electrostatic discharge that may cause severe injuries and even death.
|
Lack of grounding Risk of explosion that may cause severe injuries and even death.
|
Painting Risk of explosion that may cause severe injuries and even death.
|
