4WMM6 E 6X/ -IN002
Rexroth
R983030727
三位四通、二位四通或二位三通型式。
油口布置符合DIN 24340 A型，不带定位孔。
油口布置符合ISO 4401-03-02-0-05，带定位孔。
驱动方式：手柄。
感应式位置开关及接近传感器，非接触检测。

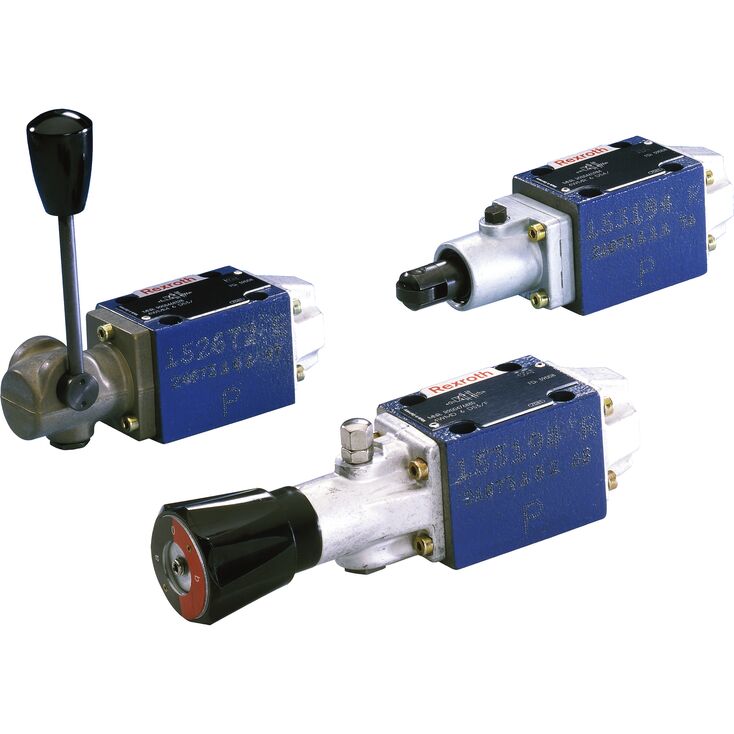

WM..型阀为机械、手动驱动的滑阀换向阀，控制液流的启动、停止及方向。主要由阀体（1）、手柄式驱动装置（2）、控制阀芯（3）及一个或两个复位弹簧（4）组成。未操作时，复位弹簧（4）使控制阀芯（3）保持中位或起始位置；控制阀芯通过驱动装置（2）移至所需阀位。
定位机构
采用旋钮操作的换向阀通常带定位机构。手柄操作的换向阀可选用带定位机构的二位或三位结构。滚轮柱塞操作的换向阀通常不带定位机构。对于带定位机构的操作方式，可根据阀型将阀芯锁定在相应位置。
节流插芯。
若运行条件导致切换过程中可能出现超过阀性能极限的流量，则必须使用节流插芯；插芯安装于换向阀P通道。
4WMM 6 D5X/F型。
4WM. 6 ..5X/..B..型。
01 | Mineral oil | M | |||
02 | 3 main ports | 3 | |||
4 main ports | 4 | ||||
03 | Seat valve | SEW | |||
04 | Size 10 | 10 | |||
05 | Main ports | 3 | 4 | ||
Symbol | | ● | – | U | |
| | ● | – | C | ||
| | – | ● | D | ||
| | – | ● | Y | ||
● = available | |||||
06 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X | |||
07 | Operating pressure 420 bar | 420 bar | |||
Operating pressure 630 bar | 630 bar | ||||
08 | Solenoid (air-gap) with detachable coil | M | |||
09 | Direct voltage 24 V | G24 | |||
Nominal voltage 96 V at DC solenoid in operation with alternating voltage (AC voltage mains 110/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G96 | ||||
Nominal voltage 110 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V – 50/60 Hz with an admissible voltage tolerance of +/-10 %) | G110 | ||||
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G205 2) | ||||
10 | With concealed manual override | N9 | |||
Without manual override | no code | ||||
Electrical connection | |||||
11 | Individual connection | ||||
Without mating connector, with connector DIN EN 175301-803 | K41;2) | ||||
With M12x1 plug-in connection, high-performance version 5-pole, integrated interference protection circuit, operating display with LED | K72L3) | ||||
Spool position monitoring | |||||
12 | Without position switch | no code | |||
Monitored spool position "a" | QMAG24 | ||||
Monitored spool position "b" | QMBG24 | ||||
13 | Without check valve insert, without throttle insert | no code | |||
With check valve insert | P | ||||
Throttle Ø 1.2 mm | B12 | ||||
Throttle Ø 1.5 mm | B15 | ||||
Throttle Ø 1.8 mm | B18 | ||||
Throttle Ø 2.0 mm | B20 | ||||
Throttle Ø 2.2 mm | B22 | ||||
Seal material | |||||
14 | NBR seals | no code | |||
FKM seals (other seals upon request) | V | ||||
Observe compatibility of seals with hydraulic fluid used. | |||||
15 | Further details in the plain text | * | |||
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | |||
M | – | SEW | 10 | 1X | / | M | K4 | / |
Preferred types and standard units are contained in the EPS (standard price list).
Size | 6 | ||
Weight (approx.) | kg | 1.4 | |
Installation position | any | ||
Ambient temperature range | NBR seals | °C | -20 … +80 |
FKM seals | °C | -20 … +80 | |
Operating force | without tank pressure, with/without detent | N | 20 |
at a tank pressure of 150 bar 1) | N | 30 | |
| 1) | at 150 bar |
Size | 6 | ||
Maximum operating pressure | Port P | bar | 315 |
Port A | bar | 315 | |
Port B | bar | 315 | |
Port T 1) | bar | 160 | |
Maximum flow | l/min | 60 | |
Flow cross-section (spool position 0) | Symbol Q | approx. 6 % of nominal cross-section | |
Symbol W | approx. 3 % of nominal cross-section | ||
Hydraulic fluid | see table | ||
Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 |
FKM seals | °C | -20 … +80 | |
Viscosity range | mm²/s | 2.8 … 500 | |
Maximum admissible degree of contamination of the hydraulic fluid 2) | Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | With symbols A or B, port T must be used as leakage oil connection if the operating pressure exceeds the admissible tank pressure. |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
Mineral oils | HL, HLP, HLPD, HVLP, HVLPD | NBR, FKM | DIN 51524 | |
Bio-degradable | Insoluble in water | HETG | NBR, FKM | VDMA 24568 |
HEES | FKM | |||
Soluble in water | HEPG | FKM | VDMA 24568 | |
Containing water | Water-free | HFDU, HFDR | FKM | ISO 12922 |
Containing water | HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) | NBR, HNBR | ISO 12922 | |
Important information on hydraulic fluids!
Flame-resistant – containing water:
| ||||
电气连接通过带 M12 x 1 连接螺纹的 4 极配套连接器实现，连接器需单独订购。
Connection voltage (DC voltage) | V | 24 | ||
Voltage tolerance (connection voltage) | +30 %/-15 % | |||
Admissible residual ripple | % | ≤ 10 | ||
Max. load capacity | mA | 400 | ||
Switching outputs | PNP transistor outputs, load between switching outputs and GND | |||
Pinout | 1 | V | 24 | |
2, 4 | Switching output | mA | 400 | |
3 | Earthing (GND) | V | 0 | |
Dimensions in mm
Dimensions in mm
1 | Name plate |
2 | Porting pattern according toISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
3 | Identical seal rings for ports A, B, P, T |
5 | Valve with 2 spool positions |
6 | Valve with 3 spool positions |
7 | Spool position “a” |
8 | Spool position “b” |
9 | Spool position “0”, “a” and “b” (a and b for valves with 2 spool positions) |
Subplates according to data sheet 45052 (separate order)
(without locating hole)
G 341/01 (G1/4)
G 342/01 (G3/8)
G 502/01 (G1/2)
(with locating hole)
G 341/60 (G1/4)
G 342/60 (G3/8)
G 502/60 (G1/2)
G 341/12 (SAE-6)1)
G 342/12 (SAE-8)1)
G 502/12 (SAE-10)1)
1) On request
Valve mounting screws (separate order)
Clamping length 42 mm:
4 hexagon socket head cap screws, metric
ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 7 Nm ± 10 %,
Material no. R913000064
or
4 hexagon socket head cap screws
ISO 4762 - M5 x 50 - 10.9 (self procurement)
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8.1 Nm ± 10 %
4 hexagon socket head cap screws UNC
10-24 UNC x 2″ ASTM-A574
(friction coefficient μtotal = 0.19 to 0.24);
tightening torque MA = 11 Nm ± 15 %,
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8 Nm ± 10 %,
material no. R978800693
Dimensions in mm
| 1) | For dimensions, see valve dimensions |
Dimensions in mm
The dimensions are nominal dimensions which are subject to tolerances.
