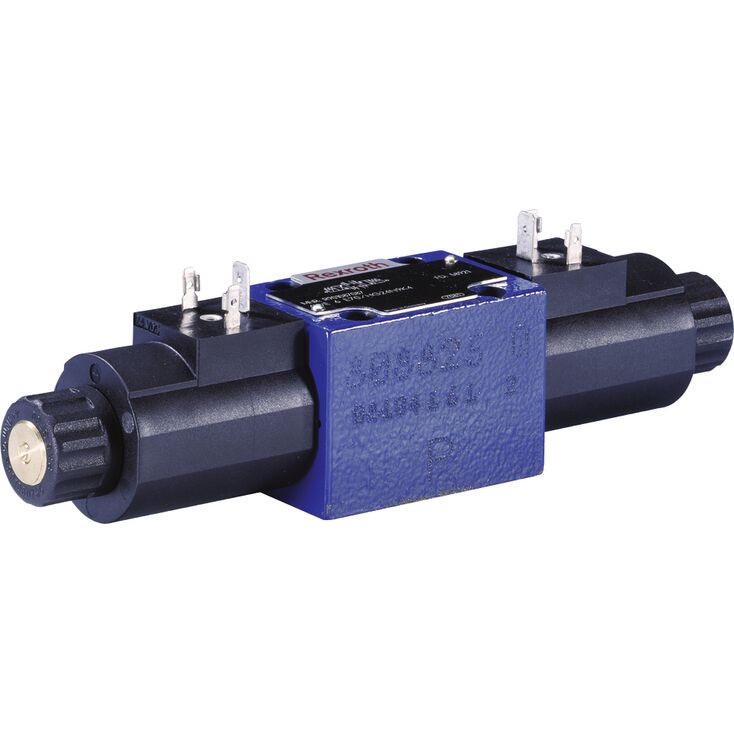

4WE 6 D7X/HG24N9K4/B10
Rexroth
R901108991
三位四通、二位四通或二位三通型式。
标准版本。
油口布置符合DIN 24340 A型。
湿式直流电磁铁。
电磁线圈可旋转。
更换线圈无需打开耐压密封腔。
采用独立电气连接。
隐蔽式手动应急操作。
WE 型换向阀为电磁铁驱动的滑阀式换向阀，用于控制油流的通断及方向。
换向阀主要由阀体（1）、一个或两个电磁铁（2）、控制阀芯（3）以及一个或两个复位弹簧（4）组成。断电时，复位弹簧（4）使阀芯（3）保持在中位或初始位置，阀芯由湿式电磁铁（2）驱动。
为确保正常功能，必须使电磁铁的耐压腔充满油液！
电磁铁（2）的力经推杆（5）作用于控制阀芯（3），将其从静止位置推至所需端位，从而接通符号所示流向。电磁铁（2）失电后，复位弹簧（4）将阀芯（3）推回静止位置。
手动应急操作（6）可在电磁铁未通电时移动控制阀芯（3）。
4WE 6 E7X/H…型。
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | ||
WE | 6 | 7X | / | H | N9 | / | * |
01 | 3 main ports | 3 |
4 main ports | 4 | |
02 | Directional valve | WE |
03 | Size 6 | 6 |
04 | Symbols e. g. D, E etc.; possible design see Symbols | |
05 | Component series 70 … 79 (70 … 79: unchanged installation and mounting dimensions) | 7X |
06 | With spring return | no code |
Without spring return with detent | OF1) | |
07 | Standard solenoid wet (wet-pin) | H |
08 | Direct voltage 12 V | G12 |
Direct voltage 24 V | G24 | |
09 | With concealed manual override | N9 |
Electrical connection | ||
10 | Individual connection | |
Without mating connector, with connector DIN EN 175301-803 | K42) | |
Without mating connector, with connector AMP Junior-Timer | C4Z 2) | |
Seal material | ||
11 | NBR seals | no code |
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | ||
12 | Further details in the plain text | * |
| 1) Only symbol D | |
| 2) Mating connectors, separate order, see data sheet 08006. |
Preferred types and standard units arecontained in the EPS (standard price list).
Size | 6 | ||
Weight (approx.) | Valve with one solenoid | kg | 1.25 |
Valve with two solenoids | kg | 1.6 | |
Installation position | any | ||
Ambient temperature range | °C | -30 … +50 | |
Size | 6 | ||
Maximum operating pressure | Port P | bar | 315 |
Port A | bar | 315 | |
Port B | bar | 315 | |
Port T 1) | bar | 160 | |
Maximum flow | l/min | 60 | |
Hydraulic fluid | see table | ||
Hydraulic fluid temperature range | °C | -30 … +80 | |
Viscosity range | mm²/s | 2.8 … 500 | |
Maximum admissible degree of contamination of the hydraulic fluid 2) | Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | With symbols A and B, port T must be used as leakage oil connection if the operating pressure exceeds the admissible tank pressure. |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
Mineral oils | HL, HLP, HLPD, HVLP, HVLPD | NBR, FKM | DIN 51524 | |
Bio-degradable | Insoluble in water | HETG | NBR, FKM | VDMA 24568 |
HEES | FKM | |||
Soluble in water | HEPG | FKM | VDMA 24568 | |
Containing water | Water-free | HFDU, HFDR | FKM | ISO 12922 |
Containing water | HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620 ) | NBR, HNBR | ISO 12922 | |
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum pressure differential per control edge 50 bar. Pressure pre-loading at the tank port >20% of the pressure differential; otherwise, increased cavitation Life cycle compared to operation with mineral oil HL, HLP 50 to 100 % Bio-degradable: When using bio-degradable hydraulic fluids that are zinc-solving, zinc may accumulate in the fluid (700 mg zinc per pole tube) | ||||
注意事项！
仅可使用圆头工具 (Ø3+1 mm) 或专用工具（需单独订购，物料号 R900024943）操作手动应急装置！
仅当油箱压力不超过 50 bar 时，才能进行手动应急操作。
手动应急操作装置锁定时，必须防止电磁铁通电！
必须防止电磁铁同时通电！
电气连接时，应按规定连接保护接地导线（PE，接地）。
Voltage type | Direct voltage | ||
Available voltages | V | 12 / 24 | |
Voltage tolerance (nominal voltage) | % | ± 10 | |
Power consumption | W | 26 | |
Duty cycle | % | 100 | |
Maximum coil temperature 1) | °C | 150 | |
Switching time according to ISO 6403 | ON | ms | 20 … 45 |
OFF | ms | 10 … 25 | |
Maximum switching frequency | 1/h | 15000 | |
Protection class according to EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | ||
Insulation class VDE 0580 | F | ||
| 1) | Due to the high surface temperatures of the solenoid coils >50 °C, the standards ISO 13732-1 and ISO 4413 must be adhered and the coils must be equipped with contact protection, if required. |
Dimensions in mm
| Required surface quality of the valve contact surface |
1.1 | Solenoid “a” |
1.2 | Solenoid “b” |
2 | Mating connector without circuitry (separate order) |
3 | Mating connector with circuitry (separate order) |
4 | Name plate |
5 | Space required to remove the mating connector |
6 | Space required to remove the coil |
7 | Mounting nut, MA = 4+1 Nm |
8 | Plug screw for valve with one solenoid |
9 | Identical seal rings for ports A, B, P, T |
10 | Porting pattern according to DIN 24340 form A |
Dimensions in mm
| Required surface quality of the valve contact surface |
1.1 | Solenoid “a” |
1.2 | Solenoid “b” |
4 | Name plate |
5 | Space required to remove the mating connector |
6 | Space required to remove the coil |
7 | Mounting nut, MA = 4+1 Nm |
8 | Plug screw for valve with one solenoid |
9 | Identical seal rings for ports A, B, P, T |
10 | Porting pattern according to DIN 24340 form A |
11 | Mating connector "Junior Timer", straight (separate order, see data sheet 08006) |
12 | Mating connector "Junior Timer", angled (separate order, see data sheet 08006) |
Subplates according to data sheet 45052 (separate order)
G 341/01 (G1/4)
G 342/01 (G3/8)
G 502/01 (G1/2)
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 7 Nm ± 10 %,
material no. R913000064
or
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9
with friction coefficient μtotal = 0.12 to 0.17 a
tightening torque MA = 8.1 Nm ± 10 % results
(not included in the Rexroth delivery range)
