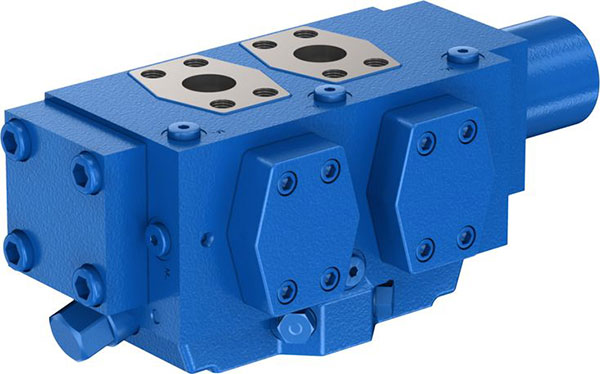

Basic Information About Axial Piston Pumps

Among the various types of pumps, the axial piston pumps seem to be very simple machine design that is long-lasting in service delivery.

A fundamental design of axial piston pump is composed of three components which are; the chamber, two valves, and the piston.

All axial piston pump works on the principle of pressure by moving the piston downward to compress the inner chamber containing the media.

When considering the other forms of pumps such as the hand pump, the air is usually compressed.

In most cases, a spike or elevation in the available pressure is more than the one inside the outlet valve spring, there will be an outflow of the compressed media, and this outflow is usually via the designated open outlet valve.

As all these happens, each time the piston is pulled upward, it simultaneously closes the outlet valves and opens the inlet valves, thereby sucking fresh media which it will compress.

However, despite the fact that the axial pumps are costly, they ranked best among the highly efficient pumps.

Nevertheless, another critical factor you cannot relegate to the background is the quality of the material and design; so, you have to source for the best from a reliable axial piston pump suppliers.

What are axial piston pumps?

Unlike other forms of pumps, axial piston pumps fall into the category of positive displacement pumps.  This type of pumps utilize many cylinders arranged around the focal axis.

Its full operation can be an addition to the durability of the pump since the operator knows the processes involved.

Usually, a cylinder block is used as a term to describe the sets of cylinders with odd numberings, and the swash plate is the point of connection where each piston found in any of the cylinder is attached.

Another name for the swashplate is known as the wobble plate or cam plate, and they are usually fixed to a revolving shaft.

While the shaft is rotating, and angle formed between each swashplate varies, and this makes the piston to move in an inward and outward formation within their individual cylinders.

Due to the angle forned between the swashplate as well as the axis of turning, it is always expected that the piston must always respond in the same axial manner just like the orbit that is found covering the cylinder block axis.

Generally, there is usually a sinusoidal motion observed in the axial movement of the piston, and the upward movement of the piston is usually in the direction of the valve plate.

Thus causing the fluid enclosed between the closed extreme of the valve plate and the piston to be forced out to the pump’s release port via the semi-circular port found in the valve plate.

However, the movement of the piston back in the direction of the valve plate forces the fluid through the valve plate’s release port.

The design of an axial piston pumps are handy in the control of the velocity of the cylinders and hydraulic motors because of the various designs of the displacement piston pump.

The swashplate is used for adjusting the level to which different pistons stretch-out into the individual cylinder, which determines the quantity of overflow.

In some designs, a piston which will help to compensate the pressure is usually used to stabilize the discharge pressure at different loads. Also, it is mostly observed that a fixed-rate designed is what other less expensive pressure washer uses.

When considering a classical pressure-reimburse axial piston pump, the angle of the swashplate is adjusted through the vale’s operation using a pressure response to maintain the output flow of the pump external delivery flow is just enough to keep an assigned pressure. However, if the weight flow increase, the pressure is briefly reduced.
