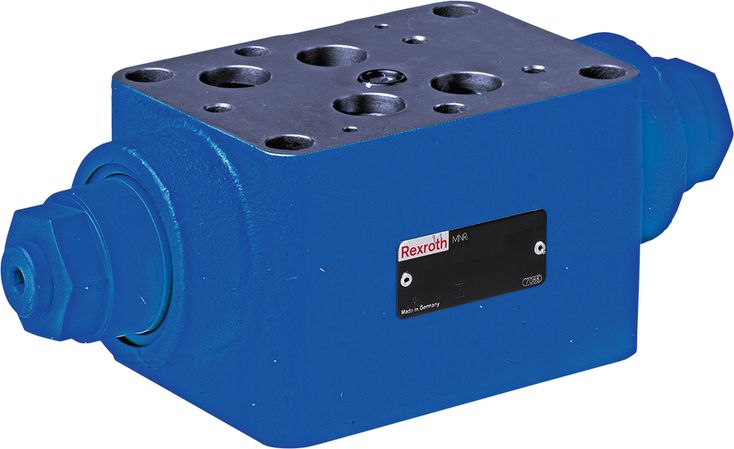

SCA 16, SCA 25

Size 16, 25.
Component series 2X.
Maximum operating pressure 315 bar.
Maximum flow 325 l/min.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • SCA 16 AZ2X/M

  • Rexroth

  • R900421223

  • Sandwich plate design

  • Flow control load-compensated optionally in channel A and B and/or only A or only B together with pilot-operated proportional directional valve

  • Leakage oil-free blocking, optionally of one or two actuator ports

  • Porting pattern according to DIN 24340 form A and ISO 4401


01

02

03

04

05


06

07

SCA



Z

2X

/


*

01

Discharge locking pressure compensator

SCA

02

Size 16

16

Size 25

25

03

Function in channel A

A

Function in channel B

B

Function in channel A and B

C

04

Sandwich plate design

Z

05

Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6

2X

Seal material

06

NBR seals

M

FKM seals

V

07

Further details in the plain text

*


allgemein

Nenngröße

1625

Geräteserie

2X

Einbaulage


Any

hydraulisch

Maximaler Betriebsdruck

bar

315

Maximum flow

l/min

130325


The discharge locking pressure compensator type SCA... can be used together with a proportional directional valve as flow controller for the load-compensated control of positive and negative loads.

Leakage oil-free blocking for load support in the actuator ports A2 and B2.

Size and direction of the flow are specified at the command value potentiometer of the proportional directional valve.
