Very short stop time of the hydraulic drives
Special application for roll mill application
Ideal from safety point of view
Performance level PL d

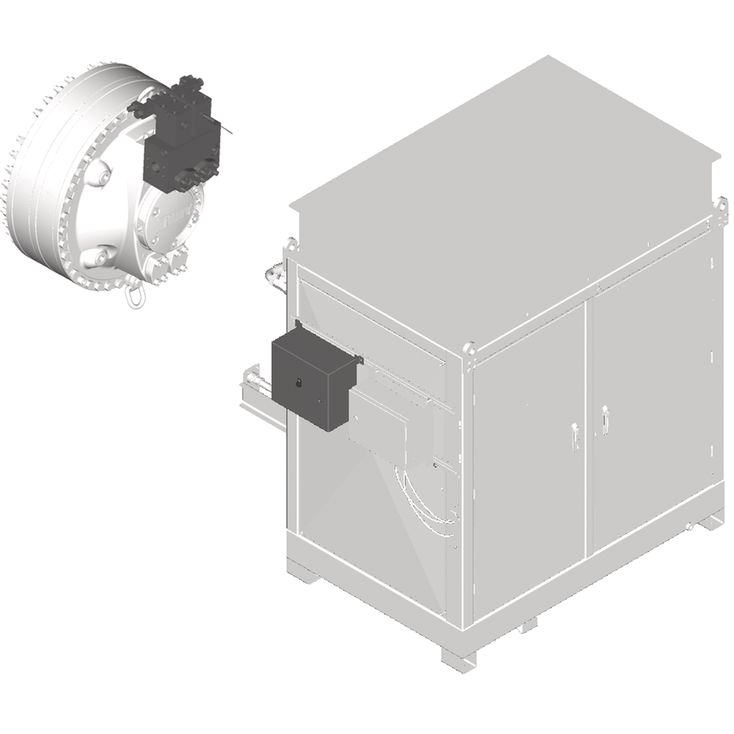

Consists of valve VQCB 800 and control box QECB
| Availability: | |
|---|---|
| Quantity: | |
Very short stop time of the hydraulic drives
Special application for roll mill application
Ideal from safety point of view
Performance level PL d
Consists of valve VQCB 800 and control box QECB
Very short stop time of the hydraulic drives
Special application for roll mill application
Ideal from safety point of view
Performance level PL d
Consists of valve VQCB 800 and control box QECB
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 1) | 06 1) | 07 | 08 | 09 | |
VQC | B | 800 | / | QEC | B |
01 | Hydraulic stop valve VQC | VQC |
02 | Version | B |
Nominal flow | ||
03 | 800 l/min | 800 |
Electric voltage | ||
04 | Standard 24 VDC | 1 |
110 VAC (not in combination with QEC) | 2 | |
Modification | ||
05 1) | 0 ... 9 | |
Design | ||
06 1) | Standard | 00 |
Special index (Customer specific adaption) | 01 ... 99 | |
Quick stop electronic control QEC | ||
07 | QEC | |
Version | ||
08 | B | |
Main voltage | ||
09 | 100 / 200 VAC | 1 |
115 / 230 VAC | 2 | |
| 1) | To be filled in by Bosch Rexroth AB, Mellansel. |
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 1) | 06 1) | 07 | 08 | 09 | |
VQC | B | 800 | / | QEC | B |
01 | Hydraulic stop valve VQC | VQC |
02 | Version | B |
Nominal flow | ||
03 | 800 l/min | 800 |
Electric voltage | ||
04 | Standard 24 VDC | 1 |
110 VAC (not in combination with QEC) | 2 | |
Modification | ||
05 1) | 0 ... 9 | |
Design | ||
06 1) | Standard | 00 |
Special index (Customer specific adaption) | 01 ... 99 | |
Quick stop electronic control QEC | ||
07 | QEC | |
Version | ||
08 | B | |
Main voltage | ||
09 | 100 / 200 VAC | 1 |
115 / 230 VAC | 2 | |
| 1) | To be filled in by Bosch Rexroth AB, Mellansel. |
