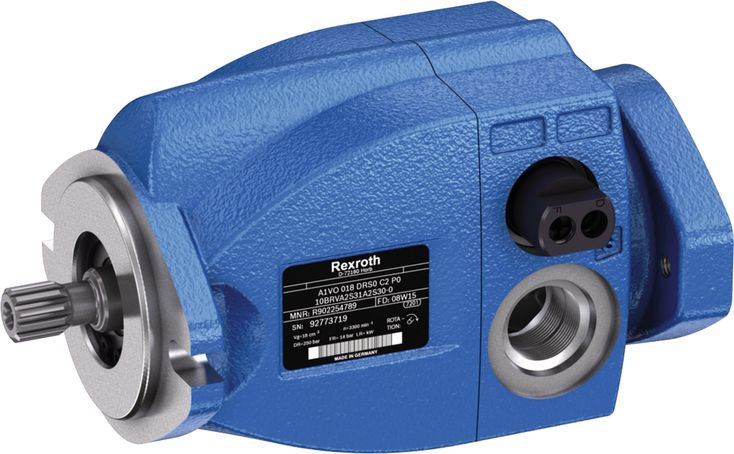

A1VO series 10

For load-sensing systems in smaller mobile machines.
Size 18 … 35.
Nominal pressure 250 bar.
Maximum pressure 280 bar.
Open circuit.
Availability:
Quantity:
sharethis sharing button
  • Significant fuel savings up to 15% compared to constant systems

  • Optimized efficiency, though same power at less fuel consumption

  • Increased service life compared to gear pumps

  • Compact design by integrated controller

  • A wide range of highly adaptable control devices for all important applications

  • Stepless flow variation by adjusting the swashplate angle.

  • Low operating noise

  • High power density

  • Excellent suction characteristics

  • High flexibility through interchangeable through drive adapters

  • Swashplate design

Table of values

Size

182835

Displacement
geometric, per revolution


Vg max

cm³

182835

Nominal pressure


pnom

bar

250250250

Maximum pressure


pmax

bar

280280280

Maximum speed

at Vg max

nnom

rpm

330032003000

Flow

at Vg max and nnom

qV nom

l/min

5989105

Power

at qV nom and pnom

P

kW

253744

Torque

at Vg max and pnom

M

Nm

72111139

Weight (approx.)


m

kg

12.312.318.4
