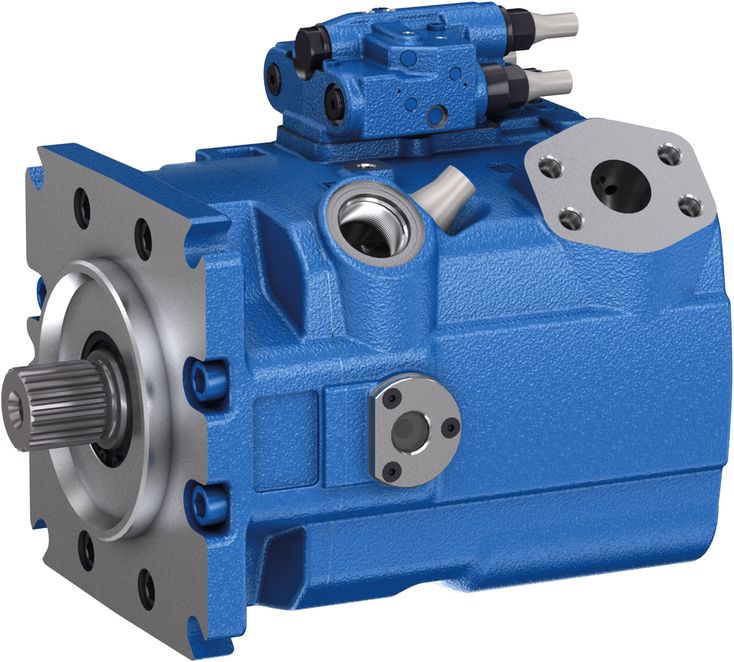

A15VSO series 1x

All-purpose high pressure pump with through drive.
Size 110 … 280.
Nominal pressure 350 bar.
Maximum pressure 420 bar.
Open circuit.
Availability:
Quantity:
sharethis sharing button
  • Designed for the use in industrial applications

  • Optional with charge pump

  • Particularly high speeds are possible with impeller pump version (A15VLO)

  • Through drive for mounting of further pumps up to same nominal size

  • Optional mooring function (over-center operation, motor operation)

  • A wide range of highly adaptable control devices for stationary applications

  • Compact design

  • High total efficiency

  • High power density

  • Low operating noise

  • Swashplate design

Table of values

Size

110145175210280145175210280

Version

StandardWith charge pump

Displacement
geometric, per revolution


Vg max

cm³

110145175210280145175210280

Nominal pressure


pnom

bar

350350350350350350350350350

Maximum pressure


pmax

bar

420420420420420420420420420

Maximum speed

at Vg max

nnom

rpm

240023002150200018002600250023502150

Flow

at Vg max and nnom

qV nom

l/min

264334376441504377438525644

Power

at qV nom and pnom

P

kW

154195219257294220255306376

Torque

at Vg max and pnom

M

Nm

6138089751170156080897511701560

Weight (approx.)


m

kg

64799711114392110125148
