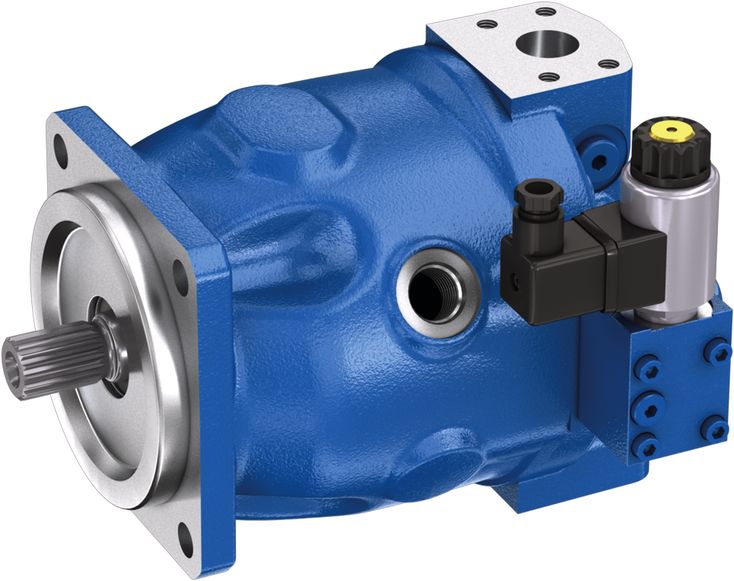

A10VZO series 10

Suitable for variable-speed operation with synchronous and asynchronous motors.
Size 10 … 180.
Nominal pressure up to 280 bar.
Maximum pressure up 350 bar.
Open circuit.

Quantity:
Availability:





Inquire Add to Basket

For use in single- and double-quadrant operation
Suitable for start/stop-operation
Suitable for long pressure retention operation
Well-tried A10 rotary group technology
Through drive possibility
High total efficiency
Swashplate design

Table of values

Size				10	18	28	45	71	100	140	180
Displacement geometric, per revolution		V_g max	cm³	10.5	18	28	45	71.1	100	140	180
Nominal pressure		p_nom	bar	250	280	280	280	280	280	280	280
Maximum pressure		p_max	bar	315	350	350	350	350	350	350	350
Maximum speed	at V_g max	n_nom	rpm	3600	3300	3000	3000	2550	2300	2200	1800
Flow	at V_g max and n_nom	q_V nom	l/min	38	59	84	135	181	230	308	324
Flow	at V_g maxand n = 1500 rpm	q_V 1500	l/min	15	27	42	68	106.6	150	210	270
Power	at q_{V nom} and p_nom	P	kW	16	27.7	39	63	884.5	107	143	151
Torque	at V_g max and p_nom	M	Nm	42	80	125	200	317	445	623	801
Weight (approx.)		m	kg	8	12	15	30	47	69	73	78

Size	10	18	28	45	71	100	140	180
Displacement geometric, per revolution		V_g max	cm³	10.5	18	28	45	71.1	100	140	180
Nominal pressure		p_nom	bar	250	280	280	280	280	280	280	280
Maximum pressure		p_max	bar	315	350	350	350	350	350	350	350
Maximum speed	at V_g max	n_nom	rpm	3600	3300	3000	3000	2550	2300	2200	1800
Flow	at V_g max and n_nom	q_V nom	l/min	38	59	84	135	181	230	308	324
at V_g maxand n = 1500 rpm	q_V 1500	l/min	15	27	42	68	106.6	150	210	270
Power	at q_{V nom} and p_nom	P	kW	16	27.7	39	63	884.5	107	143	151
Torque	at V_g max and p_nom	M	Nm	42	80	125	200	317	445	623	801
Weight (approx.)		m	kg	8	12	15	30	47	69	73	78
