Product Category

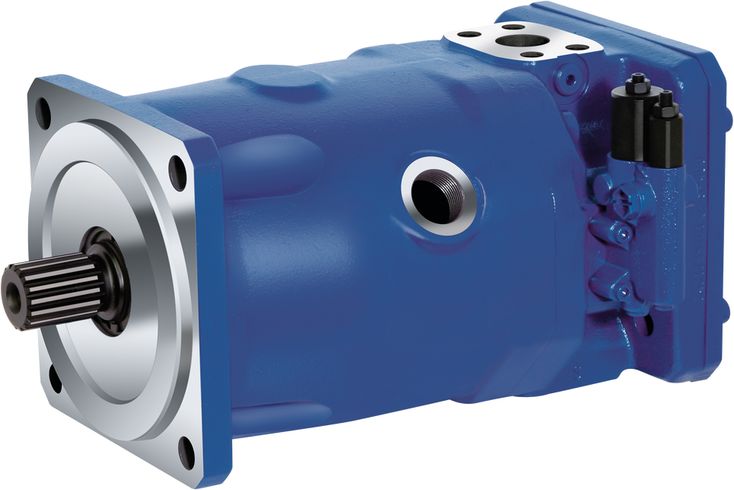

A10VSO series 32

Optimized medium pressure pump for high power machines.
Size 45 … 180.
Nominal pressure 280 bar.
Maximum pressure 350 bar.
Open circuit.

Size				45	71	100	140	180
Displacement geometric, per revolution		V_g max	cm³	45	71	100	140	180
Nominal pressure		p_nom	bar	280	280	280	280	280
Maximum pressure		p_max	bar	350	350	350	350	350
Maximum speed	at V_g max	n_nom	rpm	1800	1800	1800	1800	1800
Flow	at V_g max and n_nom	q_V nom	l/min	81	128	180	252	324
Flow	at V_g maxand n = 1500 rpm	q_V 1500	l/min	67.5	106.7	150	210	270
Power	at q_{V nom} and p_nom	P	kW	38	59.7	84	118	151
Power	at q_{V 1500} and p_nom	P ₁₅₀₀	kW	67.5	106.7	150	210	270
Torque	at V_g max and p_nom	M	Nm	200	317	446	624	802
Weight (approx.)		m	kg	30	47	69	73	78

Size	45	71	100	140	180
Displacement geometric, per revolution		V_g max	cm³	45	71	100	140	180
Nominal pressure		p_nom	bar	280	280	280	280	280
Maximum pressure		p_max	bar	350	350	350	350	350
Maximum speed	at V_g max	n_nom	rpm	1800	1800	1800	1800	1800
Flow	at V_g max and n_nom	q_V nom	l/min	81	128	180	252	324
at V_g maxand n = 1500 rpm	q_V 1500	l/min	67.5	106.7	150	210	270
Power	at q_{V nom} and p_nom	P	kW	38	59.7	84	118	151
at q_{V 1500} and p_nom	P ₁₅₀₀	kW	67.5	106.7	150	210	270
Torque	at V_g max and p_nom	M	Nm	200	317	446	624	802
Weight (approx.)		m	kg	30	47	69	73	78
