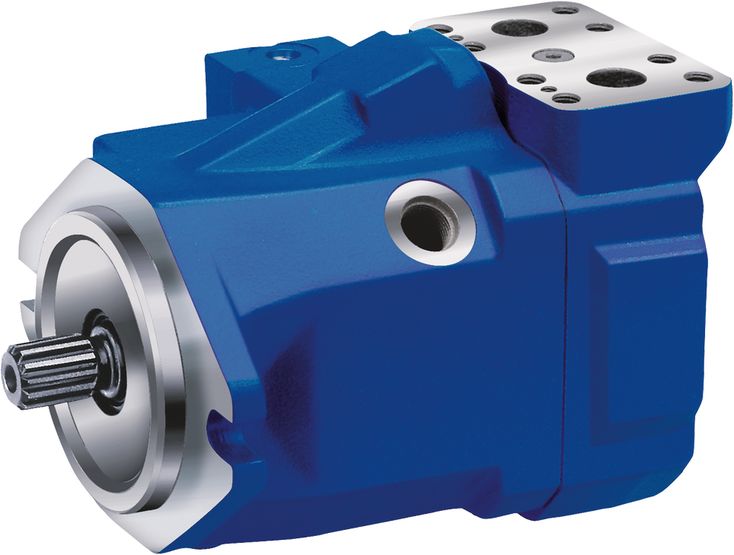

A10VM series 52

Axial piston variable motor
Medium pressure motor with two-point control.
Size 28 … 85.
Nominal pressure 280 bar.
Maximum pressure 350 bar.
Open and closed circuits.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • A A10V M 28 DG /52W1-VRC10N000

  • Rexroth

  • R902556034

  • Dual displacement motor with well-tried A10-rotary unit technology

  • Approved for high speeds

  • Long service life

  • High power density

  • Low operating noise

  • Minimum swivel angle can be set externally

  • Swashplate design


Table of values

Size

28456385

Displacement

Vg max

cm³

28456287

Vg min

cm³

8121622

Nominal pressure

pnom

bar

280280280280

Maximum pressure

pmax

bar

350350350350

Maximum speed

at Vg max 1)

nnom

rpm

4700400033003100

at Vg min

nmax

rpm

5400460039003560

Inlet flow

at Vg max and nnom

qV nom

l/min

131.6180205270

Torque

at Vg max and pnom

M

Nm

125200276387

Weight (approx.)


m

kg

14182634
1)At least 18 bar required at low pressure side
