An axial piston fixed motor or direct entry motor is a specially designed piece of the engine that converts hydrostatic flow into the mechanical rotation.
For most equipment use, the direct entry suppliers design the machine for both stationary and mobile applications under different conditions.
Although the axial piston fixed motor is a very useful piece of machine, a lot of half-baked products abound in the marketplace.
For this reason, sourcing the axial piston fixed motor from a reputable direct entry supplier is the best way to have a good value for your hard-earned money

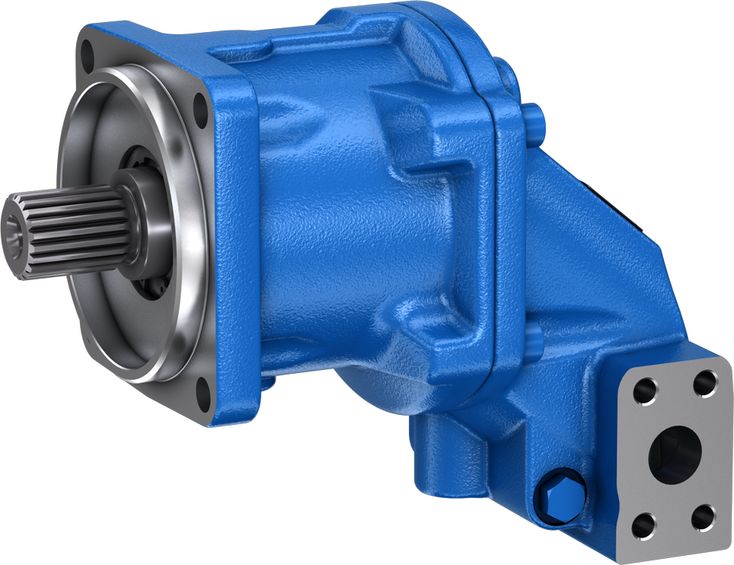

Overview of Direct Entry Motor
The motor can be obtained in a standard version A2FM and A2FE plug-in model.
An A2FM/A2FE is a positioned motor having axially pointed piston group of curved-axis model for particular hydrostatic drives in both open and then closed circuits.
In axial piston parts with a curved-axis model, most pistons tend to arrange in a tapered angle to the direction of the drive shaft.
The pistons are positioned immediately on a drive shaft. At that point, they will be able to create a pressure-reliant torque
Open Circuit
In an open circuit, the hydraulic liquid passes from its reservoir to the hydraulic pump, and it is then transported into the motor (hydraulic motor).
There is a liquid flow from the motor to the reservoir. The output of the rotating direction of the motor can change with the directional valve.
Closed Circuit
In a close circuit, the hydraulic liquid moves from the pump(hydraulic pump) to the motor (hydraulic motor) and later moves back directly to the pump again.
The output of the rotating direction of motor changes, for instance, in reversing the flow state direction in the pump.
Functional Description of Direct Entry Motor
The motor (hydraulic motor) transforms energies like hydrostatic to mechanical.
Hydraulic fluid fills the cylinder holes by the operational ports and also the main control plate.
The pistons located in cylinder holes perform a stroke which is transformed into a rotating movement through the pistons located on the flange of the drive shaft.
At this stage, the pistons shift the cylinder and thereby create an output torque mainly on its driveshaft.
There is an increase in the output torque with unstable pressure between sides of low and high pressure.
The speed of the output is relative to the flow inwardly and also proportionally opposite to the movement of the motor.
Installation conditions of Direct Entry Motor
The position and location of the installed axial piston point can determine the process during commissioning and installation; like when the axial piston point is bleed and filled.
The axial piston point should be fixed in such a way that the estimated torques and force can be transported with no harm.
The system or machine manufacturer is accountable for fasteners' measurements. If you will like to know more information about it, you can contact a direct entry supplier.
Conclusion
An axial piston fixed motor, also known as; direct entry motor, is a designed piece of the engine that converts hydrostatic flow into the mechanical rotation.
Experienced direct entry suppliers can design machines for both stationary and mobile applications under a variety of conditions.
And you should always consider buying the axial motor from a reputable manufacturer for the best product and deal.
