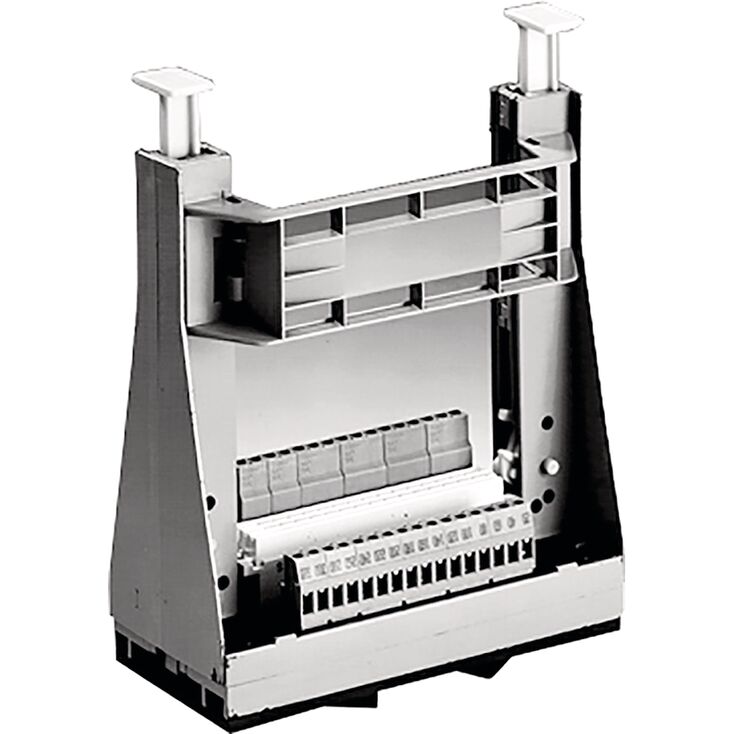

VT3002-1-2X/32F

Card holder
Component series 2X
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • VT3002-1-2X/32F

  • Rexroth

  • 1834486001

  • The card holder is used for the easy installation and wiring of individual electronic cards in europe format, e. g. in control cabinets

  • Can be fixed with screws or on a top hat rail

  • Can be mounted in a vertical position on the top hat rail with an additional adapter (included in the scope of delivery)

  • Stable substructure

  • Card lock and ejection with lever actuation

  • Connection via screw terminals



01


02


03


04

05

VT 3002

–


–

2X

/


*

01

Card holder

VT 3002

02

Single europe format

1

Double europe format (version 32D only)

2

03

Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions)

2X

04

15-pole female multipoint connector, design H

15H

32-pole female multipoint connector, design D

32D

32-pole female multipoint connector, design F

32F

48-pole female multipoint connector, design F

48F

64-pole female multipoint connector, design G

64G

05

Further details in the plain text



General

Type / version


VT 3002

Component series


2X

Other information

Type / version



VT 3002

Terminal voltage according to VDE 0110 C, max.

U

V AC/DC

48

Current carrying capacity, max.



15H single europe format32D single europe format32F single europe format48F single europe format64G single europe format32D double europe format

Connection cross-section

A


Screw terminals max. 4 mm2, design H = 6 mm2

Type of connection (socket terminal strip)



15H single europe format32D single europe format32F single europe format48F single europe format64G single europe format32D double europe format


15-pole female multipoint connector, design H, DIN 4161232-pole female multipoint connector, design D, DIN 4161232-pole female multipoint connector, design F, DIN 4161248-pole female multipoint connector, design F, DIN 4161264-pole female multipoint connector, design G, DIN 4161232-pole female multipoint connector, design D, DIN 41612

Pin assignment



15H single europe format32D single europe format32F single europe format48F single europe format64G single europe format32D double europe format


even, lines d/zeven, lines a/ceven, lines b/zeven, lines d/b/zeven, lines f/d/b/zeven, lines a/c

Ambient temperature range

ϑ

°C

-20 … +70

Weight

m

kg

0.50.8
