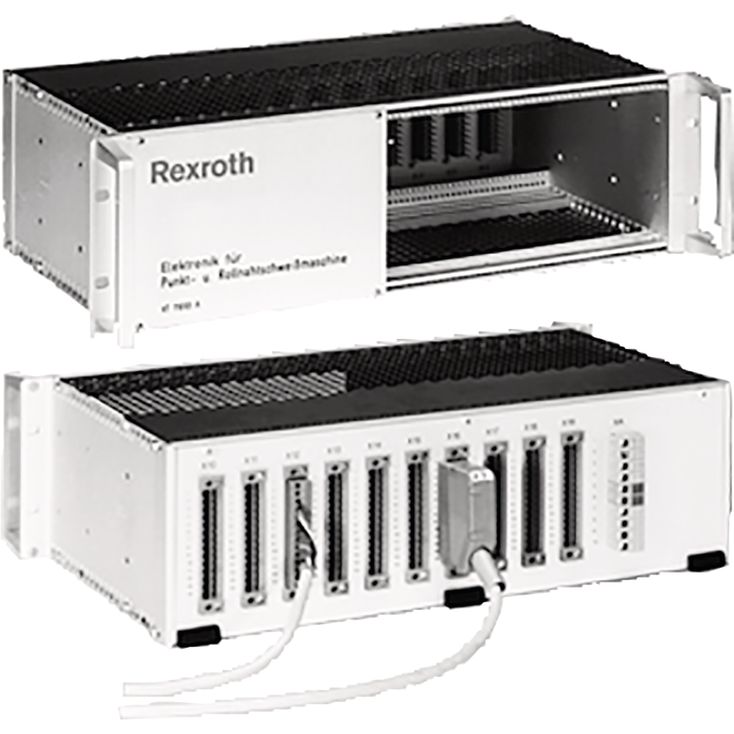

VT19101, VT19102, VT19103
Design according to VDE 0100/12.65-4
Installation width 84 horizontal pitches (TE) 5.08 mm each
Designs up to 3 x 3 rack units (HE) with 44.45 mm each for euro-cards 100 x 160 mm and 100 x 220 mm
Contact protection by cover plates
Wiring space enclosed
Vibration-proof design (DB approval)
Optional outgoing circuits for cabinet wiring:
\u2013 hinged back wall with:
\u2022 140 signal connection terminals on 10 connectors with 3 HE (connection cross-section max. 2.5 mm2)
\u2022 separate terminal block for voltage supply with 10 terminals (connection cross-section max. 6 mm2)
\u2022 The coding of all connectors is standard
\u2022 Pre-assembly of the connectors possible
or:
\u2013 VT 10812 connection adapter (see data sheet 30105) for magazines without back wall
