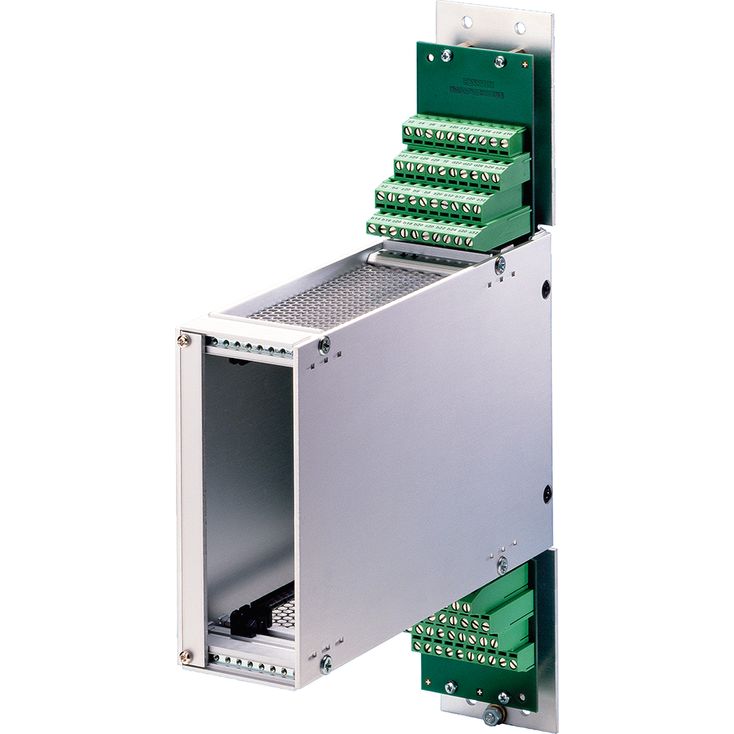

VT12302-3X

Closed card holder
Component series 3X
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • VT12302-3X/1

  • Rexroth

  • R900784153

  • Suitable for electronic cards with 64-pole male multipoint connector according to DIN 41612, design G

  • Recommended for digital valve amplifiers and control electronics, e. g. VT-HACD, VT-VPCD, VT-VRPD-2-2X and VT-VSPD-1-2X

  • Housing made of colorlessly passivated sheet steel

  • Earthing screw


01


02


03

04

VT 12302

–

3X

/


*

01

Closed card holder

VT 12302

02

Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)

3X

03

One slot

1

Two slots

2

04

Further details in the plain text


General

Component series


3X

Other information

Terminal voltage according to VDE 0110 C, max.

U

VDC

30

Connection cross-section

AWG (according to EN 60204, part 1)



24 to 12

Anschlussart



64-pin female multipoint connector, DIN 41612, design G

Pin assignment



even lines f/d/b/z

Ambient temperature range

ϑ

°C

-20 … +70

Type of protection according to EN 60529



IP 20

Weight

m

kg

1.25
