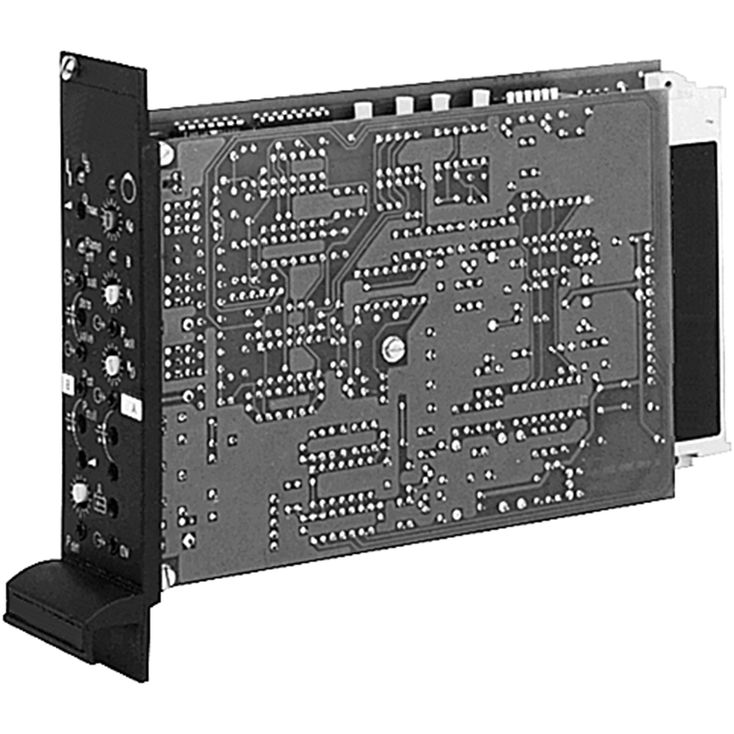

VT-VACAF-1X

Δp/Q controller
Component series 1X

Quantity:
Availability:





Inquire Add to Basket

Model:
VT-VACAF-500-10/V0
Brand:
Rexroth
Code:
0811405147

Suitable for controlling high-response valves
Amplifier with additional electronics (daughter card)
Analog amplifiers in Europe format for installation in 19" racks
Pressure differential controller (force controller) with PID behavior
Short-circuit-proof outputs
External shut-off for pressure controller
External shut-off for pressure controller
Separate acceleration and braking ramp
Ramps can be separately adjusted and switched off
Adjustable area adjustment for cylinder
Suitable for pressure sensors (0...10 V, 4...20 mA), see data sheet 30271
Supply for pressure sensors
Cable break detection for pressure sensor

01		02	03	04	05	06		07		08		09
VT	–	V	A	C	A	F	–	500	–	10	/	V0

01		VT
02		V
Hydraulic component (control)
03	Axis control	A
Valve type
04	High-response valve	C
Control
05	Analog	A
Function
06	Δp/Q control	F
Serial number for types
07	Standard variant without valve amplifier function	500
08	Component series 10 ... 19 (10 ... 19: unchanged technical data and pin assignment)	1X
Customer version
09	Catalog version	V0

General

Supply voltage UB at z2 ‒ b2				nominal 24 V= battery voltage 21...40 V, rectified alternating voltage Ueff = 21...28 V (single-phase, full-wave rectifier)
Smoothing capacitor, separately at z2 – b2				Recommendation: Capacitor module VT 11110 (see data sheet 30750) (only necessary if the ripple of UB >10 %)
Current consumption, max.			mA	250
Command value Q				b20: 0...±10 V – differential amplifier z20: 0...±10 V – differential amplifier (Ri= 100 kΩ)
Command value pdiff				z10: 0...+10 V – differential amplifier z12: 0 V – differential amplifier
Actual value from the pressure sensor	A			b26: 0...±10 V – differential amplifier b28: 0 V – differential amplifier z24: z30: 4...20 mA
Actual value from the pressure sensor	B			b16: 0...±10 V – differential amplifier b18: 0 V – differential amplifier z14: z30: 4...20 mA
Pressure sensor supply				z6: +15 V, max. 100 mA z8: -15 V, max. 100 mA
Pressure controller OFF				b10: 6...40 V=
External controller enquiry		V=		z24: 24 V/0.1 A max., if controller is not active
Signal source				Supply ±10 V from b32, z32 (10 mA) or external signal source
Monitor signal Factual				z16: ±10 V
Error pressure sensor (cable break, signal lines)				b22: no error: +UB; max. 100 mA error: 0 V : LED "Ramp OFF A" and "Ramp OFF B" flash
Ramp times				min. 350 ms (1), max. 5.6 s (16) 16 stages, 350 ms/stage
Ramp OFF	A			z22: 8...40 V =
Ramp OFF	B			z26: 8...40 V =
Area adjustment cylinder				min. 1:1 (1), max. 1:4 (16) 16 stages
LED displays	red			Error UB
	red			Ramp OFF A
	red			Ramp OFF B
	green			Controller active
	yellow			Controller not active
	off			Controller OFF
Plug-in connection				Plug to DIN 41612-F32
Operating temperature			°C	0 … +70
Storage temperature range			°C	-20 … +70
Weight		m	kg	0.44

Power zero b2 and control zero b12 or b14 or z28 must be separately led to the central ground (neutral point).

Supply voltage UB at z2 ‒ b2			nominal 24 V= battery voltage 21...40 V, rectified alternating voltage Ueff = 21...28 V (single-phase, full-wave rectifier)
Smoothing capacitor, separately at z2 – b2			Recommendation: Capacitor module VT 11110 (see data sheet 30750) (only necessary if the ripple of UB >10 %)
Current consumption, max.		mA	250
Command value Q			b20: 0...±10 V – differential amplifier z20: 0...±10 V – differential amplifier (Ri= 100 kΩ)
Command value pdiff			z10: 0...+10 V – differential amplifier z12: 0 V – differential amplifier
Actual value from the pressure sensor	A			b26: 0...±10 V – differential amplifier b28: 0 V – differential amplifier z24: z30: 4...20 mA
B			b16: 0...±10 V – differential amplifier b18: 0 V – differential amplifier z14: z30: 4...20 mA
Pressure sensor supply			z6: +15 V, max. 100 mA z8: -15 V, max. 100 mA
Pressure controller OFF			b10: 6...40 V=
External controller enquiry	V=		z24: 24 V/0.1 A max., if controller is not active
Signal source			Supply ±10 V from b32, z32 (10 mA) or external signal source
Monitor signal Factual			z16: ±10 V
Error pressure sensor (cable break, signal lines)			b22: no error: +UB; max. 100 mA error: 0 V : LED "Ramp OFF A" and "Ramp OFF B" flash
Ramp times				min. 350 ms (1), max. 5.6 s (16) 16 stages, 350 ms/stage
Ramp OFF	A			z22: 8...40 V =
B			z26: 8...40 V =
Area adjustment cylinder			min. 1:1 (1), max. 1:4 (16) 16 stages
LED displays	red			Error UB
red			Ramp OFF A
red			Ramp OFF B
green			Controller active
yellow			Controller not active
off			Controller OFF
Plug-in connection			Plug to DIN 41612-F32
Operating temperature		°C	0 … +70
Storage temperature range		°C	-20 … +70
Weight	m	kg	0.44

Force control

Qcommand	Direction	pdiff. command	Direction	Track traveling	Force control
+5,0 V		+3,5 V		with 50 % vmax.	after track traveling to 35 % of pdiff. max.
+7,5 V		-2,0 V		with 75 % vmax.	not possible
-3,3 V		-4,8 V		with 33 % vmax.	after track traveling to 48 % of pdiff. max.
-10,0 V		+8,0 V		with vmax.	not possible
A command value of at least ±0.3 V must be specified!
The numerical values listed in the table are examples, the signs of the values are decisive.
