VT-MAC8-1X/A-VAI-1
Rexroth
R901108121

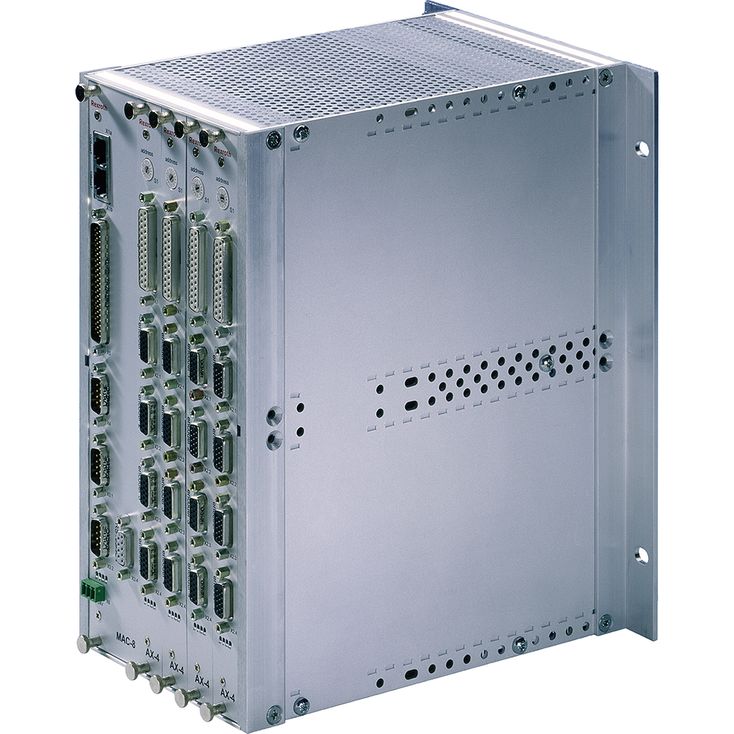

The MAC8 is the digital Rexroth multi-axis NC control in modular design.
It consists of a master card with no, 2 or 4 axis controllers and can be extended with up to seven slave cards for four axes each, if necessary.
It is thus the perfect solution for complex control tasks with up to 32 interpolatable axes.
Using local Ethernet, more MAC8 can be connected.
The MAC8 communicates with the superior PLC machine control via field bus (PROFIBUS DP or CAN) or via Ethernet.
It has special hydraulic control characteristics and is able to control the movements of the machine or machine parts in a completely automatic manner and can thus also accept PLC tasks.
Sensors and actuators can also be analyzed and/or activated via CAN bus.
