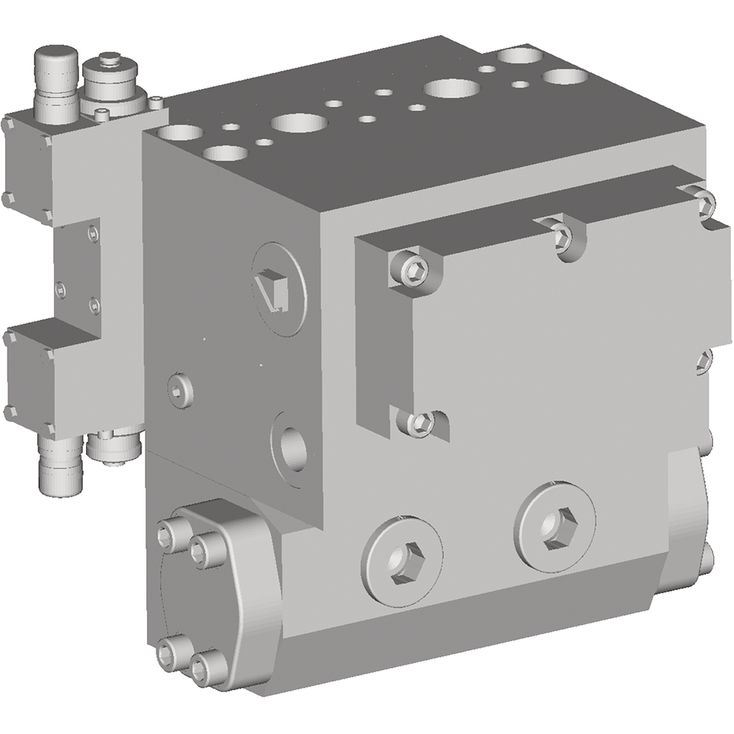

Compact and robust design
Mounted directly on Hägglunds motors
Free circulation function with minimal pressure drop
Free circulation shift allowed up to 40 rpm
Free-wheeling function
Shifting from drive operation into free-wheeling allowed up to 10 rpm
Compact and robust design
Mounted directly on Hägglunds motors
Free circulation function with minimal pressure drop
Free circulation shift allowed up to 40 rpm
Free-wheeling function
Shifting from drive operation into free-wheeling allowed up to 10 rpm
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 |
VFCC | A | 1000 |
01 | Free circulation valve | VFCC |
02 | Version | A |
Maximum flow | ||
03 | 1000 l/min | 1000 |
Operation | ||
04 | Electrical operated | E |
Hydraulic actuated | H | |
Electric details | ||
05 | No | 0 |
24 VDC | 1 | |
Explosive environment | ||
06 | Non explosive environment | 0 |
Explosive environment | 1 | |
Modification 1) | ||
07 | 00 | |
Design | ||
08 | Standard | 00 |
Special index 1) | 01 ... 99 | |
Valve adapter | ||
09 | None | XX |
VA 1000 10 | VA |
1) | To be filled in by Bosch Rexroth DC-IA/EHD |
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 |
VFCC | A | 1000 |
01 | Free circulation valve | VFCC |
02 | Version | A |
Maximum flow | ||
03 | 1000 l/min | 1000 |
Operation | ||
04 | Electrical operated | E |
Hydraulic actuated | H | |
Electric details | ||
05 | No | 0 |
24 VDC | 1 | |
Explosive environment | ||
06 | Non explosive environment | 0 |
Explosive environment | 1 | |
Modification 1) | ||
07 | 00 | |
Design | ||
08 | Standard | 00 |
Special index 1) | 01 ... 99 | |
Valve adapter | ||
09 | None | XX |
VA 1000 10 | VA |
1) | To be filled in by Bosch Rexroth DC-IA/EHD |
Mechanical specification | Maximum operating pressure | bar | 350 | |
Pilot pressure (to shift main cartridges) | bar | \u200b10 ... 350 | ||
Case pressure at freewheeling (to lift piston assemblies) | bar | 1 ... 1.5 | ||
Maximum flow (see section "Pressure loss diagram") | l/min | 1000 | ||
Hydraulic fluid (refer to data sheet RE 15414 Hydraulic fluid quick reference) | Fluid temperature range | °C | -25 \u2026 +70 | |
Viscosity range | mm²/s | 20 \u2026 380 | ||
Recommended operating viscosity | mm²/s | 40 | ||
Pilot valve interface | CETOP 03 | |||
Weights | Free circulation valve | typical VFCCA 1000 | kg | 85 |
Adapter | VA 1000 10 | kg | 24 | |
Pilot valve (electrical operated) | Solenoid protection class | IP65 (sea water protective) | ||
Solenoid current (24 VDC) | A | 1.25 | ||
Solenoid power (24 VDC) | W | 30 | ||
Surface protection | Surface coating | According to DIN 50979, Fe//ZnNi8//An/T2 | ||
Standard Painting System | SS-EN ISO 12944 C3, durability range M (Std colour RAL 2002) |
Area of application according to ATEX directive 2014/34/EU | IM2, II2G, II2D, II3G, II3D | |
Protection of the valve by liquid immersion according to | k (EN 13463-8) | |
Constructional safety according to | c (EN 13463-5) | |
Maximum surface temperature | °C | + 100 |
Temperature class | T4 | |
Conforms to \u201cEquipment and components intended for use in potentially explosive atmospheres and in underground mines\u201d | EN 1710 | |
ATEX Classification of valve | II 2 G D c k T4 / I M2 c k T4 | |
Ambient temperature range | °C | -25 \u2026 +50 |
Voltage | VDC | 24 |
Voltage tolerance | % | ± 10 |
Nominal power at ambient temperature +20 ºC | W | 17 |
Maximum power with 1.1 x nominal voltage and an ambient temperature of 20 °C | W | 20.6 |
Protection class | IP66 |
Area of application according to directive 2014/34/EU | II 2G | |
Type of protection valve | c (EN 13463-5) | |
Maximum surface temperature | °C | + 135 |
Temperature class | T4 | |
Type of protection valve solenoid according to EN 60079-7 / EN 60079-18 | Ex eb mb IIC T4 Gb | |
Type examination certificate solenoid | KEMA 02ATEX2240 X | |
IECEx Certificate of Conformity solenoid | IECEx DEK 12.0068X | |
Ambient temperature range | °C | -20 \u2026 +70 |
When running in free circulation the motor pressure losses and valve losses appear as heat in the circuit. To maintain oil temperature within acceptable limits an exchange of oil may need to be made.
Example: Hägglunds CA 100 (Displacement 6.28 l/rev) running at 150 rpm.
This calculation demonstrates how to establish the Motor Flow.
Flow through the motor q = Vi ⋅ n
q = flow (l/min)
Vi = motor displacement (cm3⋅ 1000/rev)
n = speed (rpm)
Motor Flow q = 6.28 x 150 = 942 l/min
This calculation demonstrates how to establish the Total Pressure Drop.
dp = Pressure loss Am to Cm in the valve = 19.5 bar (from Pressure loss diagram)
dp1 = Pressure loss for the motor = 12.5 bar (see Data sheet for CA motor, section Pressure loss diagram)
Pressure Loss = 19.5 bar + 12.5 bar = 32 bar
This calculation demonstrates how to calculate the Power Loss.
To calculate the required flushing flow to keep the circuit temperature at a maximum ΔT of 15 °C warmer than the flushing oil.
q flushing = 2.3 x E l/min
Definition of E (Power):
Accumulated energy: W, W = m x c x ΔT
Accumulated energy per time unit: E (Power) E = W/t
The necessary flow to keep the circuit temperature at a maximum ΔT of 15 °C warmer than the flushing oil is:
q flushing = 2.3 x 50.2 = 115.46 l/min
Symbol | Description | Unit | |
E | Power | W | |
c | Spec. heat capacity oil | kJ/kgK | coil = 2 kJ/kgK |
q | Oil flushing flow | m3/s | |
ρ | Oil density | kg/m3 | ρoil = 870 kg/m3 |
ΔT | Temperature difference | °C |
ΔT = 15 °C(example)
q = (1/(c x ρ x ΔT)) x E [l/min]
q = (60000/(2000 x 13050)) x E [W] [l/min]
q = 0.0023 x E [W] [l/min]
q = 2.3 x E [kW] [l/min]
Mechanical specification | Maximum operating pressure | bar | 350 | |
Pilot pressure (to shift main cartridges) | bar | \u200b10 ... 350 | ||
Case pressure at freewheeling (to lift piston assemblies) | bar | 1 ... 1.5 | ||
Maximum flow (see section "Pressure loss diagram") | l/min | 1000 | ||
Hydraulic fluid (refer to data sheet RE 15414 Hydraulic fluid quick reference) | Fluid temperature range | °C | -25 \u2026 +70 | |
Viscosity range | mm²/s | 20 \u2026 380 | ||
Recommended operating viscosity | mm²/s | 40 | ||
Pilot valve interface | CETOP 03 | |||
Weights | Free circulation valve | typical VFCCA 1000 | kg | 85 |
Adapter | VA 1000 10 | kg | 24 | |
Pilot valve (electrical operated) | Solenoid protection class | IP65 (sea water protective) | ||
Solenoid current (24 VDC) | A | 1.25 | ||
Solenoid power (24 VDC) | W | 30 | ||
Surface protection | Surface coating | According to DIN 50979, Fe//ZnNi8//An/T2 | ||
Standard Painting System | SS-EN ISO 12944 C3, durability range M (Std colour RAL 2002) |
Area of application according to ATEX directive 2014/34/EU | IM2, II2G, II2D, II3G, II3D | |
Protection of the valve by liquid immersion according to | k (EN 13463-8) | |
Constructional safety according to | c (EN 13463-5) | |
Maximum surface temperature | °C | + 100 |
Temperature class | T4 | |
Conforms to \u201cEquipment and components intended for use in potentially explosive atmospheres and in underground mines\u201d | EN 1710 | |
ATEX Classification of valve | II 2 G D c k T4 / I M2 c k T4 | |
Ambient temperature range | °C | -25 \u2026 +50 |
Voltage | VDC | 24 |
Voltage tolerance | % | ± 10 |
Nominal power at ambient temperature +20 ºC | W | 17 |
Maximum power with 1.1 x nominal voltage and an ambient temperature of 20 °C | W | 20.6 |
Protection class | IP66 |
Area of application according to directive 2014/34/EU | II 2G | |
Type of protection valve | c (EN 13463-5) | |
Maximum surface temperature | °C | + 135 |
Temperature class | T4 | |
Type of protection valve solenoid according to EN 60079-7 / EN 60079-18 | Ex eb mb IIC T4 Gb | |
Type examination certificate solenoid | KEMA 02ATEX2240 X | |
IECEx Certificate of Conformity solenoid | IECEx DEK 12.0068X | |
Ambient temperature range | °C | -20 \u2026 +70 |
When running in free circulation the motor pressure losses and valve losses appear as heat in the circuit. To maintain oil temperature within acceptable limits an exchange of oil may need to be made.
Example: Hägglunds CA 100 (Displacement 6.28 l/rev) running at 150 rpm.
This calculation demonstrates how to establish the Motor Flow.
Flow through the motor q = Vi ⋅ n
q = flow (l/min)
Vi = motor displacement (cm3⋅ 1000/rev)
n = speed (rpm)
Motor Flow q = 6.28 x 150 = 942 l/min
This calculation demonstrates how to establish the Total Pressure Drop.
dp = Pressure loss Am to Cm in the valve = 19.5 bar (from Pressure loss diagram)
dp1 = Pressure loss for the motor = 12.5 bar (see Data sheet for CA motor, section Pressure loss diagram)
Pressure Loss = 19.5 bar + 12.5 bar = 32 bar
This calculation demonstrates how to calculate the Power Loss.
To calculate the required flushing flow to keep the circuit temperature at a maximum ΔT of 15 °C warmer than the flushing oil.
q flushing = 2.3 x E l/min
Definition of E (Power):
Accumulated energy: W, W = m x c x ΔT
Accumulated energy per time unit: E (Power) E = W/t
The necessary flow to keep the circuit temperature at a maximum ΔT of 15 °C warmer than the flushing oil is:
q flushing = 2.3 x 50.2 = 115.46 l/min
Symbol | Description | Unit | |
E | Power | W | |
c | Spec. heat capacity oil | kJ/kgK | coil = 2 kJ/kgK |
q | Oil flushing flow | m3/s | |
ρ | Oil density | kg/m3 | ρoil = 870 kg/m3 |
ΔT | Temperature difference | °C |
ΔT = 15 °C(example)
q = (1/(c x ρ x ΔT)) x E [l/min]
q = (60000/(2000 x 13050)) x E [W] [l/min]
q = 0.0023 x E [W] [l/min]
q = 2.3 x E [kW] [l/min]
Dimensions in mm
Dimensions in mm
Dimensions in mm
Dimensions in mm
Dimensions in mm
Dimensions in mm
