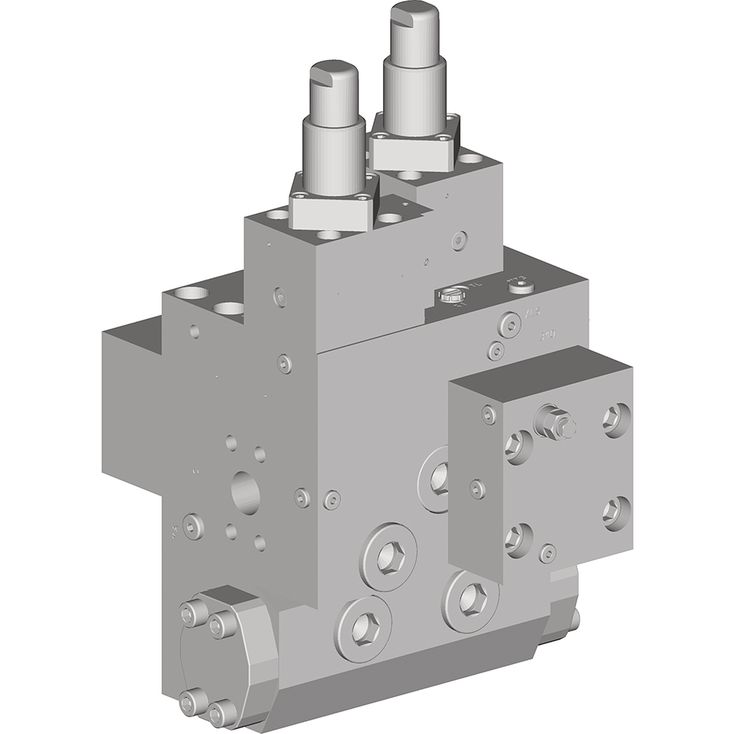

Compact and robust design
Mounted directly on Hägglunds motors
Four way directional and flow control of motor
Proportionally controlled flow of the motor
Counter balance function on motor pressure line
Compact and robust design
Mounted directly on Hägglunds motors
Four way directional and flow control of motor
Proportionally controlled flow of the motor
Counter balance function on motor pressure line
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 | 06 |
V4WC | A | 1000 |
01 | 4-way control valve | V4WC |
02 | Version | A |
Maximum flow | ||
03 | 1000 l/min | 1000 |
Modification 1) | ||
04 | 00 | |
Design | ||
05 | Standard | 00 |
Special index 1) | 01 ... 99 | |
Valve adapter | ||
06 | None | XX |
VA 1000 10 | VA |
1) | To be filled in by Bosch Rexroth DC-IA/EHD |
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
01 | 02 | 03 | 04 | 05 | 06 |
V4WC | A | 1000 |
01 | 4-way control valve | V4WC |
02 | Version | A |
Maximum flow | ||
03 | 1000 l/min | 1000 |
Modification 1) | ||
04 | 00 | |
Design | ||
05 | Standard | 00 |
Special index 1) | 01 ... 99 | |
Valve adapter | ||
06 | None | XX |
VA 1000 10 | VA |
1) | To be filled in by Bosch Rexroth DC-IA/EHD |
Mechanical specification | Maximum operating pressure | bar | 350 | |
Control pilot pressure (X1, X2) | bar | 4 ... 16 | ||
Maximum pilot pressure | bar | 350 | ||
Minimum pilot flow | l/min | 5 | ||
C/Cm line Pressure range to open Counter Balance Valve | bar | 20 ... 28 | ||
Maximum flow (see section "Pressure loss diagram") | l/min | 1000 | ||
Hydraulic fluid (see data sheet RE 15414 Hydraulic fluid quick reference) | Fluid temperature range | °C | -25 \u2026 +70 | |
Viscosity range | mm²/s | 20 \u2026 380 | ||
Recommended operating viscosity | mm²/s | 40 | ||
Weights | 4-way Flow Control Valve | V4WCA 1000 | kg | 78 |
Adapter | VA 1000 10 | kg | 24 |
Mechanical specification | Maximum operating pressure | bar | 350 | |
Control pilot pressure (X1, X2) | bar | 4 ... 16 | ||
Maximum pilot pressure | bar | 350 | ||
Minimum pilot flow | l/min | 5 | ||
C/Cm line Pressure range to open Counter Balance Valve | bar | 20 ... 28 | ||
Maximum flow (see section "Pressure loss diagram") | l/min | 1000 | ||
Hydraulic fluid (see data sheet RE 15414 Hydraulic fluid quick reference) | Fluid temperature range | °C | -25 \u2026 +70 | |
Viscosity range | mm²/s | 20 \u2026 380 | ||
Recommended operating viscosity | mm²/s | 40 | ||
Weights | 4-way Flow Control Valve | V4WCA 1000 | kg | 78 |
Adapter | VA 1000 10 | kg | 24 |
Dimensions in mm
Dimensions in mm
Warning signs
In this manual you will find the following signs which indicate a potential hazard, which can or will cause personal injury or substantial property damage. Depending on the probability if the hazard, and how serious the injury or property damage could be, there are three levels if classification.
Warning sign (warning triangle) | Draws attention to the hazard |
Signal word | Identifies the degree of hazard |
Type of risk | Specifies the type or source of the hazard |
Consequences | Describes the consequences of non-compliance |
Precautions | Specifies how the hazard can be prevented |
Warning sign, signal word | Meaning |
| Indicates a dangerous situation which will cause death or severe personal injuries if not avoided. |
| Indicates a dangerous situation which may cause death or severe personal injuries if not avoided. |
| Indicates a dangerous situation which may cause minor or medium personal injuries if not avoided. |
| Material damage: the product or its environment could be damaged. |
Warning signs
In this manual you will find the following signs which indicate a potential hazard, which can or will cause personal injury or substantial property damage. Depending on the probability if the hazard, and how serious the injury or property damage could be, there are three levels if classification.
Warning sign (warning triangle) | Draws attention to the hazard |
Signal word | Identifies the degree of hazard |
Type of risk | Specifies the type or source of the hazard |
Consequences | Describes the consequences of non-compliance |
Precautions | Specifies how the hazard can be prevented |
Warning sign, signal word | Meaning |
| Indicates a dangerous situation which will cause death or severe personal injuries if not avoided. |
| Indicates a dangerous situation which may cause death or severe personal injuries if not avoided. |
| Indicates a dangerous situation which may cause minor or medium personal injuries if not avoided. |
| Material damage: the product or its environment could be damaged. |
