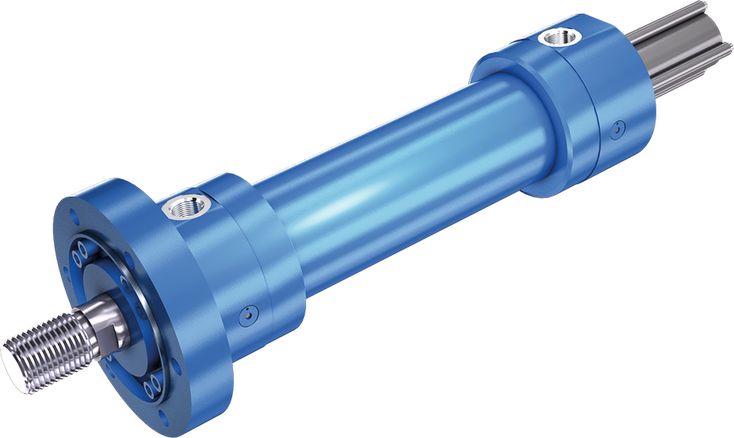

CSH1

Series H1.
Component series 3X.
Nominal pressure 250 bar.
Piston Ø 40 … 320 mm.
Piston rod Ø 22 … 220 mm.
Stroke length up to 6000 mm.

Quantity:
Availability:





Inquire Add to Basket

6 types of mounting
Self-adjusting and adjustable end position cushioning

Ordering code

01	02	03		04		05		06	07	08		09	10	11	12	13	14	15	16
CS	H1		/		/		/		A	3X	/								Z

01	Single rod cylinder with position measurement system		CS¹⁸⁾
02	Series		H1
Types of mounting
03	Swivel eye at cylinder base		MP3¹⁾
	Self-aligning clevis at cylinder base		MP5
	Round flange at the cylinder head		MF3
	Round flange at the cylinder base		MF4
	Trunnion		MT4²⁾
	Foot mounting		MS2
04	Piston Ø (ØAL) 40 \u2026 320 mm		...
05	Piston rod Ø (ØMM) 22 \u2026 220 mm		...
06	Stroke length in mm³⁾		...
Design principle
07	Head and base flanged		A
08	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)		3X
Line connection / version
09	According to ISO 1179-1 (pipe thread ISO 228-1)		B
	According to ISO 9974-1 (metric thread ISO 261)		M
	Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI)		D^{4; 9)}
	Flange connection according to ISO 6164 tab. 2		H⁴⁾
	according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange		C³¹⁾
	For directional and high-response valves	Subplate NG6	P^{4; 5)}
		Subplate NG10	T^{4; 6)}
		Subplate NG16	U^{4; 7)}
		Subplate NG25	V^{4; 8)}
	For SL and SV valves	Subplate NG6	A^{4; 5; 15)}
		Subplate NG10	E^{4; 6; 15)}
		Subplate NG20	L^{4; 7; 15)}
		Subplate NG30	N^{4; 8; 15)}
Line connection/position at cylinder head
10	View to piston rod³⁰⁾		1
			2
			3
			4
Line connection/position at cylinder base
11	View to piston rod³⁰⁾		1
			2³⁴⁾
			3
			4³⁴⁾
Piston rod design
12	Hard chromium-plated		C
12	Hardened and hard chromium-plated		H¹⁹⁾
Piston rod end
13	Thread for swivel head CGAS		A
	Thread for swivel head CGA, CGAK, plain clevis CSA		G¹³⁾
	With mounted swivel head CGAS		S
	With mounted swivel head CGA		L¹³⁾
	With mounted swivel head CGAK		M¹³⁾
	With mounted swivel head CSA		N¹⁾
End position cushioning
14	Without end position cushioning		U
14	Both sides, adjustable		E²⁰⁾
Seal design
15	For mineral oil HL, HLP and oil-in-water emulsion HFA	Standard seal system	M²⁹⁾
		Standard seal system with guide rings	L
		Reduced friction heavy industry	R²⁹⁾
	For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC	Standard seal system HFC	G²⁹⁾
		Servo quality/reduced friction	T²⁹⁾
	For HDFR phosphate ester and HFDU polyol ester	Servo quality/reduced friction	S²⁹⁾
	For HDFR phosphate ester and HFDU polyol ester	Standard seal system FKM	V²⁹⁾
Option
16	Additional options, fill fields for additional options		Z

Additional options

	Fields for additional options
	17	18	19	20	21	22	23	24
Z	T

17	Position measurement system, magnetostrictive without mating connector, mating connector \u2012 separate order, see Technical data	T
18	Analog output 4 \u2026 20 mA	C
	Analog output 0 \u2026 10 V	F
	Digital output SSI	D
	Profibus D63	N
	Profibus D53	P
19	Without measuring coupling	W
19	Measuring coupling, on both sides	A
20	Standard conical grease nipple, DIN 71412 Form A	W
	Spherical bearing, maintenance-free	A^{14; 35)}
	Flanged grease nipple, DIN 3404 Form A	B
21	Without piston rod extension	W
21	Piston rod extension \u201cLY\u201d, specify in mm in plain text	Y
22	Priming class CP3	\u200bW
	Painting class CP4	B²¹⁾
	Painting class CP5	L²¹⁾
	Painting class CP6	U²¹⁾
	Painting class CP7	E²¹⁾
23	Without oil filling	W
23	With oil filling	F
24	Without test certificate	W
24	With acceptance test certificate 3.1 based on EN 10204	C

¹⁾	Only piston Ø 40 \u2026 200 mm
²⁾	Trunnion position freely selectable. When ordering, always specify the "XV" dimensions in the plain text in
³⁾	For max. available stroke length see Technical data and for admissible stroke length (according to the kinking calculation) see Project planning information.
⁴⁾	Not possible with MF4
⁵⁾	Piston Ø 40 \u2026 80 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head
⁶⁾	Piston Ø 63 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head
⁷⁾	Piston Ø 125 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head
⁸⁾	Only piston Ø 160 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head
⁹⁾	Only piston Ø 80 \u2026 320 mm
¹³⁾	Not with piston Ø 320 mm
¹⁴⁾	Not possible with piston rod end "N"
¹⁵⁾	Subplates for SL and SV valves (isolator valves)
	Please note: Seal designs T, G, L, R, S and V are not designed for the static holding function!
¹⁸⁾	Not standardized
¹⁹⁾	Only piston rod Ø 28 \u2026 140 mm
²⁰⁾	Possible from piston rod Ø 45 mm
²¹⁾	Specify RAL color in the plain text
²⁹⁾	With CSH, by default with guide belts
³⁰⁾	All graphical representations in the data sheet show position 1
³¹⁾	With MS2, only position 11 is possible
³⁴⁾	With MF4 and line connection B, M or C not possible
³⁵⁾	Not possible with MP3

	Order example:
	CSH1MP5/100/56/300A3X/T11CAEMZ TCAWWWWW

01	Single rod cylinder with position measurement system	CS¹⁸⁾
02	Series	H1
Types of mounting
03	Swivel eye at cylinder base	MP3¹⁾
Self-aligning clevis at cylinder base	MP5
Round flange at the cylinder head	MF3
Round flange at the cylinder base	MF4
Trunnion	MT4²⁾
Foot mounting	MS2
04	Piston Ø (ØAL) 40 \u2026 320 mm	...
05	Piston rod Ø (ØMM) 22 \u2026 220 mm	...
06	Stroke length in mm³⁾	...
Design principle
07	Head and base flanged	A
08	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Line connection / version
09	According to ISO 1179-1 (pipe thread ISO 228-1)	B
According to ISO 9974-1 (metric thread ISO 261)	M
Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI)	D^{4; 9)}
Flange connection according to ISO 6164 tab. 2	H⁴⁾
according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange	C³¹⁾
For directional and high-response valves	Subplate NG6	P^{4; 5)}
Subplate NG10	T^{4; 6)}
Subplate NG16	U^{4; 7)}
Subplate NG25	V^{4; 8)}
For SL and SV valves	Subplate NG6	A^{4; 5; 15)}
Subplate NG10	E^{4; 6; 15)}
Subplate NG20	L^{4; 7; 15)}
Subplate NG30	N^{4; 8; 15)}
Line connection/position at cylinder head
10	View to piston rod³⁰⁾		1
2
3
4
Line connection/position at cylinder base
11	View to piston rod³⁰⁾		1
2³⁴⁾
3
4³⁴⁾
Piston rod design
12	Hard chromium-plated	C
Hardened and hard chromium-plated	H¹⁹⁾
Piston rod end
13	Thread for swivel head CGAS	A
Thread for swivel head CGA, CGAK, plain clevis CSA	G¹³⁾
With mounted swivel head CGAS	S
With mounted swivel head CGA	L¹³⁾
With mounted swivel head CGAK	M¹³⁾
With mounted swivel head CSA	N¹⁾
End position cushioning
14	Without end position cushioning	U
Both sides, adjustable	E²⁰⁾
Seal design
15	For mineral oil HL, HLP and oil-in-water emulsion HFA	Standard seal system	M²⁹⁾
Standard seal system with guide rings	L
Reduced friction heavy industry	R²⁹⁾
For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC	Standard seal system HFC	G²⁹⁾
Servo quality/reduced friction	T²⁹⁾
For HDFR phosphate ester and HFDU polyol ester	Servo quality/reduced friction	S²⁹⁾
Standard seal system FKM	V²⁹⁾
Option
16	Additional options, fill fields for additional options	Z

general

Installation position		any
Priming		Gentian blue (RAL 5010), see Table Corrosivity categories
Minimum layer thickness of the priming ¹⁾	µm	40
Painting ²⁾		in four corrosivity categories in the RAL colors, see Table Corrosivity categories

¹⁾	Other colors upon request. With cylinders and attachment parts, the following surfaces are not primed: ▶ All fit diameters to the customer side ▶ Sealing surfaces for line connection ▶ Sealing surfaces for flange connection ▶ Connection surface for valve mounting ▶ Inductive proximity switches ▶ Position measurement system ▶ Measuring coupling ▶ Spherical / plain bearing ▶ Lubricating nipples
²⁾	With cylinders and attachment parts, the following surfaces are not painted: ▶ All fit diameters and connection surfaces to the customer side ▶ Sealing surfaces for line connection ▶ Sealing surfaces for flange connection ▶ Connection surface for valve mounting ▶ Inductive proximity switches ▶ Position measurement system ▶ Measuring coupling ▶ Spherical / plain bearing ▶ Lubricating nipples
	The areas that are not primed or painted are protected by means of a solvent-free corrosion protection agent.
	Accessories that are ordered as separate order item are not primed or painted by default. Corresponding priming and/or painting on request.

hydraulic

Nominal pressure ¹⁾	bar	250
Operating pressure, min. (without load) ²⁾	bar	10
Static test pressure	bar	375
Reduced test pressure	bar	315
Operating viscosity range	mm²/s	12 \u2026 380
Optimum viscosity at operating temperature	mm²/s	20 \u2026 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) ³⁾		Class 20/18/15 according to ISO 4406 (c)
Bleeding		By default secured against screwing out

¹⁾	The maximum operating pressures must be less than or equal to the applicable nominal pressures and apply to applications with shock-free operation with reference to excess pressure and/or external loads. With extreme loads like e. g. high sequence cycle, mounting elements and threaded piston rod connections must be designed for durability.
²⁾	Depending on the application, application conditions and technical design, a certain minimum pressure (approx.10 bar) is required in order to guarantee technically unobjectionable functioning of the hydraulic cylinder.
³⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid	Classification	Suitable sealing materials	Standards	Data sheet
Mineral oil	HL, HLP	FKM,NBR	DIN 51524	90220
Oil-in-water emulsion	HFA	FKM, NBR	ISO 12922	90223
Water glycol	HFC	upon request		90223
Phosphate ester	HFD-R	FKM	ISO 12922	90222
Polyol ester	HFD-U	FKM	ISO 12922	90222

Weight

Piston	Piston rod	with 0 mm stroke length				per 100 mm stroke length
ØAL	ØMM	MP3/MP5	MF3/MF4	MT4	MS2
ØAL	ØMM	Weight without position measurement system	MF3/MF4	MT4	MS2
mm		kg	kg	kg	kg	kg
40	22 mm / -	7	9	9	9	0.9
40	28 mm / -	7	9	9	9	1
50	28 mm / -	10	14	12	12	1.2
50	36 mm / -	10	14	12	13	1.5
63	36 mm / -	16	22	19	19	2.1
63	45 mm / -	16	22	19	20	2.6
80	45 mm / -	25	30	29	31	2.9
80	56 mm / -	26	31	30	32	3.6
100	56 mm / -	43	52	50	52	4.6
100	70 mm / -	44	53	51	53	5.7
125	70 mm / -	79	93	91	90	7.3
125	90 mm / -	80	95	93	92	9.2
140	90 mm / -	111	127	130	131	10.7
140	100 mm / -	112	128	131	132	11.9
160	100 mm / -	168	198	200	209	12.6
160	110 mm / -	169	200	202	210	13.9
180	110 mm / -	236	270	269	278	14.7
180	125 mm / -	239	272	271	281	16.8
200	125 mm / -	306	348	346	358	19
200	140 mm / -	309	351	349	361	21.5
220	140 mm / -	452	515	479	509	27.1
220	160 mm / -	452	515	479	509	30.9
250	160 mm / -	582	664	618	649	32.7
250	180 mm / -	582	664	618	649	36.9
280	180 mm / -	753	846	748	822	44.2
280	200 mm / -	753	846	748	822	48.8
320	200 mm / -	1125	1290	1180	1222	55.2
320	220 mm / -	1125	1290	1180	1222	60.4

Selection criteria for seals

	Work and environmental conditions	Seal versions
	Work and environmental conditions	M	G	V	L	A	B	T	R	S
Medium/temperature	Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C	++	++	++	++	++	++	++	++	++
	Medium HFA/operating temperature of medium +5 \u2026 +55 °C	+/\u2012	+/\u2012	+/-	+/-	+	+/\u2012	++	+/-	+/\u2012
	Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C	\u2012	++	\u2012	\u2012	+/\u2012	\u2012	++	\u2012	\u2012
	Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
	Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
	Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C¹⁾	++	+	+²⁾	++	++	+²⁾	+	++	++²⁾
	Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C	\u2012	\u2012	++	\u2012	\u2012	+	\u2012	\u2012	++
Function/velocity \u2026	Static holding function more than 10 minutes: Attention! Application- and temperature-dependent	++	+	+	+	++	++	+	+	+
	Static holding function short-time < 1 minute	++	++	++	++	++	++	++	++	++
	Robust application conditions: steel works, mining, thin ice	++	++	++	++	++	++	\u2012	++	\u2012
	Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes	\u2012	\u2012	\u2012	+/\u2012	\u2012	\u2012	++	+	++
	Cylinder velocity ≥ 0.001 m/s stick-slip behavior	++	+	+	++	\u2012	\u2012	++	++	++
	Cylinder velocity 0.01 \u2026 0.5 m/s³⁾	++	+	+	++	+	+	++	++	++
	Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s³⁾	\u2012	+/\u2012	+/\u2012	++	\u2012	\u2012	++	+	++
	Stroke length > 1.0 m	+/\u2012	++	++	++	++	++	++	++	++
	Standstill period (wear)	++	+/\u2012	+/\u2012	++	+/\u2012	\u2012	++	++	++
	Undissolved air in the oil⁴⁾	\u2012	+	+	+	\u2012	\u2012	+	+	+

	++ = very good + = good +/\u2013 = conditional, depending on the application parameters \u2013 = inappropriate General technical data in corresponding data sheets will remain valid! See table on hydraulic fluids! Generally, a medium temperature of approx. 40 °C is recommended. The specified values are to be regarded as guidelines; depending on the case of application, it may be necessary to check the suitability of the seal system.
¹⁾	Moreover, observe the corresponding medium temperature range
²⁾	Lower temperature limit \u201315 °C
³⁾	Standard line connections not designed for that velocity
⁴⁾	\u2012 = Seal is destroyed, + = Seal is not directly destroyed, leakage may occur

Stroke velocity

Piston Ø	Line connection	Maximum stroke velocity ¹⁾
mm		m/s
40	G1/2	0.31
50	G1/2	0.2
63	G3/4	0.28
80	G3/4	0.18
100	G1	0.2
125	G 1/4	0.2
140	G 1/4	0.16
160	G 1/2	0.18
180		0.14
200		0.11
220		0.09
250		0.07
280		0.06
320		0.04

¹⁾

Please observe the guideline on max. stroke velocities (with recommended flow velocity of 5 m/s in the line connection) in the table. Higher stroke velocities upon request. If the extension velocity is considerably higher than the retraction velocity of the piston rod, drag-out losses of the medium may result. If necessary, please consult us.

Notices:

Boundary and application conditions:

The mechanical alignment of the movement axis and thus the mounting points of hydraulic cylinder and piston rod must be ensured. Lateral forces on the guides of piston rod and piston are to be avoided. It may be necessary to consider the own weight of the hydraulic cylinder (MP3/MP5 or MT4) or the piston rod.

The bending length/bending load of the piston rod and/or the hydraulic cylinder must be observed (see bending).

The maximum admissible stroke velocities with regard to the suitability/load of seals must be observed as must their compatibility with the properties of the hydraulic fluid (see seals).

The maximum admissible velocities/kinetic energies when moving into the end positions, also considering external loads, must be observed.
Danger: Excess pressure

The maximum admissible operating pressure must be complied with in any operating state of the hydraulic cylinder. Possible pressure intensification resulting from the area ratio of annulus area to piston area and possible throttling points are to be observed.

Detrimental environmental influences, like e.g. aggressive finest particles, vapors, high temperatures, etc. as well as contaminations and deterioration of the hydraulic fluid are to be avoided.

Standards:

Bosch Rexroth standard; main dimensions like piston Ø and piston rod Ø correspond to ISO 3320.

Acceptance:

Each cylinder is tested according to Bosch Rexroth standard and in compliance with ISO 10100: 2001.

Safety instructions:

For assembly, commissioning and maintenance of hydraulic cylinders, observe the operating instructions 07100-B!

Service and repair work has to be performed by Bosch Rexroth AG or by personnel especially trained for this purpose. No warranty is accepted for damage as a consequence of assembly, maintenance or repair work not performed by Bosch Rexroth AG.

Check lists for hydraulic cylinders:

Cylinders the characteristics and/or application parameters of which deviate from the values specified in the data sheet can only be offered as a special version upon request. For offers, the deviations of the characteristics and/or application parameters must be described in the check lists for hydraulic cylinders (07200).

Minimum strokes:

When using end position cushioning, the minimum stroke must also be observed, see "End position cushioning".

This list does not claim to be complete. In case of questions regarding the compatibility with the medium or exceedance of the boundary or application conditions, please contact us.

All graphical representations in the data sheet are examples. The product supplied may therefore differ from the figure shown.

Project planning software ICS (Interactive Catalog System)

The ICS (Interactive Catalog System) is a selection and project planning help for hydraulic cylinders. The ICS allows designers for machines and systems to quickly and reliably find the perfect hydraulic cylinder solution through logic-guided type key enquiries. This software helps to solve design and project planning tasks more quickly and efficiently. After having been guided through the product selection, the user quickly and reliably gets the exact technical data of the selected component as well as 2D and 3D CAD data in the correct file format for all common CAD systems.

This allows users to reduce costs while increasing their competitiveness.

www.boschrexroth.com/ics

Diameters, areas, forces, flow

Piston	Piston rod	Area ratio	Areas			Force at 250 bar			Flow at 0.1 m/s			Maximum available stroke length
			Piston	Rod	Ring	Pressure	Differential	Traction	Off	Differential	On
ØAL	ØMM	φ A₁/A₃	A₁	A₂	A₃	F₁	F₂	F₃	q_V1	q_V2	q_V3
mm			cm²	cm²	cm²	kN	kN	kN	l/min	l/min	l/min	mm
40	22 mm / -	1.43	12.56	3.8	8.76	31.4 ¹⁾	9.5	21.9	7.5 ²⁾	2.3	5.3	2000
40	28 mm / -	1.96	12.56	6.16	6.4	31.4 ¹⁾	15.4	16	7.5 ²⁾	3.7	3.8	2000
50	28 mm / -	1.46	19.63	6.16	13.47	49.1 ¹⁾	15.4	33.7	11.8 ²⁾	3.7	8.1	2000
50	36 mm / -	2.08	19.63	10.18	9.45	49.1 ¹⁾	25.45	23.65	11.8 ²⁾	6.1	5.7	2000
63	36 mm / -	1.48	31.17	10.18	20.99	77.9 ¹⁾	25.45	52.45	18.7 ²⁾	6.1	12.6	2000
63	45 mm / -	2.04	31.17	15.9	15.27	77.9 ¹⁾	39.75	38.15	18.7 ²⁾	9.5	9.2	2000
80	45 mm / -	1.46	50.26	15.9	34.36	125.65 ¹⁾	39.75	85.9	30.2 ²⁾	9.5	20.7	2000
80	56 mm / -	1.96	50.26	24.63	25.63	125.65 ¹⁾	61.55	64.1	30.2 ²⁾	14.8	15.4	2000
100	56 mm / -	1.46	78.54	24.63	53.91	196.35 ¹⁾	61.55	134.8	47.1 ²⁾	14.8	32.3	3000
100	70 mm / -	1.96	78.54	38.48	40.06	196.35 ¹⁾	96.2	100.15	47.1 ²⁾	23.1	24	3000
125	70 mm / -	1.46	122.72	38.48	84.24	306.75 ¹⁾	96.2	210.55	73.6 ²⁾	23.1	50.5	3000
125	90 mm / -	2.08	122.72	63.62	59.1	306.75 ¹⁾	159.05	147.7	73.6 ²⁾	38.2	35.4	3000
140	90 mm / -	1.7	153.94	63.62	90.32	384.75 ¹⁾	159.05	225.7	92.4 ²⁾	38.2	54.2	3000
140	100 mm / -	2.04	153.94	78.54	75.4	384.75 ¹⁾	196.35	188.4	92.4 ²⁾	47.1	45.3	3000
160	100 mm / -	1.64	201.06	78.54	122.5	502.5 ¹⁾	196.35	306.15	120.6 ²⁾	47.1	73.5	3000
160	110 mm / -	1.9	201.06	95.06	106	502.5 ¹⁾	237.65	264.85	120.6 ²⁾	57	63.6	3000
180	110 mm / -	1.6	254.47	95.06	159.43	636.17 ¹⁾	237.65	398.52	152.7 ²⁾	57	95.7	3000
180	125 mm / -	1.93	254.47	122.72	131.75	636.17 ¹⁾	306.8	329.37	152.7 ²⁾	73.6	79.1	3000
200	125 mm / -	1.64	314.16	122.72	191.44	785.25 ¹⁾	306.8	478.45	188.5 ²⁾	73.6	114.9	3000
200	140 mm / -	1.96	314.16	153.96	160.2	785.25 ¹⁾	384.9	400.35	188.5 ²⁾	92.4	96.1	3000
220	140 mm / -	1.68	380.1	153.9	226.2	950.3 ¹⁾	384.9	565.5	288.1 ²⁾	92.4	135.7	6000
220	160 mm / -	2.12	380.1	201	179.1	950.3 ¹⁾	502.6	447.7	288.1 ²⁾	120.7	107.4	6000
250	160 mm / -	1.69	490.8	201	289.8	1227.2 ¹⁾	502.6	724.5	294.5 ²⁾	120.7	173.8	6000
250	180 mm / -	2.08	490.8	254.4	236.4	1227.2 ¹⁾	636.2	591	294.5 ²⁾	152.7	141.8	6000
280	180 mm / -	1.7	615.7	254.4	361.3	1539.4 ¹⁾	636.2	903.2	369.4 ²⁾	152.7	216.7	6000
280	200 mm / -	2.04	615.7	314.1	301.6	1539.4 ¹⁾	785.4	753.9	369.4 ²⁾	188.5	180.9	6000
320	200 mm / -	1.64	804.2	314.1	490.1	2010.6 ¹⁾	785.4	1225.2	482.5 ²⁾	188.5	294	6000
320	220 mm / -	1.9	804.2	380.1	424.2	2010.6 ¹⁾	950.3	1060.3	482.5 ²⁾	228.1	294	6000

¹⁾	Theoretical static cylinder force (without consideration of the efficiency and admissible load for attachment parts such as swivel heads, plates, or valves, etc.)
²⁾	Stroke velocity

Tolerances according to DIN ISO 6022

Installation dimensions	WC	XC²⁾	XO²⁾	XS^{1); 2)}	XV²⁾	ZP²⁾
Mounting type	MF3	MP3	MP5	MS2	MT4	MF4
Stroke length in mm	Tolerances in mm						Stroke tolerances in mm ³⁾
≤ 1250	±2	±1,5	±1,5	±2	±2	±1,5	+2
> 1250 \u2013 ≤ 3150	±4	±3	±3	±4	±4	±3	+5
> 3150 \u2013 ≤ 6000	±8	±5	±5	±8	±8	±5	+8

¹⁾	Not standardized
²⁾	Including stroke length
³⁾	Stroke tolerances must not be added to the tolerances listed in this table.

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding / measuring coupling

By default, a patented safety vent against unintended screwing out in head and base is delivered for all cylinders.

The port allows for the installation of a measuring coupling with check valve for pressure measurement or contamination-free bleeding. Measuring coupling with check valve function, i.e. the measuring or bleeding hose can also be connected when the system is pressurized.

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)

Scope of delivery: Measuring coupling G1/4

MESSKUPPLUNG AB 20-11/K1 G1/4 with seal ring made of NBR

Material no. R900009090

MESSKUPPLUNG AB 20-11/K1V G1/4 with seal ring made of FKM

Material no. R900001264

Position measurement system

The position measurement system that is pressure-resistant up to 500 bar works in a contactless and absolute manner. The basis of this position measurement system is the magnetostrictive effect. Here, the coincidence of two magnetic fields triggers a torsional impulse.

This impulse runs on the wave guide inside the scale from the measuring point to the sensor head. The running time is constant and almost independent of temperature. It is proportional to the solenoid position and thus a measure for the actual position value and is converted within the sensor into a direct analog or digital output.

Technical data position measurement system

Admissible pressure			bar	250
Power supply			V DC	24
Analog output	Output voltage		V	\u200b0 \u2026 \u200b10
	Current consumption		mA	100
	Load resistance	Current	Ω	0 ... 500
	Resolution	Voltage		unlimited
	Residual ripple		% p-p	≤ 1
	Linearity	referred to measurement length	%	≤ ± 0.02
	Linearity	absolute accuracy	mm	≥ ± 0.05
Digital output				SSI 24 bit gray-coded
	Current consumption		mA	70
	Resolution		µm	5
	Residual ripple		% p-p	≤ 1
	Direction of measurement			asynchronously forward
	Linearity	referred to measurement length	%	≤ ± 0.01
	Linearity	absolute accuracy	mm	≥ ± 0.04
Reproducibility		referred to measurement length	%	± 0.001
Reproducibility			mm	≥ ± 0.0025
Hysteresis			mm	≤ 0.004
Protection class	Pipe and flange			IP67
Protection class	Sensor electronics			IP65
Operating temperature	Sensor electronics		°C	-40 \u2026 +75
Temperature coefficient		Voltage	ppm/°C	70
Temperature coefficient		Current	ppm/°C	90

Types of mounting

¹⁾	For analog output: 6-pole mating connector For digital output: 7-pole mating connector

Pin assignment

Position measurement system (analog output)
Connector (view to pin side)

Pin	Cable	Signal/current	Signal/voltage
1	gray	4 \u2026 20 mA	0 \u2026 10 V
2	pink	DC Ground	DC Ground
3	yellow	Not assigned	Not assigned
4	green	DC Ground	DC Ground
5	brown	+24 V DC (+20 %/\u201215 %)	+24 V DC (+20 %/\u201215 %)
6	white	DC Ground (0 V)	DC Ground (0 V)

Position measurement system (digital output)
Connector (view to pin side)

Pin	Cable	Signal/SSi
1	gray	Data (\u2013)
2	pink	Data (+)
3	yellow	Clock (+)
4	green	Clock (\u2013)
5	brown	+24 V DC (+20 %/\u201215 %)
6	white	DC Ground (0 V)
7	\u2014	Not assigned

Technical data for Profibus

Outlet	Interfaces				Profibus-DP system
	Data record				Profibus-DP (EN 61158)
	Transmission rate			MBit/s	≤ 12
Measurement accuracy	Travel resolution			µm	1 \u2026 1000
	Velocity	5 μm travel resolution	Up to 500 mm	mm/s	0.64
			Up to 2000 mm	mm/s	0.43
			Up to 4500 mm	mm/s	0.21
			Up to 7600 mm	mm/s	0.14
		2 μm travel resolution			With 2 μm travel resolution: 2.5 times smaller values
	Linearity			%	< ± 0.01
	Repeatability			%	< ± 0.001
	Temperature coefficient			ppm/°C	< 15
	Hysteresis			µm	< 4
Application conditions	Operating temperature			°C	40 \u2026 70
	Protection class	Profile			IP65
	Protection class	Rod			IP67 with appropriate coupling plug assembly
	Standards	EMC test			Interference emissions according to EN 61000-6-3 Interference resistance according to 61000-6-2 EN 61000-4-2/3/4/6, level 3/4, criterion A, CE-tested
Electrical connection	Operating voltage			V DC	24

Please ask for the complete technical data!

Types of mounting

The output of the position measurement system is by default always rotated by 180° to the selected position of the hydraulic port in the cylinder base.
Mating connector is not included in the scope of delivery, must be ordered separately.

Pin assignment for Profibus

Pin	Cable	Function
1	green	RxD/TxD-N (bus)
2	red	RxD/TxD-P (bus)
3	\u2014	DGND (terminating resistor) *
4	\u2014	VP (terminating resistor) *
5	black	+24 V DC (-15 %/+20 %)
6	blue	DC Ground (0 V)
\u2014	yellow/green	Shield compensating line, is usually not to be connected

*only with sockets

Pin	Cable	Function
1	\u2014	VP + 5 (terminating resistor) *
2	green	RxD/TxD-N (bus)
3	\u2014	DGND (terminating resistor) *
4	red	RxD/TxD-P (bus)
5	Shield	Shield

*only with sockets

Pin	Cable	Function
1	brown	+24 V DC (-15 %/+20 %)
2	white	Not assigned
3	blue	DC Ground (0 V)
4	black	Not assigned

Connection cable 10 m
with 4-pole mating connector M8
Material no. R913008737

Connection cable 15 m
with 4-pole mating connector M8
Material no. R913008738

Mating connector is not included in the scope of delivery, must be ordered separately.

Corrosivity categories

In this connection, observe the information on the color set-up in table general.

The specified resistances of the individual Bosch Rexroth classes only refer to the primed / painted cylinder areas, not, for example, to piston rods, trunnions, etc.

In this connection, special measures may be necessary.

	Class	Properties	Applications
	Class	Properties	Inside	Outside
Priming	CP3 (C3, short ¹⁾)	240 h salt spray test SST (DIN EN ISO 9227) 240 h condensation water test KKT (DIN EN ISO 6270-2) Layer thickness: min. 40 μm	Field of application e.g. hall atmosphere, air humidity ≤ 60%, no thermal load.	Not suitable for outdoor exposure.
Painting	CP4 (C3, medium ¹⁾)	480 h salt spray test SST (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 120 μm	Unheated buildings in which there may be condensation (production rooms, storage and sport halls).	Urban and industrial atmosphere with little salt or sulfur dioxide load.
	CP5 (C4, medium ¹⁾)	720 h salt spray test SST (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 140 μm	Silo and debris facilities, chemical plants, boathouses above seawater, laundries, breweries with high humidity and medium contamination.	Industrial and coastal areas with medium salt load.
	CP6 (C5I, medium ¹⁾)	1000 h salt spray test NSS (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 220 μm	Buildings or areas with almost permanent condensation and serious contamination.	Industrial areas with large humidity and aggressive atmosphere.
	CP7 (C5M, medium ¹⁾)	1440 h salt spray test NSS (DIN EN ISO 9227) 720 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 320 μm	Buildings or areas with almost permanent condensation and serious contamination.	Coastal and offshore areas with high salt load.

¹⁾	according to DIN EN ISO 12944-2

Installation position	any
Priming	Gentian blue (RAL 5010), see Table Corrosivity categories
Minimum layer thickness of the priming ¹⁾	µm	40
Painting ²⁾	in four corrosivity categories in the RAL colors, see Table Corrosivity categories

Hydraulic fluid	Classification	Suitable sealing materials	Standards	Data sheet
Mineral oil	HL, HLP	FKM,NBR	DIN 51524	90220
Oil-in-water emulsion	HFA	FKM, NBR	ISO 12922	90223
Water glycol	HFC	upon request	90223
Phosphate ester	HFD-R	FKM	ISO 12922	90222
Polyol ester	HFD-U	FKM	ISO 12922	90222

Piston	Piston rod	with 0 mm stroke length	per 100 mm stroke length
40	22 mm / -	7	9	9	9	0.9
28 mm / -	7	9	9	9	1
50	28 mm / -	10	14	12	12	1.2
36 mm / -	10	14	12	13	1.5
63	36 mm / -	16	22	19	19	2.1
45 mm / -	16	22	19	20	2.6
80	45 mm / -	25	30	29	31	2.9
56 mm / -	26	31	30	32	3.6
100	56 mm / -	43	52	50	52	4.6
70 mm / -	44	53	51	53	5.7
125	70 mm / -	79	93	91	90	7.3
90 mm / -	80	95	93	92	9.2
140	90 mm / -	111	127	130	131	10.7
100 mm / -	112	128	131	132	11.9
160	100 mm / -	168	198	200	209	12.6
110 mm / -	169	200	202	210	13.9
180	110 mm / -	236	270	269	278	14.7
125 mm / -	239	272	271	281	16.8
200	125 mm / -	306	348	346	358	19
140 mm / -	309	351	349	361	21.5
220	140 mm / -	452	515	479	509	27.1
160 mm / -	452	515	479	509	30.9
250	160 mm / -	582	664	618	649	32.7
180 mm / -	582	664	618	649	36.9
280	180 mm / -	753	846	748	822	44.2
200 mm / -	753	846	748	822	48.8
320	200 mm / -	1125	1290	1180	1222	55.2
220 mm / -	1125	1290	1180	1222	60.4

	Work and environmental conditions	Seal versions
Medium/temperature	Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C	++	++	++	++	++	++	++	++	++
Medium HFA/operating temperature of medium +5 \u2026 +55 °C	+/\u2012	+/\u2012	+/-	+/-	+	+/\u2012	++	+/-	+/\u2012
Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C	\u2012	++	\u2012	\u2012	+/\u2012	\u2012	++	\u2012	\u2012
Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C¹⁾	++	+	+²⁾	++	++	+²⁾	+	++	++²⁾
Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C	\u2012	\u2012	++	\u2012	\u2012	+	\u2012	\u2012	++
Function/velocity \u2026	Static holding function more than 10 minutes: Attention! Application- and temperature-dependent	++	+	+	+	++	++	+	+	+
Static holding function short-time < 1 minute	++	++	++	++	++	++	++	++	++
Robust application conditions: steel works, mining, thin ice	++	++	++	++	++	++	\u2012	++	\u2012
Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes	\u2012	\u2012	\u2012	+/\u2012	\u2012	\u2012	++	+	++
Cylinder velocity ≥ 0.001 m/s stick-slip behavior	++	+	+	++	\u2012	\u2012	++	++	++
Cylinder velocity 0.01 \u2026 0.5 m/s³⁾	++	+	+	++	+	+	++	++	++
Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s³⁾	\u2012	+/\u2012	+/\u2012	++	\u2012	\u2012	++	+	++
Stroke length > 1.0 m	+/\u2012	++	++	++	++	++	++	++	++
Standstill period (wear)	++	+/\u2012	+/\u2012	++	+/\u2012	\u2012	++	++	++
Undissolved air in the oil⁴⁾	\u2012	+	+	+	\u2012	\u2012	+	+	+

Piston Ø	Line connection	Maximum stroke velocity ¹⁾
40	G1/2	0.31
50	0.2
63	G3/4	0.28
80	0.18
100	G1	0.2
125	G 1/4
140	0.16
160	G 1/2	0.18
180	0.14
200	0.11
220	0.09
250	0.07
280	0.06
320	0.04

Piston	Piston rod	Area ratio	Areas	Force at 250 bar	Flow at 0.1 m/s	Maximum available stroke length
40	22 mm / -	1.43	12.56	3.8	8.76	31.4 ¹⁾	9.5	21.9	7.5 ²⁾	2.3	5.3	2000
28 mm / -	1.96	12.56	6.16	6.4	31.4 ¹⁾	15.4	16	7.5 ²⁾	3.7	3.8	2000
50	28 mm / -	1.46	19.63	6.16	13.47	49.1 ¹⁾	15.4	33.7	11.8 ²⁾	3.7	8.1	2000
36 mm / -	2.08	19.63	10.18	9.45	49.1 ¹⁾	25.45	23.65	11.8 ²⁾	6.1	5.7	2000
63	36 mm / -	1.48	31.17	10.18	20.99	77.9 ¹⁾	25.45	52.45	18.7 ²⁾	6.1	12.6	2000
45 mm / -	2.04	31.17	15.9	15.27	77.9 ¹⁾	39.75	38.15	18.7 ²⁾	9.5	9.2	2000
80	45 mm / -	1.46	50.26	15.9	34.36	125.65 ¹⁾	39.75	85.9	30.2 ²⁾	9.5	20.7	2000
56 mm / -	1.96	50.26	24.63	25.63	125.65 ¹⁾	61.55	64.1	30.2 ²⁾	14.8	15.4	2000
100	56 mm / -	1.46	78.54	24.63	53.91	196.35 ¹⁾	61.55	134.8	47.1 ²⁾	14.8	32.3	3000
70 mm / -	1.96	78.54	38.48	40.06	196.35 ¹⁾	96.2	100.15	47.1 ²⁾	23.1	24	3000
125	70 mm / -	1.46	122.72	38.48	84.24	306.75 ¹⁾	96.2	210.55	73.6 ²⁾	23.1	50.5	3000
90 mm / -	2.08	122.72	63.62	59.1	306.75 ¹⁾	159.05	147.7	73.6 ²⁾	38.2	35.4	3000
140	90 mm / -	1.7	153.94	63.62	90.32	384.75 ¹⁾	159.05	225.7	92.4 ²⁾	38.2	54.2	3000
100 mm / -	2.04	153.94	78.54	75.4	384.75 ¹⁾	196.35	188.4	92.4 ²⁾	47.1	45.3	3000
160	100 mm / -	1.64	201.06	78.54	122.5	502.5 ¹⁾	196.35	306.15	120.6 ²⁾	47.1	73.5	3000
110 mm / -	1.9	201.06	95.06	106	502.5 ¹⁾	237.65	264.85	120.6 ²⁾	57	63.6	3000
180	110 mm / -	1.6	254.47	95.06	159.43	636.17 ¹⁾	237.65	398.52	152.7 ²⁾	57	95.7	3000
125 mm / -	1.93	254.47	122.72	131.75	636.17 ¹⁾	306.8	329.37	152.7 ²⁾	73.6	79.1	3000
200	125 mm / -	1.64	314.16	122.72	191.44	785.25 ¹⁾	306.8	478.45	188.5 ²⁾	73.6	114.9	3000
140 mm / -	1.96	314.16	153.96	160.2	785.25 ¹⁾	384.9	400.35	188.5 ²⁾	92.4	96.1	3000
220	140 mm / -	1.68	380.1	153.9	226.2	950.3 ¹⁾	384.9	565.5	288.1 ²⁾	92.4	135.7	6000
160 mm / -	2.12	380.1	201	179.1	950.3 ¹⁾	502.6	447.7	288.1 ²⁾	120.7	107.4	6000
250	160 mm / -	1.69	490.8	201	289.8	1227.2 ¹⁾	502.6	724.5	294.5 ²⁾	120.7	173.8	6000
180 mm / -	2.08	490.8	254.4	236.4	1227.2 ¹⁾	636.2	591	294.5 ²⁾	152.7	141.8	6000
280	180 mm / -	1.7	615.7	254.4	361.3	1539.4 ¹⁾	636.2	903.2	369.4 ²⁾	152.7	216.7	6000
200 mm / -	2.04	615.7	314.1	301.6	1539.4 ¹⁾	785.4	753.9	369.4 ²⁾	188.5	180.9	6000
320	200 mm / -	1.64	804.2	314.1	490.1	2010.6 ¹⁾	785.4	1225.2	482.5 ²⁾	188.5	294	6000
220 mm / -	1.9	804.2	380.1	424.2	2010.6 ¹⁾	950.3	1060.3	482.5 ²⁾	228.1	294	6000

Installation dimensions	WC	XC²⁾	XO²⁾	XS^{1); 2)}	XV²⁾	ZP²⁾
Stroke length in mm	Tolerances in mm	Stroke tolerances in mm ³⁾
≤ 1250	±2	±1,5	±1,5	±2	±2	±1,5	+2
> 1250 \u2013 ≤ 3150	±4	±3	±3	±4	±4	±3	+5
> 3150 \u2013 ≤ 6000	±8	±5	±5	±8	±8	±5	+8

Type of mounting MP3: Swivel eye at cylinder base

MP3: for position measurement system output "C", "F" and "D"

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Standard version \u201cW\u201d Lubricating nipple, cone head form A according to DIN 71412

MP3: for position measurement system output "N" and "P"

type of mounting MP3

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X	X1	WA	XC	L	MR	M1	ØCD		EW		ØRA	VE	L2	H ⁷⁾	H ⁸⁾	L7	L8	B
														max.
mm	mm		mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	120	1000	41	14	417	32.5	31	28	25	H11	23	0 - 0.4	52	40	98	115	106	200	75	64
50	28	M22 x 1.5	22	M24 x 2	35	22	102	62	34	G1/2	M22 x 1.5	87	120	1000	48.5	18	430	37.5	36	32.5	30	H11	28	0 - 0.4	65	40	103	120	113	200	80	64
50	36	M22 x 1.5	22	M24 x 2	35	30	102	62	34	G1/2	M22 x 1.5	87	120	2000	48.5	18	430	37.5	36	32.5	30	H11	28	0 - 0.4	65	40	103	120	113	200	80	64
63	36	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	133	2000	56.5	22	480	45	42	40	35	H11	30	0 - 0.4	75	45	116	130	122	200	93	64
63	45	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	133	2000	56.5	22	480	45	42	40	35	H11	30	0 - 0.4	75	45	116	130	122	200	93	64
80	45	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	146	2000	67	20	515	50	52	50	40	H11	35	0 - 0.4	95	45	132	125	133	200	104	64
80	56	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	146	3000	67	20	515	50	52	50	40	H11	35	0 - 0.4	95	45	132	125	133	200	104	64
100	56	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	171	3000	82	30	560	60	65	62.5	50	H11	40	0 - 0.4	115	55	145	135	148	200	117	64
100	70	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	171	3000	82	30	560	60	65	62.5	50	H11	40	0 - 0.4	115	55	145	135	148	200	117	64
125	70	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	205	3000	99	32	620	70	70	70	60	H11	50	0 - 0.4	135	60	172	145	166	200	148	64
125	90	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	205	3000	99	32	620	70	70	70	60	H11	50	0 - 0.4	135	60	172	145	166	200	148	64
140	90	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	219	3000	109.5	35	665	75	82	82	70	H11	55	0 - 0.4	155	70	182	155	176	200	156	64
140	100	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	219	3000	109.5	35	665	75	82	82	70	H11	55	0 - 0.4	155	70	182	155	176	200	156	64
160	100	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	240	3000	129	40	720	85	95	95	80	H11	60	0 - 0.4	200	80	200	165	196	200	168	64
160	110	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	240	3000	129	40	720	85	95	95	80	H11	60	0 - 0.4	200	80	200	165	196	200	168	64
180	110	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	264	3000	142.5	40	775	90	113	113	90	H11	65	0 - 0.4	220	90	222	175	210	200	189	64
180	125	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	264	3000	142.5	40	775	90	113	113	90	H11	65	0 - 0.4	220	90	222	175	210	200	189	64
200	125	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	278	3000	152	40	815	115	125	125	100	H11	70	0 - 0.4	235	95	237	190	217	200	206	64
200	140	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	278	3000	152	40	815	115	125	125	100	H11	70	0 - 0.4	235	95	237	190	217	200	206	64

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	Dimensions for position transducer output "C", "F" and "D"
⁸⁾	Dimensions for position transducer output "N" and "P"

Type of mounting MP5: Self-aligning clevis at cylinder base

MP5: for position measurement system output "C", "F" and "D"

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	Related bolt Ø m6 Related bolt -Ø j6 for maintenance-free spherical bearing
⁵⁾	Standard version \u201cW\u201d Lubricating nipple, cone head form A according to DIN 71412; not applicable to spherical bearing, maintenance-free "A"

MP5: for position measurement system output "N" and "P"

type of mounting MP5

ØAL	ØMM	KK ¹⁾	A	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	X	C₀ ⁷⁾	F_adm ⁸⁾	WA	XO	X	LT	M1	MS	ØCX		EP		EX		Z	ØRA ¹⁰⁾	VE ¹⁰⁾	L2	H ¹¹⁾	H ¹²⁾	L7	L8	B
															max.					min.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	kN	kN	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	°	mm	mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	120	41	1000	72	25.9	14	417	-	32.5	28	31	25	0 - 0.01	23	0 - 0.4	20	0 - 0.12	7	52	40	98	115	106	200	75	64
50	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	102	62	34	G1/2	M22 x 1.5	87	120	48.5	1000	106	38.2	18	430	-	37.5	32.5	36	30	0 - 0.01	28	0 - 0.4	22	0 - 0.12	6	65	40	103	120	113	200	80	64
50	36 mm / -	M22 x 1.5	22	M24 x 2	35	30	102	62	34	G1/2	M22 x 1.5	87	120	48.5	1000	106	38.2	18	430	-	37.5	32.5	36	30	0 - 0.01	28	0 - 0.4	22	0 - 0.12	6	65	40	103	120	113	200	80	64
63	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	133	56.5	2000	153	55.1	22	480	-	45	40	42	35	0 - 0.01	30	0 - 0.4	25	0 - 0.12	6	75	45	116	130	122	200	93	64
63	45 mm / -	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	133	56.5	2000	153	55.1	22	480	-	45	40	42	35	0 - 0.01	30	0 - 0.4	25	0 - 0.12	6	75	45	116	130	122	200	93	64
80	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	146	67	2000	250	90	20	515	-	50	50	52	40	0 - 0.01	35	0 - 0.4	28	0 - 0.12	7	95	45	132	125	133	200	104	64
80	56 mm / -	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	146	67	2000	250	90	20	515	-	50	50	52	40	0 - 0.01	35	0 - 0.4	28	0 - 0.12	7	95	45	132	125	133	200	104	64
100	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	171	82	3000	365	131.4	30	560	-	60	62.5	65	50	0 - 0.01	40	0 - 0.4	35	0 - 0.12	6	115	55	145	135	145	200	117	64
100	70 mm / -	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	171	82	3000	365	131.4	30	560	-	60	62.5	65	50	0 - 0.01	40	0 - 0.4	35	0 - 0.12	6	115	55	145	135	145	200	117	64
125	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	205	99	3000	400	144	32	620	-	70	70	70	60	0 - 0.01	50	0 - 0.4	44	0 - 0.12	6	135	60	172	145	166	200	148	64
125	90 mm / -	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	205	99	3000	400	144	32	620	-	70	70	70	60	0 - 0.01	50	0 - 0.4	44	0 - 0.12	6	135	60	172	145	166	200	148	64
140	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	219	109.5	3000	540	194.4	35	665	-	75	82	82	70	0 - 0.01	55	0 - 0.4	49	0 - 0.12	6	155	70	182	155	176	200	156	64
140	100 mm / -	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	219	109.5	3000	540	194.4	35	665	-	75	82	82	70	0 - 0.01	55	0 - 0.4	49	0 - 0.12	6	155	70	182	155	176	200	156	64
160	100 mm / -	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	240	129	3000	670	241.2	40	720	-	85	95	95	80	0 - 0.01	60	0 - 0.4	55	0 - 0.12	6	200	80	200	165	196	200	168	64
160	110 mm / -	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	240	129	3000	670	241.2	40	720	-	85	95	95	80	0 - 0.01	60	0 - 0.4	55	0 - 0.12	6	200	80	200	165	196	200	168	64
180	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	264	142.5	3000	980	352.8	40	775	-	90	113	113	90	0 - 0.01	65	0 - 0.4	60	0 - 0.12	5	220	90	222	175	210	200	189	64
180	125 mm / -	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	264	142.5	3000	980	352.8	40	775	-	90	113	113	90	0 - 0.01	65	0 - 0.4	60	0 - 0.12	5	220	90	222	175	210	200	189	64
200	125 mm / -	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	278	152	3000	1120	403.2	40	815	-	115	125	125	100	0 - 0.01	70	0 - 0.4	70	0 - 0.12	7	235	95	237	190	217	200	206	64
200	140 mm / -	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	278	152	3000	1120	403.2	40	815	-	115	125	125	100	0 - 0.01	70	0 - 0.4	70	0 - 0.12	7	235	95	237	190	217	200	206	64
220	140 mm / -	M120 x 3	120	M120 x 4	160	120	355	273	65	G1 1/2	M48 x 2	242	326	174	3000	1700	612	40	960	-	125	150 ⁹⁾	140 ⁹⁾	110	0 - 0.01	80	0 - 0.4	70	0 - 0.12	6	270	115	280	205	254	200	245	64
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	355	273	65	G1 1/2	M48 x 2	242	326	174	3000	1700	612	40	960	-	125	150 ⁹⁾	140 ⁹⁾	110	0 - 0.01	80	0 - 0.4	70	0 - 0.12	6	270	115	280	205	254	200	245	64
250	160 mm / -	M120 x 3	120	M120 x 4	160	140	395	305	65	G1 1/2	M48 x 2	266	326	194	3000	1700	612	40	1000	-	140	168 ⁹⁾	158 ⁹⁾	110	0 - 0.01	80	0 - 0.4	70	0 - 0.12	6	300	125	300	220	269	200	263	64
250	180 mm / -	M120 x 3	120	M120 x 4	160	160	395	305	65	G1 1/2	M48 x 2	266	326	194	3000	1700	612	40	1000	-	140	168 ⁹⁾	158 ⁹⁾	110	0 - 0.01	80	0 - 0.4	70	0 - 0.12	6	300	125	300	220	269	200	263	64
280	180 mm / -	M130 x 3	130	M150 x 4	190	160	425	343	65	G1 1/2	M48 x 2	282	375	210	3000	2900	1044	40	1105	31	150	188 ⁹⁾	178 ⁹⁾	120	0 - 0.01	90	0 - 0.4	85	0 - 0.12	6	325	130	330	270	276	200	295	64
280	200 mm / -	M130 x 3	130	M150 x 4	190	180	425	343	65	G1 1/2	M48 x 2	282	375	210	3000	2900	1044	40	1105	31	150	188 ⁹⁾	178 ⁹⁾	120	0 - 0.01	90	0 - 0.4	85	0 - 0.12	6	325	130	330	270	276	200	295	64
320	200 mm / -	-	-	M160 x 4	200	180	490	394	65	G1 1/2	M48 x 2	287	431	242	3000	-	-	40	1210	-	175	210 ⁹⁾	200 ⁹⁾	140	0 - 0.01	110	0 - 0.4	90	0 - 0.12	7	365	155	375	300	309	200	340	64
320	220 mm / -	-	-	M160 x 4	200	200	490	394	65	G1 1/2	M48 x 2	287	431	242	3000	-	-	40	1210	-	175	210 ⁹⁾	200 ⁹⁾	140	0 - 0.01	110	0 - 0.4	90	0 - 0.12	7	365	155	375	300	309	200	340	64

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	C₀ = static load rating of the swivel head
⁸⁾	F_adm = max. admissible load of the swivel head for increasing or alternating loads
⁹⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
¹⁰⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
¹¹⁾	Dimensions for position transducer output "C", "F" and "D"
¹²⁾	Dimensions for position transducer output "N" and "P"

Type of mounting MF3: Round flange at the cylinder head

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c

type of mounting MF3

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	L5	X	ØRD		WC	VD	NF	A1	ZB	X	ØFB		ØFC		ØUC		α	ØRA ⁷⁾	D1
																max.								min.									max.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm		mm		mm	mm	°	mm	mm
40	28 mm / -	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	120	41	166	1000	90	e8	19	5	30	0	235	-	9	H13	108	js13	130	0 - 1	60	52	80
50	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	102	60	34	G1/2	M22 x 1.5	87	120	48.5	166	1000	110	e8	23	5	30	0	243	-	11	H13	130	js13	160	0 - 1	60	65	96
50	36 mm / -	M22 x 1.5	22	M24 x 2	35	30	102	60	34	G1/2	M22 x 1.5	87	120	48.5	166	1000	110	e8	23	5	30	0	243	-	11	H13	130	js13	160	0 - 1	60	65	96
63	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	133	56.5	166	2000	130	e8	27	5	35	0	287	-	13.5	H13	155	js13	185	0 - 1	60	75	96
63	45 mm / -	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	133	56.5	166	2000	130	e8	27	5	35	0	287	-	13.5	H13	155	js13	185	0 - 1	60	75	96
80	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	146	67	166	2000	145	e8	25	5	35	0	312	-	13.5	H13	170	js13	200	0 - 1	60	95	96
80	56 mm / -	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	146	67	166	2000	145	e8	25	5	35	0	312	-	13.5	H13	170	js13	200	0 - 1	60	95	96
100	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	171	82	166	3000	175	e8	35	5	45	0	352	-	17.5	H13	205	js13	245	0 - 1	60	115	96
100	70 mm / -	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	171	82	166	3000	175	e8	35	5	45	0	352	-	17.5	H13	205	js13	245	0 - 1	60	115	96
125	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	205	99	166	3000	210	e8	37	5	50	0	392	-	22	H13	245	js13	295	0 - 1	60	135	96
125	90 mm / -	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	205	99	166	3000	210	e8	37	5	50	0	392	-	22	H13	245	js13	295	0 - 1	60	135	96
140	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	219	109.5	166	3000	230	e8	45	10	50	0	430	-	22	H13	265	js13	315	0 - 1	60	155	96
140	100 mm / -	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	219	109.5	166	3000	230	e8	45	10	50	0	430	-	22	H13	265	js13	315	0 - 1	60	155	96
160	100 mm / -	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	240	129	166	3000	275	e8	50	10	60	0	475	-	30	H13	325	js13	385	0 - 1	60	200	96
160	110 mm / -	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	240	129	166	3000	275	e8	50	10	60	0	475	-	30	H13	325	js13	385	0 - 1	60	200	96
180	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	264	142.5	166	3000	300	e8	50	10	70	0	515	-	30	H13	360	js13	420	0 - 1	60	220	96
180	125 mm / -	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	264	142.5	166	3000	300	e8	50	10	70	0	515	-	30	H13	360	js13	420	0 - 1	60	220	96
200	125 mm / -	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	278	152	166	3000	320	e8	50	10	75	0	535	-	33	H13	375	js13	445	0 - 1	60	235	96
200	140 mm / -	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	278	152	166	3000	320	e8	50	10	75	0	535	-	33	H13	375	js13	445	0 - 1	60	235	96
220	140 mm / -	M120 x 3	120	M120 x 4	160	120	355	273	65	G1 1/2	M48 x 2	242	326	174	166	3000	370	e8	60	10	85	20	635	-	33	H13	430	js13	490	0 - 1	60	270	96
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	355	273	65	G1 1/2	M48 x 2	242	326	174	166	3000	370	e8	60	10	85	20	635	-	33	H13	430	js13	490	0 - 1	60	270	96
250	160 mm / -	M120 x 3	120	M120 x 4	160	140	395	305	65	G1 1/2	M48 x 2	266	326	194	166	3000	415	e8	70	10	85	30	659	-	39	H13	485	js13	555	0 - 1	60	300	96
250	180 mm / -	M120 x 3	120	M120 x 4	160	160	395	305	65	G1 1/2	M48 x 2	266	326	194	166	3000	415	e8	70	10	85	30	659	-	39	H13	485	js13	555	0 - 1	60	300	96
280	180 mm / -	M130 x 3	130	M150 x 4	190	160	425	343	65	G1 1/2	M48 x 2	282	375	210	166	3000	450	e8	65	10	95	25	744	31	39	H13	520	js13	590	0 - 1	60	325	96
280	200 mm / -	M130 x 3	130	M150 x 4	190	180	425	343	65	G1 1/2	M48 x 2	282	375	210	166	3000	450	e8	65	10	95	25	744	31	39	H13	520	js13	590	0 - 1	60	325	96
320	200 mm / -	-	-	M160 x 4	200	180	490	394	65	G1 1/2	M48 x 2	287	431	243	166	3000	510	e8	65	10	120	25	815	-	45	H13	600	js13	680	0 - 1	60	365	96
320	220 mm / -	-	-	M160 x 4	200	200	490	394	65	G1 1/2	M48 x 2	287	431	243	166	3000	510	e8	65	10	120	25	815	-	45	H13	600	js13	680	0 - 1	60	365	96

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V

Type of mounting MF4: Round flange at the cylinder base

MF4; AL Ø 40 \u2026 100 mm

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c

MF4; AL Ø 125 \u2026 320 mm

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c

type of mounting MF4

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	L4	ØD2	X	WA	ZP	X	NF	VD	ØRD		ØFB		ØFC		ØUC		α	ØRA ⁷⁾	VE ⁷⁾	L6	D1
																	max.			min.															max.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm		mm	mm	°	mm	mm	mm	mm
80	28 mm / -	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	120	41	0	0	1000	14	256	-	30	5	90	e8	9	H13	108	js13	130	0 - 1	60	52	40	166	80
50	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	102	60	34	G1/2	M22 x 1.5	87	120	48.5	0	0	1000	18	274	-	30	5	110	e8	11	H13	130	js13	160	0 - 1	60	65	40	166	96
50	36 mm / -	M22 x 1.5	22	M24 x 2	35	30	102	60	34	G1/2	M22 x 1.5	87	120	48.5	0	0	1000	18	274	-	30	5	110	e8	11	H13	130	js13	160	0 - 1	60	65	40	166	96
63	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	133	56.5	0	0	2000	22	310	-	35	5	130	e8	13.5	H13	155	js13	185	0 - 1	60	75	45	166	96
63	45 mm / -	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	133	56.5	0	0	2000	22	310	-	35	5	130	e8	13.5	H13	155	js13	185	0 - 1	60	75	45	166	96
80	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	146	67	0	0	2000	20	330	-	35	5	145	e8	13.5	H13	170	js13	200	0 - 1	60	95	45	143	96
80	56 mm / -	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	146	67	0	0	2000	20	330	-	35	5	145	e8	13.5	H13	170	js13	200	0 - 1	60	95	45	143	96
100	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	171	82	0	0	3000	30	390	-	45	5	175	e8	17.5	H13	205	js13	245	0 - 1	60	115	55	123	96
100	70 mm / -	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	171	82	0	0	3000	30	390	-	45	5	175	e8	17.5	H13	205	js13	245	0 - 1	60	115	55	123	96
125	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	205	99	21.5	33	3000	32	432	-	50	5	210	e8	22	H13	245	js13	295	0 - 1	60	135	60	121	96
125	90 mm / -	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	205	99	21.5	33	3000	32	432	-	50	5	210	e8	22	H13	245	js13	295	0 - 1	60	135	60	121	96
140	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	219	109.5	21.5	33	3000	35	475	-	50	10	230	e8	22	H13	265	js13	315	0 - 1	60	155	70	111	96
140	100 mm / -	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	219	109.5	21.5	33	3000	35	475	-	50	10	230	e8	22	H13	265	js13	315	0 - 1	60	155	70	111	96
160	100 mm / -	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	240	129	28.5	43	3000	40	535	-	60	10	275	e8	30	H13	325	js13	385	0 - 1	60	200	80	96	96
160	110 mm / -	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	240	129	28.5	43	3000	40	535	-	60	10	275	e8	30	H13	325	js13	385	0 - 1	60	200	80	96	96
180	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	264	142.5	28.5	43	3000	40	585	-	70	10	300	e8	30	H13	360	js13	420	0 - 1	60	220	90	86	96
180	125 mm / -	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	264	142.5	28.5	43	3000	40	585	-	70	10	300	e8	30	H13	360	js13	420	0 - 1	60	220	90	86	96
200	125 mm / -	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	278	152	32	48	3000	40	615	-	75	10	320	e8	33	H13	375	js13	445	0 - 1	60	235	95	76	96
200	140 mm / -	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	278	152	32	48	3000	40	615	-	75	10	320	e8	33	H13	375	js13	445	0 - 1	60	235	95	76	96
220	140 mm / -	M120 x 3	120	M120 x 4	160	120	355	273	65	G1 1/2	M48 x 2	242	326	174	32	48	3000	40	720	-	85	10	370	e8	33	H13	430	js13	490	0 - 1	60	270	115	71	96
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	355	273	65	G1 1/2	M48 x 2	242	326	174	32	48	3000	40	720	-	85	10	370	e8	33	H13	430	js13	490	0 - 1	60	270	115	71	96
250	160 mm / -	M120 x 3	120	M120 x 4	160	140	395	305	65	G1 1/2	M48 x 2	266	326	194	38	57	3000	40	744	-	85	10	415	e8	39	H13	485	js13	555	0 - 1	60	300	125	71	96
250	180 mm / -	M120 x 3	120	M120 x 4	160	160	395	305	65	G1 1/2	M48 x 2	266	326	194	38	57	3000	40	744	-	85	10	415	e8	39	H13	485	js13	555	0 - 1	60	300	125	71	96
280	180 mm / -	M130 x 3	130	M150 x 4	190	160	425	343	65	G1 1/2	M48 x 2	282	375	210	38	57	3000	40	839	31	95	10	450	e8	39	H13	520	js13	590	0 - 1	60	325	130	61	96
280	200 mm / -	M130 x 3	130	M150 x 4	190	180	425	343	65	G1 1/2	M48 x 2	282	375	210	38	57	3000	40	839	31	95	10	450	e8	39	H13	520	js13	590	0 - 1	60	325	130	61	96
320	200 mm / -	-	-	M160 x 4	200	180	490	394	65	G1 1/2	M48 x 2	287	431	243	44	66	3000	40	935	-	120	10	510	e8	45	H13	600	js13	680	0 - 1	60	365	155	36	96
320	220 mm / -	-	-	M160 x 4	200	200	490	394	65	G1 1/2	M48 x 2	287	431	243	44	66	3000	40	935	-	120	10	510	e8	45	H13	600	js13	680	0 - 1	60	365	155	36	96

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V

Type of mounting MT4: Trunnion

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	When ordering, always specify the "XV" dimension in the plain text. Preferred XV dimension: Observe the trunnion position in the cylinder center XVmin and XVmax
⁵⁾	Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV).

Dimensions for cylinder with piston rod extension \u201cLY\u201c in retracted condition

type of mounting MT4

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	WA	L5	X	ZB	X	XV ⁷⁾	XV ⁸⁾	XV ⁸⁾	BD	UV ⁹⁾	ØTD		TL		TM		r	ØRA ¹⁰⁾	VE ¹⁰⁾	D1
																	max.		min.	average	min.	max.												max.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm		mm	mm	mm	mm
40	28 mm / -	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	120	41	14	166	1000	235	22	139 + X/2	150	136 + X	38	97	30	e8	20	js16	95	h12	1.6	52	40	80
50	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	102	60	34	G1/2	M22 x 1.5	87	120	48.5	18	166	1000	234	32	147 + X/2	163	140 + X	38	111	30	e8	20	js16	115	h12	1.6	65	40	96
50	36 mm / -	M22 x 1.5	22	M24 x 2	35	30	102	60	34	G1/2	M22 x 1.5	87	120	48.5	18	166	1000	234	32	147 + X/2	163	140 + X	38	111	30	e8	20	js16	115	h12	1.6	65	40	96
63	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	133	56.5	22	166	2000	287	47	166.5 + X/2	190	155 + X	48	129	35	e8	20	js16	130	h12	2	75	45	96
63	45 mm / -	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	133	56.5	22	166	2000	287	47	166.5 + X/2	190	155 + X	48	129	35	e8	20	js16	130	h12	2	75	45	96
80	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	146	67	20	166	2000	312	58	177 + X/2	206	160 + X	58	153	40	e8	25	js16	145	h12	2	95	45	96
80	56 mm / -	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	146	67	20	166	2000	312	58	177 + X/2	206	160 + X	58	153	40	e8	25	js16	145	h12	2	95	45	96
100	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	171	82	30	166	3000	352	79	209.5 + X/2	249	185 + X	78	183	50	e8	30	js16	175	h12	2	115	55	96
100	70 mm / -	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	171	82	30	166	3000	352	79	209.5 + X/2	249	185 + X	78	183	50	e8	30	js16	175	h12	2	115	55	96
125	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	205	99	32	166	3000	392	91	237.5 + X/2	283	192 + X	98	220	60	e8	40	js16	210	h12	2.5	135	60	96
125	90 mm / -	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	205	99	32	166	3000	392	91	237.5 + X/2	283	192 + X	98	220	60	e8	40	js16	210	h12	2.5	135	60	96
140	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	219	109.5	35	166	3000	430	121	265.5 + X/2	326	205 + X	118	243	65	e8	42.5	js16	230	h12	2.5	155	70	96
140	100 mm / -	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	219	109.5	35	166	3000	430	121	265.5 + X/2	326	205 + X	118	243	65	e8	42.5	js16	230	h12	2.5	155	70	96
160	100 mm / -	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	240	129	40	166	3000	475	142	305 + X/2	376	234 + X	128	282	75	e8	52.5	js16	275	h12	2.5	200	80	96
160	110 mm / -	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	240	129	40	166	3000	475	142	305 + X/2	376	234 + X	128	282	75	e8	52.5	js16	275	h12	2.5	200	80	96
180	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	264	142.5	40	166	3000	515	158	331 + X/2	410	252 + X	138	310	85	e8	55	js16	300	h12	2.5	220	90	96
180	125 mm / -	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	264	142.5	40	166	3000	515	158	331 + X/2	410	252 + X	138	310	85	e8	55	js16	300	h12	2.5	220	90	96
200	125 mm / -	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	278	152	40	166	3000	535	194	344 + X/2	441	247 + X	168	331	90	e8	55	js16	320	h12	2.5	235	95	96
200	140 mm / -	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	278	152	40	166	3000	535	194	344 + X/2	441	247 + X	168	331	90	e8	55	js16	320	h12	2.5	235	95	96
220	140 mm / -	M120 x 3	120	M120 x 4	160	120	355	273	65	G1 1/2	M48 x 2	242	326	174	40	166	3000	635	155	405 + X/2	482.5	327.5 + X	135	377	100	e8	60	js16	370	h12	2.5	270	115	96
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	355	273	65	G1 1/2	M48 x 2	242	326	174	40	166	3000	635	155	405 + X/2	482.5	327.5 + X	135	377	100	e8	60	js16	370	h12	2.5	270	115	96
250	160 mm / -	M120 x 3	120	M120 x 4	160	140	395	305	65	G1 1/2	M48 x 2	266	326	194	40	166	3000	659	175	429 + X/2	516.5	341.5 + X	145	417	110	e8	65	js16	410	h12	2.5	300	125	96
250	180 mm / -	M120 x 3	120	M120 x 4	160	160	395	305	65	G1 1/2	M48 x 2	266	326	194	40	166	3000	659	175	429 + X/2	516.5	341.5 + X	145	417	110	e8	65	js16	410	h12	2.5	300	125	96
280	180 mm / -	M130 x 3	130	M150 x 4	190	160	425	343	65	G1 1/2	M48 x 2	282	375	210	40	166	3000	744	336	469.5 + X/2	637.5	301.5 + X	165	448	130	e8	70	js16	450	h12	2.5	325	130	96
280	200 mm / -	M130 x 3	130	M150 x 4	190	180	425	343	65	G1 1/2	M48 x 2	282	375	210	40	166	3000	744	336	469.5 + X/2	637.5	301.5 + X	165	448	130	e8	70	js16	450	h12	2.5	325	130	96
320	200 mm / -	-	-	M160 x 4	200	180	490	394	65	G1 1/2	M48 x 2	287	431	243	40	166	3000	815	180	502.5 + X/2	592.5	412.5 + X	195	513	160	e8	90	js16	510	h12	2.5	365	155	96
320	220 mm / -	-	-	M160 x 4	200	200	490	394	65	G1 1/2	M48 x 2	287	431	243	40	166	3000	815	180	502.5 + X/2	592.5	412.5 + X	195	513	160	e8	90	js16	510	h12	2.5	365	155	96

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	XV_cent. Recommendation: Trunnion position in cylinder center
⁸⁾	When ordering, always specify the "XV" dimension in the plain text. Preferred XV dimension: Observe trunnion position in cylinder center XV_min. and XV_max.
⁹⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
¹⁰⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V

Important installation information: During installation, it must be ensured that the trunnions are installed up to the trunnion shoulders. Any variation may reduce the product's service life.

Type of mounting MS2: Foot mounting

MS2; AL Ø 40 \u2026 320 mm

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Recess 2 mm deep, for hexagon socket head cap screws; ISO 4762 \u2012 The screws must not be subjected to shear force. Force distribution via additional external fitting strip.
⁴⁾	Observe the minimum stroke length \u201cX_min.\u201c

type of mounting MS2

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	WA	L5	X	XS	ZB	SS	X	S	S1	ØSB		ST	TS		US		LH	L1 ⁷⁾	ØRA ⁸⁾	VE ⁸⁾	D1
																	max.				min.								⁷⁾						max.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	120	41	14	166	3000	114	235	50	-	30	15	11	H13	32	110	js13	140	0 - 1	45	93	52	40	80
50	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	102	60	34	G1/2	M22 x 1.5	87	120	48.5	18	166	3000	124.5	243	45	-	35	17.5	11	H13	37	130	js13	161	0 - 1	55	110	65	40	96
50	36 mm / -	M22 x 1.5	22	M24 x 2	35	30	102	60	34	G1/2	M22 x 1.5	87	120	48.5	18	166	3000	124.5	243	45	-	35	17.5	11	H13	37	130	js13	161	0 - 1	55	110	65	40	96
63	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	133	56.5	22	166	3000	142	287	49	-	40	20	13.5	H13	42	150	js13	183	0 - 1	65	129	75	45	96
63	45 mm / -	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	133	56.5	22	166	3000	142	287	49	-	40	20	13.5	H13	42	150	js13	183	0 - 1	65	129	75	45	96
80	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	146	67	20	166	3000	151	312	52	2	50	25	17.5	H13	47	180	js13	220	0 - 1	75	149	95	45	96
80	56 mm / -	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	146	67	20	166	3000	151	312	52	2	50	25	17.5	H13	47	180	js13	220	0 - 1	75	149	95	45	96
100	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	171	82	30	166	3000	179	352	61	3	60	30	22	H13	57	210	js13	260	0 - 1	90	181	115	55	96
100	70 mm / -	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	171	82	30	166	3000	179	352	61	3	60	30	22	H13	57	210	js13	260	0 - 1	90	181	115	55	96
125	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	205	99	32	166	3000	200	392	75	-	70	35	26	H13	67	255	js13	313	0 - 1	105	215	135	60	96
125	90 mm / -	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	205	99	32	166	3000	200	392	75	-	70	35	26	H13	67	255	js13	313	0 - 1	105	215	135	60	96
140	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	219	109.5	35	166	3000	230.5	430	70	19	85	42.5	30	H13	72	290	js13	359	0 - 1	115	235	155	70	96
140	100 mm / -	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	219	109.5	35	166	3000	230.5	430	70	19	85	42.5	30	H13	72	290	js13	359	0 - 1	115	235	155	70	96
160	100 mm / -	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	240	129	40	166	3000	272.5	475	65	44	105	52.5	33	H13	77	330	js13	402	0 - 1	135	277	200	80	96
160	110 mm / -	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	240	129	40	166	3000	272.5	475	65	44	105	52.5	33	H13	77	330	js13	402	0 - 1	135	277	200	80	96
180	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	264	142.5	40	166	3000	296.5	515	69	50	115	57.5	40	H13	92	360	js13	445	0 - 1	150	305	220	90	96
180	125 mm / -	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	264	142.5	40	166	3000	296.5	515	69	50	115	57.5	40	H13	92	360	js13	445	0 - 1	150	305	220	90	96
200	125 mm / -	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	278	152	40	166	3000	307.5	535	73	56	125	62.5	40	H13	97	385	js13	471	0 - 1	160	322	235	95	96
200	140 mm / -	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	278	152	40	166	3000	307.5	535	73	56	125	62.5	40	H13	97	385	js13	471	0 - 1	160	322	235	95	96
220	140 mm / -	M120 x 3	120	M120 x 4	160	120	355	273	65	G1 1/2	M48 x 2	242	326	174	40	166	3000	367.5	635	75	100	155	77.5	45	H13	102	445	js13	541	0 - 1	185	373	270	115	96
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	355	273	65	G1 1/2	M48 x 2	242	326	174	40	166	3000	367.5	635	75	100	155	77.5	45	H13	102	445	js13	541	0 - 1	185	373	270	115	96
250	160 mm / -	M120 x 3	120	M120 x 4	160	140	395	305	65	G1 1/2	M48 x 2	266	326	194	40	166	3000	391.5	659	75	100	155	77.5	52	H13	112	500	js13	610	0 - 1	205	414	300	125	96
250	180 mm / -	M120 x 3	120	M120 x 4	160	160	395	305	65	G1 1/2	M48 x 2	266	326	194	40	166	3000	391.5	659	75	100	155	77.5	52	H13	112	500	js13	610	0 - 1	205	414	300	125	96
280	180 mm / -	M130 x 3	130	M150 x 4	190	160	425	343	65	G1 1/2	M48 x 2	282	375	210	40	166	3000	407.5	744	124	171	155	77.5	52	H13	127	530	js13	641	0 - 1	225	449	325	130	96
280	200 mm / -	M130 x 3	130	M150 x 4	190	180	425	343	65	G1 1/2	M48 x 2	282	375	210	40	166	3000	407.5	744	124	171	155	77.5	52	H13	127	530	js13	641	0 - 1	225	449	325	130	96
320	200 mm / -	-	-	M160 x 4	200	180	490	394	65	G1 1/2	M48 x 2	287	431	243	40	166	3000	440	815	125	85	190	95	62	H13	124	610	js13	732	0 - 1	255	512	365	155	96
320	220 mm / -	-	-	M160 x 4	200	200	490	394	65	G1 1/2	M48 x 2	287	431	243	40	166	3000	440	815	125	85	190	95	62	H13	124	610	js13	732	0 - 1	255	512	365	155	96

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
⁸⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V

Flange ports

Dimensions for rectangular flange according to ISO 6162-2 tab. 2 type 1

Dimensions for square flange according to ISO 6164 tab. 2

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

ØAL	Y	PJ	X1	Ød₃	Ød₃ ¹⁾	c		w		d₁	t₁ ²⁾	t₁ ³⁾	p ⁴⁾
mm	mm	mm	mm	mm		mm	mm	mm	mm		mm	mm	bar
80	102.5	149	65	13	1/2\u2033	40.5	± 0.25	18.2	± 0.25	M8	16	14	400
100	124	171	80.5	13	1/2\u2033	40.5	± 0.25	18.2	± 0.25	M8	16	16	400
125	135	205	97.5	19	3/4\u2033	50.8	± 0.25	23.8	± 0.25	M10	20	20	400
140	152	227	107	25	1\u2033	57.2	± 0.25	27.8	± 0.25	M12	24	24	400
160	184	242	127	25	1\u2033	57.2	± 0.25	27.8	± 0.25	M12	24	24	400
180	199	264	139.5	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	26	400
200	205	278	149	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	26	400
220	242	326	168	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	30	400
250	266	326	189	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	30	400
280	282	375	204	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	30	400
320	287	431	236	51	2\u2033	96.8	± 0.25	44.5	± 0.25	M20	36	36	400

¹⁾	Flange connection according to ISO 6162-2 tab. 2 type 1 corresponds to flange connection according to SAE 6000 PSI
²⁾	Thread depth for seal design M, T, G, L, R, S and V
³⁾	Thread depth for seal design A and B
⁴⁾	Max. operating pressure for related flanges in bar

Version \u201cH\u201d
ISO 6164 tab. 2 (400 bar)

ØAL	Y	PJ	X1	Ød₃	w		d₁	t₁ ¹⁾	t₁ ²⁾	p ³⁾
mm	mm	mm	mm	mm	mm	mm		mm	mm	bar
40	78	122	40.5	10	24.7	± 0.25	M6	12.5	10	400
50	86	122	48	10	24.7	± 0.25	M6	12.5	10	400
63	99	135	57	13	29.7	± 0.25	M8	16	13	400
80	103	148	67	13	29.7	± 0.25	M8	16	15	400
100	123	173	81.5	19	35.4	± 0.25	M8	16	16	400
125	131.5	212	99	25	43.8	± 0.25	M10	20	20	400
140	152	227	109	25	43.8	± 0.25	M10	20	20	400
160	182.5	245	128	32	51.6	± 0.25	M12	24	24	400
180	199	264	142	32	51.6	± 0.25	M12	24	24	400
200	201.5	285	149.5	38	60.1	± 0.25	M16	30	30	400
220	242	326	171	38	60.1	± 0.25	M16	30	30	400
250	266	326	192	38	60.1	± 0.25	M16	30	30	400
280	282	375	207	38	60.1	± 0.25	M16	30	30	400
320	287	431	240	51	69.3	± 0.25	M16	30	30	400

¹⁾	Thread depth for seal design M, T, G, L, R, S and V
²⁾	Thread depth for seal design A and B
³⁾	Max. operating pressure for related flanges in bar

Subplates for valve mounting
SL and SV valves

Installation situation with MT4

NG6
Porting pattern according to ISO 24340 form A and ISO 4401

NG10 and 20
Porting pattern according to ISO 5781

NG30
Porting pattern according to ISO 5781

Note:

Valves, fittings and piping are not included in the scope of delivery!

Importent notice:

Subplates for SL and SV valves (isolator valves)

Note:

Seal designs T, G, L, R, S and V are not designed for the static holding function!

Subplates for valve mounting
SL and SV valves

							Plate dimensions						Port size, porting pattern						Position point Valve
ØAL	Valve size	PJ	EE	Minimum stroke	Minimum stroke for MT4	X0	L1	L4	L5	LG	b1	h9	h2	A	X	Y	X3	X4	X1	X2
mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm				mm	mm	mm	mm
40	6	121	G1/2	50	50	40.5	90	20	4	110	55	10	20	G1/2	G1/4	G1/4	21.5	21.5	65.5	15.5
50	6	121	G1/2	50	50	48	90	20	4	110	55	10	20	G1/2	G1/4	G1/4	21.5	21.5	65.5	15.5
63	6	134	G3/4	64	64	57	100	25	5	125	55	20	23.5	G3/4	G1/4	G1/4	21.5	21.5	70.5	15.5
63	10	134	G3/4	64	64	57	105	25	5	130	85	20	23.5	G3/4	G1/4	G1/4	21.4	21.4	73	33.3
80	6	147	G3/4	58	58	67	100	25	5	125	55	20	23.5	G3/4	G1/4	G1/4	21.5	21.5	70.5	15.5
80	10	147	G3/4	58	58	67	105	25	5	130	85	20	23.5	G3/4	G1/4	G1/4	21.4	21.4	73	33.3
100	10	172	G1	50	79	81.5	102	28	5	130	85	20	25	G1	G1/4	G1/4	21.4	21.4	70	33.3
125	10	208.5	G1 1/4	60	91	99	115	35	5	150	85	30	30	G1 1/4	G1/4	G1/4	21.4	21.4	80	33.3
125	20	208.5	G1 1/4	60	91	99	140	35	5	175	100	30	30	G1 1/4	G1/4	G1/4	20.8	39.7	95	39.7
140	10	223	G1 1/4	50	121	109	115	35	5	150	85	30	30	G1 1/4	G1/4	G1/4	21.4	21.4	80	33.3
140	20	223	G1 1/4	50	121	109	140	35	5	175	100	30	30	G1 1/4	G1/4	G1/4	20.8	39.7	95	39.7
160	10	242.5	G1 1/2	60	142	128	120	40	5	160	85	30	35	G1 1/2	G1/4	G1/4	21.4	21.4	90	33.3
	20	242.5	G1 1/2	60	142	128	135	50	5	185	100	30	35	G1 1/2	G1/4	G1/4	20.8	39.7	105	39.7
	30	242.5	G1 1/2	60	142	128	160	50	5	210	125	30	35	G1 1/2	G1/4	G1/4	24.6	59.6	130	48.4
180	10	264	G1 1/2	50	158	142	120	40	5	160	85	30	35	G1 1/2	G1/4	G1/4	21.4	21.4	90	33.3
	20	264	G1 1/2	50	158	142	135	50	5	185	100	30	35	G1 1/2	G1/4	G1/4	20.8	39.7	105	39.7
	30	264	G1 1/2	50	158	142	160	50	5	210	125	30	35	G1 1/2	G1/4	G1/4	24.6	59.6	130	48.4
200	10	281.5	G1 1/2	30 ¹⁾	194	149.5	130	45	5	175	95	20	35	G1 1/2	G1/4	G1/4	21.4	21.4	100	33.3
	20	281.5	G1 1/2	30 ¹⁾	194	149.5	140	45	5	185	100	20	35	G1 1/2	G1/4	G1/4	20.8	39.7	115	39.7
	30	281.5	G1 1/2	30 ¹⁾	194	149.5	165	45	5	210	125	20	35	G1 1/2	G1/4	G1/4	24.6	59.6	140	48.4

¹⁾	For type of mounting \u201cMS2\u201d, observe the X_min values of the dimension tables

ØAL	=	Piston Ø

The minimum stroke only applies to the following connection situation!

Subplates for valve mounting
Directional and high-response valves

Installation situation with MT4

NG6

Size 10
Porting pattern according to ISO 24340 form A and ISO 4401

NG16
Porting pattern according to ISO 24340 form A and ISO 4401

NG25
Porting pattern according to ISO 24340 form A and ISO 4401

With larger stroke lengths and depending on the piston diameter, the pipeline is mounted at the cylinder pipe using pipe supports. A maximum of two sandwich plates is admissible.

Subplates for valve mounting
Directional and high-response valves

					Plate and piping dimensions																	Port size, porting pattern																Position point Valve
ØAL	Valve size	PJ	EE	Minimum stroke	L1	L4	L5	H1	H2	H2 for MT4	SW1	ØRa	b1	h1	LG	HG	HG for MT4	b2	X0	h7	h9	P	X3	h3	T	X4	h4	X	X5	h5	Y	X6	h6	MA	MB	X8	h8	X1	X2
							max.
mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm		mm	mm		mm	mm			mm	mm	mm	mm
40	6	121	G1/2	242	90	20	4	96	60.5	70.5	30	16 x 2.5	65	40	110	80.5	90.5	32.5	40.5	20	10	-	21.5	20	G1/2	21.5	20	-	-	-	-	-	-	-	-	-	-	25	15.5
50	6	121	G1/2	242	90	20	4	103.5	68	78	30	16 x 2.5	65	40	110	88	98	32.5	48	20	10	-	21.5	20	G1/2	21.5	20	-	-	-	-	-	-	-	-	-	-	25	15.5
63	6	134	G3/4	276	100	25	5	121.5	80.5	100.5	36	20 x 3	75	47	125	104	124	37.5	57	23.5	20	G3/4	21.5	23.5	G3/4	21.5	23.5	-	-	-	-	-	-	-	-	-	-	30	15.5
63	10	134	G3/4	301	125	25	5	121.5	80	100	36	20 x 3	90	70	150	127	147	45	57	23	20	G3/4	27	33	G3/4	3.5	33	G1/4	18	47	G1/4	65	47	G1/4	G1/4	60	17	45	21.4
80	6	147	G3/4	263	100	25	5	132	90.5	110.5	36	20 x 3	75	47	125	114	134	37.5	67	23.5	20	G3/4	21.5	23.5	G3/4	21.5	23.5	-	-	-	-	-	-	-	-	-	-	30	15.5
80	10	147	G3/4	288	125	25	5	132	90	110	36	20 x 3	90	70	150	137	157	45	67	23	20	G3/4	27	33	G3/4	3.5	33	G1/4	18	47	G1/4	65	47	G1/4	G1/4	60	17	45	21.4
100	10	172	G1	317	132	28	5	155	111.5	131.5	46	25 x 4	90	80	160	161.5	181.5	45	81.5	30	20	-	27	30	G1	3.5	40	G1/4	18	57	G1/4	65	57	G1/4	G1/4	58	20	52	21.4
125	10	208.5	G1 1/4	330	135	35	5	177.5	134	164	50	30 x 5	105	95	170	194	224	52.5	99	35	30	G1 1/4	27	35	G1 1/4	3.5	45	G1/4	20	72	G1/4	65	72	G1/4	G1/4	55	25	55	21.4
125	16	208.5	G1 1/4	370	175	35	5	177.5	144	174	50	30 x 5	120	100	210	199	229	60	99	45	30	G1 1/4	52	32	G1 1/4	15	32	G1/4	76.5	75	G1/4	88	80	G1/4	G1/4	88	40	45	40
140	10	223	G1 1/4	315	135	35	5	188	144	174	50	30 x 5	105	95	170	204	234	52.5	109	35	30	G1 1/4	27	35	G1 1/4	3.5	45	G1/4	20	72	G1/4	65	72	G1/4	G1/4	55	25	55	21.4
140	16	223	G1 1/4	355	175	35	5	188	154	184	50	30 x 5	120	100	210	209	239	60	109	45	30	G1 1/4	52	32	G1 1/4	15	32	G1/4	76.5	75	G1/4	88	80	G1/4	G1/4	88	40	45	40
160	10	242.5	G1 1/2	399	150	40	5	218	163	193	60	38 x 6	105	95	190	223	253	52.5	128	35	30	G1 1/2	27	35	G1 1/2	3.5	45	G1/4	20	72	G1/4	65	72	G1/4	G1/4	55	25	60	21.4
	16	242.5	G1 1/2	429	180	40	5	218	178	208	60	38 x 6	125	105	220	223	263	62.5	128	50	30	G1 1/2	57	35	G1 1/2	15	34	G1/4	76.5	80	G1/4	86	85	G1/4	G1/4	86	45	50	40
	25	242.5	G1 1/2	449	200	50	0	218	183	213	60	38 x 6	155	110	250	238	268	77.5	128	55	30	G1 1/2	77	42	G1 1/2	30	34	G1/4	19	90	G1/4	109	90	G1/4	G1/4	103	50	50	52.1
180	10	264	G1 1/2	377	150	40	5	231.5	177	207	60	38 x 6	105	95	190	237	267	52.5	142	35	30	G1 1/2	27	35	G1 1/2	3.5	45	G1/4	20	72	G1/4	65	72	G1/4	G1/4	55	25	60	21.4
	16	264	G1 1/2	407	180	40	5	231.5	192	222	60	38 x 6	125	105	220	247	277	62.5	142	50	30	G1 1/2	57	35	G1 1/2	15	34	G1/4	76.5	80	G1/4	86	85	G1/4	G1/4	86	45	50	40
	25	264	G1 1/2	427	200	50	0	231.5	197	227	60	38 x 6	155	110	250	252	282	77.5	142	55	30	G1 1/2	77	42	G1 1/2	30	34	G1/4	19	90	G1/4	109	90	G1/4	G1/4	103	50	50	52.1
200	10	281.5	G1 1/2	365	155	50	5	241	184.5	204.5	60	38 x 6	110	95	205	244.5	264.5	55	149.5	35	20	G1 1/2	27	35	G1 1/2	3.5	45	G1/4	19	72	G1/4	62	72	G1/4	G1/4	50	25	72	21.4
	16	281.5	G1 1/2	400	190	50	5	241	199.5	219.5	60	38 x 6	125	105	240	254.5	274.5	62.5	149.5	50	20	G1 1/2	57	35	G1 1/2	15	34	G1/4	76.5	80	G1/4	86	85	G1/4	G1/4	86	45	60	40
	25	281.5	G1 1/2	420	210	50	0	241	204.5	224.5	60	38 x 6	155	110	260	259.5	297.5	77.5	149.5	55	20	G1 1/2	77	42	G1 1/2	30	34	G1/4	19	90	G1/4	109	90	G1/4	G1/4	103	50	60	52.1

ØAL	=	Piston Ø

Throttle valve

ØAL

100

125

140

160

180

200

220

250

280

320

Protrusion A ¹⁾

9.5

Nominal width

¹⁾	Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition

ØAL	=	Piston Ø

¹⁾	Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition

Kinking

For the admissible stroke length with flexibly guided load and a factor of 3.5 for safety against kinking, please refer to the relevant table. For other installation positions of the cylinder, the admissible stroke length must be interpolated.

Admissible stroke length for non-guided load on request.

Kinking calculations are carried out according to the following formulas:

1. Calculation according to Euler

if λ > λ_g

2. Calculation according to Tetmajer

if λ ≤ λ_g

Explanation

E	=	module of elasticity in N/mm²
E	=	2.1 x 105 for steel
l	=	Geometrical moment of inertia in mm⁴
l		for circular cross-section
v	=	3.5 (safety factor)
L_K	=	free kinking length in mm (dependent on type of mounting; see sketches A, B, C)
d	=	Piston rod Ø in mm
λ	=	Slenderness ratio
λ	=
R_e	=	Yield strength of the piston rod material

Influence of the type of mounting on the kinking length:

Admissible stroke length
Type of mounting MP3, MP5

ØAL	ØMM	admissible stroke length with
		100 bar			160 bar			250 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
40	22	195	200	215	130	135	140	40	45	55
40	28	385	400	445	295	300	320	215	220	225
50	28	285	295	310	205	210	215	120	130	135
50	36	535	555	625	425	430	460	320	325	335
63	36	390	400	440	290	295	305	200	205	210
63	45	655	685	790	530	545	585	410	415	430
80	45	500	515	560	375	385	400	240	260	280
80	56	815	850	980	665	680	735	520	525	545
100	56	610	630	705	470	480	505	280	295	355
100	70	985	1030	1240	820	845	930	650	660	695
125	70	770	800	900	600	615	650	360	380	465
125	90	1295	1360	1670	1095	1130	1265	885	900	955
140	90	1145	1200	1430	945	970	1070	740	755	790
140	100	1400	1475	1840	1190	1230	1390	965	985	1050
160	100	1230	1285	1530	1010	1040	1140	790	800	840
160	110	1480	1555	1930	1250	1290	1455	1005	1030	1090
180	110	1305	1365	1630	1065	1095	1200	825	840	880
180	125	1675	1765	2210	1420	1470	1670	1150	1175	1260
200	125	1500	1580	1930	1240	1290	1430	985	1005	1060
200	140	1865	1965	2520	1590	1660	1910	1305	1340	1440
220	140	1620	1710	2180	1360	1415	1630	1090	1120	1200
220	160	2075	2200	3000	1810	1890	2280	1510	1560	1730
250	160	1885	1990	2570	1600	1670	1930	1300	1330	1440
250	180	2330	2475	3370	2040	2135	2570	1710	1770	1960
280	180	2075	2200	2900	1775	1880	2170	1450	1490	1620
280	200	2510	2670	3700	2200	2310	2820	1850	1920	2140
320	200	2170	2300	3070	1850	1940	2290	1500	1550	1700
320	220	2590	2760	3850	2260	2380	2920	1890	1960	2200

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MF3

ØAL	ØMM	admissible stroke length with
		100 bar			160 bar			250 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	22 mm / -	895	915	980	730	735	760	440	450	510
40	28 mm / -	1400	1415	1630	1180	1205	1275	970	980	1010
50	28 mm / -	1180	1200	1280	955	965	995	700	730	780
50	36 mm / -	1785	1855	2160	1530	1570	1695	1275	1290	1340
63	36 mm / -	1520	1560	1690	1250	1270	1315	1010	1015	1035
63	45 mm / -	2000	2000	2000	1875	1925	2000	1570	1595	1670
80	45 mm / -	1855	1905	2000	1540	1560	1630	1140	1180	1280
80	56 mm / -	2000	2000	2000	2000	2000	2000	1910	1940	2000
100	56 mm / -	2250	2320	2500	1880	1910	2010	1300	1360	1580
100	70 mm / -	3000	3000	3000	2770	2860	3000	2360	2400	2550
125	70 mm / -	2760	2860	3000	2330	2375	2520	1580	1680	1990
125	90 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
140	90 mm / -	3000	3000	3000	3000	3000	3000	2770	2820	2980
140	100 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
160	100 mm / -	3000	3000	3000	3000	3000	3000	2980	3000	3000
160	110 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
180	110 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
180	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	140 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
220	140 mm / -	5400	5680	6000	4800	4980	5780	4120	4220	4560
220	160 mm / -	6000	6000	6000	5820	6000	6000	5150	5330	6000
250	160 mm / -	6000	6000	6000	5450	5660	6000	4720	4840	5290
250	180 mm / -	6000	6000	6000	6000	6000	6000	5730	5920	6000
280	180 mm / -	6000	6000	6000	6000	6000	6000	5270	5420	5970
280	200 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000
320	200 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000
320	220 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MF4

ØAL	ØMM	admissible stroke length with
		100 bar			160 bar			250 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
40	22	325	340	370	245	250	260	105	110	140
40	28	565	590	695	465	475	520	365	370	385
50	28	455	470	515	350	360	375	220	230	265
50	36	770	805	960	640	660	725	515	525	550
63	36	600	620	710	475	490	520	350	370	380
63	45	930	975	1210	790	820	920	645	660	700
80	45	760	785	895	610	625	670	395	420	495
80	56	1150	1210	1495	985	1020	1145	810	825	875
100	56	905	945	1120	745	765	835	420	460	620
100	70	1370	1445	1880	1190	1235	1440	995	1020	1100
125	70	1175	1225	1460	980	1010	1105	580	620	835
125	90	1815	1920	2560	1600	1670	1980	1365	1400	1540
140	90	1600	1695	2190	1390	1440	1670	1150	1180	1275
140	100	1915	2030	2770	1695	1770	2130	1440	1490	1650
160	100	1730	1825	2350	1490	1550	1790	1235	1265	1365
160	110	2030	2155	2910	1790	1870	2240	1520	1565	1720
180	110	1850	1950	2510	1590	1655	1900	1310	1340	1450
180	125	2295	2440	3000	2030	2130	2570	1730	1785	1980
200	125	2110	2230	2270	1835	1910	2250	1530	1575	1720
200	140	2540	2700	3000	2265	2380	2930	1945	2010	2260
220	140	2250	2400	3350	1990	2090	2550	1685	1740	1950
220	160	2800	2990	4500	2530	2680	3480	2220	2310	2700
250	160	2615	2780	3900	2320	2435	3000	1980	2050	2300
250	180	3140	3360	5050	2850	3010	3910	2500	2610	3050
280	180	2850	3050	4400	2550	2680	3370	2190	2270	2600
280	200	3370	3610	5550	3070	3250	4300	2700	2820	3330
320	200	3000	3210	4700	2680	2830	3590	2100	2390	2750
320	220	3500	3750	5800	3180	3370	4480	2790	2920	3460

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MT4

ØAL	ØMM	admissible stroke length with
		100 bar			160 bar			250 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	22 mm / -	340	345	365	250	255	260	130	135	145
40	28 mm / -	590	605	665	470	480	500	365	370	375
50	28 mm / -	460	470	495	350	355	365	245	250	260
50	36 mm / -	790	815	910	645	655	690	510	515	525
63	36 mm / -	610	625	675	475	485	500	360	365	370
63	45 mm / -	965	1000	1140	800	815	870	635	645	665
80	45 mm / -	770	790	850	605	615	635	440	455	475
80	56 mm / -	1190	1235	1410	990	1010	1080	795	805	830
100	56 mm / -	930	955	1060	745	755	795	490	510	595
100	70 mm / -	1430	1490	1770	1210	1240	1360	985	1000	1045
125	70 mm / -	1185	1225	1360	960	980	1030	640	670	780
125	90 mm / -	1885	1970	2390	1620	1665	1850	1340	1360	1430
140	90 mm / -	1675	1710	2060	1410	1415	1575	1140	1155	1205
140	100 mm / -	2020	2115	2610	1735	1790	2010	1440	1465	1555
160	100 mm / -	1805	1880	2210	1510	1550	1680	1215	1230	1285
160	110 mm / -	2140	2240	2740	1830	1885	2100	1505	1535	1620
180	110 mm / -	1925	2005	2360	1605	1650	1790	1290	1310	1360
180	125 mm / -	2420	2540	3000	2080	2150	2420	1720	1755	1865
200	125 mm / -	2130	2230	2690	1790	1840	2040	1440	1465	1540
200	140 mm / -	2610	2750	3000	2250	2330	2670	1865	1910	2050
220	140 mm / -	2490	2510	3150	2050	2120	2400	1685	1720	1835
220	160 mm / -	3000	3170	4230	2640	2750	3260	2240	2310	2530
250	160 mm / -	2750	2900	3660	2380	2460	2810	1970	2020	2160
250	180 mm / -	3350	3540	4750	2960	3090	3670	2520	2600	2850
280	180 mm / -	3040	3210	4140	2640	2750	3170	2210	2260	2440
280	200 mm / -	3620	3840	5210	3210	3360	4040	2750	2830	3140
320	200 mm / -	3210	3390	4410	2790	2900	3380	2320	2380	2580
320	220 mm / -	3770	4000	5450	3340	3490	4200	2850	2930	3250

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MS2

ØAL	ØMM	admissible stroke length with
		100 bar			160 bar			250 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	22 mm / -	825	840	885	645	650	665	370	375	410
40	28 mm / -	1305	1350	1535	1085	1110	1180	875	885	910
50	28 mm / -	1075	1100	1175	855	865	890	610	625	675
50	36 mm / -	1680	1750	2000	1430	1465	1590	1175	1190	1240
63	36 mm / -	1405	1440	1570	1135	1155	1200	895	900	920
63	45 mm / -	2000	2000	2000	1760	1810	1990	1460	1480	1555
80	45 mm / -	1730	1780	1960	1410	1435	1500	1000	1050	1155
80	56 mm / -	2000	2000	2000	2000	2000	2000	1785	1820	1920
100	56 mm / -	2110	2180	2440	1740	1770	1870	1140	1220	1440
100	70 mm / -	3000	3000	3000	2620	2710	3000	2210	2260	2400
125	70 mm / -	2600	2695	3000	2170	2210	2360	1400	1480	1820
125	90 mm / -	3000	3000	3000	3000	3000	3000	2890	2970	3000
140	90 mm / -	3000	3000	3000	3000	3000	3000	2585	2635	2800
140	100 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
160	100 mm / -	3000	3000	3000	3000	3000	3000	2760	2810	2800
160	110 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
180	110 mm / -	3000	3000	3000	3000	3000	3000	2940	3000	2990
180	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	140 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
220	140 mm / -	5090	5370	6000	4490	4670	5470	3820	3910	4260
220	160 mm / -	6000	6000	6000	5510	5800	6000	4850	5020	5750
250	160 mm / -	5790	5790	6000	5150	5370	6000	4420	4540	4990
250	180 mm / -	6000	6000	6000	6000	6000	6000	5420	5630	6000
280	180 mm / -	6000	6000	6000	5700	5960	6000	4930	5070	5630
280	200 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000
320	200 mm / -	6000	6000	6000	6000	6000	6000	5200	5400	6000
320	220 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000

Installation position

¹⁾	Adm. stroke length

With longer strokes, an extended guide and/or the use of guide rings may be reasonable for increasing the service life, depending on the respective case of application and installation position. Recommendation upon request.

Notice!

Observe the maximum stroke length \u201cX max.\u201c, see Dimensions.

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Product Category

CSH1

Ordering code

Additional options

Ordering code

Additional options

general

Weight

Selection criteria for seals

Stroke velocity

Notices:

Project planning software ICS (Interactive Catalog System)

Diameters, areas, forces, flow

Tolerances according to DIN ISO 6022

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding / measuring coupling

Position measurement system

Technical data position measurement system

Types of mounting

Pin assignment

Technical data for Profibus

Types of mounting

Pin assignment for Profibus

Corrosivity categories

general

Weight

Selection criteria for seals

Stroke velocity

Notices:

Project planning software ICS (Interactive Catalog System)

Diameters, areas, forces, flow

Tolerances according to DIN ISO 6022

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding / measuring coupling

Position measurement system

Technical data position measurement system

Types of mounting

Pin assignment

Technical data for Profibus

Types of mounting

Pin assignment for Profibus

Corrosivity categories

Type of mounting MP3: Swivel eye at cylinder base

type of mounting MP3

Type of mounting MP5: Self-aligning clevis at cylinder base

type of mounting MP5

Type of mounting MF3: Round flange at the cylinder head

type of mounting MF3

Type of mounting MF4: Round flange at the cylinder base

type of mounting MF4

Type of mounting MT4: Trunnion

type of mounting MT4

Type of mounting MS2: Foot mounting

type of mounting MS2

Flange ports

Version \u201cD\u201dISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201dISO 6164 tab. 2 (400 bar)

Subplates for valve mountingSL and SV valves

Subplates for valve mountingSL and SV valves

Subplates for valve mountingDirectional and high-response valves

NG6

Subplates for valve mountingDirectional and high-response valves

Throttle valve

Type of mounting MP3: Swivel eye at cylinder base

type of mounting MP3

Type of mounting MP5: Self-aligning clevis at cylinder base

type of mounting MP5

Type of mounting MF3: Round flange at the cylinder head

type of mounting MF3

Type of mounting MF4: Round flange at the cylinder base

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201d
ISO 6164 tab. 2 (400 bar)

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
Directional and high-response valves

Subplates for valve mounting
Directional and high-response valves

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201d
ISO 6164 tab. 2 (400 bar)

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
Directional and high-response valves

Subplates for valve mounting
Directional and high-response valves

Admissible stroke length
Type of mounting MP3, MP5

Admissible stroke length
Type of mounting MF3

Admissible stroke length
Type of mounting MF4

Admissible stroke length
Type of mounting MT4

Admissible stroke length
Type of mounting MS2

Admissible stroke length
Type of mounting MP3, MP5

Admissible stroke length
Type of mounting MF3

Admissible stroke length
Type of mounting MF4

Admissible stroke length
Type of mounting MT4

Admissible stroke length
Type of mounting MS2
