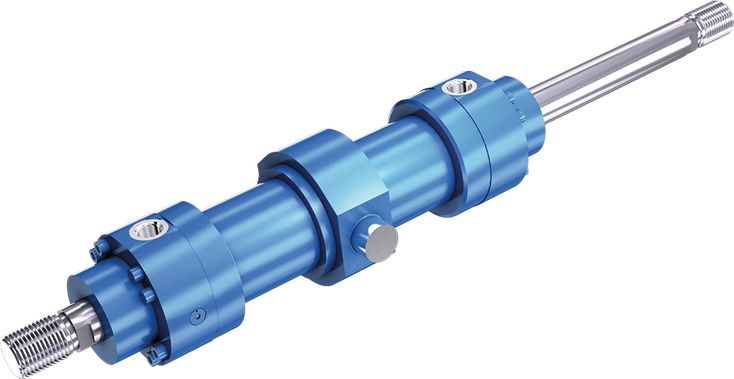

CGH1

3 types of mounting
Self-adjusting and adjustable end position cushioning

Ordering code

01	02	03		04		05		06	07	08		09	10	11	12	13	14	15	16
CG	H1		/		/		/		A	3X	/

01	Double rod cylinder		CG¹⁸⁾
02	Series		H1
Types of mounting
03	Round flange at the cylinder head		MF3
	Trunnion		MT4²⁾
	Foot mounting		MS2
04	Piston Ø (ØAL) 40 \u2026 320 mm		...
05	Piston rod Ø (ØMM) 22 \u2026 220 mm		...
06	Stroke length in mm³⁾		...
Design principle
07	Head and base flanged		A
08	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)		3X
Line connection / version
09	According to ISO 1179-1 (pipe thread ISO 228-1)		B
	According to ISO 9974-1 (metric thread ISO 261)		M
	Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI)		D⁹⁾
	Flange connection according to ISO 6164 tab. 2		H
	according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange		C³¹⁾
Line connection/position at cylinder head
10	View to piston rod³⁰⁾		1
			2
			3
			4
Line connection/position at cylinder base
11	View to piston rod³⁰⁾		1
			2
			3
			4
Piston rod design
12	Hard chromium-plated		C
12	Hardened and hard chromium-plated		H¹²⁾
Piston rod end
13	Thread for swivel head CGAS		A
	Thread for swivel head CGA, CGAK, plain clevis CSA		G¹³⁾
	With mounted swivel head CGAS		S¹⁷⁾
	With mounted swivel head CGA		L^{13; 17)}
	With mounted swivel head CGAK		M^{13; 17)}
	With mounted swivel head CSA		N^{1; 17)}
End position cushioning
14	Without end position cushioning		U
	Both sides, self-adjusting		D¹⁾
	Both sides, adjustable		E
Seal design
15	For mineral oil HL, HLP and oil-in-water emulsion HFA	Standard seal system	M
		Standard seal system with guide rings	L
		Reduced friction heavy industry	R
	For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC	Standard seal system HFC	G
		Servo quality/reduced friction	T
		Chevron seal kits	A
	For HDFR phosphate ester and HFDU polyol ester	Servo quality/reduced friction	S
		Standard seal system FKM	V
		Chevron seal kits	B
Option
16	Additional options, fill fields for additional options		Z
16	Without additional options, do not fill fields for additional options		W

Additional options

	Fields for additional options
	17	18	19	20	21	22	23	24
Z

17	Without inductive proximity switches	W
17	Inductive proximity switches without mating connector - separate order	E³⁷⁾
18	Without additional guide rings	W
18	Additional guide rings	F^{10; 28)}
19	Without measuring coupling	W
19	Measuring coupling, on both sides	A
20	Standard conical grease nipple, DIN 71412 Form A	W
	Spherical bearing, maintenance-free	A ¹⁴⁾
	Flanged grease nipple, DIN 3404 Form A	B
21	Without piston rod extension	W
21	Piston rod extension \u201cLY\u201d, specify in mm in plain text	Y¹⁶⁾
22	Priming class CP3	W
	Painting class CP4	B²¹⁾
	Painting class CP5	L²¹⁾
	Painting class CP6	U²¹⁾
	Painting class CP7	E²¹⁾
23	Without oil filling	W
23	With oil filling	F
24	Without test certificate	W
24	With acceptance test certificate 3.1 based on EN 10204	C

¹⁾	Only piston Ø 40 \u2026 200 mm
²⁾	Trunnion position freely selectable. When ordering, always specify the "XV" dimensions in the plain text in mm
³⁾	For max. available stroke length see Technical data and for admissible stroke length (according to the kinking calculation) see Project planning information.
⁹⁾	Only piston Ø 80 \u2026 320 mm
¹⁰⁾	Seal designs A, B not possible; piston Ø 220 \u2026 320 mm standard
¹²⁾	Only piston rod Ø 22 \u2026 140 mm
¹³⁾	Not with piston Ø 320 mm
¹⁴⁾	Not possible with piston rod end "N"
¹⁶⁾	Only at left piston rod side (orientation: catalog figures)
¹⁷⁾	Only one swivel head/plain clevis mounted, left piston rod side (orientation: catalog figures)
¹⁸⁾	Not standardized
²¹⁾	Specify RAL color in the plain text
²⁸⁾	With seal design "L" standard
³⁰⁾	All graphical representations in the data sheet show position 1
³⁵⁾	Not possible with MP3
³⁷⁾	Min. stroke length = 20 mm

	Order example:
	CGH1MF3/100/56/300A3X/B11CADMW
	CGH1MF/100/56/300A3X/B11CADMZ EWABWWWW

01	Double rod cylinder	CG¹⁸⁾
02	Series	H1
Types of mounting
03	Round flange at the cylinder head	MF3
Trunnion	MT4²⁾
Foot mounting	MS2
04	Piston Ø (ØAL) 40 \u2026 320 mm	...
05	Piston rod Ø (ØMM) 22 \u2026 220 mm	...
06	Stroke length in mm³⁾	...
Design principle
07	Head and base flanged	A
08	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Line connection / version
09	According to ISO 1179-1 (pipe thread ISO 228-1)	B
According to ISO 9974-1 (metric thread ISO 261)	M
Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI)	D⁹⁾
Flange connection according to ISO 6164 tab. 2	H
according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange	C³¹⁾
Line connection/position at cylinder head
10	View to piston rod³⁰⁾		1
2
3
4
Line connection/position at cylinder base
11	View to piston rod³⁰⁾		1
2
3
4
Piston rod design
12	Hard chromium-plated	C
Hardened and hard chromium-plated	H¹²⁾
Piston rod end
13	Thread for swivel head CGAS	A
Thread for swivel head CGA, CGAK, plain clevis CSA	G¹³⁾
With mounted swivel head CGAS	S¹⁷⁾
With mounted swivel head CGA	L^{13; 17)}
With mounted swivel head CGAK	M^{13; 17)}
With mounted swivel head CSA	N^{1; 17)}
End position cushioning
14	Without end position cushioning	U
Both sides, self-adjusting	D¹⁾
Both sides, adjustable	E
Seal design
15	For mineral oil HL, HLP and oil-in-water emulsion HFA	Standard seal system	M
Standard seal system with guide rings	L
Reduced friction heavy industry	R
For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC	Standard seal system HFC	G
Servo quality/reduced friction	T
Chevron seal kits	A
For HDFR phosphate ester and HFDU polyol ester	Servo quality/reduced friction	S
Standard seal system FKM	V
Chevron seal kits	B
Option
16	Additional options, fill fields for additional options	Z
Without additional options, do not fill fields for additional options	W

general

Installation position		any
Priming		Gentian blue (RAL 5010), see Table Corrosivity categories
Minimum layer thickness of the priming ¹⁾	µm	40
Painting ²⁾		in four corrosivity categories in the RAL colors, see Table Corrosivity categories

¹⁾	Other colors upon request. With cylinders and attachment parts, the following surfaces are not primed: ▶ All fit diameters to the customer side ▶ Sealing surfaces for line connection ▶ Sealing surfaces for flange connection ▶ Connection surface for valve mounting ▶ Inductive proximity switches ▶ Position measurement system ▶ Measuring coupling ▶ Spherical / plain bearing ▶ Lubricating nipples
²⁾	With cylinders and attachment parts, the following surfaces are not painted: ▶ All fit diameters and connection surfaces to the customer side ▶ Sealing surfaces for line connection ▶ Sealing surfaces for flange connection ▶ Connection surface for valve mounting ▶ Inductive proximity switches ▶ Position measurement system ▶ Measuring coupling ▶ Spherical / plain bearing ▶ Lubricating nipples
	The areas that are not primed or painted are protected by means of a solvent-free corrosion protection agent.
	Accessories that are ordered as separate order item are not primed or painted by default. Corresponding priming and/or painting on request.

hydraulic

Nominal pressure ¹⁾	bar	250
Operating pressure, min. (without load) ²⁾	bar	10
Static test pressure	bar	375
Reduced test pressure	bar	315
Operating viscosity range	mm²/s	12 \u2026 380
Optimum viscosity at operating temperature	mm²/s	20 \u2026 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) ³⁾		Class 20/18/15 according to ISO 4406 (c)
Bleeding		By default secured against screwing out

¹⁾	The maximum operating pressures must be less than or equal to the applicable nominal pressures and apply to applications with shock-free operation with reference to excess pressure and/or external loads. With extreme loads like e. g. high sequence cycle, mounting elements and threaded piston rod connections must be designed for durability.
²⁾	Depending on the application, application conditions and technical design, a certain minimum pressure (approx.10 bar) is required in order to guarantee technically unobjectionable functioning of the hydraulic cylinder.
³⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid	Classification	Suitable sealing materials	Standards	Data sheet
Mineral oil	HL, HLP	FKM,NBR	DIN 51524	90220
Oil-in-water emulsion	HFA	FKM, NBR	ISO 12922	90223
Water glycol	HFC	upon request		90223
Phosphate ester	HFD-R	FKM	ISO 12922	90222
Polyol ester	HFD-U	FKM	ISO 12922	90222

Weight

Piston	Piston rod	with 0 mm stroke length			per 100 mm stroke length
ØAL	ØMM	MF3	MT4	MS2
mm		kg	kg	kg	kg
40	22 mm / -	10	9	9	1.2
40	28 mm / -	10	9	10	1.5
50	28 mm / -	15	14	14	1.6
50	36 mm / -	15	14	14	2.3
63	36 mm / -	24	21	21	2.9
63	45 mm / -	24	22	22	3.8
80	45 mm / -	34	33	35	4.1
80	56 mm / -	35	34	36	5.5
100	56 mm / -	59	56	58	6.6
100	70 mm / -	60	58	60	8.8
125	70 mm / -	103	101	100	10.3
125	90 mm / -	106	105	104	14.2
140	90 mm / -	145	147	148	15.7
140	100 mm / -	146	149	150	18.1
160	100 mm / -	230	233	241	18.8
160	110 mm / -	234	236	244	21.4
180	110 mm / -	314	312	322	22.1
180	125 mm / -	319	318	327	26.5
200	125 mm / -	369	367	380	28.6
200	140 mm / -	376	373	386	33.5
220	140 mm / -	598	562	593	39.1
220	160 mm / -	598	562	593	46.7
250	160 mm / -	784	739	770	48.5
250	180 mm / -	784	739	770	56.9
280	180 mm / -	981	919	957	64.2
280	200 mm / -	981	919	957	73.4
320	200 mm / -	1452	1343	1385	79.8
320	220 mm / -	1452	1343	1385	90.2

Selection criteria for seals

	Work and environmental conditions	Seal versions
	Work and environmental conditions	M	G	V	L	A	B	T	R	S
Medium/temperature	Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C	++	++	++	++	++	++	++	++	++
	Medium HFA/operating temperature of medium +5 \u2026 +55 °C	+/\u2012	+/\u2012	+/-	+/-	+	+/\u2012	++	+/-	+/\u2012
	Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C	\u2012	++	\u2012	\u2012	+/\u2012	\u2012	++	\u2012	\u2012
	Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
	Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
	Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C¹⁾	++	+	+²⁾	++	++	+²⁾	+	++	++²⁾
	Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C	\u2012	\u2012	++	\u2012	\u2012	+	\u2012	\u2012	++
Function/velocity \u2026	Static holding function more than 10 minutes: Attention! Application- and temperature-dependent	++	+	+	+	++	++	+	+	+
	Static holding function short-time < 1 minute	++	++	++	++	++	++	++	++	++
	Robust application conditions: steel works, mining, thin ice	++	++	++	++	++	++	\u2012	++	\u2012
	Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes	\u2012	\u2012	\u2012	+/\u2012	\u2012	\u2012	++	+	++
	Cylinder velocity ≥ 0.001 m/s stick-slip behavior	++	+	+	++	\u2012	\u2012	++	++	++
	Cylinder velocity 0.01 \u2026 0.5 m/s³⁾	++	+	+	++	+	+	++	++	++
	Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s³⁾	\u2012	+/\u2012	+/\u2012	++	\u2012	\u2012	++	+	++
	Stroke length > 1.0 m	+/\u2012	++	++	++	++	++	++	++	++
	Standstill period (wear)	++	+/\u2012	+/\u2012	++	+/\u2012	\u2012	++	++	++
	Undissolved air in the oil⁴⁾	\u2012	+	+	+	\u2012	\u2012	+	+	+

	++ = very good + = good +/\u2013 = conditional, depending on the application parameters \u2013 = inappropriate General technical data in corresponding data sheets will remain valid! See table on hydraulic fluids! Generally, a medium temperature of approx. 40 °C is recommended. The specified values are to be regarded as guidelines; depending on the case of application, it may be necessary to check the suitability of the seal system.
¹⁾	Moreover, observe the corresponding medium temperature range
²⁾	Lower temperature limit \u201315 °C
³⁾	Standard line connections not designed for that velocity
⁴⁾	\u2012 = Seal is destroyed, + = Seal is not directly destroyed, leakage may occur

Stroke velocity

Piston Ø	Line connection	Maximum stroke velocity ¹⁾
mm		m/s
40	G1/2	0.31
50	G1/2	0.2
63	G3/4	0.28
80	G3/4	0.18
100	G1	0.2
125	G 1/4	0.2
140	G 1/4	0.16
160	G 1/2	0.18
180		0.14
200		0.11
220		0.09
250		0.07
280		0.06
320		0.04

¹⁾

Please observe the guideline on max. stroke velocities (with recommended flow velocity of 5 m/s in the line connection) in the table. Higher stroke velocities upon request. If the extension velocity is considerably higher than the retraction velocity of the piston rod, drag-out losses of the medium may result. If necessary, please consult us.

Notices:

Boundary and application conditions:

The mechanical alignment of the movement axis and thus the mounting points of hydraulic cylinder and piston rod must be ensured. Lateral forces on the guides of piston rod and piston are to be avoided. It may be necessary to consider the own weight of the hydraulic cylinder (MP3/MP5 or MT4) or the piston rod.

The bending length/bending load of the piston rod and/or the hydraulic cylinder must be observed (see bending).

The maximum admissible stroke velocities with regard to the suitability/load of seals must be observed as must their compatibility with the properties of the hydraulic fluid (see seals).

The maximum admissible velocities/kinetic energies when moving into the end positions, also considering external loads, must be observed.
Danger: Excess pressure

The maximum admissible operating pressure must be complied with in any operating state of the hydraulic cylinder. Possible pressure intensification resulting from the area ratio of annulus area to piston area and possible throttling points are to be observed.

Detrimental environmental influences, like e.g. aggressive finest particles, vapors, high temperatures, etc. as well as contaminations and deterioration of the hydraulic fluid are to be avoided.

Standards:

Bosch Rexroth standard; main dimensions like piston Ø and piston rod Ø correspond to ISO 3320.

Acceptance:

Each cylinder is tested according to Bosch Rexroth standard and in compliance with ISO 10100: 2001.

Safety instructions:

For assembly, commissioning and maintenance of hydraulic cylinders, observe the operating instructions 07100-B!

Service and repair work has to be performed by Bosch Rexroth AG or by personnel especially trained for this purpose. No warranty is accepted for damage as a consequence of assembly, maintenance or repair work not performed by Bosch Rexroth AG.

Check lists for hydraulic cylinders:

Cylinders the characteristics and/or application parameters of which deviate from the values specified in the data sheet can only be offered as a special version upon request. For offers, the deviations of the characteristics and/or application parameters must be described in the check lists for hydraulic cylinders (07200).

Minimum strokes:

When using end position cushioning, the minimum stroke must also be observed, see "End position cushioning".

This list does not claim to be complete. In case of questions regarding the compatibility with the medium or exceedance of the boundary or application conditions, please contact us.

All graphical representations in the data sheet are examples. The product supplied may therefore differ from the figure shown.

Project planning software ICS (Interactive Catalog System)

The ICS (Interactive Catalog System) is a selection and project planning help for hydraulic cylinders. The ICS allows designers for machines and systems to quickly and reliably find the perfect hydraulic cylinder solution through logic-guided type key enquiries. This software helps to solve design and project planning tasks more quickly and efficiently. After having been guided through the product selection, the user quickly and reliably gets the exact technical data of the selected component as well as 2D and 3D CAD data in the correct file format for all common CAD systems.

This allows users to reduce costs while increasing their competitiveness.

www.boschrexroth.com/ics

Diameters, areas, forces, flow

Piston	Piston rod	Area ratio	Areas			Force at 250 bar			Flow at 0.1 m/s			Maximum available stroke length
			Piston	Rod	Ring	Pressure	Differential	Traction	Off	Differential	On
ØAL	ØMM	φ A₁/A₃	A₁	A₂	A₃	F₁	F₂	F₃	q_V1	q_V2	q_V3
mm			cm²	cm²	cm²	kN	kN	kN	l/min	l/min	l/min	mm
40	22 mm / -	1.43	12.56	3.8	8.76	31.4 ¹⁾	9.5	21.9	7.5 ²⁾	2.3	5.3	2000
40	28 mm / -	1.96	12.56	6.16	6.4	31.4 ¹⁾	15.4	16	7.5 ²⁾	3.7	3.8	2000
50	28 mm / -	1.46	19.63	6.16	13.47	49.1 ¹⁾	15.4	33.7	11.8 ²⁾	3.7	8.1	2000
50	36 mm / -	2.08	19.63	10.18	9.45	49.1 ¹⁾	25.45	23.65	11.8 ²⁾	6.1	5.7	2000
63	36 mm / -	1.48	31.17	10.18	20.99	77.9 ¹⁾	25.45	52.45	18.7 ²⁾	6.1	12.6	2000
63	45 mm / -	2.04	31.17	15.9	15.27	77.9 ¹⁾	39.75	38.15	18.7 ²⁾	9.5	9.2	2000
80	45 mm / -	1.46	50.26	15.9	34.36	125.65 ¹⁾	39.75	85.9	30.2 ²⁾	9.5	20.7	2000
80	56 mm / -	1.96	50.26	24.63	25.63	125.65 ¹⁾	61.55	64.1	30.2 ²⁾	14.8	15.4	2000
100	56 mm / -	1.46	78.54	24.63	53.91	196.35 ¹⁾	61.55	134.8	47.1 ²⁾	14.8	32.3	3000
100	70 mm / -	1.96	78.54	38.48	40.06	196.35 ¹⁾	96.2	100.15	47.1 ²⁾	23.1	24	3000
125	70 mm / -	1.46	122.72	38.48	84.24	306.75 ¹⁾	96.2	210.55	73.6 ²⁾	23.1	50.5	3000
125	90 mm / -	2.08	122.72	63.62	59.1	306.75 ¹⁾	159.05	147.7	73.6 ²⁾	38.2	35.4	3000
140	90 mm / -	1.7	153.94	63.62	90.32	384.75 ¹⁾	159.05	225.7	92.4 ²⁾	38.2	54.2	3000
140	100 mm / -	2.04	153.94	78.54	75.4	384.75 ¹⁾	196.35	188.4	92.4 ²⁾	47.1	45.3	3000
160	100 mm / -	1.64	201.06	78.54	122.5	502.5 ¹⁾	196.35	306.15	120.6 ²⁾	47.1	73.5	3000
160	110 mm / -	1.9	201.06	95.06	106	502.5 ¹⁾	237.65	264.85	120.6 ²⁾	57	63.6	3000
180	110 mm / -	1.6	254.47	95.06	159.43	636.17 ¹⁾	237.65	398.52	152.7 ²⁾	57	95.7	3000
180	125 mm / -	1.93	254.47	122.72	131.75	636.17 ¹⁾	306.8	329.37	152.7 ²⁾	73.6	79.1	3000
200	125 mm / -	1.64	314.16	122.72	191.44	785.25 ¹⁾	306.8	478.45	188.5 ²⁾	73.6	114.9	3000
200	140 mm / -	1.96	314.16	153.96	160.2	785.25 ¹⁾	384.9	400.35	188.5 ²⁾	92.4	96.1	3000
220	140 mm / -	1.68	380.1	153.9	226.2	950.3 ¹⁾	384.9	565.5	288.1 ²⁾	92.4	135.7	6000
220	160 mm / -	2.12	380.1	201	179.1	950.3 ¹⁾	502.6	447.7	288.1 ²⁾	120.7	107.4	6000
250	160 mm / -	1.69	490.8	201	289.8	1227.2 ¹⁾	502.6	724.5	294.5 ²⁾	120.7	173.8	6000
250	180 mm / -	2.08	490.8	254.4	236.4	1227.2 ¹⁾	636.2	591	294.5 ²⁾	152.7	141.8	6000
280	180 mm / -	1.7	615.7	254.4	361.3	1539.4 ¹⁾	636.2	903.2	369.4 ²⁾	152.7	216.7	6000
280	200 mm / -	2.04	615.7	314.1	301.6	1539.4 ¹⁾	785.4	753.9	369.4 ²⁾	188.5	180.9	6000
320	200 mm / -	1.64	804.2	314.1	490.1	2010.6 ¹⁾	785.4	1225.2	482.5 ²⁾	188.5	294	6000
320	220 mm / -	1.9	804.2	380.1	424.2	2010.6 ¹⁾	950.3	1060.3	482.5 ²⁾	228.1	294	6000

¹⁾	Theoretical static cylinder force (without consideration of the efficiency and admissible load for attachment parts such as swivel heads, plates, or valves, etc.)
²⁾	Stroke velocity

Tolerances according to DIN ISO 6022

Installation dimensions	WC	XS^{1; 2)}	XV²⁾
Mounting type	MF3	MS2	MT4
Stroke length in mm	Tolerances in mm			Stroke tolerances in mm
≤ 1250	±2	±2	±2	+2
> 1250 \u2013 ≤ 3150	±4	±4	±4	+5
> 3150 \u2013 ≤ 6000	±8	±8	±8	+8

¹⁾	Not standardized
²⁾	Including stroke length
³⁾	Stroke tolerances must not be added to the tolerances listed in this table.

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding / measuring coupling

By default, a patented safety vent against unintended screwing out in head and base is delivered for all cylinders.

The port allows for the installation of a measuring coupling with check valve for pressure measurement or contamination-free bleeding. Measuring coupling with check valve function, i.e. the measuring or bleeding hose can also be connected when the system is pressurized.

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)

Scope of delivery: Measuring coupling G1/4

MESSKUPPLUNG AB 20-11/K1 G1/4 with seal ring made of NBR

Material no. R900009090

MESSKUPPLUNG AB 20-11/K1V G1/4 with seal ring made of FKM

Material no. R900001264

Proximity switch

Inductive proximity switches are used as reliable end position control for hydraulic cylinders. They are an important element for the safe and exact monitoring of safety equipment, locks and/or other machine functions in their end position by means of the output of signals. The proximity switch which is high-pressure resistant up to 500 bar works in a contactless manner. Consequently, it is wear-free. The proximity switch has been set at the factory. The switching distance must not be adjusted. The lock nut of the proximity switch is marked at the factory using sealing wax. On versions with proximity switch, the cylinders are equipped with proximity switches on both sides.

Technical data proximity switch

Function type			PNP normally open contact
Admissible pressure		bar	500
Operating voltage		V DC	10 ... 30
Operating voltage	including residual ripple	%	≤ 15
Voltage drop		V	≤ 1.5
Rated operating voltage		V DC	24
Rated operating current		mA	200
Idle current		mA	≤ 8
Residual current		μA	≤ 10
Repetition accuracy		%	≤ 5
Hysteresis		%	≤ 15
Ambient temperature range		°C	-25 \u2026 +80
Temperature drift		%	≤ 10
Switching frequency		Hz	1000
Protection class	active area		IP68
Protection class	Proximity switch		IP67
Housing material			Material no. 1.4104

Pin assignment

Corrosivity categories

In this connection, observe the information on the color set-up in table general.

The specified resistances of the individual Bosch Rexroth classes only refer to the primed / painted cylinder areas, not, for example, to piston rods, trunnions, etc.

In this connection, special measures may be necessary.

	Class	Properties	Applications
	Class	Properties	Inside	Outside
Priming	CP3 (C3, short ¹⁾)	240 h salt spray test SST (DIN EN ISO 9227) 240 h condensation water test KKT (DIN EN ISO 6270-2) Layer thickness: min. 40 μm	Field of application e.g. hall atmosphere, air humidity ≤ 60%, no thermal load.	Not suitable for outdoor exposure.
Painting	CP4 (C3, medium ¹⁾)	480 h salt spray test SST (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 120 μm	Unheated buildings in which there may be condensation (production rooms, storage and sport halls).	Urban and industrial atmosphere with little salt or sulfur dioxide load.
	CP5 (C4, medium ¹⁾)	720 h salt spray test SST (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 140 μm	Silo and debris facilities, chemical plants, boathouses above seawater, laundries, breweries with high humidity and medium contamination.	Industrial and coastal areas with medium salt load.
	CP6 (C5I, medium ¹⁾)	1000 h salt spray test NSS (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 220 μm	Buildings or areas with almost permanent condensation and serious contamination.	Industrial areas with large humidity and aggressive atmosphere.
	CP7 (C5M, medium ¹⁾)	1440 h salt spray test NSS (DIN EN ISO 9227) 720 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 320 μm	Buildings or areas with almost permanent condensation and serious contamination.	Coastal and offshore areas with high salt load.

¹⁾	according to DIN EN ISO 12944-2

Installation position	any
Priming	Gentian blue (RAL 5010), see Table Corrosivity categories
Minimum layer thickness of the priming ¹⁾	µm	40
Painting ²⁾	in four corrosivity categories in the RAL colors, see Table Corrosivity categories

Hydraulic fluid	Classification	Suitable sealing materials	Standards	Data sheet
Mineral oil	HL, HLP	FKM,NBR	DIN 51524	90220
Oil-in-water emulsion	HFA	FKM, NBR	ISO 12922	90223
Water glycol	HFC	upon request	90223
Phosphate ester	HFD-R	FKM	ISO 12922	90222
Polyol ester	HFD-U	FKM	ISO 12922	90222

Piston	Piston rod	with 0 mm stroke length	per 100 mm stroke length
40	22 mm / -	10	9	9	1.2
28 mm / -	10	9	10	1.5
50	28 mm / -	15	14	14	1.6
36 mm / -	15	14	14	2.3
63	36 mm / -	24	21	21	2.9
45 mm / -	24	22	22	3.8
80	45 mm / -	34	33	35	4.1
56 mm / -	35	34	36	5.5
100	56 mm / -	59	56	58	6.6
70 mm / -	60	58	60	8.8
125	70 mm / -	103	101	100	10.3
90 mm / -	106	105	104	14.2
140	90 mm / -	145	147	148	15.7
100 mm / -	146	149	150	18.1
160	100 mm / -	230	233	241	18.8
110 mm / -	234	236	244	21.4
180	110 mm / -	314	312	322	22.1
125 mm / -	319	318	327	26.5
200	125 mm / -	369	367	380	28.6
140 mm / -	376	373	386	33.5
220	140 mm / -	598	562	593	39.1
160 mm / -	598	562	593	46.7
250	160 mm / -	784	739	770	48.5
180 mm / -	784	739	770	56.9
280	180 mm / -	981	919	957	64.2
200 mm / -	981	919	957	73.4
320	200 mm / -	1452	1343	1385	79.8
220 mm / -	1452	1343	1385	90.2

	Work and environmental conditions	Seal versions
Medium/temperature	Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C	++	++	++	++	++	++	++	++	++
Medium HFA/operating temperature of medium +5 \u2026 +55 °C	+/\u2012	+/\u2012	+/-	+/-	+	+/\u2012	++	+/-	+/\u2012
Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C	\u2012	++	\u2012	\u2012	+/\u2012	\u2012	++	\u2012	\u2012
Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C¹⁾	++	+	+²⁾	++	++	+²⁾	+	++	++²⁾
Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C	\u2012	\u2012	++	\u2012	\u2012	+	\u2012	\u2012	++
Function/velocity \u2026	Static holding function more than 10 minutes: Attention! Application- and temperature-dependent	++	+	+	+	++	++	+	+	+
Static holding function short-time < 1 minute	++	++	++	++	++	++	++	++	++
Robust application conditions: steel works, mining, thin ice	++	++	++	++	++	++	\u2012	++	\u2012
Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes	\u2012	\u2012	\u2012	+/\u2012	\u2012	\u2012	++	+	++
Cylinder velocity ≥ 0.001 m/s stick-slip behavior	++	+	+	++	\u2012	\u2012	++	++	++
Cylinder velocity 0.01 \u2026 0.5 m/s³⁾	++	+	+	++	+	+	++	++	++
Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s³⁾	\u2012	+/\u2012	+/\u2012	++	\u2012	\u2012	++	+	++
Stroke length > 1.0 m	+/\u2012	++	++	++	++	++	++	++	++
Standstill period (wear)	++	+/\u2012	+/\u2012	++	+/\u2012	\u2012	++	++	++
Undissolved air in the oil⁴⁾	\u2012	+	+	+	\u2012	\u2012	+	+	+

Piston Ø	Line connection	Maximum stroke velocity ¹⁾
40	G1/2	0.31
50	0.2
63	G3/4	0.28
80	0.18
100	G1	0.2
125	G 1/4
140	0.16
160	G 1/2	0.18
180	0.14
200	0.11
220	0.09
250	0.07
280	0.06
320	0.04

Piston	Piston rod	Area ratio	Areas	Force at 250 bar	Flow at 0.1 m/s	Maximum available stroke length
40	22 mm / -	1.43	12.56	3.8	8.76	31.4 ¹⁾	9.5	21.9	7.5 ²⁾	2.3	5.3	2000
28 mm / -	1.96	12.56	6.16	6.4	31.4 ¹⁾	15.4	16	7.5 ²⁾	3.7	3.8	2000
50	28 mm / -	1.46	19.63	6.16	13.47	49.1 ¹⁾	15.4	33.7	11.8 ²⁾	3.7	8.1	2000
36 mm / -	2.08	19.63	10.18	9.45	49.1 ¹⁾	25.45	23.65	11.8 ²⁾	6.1	5.7	2000
63	36 mm / -	1.48	31.17	10.18	20.99	77.9 ¹⁾	25.45	52.45	18.7 ²⁾	6.1	12.6	2000
45 mm / -	2.04	31.17	15.9	15.27	77.9 ¹⁾	39.75	38.15	18.7 ²⁾	9.5	9.2	2000
80	45 mm / -	1.46	50.26	15.9	34.36	125.65 ¹⁾	39.75	85.9	30.2 ²⁾	9.5	20.7	2000
56 mm / -	1.96	50.26	24.63	25.63	125.65 ¹⁾	61.55	64.1	30.2 ²⁾	14.8	15.4	2000
100	56 mm / -	1.46	78.54	24.63	53.91	196.35 ¹⁾	61.55	134.8	47.1 ²⁾	14.8	32.3	3000
70 mm / -	1.96	78.54	38.48	40.06	196.35 ¹⁾	96.2	100.15	47.1 ²⁾	23.1	24	3000
125	70 mm / -	1.46	122.72	38.48	84.24	306.75 ¹⁾	96.2	210.55	73.6 ²⁾	23.1	50.5	3000
90 mm / -	2.08	122.72	63.62	59.1	306.75 ¹⁾	159.05	147.7	73.6 ²⁾	38.2	35.4	3000
140	90 mm / -	1.7	153.94	63.62	90.32	384.75 ¹⁾	159.05	225.7	92.4 ²⁾	38.2	54.2	3000
100 mm / -	2.04	153.94	78.54	75.4	384.75 ¹⁾	196.35	188.4	92.4 ²⁾	47.1	45.3	3000
160	100 mm / -	1.64	201.06	78.54	122.5	502.5 ¹⁾	196.35	306.15	120.6 ²⁾	47.1	73.5	3000
110 mm / -	1.9	201.06	95.06	106	502.5 ¹⁾	237.65	264.85	120.6 ²⁾	57	63.6	3000
180	110 mm / -	1.6	254.47	95.06	159.43	636.17 ¹⁾	237.65	398.52	152.7 ²⁾	57	95.7	3000
125 mm / -	1.93	254.47	122.72	131.75	636.17 ¹⁾	306.8	329.37	152.7 ²⁾	73.6	79.1	3000
200	125 mm / -	1.64	314.16	122.72	191.44	785.25 ¹⁾	306.8	478.45	188.5 ²⁾	73.6	114.9	3000
140 mm / -	1.96	314.16	153.96	160.2	785.25 ¹⁾	384.9	400.35	188.5 ²⁾	92.4	96.1	3000
220	140 mm / -	1.68	380.1	153.9	226.2	950.3 ¹⁾	384.9	565.5	288.1 ²⁾	92.4	135.7	6000
160 mm / -	2.12	380.1	201	179.1	950.3 ¹⁾	502.6	447.7	288.1 ²⁾	120.7	107.4	6000
250	160 mm / -	1.69	490.8	201	289.8	1227.2 ¹⁾	502.6	724.5	294.5 ²⁾	120.7	173.8	6000
180 mm / -	2.08	490.8	254.4	236.4	1227.2 ¹⁾	636.2	591	294.5 ²⁾	152.7	141.8	6000
280	180 mm / -	1.7	615.7	254.4	361.3	1539.4 ¹⁾	636.2	903.2	369.4 ²⁾	152.7	216.7	6000
200 mm / -	2.04	615.7	314.1	301.6	1539.4 ¹⁾	785.4	753.9	369.4 ²⁾	188.5	180.9	6000
320	200 mm / -	1.64	804.2	314.1	490.1	2010.6 ¹⁾	785.4	1225.2	482.5 ²⁾	188.5	294	6000
220 mm / -	1.9	804.2	380.1	424.2	2010.6 ¹⁾	950.3	1060.3	482.5 ²⁾	228.1	294	6000

Installation dimensions	WC	XS^{1; 2)}	XV²⁾
Stroke length in mm	Tolerances in mm	Stroke tolerances in mm
≤ 1250	±2	±2	±2	+2
> 1250 \u2013 ≤ 3150	±4	±4	±4	+5
> 3150 \u2013 ≤ 6000	±8	±8	±8	+8

Function type		PNP normally open contact
Admissible pressure	bar	500
Operating voltage		V DC	10 ... 30
including residual ripple	%	≤ 15
Voltage drop	V	≤ 1.5
Rated operating voltage	V DC	24
Rated operating current	mA	200
Idle current	mA	≤ 8
Residual current	μA	≤ 10
Repetition accuracy	%	≤ 5
Hysteresis	%	≤ 15
Ambient temperature range	°C	-25 \u2026 +80
Temperature drift	%	≤ 10
Switching frequency	Hz	1000
Protection class	active area		IP68
Proximity switch		IP67
Housing material		Material no. 1.4104

	Class	Properties	Applications
Priming	CP3 (C3, short ¹⁾)	240 h salt spray test SST (DIN EN ISO 9227) 240 h condensation water test KKT (DIN EN ISO 6270-2) Layer thickness: min. 40 μm	Field of application e.g. hall atmosphere, air humidity ≤ 60%, no thermal load.	Not suitable for outdoor exposure.
Painting	CP4 (C3, medium ¹⁾)	480 h salt spray test SST (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 120 μm	Unheated buildings in which there may be condensation (production rooms, storage and sport halls).	Urban and industrial atmosphere with little salt or sulfur dioxide load.
CP5 (C4, medium ¹⁾)	720 h salt spray test SST (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 140 μm	Silo and debris facilities, chemical plants, boathouses above seawater, laundries, breweries with high humidity and medium contamination.	Industrial and coastal areas with medium salt load.
CP6 (C5I, medium ¹⁾)	1000 h salt spray test NSS (DIN EN ISO 9227) 480 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 220 μm	Buildings or areas with almost permanent condensation and serious contamination.	Industrial areas with large humidity and aggressive atmosphere.
CP7 (C5M, medium ¹⁾)	1440 h salt spray test NSS (DIN EN ISO 9227) 720 h condensation water test KKT (DIN EN ISO 6270-2) Nominal layer thickness: 320 μm	Buildings or areas with almost permanent condensation and serious contamination.	Coastal and offshore areas with high salt load.

Type of mounting MF3: Round flange at the cylinder head

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c

MF3: with seal design \u201cA\u201d, \u201cB\u201d and AL Ø 160 \u2026 320 mm

type of mounting MF3

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁵⁾ ⁶⁾	Y	X1	ØRD		WC	VD	NF	PK	A1	ZM	X	ØFB		ØFC		ØUC		α	WA	ØRA ⁷⁾	VE ⁷⁾	ØRA ⁸⁾	VE ⁸⁾	ØRB ⁸⁾
																						min.													max.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm		mm		mm	mm	°	mm	mm	mm	mm	mm	mm
40	22 mm / -	M16 x 1.5	16	M18 x 2	30	16	88	52	34	G1/2	M22 x 1.5	79	41	90	e8	19	5	30	120	0	278	-	9	H13	108	js13	130	0 - 1	60	14	52	40	52	20	-
40	28 mm / -	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	41	90	e8	19	5	30	120	0	278	-	9	H13	108	js13	130	0 - 1	60	14	52	40	52	20	-
50	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	102	60	34	G1/2	M22 x 1.5	87	48.5	110	e8	23	5	30	120	0	294	-	11	H13	130	js13	160	0 - 1	60	18	65	40	65	16	-
50	36 mm / -	M22 x 1.5	22	M24 x 2	35	30	102	60	34	G1/2	M22 x 1.5	87	48.5	110	e8	23	5	30	120	0	294	-	11	H13	130	js13	160	0 - 1	60	18	65	40	65	16	-
63	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	56.5	130	e8	27	5	35	133	0	333	-	13.5	H13	155	js13	185	0 - 1	60	22	75	45	75	17	-
63	45 mm / -	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	56.5	130	e8	27	5	35	133	0	333	-	13.5	H13	155	js13	185	0 - 1	60	22	75	45	75	17	-
80	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	67	145	e8	25	5	35	146	0	354	-	13.5	H13	170	js13	200	0 - 1	60	20	95	45	95	13	-
80	56 mm / -	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	67	145	e8	25	5	35	146	0	354	-	13.5	H13	170	js13	200	0 - 1	60	20	95	45	95	13	-
100	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	82	175	e8	35	5	45	171	0	419	-	17.5	H13	205	js13	245	0 - 1	60	30	115	55	115	20	-
100	70 mm / -	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	82	175	e8	35	5	45	171	0	419	-	17.5	H13	205	js13	245	0 - 1	60	30	115	55	115	20	-
125	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	99	210	e8	37	5	50	205	0	475	-	22	H13	245	js13	295	0 - 1	60	32	135	60	135	17	-
125	90 mm / -	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	99	210	e8	37	5	50	205	0	475	-	22	H13	245	js13	295	0 - 1	60	32	135	60	135	17	-
140	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	109.5	230	e8	45	10	50	219	0	531	-	22	H13	265	js13	315	0 - 1	60	35	155	70	155	22	-
140	100 mm / -	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	109.5	230	e8	45	10	50	219	0	531	-	22	H13	265	js13	315	0 - 1	60	35	155	70	155	22	-
160	100 mm / -	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	129	275	e8	50	10	60	240	0	610	-	30	H13	325	js13	385	0 - 1	60	40	200	80	200	80	-
160	110 mm / -	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	129	275	e8	50	10	60	240	0	610	-	30	H13	325	js13	385	0 - 1	60	40	200	80	200	80	-
180	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	142.5	300	e8	50	10	70	264	0	662	-	30	H13	360	js13	420	0 - 1	60	40	220	90	220	90	-
180	125 mm / -	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	142.5	300	e8	50	10	70	264	0	662	-	30	H13	360	js13	420	0 - 1	60	40	220	90	220	90	-
200	125 mm / -	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	152	320	e8	50	10	75	278	0	688	-	33	H13	375	js13	445	0 - 1	60	40	235	95	235	95	-
200	140 mm / -	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	152	320	e8	50	10	75	278	0	688	-	33	H13	375	js13	445	0 - 1	60	40	235	95	235	95	-
220	140 mm / -	M120 x 3	120	M120 x 4	160	120	355	273	65	G1 1/2	M48 x 2	242	174	370	e8	60	10	85	326	20	810	-	33	H13	430	js13	490	0 - 1	60	40	270	115	270	115	270
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	355	273	65	G1 1/2	M48 x 2	242	174	370	e8	60	10	85	326	20	810	-	33	H13	430	js13	490	0 - 1	60	40	270	115	270	115	270
250	160 mm / -	M120 x 3	120	M120 x 4	160	140	395	305	65	G1 1/2	M48 x 2	266	194	415	e8	70	10	85	326	30	858	-	39	H13	485	js13	555	0 - 1	60	40	300	125	300	125	300
250	180 mm / -	M120 x 3	120	M120 x 4	160	160	395	305	65	G1 1/2	M48 x 2	266	194	415	e8	70	10	85	326	30	858	-	39	H13	485	js13	555	0 - 1	60	40	300	125	300	125	300
280	180 mm / -	M130 x 3	130	M150 x 4	190	160	425	343	65	G1 1/2	M48 x 2	282	210	450	e8	65	10	95	375	25	939	31	39	H13	520	js13	590	0 - 1	60	40	325	130	325	130	325
280	200 mm / -	M130 x 3	130	M150 x 4	190	180	425	343	65	G1 1/2	M48 x 2	282	210	450	e8	65	10	95	375	25	939	31	39	H13	520	js13	590	0 - 1	60	40	325	130	325	130	325
320	200 mm / -	-	-	M160 x 4	200	180	490	394	65	G1 1/2	M48 x 2	287	243	510	e8	65	10	120	431	25	1005	-	45	H13	600	js13	680	0 - 1	60	40	365	155	365	155	365
320	220 mm / -	-	-	M160 x 4	200	200	490	394	65	G1 1/2	M48 x 2	287	243	510	e8	65	10	120	431	25	1005	-	45	H13	600	js13	680	0 - 1	60	40	365	155	365	155	365

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁵⁾	Flange connections see separate table
⁶⁾	Line connection \u201cM"
⁷⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
⁸⁾	Dimensions for cylinders with seal design A and B

Type of mounting MT4: Trunnion

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	When ordering, always specify the "XV" dimension in the plain text. Preferred XV dimension: Observe the trunnion position in the cylinder center XVmin and XVmax
⁵⁾	Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV).

MT4: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

¹⁾	Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV).

Dimensions for cylinder with piston rod extension \u201cLY\u201c in retracted condition

type of mounting MT4

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	X1	WA	PK	ZM	X	XV ⁷⁾	XV ⁸⁾	XV ⁸⁾	BD	UV ⁹⁾	ØTD		TL		TM		r	ØRA ¹⁰⁾	VE ¹⁰⁾	ØRA ¹¹⁾	VE ¹¹⁾
																	min.	average	min.	max.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm		mm	mm	mm	mm	mm
40	22 mm / -	M16 x 1.5	16	M18 x 2	30	16	88	52	34	G1/2	M22 x 1.5	79	41	14	120	278	22	139 + X/2	150	136 + X	38	97	30	e8	20	js16	95	h12	1.6	52	40	52	20
40	28 mm / -	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	41	14	120	278	22	139 + X/2	150	136 + X	38	97	30	e8	20	js16	95	h12	1.6	52	40	52	20
50	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	102	60	34	G1/2	M22 x 1.5	87	48.5	18	120	294	32	147 + X/2	163	140 + X	38	111	30	e8	20	js16	115	h12	1.6	65	40	65	16
50	36 mm / -	M22 x 1.5	22	M24 x 2	35	30	102	60	34	G1/2	M22 x 1.5	87	48.5	18	120	294	32	147 + X/2	163	140 + X	38	111	30	e8	20	js16	115	h12	1.6	65	40	65	16
63	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	56.5	22	133	333	47	166.5 + X/2	190	155 + X	48	129	35	e8	20	js16	130	h12	2	75	45	75	17
63	45 mm / -	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	56.5	22	133	333	47	166.5 + X/2	190	155 + X	48	129	35	e8	20	js16	130	h12	2	75	45	75	17
80	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	67	20	146	354	58	177 + X/2	206	160 + X	58	153	40	e8	25	js16	145	h12	2	95	45	95	13
80	56 mm / -	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	67	20	146	354	58	177 + X/2	206	160 + X	58	153	40	e8	25	js16	145	h12	2	95	45	95	13
100	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	82	30	171	419	79	209.5 + X/2	249	185 + X	78	183	50	e8	30	js16	175	h12	2	115	55	115	20
100	70 mm / -	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	82	30	171	419	79	209.5 + X/2	249	185 + X	78	183	50	e8	30	js16	175	h12	2	115	55	115	20
125	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	99	32	205	475	91	237.5 + X/2	283	192 + X	98	220	60	e8	40	js16	210	h12	2.5	135	60	135	17
125	90 mm / -	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	99	32	205	475	91	237.5 + X/2	283	192 + X	98	220	60	e8	40	js16	210	h12	2.5	135	60	135	17
140	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	109.5	35	219	531	121	265.5 + X/2	326	205 + X	118	243	65	e8	42.5	js16	230	h12	2.5	155	70	155	22
140	100 mm / -	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	109.5	35	219	531	121	265.5 + X/2	326	205 + X	118	243	65	e8	42.5	js16	230	h12	2.5	155	70	155	22
160	100 mm / -	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	129	40	240	610	142	305 + X/2	376	234 + X	128	282	75	e8	52.5	js16	275	h12	2.5	200	80	200	80
160	110 mm / -	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	129	40	240	610	142	305 + X/2	376	234 + X	128	282	75	e8	52.5	js16	275	h12	2.5	200	80	200	80
180	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	142.5	40	264	661	158	331 + X/2	410	252 + X	138	310	85	e8	55	js16	300	h12	2.5	220	90	220	90
180	125 mm / -	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	142.5	40	264	661	158	331 + X/2	410	252 + X	138	310	85	e8	55	js16	300	h12	2.5	220	90	220	90
200	125 mm / -	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	152	40	278	688	194	344 + X/2	441	247 + X	168	331	90	e8	55	js16	320	h12	2.5	235	95	235	95
200	140 mm / -	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	152	40	278	688	194	344 + X/2	441	247 + X	168	331	90	e8	55	js16	320	h12	2.5	235	95	235	95
220	140 mm / -	M120 x 3	120	M120 x 4	160	120	355	273	65	G1 1/2	M48 x 2	242	174	40	326	810	155	405 + X/2	482.5	327.5 + X	135	377	100	e8	60	js16	370	h12	2.5	270	115	270	115
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	355	273	65	G1 1/2	M48 x 2	242	174	40	326	810	155	405 + X/2	482.5	327.5 + X	135	377	100	e8	60	js16	370	h12	2.5	270	115	270	115
250	160 mm / -	M120 x 3	120	M120 x 4	160	140	395	305	65	G1 1/2	M48 x 2	266	194	40	326	858	175	429 + X/2	516.5	341.5 + X	145	417	110	e8	65	js16	410	h12	2.5	300	125	300	125
250	180 mm / -	M120 x 3	120	M120 x 4	160	160	395	305	65	G1 1/2	M48 x 2	266	194	40	326	858	175	429 + X/2	516.5	341.5 + X	145	417	110	e8	65	js16	410	h12	2.5	300	125	300	125
280	180 mm / -	M130 x 3	130	M150 x 4	190	160	425	343	65	G1 1/2	M48 x 2	282	210	40	375	939	336	469.5 + X/2	637.5	301.5 + X	165	448	130	e8	70	js16	450	h12	2.5	325	130	325	130
280	200 mm / -	M130 x 3	130	M150 x 4	190	180	425	343	65	G1 1/2	M48 x 2	282	210	40	375	939	336	469.5 + X/2	637.5	301.5 + X	165	448	130	e8	70	js16	450	h12	2.5	325	130	325	130
320	200 mm / -	-	-	M160 x 4	200	180	490	394	65	G1 1/2	M48 x 2	287	243	40	431	1005	180	502.5 + X/2	592.5	412.5 + X	195	513	160	e8	90	js16	510	h12	2.5	365	155	365	155
320	220 mm / -	-	-	M160 x 4	200	200	490	394	65	G1 1/2	M48 x 2	287	243	40	431	1005	180	502.5 + X/2	592.5	412.5 + X	195	513	160	e8	90	js16	510	h12	2.5	365	155	365	155

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	XV_cent. Recommendation: Trunnion position in cylinder center
⁸⁾	When ordering, always specify the "XV" dimension in the plain text. Preferred XV dimension: Observe trunnion position in cylinder center XV_min. and XV_max.
⁹⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
¹⁰⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
¹¹⁾	Dimensions for cylinders with seal design A and B

Important installation information: During installation, it must be ensured that the trunnions are installed up to the trunnion shoulders. Any variation may reduce the product's service life.

type of mounting MS2

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	Recess 2 mm deep, for hexagon socket head cap screws; ISO 4762 \u2012 The screws must not be subjected to shear force. Force distribution via additional external fitting strip.

MS2: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

type of mounting MS2

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	X1	WA	PK	XS	ZM	SS	X	S	S1	ØSB		ST	TS		US		LH	L1 ⁷⁾	ØRA ⁸⁾	VE ⁸⁾	ØRA ⁹⁾	VE ⁹⁾
																			min.								⁷⁾
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm	mm	mm	mm	mm	mm	mm
40	22 mm / -	M16 x 1.5	16	M18 x 2	30	16	88	52	34	G1/2	M22 x 1.5	79	41	14	120	114	278	50	-	30	15	11	H13	32	110	js13	140	0 - 1	45	93	52	40	52	20
40	28 mm / -	M16 x 1.5	16	M18 x 2	30	22	88	52	34	G1/2	M22 x 1.5	79	41	14	120	114	278	50	-	30	15	11	H13	32	110	js13	140	0 - 1	45	93	52	40	52	20
50	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	102	60	34	G1/2	M22 x 1.5	87	48.5	18	120	124.5	294	45	-	35	17.5	11	H13	37	130	js13	161	0 - 1	55	110	65	40	65	16
50	36 mm / -	M22 x 1.5	22	M24 x 2	35	30	102	60	34	G1/2	M22 x 1.5	87	48.5	18	120	124.5	294	45	-	35	17.5	11	H13	37	130	js13	161	0 - 1	55	110	65	40	65	16
63	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	120	78	42	G3/4	M27 x 2	100	56.5	22	133	142	333	49	-	40	20	13.5	H13	42	150	js13	183	0 - 1	65	129	75	45	75	17
63	45 mm / -	M28 x 1.5	28	M30 x 2	45	36	120	78	42	G3/4	M27 x 2	100	56.5	22	133	142	333	49	-	40	20	13.5	H13	42	150	js13	183	0 - 1	65	129	75	45	75	17
80	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	95	42	G3/4	M27 x 2	104	67	20	146	151	354	52	2	50	25	17.5	H13	47	180	js13	220	0 - 1	75	149	95	45	95	13
80	56 mm / -	M35 x 1.5	35	M39 x 3	55	46	140	95	42	G3/4	M27 x 2	104	67	20	146	151	354	52	2	50	25	17.5	H13	47	180	js13	220	0 - 1	75	149	95	45	95	13
100	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	170	125	47	G1	M33 x 2	124	82	30	171	179	419	61	3	60	30	22	H13	57	210	js13	260	0 - 1	90	181	115	55	115	20
100	70 mm / -	M45 x 1.5	45	M50 x 3	75	60	170	125	47	G1	M33 x 2	124	82	30	171	179	419	61	3	60	30	22	H13	57	210	js13	260	0 - 1	90	181	115	55	115	20
125	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	206	150	58	G1 1/4	M42 x 2	135	99	32	205	200	475	75	-	70	35	26	H13	67	255	js13	313	0 - 1	105	215	135	60	135	17
125	90 mm / -	M58 x 1,5	58	M64 x 3	95	75	206	150	58	G1 1/4	M42 x 2	135	99	32	205	200	475	75	-	70	35	26	H13	67	255	js13	313	0 - 1	105	215	135	60	135	17
140	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	226	170	58	G1 1/4	M42 x 2	156	109.5	35	219	230.5	531	70	19	85	42.5	30	H13	72	290	js13	359	0 - 1	115	235	155	70	155	22
140	100 mm / -	M65 x 1.5	65	M80 x 3	110	85	226	170	58	G1 1/4	M42 x 2	156	109.5	35	219	230.5	531	70	19	85	42.5	30	H13	72	290	js13	359	0 - 1	115	235	155	70	155	22
160	100 mm / -	M80 x 2	80	M90 x 3	120	85	265	190	65	G1 1/2	M48 x 2	185	129	40	240	272.5	610	65	44	105	52.5	33	H13	77	330	js13	402	0 - 1	135	277	200	80	200	80
160	110 mm / -	M80 x 2	80	M90 x 3	120	95	265	190	65	G1 1/2	M48 x 2	185	129	40	240	272.5	610	65	44	105	52.5	33	H13	77	330	js13	402	0 - 1	135	277	200	80	200	80
180	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	210	65	G1 1/2	M48 x 2	199	142.5	40	264	296.5	662	69	50	115	57.5	40	H13	92	360	js13	445	0 - 1	150	305	220	90	220	90
180	125 mm / -	M100 x 2	100	M100 x 3	140	110	292	210	65	G1 1/2	M48 x 2	199	142.5	40	264	296.5	662	69	50	115	57.5	40	H13	92	360	js13	445	0 - 1	150	305	220	90	220	90
200	125 mm / -	M110 x 2	110	M110 x 4	150	110	310	235	65	G1 1/2	M48 x 2	205	152	40	278	307.5	688	73	56	125	62.5	40	H13	97	385	js13	471	0 - 1	160	322	235	95	235	95
200	140 mm / -	M110 x 2	110	M110 x 4	150	120	310	235	65	G1 1/2	M48 x 2	205	152	40	278	307.5	688	73	56	125	62.5	40	H13	97	385	js13	471	0 - 1	160	322	235	95	235	95
220	140 mm / -	M120 x 3	120	M120 x 4	160	120	355	273	65	G1 1/2	M48 x 2	242	174	40	326	367.5	810	75	100	155	77.5	45	H13	102	445	js13	541	0 - 1	185	373	270	115	270	115
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	355	273	65	G1 1/2	M48 x 2	242	174	40	326	367.5	810	75	100	155	77.5	45	H13	102	445	js13	541	0 - 1	185	373	270	115	270	115
250	160 mm / -	M120 x 3	120	M120 x 4	160	140	395	305	65	G1 1/2	M48 x 2	266	194	40	326	391.5	858	75	100	155	77.5	52	H13	112	500	js13	610	0 - 1	205	414	300	125	300	125
250	180 mm / -	M120 x 3	120	M120 x 4	160	160	395	305	65	G1 1/2	M48 x 2	266	194	40	326	391.5	858	75	100	155	77.5	52	H13	112	500	js13	610	0 - 1	205	414	300	125	300	125
280	180 mm / -	M130 x 3	130	M150 x 4	190	160	425	343	65	G1 1/2	M48 x 2	282	210	40	375	407.5	939	124	171	155	77.5	52	H13	127	530	js13	641	0 - 1	225	449	325	130	325	130
280	200 mm / -	M130 x 3	130	M150 x 4	190	180	425	343	65	G1 1/2	M48 x 2	282	210	40	375	407.5	939	124	171	155	77.5	52	H13	127	530	js13	641	0 - 1	225	449	325	130	325	130
320	200 mm / -	-	-	M160 x 4	200	180	490	394	65	G1 1/2	M48 x 2	287	243	40	431	440	1005	125	85	190	95	62	H13	124	610	js13	732	0 - 1	255	512	365	155	365	155
320	220 mm / -	-	-	M160 x 4	200	200	490	394	65	G1 1/2	M48 x 2	287	243	40	431	440	1005	125	85	190	95	62	H13	124	610	js13	732	0 - 1	255	512	365	155	365	155

¹⁾	Thread for piston rod end \u201cG\u201d
²⁾	Thread for piston rod end \u201cA\u201d
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
⁸⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
⁹⁾	Dimensions for cylinders with seal design A and B

Flange ports

Dimensions for rectangular flange according to ISO 6162-2 tab. 2 type 1

Dimensions for square flange according to ISO 6164 tab. 2

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

ØAL	Y	PK	X1	Ød₃	Ød₃ ¹⁾	c		w		d₁	t₁ ²⁾	t₁ ³⁾	p ⁴⁾
mm	mm	mm	mm	mm		mm	mm	mm	mm		mm	mm	bar
80	102.5	149	65	13	1/2\u2033	40.5	± 0.25	18.2	± 0.25	M8	16	14	400
100	124	171	80.5	13	1/2\u2033	40.5	± 0.25	18.2	± 0.25	M8	16	16	400
125	135	205	97.5	19	3/4\u2033	50.8	± 0.25	23.8	± 0.25	M10	20	20	400
140	152	227	107	25	1\u2033	57.2	± 0.25	27.8	± 0.25	M12	24	24	400
160	184	242	127	25	1\u2033	57.2	± 0.25	27.8	± 0.25	M12	24	24	400
180	199	264	139.5	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	26	400
200	205	278	149	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	26	400
220	242	326	168	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	30	400
250	266	326	189	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	30	400
280	282	375	204	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	30	400
320	287	431	236	51	2\u2033	96.8	± 0.25	44.5	± 0.25	M20	36	36	400

¹⁾	Flange connection according to ISO 6162-2 tab. 2 type 1 corresponds to flange connection according to SAE 6000 PSI
²⁾	Thread depth for seal design M, T, G, L, R, S and V
³⁾	Thread depth for seal design A and B
⁴⁾	Max. operating pressure for related flanges in bar

Version \u201cH\u201d
ISO 6164 tab. 2 (400 bar)

ØAL	Y	PK	X1	Ød₃	w		d₁	t₁ ¹⁾	t₁ ²⁾	p ³⁾
mm	mm	mm	mm	mm	mm	mm		mm	mm	bar
40	78	122	40.5	10	24.7	± 0.25	M6	12.5	10	400
50	86	122	48	10	24.7	± 0.25	M6	12.5	10	400
63	99	135	57	13	29.7	± 0.25	M8	16	13	400
80	103	148	67	13	29.7	± 0.25	M8	16	15	400
100	123	173	81.5	19	35.4	± 0.25	M8	16	16	400
125	131.5	212	99	25	43.8	± 0.25	M10	20	20	400
140	152	227	109	25	43.8	± 0.25	M10	20	20	400
160	182.5	245	128	32	51.6	± 0.25	M12	24	24	400
180	199	264	142	32	51.6	± 0.25	M12	24	24	400
200	201.5	285	149.5	38	60.1	± 0.25	M16	30	30	400
220	242	326	171	38	60.1	± 0.25	M16	30	30	400
250	266	326	192	38	60.1	± 0.25	M16	30	30	400
280	282	375	207	38	60.1	± 0.25	M16	30	30	400
320	287	431	240	51	69.3	± 0.25	M16	30	30	400

¹⁾	Thread depth for seal design M, T, G, L, R, S and V
²⁾	Thread depth for seal design A and B
³⁾	Max. operating pressure for related flanges in bar

Throttle valve

ØAL

mm

40

50

63

80

100

125

140

160

180

200

220

250

280

320

Protrusion A ¹⁾

mm

1

0

9.5

0

Nominal width

mm

4

5

8

20

¹⁾	Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition

ØAL	=	Piston Ø

¹⁾	Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition

Proximity switch

¹⁾	The proximity switch is always located opposite of the line connection

Installation space for mating connector

¹⁾	Piston Ø 220 ... 320 mm Angled mating connector not possible

Proximity switch

ØAL	ØMM	PM	L7	X3	X4	X5
mm		mm	mm	mm	mm	mm
40	22 mm / -	112	83	94	170	125
40	28 mm / -	112	83	94	170	125
50	28 mm / -	110	92	98	175	130
50	36 mm / -	110	92	98	175	130
63	36 mm / -	125	104	103	180	135
63	45 mm / -	125	104	103	180	135
80	45 mm / -	138	108	108	185	140
80	56 mm / -	138	108	108	185	140
100	56 mm / -	161	129	116	195	150
100	70 mm / -	161	129	116	195	150
125	70 mm / -	189	143	126	205	160
125	90 mm / -	189	143	126	205	160
140	90 mm / -	209	161	146	225	180
140	100 mm / -	209	161	146	225	180
160	100 mm / -	228	191	151	230	185
160	110 mm / -	228	191	151	230	185
180	110 mm / -	254	204	159	235	190
180	125 mm / -	254	204	159	235	190
200	125 mm / -	264	212	166	245	200
200	140 mm / -	264	212	166	245	200
220	140 mm / -	310	250	177 ¹⁾	255	-
220	160 mm / -		250	177 ¹⁾	255
250	160 mm / -		274	187 ¹⁾	265
250	180 mm / -		274	187 ¹⁾	265
280	180 mm / -	369	285	189 ¹⁾	275
280	200 mm / -	369	285	189 ¹⁾	275
320	200 mm / -	415	295	209 ¹⁾	285
320	220 mm / -	415	295	209 ¹⁾	285

¹⁾	Piston Ø 220 ... 320 mm Proximity switch not protruding

Kinking

For the admissible stroke length with flexibly guided load and a factor of 3.5 for safety against kinking, please refer to the relevant table. For other installation positions of the cylinder, the admissible stroke length must be interpolated.

Admissible stroke length for non-guided load on request.

Kinking calculations are carried out according to the following formulas:

1. Calculation according to Euler

if λ > λ_g

2. Calculation according to Tetmajer

if λ ≤ λ_g

Explanation

E	=	module of elasticity in N/mm²
E	=	2.1 x 105 for steel
l	=	Geometrical moment of inertia in mm⁴
l		for circular cross-section
v	=	3.5 (safety factor)
L_K	=	free kinking length in mm (dependent on type of mounting; see sketches A, B, C)
d	=	Piston rod Ø in mm
λ	=	Slenderness ratio
λ	=
R_e	=	Yield strength of the piston rod material

Influence of the type of mounting on the kinking length:

Admissible stroke length
Type of mounting MF3

ØAL	ØMM	admissible stroke length with
		100 bar			160 bar			250 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	22 mm / -	895	915	980	730	735	760	440	450	510
40	28 mm / -	1400	1415	1630	1180	1205	1275	970	980	1010
50	28 mm / -	1180	1200	1280	955	965	995	700	730	780
50	36 mm / -	1785	1855	2160	1530	1570	1695	1275	1290	1340
63	36 mm / -	1520	1560	1690	1250	1270	1315	1010	1015	1035
63	45 mm / -	2000	2000	2000	1875	1925	2000	1570	1595	1670
80	45 mm / -	1855	1905	2000	1540	1560	1630	1140	1180	1280
80	56 mm / -	2000	2000	2000	2000	2000	2000	1910	1940	2000
100	56 mm / -	2250	2320	2500	1880	1910	2010	1300	1360	1580
100	70 mm / -	3000	3000	3000	2770	2860	3000	2360	2400	2550
125	70 mm / -	2760	2860	3000	2330	2375	2520	1580	1680	1990
125	90 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
140	90 mm / -	3000	3000	3000	3000	3000	3000	2770	2820	2980
140	100 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
160	100 mm / -	3000	3000	3000	3000	3000	3000	2980	3000	3000
160	110 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
180	110 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
180	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	140 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
220	140 mm / -	5400	5680	6000	4800	4980	5780	4120	4220	4560
220	160 mm / -	6000	6000	6000	5820	6000	6000	5150	5330	6000
250	160 mm / -	6000	6000	6000	5450	5660	6000	4720	4840	5290
250	180 mm / -	6000	6000	6000	6000	6000	6000	5730	5920	6000
280	180 mm / -	6000	6000	6000	6000	6000	6000	5270	5420	5970
280	200 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000
320	200 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000
320	220 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MT4

ØAL	ØMM	admissible stroke length with
		100 bar			160 bar			250 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	22 mm / -	340	345	365	250	255	260	130	135	145
40	28 mm / -	590	605	665	470	480	500	365	370	375
50	28 mm / -	460	470	495	350	355	365	245	250	260
50	36 mm / -	790	815	910	645	655	690	510	515	525
63	36 mm / -	610	625	675	475	485	500	360	365	370
63	45 mm / -	965	1000	1140	800	815	870	635	645	665
80	45 mm / -	770	790	850	605	615	635	440	455	475
80	56 mm / -	1190	1235	1410	990	1010	1080	795	805	830
100	56 mm / -	930	955	1060	745	755	795	490	510	595
100	70 mm / -	1430	1490	1770	1210	1240	1360	985	1000	1045
125	70 mm / -	1185	1225	1360	960	980	1030	640	670	780
125	90 mm / -	1885	1970	2390	1620	1665	1850	1340	1360	1430
140	90 mm / -	1675	1710	2060	1410	1415	1575	1140	1155	1205
140	100 mm / -	2020	2115	2610	1735	1790	2010	1440	1465	1555
160	100 mm / -	1805	1880	2210	1510	1550	1680	1215	1230	1285
160	110 mm / -	2140	2240	2740	1830	1885	2100	1505	1535	1620
180	110 mm / -	1925	2005	2360	1605	1650	1790	1290	1310	1360
180	125 mm / -	2420	2540	3000	2080	2150	2420	1720	1755	1865
200	125 mm / -	2130	2230	2690	1790	1840	2040	1440	1465	1540
200	140 mm / -	2610	2750	3000	2250	2330	2670	1865	1910	2050
220	140 mm / -	2490	2510	3150	2050	2120	2400	1685	1720	1835
220	160 mm / -	3000	3170	4230	2640	2750	3260	2240	2310	2530
250	160 mm / -	2750	2900	3660	2380	2460	2810	1970	2020	2160
250	180 mm / -	3350	3540	4750	2960	3090	3670	2520	2600	2850
280	180 mm / -	3040	3210	4140	2640	2750	3170	2210	2260	2440
280	200 mm / -	3620	3840	5210	3210	3360	4040	2750	2830	3140
320	200 mm / -	3210	3390	4410	2790	2900	3380	2320	2380	2580
320	220 mm / -	3770	4000	5450	3340	3490	4200	2850	2930	3250

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MS2

ØAL	ØMM	admissible stroke length with
		100 bar			160 bar			250 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	22 mm / -	825	840	885	645	650	665	370	375	410
40	28 mm / -	1305	1350	1535	1085	1110	1180	875	885	910
50	28 mm / -	1075	1100	1175	855	865	890	610	625	675
50	36 mm / -	1680	1750	2000	1430	1465	1590	1175	1190	1240
63	36 mm / -	1405	1440	1570	1135	1155	1200	895	900	920
63	45 mm / -	2000	2000	2000	1760	1810	1990	1460	1480	1555
80	45 mm / -	1730	1780	1960	1410	1435	1500	1000	1050	1155
80	56 mm / -	2000	2000	2000	2000	2000	2000	1785	1820	1920
100	56 mm / -	2110	2180	2440	1740	1770	1870	1140	1220	1440
100	70 mm / -	3000	3000	3000	2620	2710	3000	2210	2260	2400
125	70 mm / -	2600	2695	3000	2170	2210	2360	1400	1480	1820
125	90 mm / -	3000	3000	3000	3000	3000	3000	2890	2970	3000
140	90 mm / -	3000	3000	3000	3000	3000	3000	2585	2635	2800
140	100 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
160	100 mm / -	3000	3000	3000	3000	3000	3000	2760	2810	2800
160	110 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
180	110 mm / -	3000	3000	3000	3000	3000	3000	2940	3000	2990
180	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	140 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
220	140 mm / -	5090	5370	6000	4490	4670	5470	3820	3910	4260
220	160 mm / -	6000	6000	6000	5510	5800	6000	4850	5020	5750
250	160 mm / -	5790	5790	6000	5150	5370	6000	4420	4540	4990
250	180 mm / -	6000	6000	6000	6000	6000	6000	5420	5630	6000
280	180 mm / -	6000	6000	6000	5700	5960	6000	4930	5070	5630
280	200 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000
320	200 mm / -	6000	6000	6000	6000	6000	6000	5200	5400	6000
320	220 mm / -	6000	6000	6000	6000	6000	6000	6000	6000	6000

Installation position

¹⁾	Adm. stroke length

With longer strokes, an extended guide and/or the use of guide rings may be reasonable for increasing the service life, depending on the respective case of application and installation position. Recommendation upon request.

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Quantity:
Availability:





Inquire Add to Basket

Product Category

Ordering code

Additional options

Ordering code

Additional options

general

Weight

Selection criteria for seals

Stroke velocity

Notices:

Project planning software ICS (Interactive Catalog System)

Diameters, areas, forces, flow

Tolerances according to DIN ISO 6022

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding / measuring coupling

Proximity switch

Technical data proximity switch

Corrosivity categories

general

Weight

Selection criteria for seals

Stroke velocity

Notices:

Project planning software ICS (Interactive Catalog System)

Diameters, areas, forces, flow

Tolerances according to DIN ISO 6022

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding / measuring coupling

Proximity switch

Technical data proximity switch

Corrosivity categories

Type of mounting MF3: Round flange at the cylinder head

MF3: with seal design \u201cA\u201d, \u201cB\u201d and AL Ø 160 \u2026 320 mm

type of mounting MF3

Type of mounting MT4: Trunnion

MT4: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

type of mounting MT4

type of mounting MS2

MS2: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

type of mounting MS2

Flange ports

Version \u201cD\u201dISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201dISO 6164 tab. 2 (400 bar)

Throttle valve

Proximity switch

Installation space for mating connector

Proximity switch

Type of mounting MF3: Round flange at the cylinder head

MF3: with seal design \u201cA\u201d, \u201cB\u201d and AL Ø 160 \u2026 320 mm

type of mounting MF3

Type of mounting MT4: Trunnion

MT4: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

type of mounting MT4

type of mounting MS2

MS2: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

type of mounting MS2

Flange ports

Version \u201cD\u201dISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201dISO 6164 tab. 2 (400 bar)

Throttle valve

Proximity switch

Installation space for mating connector

Proximity switch

Kinking

Explanation

Influence of the type of mounting on the kinking length:

Admissible stroke lengthType of mounting MF3

Installation position

Admissible stroke lengthType of mounting MT4

Installation position

Admissible stroke lengthType of mounting MS2

Installation position

Kinking

Explanation

Influence of the type of mounting on the kinking length:

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201d
ISO 6164 tab. 2 (400 bar)

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201d
ISO 6164 tab. 2 (400 bar)

Admissible stroke length
Type of mounting MF3

Admissible stroke length
Type of mounting MT4

Admissible stroke length
Type of mounting MS2

Admissible stroke length
Type of mounting MF3

Admissible stroke length
Type of mounting MT4

Admissible stroke length
Type of mounting MS2
