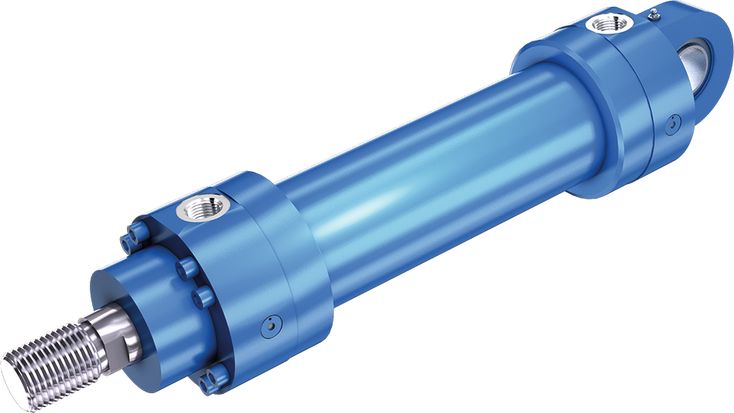

CDM1

Series M1.
Component series 2X.
Nominal pressure 160 bar.
Piston Ø 25 … 200 mm.
Piston rod Ø 14 … 140 mm.
Stroke length up to 3000 mm.

Quantity:
Availability:





Inquire Add to Basket

Installation dimensions according to ISO 6020/1 and VW 39 D 920
9 types of mounting
Self-adjusting and adjustable end position cushioning

Ordering code

01	02	03		04		05		06	07	08		09	10	11	12	13	14	15	16	17
CD	M1		/		/		/		A	2X	/

01	Single rod cylinder		CD
02	Series		M1
Types of mounting
03	Without mounting		M00¹⁾
	Rectangular flange at cylinder head		MF1²⁾
	Rectangular flange at cylinder base		MF2²⁾
	Round flange at the cylinder head		MF3
	Round flange at the cylinder base		MF4
	Swivel eye at cylinder base		MP3
	Self-aligning clevis at cylinder base		MP5
	Trunnion		MT4³⁾
	Foot mounting		MS2
04	Piston Ø (ØAL) from 25 ... 200 mm; see Technical data		...
05	Piston rod Ø (ØMM) 14 \u2026 140 mm; see Technical data		...
06	Stroke length in mm		...
Design principle
07	Head and base flanged		A
08	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions)		2X
Line connection / version
09	Pipe thread according to ISO 1179-1		B
	Metric ISO thread (DIN/ISO 6149-1)		R
	Enlarged pipe thread according to ISO 1179-1; see Dimensions		S^4;5)
	Rectangular flange connection according to ISO 6162; see Dimensions		F^5;6)
	Square flange connection according to ISO 6164; see Dimensions		H^5;7)
	For directional and high-response valves; see Dimensions	Subplate NG6	P^5;8;13)
		Subplate NG10	T^5;9;13)
		Subplate NG16	U^5;10;13)
	For SL and SV valves¹⁴⁾; see Dimensions	Subplate NG6	A^5;8;13)
		Subplate NG10	E^5;9;13)
		Subplate NG20	L^5;10;13)
Line connection/position at cylinder head
10	View to piston rod¹⁶⁾		1
			2
			3
			4
Line connection/position at cylinder base
11	View to piston rod¹⁶⁾		1
			2
			3
			4
Piston rod design
12	Hard chromium-plated		C
	Hardened and hard chromium-plated		H¹¹⁾
	Stainless steel, hard chromium-plated		L
Piston rod end
13	Thread (ISO 6020-1) for swivel head CGKD		G
	Thread (VW standard) for swivel head CGKD		H¹⁵⁾
	Internal thread; see dimensions		E¹²⁾
	Piston rod end \u201cH\u201d with mounted swivel head CGKD		F¹⁵⁾
	Piston rod end \u201cG\u201d with mounted swivel head CGKD		K
End position cushioning
14	Without end position cushioning		U
	Both sides, self-adjusting		D
	Head sides, self-adjusting		S
	Base sides, self-adjusting		K
	Both sides, adjustable		E
Seal design
15	Suitable for mineral oil according to DIN 51524 HL, HLP	Standard seal system	M
		Servo quality/reduced friction	T⁷⁾
		Chevron seal kits	A⁶⁾
	Suitable for phosphoric acid esters HFR	Standard seal system	V
	Suitable for phosphoric acid esters HFR	Servo quality/reduced friction	S⁷⁾
Option 1
16	Without option		W
	Measuring coupling, on both sides		A
	Inductive proximity switches without mating connector, mating connector \u2013 separate order; see Accessories		E⁷⁾
Option 2
17	Without option		W
17	With piston rod extension \u201cLY\u201d in mm		Y¹⁷⁾

¹⁾	Only available upon request
²⁾	Piston Ø 25 \u2026 125 mm
³⁾	When ordering, always specify the "XV" dimensions in the plain text in mm (see order example)
⁴⁾	Piston Ø 63 \u2026 200 mm
⁵⁾	Not for MF2; MF4
⁶⁾	Piston Ø 50 \u2026 200 mm
⁷⁾	Piston Ø 40 \u2026 200 mm
⁸⁾	Piston Ø 40 \u2026 80 mm, only position 11
⁹⁾	Piston Ø 63 \u2026 200 mm, only position 11
¹⁰⁾	Piston Ø 125 \u2026 200 mm, only position 11
¹¹⁾	Piston rod Ø 14 \u2026 110 mm
¹²⁾	Piston rod Ø 22 \u2026 140 mm
¹³⁾	Subplates only possible with pipe thread (ISO 1179-1)
¹⁴⁾	Subplates for SL and SV valves (isolator valves) Please note: Seal designs T and S are not designed for the static holding function!
¹⁵⁾	Per piston Ø only possible with large piston rod Ø
¹⁶⁾	All graphical representations in the data sheet show position 1
¹⁷⁾	When ordering, always specify the piston rod extension dimension "LY" in the plain text in mm (see order example)
	Order example:
	CDM1MT4/50/28/550A2X/B11CGDMWW, XV = 175 mm
	CDM1MF3/200/140/950A2X/B11CHKAWW
	Note:
	Replacement cylinder for series 1X
	In case of exchange with series 2X, you also have to exchange the bearing blocks (trunnions)!

01	Single rod cylinder	CD
02	Series	M1
Types of mounting
03	Without mounting	M00¹⁾
Rectangular flange at cylinder head	MF1²⁾
Rectangular flange at cylinder base	MF2²⁾
Round flange at the cylinder head	MF3
Round flange at the cylinder base	MF4
Swivel eye at cylinder base	MP3
Self-aligning clevis at cylinder base	MP5
Trunnion	MT4³⁾
Foot mounting	MS2
04	Piston Ø (ØAL) from 25 ... 200 mm; see Technical data	...
05	Piston rod Ø (ØMM) 14 \u2026 140 mm; see Technical data	...
06	Stroke length in mm	...
Design principle
07	Head and base flanged	A
08	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions)	2X
Line connection / version
09	Pipe thread according to ISO 1179-1	B
Metric ISO thread (DIN/ISO 6149-1)	R
Enlarged pipe thread according to ISO 1179-1; see Dimensions	S^4;5)
Rectangular flange connection according to ISO 6162; see Dimensions	F^5;6)
Square flange connection according to ISO 6164; see Dimensions	H^5;7)
For directional and high-response valves; see Dimensions	Subplate NG6	P^5;8;13)
Subplate NG10	T^5;9;13)
Subplate NG16	U^5;10;13)
For SL and SV valves¹⁴⁾; see Dimensions	Subplate NG6	A^5;8;13)
Subplate NG10	E^5;9;13)
Subplate NG20	L^5;10;13)
Line connection/position at cylinder head
10	View to piston rod¹⁶⁾		1
2
3
4
Line connection/position at cylinder base
11	View to piston rod¹⁶⁾		1
2
3
4
Piston rod design
12	Hard chromium-plated	C
Hardened and hard chromium-plated	H¹¹⁾
Stainless steel, hard chromium-plated	L
Piston rod end
13	Thread (ISO 6020-1) for swivel head CGKD	G
Thread (VW standard) for swivel head CGKD	H¹⁵⁾
Internal thread; see dimensions	E¹²⁾
Piston rod end \u201cH\u201d with mounted swivel head CGKD	F¹⁵⁾
Piston rod end \u201cG\u201d with mounted swivel head CGKD	K
End position cushioning
14	Without end position cushioning	U
Both sides, self-adjusting	D
Head sides, self-adjusting	S
Base sides, self-adjusting	K
Both sides, adjustable	E
Seal design
15	Suitable for mineral oil according to DIN 51524 HL, HLP	Standard seal system	M
Servo quality/reduced friction	T⁷⁾
Chevron seal kits	A⁶⁾
Suitable for phosphoric acid esters HFR	Standard seal system	V
Servo quality/reduced friction	S⁷⁾
Option 1
16	Without option	W
Measuring coupling, on both sides	A
Inductive proximity switches without mating connector, mating connector \u2013 separate order; see Accessories	E⁷⁾
Option 2
17	Without option	W
With piston rod extension \u201cLY\u201d in mm	Y¹⁷⁾

general

Installation position		any
Ambient temperature range	°C	-20 \u2026 +80
Primer coat		Gentian blue (RAL 5010)
Minimum layer thickness of the priming ¹⁾	µm	40

¹⁾

Other colors upon request. With cylinders and attachment parts, the following surfaces are not primed or painted:
▶ All fit diameters to the customer\u2019s side
▶ Sealing surfaces for line connection
▶ Sealing surfaces for flange connection
▶ Position measurement system
The unpainted surfaces are protected using a corrosion protection agent which is free from solvents.

hydraulic

Nominal pressure ¹⁾	bar	160
Minimum operating pressure (without load) ²⁾	bar	10
Static test pressure	bar	240
Hydraulic fluid temperature range	°C	-20 \u2026 +80
Operating viscosity range	mm²/s	2.8 \u2026 380
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) ³⁾		Class 20/18/15 according to ISO 4406 (c)
Maximum stroke velocity (depending on line connection) ⁴⁾	m/s	0.5

¹⁾	Higher operating pressures up to 200 bar upon request. With extreme shock loads, mounting elements and threaded piston rod connections must be designed for durability.
²⁾	Depending on the application, a certain minimum pressure is required in order to guarantee good functioning of the cylinder. Without load, a minimum pressure of 10 bar is recommended for differential cylinders; for lower pressures as well as double-acting cylinders, please contact us.
³⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.
⁴⁾	If the extension velocity is considerably higher than the retraction velocity of the piston rod, drag-out losses of the medium may result. If necessary, please consult us.

Hydraulic fluid¹⁾	Classification	Suitable sealing materials	Standards
Mineral oil	HL, HLP	FKM, NBR	DIN 51524
Phosphoric acid esters	HFDR	FKM	ISO 12922
Water glycol	HFC	upon request

¹⁾	For further information on hydraulic fluids refer to data sheet R.90223.

Weight

Piston	Piston rod	with 0 mm stroke length						per 100 mm stroke length
ØAL	ØMM	M00	MP3/MP5	MF1/MF2	MF3/MF4	MT4	MS2
mm		kg	kg	kg	kg	kg	kg	kg
25	14 mm / -	2.2	2.3	2.6	2.7	2.6	3.2	0.5
25	18 mm / -	2.2	2.3	2.6	2.7	2.6	3.2	0.6
32	18 mm / -	3.1	3.3	3.8	4	3.7	4.7	0.7
32	22 mm / -	3.1	3.3	3.8	4	3.7	4.7	0.8
40	22 mm / -	5.5	5.9	6.4	6.7	6.5	7.6	0.9
40	28 mm / -	5.6	6	6.5	6.8	6.6	7.7	1.1
50	28 mm / -	8.1	8.9	9.7	10.2	9.8	12	1.2
50	36 mm / -	8.3	9.1	9.9	10.4	10	12.2	1.5
63	36 mm / -	14	15.5	17	17.5	17	20	2.1
63	45 mm / -	14	15.5	17	17.5	17	20	2.6
80	45 mm / -	20	22.5	24	25	24	29	2.9
80	56 mm / -	20	22.5	24	25	24	29	3.6
100	56 mm / -	36	41	42.5	44.5	43.5	52	5.4
100	70 mm / -	37	42	43.5	45.5	44.5	53	6.5
125	70 mm / -	60	66	68	70	73.5	86	7.3
125	90 mm / -	61	67	69	71	74.5	87	9.3
160	90 mm / -	107	122	-	121	136	148	11.5
160	110 mm / -	108	123	-	122	137	149	14
200	110 mm / -	193	222	-	217	245	259	15.4
200	140 mm / -	196	225	-	220	248	262	20.1

Life cycle:

Rexroth cylinders correspond to the reliability recommendations for industrial applications. ≥ 10,000,000 Double strokes in idle continuous operation or 3,000 km piston travel at 70 % of the nominal pressure, without load on the piston rod, with a maximum velocity of 0.5 m/s, with a failure rate of less than 5 %.

Notices:

Boundary and application conditions:

The mechanical alignment of the movement axis and thus the mounting points of hydraulic cylinder and piston rod must be ensured. Lateral forces on the guides of piston rod and piston are to be avoided. It may be necessary to consider the own weight of the hydraulic cylinder (MP3/MP5 or MT4) or the piston rod.

The kinking length/kinking load of the piston rod and/or the hydraulic cylinder must be observed (see Kinking).

The maximum admissible stroke velocities with regard to the suitability/load of seals must be observed as must their compatibility with the properties of the fluid type (see seals).

The maximum admissible velocities/kinetic energies when moving into the end positions, also considering external loads, must be observed.

Danger: Excess pressure

The maximum admissible operating pressure must be complied with in any operating state of the hydraulic cylinder. Possible pressure intensification resulting from the area ratio of annulus area to piston area and possible throttling points are to be observed.

Detrimental environmental influences, like e. g. aggressive finest particles, vapors, high temperatures, etc. as well as contamination and deterioration of the hydraulic fluid are to be avoided.

Standards:

The installation dimensions and types of mounting of the cylinders comply with the standards ISO 6020/1 and VW 39 D 920.

Acceptance:

Each cylinder is tested according to Bosch Rexroth standard and in compliance with ISO 10100: 2001.

Safety instructions:

For assembly, commissioning and maintenance of hydraulic cylinders, observe the operating instructions 07100-B!

Service and repair work has to be performed by Bosch Rexroth AG or by personnel especially trained for this purpose. No warranty is accepted for damage as a consequence of assembly, maintenance or repair work not performed by Bosch Rexroth AG.

Check lists for hydraulic cylinders:

Cylinders the characteristics and/or application parameters of which deviate from the values specified in the data sheet can only be offered as a special version upon request. For offers, the variations of the characteristics and/or application parameters must be described in the check lists for hydraulic cylinders (07200).

This list does not claim to be complete. In case of questions regarding the compatibility with the medium or exceedance of the boundary or application conditions, please contact us.

All graphical representations in the data sheet are examples. The product supplied may therefore differ from the figure.

Project planning software ICS (Interactive Catalog System)

The ICS (Interactive Catalog System) is a selection and project planning help for hydraulic cylinders. The ICS allows designers for machines and systems to quickly and reliably find the perfect hydraulic cylinder solution through logic-guided type key enquiries. This software helps to solve design and project planning tasks more quickly and efficiently. After having been guided through the product selection, the user quickly and reliably gets the exact technical data of the selected component as well as 2D and 3D CAD data in the correct file format for all common CAD systems.

This allows users to reduce costs while increasing their competitiveness.

www.boschrexroth.com/ics

Diameters, areas, forces, flow

Piston	Piston rod	Area ratio	Areas			Force at 160 bar			Flow at 0.1 m/s			Maximum available stroke length
Piston	Piston rod	Area ratio	Piston	Rod	Ring	Pressure	Differential	Traction	Off	Differential	On	Maximum available stroke length
ØAL	ØMM	φ A₁/A₃	A₁	A₂	A₃	F₁	F₂	F₃	q_V1	q_V2	q_V3
mm			cm²	cm²	cm²	kN	kN	kN	l/min	l/min	l/min	mm
25	14 mm / -	1.46	4.91	1.54	3.37	7.85 ¹⁾	2.44	5.37	2.9 ²⁾	0.9	2	600
25	18 mm / -	2.08	4.91	2.54	2.36	7.85 ¹⁾	4.07	3.76	2.9 ²⁾	1.5	1.4	600
32	18 mm / -	1.46	8.04	2.54	5.5	12.8 ¹⁾	4.07	8.78	4.8 ²⁾	1.5	3.3	800
32	22 mm / -	1.9	8.04	3.8	4.24	12.8 ¹⁾	6.08	6.76	4.8 ²⁾	2.3	2.5	800
40	22 mm / -	1.43	12.56	3.8	8.76	20 ¹⁾	6.08	14.03	7.5 ²⁾	2.3	5.2	1000
40	28 mm / -	1.96	12.56	6.16	6.41	20 ¹⁾	9.82	10.24	7.5 ²⁾	3.7	3.8	1000
50	28 mm / -	1.46	19.63	6.16	13.47	31.3 ¹⁾	9.82	21.55	11.8 ²⁾	3.7	8.1	1200
50	36 mm / -	2.08	19.63	10.18	9.46	31.3 ¹⁾	16.29	15.1	11.8 ²⁾	6.1	5.6	1200
63	36 mm / -	1.48	31.17	10.18	20.99	49.8 ¹⁾	16.29	33.56	18.7 ²⁾	6.1	12.6	1400
63	45 mm / -	2.04	31.17	15.9	15.27	49.8 ¹⁾	25.4	24.41	18.7 ²⁾	9.5	9.2	1400
80	45 mm / -	1.46	50.26	15.9	34.36	80.3 ¹⁾	25.4	54.96	30.2 ²⁾	9.5	20.7	1700
80	56 mm / -	1.96	50.26	24.63	25.63	80.3 ¹⁾	39.3	40.99	30.2 ²⁾	14.8	15.4	1700
100	56 mm / -	1.46	78.54	24.63	53.91	125 ¹⁾	39.3	86.22	47.1 ²⁾	14.8	32.3	2000
100	70 mm / -	1.96	78.54	38.48	40.06	125 ¹⁾	61.5	64.04	47.1 ²⁾	23.1	24	2000
125	70 mm / -	1.46	122.72	38.48	84.24	196 ¹⁾	61.5	134.7	73.6 ²⁾	23.1	50.5	2300
125	90 mm / -	2.08	122.72	63.62	59.1	196 ¹⁾	101	94.49	73.6 ²⁾	38.2	35.4	2300
160	90 mm / -	1.46	201.06	63.62	137.44	321 ¹⁾	101	219.8	120.6 ²⁾	38.2	82.4	2600
160	110 mm / -	1.9	201.06	95.06	106	321 ¹⁾	151	169.5	120.6 ²⁾	57	63.6	2600
200	110 mm / -	1.43	314.16	95.06	219.09	502.6 ¹⁾	152	350.6	188.5 ²⁾	57	131.5	3000
200	140 mm / -	1.96	314.16	153.96	160.2	502.6 ¹⁾	246.3	256.3	188.5 ²⁾	92.4	96.1	3000

¹⁾	Theoretical static cylinder force (without consideration of the efficiency and admissible load for attachment parts such as swivel heads, plates, or valves, etc.)
²⁾	Stroke velocity

Tolerances according to ISO 6020-1

Installation dimensions	WF	W	WC	CX¹⁾	XO¹⁾	XS	SS	XV	ZF¹⁾	ZP¹⁾
Mounting type	M00	MF1	MF3	MP3	MP5	MS2	MS2	MT4	MF2	MF4
Stroke length in mm	Tolerances in mm										Stroke tolerances in mm
≤ 1.250	±2	±2	±2	±1,5	±1,5	±2	±1,5	±2	±1,5	±1,5	±2
> 1.250 \u2026 ≤ 3.000	±4	±4	±4	±3	±3	±4	±3	±4	±3	±3	±5

¹⁾	Not standardized

Type of mounting M00: no mounting

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF1: Rectangular flange at cylinder head

Type of mounting MF2: Rectangular flange at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding/measuring coupling

By default, a patented safety bleeding device against unintended screwing out in head and base is delivered for piston Ø ≥ 40 mm .

For piston Ø 25 + 32 mm, a bleed screw G1/8 is installed in head and base which is not secured against screwing out.

The port allows for the installation of a measuring coupling with check valve for pressure measurement or contamination-free bleeding. Measuring coupling with check valve function, i. e. it can also be connected when the system is pressurized.

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)

Connection possibility for measuring coupling

ØAL	Bleed screw			Measuring coupling
mm	D1	Fuse	SW	D2
25 + 32	G1/8	not secured	5	G1/8
40 + 50	G1/8	secured	5	G1/8
63 \u2026 200	G1/4	secured	6	G1/4

Piston Ø (ØAL) 25 + 32 mm

Piston Ø (ØAL) 40 \u2026 200 mm

Scope of delivery: measuring coupling G1/8

MESSKUPPLUNG AB 20-11/K3 G1/8 with seal ring made of NBR

Material no. R900014363

MESSKUPPLUNG AB 20-11/K3V G1/8 with seal ring made of FKM

Material no. R900024710

Scope of delivery: Measuring coupling G1/4

MESSKUPPLUNG AB 20-11/K1 G1/4 with seal ring made of NBR

Material no. R900009090

MESSKUPPLUNG AB 20-11/K1V G1/4 with seal ring made of FKM

Material no. R900001264

Proximity switches

Inductive proximity switches are used as reliable end position control for hydraulic cylinders. They are an important element for the safe and exact monitoring of safety equipment, locks and/or other machine functions in their end position by means of the output of signals. The proximity switch which is high-pressure resistant up to 500 bar works in a contactless manner. Consequently, it is wear-free. The proximity switch has been set at the factory. The switching distance must not be adjusted. The lock nut of the proximity switch is marked at the factory using sealing wax. On versions with proximity switch, the cylinders are equipped with proximity switches on both sides.

Technical data proximity switch

Function type			PNP normally open contact
Admissible pressure		bar	500
Operating voltage		V DC	10 ... 30
Operating voltage	including residual ripple	%	≤ 15
Voltage drop		V	≤ 1.5
Rated operating voltage		V DC	24
Rated operating current		mA	200
Idle current		mA	≤ 8
Residual current		μA	≤ 10
Repetition accuracy		%	≤ 5
Hysteresis		%	≤ 15
Ambient temperature range		°C	-25 \u2026 +80
Temperature drift		%	≤ 10
Switching frequency		Hz	1000
Protection class	active area		IP68 according to DIN 40050
Protection class	Proximity switch		IP67 according to DIN 40050
Housing material			Material no. 1.4104

Pin assignment

Installation position	any
Ambient temperature range	°C	-20 \u2026 +80
Primer coat	Gentian blue (RAL 5010)
Minimum layer thickness of the priming ¹⁾	µm	40

Hydraulic fluid¹⁾	Classification	Suitable sealing materials	Standards
Mineral oil	HL, HLP	FKM, NBR	DIN 51524
Phosphoric acid esters	HFDR	FKM	ISO 12922
Water glycol	HFC	upon request

Piston	Piston rod	with 0 mm stroke length	per 100 mm stroke length
25	14 mm / -	2.2	2.3	2.6	2.7	2.6	3.2	0.5
18 mm / -	2.2	2.3	2.6	2.7	2.6	3.2	0.6
32	18 mm / -	3.1	3.3	3.8	4	3.7	4.7	0.7
22 mm / -	3.1	3.3	3.8	4	3.7	4.7	0.8
40	22 mm / -	5.5	5.9	6.4	6.7	6.5	7.6	0.9
28 mm / -	5.6	6	6.5	6.8	6.6	7.7	1.1
50	28 mm / -	8.1	8.9	9.7	10.2	9.8	12	1.2
36 mm / -	8.3	9.1	9.9	10.4	10	12.2	1.5
63	36 mm / -	14	15.5	17	17.5	17	20	2.1
45 mm / -	14	15.5	17	17.5	17	20	2.6
80	45 mm / -	20	22.5	24	25	24	29	2.9
56 mm / -	20	22.5	24	25	24	29	3.6
100	56 mm / -	36	41	42.5	44.5	43.5	52	5.4
70 mm / -	37	42	43.5	45.5	44.5	53	6.5
125	70 mm / -	60	66	68	70	73.5	86	7.3
90 mm / -	61	67	69	71	74.5	87	9.3
160	90 mm / -	107	122	-	121	136	148	11.5
110 mm / -	108	123	-	122	137	149	14
200	110 mm / -	193	222	-	217	245	259	15.4
140 mm / -	196	225	-	220	248	262	20.1

Piston	Piston rod	Area ratio	Areas	Force at 160 bar	Flow at 0.1 m/s	Maximum available stroke length
25	14 mm / -	1.46	4.91	1.54	3.37	7.85 ¹⁾	2.44	5.37	2.9 ²⁾	0.9	2	600
18 mm / -	2.08	4.91	2.54	2.36	7.85 ¹⁾	4.07	3.76	2.9 ²⁾	1.5	1.4	600
32	18 mm / -	1.46	8.04	2.54	5.5	12.8 ¹⁾	4.07	8.78	4.8 ²⁾	1.5	3.3	800
22 mm / -	1.9	8.04	3.8	4.24	12.8 ¹⁾	6.08	6.76	4.8 ²⁾	2.3	2.5	800
40	22 mm / -	1.43	12.56	3.8	8.76	20 ¹⁾	6.08	14.03	7.5 ²⁾	2.3	5.2	1000
28 mm / -	1.96	12.56	6.16	6.41	20 ¹⁾	9.82	10.24	7.5 ²⁾	3.7	3.8	1000
50	28 mm / -	1.46	19.63	6.16	13.47	31.3 ¹⁾	9.82	21.55	11.8 ²⁾	3.7	8.1	1200
36 mm / -	2.08	19.63	10.18	9.46	31.3 ¹⁾	16.29	15.1	11.8 ²⁾	6.1	5.6	1200
63	36 mm / -	1.48	31.17	10.18	20.99	49.8 ¹⁾	16.29	33.56	18.7 ²⁾	6.1	12.6	1400
45 mm / -	2.04	31.17	15.9	15.27	49.8 ¹⁾	25.4	24.41	18.7 ²⁾	9.5	9.2	1400
80	45 mm / -	1.46	50.26	15.9	34.36	80.3 ¹⁾	25.4	54.96	30.2 ²⁾	9.5	20.7	1700
56 mm / -	1.96	50.26	24.63	25.63	80.3 ¹⁾	39.3	40.99	30.2 ²⁾	14.8	15.4	1700
100	56 mm / -	1.46	78.54	24.63	53.91	125 ¹⁾	39.3	86.22	47.1 ²⁾	14.8	32.3	2000
70 mm / -	1.96	78.54	38.48	40.06	125 ¹⁾	61.5	64.04	47.1 ²⁾	23.1	24	2000
125	70 mm / -	1.46	122.72	38.48	84.24	196 ¹⁾	61.5	134.7	73.6 ²⁾	23.1	50.5	2300
90 mm / -	2.08	122.72	63.62	59.1	196 ¹⁾	101	94.49	73.6 ²⁾	38.2	35.4	2300
160	90 mm / -	1.46	201.06	63.62	137.44	321 ¹⁾	101	219.8	120.6 ²⁾	38.2	82.4	2600
110 mm / -	1.9	201.06	95.06	106	321 ¹⁾	151	169.5	120.6 ²⁾	57	63.6	2600
200	110 mm / -	1.43	314.16	95.06	219.09	502.6 ¹⁾	152	350.6	188.5 ²⁾	57	131.5	3000
140 mm / -	1.96	314.16	153.96	160.2	502.6 ¹⁾	246.3	256.3	188.5 ²⁾	92.4	96.1	3000

Installation dimensions	WF	W	WC	CX¹⁾	XO¹⁾	XS	SS	XV	ZF¹⁾	ZP¹⁾
Stroke length in mm	Tolerances in mm	Stroke tolerances in mm
≤ 1.250	±2	±2	±2	±1,5	±1,5	±2	±1,5	±2	±1,5	±1,5	±2
> 1.250 \u2026 ≤ 3.000	±4	±4	±4	±3	±3	±4	±3	±4	±3	±3	±5

ØAL	Bleed screw	Measuring coupling
25 + 32	G1/8	not secured	5	G1/8
40 + 50	G1/8	secured	5	G1/8
63 \u2026 200	G1/4	secured	6	G1/4

Function type	PNP normally open contact
Admissible pressure	bar	500
Operating voltage		V DC	10 ... 30
including residual ripple	%	≤ 15
Voltage drop	V	≤ 1.5
Rated operating voltage	V DC	24
Rated operating current	mA	200
Idle current	mA	≤ 8
Residual current	μA	≤ 10
Repetition accuracy	%	≤ 5
Hysteresis	%	≤ 15
Ambient temperature range	°C	-25 \u2026 +80
Temperature drift	%	≤ 10
Switching frequency	Hz	1000
Protection class	active area	IP68 according to DIN 40050
Proximity switch	IP67 according to DIN 40050
Housing material	Material no. 1.4104

Type of mounting M00: no mounting

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)

M00\u20262X/\u2026A: as sleeve design and AL-Ø 50 \u2026 200 mm

Type of mounting M00

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØB		ØD	ØDA	ØD4 ³⁾ ⁴⁾	EE ⁴⁾	ØD4 ³⁾ ⁵⁾	EE ⁵⁾	Y	PJ	X1	VA	VE	VD	NF	WF	ZB	ZJ	LA	LB
		ISO 6020/1		VW 39 D 920
mm			mm		mm	mm	mm		mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
25	14 mm / -	M12 x 1.25	16	-	-	12	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	3	15	-	-	28	156	150	58	43
25	18 mm / -	M14 x 1,5	18	M12 x 1.25	16	14	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	3	15	-	-	28	156	150	58	43
32	18 mm / -	M14 x 1,5	18	-	-	14	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	3	19	-	-	32	176	170	62	47
32	22 mm / -	M16 x 1.5	22	M14 x 1,5	18	18	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	3	19	-	-	32	176	170	62	47
40	22 mm / -	M16 x 1.5	22	-	-	18	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	3	19	-	-	32	196	190	73	56
40	28 mm / -	M20 x 1.5	28	M16 x 1.5	22	22	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	3	19	-	-	32	196	190	73	56
50	28 mm / -	M20 x 1.5	28	-	-	22	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	4	24	4	20	38	213	205	74	62
50	36 mm / -	M27 x 2	36	M20 x 1.5	28	30	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	4	24	4	20	38	213	205	74	62
63	36 mm / -	M27 x 2	36	-	-	30	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	4	29	4	25	45	234	224	84	72
63	45 mm / -	M33 x 2	45	M27 x 2	36	36	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	4	29	4	25	45	234	224	84	72
80	45 mm / -	M33 x 2	45	-	-	36	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	4	36	4	32	54	260	250	93	81
80	56 mm / -	M42 x 2	56	M33 x 2	45	46	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	4	36	4	32	54	260	250	93	81
100	56 mm / -	M42 x 2	56	-	-	46	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	5	37	5	32	57	310	300	117	96
100	70 mm / -	M48 x 2	63	M42 x 2	56	60	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	5	37	5	32	57	310	300	117	96
125	70 mm / -	M48 x 2	63	-	-	60	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	5	37	5	32	60	335	325	143	112
125	90 mm / -	M64 x 3	85	M48 x 2	63	75	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	5	37	5	32	60	335	325	143	112
160	90 mm / -	M64 x 3	85	-	-	75	160	f8	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	8	41	5	36	66	380	370	171	130
160	110 mm / -	M80 x 3	95	M64 x 3	85	95	160	f8	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	8	41	5	36	66	380	370	171	130
200	110 mm / -	M80 x 3	95	-	-	95	200	f8	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	15	45	5	40	75	466	450	230	151
200	140 mm / -	M100 x 3	112	M80 x 3	95	120	200	f8	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	15	45	5	40	75	466	450	230	151

¹⁾	Thread for piston rod ends \u201cG\u201d and \u201cK\u201d
²⁾	Thread for piston rod end \u201cH\u201d and \u201cF\u201d
³⁾	ØD4 recess max. 0.5 mm deep
⁴⁾	Line connection "B"
⁵⁾	Line connection \u201cR"

Type of mounting MP3/MP5: Swivel eye at cylinder base/Self-aligning clevis at cylinder base

MP3

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Lubricating nipple, cone head form A according to DIN 71412 (lubrication of bearings at piston Ø 25 mm not possible)

MP5

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Lubricating nipple, cone head form A according to DIN 71412 (lubrication of bearings at piston Ø 25 mm not possible)

MP3/MP5..2X/\u2026A: as sleeve design and AL-Ø 50 \u2026 200 mm

Type of mounting MP3/MP5

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØB		ØD	ØDA	ØD4 ³⁾ ⁴⁾	EE ⁴⁾	ØD4 ³⁾ ⁵⁾	EE ⁵⁾	Y	PJ	X1	VE	WF	NF	VD	XC/XO	ØCD		ØCX		EP	EW/EX		L/LT	MR/MS	LA	LD	L1	Z
		ISO 6020/1		VW 39 D 920
mm			mm		mm	mm	mm		mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm	mm		mm	mm	mm	mm	mm	°
25	14 mm / -	M12 x 1.25	16	-	-	12	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	15	28	-	-	178	12	H9	12	H7	11	12	h12	25	16	58	46	6	2
25	18 mm / -	M14 x 1,5	18	M12 x 1.25	16	14	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	15	28	-	-	178	12	H9	12	H7	11	12	h12	25	16	58	46	6	2
32	18 mm / -	M14 x 1,5	18	-	-	14	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	19	32	-	-	206	16	H9	16	H7	13	16	h12	33	20	62	50	6	2
32	22 mm / -	M16 x 1.5	22	M14 x 1,5	18	18	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	19	32	-	-	206	16	H9	16	H7	13	16	h12	33	20	62	50	6	2
40	22 mm / -	M16 x 1.5	22	-	-	18	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	19	32	-	-	231	20	H9	20	H7	17	20	h12	38	25	73	59	6	2
40	28 mm / -	M20 x 1.5	28	M16 x 1.5	22	22	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	19	32	-	-	231	20	H9	20	H7	17	20	h12	38	25	73	59	6	2
50	28 mm / -	M20 x 1.5	28	-	-	22	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	24	38	20	4	257	25	H9	25	H7	22	25	h12	48	32	74	66	8	2
50	36 mm / -	M27 x 2	36	M20 x 1.5	28	30	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	24	38	20	4	257	25	H9	25	H7	22	25	h12	48	32	74	66	8	2
63	36 mm / -	M27 x 2	36	-	-	30	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	29	45	25	4	289	32	H9	32	H7	27	32	h12	61	40	84	76	10	4
63	45 mm / -	M33 x 2	45	M27 x 2	36	36	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	29	45	25	4	289	32	H9	32	H7	27	32	h12	61	40	84	76	10	4
80	45 mm / -	M33 x 2	45	-	-	36	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	36	54	32	4	332	40	H9	40	H7	32	40	h12	78	50	93	85	10	4
80	56 mm / -	M42 x 2	56	M33 x 2	45	46	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	36	54	32	4	332	40	H9	40	H7	32	40	h12	78	50	93	85	10	4
100	56 mm / -	M42 x 2	56	-	-	46	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	37	57	32	5	395	50	H9	50	H7	40	50	h12	90	63	117	101	10	4
100	70 mm / -	M48 x 2	63	M42 x 2	56	60	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	37	57	32	5	395	50	H9	50	H7	40	50	h12	90	63	117	101	10	4
125	70 mm / -	M48 x 2	63	-	-	6	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	37	660	32	5	428	63	H9	63	H7	52	63	h12	98	71	143	117	12	4
125	90 mm / -	M64 x 3	85	M48 x 2	63	75	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	37	60	32	5	428	63	H9	63	H7	52	63	h12	98	71	143	117	12	4
160	90 mm / -	M64 x 3	85	-	-	75	160	f8	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	41	66	36	5	505	80	H9	80	H7	66	80	h12	127	90	171	138	12	4
160	110 mm / -	M80 x 3	95	M64 x 3	85	95	160	f8	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	41	66	36	5	505	80	H9	80	H7	66	80	h12	127	90	171	138	12	4
200	110 mm / -	M80 x 3	95	-	-	95	200	f8	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	45	75	40	5	615	100	H9	100	H7	84	100	h12	150	112	230	166	16	4
200	140 mm / -	M100 x 3	112	M80 x 3	95	120	200	f8	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	45	75	40	5	615	100	H9	100	H7	84	100	h12	150	112	230	166	16	4

¹⁾	Thread for piston rod ends \u201cG\u201d and \u201cK\u201d
²⁾	Thread for piston rod end \u201cH\u201d and \u201cF\u201d
³⁾	ØD4 recess max. 0.5 mm deep
⁴⁾	Line connection "B"
⁵⁾	Line connection \u201cR"

Type of mounting MF1: Rectangular flange at cylinder head

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)

Type of mounting MF1

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØB		ØD	ØDA	ØD4 ³⁾ ⁴⁾	EE ⁴⁾	ØD4 ³⁾ ⁵⁾	EE ⁵⁾	Y	PJ	X1	MF	VA	VD	W	ZJ	ZB	E	R		TF		UF	ØFB		LA	LB
		ISO 6020/1		VW 39 D 920
mm			mm		mm	mm	mm		mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm	mm		mm	mm
25	14 mm / -	M12 x 1.25	16	-	-	12	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	12	3	3	16	150	156	60	28.7	js13	69.2	js13	85	6.6	H13	58	43
25	18 mm / -	M14 x 1,5	18	M12 x 1.25	16	14	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	12	3	3	16	150	156	60	28.7	js13	69.2	js13	85	6.6	H13	58	43
32	18 mm / -	M14 x 1,5	18	-	-	14	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	16	3	3	16	170	176	70	35.2	js13	85	js13	105	9	H13	62	47
32	22 mm / -	M16 x 1.5	22	M14 x 1,5	18	18	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	16	3	3	16	170	176	70	35.2	js13	85	js13	105	9	H13	62	47
40	22 mm / -	M16 x 1.5	22	-	-	18	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	16	3	3	16	190	196	80	40.6	js13	98	js13	115	9	H13	73	56
40	28 mm / -	M20 x 1.5	28	M16 x 1.5	22	22	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	16	3	3	16	190	196	80	40.6	js13	98	js13	115	9	H13	73	56
50	28 mm / -	M20 x 1.5	28	-	-	22	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	20	4	4	18	205	213	100	48.2	js13	116.4	js13	140	11	H13	74	62
50	36 mm / -	M27 x 2	36	M20 x 1.5	28	30	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	20	4	4	18	205	213	100	48.2	js13	116.4	js13	140	11	H13	74	62
63	36 mm / -	M27 x 2	36	-	-	30	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	25	4	4	20	224	234	120	55.5	js13	134	js13	160	13.5	H13	84	72
63	45 mm / -	M33 x 2	45	M27 x 2	36	36	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	25	4	4	20	224	234	120	55.5	js13	134	js13	160	13.5	H13	84	72
80	45 mm / -	M33 x 2	45	-	-	36	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	32	4	4	22	250	260	135	63.1	js13	152.5	js13	185	17.5	H13	93	81
80	56 mm / -	M42 x 2	56	M33 x 2	45	46	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	32	4	4	22	250	260	135	63.1	js13	152.5	js13	185	17.5	H13	93	81
100	56 mm / -	M42 x 2	56	-	-	46	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	32	5	5	25	300	310	160	76.5	js13	184.8	js13	225	22	H13	117	96
100	70 mm / -	M48 x 2	63	M42 x 2	56	60	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	32	5	5	25	300	310	160	76.5	js13	184.8	js13	225	22	H13	117	96
125	70 mm / -	M48 x 2	63	-	-	60	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	32	5	5	28	325	335	195	90.2	js13	217.1	js13	255	22	H13	143	112
125	90 mm / -	M64 x 3	85	M48 x 2	63	75	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	32	5	5	28	325	335	195	90.2	js13	217.1	js13	255	22	H13	143	112

¹⁾	Thread for piston rod ends \u201cG\u201d and \u201cK\u201d
²⁾	Thread for piston rod end \u201cH\u201d and \u201cF\u201d
³⁾	ØD4 recess max. 0.5 mm deep
⁴⁾	Line connection "B"
⁵⁾	Line connection \u201cR"

Type of mounting MF2: Rectangular flange at cylinder base

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)

MF2..2X/\u2026A: as sleeve design and AL-Ø 50 \u2026 200 mm

Type of mounting MF2

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØB		ØD	ØDA	ØD4 ³⁾ ⁴⁾	EE ⁴⁾	ØD4 ³⁾ ⁵⁾	EE ⁵⁾	Y	PJ	X1	WF	MF	VA	VE	VD	ØBA		ZF	E	R		TF		UF	ØFB		LA	LB
		ISO 6020/1		VW 39 D 920
mm			mm		mm	mm	mm		mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm		mm		mm	mm		mm	mm
25	14 mm / -	M12 x 1.25	16	-	-	12	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	28	12	3	15	-	32	H8	162	60	28.7	js13	69.2	js13	85	6.6	H13	58	43
25	18 mm / -	M14 x 1,5	18	M12 x 1.25	16	14	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	28	12	3	15	-	32	H8	162	60	28.7	js13	69.2	js13	85	6.6	H13	58	43
32	18 mm / -	M14 x 1,5	18	-	-	14	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	32	16	3	19	-	40	H8	186	70	35.2	js13	85	js13	105	9	H13	62	47
32	22 mm / -	M16 x 1.5	22	M14 x 1,5	18	18	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	32	16	3	19	-	40	H8	186	70	35.2	js13	85	js13	105	9	H13	62	47
40	22 mm / -	M16 x 1.5	22	-	-	18	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	32	16	3	19	-	50	H8	206	80	40.6	js13	98	js13	115	9	H13	73	56
40	28 mm / -	M20 x 1.5	28	M16 x 1.5	22	22	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	32	16	3	19	-	50	H8	206	80	40.6	js13	98	js13	115	9	H13	73	56
50	28 mm / -	M20 x 1.5	28	-	-	22	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	38	20	4	24	4	60	H8	225	100	48.2	js13	116.4	js13	140	11	H13	74	62
50	36 mm / -	M27 x 2	36	M20 x 1.5	28	30	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	38	20	4	24	4	60	H8	225	100	48.2	js13	116.4	js13	140	11	H13	74	62
63	36 mm / -	M27 x 2	36	-	-	30	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	45	25	4	29	4	70	H8	249	120	55.5	js13	134	js13	160	13.5	H13	84	72
63	45 mm / -	M33 x 2	45	M27 x 2	36	36	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.4	45	25	4	29	4	70	H8	249	120	55.5	js13	134	js13	160	13.5	H13	84	72
80	45 mm / -	M33 x 2	45	-	-	36	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	54	32	4	36	4	85	H8	282	135	63.1	js13	152.5	js13	185	17.5	H13	93	81
80	56 mm / -	M42 x 2	56	M33 x 2	45	46	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	54	32	4	36	4	85	H8	282	135	63.1	js13	152.5	js13	185	17.5	H13	93	81
100	56 mm / -	M42 x 2	56	-	-	46	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	57	32	5	37	5	106	H8	332	160	76.5	js13	184.8	js13	225	22	H13	117	96
100	70 mm / -	M48 x 2	63	M42 x 2	56	60	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	57	32	5	37	5	106	H8	332	160	76.5	js13	184.8	js13	225	22	H13	117	96
125	70 mm / -	M48 x 2	63	-	-	60	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	60	32	5	37	5	132	H8	357	195	90.2	js13	217.1	js13	255	22	H13	143	112
125	90 mm / -	M64 x 3	85	M48 x 2	63	75	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	60	32	5	37	5	132	H8	357	195	90.2	js13	217.1	js13	255	22	H13	143	112

¹⁾	Thread for piston rod ends \u201cG\u201d and \u201cK\u201d
²⁾	Thread for piston rod end \u201cH\u201d and \u201cF\u201d
³⁾	ØD4 recess max. 0.5 mm deep
⁴⁾	Line connection "B"
⁵⁾	Line connection \u201cR"

Type of mounting MF3: Round flange at the cylinder head

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)

type of mounting MF3

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØB		ØD	ØDA	ØD4 ³⁾ ⁴⁾	EE ⁴⁾	ØD4 ³⁾ ⁵⁾	EE ⁵⁾	Y	PJ	X1	NF	VA	VD	WC	ZJ	ZB	ØFC		ØUC		ØFB		LA	LB
		ISO 6020/1		VW 39 D 920
mm			mm		mm	mm	mm		mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm		mm	mm
25	14 mm / -	M12 x 1.25	16	-	-	12	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	12	3	3	16	150	156	75	js13	90	0 - 1	6.6	H13	58	43
25	18 mm / -	M14 x 1,5	18	M12 x 1.25	16	14	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	12	3	3	16	150	156	75	js13	90	0 - 1	6.6	H13	58	43
32	18 mm / -	M14 x 1,5	18	-	-	14	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	16	3	3	16	170	176	92	js13	110	0 - 1	9	H13	62	47
32	22 mm / -	M16 x 1.5	22	M14 x 1,5	18	18	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	16	3	3	16	170	176	92	js13	110	0 - 1	9	H13	62	47
40	22 mm / -	M16 x 1.5	22	-	-	18	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	16	3	3	16	190	196	106	js13	125	0 - 1	9	H13	73	56
40	28 mm / -	M20 x 1.5	28	M16 x 1.5	22	22	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	16	3	3	16	190	196	106	js13	125	0 - 1	9	H13	73	56
50	28 mm / -	M20 x 1.5	28	-	-	22	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	20	4	4	18	205	213	126	js13	150	0 - 1	11	H13	74	62
50	36 mm / -	M27 x 2	36	M20 x 1.5	28	30	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	20	4	4	18	205	213	126	js13	150	0 - 1	11	H13	74	62
63	36 mm / -	M27 x 2	36	-	-	30	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	25	4	4	20	224	234	145	js13	170	0 - 1	13.5	H13	84	72
63	45 mm / -	M33 x 2	45	M27 x 2	36	36	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	25	4	4	20	224	234	145	js13	170	0 - 1	13.5	H13	84	72
80	45 mm / -	M33 x 2	45	-	-	36	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	32	4	4	22	250	260	165	js13	195	0 - 1	17.5	H13	93	81
80	56 mm / -	M42 x 2	56	M33 x 2	45	46	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	32	4	4	22	250	260	165	js13	195	0 - 1	17.5	H13	93	81
100	56 mm / -	M42 x 2	56	-	-	46	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	32	5	5	25	300	310	200	js13	240	0 - 1	22	H13	117	96
100	70 mm / -	M48 x 2	63	M42 x 2	56	60	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	32	5	5	25	300	310	200	js13	240	0 - 1	22	H13	117	96
125	70 mm / -	M48 x 2	63	-	-	60	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	32	5	5	28	325	335	235	js13	275	0 - 1	22	H13	143	112
125	90 mm / -	M64 x 3	85	M48 x 2	63	75	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	32	5	5	28	325	335	235	js13	275	0 - 1	22	H13	143	112
160	90 mm / -	M64 x 3	85	-	-	75	160	f8	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	36	8	5	30	370	380	280	js13	320	0 - 1	22	H13	171	130
160	110 mm / -	M80 x 3	95	M64 x 3	85	95	160	f8	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	36	8	5	30	370	380	280	js13	320	0 - 1	22	H13	171	130
200	110 mm / -	M80 x 3	95	-	-	95	200	f8	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	40	15	5	35	450	466	340	js13	385	0 - 1	26	H13	230	151
200	140 mm / -	M100 x 3	112	M80 x 3	95	120	200	f8	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	40	15	5	35	450	466	340	js13	385	0 - 1	26	H13	230	151

¹⁾	Thread for piston rod ends \u201cG\u201d and \u201cK\u201d
²⁾	Thread for piston rod end \u201cH\u201d and \u201cF\u201d
³⁾	ØD4 recess max. 0.5 mm deep
⁴⁾	Line connection "B"
⁵⁾	Line connection \u201cR"

Type of mounting MF4: Round flange at the cylinder base

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)

MF4..2X/\u2026A: as sleeve design and AL-Ø 50 \u2026 200 mm

type of mounting MF4

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾ ⁴⁾	EE ⁴⁾	ØD4 ³⁾ ⁵⁾	EE ⁵⁾	Y	PJ	X1	WF	NF	VA	VE	VD	ØB		ØBA		ZP	ØFC		ØUC		ØFB		LA	LB
		ISO 6020/1		VW 39 D 920
mm			mm		mm	mm	mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm	mm		mm	mm	mm		mm	mm
25	14 mm / -	M12 x 1.25	16	-	-	12	56	35	25	G1/4	21	M14 x 1,5	58	77	26	28	12	3	15	-	32	f8	32	H8	162	75	js13	90	0 - 1	6.6	H13	58	43
25	18 mm / -	M14 x 1,5	18	M12 x 1.25	16	14	56	35	25	G1/4	21	M14 x 1,5	58	77	26	28	12	3	15	-	32	f8	32	H8	162	75	js13	90	0 - 1	6.6	H13	58	43
32	18 mm / -	M14 x 1,5	18	-	-	14	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	32	16	3	19	-	40	f8	40	H8	186	92	js13	110	0 - 1	9	H13	62	47
32	22 mm / -	M16 x 1.5	22	M14 x 1,5	18	18	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	32	16	3	19	-	40	f8	40	H8	186	92	js13	110	0 - 1	9	H13	62	47
40	22 mm / -	M16 x 1.5	22	-	-	18	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	32	16	3	19	-	50	f8	50	H8	206	106	js13	125	0 - 1	9	H13	73	56
40	28 mm / -	M20 x 1.5	28	M16 x 1.5	22	22	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	32	16	3	19	-	50	f8	50	H8	206	106	js13	125	0 - 1	9	H13	73	56
50	28 mm / -	M20 x 1.5	28	-	-	22	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	38	20	4	24	4	60	f8	60	H8	225	126	js13	150	0 - 1	11	H13	74	62
50	36 mm / -	M27 x 2	36	M20 x 1.5	28	30	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	38	20	4	24	4	60	f8	60	H8	225	126	js13	150	0 - 1	11	H13	74	62
63	36 mm / -	M27 x 2	36	-	-	30	116	78	42	G3/4	34	M27 x 2	82	117	54.5	45	25	4	29	4	70	f8	70	H8	249	145	js13	170	0 - 1	13.5	H13	84	72
63	45 mm / -	M33 x 2	45	M27 x 2	36	36	116	78	42	G3/4	34	M27 x 2	82	117	54.5	45	25	4	29	4	70	f8	70	H8	249	145	js13	170	0 - 1	13.5	H13	84	72
80	45 mm / -	M33 x 2	45	-	-	36	130	95	42	G3/4	34	M27 x 2	91	134	62.5	54	32	4	36	4	85	f8	85	H8	282	165	js13	195	0 - 1	17.5	H13	93	81
80	56 mm / -	M42 x 2	56	M33 x 2	45	46	130	95	42	G3/4	34	M27 x 2	91	134	62.5	54	32	4	36	4	85	f8	85	H8	282	165	js13	195	0 - 1	17.5	H13	93	81
100	56 mm / -	M42 x 2	56	-	-	46	158	120	47	G1	43	M33 x 2	108	162	75.5	57	32	5	37	5	106	f8	106	H8	332	200	js13	240	0 - 1	22	H13	117	96
100	70 mm / -	M48 x 2	63	M42 x 2	56	60	158	120	47	G1	43	M33 x 2	108	162	75.5	57	32	5	37	5	106	f8	106	H8	332	200	js13	240	0 - 1	22	H13	117	96
125	70 mm / -	M48 x 2	63	-	-	60	192	150	47	G1	43	M33 x 2	121	174	92.5	60	32	5	37	5	132	f8	132	H8	357	235	js13	275	0 - 1	22	H13	143	112
125	90 mm / -	M64 x 3	85	M48 x 2	63	75	192	150	47	G1	43	M33 x 2	121	174	92.5	60	32	5	37	5	132	f8	132	H8	357	235	js13	275	0 - 1	22	H13	143	112
160	90 mm / -	M64 x 3	85	-	-	75	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	66	36	8	41	5	160	f8	160	H8	406	280	js13	320	0 - 1	22	H13	171	130
160	110 mm / -	M80 x 3	95	M64 x 3	85	95	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	66	36	8	41	5	160	f8	160	H8	406	280	js13	320	0 - 1	22	H13	171	130
200	110 mm / -	M80 x 3	95	-	-	95	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	75	40	15	45	5	200	f8	200	H8	490	340	js13	385	0 - 1	26	H13	230	151
200	140 mm / -	M100 x 3	112	M80 x 3	95	120	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	75	40	15	45	5	200	f8	200	H8	490	340	js13	385	0 - 1	26	H13	230	151

¹⁾	Thread for piston rod ends \u201cG\u201d and \u201cK\u201d
²⁾	Thread for piston rod end \u201cH\u201d and \u201cF\u201d
³⁾	ØD4 recess max. 0.5 mm deep
⁴⁾	Line connection "B"
⁵⁾	Line connection \u201cR"

Type of mounting MT4: Trunnion

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c

MT4..2X/\u2026A: as sleeve design and AL-Ø 50 \u2026 200 mm

Dimensions for cylinder with piston rod extension \u201cLY\u201c in retracted condition

type of mounting MT4

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØB		ØD	ØDA	ØD4 ³⁾ ⁴⁾	EE ⁴⁾	ØD4 ³⁾ ⁵⁾	EE ⁵⁾	Y	PJ	X1	VE	WF	NF	VA	VD	ZJ	ZB	BD	UV ⁶⁾	r	ØTD		TL		TM		XV ⁷⁾	XV ⁷⁾	X ⁸⁾	LA	LB
		ISO 6020/1		VW 39 D 920																														min.	max.	min.
mm			mm		mm	mm	mm		mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm		mm	mm	mm	mm	mm
25	14 mm / -	M12 x 1.25	16	-	-	12	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	15	28	-	3	-	150	156	19	58	0.8	12	f8	10	js13	63	h12	107.5	93.5 + X	22	58	43
25	18 mm / -	M14 x 1,5	18	M12 x 1.25	16	14	32	f8	56	35	25	G1/4	21	M14 x 1,5	58	77	26	15	28	-	3	-	150	156	19	58	0.8	12	f8	10	js13	63	h12	107.5	93.5 + X	22	58	43
32	18 mm / -	M14 x 1,5	18	-	-	14	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	19	32	-	3	-	170	176	24	67	0.8	16	f8	12	js13	75	h12	118	107 + X	19	62	47
32	22 mm / -	M16 x 1.5	22	M14 x 1,5	18	18	40	f8	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	19	32	-	3	-	170	176	24	67	0.8	16	f8	12	js13	75	h12	118	107 + X	19	62	47
40	22 mm / -	M16 x 1.5	22	-	-	18	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	19	32	-	3	-	190	196	28	78	1	20	f8	16	js13	90	h12	131	116 + X	23	73	56
40	28 mm / -	M20 x 1.5	28	M16 x 1.5	22	22	50	f8	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	19	32	-	3	-	190	196	28	78	1	20	f8	16	js13	90	h12	131	116 + X	23	73	56
50	28 mm / -	M20 x 1.5	28	-	-	22	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	24	38	20	4	4	205	213	33	95	1	25	f8	20	js13	105	h12	141.5	122.5 + X	28	74	62
50	36 mm / -	M27 x 2	36	M20 x 1.5	28	30	60	f8	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	24	38	20	4	4	205	213	33	95	1	25	f8	20	js13	105	h12	141.5	122.5 + X	28	74	62
63	36 mm / -	M27 x 2	36	-	-	30	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	29	45	25	4	4	224	234	38	116	1.5	32	f8	25	js13	120	h12	164	129 + X	47	84	72
63	45 mm / -	M33 x 2	45	M27 x 2	36	36	70	f8	116	78	42	G3/4	34	M27 x 2	82	117	54.5	29	45	25	4	4	224	234	38	116	1.5	32	f8	25	js13	120	h12	164	129 + X	47	84	72
80	45 mm / -	M33 x 2	45	-	-	36	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	36	54	32	4	4	250	260	53	130	2	40	f8	32	js13	135	h12	189.5	138.5 + X	63	93	81
80	56 mm / -	M42 x 2	56	M33 x 2	45	46	85	f8	130	95	42	G3/4	34	M27 x 2	91	134	62.5	36	54	32	4	4	250	260	53	130	2	40	f8	32	js13	135	h12	189.5	138.5 + X	63	93	81
100	56 mm / -	M42 x 2	56	-	-	46	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	37	57	32	5	5	300	310	68	158	2	50	f8	40	js13	160	h12	224	166 + X	70	117	96
100	70 mm / -	M48 x 2	63	M42 x 2	56	60	106	f8	158	120	47	G1	43	M33 x 2	108	162	75.5	37	57	32	5	5	300	310	68	158	2	50	f8	40	js13	160	h12	224	166 + X	70	117	96
125	70 mm / -	M48 x 2	63	-	-	60	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	37	60	32	5	5	325	335	78	210	2.5	63	f8	50	js13	195	h12	261	170 + X	106	143	112
125	90 mm / -	M64 x 3	85	M48 x 2	63	75	132	f8	192	150	47	G1	43	M33 x 2	121	174	92.5	37	60	32	5	5	325	335	78	210	2.5	63	f8	50	js13	195	h12	261	170 + X	106	143	112
160	90 mm / -	M64 x 3	85	-	-	75	160	f8	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	41	66	36	8	5	370	380	118	250	3	80	f8	63	js13	240	h12	320	177 + X	163	171	130
160	110 mm / -	M80 x 3	95	M64 x 3	85	95	160	f8	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	41	66	36	8	5	370	380	118	250	3	80	f8	63	js13	240	h12	320	177 + X	163	171	130
200	110 mm / -	M80 x 3	95	-	-	95	200	f8	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	45	75	40	15	5	450	466	148	300	3	100	f8	80	js13	295	h12	403	221 + X	202	230	151
200	140 mm / -	M100 x 3	112	M80 x 3	95	120	200	f8	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	45	75	40	15	5	450	466	148	300	3	100	f8	80	js13	295	h12	403	221 + X	202	230	151

¹⁾	Thread for piston rod ends \u201cG\u201d and \u201cK\u201d
²⁾	Thread for piston rod end \u201cH\u201d and \u201cF\u201d
³⁾	ØD4 recess max. 0.5 mm deep
⁴⁾	Line connection "B"
⁵⁾	Line connection \u201cR"
⁶⁾	Tolerance according to EN ISO 9013: Thermal cutting
⁷⁾	When ordering, always specify the "XV" dimension in the plain text (observe XV_min and XV_max)
⁸⁾	Observe the minimum stroke length \u201cX_min.\u201c

Note: Replacement cylinder for series 1X

In case of exchange with series 2X, you also have to exchange the bearing blocks (trunnions)!

Observe XV_min., XV_max. and X_min.!

Type of mounting MS2: Foot mounting

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Recess max. 2 mm deep, for hexagon socket head cap screws according to ISO 4762 The mounting screws must not be subjected to shear force. The mounting screws according to ISO 4762 (property class 10.9) are to be tightened applying the specified tightening torque M_m. If the calculated frictional force F_R is lower than the maximum cylinder force, a fitting key has to be inserted at the head. Calculation principle: ▶ The specified frictional force F_R refers to a friction factor of 0.2 (steel/steel) ▶ Head-side foot as fixed bearing ▶ Bottom-side foot as loose bearing

type of mounting MS2

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾ ⁴⁾	EE ⁴⁾	ØD4 ³⁾ ⁵⁾	EE ⁵⁾	Y	PJ	X1	WF	XS	SS	CO		LC		KC		EH		LH		S		ØSB		ST ⁶⁾	TE	TS		US		LA	LB	F_R	M_m
		ISO 6020/1		VW 39 D 920
mm			mm		mm	mm	mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm		mm		mm		mm	mm	mm		mm	mm	mm	mm	kN	Nm
25	14 mm / -	M12 x 1.25	16	-	-	12	56	35	25	G1/4	21	M14 x 1,5	58	77	26	28	18	142	6	N9	25	+ 0.5 0	3.5	+ 0.5 0	57	0 - 1	32	h10	20	js13	9	H13	24	56	75	js13	92	0 - 1	58	43	4.9	30
25	18 mm / -	M14 x 1,5	18	M12 x 1.25	16	14	56	35	25	G1/4	21	M14 x 1,5	58	77	26	28	18	142	6	N9	25	+ 0.5 0	3.5	+ 0.5 0	57	0 - 1	32	h10	20	js13	9	H13	245	56	75	js13	92	0 - 1	58	43	4.9	30
32	18 mm / -	M14 x 1,5	18	-	-	14	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	32	19.5	163	8	N9	36	+ 0.5 0	4	+ 0.5 0	67	0 - 1	38	h10	25	js13	11	H13	32	67	90	js13	110	0 - 1	62	47	7.9	60
32	22 mm / -	M16 x 1.5	22	M14 x 1,5	18	18	67	42	28	G3/8	26	M18 x 1,5	64	89	30.5	32	19.5	163	8	N9	36	+ 0.5 0	4	+ 0.5 0	67	0 - 1	38	h10	25	js13	11	H13	32	67	90	js13	110	0 - 1	62	47	7.9	60
40	22 mm / -	M16 x 1.5	22	-	-	18	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	32	19.5	183	8	N9	36	+ 0.5 0	4	+ 0.5 0	77.5	0 - 1	43	h10	25	js13	11	H13	32	78	100	js13	120	0 - 1	73	56	7.9	60
40	28 mm / -	M20 x 1.5	28	M16 x 1.5	22	22	78	50	34	G1/2	29	M22 x 1.5	71	97	35.5	32	19.5	183	8	N9	36	+ 0.5 0	4	+ 0.5 0	77.5	0 - 1	43	h10	25	js13	11	H13	32	78	100	js13	120	0 - 1	73	56	7.9	60
50	28 mm / -	M20 x 1.5	28	-	-	22	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	38	22	199	10	N9	40	+ 0.5 0	4.5	+ 0.5 0	95	0 - 1	52	h10	32	js13	14	H13	42	95	120	js13	145	0 - 1	74	62	11.1	100
50	36 mm / -	M27 x 2	36	M20 x 1.5	28	30	95	60	34	G1/2	29	M22 x 1.5	72	111	44.5	38	22	199	10	N9	40	+ 0.5 0	4.5	+ 0.5 0	95	0 - 1	52	h10	32	js13	14	H13	42	95	120	js13	145	0 - 1	74	62	11.1	100
63	36 mm / -	M27 x 2	36	-	-	30	116	78	42	G3/4	34	M27 x 2	82	117	54.5	45	29	211	10	N9	40	+ 0.5 0	4.5	+ 0.5 0	113	0 - 1	62	h10	32	js13	18	H13	50	116	150	js13	180	0 - 1	84	72	21.15	250
63	45 mm / -	M33 x 2	45	M27 x 2	36	36	116	78	42	G3/4	34	M27 x 2	82	117	54.5	45	29	211	10	N9	40	+ 0.5 0	4.5	+ 0.5 0	113	0 - 1	62	h10	32	js13	18	H13	50	116	150	js13	180	0 - 1	84	72	21.15	250
80	45 mm / -	M33 x 2	45	-	-	36	130	95	42	G3/4	34	M27 x 2	91	134	62.5	54	34	236	14	N9	63	+ 0.5 0	5	+ 0.5 0	129	0 - 1	70	h10	40	js13	22	H13	60	130	170	js13	210	0 - 1	93	81	33.35	490
80	56 mm / -	M42 x 2	56	M33 x 2	45	46	130	95	42	G3/4	34	M27 x 2	91	134	62.5	54	34	236	14	N9	63	+ 0.5 0	5	+ 0.5 0	129	0 - 1	70	h10	40	js13	22	H13	60	130	170	js13	210	0 - 1	93	81	33.35	490
100	56 mm / -	M42 x 2	56	-	-	46	158	120	47	G1	43	M33 x 2	108	162	75.5	57	32	293	16	N9	70	+ 0.5 0	6	+ 0.5 0	153	0 - 1	82	h10	50	js13	26	H13	70	158	205	js13	250	0 - 1	117	96	48.3	850
100	70 mm / -	M48 x 2	63	M42 x 2	56	60	158	120	47	G1	43	M33 x 2	108	162	75.5	57	32	293	16	N9	70	+ 0.5 0	6	+ 0.5 0	153	0 - 1	82	h10	50	js13	26	H13	70	158	205	js13	250	0 - 1	117	96	48.3	850
125	70 mm / -	M48 x 2	63	-	-	60	192	150	47	G1	43	M33 x 2	121	174	92.5	60	32	321	18	N9	80	+ 0.5 0	6	+ 0.5 0	190	0 - 1	100	h10	56	js13	33	H13	80	192	245	js13	300	0 - 1	143	112	77.8	1710
125	90 mm / -	M64 x 3	85	M48 x 2	63	75	192	150	47	G1	43	M33 x 2	121	174	92.5	60	32	321	18	N9	80	+ 0.5 0	6	+ 0.5 0	190	0 - 1	100	h10	56	js13	33	H13	80	192	245	js13	300	0 - 1	143	112	77.8	1710
160	90 mm / -	M64 x 3	85	-	-	75	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	66	36	364	22	N9	125	+ 0.5 0	8	+ 0.5 0	232	0 - 1	119	h10	60	js13	33	H13	90	238	295	js13	350	0 - 1	171	130	77.8	1710
160	110 mm / -	M80 x 3	95	M64 x 3	85	95	237	190	58	G1 1/4	52	M42 x 2	143	191	115.5	66	36	364	22	N9	125	+ 0.5 0	8	+ 0.5 0	232	0 - 1	119	h10	60	js13	33	H13	90	238	295	js13	350	0 - 1	171	130	77.8	1710
200	110 mm / -	M80 x 3	95	-	-	95	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	75	39	447	28	N9	160	+ 0.5 0	9	+ 0.5 0	282	0 - 1	145	h10	72	js13	39	H13	110	285	350	js13	415	0 - 1	230	151	113.25	2970
200	140 mm / -	M100 x 3	112	M80 x 3	95	120	285	230	58	G1 1/4	52	M42 x 2	190	224	138.5	75	39	447	28	N9	160	+ 0.5 0	9	+ 0.5 0	282	0 - 1	145	h10	72	js13	39	H13	110	285	350	js13	415	0 - 1	230	151	113.25	2970

¹⁾	Thread for piston rod ends \u201cG\u201d and \u201cK\u201d
²⁾	Thread for piston rod end \u201cH\u201d and \u201cF\u201d
³⁾	ØD4 recess max. 0.5 mm deep
⁴⁾	Line connection "B"
⁵⁾	Line connection \u201cR"
⁶⁾	Specified dimensions are smaller than the max. dimensions in ISO 6020/1

Piston rod end "E"

ØAL	ØMM	KK	A
		ISO 6020/1
mm			mm
32	22 mm / -	M16 x 1.5	22
40	22 mm / -	M16 x 1.5	22
40	28 mm / -	M20 x 1.5	28
50	28 mm / -	M20 x 1.5	28
50	36 mm / -	M27 x 2	36
63	36 mm / -	M27 x 2	36
63	45 mm / -	M33 x 2	45
80	45 mm / -	M33 x 2	45
80	56 mm / -	M42 x 2	56
100	56 mm / -	M42 x 2	56
100	70 mm / -	M48 x 2	63
125	70 mm / -	M48 x 2	63
125	90 mm / -	M64 x 3	85
160	90 mm / -	M64 x 3	85
160	110 mm / -	M80 x 3	95
200	110 mm / -	M80 x 3	95
200	140 mm / -	M100 x 3	112

ØAL	=	Piston Ø

Enlarged line connections

Version \u201cS\u201d ISO 1179-1

ØAL	EE	ØD4 ¹⁾	Y	PJ	X1
mm		mm	mm	mm	mm
63	G1	47	80	121	53.5
80	G1	47	91	134	60.5
100	G1 1/4	58	108	162	74
125	G1 1/4	58	121	174	92
160	G1 1/2	65	143	191	114.5
200	G1 1/2	65	190	224	138.5

¹⁾	ØD4 recess max. 0.5 mm deep

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø
X	=	Stroke length

Flange ports

Dimensions for rectangular flange according to ISO 6162-1 (≙ SAE 3000 PSI)

Dimensions for square flange according to ISO 6164

Version \u201cF\u201d
ISO 6162-1 (≙ SAE 3000 PSI)

ØAL	Y	PJ	XO	Ød₃	Ød₃ ¹⁾	c		w		d₁	t₁ ²⁾
mm	mm	mm	mm	mm		mm	mm	mm	mm		mm
50	72	111	41	13	1/2\u2033	38.1	± 0.25	17.5	± 0.25	M8	14
63	82	117	52	13	1/2\u2033	38.1	± 0.25	17.5	± 0.25	M8	16
80	91	134	60	13	1/2\u2033	38.1	± 0.25	17.5	± 0.25	M8	16
100	108	162	72	19	3/4\u2033	47.6	± 0.25	22.3	± 0.25	M10	20
125	121	174	91	19	3/4\u2033	47.6	± 0.25	22.3	± 0.25	M10	20
160	143	191	114	25	1\u2033	52.4	± 0.25	26.2	± 0.25	M10	20
200	190	224	138	25	1\u2033	52.4	± 0.25	26.2	± 0.25	M10	20

¹⁾	Flange connection according to ISO 6162-1 corresponds to flange connection according to SAE 3000 PSI
²⁾	Thread depth

Version \u201cH\u201d
ISO 6164

ØAL	Y	PJ	XO	Ød₃	w		d₁	t₁ ¹⁾
mm	mm	mm	mm	mm	mm	mm		mm
40	69	101	34.5	10	24.7	± 0.25	M6	13
50	72	111	44	10	24.7	± 0.25	M6	13
63	82	117	52	13	29.7	± 0.25	M8	16
80	91	134	60	13	29.7	± 0.25	M8	16
100	108	162	72	19	35.4	± 0.25	M8	16
125	121	174	91	19	35.4	± 0.25	M8	16
160	143	191	114	25	43.8	± 0.25	M10	20
200	190	224	138	25	43.8	± 0.25	M10	20

¹⁾	Thread depth

Subplates for valve mounting
SL and SV valves

Installation situation with MT4

NG6

NG10 and 20

Notice:

Porting pattern according to DIN 24340 form A and ISO 4401 (NG6) and form D and ISO 5781 (NG10 and NG20)

Piping symbol

Note:

Valves, fittings and piping are not included in the scope of delivery!

Important notice:

Subplates for SL and SV valves (isolator valves)

Please note: Seal designs T and S are not designed for the static holding function!

Subplates for valve mounting
SL and SV valves

							Plate dimensions							Port size, porting pattern						Position point Valve
ØAL	Valve size	PJ	EE	Minimum stroke	Minimum stroke for MT4	X0	L1	L4	L5	LG	b1	h1	h9	h2	A	X	Y	X3	X4	X1	X2
mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm				mm	mm	mm	mm
40	6	97	G1/2	100	100	34.5	90	20	4	110	55	40	10	20	G1/2	G1/4	G1/4	21.5	21.5	65.5	15.5
50	6	111	G1/2	100	100	44	90	20	4	110	55	40	10	20	G1/2	G1/4	G1/4	21.5	21.5	65.5	15.5
63	6	117	G3/4	100	100	52	100	25	5	125	55	45	10	22.5	G3/4	G1/4	G1/4	21.5	21.5	70.5	15.5
63	10	117	G3/4	100	100	52	105	25	5	130	85	45	10	22.5	G3/4	G1/4	G1/4	21.5	21.5	73	33.35
80	6	134	G3/4	100	100	60	100	25	5	125	55	45	10	22.5	G3/4	G1/4	G1/4	21.5	21.5	70.5	15.5
80	10	134	G3/4	100	100	60	105	25	5	130	85	45	10	22.5	G3/4	G1/4	G1/4	21.5	21.5	73	33.35
100	10	162	G1	100	100	72	102	28	5	130	85	450	10	25	G1	G1/4	G1/4	21.5	21.5	70	33.35
125	10	174	G1	100	106	91	102	28	5	130	85	50	20	25	G1	G1/4	G1/4	21.5	21.5	70	33.35
125	20	174	G1	100	106	91	137	28	5	165	100	50	20	25	G1	G1/4	G1/4	20.6	39.5	92	39.7
160	10	191	G1 1/4	100	163	114	115	35	5	150	85	60	20	30	G1 1/4	G1/4	G1/4	21.5	21.5	80	33.35
160	20	191	G1 1/4	100	163	114	140	35	5	175	100	60	20	30	G1 1/4	G1/4	G1/4	20.6	39.5	95	39.7
200	10	224	G1 1/4	100	202	138	115	35	5	150	85	60	20	30	G1 1/4	G1/4	G1/4	21.5	21.5	80	33.35
200	20	224	G1 1/4	100	202	138	140	35	5	175	100	60	20	30	G1 1/4	G1/4	G1/4	20.6	39.5	95	39.7

ØAL	=	Piston Ø

The minimum stroke only applies to the following connection situation!

Subplates for valve mounting
Directional and high-response valves

Installation situation with MT4

NG6

Size 10

NG16

Notice:

Porting pattern according to DIN 24340 form A and ISO 4401

Subplates for valve mounting
Directional and high-response valves

					Plate and piping dimensions																	Port size, porting pattern																Position point Valve
ØAL	Valve size	PJ	EE	Minimum stroke	L1	L4	L5	H1	H2	H2 for MT4	SW1	ØRa	b1	h1	lg	HG	HG for MT4	b2	X0	h7	h9	P	X3	h3	T	X4	h4	X	X5	h5	Y	X6	h6	MA	MB	X8	h8	X1	X2
							max.
mm		mm		mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm		mm	mm		mm	mm			mm	mm	mm	mm
40	6	101	G1/2	225	90	20	4	90	54.5	64.5	30 mm / -	16 x 2.5	65	40	110	74.5	84.5	32.5	34.5	20	10	-	21.5	20	G1/2	21.5	20	-	-	-	-	-	-	-	-	-	-	25	15.5
50	6	111	G1/2	215	90	20	4	99	64	74	30 mm / -	16 x 2.5	65	40	110	84	94	32.5	44	20	10	-	21.5	20	G1/2	21.5	20	-	-	-	-	-	-	-	-	-	-	25	15.5
63	6	117	G3/4	250	100	25	5	119	74.5	84.5	36 mm / -	20 x 3	75	45	125	97	107	37.5	52	22.5	10	G3/4	21.5	22.5	G3/4	21.5	22.5	-	-	-	-	-	-	-	-	-	-	30	15.5
63	10	117	G3/4	275	125	25	5	119	75	85	36 mm / -	20 x 3	90	70	150	122	132	45	52	23	10	G3/4	27	+ 33	G3/4	3.5	33	G1/4	18	47	G1/4	65	47	G1/4	G1/4	60	17	45	21.4
80	6	134	G3/4	235	100	25	5	127	82.5	92.5	36 mm / -	20 x 3	75	45	125	105	115	37.5	60	22.5	10	G3/4	21.5	22.5	G3/4	21.5	22.5	-	-	-	-	-	-	-	-	-	-	30	15.5
80	10	134	G3/4	260	125	25	5	127	83	93	36 mm / -	20 x 3	90	70	150	130	140	45	60	23	10	G3/4	27	33	G3/4	3.5	33	G1/4	18	47	G1/4	65	47	G1/4	G1/4	60	17	45	21.4
100	10	162	G1	280	132	28	5	148	102	112	46 mm / -	25 x 4	90	80	160	152	162	45	72	30	10	-	27	30	G1	3.5	40	G1/4	18	57	G1/4	65	57	G1/4	G1/4	58	20	52	21.4
125	10	174	G1	270	132	28	5	165	121	141	46 mm / -	25 x 4	90	80	160	171	191	45	91	30	20	-	27	30	G1	3.5	40	G1/4	18	57	G1/4	65	57	G1/4	G1/4	58	20	52	21.4
125	16	174	G1	300	162	28	5	165	131	151	46 mm / -	25 x 4	120	90	190	181	201	77.5	91	40	20	-	50	26	G1	17	25	G1/4	105	45	G1/4	88	70	G1/4	G1/4	88	35	37	55.6
160	10	191	G1 1/4	295	135	35	5	193.5	149	169	50 mm / -	30 x 5	105	95	170	209	229	55	114	35	20	G1 1/4	27	35	G1 1/4	3.5	45	G1/4	20	72	G1/4	65	72	G1/4	G1/4	55	25	55	21.4
160	16	191	G1 1/4	335	175	35	5	193.5	159	179	50 mm / -	30 x 5	125	100	210	214	234	77.5	114	45	20	G1 1/4	52	32	G1 1/4	15	32	G1/4	110	55	G1/4	88	80	G1/4	G1/4	88	40	45	55.6
200	10	224	G1 1/4	260	135	35	5	216.5	173	193	50 mm / -	30 x 5	105	95	170	233	253	55	138	35	20	G1 1/4	27	35	G1 1/4	3.5	45	G1/4	20	72	G1/4	65	72	G1/4	G1/4	55	25	55	21.4
200	16	224	G1 1/4	300	175	35	5	216.5	183	203	50 mm / -	30 x 5	125	100	210	238	258	77.5	138	45	20	G1 1/4	52	32	G1 1/4	15	32	G1/4	110	55	G1/4	88	80	G1/4	G1/4	88	40	45	55.6

The dimensions h3, h4, h5, h6, h8 and X3, X4, X5, X6 determine the position of ports P, T, B, X, Y.

ØAL	=	Piston Ø

Throttle valve

ØAL	mm	25	32	40	50	63	80	100	125	160	200
Protrusion A ¹⁾	mm	6.5	4	5.5	1.5	0

¹⁾	Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition

ØAL	=	Piston Ø

¹⁾	Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition

Proximity switch

¹⁾	The proximity switch is always located opposite of the line connection

Installation space for mating connector

Proximity switch

ØAL	ØMM	PL	L7	X3	X4	X5
mm		mm	mm	mm	mm	mm
40	22 mm / -	97	71	94	170	125
40	28 mm / -	97	71	94	170	125
50	28 mm / -	103	76	98	175	130
50	36 mm / -	103	76	98	175	130
63	36 mm / -	113	84	103	180	135
63	45 mm / -	113	84	103	180	135
80	45 mm / -	124	96	109	185	140
80	56 mm / -	124	96	109	185	140
100	56 mm / -	150	114	116	195	150
100	70 mm / -	150	114	116	195	150
125	70 mm / -	158	129	126	205	160
125	90 mm / -	158	129	126	205	160
160	90 mm / -	181	148	136	215	170
160	110 mm / -	181	148	136	215	170
200	110 mm / -	214	195	151	230	185
200	140 mm / -	214	195	151	230	185

Main dimension see Dimension type of mounting

Piston Ø 25 \u2026 32 mm proximity switch not possible

Kinking

For the admissible stroke length with flexibly guided load and a factor of 3.5 for safety against kinking, please refer to the relevant table. For other installation positions of the cylinder, the admissible stroke length must be interpolated.

Admissible stroke length for non-guided load on request.

Kinking calculations are carried out according to the following formulas:

1. Calculation according to Euler

if λ > λ_g

2. Calculation according to Tetmajer

if λ ≤ λ_g

Explanation

E	=	module of elasticity in N/mm²
E	=	2.1 x 105 for steel
l	=	Geometrical moment of inertia in mm⁴
l		for circular cross-section
v	=	3.5 (safety factor)
L_K	=	free kinking length in mm (dependent on type of mounting; see sketches A, B, C)
d	=	Piston rod Ø in mm
λ	=	Slenderness ratio
λ	=
R_e	=	Yield strength of the piston rod material

Influence of the type of mounting on the kinking length:

Admissible stroke length
Type of mounting MF2, MF4, MT4 Trunnion (with XV_max.)

ØAL	ØMM	admissible stroke length with
		70 bar			100 bar			160 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
25	14	260	270	305	215	220	240	160	165	170
25	18	435	455	485	385	400	460	310	315	340
32	18	340	355	410	290	295	325	215	220	230
32	22	510	535	665	450	465	535	365	370	400
40	22	405	425	495	345	355	395	265	270	285
40	28	640	680	875	575	600	710	475	490	535
50	28	540	560	665	465	480	535	365	370	390
50	36	845	895	1180	765	805	970	645	665	735
63	36	705	740	900	620	640	725	500	510	540
63	45	1030	1100	1480	945	990	1220	805	830	930
80	45	855	900	1120	760	790	905	615	630	680
80	56	1230	1310	1700	1130	1190	1490	975	1010	1140
100	56	1030	1090	1390	925	965	1130	760	780	850
100	70	1500	1590	2000	1380	1460	1880	1200	1250	1440
125	70	1280	1360	1770	1160	1210	1450	970	995	1090
125	90	1900	2030	2300	1770	1880	2300	1570	1640	1950
160	90	1620	1710	2320	1470	1540	1900	1250	1290	1440
160	110	2200	2350	2600	2060	2180	2600	1820	1900	2280
200	110	1890	2010	2760	1730	1820	2260	1470	1520	1720
200	140	2720	2910	3000	2560	2720	3000	2290	2400	2980

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MF1, MF3, MS2

ØAL	ØMM	admissible stroke length with
		70 bar			100 bar			160 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
25	14	350	355	380	300	305	315	235	240	240
25	18	530	550	645	470	485	535	390	400	415
32	18	445	455	495	385	390	410	310	315	320
32	22	615	640	660	550	570	625	460	465	490
40	22	530	545	590	460	470	490	370	375	380
40	28	775	810	980	700	725	815	590	600	635
50	28	670	690	770	590	600	640	475	485	495
50	36	975	1020	1300	890	925	1080	765	785	845
63	36	845	880	1000	750	770	830	615	625	645
63	45	1170	1230	1400	1070	112	1330	920	950	1040
80	45	1020	1060	1240	910	935	1020	750	765	795
80	56	1390	1470	1700	1280	1340	1620	1110	1150	1270
100	56	1240	1290	1540	1110	1150	1280	930	940	990
100	70	1680	1780	2000	1560	1640	2000	1370	1410	1590
125	70	1510	1570	1920	1360	1400	1590	1140	1160	1240
125	90	2090	2220	2300	1960	2060	2300	1740	1810	2110
160	90	1880	1980	2500	1720	1780	2070	1460	1500	1610
160	110	2430	2580	2600	2280	2400	2600	2600	2110	2460
200	110	2210	2320	2980	2020	2100	2470	1730	1770	1920
200	140	2980	3000	3000	2810	2980	3000	2540	2650	3000

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MP3, MP5

admissible stroke length with
70 bar			100 bar			160 bar
0°	45°	90°	0°	45°	90°	0°	45°	90°
mm	mm	mm	mm	mm	mm	mm	mm	mm
155	160	175	120	125	130	75	80	85
300	310	360	250	260	285	190	195	220
210	220	240	165	170	180	110	115	120
345	360	420	290	300	330	220	225	235
255	265	295	205	210	225	140	145	150
445	465	560	385	395	445	295	305	320
350	360	405	285	290	315	205	210	215
600	630	770	525	540	615	415	425	455
470	490	560	395	405	440	290	292	310
740	780	970	650	680	780	525	535	580
575	600	700	490	505	555	370	375	390
890	935	1190	790	820	960	640	660	715
705	735	880	600	620	695	460	470	495
1085	1150	1500	970	1015	1215	800	825	910
890	935	1135	770	800	905	605	615	655
1400	1490	2030	1270	1340	1660	1070	1110	1250
1130	1190	1490	990	1030	1190	790	810	870
1620	1720	2370	1470	1550	1930	1240	1290	1450
1320	1390	1170	1160	1210	1420	930	955	1040
2010	2140	3000	1850	1950	2520	1580	1650	1910

Installation position

¹⁾	Adm. stroke length

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Product Category

CDM1

Ordering code

Ordering code

general

hydraulic

Weight

Life cycle:

Notices:

Project planning software ICS (Interactive Catalog System)

Diameters, areas, forces, flow

Tolerances according to ISO 6020-1

Type of mounting M00: no mounting

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF1: Rectangular flange at cylinder head

Type of mounting MF2: Rectangular flange at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding/measuring coupling

Connection possibility for measuring coupling

Proximity switches

Technical data proximity switch

general

hydraulic

Weight

Life cycle:

Notices:

Project planning software ICS (Interactive Catalog System)

Diameters, areas, forces, flow

Tolerances according to ISO 6020-1

Type of mounting M00: no mounting

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF1: Rectangular flange at cylinder head

Type of mounting MF2: Rectangular flange at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding/measuring coupling

Connection possibility for measuring coupling

Proximity switches

Technical data proximity switch

Type of mounting M00: no mounting

Type of mounting M00

Type of mounting MP3/MP5: Swivel eye at cylinder base/Self-aligning clevis at cylinder base

Type of mounting MP3/MP5

Type of mounting MF1: Rectangular flange at cylinder head

Type of mounting MF1

Type of mounting MF2: Rectangular flange at cylinder base

Type of mounting MF2

Type of mounting MF3: Round flange at the cylinder head

type of mounting MF3

Type of mounting MF4: Round flange at the cylinder base

type of mounting MF4

Type of mounting MT4: Trunnion

type of mounting MT4

Type of mounting MS2: Foot mounting

type of mounting MS2

Piston rod end "E"

Enlarged line connections

Version \u201cS\u201d ISO 1179-1

Flange ports

Version \u201cF\u201dISO 6162-1 (≙ SAE 3000 PSI)

Version \u201cH\u201dISO 6164

Subplates for valve mountingSL and SV valves

NG6

NG10 and 20

Piping symbol

Subplates for valve mountingSL and SV valves

Subplates for valve mountingDirectional and high-response valves

NG6

Size 10

NG16

Subplates for valve mountingDirectional and high-response valves

Throttle valve

Proximity switch

Version \u201cF\u201d
ISO 6162-1 (≙ SAE 3000 PSI)

Version \u201cH\u201d
ISO 6164

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
Directional and high-response valves

Subplates for valve mounting
Directional and high-response valves

Version \u201cF\u201d
ISO 6162-1 (≙ SAE 3000 PSI)

Version \u201cH\u201d
ISO 6164

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
Directional and high-response valves

Subplates for valve mounting
Directional and high-response valves

Admissible stroke length
Type of mounting MF2, MF4, MT4 Trunnion (with XV_max.)

Admissible stroke length
Type of mounting MF1, MF3, MS2

Admissible stroke length
Type of mounting MP3, MP5

Admissible stroke length
Type of mounting MF2, MF4, MT4 Trunnion (with XV_max.)

Admissible stroke length
Type of mounting MF1, MF3, MS2

Admissible stroke length
Type of mounting MP3, MP5
