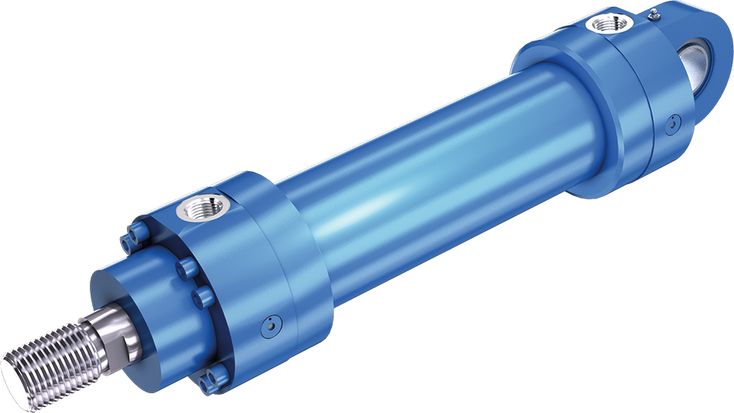

CDH3

Series H3.
Component series 3X.
Nominal pressure 350 bar.
Piston Ø 40 … 320 mm.
Piston rod Ø 28 … 220 mm.
Stroke length up to 6000 mm.

Quantity:
Availability:





Inquire Add to Basket

6 types of mounting
Self-adjusting and adjustable end position cushioning

Ordering code

01	02	03		04		05		06	07	08		09	10	11	12	13	14	15	16
CD	H3		/		/		/		A	3X	/

Ordering code

01	Single rod cylinder		CD
02	Series		H3
Types of mounting
03	Swivel eye at cylinder base		MP3¹⁾
	Self-aligning clevis at cylinder base		MP5
	Round flange at the cylinder head		MF3
	Round flange at the cylinder base		MF4
	Trunnion		MT4²⁾
	Foot mounting		MS2
04	Piston Ø (ØAL) 40 \u2026 320 mm		...
05	Piston rod Ø (ØMM) 28 \u2026 220 mm		...
06	Stroke length in mm³⁾		...
Design principle
07	Head and base flanged		A
08	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)		3X
Line connection / version
09	According to ISO 1179-1 (pipe thread ISO 228-1)		B
	According to ISO 9974-1 (metric thread ISO 261)		M
	Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI)		D^{4; 25)}
	Flange connection according to ISO 6164 tab. 2		H⁴⁾
	according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange		C³¹⁾
	For directional and high-response valves	Subplate NG6	P^{4; 5; 27)}
		Subplate NG10	T^{4; 6; 27)}
		Subplate NG16	U^{4; 7; 27)}
		Subplate NG25	V^{4; 8; 27)}
	For SL and SV valves	Subplate NG6	A^{4; 5; 15; 27)}
		Subplate NG10	E^{4; 6; 15; 27)}
		Subplate NG20	L^{4; 7; 15; 27)}
		Subplate NG30	N^{4; 8; 15; 27)}
Line connection/position at cylinder head
10	View to piston rod³⁰⁾		1
			2
			3
			4
Line connection/position at cylinder base
11	View to piston rod³⁰⁾		1
			2³⁴⁾
			3
			4³⁴⁾
Piston rod design
12	Hard chromium-plated		C
	Hardened and hard chromium-plated		H²⁴⁾
	Nickel-plated and hard chromium-plated		N¹⁹⁾
Piston rod end
13	Thread for swivel head CGAS		A
	Thread for swivel head CGA, CGAK, plain clevis CSA		G²⁶⁾
	With mounted swivel head CGAS		S
	With mounted swivel head CGA		L²⁶⁾
	With mounted swivel head CGAK		M²⁶⁾
	With mounted plain clevis CSA		N¹⁾
End position cushioning
14	Without end position cushioning		U
	Both sides, self-adjusting		D¹⁾
	Both sides, adjustable		E
Seal design
15	For mineral oil HL, HLP and oil-in-water emulsion HFA	Standard seal system	M
		Standard seal system with guide rings	L
		Reduced friction heavy industry	R
	For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC	Standard seal system HFC	G²⁷⁾
		Servo quality/reduced friction	T
		Chevron seal kits	A
	For HDFR phosphate ester and HFDU polyol ester	Servo quality/reduced friction	S
		Standard seal system FKM	V²⁷⁾
		Chevron seal kits	B
Option
16	Additional options, fill fields for additional options		Z
16	Without additional options, do not fill fields for additional options		W

		Fields for additional options
		17	18	19	20	21
	Z						-P³⁸⁾
17	Inductive proximity switches without mating connector - separate order						E³⁷⁾
17	Without inductive proximity switches						W
18	Additional guide rings						F^{10; 28)}
18	Without additional guide rings						W
19	Measuring coupling, on both sides						A
19	Without measuring coupling						W
20	Spherical bearing, maintenance-free						A^{14; 35)}
	Flanged grease nipple						B
	Standard conical grease nipple						W
21	Piston rod extension \u201cLY\u201d, specify in mm in plain text						Y
21	Without piston rod extension						W

¹⁾	Only piston Ø 40 \u2026 200 mm
²⁾	Trunnion position freely selectable. When ordering, always specify the "XV" dimensions in the plain text in mm
³⁾	For max. available stroke length see Technical data and for admissible stroke length (according to the kinking calculation) see Project planning information.
⁴⁾	Not possible with MF4
⁵⁾	Piston Ø 40 \u2026 80 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head
⁶⁾	Piston Ø 63 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head
⁷⁾	Piston Ø 125 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head
¹⁰⁾	Seal designs A, B not possible; piston Ø 220 \u2026 320 mm standard
¹³⁾	Not with piston Ø 320 mm
¹⁴⁾	Not possible with piston rod end "N"
¹⁵⁾	Subplates for SL and SV valves (isolator valves)
	Please note: Seal designs T, G, L, R, S and V are not designed for the static holding function!
¹⁹⁾	Only piston rod Ø 28 \u2026 160 mm
²⁴⁾	Only piston rod Ø 28 \u2026 140 mm
²⁵⁾	Only piston Ø 63 \u2026 320 mm
²⁶⁾	Only piston Ø 40 \u2026 250 mm
²⁷⁾	Maximum operating pressure 315 bar
²⁸⁾	With seal design "L" standard
³⁰⁾	All graphical representations in the data sheet show position 1
³¹⁾	With MS2, only position 11 is possible
³⁴⁾	With MF4 and line connection B, M or C not possible
³⁵⁾	Not possible with MP3
³⁷⁾	Min. stroke length = 20 mm
³⁸⁾	Marks order-relevant information which cannot be represented in the ordering code. This must be specified for each order.
	Order examples:
	Without additional options:
	CDH3MP5/100/56/300A3X/B11CADMW
	With additional options:
	CDH3MP5/100/56/300A3X/B11CADMZ EWABW
	With order-relevant information:
	CDH3MP5/100/56/300A3X/B11CADMW-P
	CDH3MP5/100/56/300A3X/B11CADMZ EWABW-P

01	Single rod cylinder	CD
02	Series	H3
Types of mounting
03	Swivel eye at cylinder base	MP3¹⁾
Self-aligning clevis at cylinder base	MP5
Round flange at the cylinder head	MF3
Round flange at the cylinder base	MF4
Trunnion	MT4²⁾
Foot mounting	MS2
04	Piston Ø (ØAL) 40 \u2026 320 mm	...
05	Piston rod Ø (ØMM) 28 \u2026 220 mm	...
06	Stroke length in mm³⁾	...
Design principle
07	Head and base flanged	A
08	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Line connection / version
09	According to ISO 1179-1 (pipe thread ISO 228-1)	B
According to ISO 9974-1 (metric thread ISO 261)	M
Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI)	D^{4; 25)}
Flange connection according to ISO 6164 tab. 2	H⁴⁾
according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange	C³¹⁾
For directional and high-response valves	Subplate NG6	P^{4; 5; 27)}
Subplate NG10	T^{4; 6; 27)}
Subplate NG16	U^{4; 7; 27)}
Subplate NG25	V^{4; 8; 27)}
For SL and SV valves	Subplate NG6	A^{4; 5; 15; 27)}
Subplate NG10	E^{4; 6; 15; 27)}
Subplate NG20	L^{4; 7; 15; 27)}
Subplate NG30	N^{4; 8; 15; 27)}
Line connection/position at cylinder head
10	View to piston rod³⁰⁾		1
2
3
4
Line connection/position at cylinder base
11	View to piston rod³⁰⁾		1
2³⁴⁾
3
4³⁴⁾
Piston rod design
12	Hard chromium-plated	C
Hardened and hard chromium-plated	H²⁴⁾
Nickel-plated and hard chromium-plated	N¹⁹⁾
Piston rod end
13	Thread for swivel head CGAS	A
Thread for swivel head CGA, CGAK, plain clevis CSA	G²⁶⁾
With mounted swivel head CGAS	S
With mounted swivel head CGA	L²⁶⁾
With mounted swivel head CGAK	M²⁶⁾
With mounted plain clevis CSA	N¹⁾
End position cushioning
14	Without end position cushioning	U
Both sides, self-adjusting	D¹⁾
Both sides, adjustable	E
Seal design
15	For mineral oil HL, HLP and oil-in-water emulsion HFA	Standard seal system	M
Standard seal system with guide rings	L
Reduced friction heavy industry	R
For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC	Standard seal system HFC	G²⁷⁾
Servo quality/reduced friction	T
Chevron seal kits	A
For HDFR phosphate ester and HFDU polyol ester	Servo quality/reduced friction	S
Standard seal system FKM	V²⁷⁾
Chevron seal kits	B
Option
16	Additional options, fill fields for additional options	Z
Without additional options, do not fill fields for additional options	W

			Fields for additional options
			17	18	19	20	21
	Z							-P³⁸⁾
17	Inductive proximity switches without mating connector - separate order	E³⁷⁾
Without inductive proximity switches	W
18	Additional guide rings	F^{10; 28)}
Without additional guide rings	W
19	Measuring coupling, on both sides	A
Without measuring coupling	W
20	Spherical bearing, maintenance-free	A^{14; 35)}
Flanged grease nipple	B
Standard conical grease nipple	W
21	Piston rod extension \u201cLY\u201d, specify in mm in plain text	Y
Without piston rod extension	W

general

Installation position		any
Primer coat		Gentian blue (RAL 5010)
Minimum layer thickness of the priming ¹⁾	µm	40

¹⁾

Other colors upon request. With cylinders and attachment parts, the following surfaces are not primed or painted:
▶ All fit diameters to the customer\u2019s side
▶ Sealing surfaces for line connection
▶ Sealing surfaces for flange connection
▶ Mounting surface for valve mounting
▶ Inductive proximity switches
▶ Position measurement system
The unpainted surfaces are protected using a corrosion protection agent which is free from solvents.

hydraulic

Nominal pressure ¹⁾	bar	350
Minimum operating pressure (without load) ²⁾	bar	10
Static test pressure	bar	525
Reduced test pressure	bar	315
Operating viscosity range	mm²/s	12 \u2026 380
Optimum viscosity at operating temperature	mm²/s	20 \u2026 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) ³⁾		Class 20/18/15 according to ISO 4406 (c)
Bleeding		By default secured against screwing out

¹⁾	Higher operating pressures upon request. The specified operating pressures apply to applications with shock-free operation with reference to excess pressure and/or external loads. With extreme loads like e. g. high sequence cycle, mounting elements and threaded piston rod connections must be designed for durability.
²⁾	Depending on the application, a certain minimum pressure is required in order to guarantee good functioning of the cylinder. Without load, a minimum pressure of 10 bar is recommended for differential cylinders; for lower pressures as well as double-acting cylinders, please contact us.
³⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid¹⁾	Classification	Suitable sealing materials	Standards
Mineral oils	HL, HLP	FKM, NBR	DIN 51524
Oil-in-water emulsion	HFA	FKM, NBR	ISO 12922
Water glycol	HFC	upon request
Phosphate ester	HFDR	FKM	ISO 12922
Polyol ester	HFDU	FKM	ISO 12922

¹⁾	For further information on hydraulic fluids refer to data sheet R.90223.

Weight

Piston	Piston rod	with 0 mm stroke length				per 100 mm stroke length
ØAL	ØMM	MP3/MP5	MF3/MF4	MT4	MS2
mm		kg	kg	kg	kg	kg
40	28 mm / -	8	11	11	9	1.2
50	36 mm / -	12	17	15	15	1.6
63	45 mm / -	26	32	30	32	2.6
80	56 mm / -	33	43	40	42	4.2
100	70 mm / -	58	72	71	73	5.7
125	90 mm / -	120	148	145	149	11.1
140	100 mm / -	167	205	202	206	13
160	110 mm / -	229	276	276	275	16.3
180	125 mm / -	317	387	386	404	19.5
200	140 mm / -	425	506	504	531	24.4
220	160 mm / -	514	653	570	590	37.8
250	180 mm / -	777	939	854	829	46.2
280	200 mm / -	915	1274	1028	984	59.7
320	220 mm / -	1200	1274	1211	1211	68.3

Selection criteria for seals

	Work and environmental conditions	Seal versions
	Work and environmental conditions	M	G	V	L	A	B	T	R	S
Medium/temperature	Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C	++	++	++	++	++	++	++	++	++
	Medium HFA/operating temperature of medium +5 \u2026 +55 °C	+/\u2012	+/\u2012	+/-	+/-	+	+/\u2012	++	+/-	+/\u2012
	Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C	\u2012	++	\u2012	\u2012	+/\u2012	\u2012	++	\u2012	\u2012
	Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
	Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
	Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C¹⁾	++	+	+²⁾	++	++	+²⁾	+	++	++²⁾
	Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C	\u2012	\u2012	++	\u2012	\u2012	+	\u2012	\u2012	++
Function/velocity \u2026	Static holding function more than 10 minutes: Attention! Application- and temperature-dependent	++	+	+	+	++	++	+	+	+
	Static holding function short-time < 1 minute	++	++	++	++	++	++	++	++	++
	Robust application conditions: steel works, mining, thin ice	++	++	++	++	++	++	\u2012	++	\u2012
	Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes	\u2012	\u2012	\u2012	+/\u2012	\u2012	\u2012	++	+	++
	Cylinder velocity ≥ 0.001 m/s stick-slip behavior	++	+	+	++	\u2012	\u2012	++	++	++
	Cylinder velocity 0.01 \u2026 0.5 m/s³⁾	++	+	+	++	+	+	++	++	++
	Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s³⁾	\u2012	+/\u2012	+/\u2012	++	\u2012	\u2012	++	+	++
	Stroke length > 1.0 m	+/\u2012	++	++	++	++	++	++	++	++
	Standstill period (wear)	++	+/\u2012	+/\u2012	++	+/\u2012	\u2012	++	++	++
	Undissolved air in the oil⁴⁾	\u2012	+	+	+	\u2012	\u2012	+	+	+

	++ = very good + = good +/\u2013 = conditional, depending on the application parameters \u2013 = inappropriate General technical data in corresponding data sheets will remain valid! Generally, a medium temperature of approx. 40 °C is recommended. The specified values are to be regarded as guidelines; depending on the case of application, it may be necessary to check the suitability of the seal system.
¹⁾	Moreover, observe the corresponding medium temperature range
²⁾	Lower temperature limit \u201315 °C
³⁾	Standard line connections not designed for that velocity
⁴⁾	\u2012 = Seal is destroyed, + Seal is not directly destroyed, leakage may occur

Stroke velocity

Piston Ø	Line connection	Maximum stroke velocity ¹⁾
mm		m/s
40	G1/2	0.31
50	G1/2	0.2
63	G3/4	0.28
80	G3/4	0.18
100	G1	0.2
125	G1 1/4	0.2
140	G1 1/4	0.16
160	G1 1/2	0.18
180	G1 1/2	0.14
200	G1 1/2	0.11
220	G1 1/2	0.09
250	G1 1/2	0.07
280	G1 1/2	0.06
320	G1 1/2	0.04

¹⁾

Please observe the guideline on max. stroke velocities (with recommended flow velocity of 5 m/s in the line connection) in the table. Higher stroke velocities upon request. If the extension velocity is considerably higher than the retraction velocity of the piston rod, drag-out losses of the medium may result. If necessary, please consult us.

Life cycle:

Rexroth cylinders correspond to the reliability recommendations for industrial applications. ≥ 10,000,000 Double strokes in idle continuous operation or 3,000 km piston travel at 70 % of the nominal pressure, without load on the piston rod, with a maximum velocity of 0.5 m/s, with a failure rate of less than 5 %.

Notices:

Boundary and application conditions:

The mechanical alignment of the movement axis and thus the mounting points of hydraulic cylinder and piston rod must be ensured. Lateral forces on the guides of piston rod and piston are to be avoided. It may be necessary to consider the own weight of the hydraulic cylinder (MP3/MP5 or MT4) or the piston rod.

The kinking length/kinking load of the piston rod and/or the hydraulic cylinder must be observed (see Kinking).

The maximum admissible stroke velocities with regard to the suitability/load of seals must be observed as must their compatibility with the properties of the fluid type (see seals).

The maximum admissible velocities/kinetic energies when moving into the end positions, also considering external loads, must be observed.
Danger: Excess pressure

The maximum admissible operating pressure must be complied with in any operating state of the hydraulic cylinder. Possible pressure intensification resulting from the area ratio of annulus area to piston area and possible throttling points are to be observed.

Detrimental environmental influences, like e. g. aggressive finest particles, vapors, high temperatures, etc. as well as contamination and deterioration of the hydraulic fluid are to be avoided.

Standards:

Bosch Rexroth standard; main dimensions like piston Ø and piston rod Ø correspond to ISO 3320.

Acceptance:

Each cylinder is tested according to Bosch Rexroth standard and in compliance with ISO 10100: 2001.

Safety instructions:

For assembly, commissioning and maintenance of hydraulic cylinders, observe the operating instructions 07100-B!

Service and repair work has to be performed by Bosch Rexroth AG or by personnel especially trained for this purpose. No warranty is accepted for damage as a consequence of assembly, maintenance or repair work not performed by Bosch Rexroth AG.

Check lists for hydraulic cylinders:

Cylinders the characteristics and/or application parameters of which deviate from the values specified in the data sheet can only be offered as a special version upon request. For offers, the variations of the characteristics and/or application parameters must be described in the check lists for hydraulic cylinders (07200).

This list does not claim to be complete. In case of questions regarding the compatibility with the medium or exceedance of the boundary or application conditions, please contact us.

All graphical representations in the data sheet are examples. The product supplied may therefore differ from the figure.

Project planning software ICS (Interactive Catalog System)

The ICS (Interactive Catalog System) is a selection and project planning help for hydraulic cylinders. The ICS allows designers for machines and systems to quickly and reliably find the perfect hydraulic cylinder solution through logic-guided type key enquiries. This software helps to solve design and project planning tasks more quickly and efficiently. After having been guided through the product selection, the user quickly and reliably gets the exact technical data of the selected component as well as 2D and 3D CAD data in the correct file format for all common CAD systems.

This allows users to reduce costs while increasing their competitiveness.

www.boschrexroth.com/ics

Diameters, areas, forces, flow

Piston	Piston rod	Area ratio	Areas			Force at 350 bar			Flow at 0.1 m/s			Maximum available stroke length
Piston	Piston rod	Area ratio	Piston	Rod	Ring	Pressure	Differential	Traction	Off	Differential	On	Maximum available stroke length
ØAL	ØMM	φ A₁/A₃	A₁	A₂	A₃	F₁	F₂	F₃	q_V1	q_V2	q_V3
mm			cm²	cm²	cm²	kN	kN	kN	l/min	l/min	l/min	mm
40	28 mm / -	1.96	12.56	6.16	6.4	43.96 ¹⁾	21.56	22.4	7.5 ²⁾	3.7	3.8	2000
50	36 mm / -	2.08	19.63	10.18	9.45	68.71 ¹⁾	35.63	33.08	11.8 ²⁾	6.1	5.7	2000
63	45 mm / -	2.04	31.17	15.9	15.27	109.1 ¹⁾	55.65	53.45	18.7 ²⁾	9.5	9.2	2000
80	56 mm / -	1.96	50.26	24.63	25.63	175.91 ¹⁾	86.21	89.71	30.2 ²⁾	14.8	15.4	2000
100	70 mm / -	1.96	78.54	38.48	40.06	274.89 ¹⁾	134.68	140.21	47.1 ²⁾	23.1	24	3000
125	90 mm / -	2.08	122.72	63.62	59.1	429.52 ¹⁾	222.67	206.85	73.6 ²⁾	38.2	35.4	3000
140	100 mm / -	2.04	153.94	78.54	75.4	538.79 ¹⁾	274.89	263.9	92.4 ²⁾	47.1	45.3	3000
160	110 mm / -	1.9	201.06	95.06	106	703.71 ¹⁾	332.71	371	120.6 ²⁾	57	63.6	3000
180	125 mm / -	1.93	254.47	122.72	131.75	890.65 ¹⁾	429.52	461.13	152.7 ²⁾	73.6	79.1	3000
200	140 mm / -	1.96	314.16	153.96	160.2	1099.56 ¹⁾	538.86	560.7	188.5 ²⁾	92.4	96.1	3000
220	160 mm / -	2.12	380.1	201	179.1	1330.5 ¹⁾	703.7	626.8	228.1 ²⁾	120.7	107.4	6000
250	180 mm / -	2.08	490.8	254.4	236.4	1718.1 ¹⁾	890.6	827.4	294.5 ²⁾	152.7	141.8	6000
280	200 mm / -	2.04	615.7	314.1	301.6	2155.1 ¹⁾	1099.6	1055.6	369.4 ²⁾	188.5	180.9	6000
320	220 mm / -	1.9	804.2	380.1	424.2	2814.9 ¹⁾	1330.5	1484.4	482.5 ²⁾	228.1	254.4	6000

¹⁾	Theoretical static cylinder force (without consideration of the efficiency and admissible load for attachment parts such as swivel heads, plates, or valves, etc.)
²⁾	Stroke velocity

Tolerances according to ISO 6020-1

Installation dimensions	WC	XC²⁾	XO²⁾	XS^{1; 2)}	XV²⁾	ZP²⁾
Mounting type	MF3	MP3	MP5	MS2	MT4	MF4
Stroke length in mm	Tolerances in mm						Stroke tolerances in mm
≤ 1.250	±2	±1,5	±1,5	±2	±2	±1,5	±2
> 1.250 \u2026 ≤ 3.150	±4	±3	±3	±4	±4	±3	+5
> 3.150 \u2026 ≤ 6.000	±8	+5	+5	±8	±8	+5	±8

¹⁾	Not standardized
²⁾	Including stroke length
³⁾	Stroke tolerances must not be added to the tolerances listed in this table.

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding/measuring coupling

By default, a patented safety bleeding device against unintended screwing out in head and base is delivered for all cylinders.

The port allows for the installation of a measuring coupling with check valve for pressure measurement or contamination-free bleeding. Measuring coupling with check valve function, i.e. it can also be connected when the system is pressurized.

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)

Scope of delivery: measuring coupling G1/4

MESSKUPPLUNG AB 20-11/K1 G1/4 with seal ring made of NBR

Material no. R900009090

MESSKUPPLUNG AB 20-11/K1V G1/4 with seal ring made of FKM

Material no. R900001264

Proximity switches

Inductive proximity switches are used as reliable end position control for hydraulic cylinders. They are an important element for the safe and exact monitoring of safety equipment, locks and/or other machine functions in their end position by means of the output of signals. The proximity switch which is high-pressure resistant up to 500 bar works in a contactless manner. Consequently, it is wear-free. The proximity switch has been set at the factory. The switching distance must not be adjusted. The lock nut of the proximity switch is marked at the factory using sealing wax. On versions with proximity switch, the cylinders are equipped with proximity switches on both sides.

Technical data proximity switch

Function type			PNP normally open contact
Admissible pressure		bar	500
Operating voltage		V DC	10 ... 30
Operating voltage	including residual ripple	%	≤ 15
Voltage drop		V	≤ 1.5
Rated operating voltage		V DC	24
Rated operating current		mA	200
Idle current		mA	≤ 8
Residual current		μA	≤ 10
Repetition accuracy		%	≤ 5
Hysteresis		%	≤ 15
Ambient temperature range		°C	-25 \u2026 +80
Temperature drift		%	≤ 10
Switching frequency		Hz	1000
Protection class	active area		IP68
Protection class	Proximity switch		IP67
Housing material			Material no. 1.4104

Pin assignment

Installation position	any
Primer coat	Gentian blue (RAL 5010)
Minimum layer thickness of the priming ¹⁾	µm	40

Hydraulic fluid¹⁾	Classification	Suitable sealing materials	Standards
Mineral oils	HL, HLP	FKM, NBR	DIN 51524
Oil-in-water emulsion	HFA	FKM, NBR	ISO 12922
Water glycol	HFC	upon request
Phosphate ester	HFDR	FKM	ISO 12922
Polyol ester	HFDU	FKM	ISO 12922

Piston	Piston rod	with 0 mm stroke length	per 100 mm stroke length
40	28 mm / -	8	11	11	9	1.2
50	36 mm / -	12	17	15	15	1.6
63	45 mm / -	26	32	30	32	2.6
80	56 mm / -	33	43	40	42	4.2
100	70 mm / -	58	72	71	73	5.7
125	90 mm / -	120	148	145	149	11.1
140	100 mm / -	167	205	202	206	13
160	110 mm / -	229	276	276	275	16.3
180	125 mm / -	317	387	386	404	19.5
200	140 mm / -	425	506	504	531	24.4
220	160 mm / -	514	653	570	590	37.8
250	180 mm / -	777	939	854	829	46.2
280	200 mm / -	915	1274	1028	984	59.7
320	220 mm / -	1200	1274	1211	1211	68.3

	Work and environmental conditions	Seal versions
Medium/temperature	Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C	++	++	++	++	++	++	++	++	++
Medium HFA/operating temperature of medium +5 \u2026 +55 °C	+/\u2012	+/\u2012	+/-	+/-	+	+/\u2012	++	+/-	+/\u2012
Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C	\u2012	++	\u2012	\u2012	+/\u2012	\u2012	++	\u2012	\u2012
Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C	\u2012	\u2012	++	\u2012	\u2012	++	\u2012	\u2012	++
Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C¹⁾	++	+	+²⁾	++	++	+²⁾	+	++	++²⁾
Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C	\u2012	\u2012	++	\u2012	\u2012	+	\u2012	\u2012	++
Function/velocity \u2026	Static holding function more than 10 minutes: Attention! Application- and temperature-dependent	++	+	+	+	++	++	+	+	+
Static holding function short-time < 1 minute	++	++	++	++	++	++	++	++	++
Robust application conditions: steel works, mining, thin ice	++	++	++	++	++	++	\u2012	++	\u2012
Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes	\u2012	\u2012	\u2012	+/\u2012	\u2012	\u2012	++	+	++
Cylinder velocity ≥ 0.001 m/s stick-slip behavior	++	+	+	++	\u2012	\u2012	++	++	++
Cylinder velocity 0.01 \u2026 0.5 m/s³⁾	++	+	+	++	+	+	++	++	++
Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s³⁾	\u2012	+/\u2012	+/\u2012	++	\u2012	\u2012	++	+	++
Stroke length > 1.0 m	+/\u2012	++	++	++	++	++	++	++	++
Standstill period (wear)	++	+/\u2012	+/\u2012	++	+/\u2012	\u2012	++	++	++
Undissolved air in the oil⁴⁾	\u2012	+	+	+	\u2012	\u2012	+	+	+

Piston Ø	Line connection	Maximum stroke velocity ¹⁾
40	G1/2	0.31
50	G1/2	0.2
63	G3/4	0.28
80	G3/4	0.18
100	G1	0.2
125	G1 1/4	0.2
140	G1 1/4	0.16
160	G1 1/2	0.18
180	G1 1/2	0.14
200	G1 1/2	0.11
220	G1 1/2	0.09
250	G1 1/2	0.07
280	G1 1/2	0.06
320	G1 1/2	0.04

Piston	Piston rod	Area ratio	Areas	Force at 350 bar	Flow at 0.1 m/s	Maximum available stroke length
40	28 mm / -	1.96	12.56	6.16	6.4	43.96 ¹⁾	21.56	22.4	7.5 ²⁾	3.7	3.8	2000
50	36 mm / -	2.08	19.63	10.18	9.45	68.71 ¹⁾	35.63	33.08	11.8 ²⁾	6.1	5.7	2000
63	45 mm / -	2.04	31.17	15.9	15.27	109.1 ¹⁾	55.65	53.45	18.7 ²⁾	9.5	9.2	2000
80	56 mm / -	1.96	50.26	24.63	25.63	175.91 ¹⁾	86.21	89.71	30.2 ²⁾	14.8	15.4	2000
100	70 mm / -	1.96	78.54	38.48	40.06	274.89 ¹⁾	134.68	140.21	47.1 ²⁾	23.1	24	3000
125	90 mm / -	2.08	122.72	63.62	59.1	429.52 ¹⁾	222.67	206.85	73.6 ²⁾	38.2	35.4	3000
140	100 mm / -	2.04	153.94	78.54	75.4	538.79 ¹⁾	274.89	263.9	92.4 ²⁾	47.1	45.3	3000
160	110 mm / -	1.9	201.06	95.06	106	703.71 ¹⁾	332.71	371	120.6 ²⁾	57	63.6	3000
180	125 mm / -	1.93	254.47	122.72	131.75	890.65 ¹⁾	429.52	461.13	152.7 ²⁾	73.6	79.1	3000
200	140 mm / -	1.96	314.16	153.96	160.2	1099.56 ¹⁾	538.86	560.7	188.5 ²⁾	92.4	96.1	3000
220	160 mm / -	2.12	380.1	201	179.1	1330.5 ¹⁾	703.7	626.8	228.1 ²⁾	120.7	107.4	6000
250	180 mm / -	2.08	490.8	254.4	236.4	1718.1 ¹⁾	890.6	827.4	294.5 ²⁾	152.7	141.8	6000
280	200 mm / -	2.04	615.7	314.1	301.6	2155.1 ¹⁾	1099.6	1055.6	369.4 ²⁾	188.5	180.9	6000
320	220 mm / -	1.9	804.2	380.1	424.2	2814.9 ¹⁾	1330.5	1484.4	482.5 ²⁾	228.1	254.4	6000

Installation dimensions	WC	XC²⁾	XO²⁾	XS^{1; 2)}	XV²⁾	ZP²⁾
Stroke length in mm	Tolerances in mm	Stroke tolerances in mm
≤ 1.250	±2	±1,5	±1,5	±2	±2	±1,5	±2
> 1.250 \u2026 ≤ 3.150	±4	±3	±3	±4	±4	±3	+5
> 3.150 \u2026 ≤ 6.000	±8	+5	+5	±8	±8	+5	±8

Function type		PNP normally open contact
Admissible pressure	bar	500
Operating voltage		V DC	10 ... 30
including residual ripple	%	≤ 15
Voltage drop	V	≤ 1.5
Rated operating voltage	V DC	24
Rated operating current	mA	200
Idle current	mA	≤ 8
Residual current	μA	≤ 10
Repetition accuracy	%	≤ 5
Hysteresis	%	≤ 15
Ambient temperature range	°C	-25 \u2026 +80
Temperature drift	%	≤ 10
Switching frequency	Hz	1000
Protection class	active area		IP68
Proximity switch		IP67
Housing material	Material no. 1.4104

Type of mounting MP3: Swivel eye at cylinder base

MP3; AL Ø 40 \u2026 200 mm

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Standard version \u201cW\u201d Lubricating nipple, cone head form A according to DIN 71412

MP3: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 200 mm

type of mounting MP3

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	WA	XC	L	MR	M1	ØCD		EW		ØRA ⁷⁾	VE ⁷⁾	ØRA ⁸⁾	VE ⁸⁾
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm	mm	mm	mm
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	120	43	18	268	35	36	34	30	H11	28	h12	52	45	52	20
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	120	51.5	18	280	45	42	40	35	H11	30	h12	70	47	70	19
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	133	67	22	330	50	52	50	40	H11	35	h12	88	43	88	13
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	146	71.5	22	355	55	65	62.5	50	H11	40	h12	98	53	98	15
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	171	90.5	25	390	65	70	70	60	H11	50	h12	120	55	120	17
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	205	114	32	495	75	82	82	70	H11	55	h12	150	68	150	20
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	219	126	35	530	80	95	95	80	H11	60	h12	170	75	170	23
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48 x 2	210	240	142.5	40	600	90	113	113	90	H11	65	h12	200	90	200	90
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48 x 2	241	264	159.5	45	665	105	125	125	100	H11	70	h12	230	100	230	100
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48 x 2	262	278	172.5	45	710	115	142.5	142.5	110	H11	80	h12	250	110	250	110

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
⁸⁾	Dimensions for cylinders with seal design A and B

Type of mounting MP5: Self-aligning clevis at cylinder base

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	Related bolt Ø m6 Related bolt -Ø j6 for maintenance-free spherical bearing
⁵⁾	Standard version \u201cW\u201d Lubricating nipple, cone head form A according to DIN 71412

MP5: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

type of mounting MP5

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁵⁾	Y	PJ	X1	WA	XO	X	LT	MS	M1	ØCX		EP		EX		Z	ØRA ⁷⁾	VE ⁷⁾	ØRA ⁸⁾	VE ⁸⁾
																	min.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	°	mm	mm	mm	mm
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	120	43	18	268	-	35	36	34	30	0 - 0.01	28	0 - 0.4	22	0 - 0.12	6	52	45	52	20
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	120	51.5	18	280	-	45	42	40	35	0 - 0.01	30	0 - 0.4	25	0 - 0.12	6	70	47	70	19
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	133	67	22	330	-	50	52	50	40	0 - 0.01	35	0 - 0.4	28	0 - 0.12	7	88	43	88	13
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	146	71.5	22	355	-	55	65	62.5	50	0 - 0.01	40	0 - 0.4	35	0 - 0.12	6	98	53	98	15
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	171	90.5	25	390	-	65	70	70	60	0 - 0.01	50	0 - 0.4	44	0 - 0.12	6	120	55	120	17
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	205	114	32	495	-	75	82	82	70	0 - 0.01	55	0 - 0.4	49	0 - 0.12	6	150	68	150	20
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	219	126	35	530	-	80	95	95	80	0 - 0.01	60	0 - 0.4	55	0 - 0.12	6	170	75	170	23
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48 x 2	210	240	142.5	40	600	-	90	113	113	90	0 - 0.01	65	0 - 0.4	60	0 - 0.12	5	200	90	200	90
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48 x 2	241	264	159.5	45	665	-	105	125	125	100	0 - 0.01	70	0 - 0.4	70	0 - 0.12	7	230	100	230	100
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48 x 2	262	278	172.5	45	710	-	115	142.5	142.5	110	0 - 0.01	80	0 - 0.4	70	0 - 0.12	6	250	110	250	110
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	375	292	65	G1 1/2	M48 x 2	262	326	185	40	760	-	115	140 ⁶⁾	150 ⁶⁾	110	0 - 0.01	80	0 - 0.4	70	0 - 0.12	6	275	125	275	125
250	180 mm / -	M130 x 3	130	M150 x 4	190	160	440	324	65	G1 1/2	M48 x 2	272	336	218	40	825	20	140	178 ⁶⁾	188 ⁶⁾	120	0 - 0.01	90	0 - 0.4	85	0 - 0.12	6	320	135	320	135
280	200 mm / -	-	-	M160 x 4	200	180	460	368	65	G1 1/2	M48 x 2	282	366	228	40	895	-	170	200 ⁶⁾	210 ⁶⁾	140	0 - 0.01	100	0 - 0.4	90	0 - 0.12	7	335	150	335	150
320	220 mm / -	-	-	M180 x 4	220	200	490	406	65	G1 1/2	M48 x 2	287	391	243	40	965	340	200	250 ⁶⁾	260 ⁶⁾	160	0 - 0.01	110	0 - 0.4	105	0 - 0.12	8	350	165	350	165

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
⁷⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
⁸⁾	Dimensions for cylinders with seal design A and B

Type of mounting MF3: Round flange at the cylinder head

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	For piston Ø 160 ... 280 mm, 8 mounting bores For piston Ø 320 mm, 12 mounting bores

type of mounting MF3

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	ØRD		WC	VD	NF	A1	ZB	X	ØFB		ØFC		ØUC		α
																						min.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm		mm		mm	mm	°
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	120	43	95	e8	23	5	35	0	238	-	13.5	H13	120	js13	145	0 - 1	60
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	120	51.5	115	e8	20	5	40	0	237	-	13.5	H13	140	js13	165	0 - 1	60
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	133	67	150	e8	20	5	40	0	285	-	17.5	H13	180	js13	210	0 - 1	60
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	146	71.5	160	e8	20	5	50	0	305	-	17.5	H13	195	js13	230	0 - 1	60
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	171	90.5	200	e8	20	5	55	0	330	-	22	H13	230	js13	270	0 - 1	60
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	205	114	245	e8	25	5	70	0	425	-	26	H13	290	js13	335	0 - 1	60
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	219	126	280	e8	30	10	70	0	457	-	30	H13	330	js13	380	0 - 1	60
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48x2	210	240	142.5	300	e8	40	10	80	0	515	-	30	H13	360	js13	420	0 - 1	45
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48x2	241	264	159.5	335	e8	40	10	95	0	565	-	36	H13	400	js13	470	0 - 1	45
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48x2	262	278	172.5	360	e8	40	10	105	0	600	-	36	H13	430	js13	500	0 - 1	45
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	375	292	65	G1 1/2	M48x2	262	326	185	400	e8	40	10	115	0	655	-	39	H13	475	js13	550	0 - 1	45
250	180 mm / -	M130 x 3	130	M150 x 4	190	160	440	324	65	G1 1/2	M48x2	272	336	218	450	e8	40	10	125	0	695	20	45	H13	530	js13	610	0 - 1	45
280	200 mm / -	-	-	M160 x 4	200	180	460	368	65	G1 1/2	M48x2	282	366	228	470	e8	50	10	130	0	735	-	45	H13	550	js13	630	0 - 1	45
320	220 mm / -	-	-	M180 x 4	220	200	490	406	65	G1 1/2	M48x2	287	391	243	510	e8	55	10	140	5	775	340	45	H13	590	js13	670	0 - 1	30

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"

Type of mounting MF4: Round flange at the cylinder base

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	For piston Ø 160 ... 280 mm, 8 mounting bores For piston Ø 320 mm, 12 mounting bores

MF4: with seal design \u201cA\u201d, \u201cB\u201d and AL Ø 160 \u2026 320 mm

type of mounting MF4

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	WA	ZP	X	NF	VD	ØRD		ØFB		ØFC		ØUC		α	ØRA ⁷⁾	VE ⁷⁾	ØRA ⁸⁾	VE ⁸⁾
																	min.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm		mm	mm	°	mm	mm	mm	mm
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	120	43	18	273	-	35	5	95	e8	13.5	H13	120	js13	145	0 - 1	60	52	45	52	20
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	120	51.5	18	277	-	40	5	115	e8	13.5	H13	140	js13	165	0 - 1	60	70	47	70	19
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	133	67	22	325	-	40	5	150	e8	17.5	H13	180	js13	210	0 - 1	60	88	43	88	13
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	146	71.5	22	355	-	50	5	160	e8	17.5	H13	195	js13	230	0 - 1	60	98	53	98	15
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	171	90.5	25	385	-	55	5	200	e8	22	H13	230	js13	270	0 - 1	60	120	55	120	17
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	205	114	32	495	-	70	5	245	e8	26	H13	290	js13	335	0 - 1	60	150	68	150	20
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	219	126	35	532	-	70	10	280	e8	30	H13	330	js13	380	0 - 1	60	170	75	170	23
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48x2	210	240	142.5	40	600	-	80	10	300	e8	30	H13	360	js13	420	0 - 1	45	200	90	200	90
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48x2	241	264	159.5	45	665	-	95	10	335	e8	36	H13	400	js13	470	0 - 1	45	230	100	230	100
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48x2	262	278	172.5	45	710	-	105	10	360	e8	36	H13	430	js13	500	0 - 1	45	250	110	250	110
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	375	292	65	G1 1/2	M48x2	262	326	185	40	770	-	115	10	400	e8	39	H13	475	js13	550	0 - 1	45	275	125	275	125
250	180 mm / -	M130 x 3	130	M150 x 4	190	160	440	324	65	G1 1/2	M48x2	272	336	218	40	820	20	125	10	450	e8	45	H13	530	js13	610	0 - 1	45	320	135	320	135
280	200 mm / -	-	-	M160 x 4	200	180	460	368	65	G1 1/2	M48x2	282	366	228	40	865	-	130	10	470	e8	45	H13	550	js13	630	0 - 1	45	335	150	335	150
320	220 mm / -	-	-	M180 x 4	220	200	490	406	65	G1 1/2	M48x2	287	391	243	40	915	340	140	10	510	e8	45	H13	590	js13	670	0 - 1	30	350	165	350	165

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
⁸⁾	Dimensions for cylinders with seal design A and B

Type of mounting MT4: Trunnion

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV).

MT4: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm

¹⁾	Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV).

Dimensions for cylinder with piston rod extension \u201cLY\u201c in retracted condition

type of mounting MT4

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	WA	ZB	X	XV ⁷⁾	XV	XV	BD	UV ⁸⁾	ØTD		TL		TM		r	ØRA ⁹⁾	VE ⁹⁾	ØRA ¹⁰⁾	VE ¹⁰⁾
																	min.	average	min.	max.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm		mm	mm	mm	mm	mm
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	120	43	18	238	42	151 + X/2	172	138 + X	48	101	40	e8	30	js16	95	h13	2	52	45	52	20
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	120	51.5	18	237	50	150 + X/2	175	134 + X	48	117	40	e8	30	js16	120	h13	2	70	47	70	19
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	133	67	22	285	64	183.5 + X/2	215.5	163.5 + X	53	153	45	e8	35	js16	150	h13	2	88	43	88	13
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	146	71.5	22	305	82	197 + X/2	238	168 + X	68	169	55	e8	50	js16	160	h13	2	98	53	98	15
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	171	90.5	25	330	109	204.5 + X/2	259	165 + X	88	203	60	e8	55	js16	200	h13	2	120	55	120	17
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	205	114	32	425	131	272.5 + X/2	338	207 + X	118	252	75	e8	60	js16	245	h13	2.5	150	68	150	20
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	219	126	35	457	147	295.5 + X/2	369	222 + X	128	282	85	e8	70	js16	280	h13	2.5	170	75	170	23
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48 x 2	210	240	142.5	40	515	186	330 + X/2	423	237 + X	148	310	95	e8	80	js16	300	h13	2.5	200	90	200	90
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48 x 2	241	264	159.5	45	565	212	373 + X/2	479	267 + X	168	348	110	e8	90	js16	335	h13	2.5	230	100	230	100
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48 x 2	262	278	172.5	45	600	228	401 + X/2	515	287 + X	188	373	120	e8	100	js16	360	h13	2.5	250	110	250	110
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	375	292	65	G1 1/2	M48 x 2	262	326	185	40	655	205	425 + X/2	527.5	322.5 + X	165	398	130	e8	100	js16	400	h13	2.5	275	125	275	125
250	180 mm / -	M130 x 3	130	M150 x 4	190	160	440	324	65	G1 1/2	M48 x 2	272	336	218	40	695	245	440 + X/2	562.5	317.5 + X	175	463	140	e8	100	js16	450	h13	5	320	135	320	135
280	200 mm / -	-	-	M160 x 4	200	180	460	368	65	G1 1/2	M48 x 2	282	366	228	40	735	245	465 + X/2	587.5	342.5 + X	205	486	170	e8	125	js16	480	h13	5	335	150	335	150
320	220 mm / -	-	-	M180 x 4	220	200	490	406	65	G1 1/2	M48 x 2	287	391	243	40	775	600	482.5 + X/2	782.5	182.5 + X	245	537	200	e8	150	js16	500	h13	5	350	165	350	165

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	XV_cent. Recommendation: Trunnion position in cylinder center
⁸⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
⁹⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
¹⁰⁾	Dimensions for cylinders with seal design A and B

Important installation information:

During installation, it must be ensured that the trunnion bearings are installed up to the trunnion shoulders. Any variation may reduce the product's service life.

Type of mounting MS2: Foot mounting

¹⁾	Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise)
²⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)
³⁾	Observe the minimum stroke length \u201cX_min.\u201c
⁴⁾	Recess 2 mm deep, for hexagon socket head cap screws; ISO 4762 (with piston Ø 320 mm DIN 931) \u2012 The screws must not be subjected to shear force. Force distribution via additional external fitting strip.

type of mounting MS2

ØAL	ØMM	KK ¹⁾	A ¹⁾	KK ²⁾	A ²⁾	NV	ØD	ØDA	ØD4 ³⁾	EE ⁴⁾ ⁵⁾	EE ⁴⁾ ⁶⁾	Y	PJ	X1	WA	XS	ZB	SS	X	S	S1	ØSB		ST	TS		US ⁷⁾	LH	L1 ⁷⁾	ØRA ⁸⁾	VE ⁸⁾	ØRA ⁹⁾	VE ⁹⁾
																			min.
mm			mm		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	M22 x 1.5	22	M24 x 2	35	22	92	52	34	G1/2	M22 x 1.5	91	120	43	18	126	238	50	-	30	15	17.5	H13	32	125	js13	164	50	100	52	45	52	20
50	36 mm / -	M28 x 1.5	28	M30 x 2	45	30	108	62	34	G1/2	M22 x 1.5	90	120	51.5	18	130	237	40	4	40	20	22	H13	37	150	js13	197	60	118	70	47	70	19
63	45 mm / -	M35 x 1.5	35	M39 x 3	55	36	140	78	42	G3/4	M27 x 2	117	133	67	22	164	285	39	15	50	25	24	H13	47	185	js13	235	75	149	88	43	88	13
80	56 mm / -	M45 x 1.5	45	M50 x 3	75	46	148	100	42	G3/4	M27 x 2	124	146	71.5	22	176	305	42	22	60	30	26	H13	52	210	js13	270	80	160	98	53	98	15
100	70 mm / -	M58 x 1,5	58	M64 x 3	95	60	186	125	47	G1	M33 x 2	119	171	90.5	25	179	330	51	23	70	35	33	H13	62	250	js13	320	100	200	120	55	120	17
125	90 mm / -	M65 x 1.5	65	M80 x 3	110	75	235	160	58	G1 1/4	M42 x 2	170	205	114	32	245	425	55	39	90	45	40	H13	72	310	js13	392	120	245	150	68	150	20
140	100 mm / -	M80 x 2	80	M90 x 3	120	85	258	175	58	G1 1/4	M42 x 2	186	219	126	35	265.5	457	60	39	95	47.5	40	H13	77	340	js13	422	135	271	170	75	170	23
160	110 mm / -	M100 x 2	100	M100 x 3	140	95	292	200	65	G1 1/2	M48 x 2	210	240	142.5	40	302.5	515	55	64	115	57.5	45	H13	87	370	js13	462	150	305	200	90	200	90
180	125 mm / -	M110 x 2	110	M110 x 4	150	110	325	220	65	G1 1/2	M48 x 2	241	264	159.5	45	353.5	565	39	110	145	72.5	45	H13	79	415	js13	515	165	337	230	100	230	100
200	140 mm / -	M120 x 3	120	M120 x 4	160	120	350	245	65	G1 1/2	M48 x 2	262	278	172.5	45	379.5	600	43	116	155	77.5	52	H13	112	460	js13	570	180	366	250	110	250	110
220	160 mm / -	M120 x 3	120	M120 x 4	160	140	375	292	65	G1 1/2	M48 x 2	262	326	185	40	387.5	655	75	100	155	77.5	52	H13	112	500	js13	610	200	398	275	125	275	125
250	180 mm / -	M120 x 3	130	M150 x 4	190	160	440	324	65	G1 1/2	M48 x 2	272	336	218	40	397.5	695	85	90	155	77.5	52	H13	122	550	js13	660	225	456	320	135	320	135
280	200 mm / -	-	-	M160 x 4	200	180	460	368	65	G1 1/2	M48 x 2	282	366	228	40	410	735	110	70	160	80	62	H13	142	600	js13	722	235	476	335	150	335	150
320	220 mm / -	-	-	M180 x 4	220	200	490	406	65	G1 1/2	M48 x 2	287	391	243	40	440	775	85	400	190	95	74	H13	162	650	js13	785	255	512	350	165	350	165

¹⁾	Thread design "G"
²⁾	Thread design "A"
³⁾	Ø D4 max. 0.5 mm deep
⁴⁾	Flange connections see separate table
⁵⁾	Line connection \u201cB\u201d and \u201cC\u201d
⁶⁾	Line connection \u201cM"
⁷⁾	The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting
⁸⁾	Dimensions for cylinders with seal design M, T, G, L, R, S and V
⁹⁾	Dimensions for cylinders with seal design A and B

Flange ports

Dimensions for rectangular flange according to ISO 6162-2 tab. 2 type 1

Dimensions for square flange according to ISO 6164 tab. 2

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

ØAL	Y	PJ	X1	Ød₃	Ød₃ ¹⁾	c		w		d₁	t₁ ²⁾	p ³⁾
mm	mm	mm	mm	mm		mm	mm	mm	mm		mm	bar
63	113	141	65	13	1/2\u2033	40.5	± 0.25	18.2	± 0.25	M8	16	400
80	120	154	69	13	1/2\u2033	40.5	± 0.25	18.2	± 0.25	M8	16	400
100	114	181	87	19	3/4\u2033	50.8	± 0.25	23.8	± 0.25	M10	20	400
125	162.5	220	111.5	25	1\u2033	57.2	± 0.25	27.8	± 0.25	M12	24	400
140	179.5	232	121.5	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	400
160	197.5	265	139.5	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	400
180	233.5	279	156.5	32	1 1/4\u2033	66.6	± 0.25	31.8	± 0.25	M14	26	400
200	254.5	293	167.5	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	400
220	262	326	178	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	400
250	272	336	212	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	400
280	282	366	222	38	1 1/2\u2033	79.3	± 0.25	36.5	± 0.25	M16	30	400
320	287	391	236	51	2\u2033	96.8	± 0.25	44.5	± 0.25	M20	36	400

¹⁾	Flange connection according to ISO 6162-2 tab. 2 type 1 corresponds to flange connection according to SAE 6000 PSI
²⁾	Thread depth
³⁾	Max. operating pressure for related flanges in bar

Version \u201cH\u201d
ISO 6164

ØAL	Y	PJ	X1	Ød₃	w		d₁	t₁ ¹⁾	p ²⁾
mm	mm	mm	mm	mm	mm	mm		mm	bar
40	90	122	42.5	10	24.7	± 0.25	M6	12.5	400
50	89	122	51	10	24.7	± 0.25	M6	12.5	400
63	113	141	66	19	35.4	± 0.25	M8	16	400
80	120	154	70	19	35.4	± 0.25	M8	16	400
100	118	173	89.5	19	35.4	± 0.25	M8	16	400
125	162.5	220	112.5	32	51.6	± 0.25	M12	24	400
140	179.5	232	124.5	32	51.6	± 0.25	M12	24	400
160	197.5	265	140.5	38	60.1	± 0.25	M16	30	400
180	233.5	279	156.5	38	60.1	± 0.25	M16	30	400
200	254.5	293	170.5	38	60.1	± 0.25	M16	30	400
220	262	326	182	38	60.1	± 0.25	M16	30	400
250	272	336	216	38	60.1	± 0.25	M16	30	400
280	282	366	226	38	60.1	± 0.25	M16	30	400
320	287	391	240	51	69.3	± 0.25	M16	30	400

¹⁾	Thread depth
²⁾	Max. operating pressure for related flanges in bar

Subplates for valve mounting
SL and SV valves

Installation situation with MT4

NG6

NG10 and 20

NG30

Notice:

Porting pattern according to DIN 24340 form A and ISO 4401 (NG6) and form D and ISO 5781 (NG10; NG20 and NG30)

Piping symbol

Note:

Valves, fittings and piping are not included in the scope of delivery!

Important notice:

Subplates for SL and SV valves (isolator valves)

Please note:

Seal designs T, G, L, R, S and V are not designed for the static holding function!

Subplates for valve mounting
SL and SV valves

							Plate dimensions							Port size, porting pattern						Position point Valve
ØAL	Valve size	PJ	EE	Minimum stroke	Minimum stroke for MT4	X0	L1	L4	L5	LG	b1	h1	h9	h2	A	X	Y	X3	X4	X1	X2
mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm				mm	mm	mm	mm
40	6	121	G1/2	50	50	42.5	90	20	4	110	55	40	10	20	G1/2	G1/4	G1/4	21.5	21.5	65.5	15.5
50	6	121	G1/2	50	50	51	90	20	4	110	55	40	10	20	G1/2	G1/4	G1/4	21.5	21.5	65.5	15.5
63	6	137	G3/4	64	64	66	105	30	5	135	60	45	20	22.5	G3/4	G1/4	G1/4	21.5	21.5	75.5	15.5
63	10	137	G3/4	64	64	66	110	30	5	140	85	45	20	22.5	G3/4	G1/4	G1/4	21.4	21.4	78	33.3
80	6	150	G3/4	58	58	70	105	30	5	135	60	45	20	22.5	G3/4	G1/4	G1/4	21.5	21.5	75.5	15.5
80	10	150	G3/4	58	58	70	110	30	5	140	85	45	20	22.5	G3/4	G1/4	G1/4	21.4	21.4	78	33.3
100	10	172	G1	50	50	89.5	102	28	5	130	85	50	20	25	G1	G1/4	G1/4	21.4	21.4	70	33.3
125	10	212.5	G1 1/4	80	80	112.5	120	40	5	160	85	60	30	30	G1 1/4	G1/4	G1/4	21.4	21.4	90	33.3
	20	212.5	G1 1/4	80	80	112.5	135	50	5	185	100	60	30	30	G1 1/4	G1/4	G1/4	20.8	39.7	105	39.7
	30	212.5	G1 1/4	80	80	112.5	160	50	5	210	125	60	30	30	G1 1/4	G1/4	G1/4	24.6	59.6	130	48.4
140	10	225.5	G1 1/4	60	60	124.5	120	40	5	160	85	60	30	30	G1 1/4	G1/4	G1/4	21.4	21.4	90	33.3
	20	225.5	G1 1/4	60	60	124.5	135	50	5	185	100	60	30	30	G1 1/4	G1/4	G1/4	20.8	39.7	105	39.7
	30	225.5	G1 1/4	60	60	124.5	160	50	5	210	125	60	30	30	G1 1/4	G1/4	G1/4	24.6	59.6	130	48.4
160	10	252.5	G1 1/2	60 ¹⁾	60	140.5	130	45	5	175	95	70	20	35	G1 1/2	G1/4	G1/4	21.4	21.4	100	33.3
	20	252.5	G1 1/2	60 ¹⁾	60	140.5	140	45	5	185	100	70	20	35	G1 1/2	G1/4	G1/4	20.8	39.7	115	39.7
	30	252.5	G1 1/2	60 ¹⁾	60	140.5	165	45	5	210	125	70	20	35	G1 1/2	G1/4	G1/4	24.6	59.6	140	48.4
180	10	271.5	G1 1/2	50 ¹⁾	50	156.5	130	45	5	175	95	70	20	35	G1 1/2	G1/4	G1/4	21.4	21.4	100	33.3
	20	271.5	G1 1/2	50 ¹⁾	50	156.5	140	45	5	185	100	70	20	35	G1 1/2	G1/4	G1/4	20.8	39.7	115	39.7
	30	271.5	G1 1/2	50 ¹⁾	50	156.5	165	45	5	210	125	70	20	35	G1 1/2	G1/4	G1/4	24.6	59.6	140	48.4
200	10	285.5	G1 1/2	30 ¹⁾	30	170.5	130	45	5	175	95	70	20	35	G1 1/2	G1/4	G1/4	21.4	21.4	100	33.3
	20	285.5	G1 1/2	30 ¹⁾	30	170.5	140	45	5	185	100	70	20	35	G1 1/2	G1/4	G1/4	20.8	39.7	115	39.7
	30	285.5	G1 1/2	30 ¹⁾	30	170.5	165	45	5	210	125	70	20	35	G1 1/2	G1/4	G1/4	24.6	59.6	140	48.4

¹⁾	For type of mounting \u201cMS2\u201d, observe the X_min values of the dimension tables

ØAL	=	Piston Ø

The minimum stroke only applies to the following connection situation!

Subplates for valve mounting
Directional and high-response valves

Installation situation with MT4

NG6

Size 10

NG16

NG25

Notice:

Porting pattern according to DIN 24340 form A and ISO 4401

With larger stroke lengths and depending on the piston diameter, the pipeline is mounted at the cylinder pipe using pipe supports. A maximum of two sandwich plates is admissible.

Subplates for valve mounting
Directional and high-response valves

					Plate and piping dimensions																	Port size, porting pattern																Position point Valve
ØAL	Valve size	PJ	EE	Minimum stroke	L1	L4	L5	H1	H2	H2 for MT4	SW1	ØRa	b1	h1	LG	HG	HG for MT4	b2	X0	h7	h9	P	X3	h3	T	X4	h4	X	X5	h5	Y	X6	h6	MA	MB	X8	h8	X1	X2
							max.
mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm		mm	mm		mm	mm			mm	mm	mm	mm
40	6	121	G1/2	242	90	20	4	98	62.5	72.5	30	16 x 2.5	65	40	110	82.5	92.5	32.5	42.5	20	10	-	21.5	20	G1/2	21.5	20	-	-	-	-	-	-	-	-	-	-	25	15.5
50	6	121	G1/2	242	90	20	4	106.5	71	81	30	16 x 2.5	65	40	110	91	101	32.5	51	20	10	-	21.5	20	G1/2	21.5	20	-	-	-	-	-	-	-	-	-	-	25	15.5
63	6	137	G3/4	278	105	30	5	132	88.5	108.5	36	20 x 3	75	45	135	111	131	37.5	66	22.5	20	G3/4	21.5	22.5	G3/4	21.5	22.5	-	-	-	-	-	-	-	-	-	-	35	15.5
63	10	137	G3/4	303	130	30	5	132	89	109	36	20 x 3	90	70	160	136	156	45	66	23	20	G3/4	27	33	G3/4	3.5	33	G1/4	18	57	G1/4	64	57	G1/4	G1/4	50	17	50	21.4
80	6	150	G3/4	265	105	30	5	136.5	92.5	112.5	36	20 x 3	75	45	135	115	135	37.5	70	22.5	20	G3/4	21.5	22.5	G3/4	21.5	22.5	-	-	-	-	-	-	-	-	-	-	35	15.5
80	10	150	G3/4	290	130	30	5	136.5	93	113	36	20 x 3	90	70	160	140	160	45	70	23	20	G3/4	27	33	G3/4	3.5	33	G1/4	18	57	G1/4	64	57	G1/4	G1/4	50	17	50	21.4
100	10	172	G1	317	132	28	5	163.5	119.5	139.5	46	25 x 4	90	80	160	169.5	189.5	45	89.5	30	20	-	27	30	G1	3.5	40	G1/4	18	57	G1/4	65	57	G1/4	G1/4	58	20	52	21.4
125	10	212.5	G1 1/4	341	150	40	5	192.5	147.5	177.5	50	30 x 5	105	95	190	207.5	237.5	52.5	112.5	35	30	G1 1/4	27	35	G1 1/4	3.5	45	G1/4	20	72	G1/4	62	72	G1/4	G1/4	55	25	60	21.4
	16	212.5	G1 1/4	371	180	40	5	192.5	162.5	192.5	50	30 x 5	125	105	220	217.5	247.5	62.5	112.5	50	30	G1 1/4	57	35	G1 1/4	15	34	G1/4	76.5	80	G1/4	86	85	G1/4	G1/4	86	45	50	40
	25	212.5	G1 1/4	391	200	50	0	192.5	167.5	197.5	50	30 x 5	155	110	250	22.5	252.5	77.5	112.5	55	30	G1 1/4	77	42	G1 1/4	30	34	G1/4	19	90	G1/4	109	90	G1/4	G1/4	103	50	50	52.1
140	10	225.5	G1 1/4	328	150	40	5	204.5	159.5	189.5	50	30 x 5	105	95	190	219.5	249.5	52.5	124.5	35	30	G1 1/4	27	35	G1 1/4	3.5	45	G1/4	20	72	G1/4	62	72	G1/4	G1/4	55	25	60	21.4
	16	225.5	G1 1/4	358	180	40	5	204.5	174.5	204.5	50	30 x 5	125	105	220	229.5	259.5	62.5	124.5	50	30	G1 1/4	57	35	G1 1/4	15	34	G1/4	76.5	80	G1/4	86	85	G1/4	G1/4	86	45	50	40
	25	225.5	G1 1/4	378	200	50	0	204.5	179.5	209.5	50	30 x 5	155	110	250	234.5	264.5	77.5	124.5	55	30	G1 1/4	77	42	G1 1/4	30	34	G1/4	19	90	G1/4	109	90	G1/4	G1/4	103	50	50	52.1
160	10	252.5	G1 1/2	394	155	50	5	231.5	175.5	195.5	60	38 x 6	110	95	205	235.5	255.5	55	140.5	35	20	G1 1/2	27	35	G1 1/2	3.5	45	G1/4	19	72	G1/4	62	72	G1/4	G1/4	50	25	72	21.4
	16	252.5	G1 1/2	429	190	50	5	231.5	190.5	210.5	60	38 x 6	125	105	240	245.5	265.5	62.5	140.5	50	20	G1 1/2	57	35	G1 1/2	15	34	G1/4	76.5	80	G1/4	86	85	G1/4	G1/4	86	45	60	40
	25	252.5	G1 1/2	449	210	50	0	231.5	195.5	215.5	60	38 x 6	155	110	260	250.5	270.5	77.5	140.5	55	20	G1 1/2	77	42	G1 1/2	30	34	G1/4	19	90	G1/4	109	90	G1/4	G1/4	103	50	60	52.1
180	10	271.5	G1 1/2	375	155	50	5	248.5	191.5	211.5	60	38 x 6	110	95	205	251.5	271.5	55	156.5	35	20	G1 1/2	27	35	G1 1/2	3.5	45	G1/4	19	72	G1/4	62	72	G1/4	G1/4	50	25	72	21.4
	16	271.5	G1 1/2	248	190	50	5	248.5	206.5	226.5	60	38 x 6	125	105	240	261.5	281.5	62.5	156.5	50	20	G1 1/2	57	35	G1 1/2	15	34	G1/4	76.5	80	G1/4	86	85	G1/4	G1/4	86	45	60	40
	25	271.5	G1 1/2	307	210	50	0	248.5	211.5	231.5	60	38 x 6	155	110	260	266.5	286.5	77.5	156.5	55	20	G1 1/2	77	42	G1 1/2	30	34	G1/4	19	90	G1/4	109	90	G1/4	G1/4	103	50	60	52.1
200	10	285.5	G1 1/2	253	155	50	5	261.5	205.5	225.5	60	38 x 6	110	95	205	265.5	285.5	55	170.5	35	20	G1 1/2	27	35	G1 1/2	3.5	45	G1/4	19	72	G1/4	62	72	G1/4	G1/4	50	25	72	21.4
	16	285.5	G1 1/2	234	190	50	5	261.5	220.5	240.5	60	38 x 6	125	105	240	275.5	295.5	62.5	170.5	50	20	G1 1/2	57	35	G1 1/2	15	34	G1/4	76.5	80	G1/4	86	85	G1/4	G1/4	86	45	60	40
	25	285.5	G1 1/2	293	210	50	0	261.5	225.5	245.5	60	38 x 6	155	110	260	280.5	300.5	77.5	170.5	55	20	G1 1/2	77	42	G1 1/2	30	34	G1/4	19	90	G1/4	109	90	G1/4	G1/4	103	50	60	52.1

Throttle valve

ØAL	mm	40	50	63	80	100	125	140	160	180	200	220	250	280	320
Nominal width	mm	4			5		8					20

ØAL	=	Piston Ø

¹⁾	Throttle valve only with end position cushioning "E" (180° for bleeding)

Proximity switch

¹⁾	The proximity switch is always located opposite of the line connection

Installation space for mating connector

¹⁾	Piston Ø 220 ... 320 mm Angled mating connector not possible

Proximity switch

ØAL	ØMM	PL	L7	X3	X4	X5
mm		mm	mm	mm	mm	mm
40	28 mm / -	112	95	94	170	125
50	36 mm / -	110	95	98	175	130
63	45 mm / -	125	121	103	180	135
80	56 mm / -	138	128	108	185	140
100	70 mm / -	161	124	116	195	150
125	90 mm / -	189	178	126	205	160
140	100 mm / -	209	191	146	225	180
160	110 mm / -	228	216	151	230	185
180	125 mm / -	254	246	159 ¹⁾	235	190
200	140 mm / -	264	269	166 ¹⁾	245	200
220	160 mm / -	310	270	177 ¹⁾	255	-
250	180 mm / -	320	280	187 ¹⁾	265
280	200 mm / -	360	285	199 ¹⁾	275
320	220 mm / -	375	295	209 ¹⁾	285

¹⁾	Piston Ø 220 ... 320 mm Proximity switch not protruding

Kinking

For the admissible stroke length with flexibly guided load and a factor of 3.5 for safety against kinking, please refer to the relevant table. For other installation positions of the cylinder, the admissible stroke length must be interpolated.

Admissible stroke length for non-guided load on request.

Kinking calculations are carried out according to the following formulas:

1. Calculation according to Euler

if λ > λ_g

2. Calculation according to Tetmajer

if λ ≤ λ_g

Explanation

E	=	module of elasticity in N/mm²
E	=	2.1 x 105 for steel
l	=	Geometrical moment of inertia in mm⁴
l		for circular cross-section
v	=	3.5 (safety factor)
L_K	=	free kinking length in mm (dependent on type of mounting; see sketches A, B, C)
d	=	Piston rod Ø in mm
λ	=	Slenderness ratio
λ	=
R_e	=	Yield strength of the piston rod material

Influence of the type of mounting on the kinking length:

Admissible stroke length
Type of mounting MP3, MP5

ØAL	ØMM	admissible stroke length with
		100 bar			210 bar			350 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28	360	375	420	225	230	240	140	145	150
50	36	505	525	351	335	340	355	230	235	240
63	45	625	650	755	425	430	455	295	300	305
80	56	765	800	945	530	545	575	375	380	390
100	70	950	995	1200	680	695	745	495	500	515
125	90	1200	1270	1610	895	925	1010	665	680	705
140	100	1335	1405	1785	995	1025	1125	745	755	790
160	110	1380	1406	1865	1025	1055	1160	755	770	805
180	125	1580	1670	2150	1180	1220	1350	880	895	940
200	140	1780	1890	2470	1355	1400	1565	1035	1055	1110
220	160	1985	2110	2970	1575	1640	1900	1230	1260	1360
250	180	2190	2340	3310	1740	1820	2120	1370	1400	1510
280	200	2360	2520	3640	1890	1970	2330	1490	1530	1660
320	220	2530	2700	3830	2010	2100	2450	1320	1460	1740

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MF3

ØAL	ØMM	admissible stroke length with
		100 bar			210 bar			350 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	1370	1415	1600	1020	1035	1075	795	800	810
50	36 mm / -	1755	1825	2135	1345	1370	1440	1060	1070	1090
63	45 mm / -	2000	2000	2000	1660	1695	1800	1320	1330	1365
80	56 mm / -	2000	2000	2000	2000	2000	2000	1600	1620	1665
100	70 mm / -	3000	3000	3000	2470	2530	2740	1900	2010	2085
125	90 mm / -	3000	3000	3000	3000	3000	3000	2615	2660	2785
140	100 mm / -	3000	3000	3000	3000	3000	3000	2875	2920	3000
160	110 mm / -	3000	3000	3000	3000	3000	3000	2775	3000	3000
180	125 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
200	140 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
220	160 mm / -	6000	6000	6000	5410	5630	6000	4575	4675	5055
250	180 mm / -	6000	6000	6000	5950	6000	6000	4815	5160	5605
280	200 mm / -	6000	6000	6000	6000	6000	6000	5005	5565	6000
320	220 mm / -	6000	6000	6000	6000	6000	6000	4560	5060	6000

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MF4

ØAL	ØMM	admissible stroke length with
		100 bar			210 bar			350 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28	540	565	675	380	385	410	270	275	280
50	36	735	770	940	540	550	590	400	405	415
63	45	900	945	1175	670	690	745	505	510	530
80	56	1080	1140	1450	825	845	930	630	635	665
100	70	1330	1400	1840	1030	1070	1190	805	820	860
125	90	1655	1760	2450	1330	1380	1590	1060	1080	1160
140	100	1830	1940	2700	1470	1530	1760	1175	1200	1285
160	110	1905	2030	2830	1530	1590	1835	1035	1160	1300
180	125	2210	2355	3310	1795	1870	2170	1285	1435	1585
200	140	2400	2565	3000	1965	2050	2420	1410	1590	1765
220	160	2655	2850	4445	2245	2360	2935	1735	1930	2160
250	180	2945	3160	4950	2490	2620	3275	1840	2095	2410
280	200	3170	3410	5455	2705	2850	3615	1870	2140	2665
320	220	3425	3680	5775	2905	3055	3820	1675	1925	2815

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MT4

ØAL	ØMM	admissible stroke length with
		100 bar			210 bar			350 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	560	580	640	380	385	395	265	270	275
50	36 mm / -	760	790	890	353	545	565	390	395	400
63	45 mm / -	930	965	1105	665	675	705	490	495	505
80	56 mm / -	1125	1170	1365	815	830	875	610	615	625
100	70 mm / -	1390	1450	1730	1030	1050	1120	785	790	810
125	90 mm / -	1755	1845	2300	1345	1380	1500	1040	1050	1090
140	100 mm / -	1935	2030	2545	1485	1525	1660	1150	1165	1210
160	110 mm / -	2020	2125	2660	1545	1585	1725	1190	1205	1250
180	125 mm / -	2300	2420	3000	1770	1820	1990	1370	1390	1445
200	140 mm / -	2555	2695	3000	1990	2050	2270	1555	1580	1655
220	160 mm / -	2870	3045	4185	2320	2410	2760	1865	1905	2035
250	180 mm / -	3180	3380	4665	2580	2680	3080	2080	2125	2270
280	200 mm / -	3430	3645	5130	2800	2915	3390	2270	2325	2500
320	220 mm / -	3700	3925	5435	3000	3115	3585	2065	2295	2640

Installation position

¹⁾	Adm. stroke length

Admissible stroke length
Type of mounting MS2

ØAL	ØMM	admissible stroke length with
		100 bar			210 bar			350 bar
		0°	45°	90°	0°	45°	90°	0°	45°	90°
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
40	28 mm / -	1265	1310	1500	920	935	970	690	695	710
50	36 mm / -	1650	1715	2000	1235	1260	1330	950	960	980
63	45 mm / -	1995	2000	2000	1520	1550	1655	1180	1190	1220
80	56 mm / -	2000	2000	2000	1850	1895	2000	1445	1460	1510
100	70 mm / -	2940	3000	3000	2310	2370	2585	1830	1855	1925
125	90 mm / -	3000	3000	3000	3000	3000	3000	2640	2685	2810
140	100 mm / -	3000	3000	3000	3000	3000	3000	2640	2690	2840
160	110 mm / -	3000	3000	3000	3000	3000	3000	2510	2760	2955
180	125 mm / -	3000	3000	3000	3000	3000	3000	2900	3000	3000
200	140 mm / -	3000	3000	3000	3000	3000	3000	3000	3000	3000
220	160 mm / -	6000	6000	6000	5065	5280	6000	4225	4330	4705
250	180 mm / -	6000	6000	6000	5590	5835	6000	4455	4805	5250
280	200 mm / -	6000	6000	6000	6000	6000	6000	4645	5205	5790
320	220 mm / -	6000	6000	6000	6000	6000	6000	4175	4680	6000

Installation position

¹⁾	Adm. stroke length

With longer strokes, an extended guide and/or the use of guide rings may be reasonable for increasing the service life, depending on the respective case of application and installation position. Recommendation upon request.

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Product Category

CDH3

Ordering code

Ordering code

Ordering code

Ordering code

general

hydraulic

Weight

Selection criteria for seals

Stroke velocity

Life cycle:

Notices:

Project planning software ICS (Interactive Catalog System)

Diameters, areas, forces, flow

Tolerances according to ISO 6020-1

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding/measuring coupling

Proximity switches

Technical data proximity switch

general

hydraulic

Weight

Selection criteria for seals

Stroke velocity

Life cycle:

Notices:

Project planning software ICS (Interactive Catalog System)

Diameters, areas, forces, flow

Tolerances according to ISO 6020-1

Type of mounting MP3: Swivel eye at cylinder base

Type of mounting MP5: Self-aligning clevis at cylinder base

Type of mounting MF3: Round flange at the cylinder head

Type of mounting MF4: Round flange at the cylinder base

Type of mounting MT4: Trunnion

Type of mounting MS2: Foot mounting

Bleeding/measuring coupling

Proximity switches

Technical data proximity switch

Type of mounting MP3: Swivel eye at cylinder base

type of mounting MP3

Type of mounting MP5: Self-aligning clevis at cylinder base

type of mounting MP5

Type of mounting MF3: Round flange at the cylinder head

type of mounting MF3

Type of mounting MF4: Round flange at the cylinder base

type of mounting MF4

Type of mounting MT4: Trunnion

type of mounting MT4

Type of mounting MS2: Foot mounting

type of mounting MS2

Flange ports

Version \u201cD\u201dISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201dISO 6164

Subplates for valve mountingSL and SV valves

NG6

NG10 and 20

NG30

Piping symbol

Subplates for valve mountingSL and SV valves

Subplates for valve mountingDirectional and high-response valves

NG6

Size 10

NG16

NG25

Subplates for valve mountingDirectional and high-response valves

Throttle valve

Proximity switch

Installation space for mating connector

Proximity switch

Type of mounting MP3: Swivel eye at cylinder base

type of mounting MP3

Type of mounting MP5: Self-aligning clevis at cylinder base

type of mounting MP5

Type of mounting MF3: Round flange at the cylinder head

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201d
ISO 6164

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
Directional and high-response valves

Subplates for valve mounting
Directional and high-response valves

Version \u201cD\u201d
ISO 6162-2 tab. 2 type 1 (400 bar) (≙ SAE 6000 PSI)

Version \u201cH\u201d
ISO 6164

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
SL and SV valves

Subplates for valve mounting
Directional and high-response valves

Subplates for valve mounting
Directional and high-response valves

Admissible stroke length
Type of mounting MP3, MP5

Admissible stroke length
Type of mounting MF3

Admissible stroke length
Type of mounting MF4

Admissible stroke length
Type of mounting MT4

Admissible stroke length
Type of mounting MS2

Admissible stroke length
Type of mounting MP3, MP5

Admissible stroke length
Type of mounting MF3

Admissible stroke length
Type of mounting MF4

Admissible stroke length
Type of mounting MT4

Admissible stroke length
Type of mounting MS2
