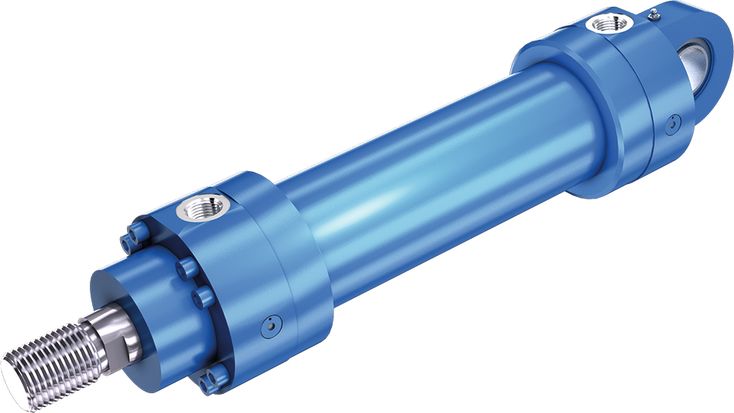

Standards: DIN 24333, ISO 6022
6 types of mounting
Self-adjusting and adjustable end position cushioning
Standards: DIN 24333, ISO 6022
6 types of mounting
Self-adjusting and adjustable end position cushioning
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
||||
CD |
H2 |
/ |
/ |
/ |
A |
3X |
/ |
01 |
Single rod cylinder |
CD |
|
02 |
Series |
H2 |
|
Types of mounting |
|||
03 |
Swivel eye at cylinder base |
MP3 |
|
Self-aligning clevis at cylinder base |
MP5 |
||
Round flange at the cylinder head |
MF3 |
||
Round flange at the cylinder base |
MF4 |
||
Trunnion |
MT42) |
||
Foot mounting |
MS218) |
||
04 |
Piston Ø (ØAL) 40 \u2026 320 mm |
... |
|
05 |
Piston rod Ø (ØMM) 25 \u2026 220 mm |
... |
|
06 |
Stroke length in mm3) |
... |
|
Design principle |
|||
07 |
Head and base flanged |
A |
|
08 |
Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) |
3X |
|
Line connection / version |
|||
09 |
According to ISO 1179-1 (pipe thread ISO 228-1) |
B |
|
According to ISO 9974-1 (metric thread ISO 261) |
M33) |
||
Flange connection according to ISO 6162-1 tab. 2 type 1 (≙ SAE 3000 PSI) |
F4; 21) |
||
Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI) |
D4; 9) |
||
Flange connection according to ISO 6164 tab. 1 |
K1; 4) |
||
Flange connection according to ISO 6164 tab. 2 |
H4) |
||
according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange |
C31) |
||
For directional and high-response valves |
Subplate NG6 |
P4; 5) |
|
Subplate NG10 |
T4; 6) |
||
Subplate NG16 |
U4; 7) |
||
Subplate NG25 |
V4; 32) |
||
For SL and SV valves |
Subplate NG6 |
A4; 5; 15) |
|
Subplate NG10 |
E4; 6; 15) |
||
Subplate NG20 |
L4; 7; 15) |
||
Subplate NG30 |
N4; 32; 15) |
||
Line connection/position at cylinder head |
|||
10 |
View to piston rod30) |
|
1 |
2 |
|||
3 |
|||
4 |
|||
Line connection/position at cylinder base |
|||
11 |
View to piston rod30) |
|
1 |
2 |
|||
3 |
|||
4 |
|||
Piston rod design |
|||
12 |
Hard chromium-plated |
C |
|
Hardened and hard chromium-plated |
H23) |
||
Nickel-plated and hard chromium-plated |
N19) |
||
Piston rod end |
|||
13 |
Thread for swivel head CGKD |
H |
|
With mounted swivel head CGKD |
F |
||
End position cushioning |
|||
14 |
Without end position cushioning |
U |
|
Both sides, self-adjusting |
D1) |
||
Both sides, adjustable |
E |
||
Seal design |
|||
15 |
For mineral oil HL, HLP and oil-in-water emulsion HFA |
Standard seal system |
M |
Standard seal system with guide rings |
L |
||
Reduced friction |
R |
||
For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC |
Standard seal system HFC |
G |
|
Servo quality/reduced friction |
T |
||
Chevron seal kits |
A |
||
For HDFR phosphate ester and HFDU polyol ester |
Servo quality/reduced friction |
S |
|
Standard seal system FKM |
V |
||
Chevron seal kits |
B |
||
Option |
|||
16 |
Without additional options, do not fill fields for additional options |
W |
|
Additional options, fill fields for additional options |
Z |
||
Fields for additional options |
||||||||||
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
|||
Z |
||||||||||
17 |
Without inductive proximity switches |
W |
Inductive proximity switches without mating connector - separate order |
E37) |
|
18 |
Without additional guide rings |
W |
Additional guide rings |
F10; 28) |
|
19 |
Without measuring coupling |
W |
Measuring coupling, on both sides |
A |
|
20 |
Standard conical grease nipple, DIN 71412 Form A |
W |
Flanged grease nipple, DIN 3404 Form A |
B |
|
21 |
Without piston rod extension |
W |
Piston rod extension \u201cLY\u201d, specify in mm in plain text |
Y |
|
22 |
Priming class CP3 |
W |
Painting class CP4 |
B11) |
|
Painting class CP5 |
L11) |
|
Painting class CP6 |
U11) |
|
Painting class CP7 |
E11) |
|
23 |
Without oil filling |
W |
With oil filling |
F |
|
24 |
Without test certificate |
W |
With acceptance test certificate 3.1 based on EN 10204 |
C |
| 1) | Only piston Ø 40 \u2026 200 mm |
| 2) | Trunnion position freely selectable. When ordering, always specify the "XV" dimensions in the plain text in mm |
| 3) | For max. available stroke length see Technical data and for admissible stroke length (according to the kinking calculation) see Project planning information. |
| 4) | Not possible with MF4 |
| 5) | Piston Ø 40 \u2026 80 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head |
| 6) | Piston Ø 63 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head |
| 7) | Piston Ø 125 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head |
| 9) | Only piston Ø 80 \u2026 320 mm |
| 10) | Seal designs A, B not possible; piston Ø 220 \u2026 320 mm standard |
| 11) | Specify RAL color in the plain text |
| 15) | Subplates for SL and SV valves (isolator valves) Note: Seal designs T, G, L, R, S and V are not designed for the static holding function! |
| 18) | Not standardized |
| 19) | Only piston rod Ø 40 \u2026 160 mm |
| 21) | Only piston Ø 63 \u2026 200 mm |
| 23) | Only piston rod Ø 25 \u2026 140 mm |
| 28) | With seal design "L" standard |
| 30) | All graphical representations in the data sheet show position 1 |
| 31) | With MS2, only position 11 is possible |
| 32) | Piston Ø 180 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head |
| 33) | Version does not comply with ISO 6022 |
| 37) | Min. stroke length = 20 mm. |
| Order examples: | |
| Without additional options: | |
| CDH2MT4/63/45/350A3X/B11CHDMW, XV = 300 mm | |
| With additional options: | |
| CDH2MF3/80/56/500A3X/B11CHDMZ EWAWW |
|
| With order-relevant information: | |
| CDH2MT4/63/45/350A3X/B11CHDMW-P, XV = 300 mm | |
| CDH2MF3/80/56/500A3X/B11CHDMZ EWAWW-P | |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
||||
CD |
H2 |
/ |
/ |
/ |
A |
3X |
/ |
01 |
Single rod cylinder |
CD |
|
02 |
Series |
H2 |
|
Types of mounting |
|||
03 |
Swivel eye at cylinder base |
MP3 |
|
Self-aligning clevis at cylinder base |
MP5 |
||
Round flange at the cylinder head |
MF3 |
||
Round flange at the cylinder base |
MF4 |
||
Trunnion |
MT42) |
||
Foot mounting |
MS218) |
||
04 |
Piston Ø (ØAL) 40 \u2026 320 mm |
... |
|
05 |
Piston rod Ø (ØMM) 25 \u2026 220 mm |
... |
|
06 |
Stroke length in mm3) |
... |
|
Design principle |
|||
07 |
Head and base flanged |
A |
|
08 |
Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) |
3X |
|
Line connection / version |
|||
09 |
According to ISO 1179-1 (pipe thread ISO 228-1) |
B |
|
According to ISO 9974-1 (metric thread ISO 261) |
M33) |
||
Flange connection according to ISO 6162-1 tab. 2 type 1 (≙ SAE 3000 PSI) |
F4; 21) |
||
Flange connection according to ISO 6162-2 tab. 2 type 1 (≙ SAE 6000 PSI) |
D4; 9) |
||
Flange connection according to ISO 6164 tab. 1 |
K1; 4) |
||
Flange connection according to ISO 6164 tab. 2 |
H4) |
||
according to ISO 1179-1 (pipe thread ISO 228-1) with flat pipe flange |
C31) |
||
For directional and high-response valves |
Subplate NG6 |
P4; 5) |
|
Subplate NG10 |
T4; 6) |
||
Subplate NG16 |
U4; 7) |
||
Subplate NG25 |
V4; 32) |
||
For SL and SV valves |
Subplate NG6 |
A4; 5; 15) |
|
Subplate NG10 |
E4; 6; 15) |
||
Subplate NG20 |
L4; 7; 15) |
||
Subplate NG30 |
N4; 32; 15) |
||
Line connection/position at cylinder head |
|||
10 |
View to piston rod30) |
|
1 |
2 |
|||
3 |
|||
4 |
|||
Line connection/position at cylinder base |
|||
11 |
View to piston rod30) |
|
1 |
2 |
|||
3 |
|||
4 |
|||
Piston rod design |
|||
12 |
Hard chromium-plated |
C |
|
Hardened and hard chromium-plated |
H23) |
||
Nickel-plated and hard chromium-plated |
N19) |
||
Piston rod end |
|||
13 |
Thread for swivel head CGKD |
H |
|
With mounted swivel head CGKD |
F |
||
End position cushioning |
|||
14 |
Without end position cushioning |
U |
|
Both sides, self-adjusting |
D1) |
||
Both sides, adjustable |
E |
||
Seal design |
|||
15 |
For mineral oil HL, HLP and oil-in-water emulsion HFA |
Standard seal system |
M |
Standard seal system with guide rings |
L |
||
Reduced friction |
R |
||
For mineral oil HL, HLP, oil-in-water emulsion HFA and water glycol HFC |
Standard seal system HFC |
G |
|
Servo quality/reduced friction |
T |
||
Chevron seal kits |
A |
||
For HDFR phosphate ester and HFDU polyol ester |
Servo quality/reduced friction |
S |
|
Standard seal system FKM |
V |
||
Chevron seal kits |
B |
||
Option |
|||
16 |
Without additional options, do not fill fields for additional options |
W |
|
Additional options, fill fields for additional options |
Z |
||
Fields for additional options |
||||||||||
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
|||
Z |
||||||||||
17 |
Without inductive proximity switches |
W |
Inductive proximity switches without mating connector - separate order |
E37) |
|
18 |
Without additional guide rings |
W |
Additional guide rings |
F10; 28) |
|
19 |
Without measuring coupling |
W |
Measuring coupling, on both sides |
A |
|
20 |
Standard conical grease nipple, DIN 71412 Form A |
W |
Flanged grease nipple, DIN 3404 Form A |
B |
|
21 |
Without piston rod extension |
W |
Piston rod extension \u201cLY\u201d, specify in mm in plain text |
Y |
|
22 |
Priming class CP3 |
W |
Painting class CP4 |
B11) |
|
Painting class CP5 |
L11) |
|
Painting class CP6 |
U11) |
|
Painting class CP7 |
E11) |
|
23 |
Without oil filling |
W |
With oil filling |
F |
|
24 |
Without test certificate |
W |
With acceptance test certificate 3.1 based on EN 10204 |
C |
| 1) | Only piston Ø 40 \u2026 200 mm |
| 2) | Trunnion position freely selectable. When ordering, always specify the "XV" dimensions in the plain text in mm |
| 3) | For max. available stroke length see Technical data and for admissible stroke length (according to the kinking calculation) see Project planning information. |
| 4) | Not possible with MF4 |
| 5) | Piston Ø 40 \u2026 80 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head |
| 6) | Piston Ø 63 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head |
| 7) | Piston Ø 125 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head |
| 9) | Only piston Ø 80 \u2026 320 mm |
| 10) | Seal designs A, B not possible; piston Ø 220 \u2026 320 mm standard |
| 11) | Specify RAL color in the plain text |
| 15) | Subplates for SL and SV valves (isolator valves) Note: Seal designs T, G, L, R, S and V are not designed for the static holding function! |
| 18) | Not standardized |
| 19) | Only piston rod Ø 40 \u2026 160 mm |
| 21) | Only piston Ø 63 \u2026 200 mm |
| 23) | Only piston rod Ø 25 \u2026 140 mm |
| 28) | With seal design "L" standard |
| 30) | All graphical representations in the data sheet show position 1 |
| 31) | With MS2, only position 11 is possible |
| 32) | Piston Ø 180 \u2026 200 mm, only position 11, subplates only possible in combination with line connection \u201cB\u201d at the head |
| 33) | Version does not comply with ISO 6022 |
| 37) | Min. stroke length = 20 mm. |
| Order examples: | |
| Without additional options: | |
| CDH2MT4/63/45/350A3X/B11CHDMW, XV = 300 mm | |
| With additional options: | |
| CDH2MF3/80/56/500A3X/B11CHDMZ EWAWW |
|
| With order-relevant information: | |
| CDH2MT4/63/45/350A3X/B11CHDMW-P, XV = 300 mm | |
| CDH2MF3/80/56/500A3X/B11CHDMZ EWAWW-P | |
Installation position |
any | |
Priming |
Gentian blue (RAL 5010), see Table Corrosivity categories | |
Minimum layer thickness of the priming 1) |
µm |
40 |
Painting 2) |
in four corrosivity categories in the RAL colors, see Table Corrosivity categories | |
| 1) | Other colors upon request. With cylinders and attachment parts, the following surfaces are not primed: ▶ All fit diameters to the customer side ▶ Sealing surfaces for line connection ▶ Sealing surfaces for flange connection ▶ Connection surface for valve mounting ▶ Inductive proximity switches ▶ Position measurement system ▶ Measuring coupling ▶ Spherical / plain bearing ▶ Lubricating nipples |
| 2) | With cylinders and attachment parts, the following surfaces are not painted: ▶ All fit diameters and connection surfaces to the customer side ▶ Sealing surfaces for line connection ▶ Sealing surfaces for flange connection ▶ Connection surface for valve mounting ▶ Inductive proximity switches ▶ Position measurement system ▶ Measuring coupling ▶ Spherical / plain bearing ▶ Lubricating nipples |
| The areas that are not primed or painted are protected by means of a solvent-free corrosion protection agent. | |
| Accessories that are ordered as separate order item are not primed or painted by default. Corresponding priming and/or painting on request. |
hydraulic
Nominal pressure 1) |
bar |
250 |
Operating pressure, min. (without load) 2) |
bar |
10 |
Static test pressure |
bar |
375 |
Reduced test pressure |
bar |
315 |
Operating viscosity range |
mm²/s |
12 \u2026 380 |
Optimum viscosity at operating temperature |
mm²/s |
20 \u2026 100 |
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3) |
Class 20/18/15 according to ISO 4406 (c) | |
Bleeding |
By default secured against screwing out | |
| 1) | The maximum operating pressures must be less than or equal to the applicable nominal pressures and apply to applications with shock-free operation with reference to excess pressure and/or external loads. With extreme loads like e. g. high sequence cycle, mounting elements and threaded piston rod connections must be designed for durability. |
| 2) | Depending on the application, application conditions and technical design, a certain minimum pressure (approx.10 bar) is required in order to guarantee technically unobjectionable functioning of the hydraulic cylinder. |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
Mineral oils |
HL, HLP |
FKM, NBR |
DIN 51524 |
90220 |
Oil-in-water emulsion |
HFA |
FKM, NBR |
ISO 12922 |
90223 |
Water glycol |
HFC |
upon request |
90223 |
|
Phosphate ester |
HFDR |
FKM |
ISO 12922 |
90222 |
Polyol ester |
HFDU |
FKM |
ISO 12922 |
90222 |
Piston |
Piston rod |
with 0 mm stroke length |
per 100 mm stroke length |
|||
ØAL |
ØMM |
MP3/MP5 |
MF3/MF4 |
MT4 |
MS2 |
|
mm |
mm |
kg |
kg |
kg |
kg |
kg |
| 40 | 25 | 7 | 9 | 9 | 9 | 0.9 |
| 28 | 7 | 9 | 9 | 9 | 1 | |
| 50 | 32 | 12 | 14 | 13 | 13 | 1.3 |
| 36 | 12 | 14 | 13 | 14 | 1.5 | |
| 63 | 40 | 20 | 21 | 21 | 21 | 2.3 |
| 45 | 20 | 21 | 21 | 21 | 2.6 | |
| 80 | 50 | 32 | 35 | 34 | 35 | 3.2 |
| 56 | 32 | 35 | 34 | 36 | 3.6 | |
| 100 | 63 | 51 | 54 | 54 | 55 | 5.2 |
| 70 | 51 | 55 | 54 | 56 | 5.7 | |
| 125 | 80 | 95 | 96 | 99 | 98 | 8.2 |
| 90 | 96 | 97 | 100 | 99 | 9.2 | |
| 140 | 90 | 131 | 132 | 136 | 137 | 10.7 |
| 100 | 132 | 133 | 137 | 138 | 11.9 | |
| 160 | 100 | 185 | 184 | 197 | 206 | 12.6 |
| 110 | 186 | 186 | 199 | 207 | 13.9 | |
| 180 | 110 | 255 | 253 | 264 | 274 | 14.7 |
| 125 | 258 | 256 | 267 | 277 | 16.8 | |
| 200 | 125 | 349 | 332 | 350 | 363 | 19 |
| 140 | 352 | 335 | 353 | 366 | 21.5 | |
| 220 | 140 | 527 | 512 | 546 | 518 | 27.1 |
| 160 | 527 | 512 | 546 | 518 | 30.9 | |
| 250 | 160 | 673 | 640 | 677 | 650 | 32.7 |
| 180 | 673 | 640 | 677 | 650 | 36.9 | |
| 280 | 180 | 976 | 966 | 1020 | 918 | 44.2 |
| 200 | 976 | 966 | 1020 | 918 | 48.8 | |
| 320 | 200 | 1251 | 1172 | 1223 | 1174 | 55.2 |
| 220 | 1251 | 1172 | 1223 | 1174 | 60.4 | |
Work and environmental conditions |
Seal versions |
|||||||||
M |
G |
V |
L |
A |
B |
T |
R |
S |
||
Medium/temperature |
Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
Medium HFA/operating temperature of medium +5 \u2026 +55 °C |
+/\u2012 |
+/\u2012 |
+/- |
+/- |
+ |
+/\u2012 |
++ |
+/- |
+/\u2012 |
|
Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C |
\u2012 |
++ |
\u2012 |
\u2012 |
+/\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
|
Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
++ |
|
Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
++ |
|
Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C1) |
++ |
+ |
+2) |
++ |
++ |
+2) |
+ |
++ |
++2) |
|
Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
+ |
\u2012 |
\u2012 |
++ |
|
Function/velocity \u2026 |
Static holding function more than 10 minutes: |
++ |
+ |
+ |
+ |
++ |
++ |
+ |
+ |
+ |
Static holding function short-time < 1 minute |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
|
Robust application conditions: steel works, mining, thin ice |
++ |
++ |
++ |
++ |
++ |
++ |
\u2012 |
++ |
\u2012 |
|
Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes |
\u2012 |
\u2012 |
\u2012 |
+/\u2012 |
\u2012 |
\u2012 |
++ |
+ |
++ |
|
Cylinder velocity ≥ 0.001 m/s stick-slip behavior |
++ |
+ |
+ |
++ |
\u2012 |
\u2012 |
++ |
++ |
++ |
|
Cylinder velocity 0.01 \u2026 0.5 m/s3) |
++ |
+ |
+ |
++ |
+ |
+ |
++ |
++ |
++ |
|
Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s3) |
\u2012 |
+/\u2012 |
+/\u2012 |
++ |
\u2012 |
\u2012 |
++ |
+ |
++ |
|
Stroke length > 1.0 m |
+/\u2012 |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
|
Standstill period (wear) |
++ |
+/\u2012 |
+/\u2012 |
++ |
+/\u2012 |
\u2012 |
++ |
++ |
++ |
|
Undissolved air in the oil4) |
\u2012 |
+ |
+ |
+ |
\u2012 |
\u2012 |
+ |
+ |
+ |
|
| ++ = very good + = good +/\u2013 = conditional, depending on the application parameters \u2013 = inappropriate General technical data in corresponding data sheets will remain valid! See table on hydraulic fluids! Generally, a medium temperature of approx. 40 °C is recommended. The specified values are to be regarded as guidelines; depending on the case of application, it may be necessary to check the suitability of the seal system. |
|
| 1) | Moreover, observe the corresponding medium temperature range |
| 2) | Lower temperature limit \u201315 °C |
| 3) | Standard line connections not designed for that velocity |
| 4) | \u2012 = Seal is destroyed, + = Seal is not directly destroyed, leakage may occur |
Piston Ø |
Line connection |
Maximum stroke velocity 1) |
mm |
m/s |
|
| 40 | G1/2 | 0.31 |
| G1/2 | 0.31 | |
| 50 | G1/2 | 0.2 |
| G1/2 | 0.2 | |
| 63 | G3/4 | 0.28 |
| G3/4 | 0.28 | |
| 80 | G3/4 | 0.18 |
| G3/4 | 0.18 | |
| 100 | G1 | 0.2 |
| G1 | 0.2 | |
| 125 | G1 | 0.13 |
| G1 | 0.13 | |
| 140 | G1 1/4 | 0.16 |
| G1 1/4 | 0.16 | |
| 160 | G1 1/4 | 0.12 |
| G1 1/4 | 0.12 | |
| 180 | G1 1/4 | 0.1 |
| G1 1/4 | 0.1 | |
| 200 | G1 1/4 | 0.08 |
| G1 1/4 | 0.08 | |
| 220 | G1 1/2 | 0.09 |
| G1 1/2 | 0.09 | |
| 250 | G1 1/2 | 0.07 |
| G1 1/2 | 0.07 | |
| 280 | G1 1/2 | 0.06 |
| G1 1/2 | 0.06 | |
| 320 | G1 1/2 | 0.04 |
| G1 1/2 | 0.04 |
| 1) | Please observe the guideline on max. stroke velocities (with recommended flow velocity of 5 m/s in the line connection) in the table. Higher stroke velocities upon request. If the extension velocity is considerably higher than the retraction velocity of the piston rod, drag-out losses of the medium may result. If necessary, please consult us. |
Boundary and application conditions:
The mechanical alignment of the movement axis and thus the mounting points of hydraulic cylinder and piston rod must be ensured. Lateral forces on the guides of piston rod and piston are to be avoided. It may be necessary to consider the own weight of the hydraulic cylinder (MP3/MP5 or MT4) or the piston rod.
The kinking length/kinking load of the piston rod and/or the hydraulic cylinder must be observed (see Kinking).
The maximum admissible stroke velocities with regard to the suitability/load of seals must be observed as must their compatibility with the properties of the fluid type (see seals).
The maximum admissible velocities/kinetic energies when moving into the end positions, also considering external loads, must be observed.
Danger: Excess pressure
The maximum admissible operating pressure must be complied with in any operating state of the hydraulic cylinder. Possible pressure intensification resulting from the area ratio of annulus area to piston area and possible throttling points are to be observed.
Detrimental environmental influences, like e. g. aggressive finest particles, vapors, high temperatures, etc. as well as contamination and deterioration of the hydraulic fluid are to be avoided.
Standards:
The installation dimensions and types of mounting of the cylinders comply with the standards ISO 6020/1 and VW 39 D 920.
Acceptance:
Each cylinder is tested according to Bosch Rexroth standard and in compliance with ISO 10100: 2001.
Safety instructions:
For assembly, commissioning and maintenance of hydraulic cylinders, observe the operating instructions 07100-B!
Service and repair work has to be performed by Bosch Rexroth AG or by personnel especially trained for this purpose. No warranty is accepted for damage as a consequence of assembly, maintenance or repair work not performed by Bosch Rexroth AG.
Check lists for hydraulic cylinders:
Cylinders the characteristics and/or application parameters of which deviate from the values specified in the data sheet can only be offered as a special version upon request. For offers, the variations of the characteristics and/or application parameters must be described in the check lists for hydraulic cylinders (07200).
Minimum strokes:
When using end position cushioning, the minimum stroke must also be observed, see "End position cushioning".
This list does not claim to be complete. In case of questions regarding the compatibility with the medium or exceedance of the boundary or application conditions, please contact us.
All graphical representations in the data sheet are examples. The product supplied may therefore differ from the figure.
The ICS (Interactive Catalog System) is a selection and project planning help for hydraulic cylinders. The ICS allows designers for machines and systems to quickly and reliably find the perfect hydraulic cylinder solution through logic-guided type key enquiries. This software helps to solve design and project planning tasks more quickly and efficiently. After having been guided through the product selection, the user quickly and reliably gets the exact technical data of the selected component as well as 2D and 3D CAD data in the correct file format for all common CAD systems.
This allows users to reduce costs while increasing their competitiveness.
www.boschrexroth.com/ics
Piston |
Piston rod |
Area ratio |
Areas |
Force at 250 bar |
Flow at 0.1 m/s |
Maximum available stroke length |
||||||
Piston |
Rod |
Ring |
Pressure |
Differential |
Traction |
Off |
Differential |
On |
||||
ØAL |
ØMM |
φ A1/A3 |
A1 |
A2 |
A3 |
F1 |
F2 |
F3 |
qV1 |
qV2 |
qV3 |
|
mm |
mm |
cm² |
cm² |
cm² |
kN |
kN |
kN |
l/min |
l/min |
l/min |
mm |
|
| 40 | 25 | 1.64 | 12.56 | 4.9 | 7.65 | 31.4 1) | 12.25 | 19.12 | 7.5 2) | 2.9 | 4.6 | 2000 |
| 28 | 1.96 | 12.56 | 6.16 | 6.4 | 31.4 1) | 15.4 | 16 | 7.5 2) | 3.7 | 3.8 | 2000 | |
| 50 | 32 | 1.69 | 19.63 | 8.04 | 11.59 | 49.1 1) | 20.12 | 28.98 | 11.8 2) | 4.8 | 7 | 2000 |
| 36 | 2.08 | 19.63 | 10.18 | 9.45 | 49.1 1) | 25.45 | 23.65 | 11.8 2) | 6.1 | 5.7 | 2000 | |
| 63 | 40 | 1.67 | 31.17 | 12.56 | 18.61 | 77.9 1) | 31.38 | 46.52 | 18.7 2) | 7.5 | 11.2 | 2000 |
| 45 | 2.04 | 31.17 | 15.9 | 15.27 | 77.9 1) | 39.75 | 38.15 | 18.7 2) | 9.5 | 9.2 | 2000 | |
| 80 | 50 | 1.66 | 50.26 | 19.63 | 30.63 | 125.65 1) | 49.07 | 76.58 | 30.2 2) | 11.8 | 18.4 | 2000 |
| 56 | 1.96 | 50.26 | 24.63 | 25.63 | 125.65 1) | 61.55 | 64.1 | 30.2 2) | 14.8 | 15.4 | 2000 | |
| 100 | 63 | 1.66 | 78.54 | 31.16 | 47.38 | 196.35 1) | 77.93 | 118.42 | 47.1 2) | 18.7 | 28.4 | 3000 |
| 70 | 1.96 | 78.54 | 38.48 | 40.06 | 196.35 1) | 96.2 | 100.15 | 47.1 2) | 23.1 | 24 | 3000 | |
| 125 | 80 | 1.69 | 122.72 | 50.24 | 72.48 | 306.75 1) | 125.62 | 181.13 | 73.6 2) | 30.1 | 43.5 | 3000 |
| 90 | 2.08 | 122.72 | 63.62 | 59.1 | 306.75 1) | 159.05 | 147.7 | 73.6 2) | 38.2 | 35.4 | 3000 | |
| 140 | 90 | 1.7 | 153.94 | 63.62 | 90.32 | 384.75 1) | 159.05 | 225.7 | 92.4 2) | 38.2 | 54.2 | 3000 |
| 100 | 2.04 | 153.94 | 78.54 | 75.4 | 384.75 1) | 196.35 | 188.4 | 92.4 2) | 47.1 | 45.3 | 3000 | |
| 160 | 100 | 1.64 | 201.06 | 78.54 | 122.5 | 502.5 1) | 196.35 | 306.15 | 120.6 2) | 47.1 | 73.5 | 3000 |
| 110 | 1.9 | 201.06 | 95.06 | 106 | 502.5 1) | 237.65 | 264.85 | 120.6 2) | 57 | 63.6 | 3000 | |
| 180 | 110 | 1.6 | 254.47 | 95.06 | 159.43 | 636.17 1) | 237.65 | 398.52 | 152.7 2) | 57 | 95.7 | 3000 |
| 125 | 1.93 | 254.47 | 122.72 | 131.75 | 636.17 1) | 306.8 | 329.37 | 152.7 2) | 73.6 | 79.1 | 3000 | |
| 200 | 125 | 1.64 | 314.16 | 122.72 | 191.44 | 785.25 1) | 306.8 | 478.45 | 188.5 2) | 73.6 | 114.9 | 3000 |
| 140 | 1.96 | 314.16 | 153.96 | 160.2 | 785.25 1) | 384.9 | 400.35 | 188.5 2) | 92.4 | 96.1 | 3000 | |
| 220 | 140 | 1.68 | 380.1 | 153.96 | 226.2 | 950.3 1) | 384.9 | 565.5 | 228.1 2) | 92.4 | 135.7 | 6000 |
| 160 | 2.12 | 380.1 | 201 | 179.1 | 950.3 1) | 502.6 | 447.7 | 228.1 2) | 120.7 | 107.4 | 6000 | |
| 250 | 160 | 1.69 | 490.8 | 201 | 289.8 | 1227.2 1) | 502.6 | 724.5 | 294.5 2) | 120.7 | 173.8 | 6000 |
| 180 | 2.08 | 490.8 | 254.4 | 236.4 | 1227.2 1) | 636.2 | 590 | 294.5 2) | 152.7 | 141.8 | 6000 | |
| 280 | 180 | 1.7 | 615.7 | 254.4 | 361.3 | 1539.4 1) | 636.2 | 903.2 | 369.4 2) | 152.7 | 216.7 | 6000 |
| 200 | 2.04 | 615.7 | 314.1 | 301.6 | 1539.4 1) | 785.4 | 753.9 | 369.4 2) | 188.5 | 180.9 | 6000 | |
| 320 | 200 | 1.64 | 804.2 | 314.1 | 490.1 | 2010.6 1) | 785.4 | 1225.2 | 482.5 2) | 188.5 | 294 | 6000 |
| 220 | 1.9 | 804.2 | 380.1 | 424.2 | 2010.6 1) | 950.3 | 1060.3 | 482.5 2) | 228.1 | 254.4 | 6000 | |
| 1) | Theoretical static cylinder force (without consideration of the efficiency and admissible load for attachment parts such as swivel heads, plates, or valves, etc.) |
| 2) | Stroke velocity |
Installation dimensions |
WC |
XC2) |
XO2) |
XS1;2) |
XV2) |
ZP2) |
|
Mounting type |
MF3 |
MP3 |
MP5 |
MS2 |
MT4 |
MF4 |
|
Stroke length in mm |
Tolerances in mm |
Stroke tolerances in mm 3) |
|||||
≤ 1250 |
±2 |
±1,5 |
±1,5 |
±2 |
±2 |
±1,5 |
+2 |
> 1250 \u2013 ≤ 3150 |
±4 |
±3 |
±3 |
±4 |
±4 |
±3 |
+5 |
> 3150 \u2013 ≤ 6000 |
±8 |
±5 |
±5 |
±8 |
±8 |
±5 |
+8 |
| 1) | Not standardized |
| 2) | Including stroke length |
| 3) | Stroke tolerances must not be added to the tolerances listed in this table. |
By default, a patented safety vent against unintended screwing out in head and base is delivered for all cylinders.
The port allows for the installation of a measuring coupling with check valve for pressure measurement or contamination-free bleeding. Measuring coupling with check valve function, i.e. the measuring or bleeding hose can also be connected when the system is pressurized.
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
Scope of delivery: Measuring coupling G1/4
MESSKUPPLUNG AB 20-11/K1 G1/4 with seal ring made of NBR
Material no. R900009090
MESSKUPPLUNG AB 20-11/K1V G1/4 with seal ring made of FKM
Material no. R900001264
Inductive proximity switches are used as reliable end position control for hydraulic cylinders. They are an important element for the safe and exact monitoring of safety equipment, locks and/or other machine functions in their end position by means of the output of signals. The proximity switch which is high-pressure resistant up to 500 bar works in a contactless manner. Consequently, it is wear-free. The proximity switch has been set at the factory. The switching distance must not be adjusted. The lock nut of the proximity switch is marked at the factory using sealing wax. On versions with proximity switch, the cylinders are equipped with proximity switches on both sides.
Function type |
PNP normally open contact | ||
Admissible pressure |
bar |
500 | |
Operating voltage |
V DC |
10 ... 30 | |
including residual ripple |
% |
≤ 15 | |
Voltage drop |
V |
≤ 1.5 | |
Rated operating voltage |
V DC |
24 | |
Rated operating current |
mA |
200 | |
Idle current |
mA |
≤ 8 | |
Residual current |
μA |
≤ 10 | |
Repetition accuracy |
% |
≤ 5 | |
Hysteresis |
% |
≤ 15 | |
Ambient temperature range |
°C |
-25 \u2026 +80 | |
Temperature drift |
% |
≤ 10 | |
Switching frequency |
Hz |
1000 | |
Protection class |
active area |
IP68 according to DIN 40050 | |
Proximity switch |
IP67 according to DIN 40050 | ||
Housing material |
Material no. 1.4104 | ||
Pin assignment
In this connection, observe the information on the color set-up in table general.
The specified resistances of the individual Bosch Rexroth classes only refer to the primed / painted cylinder areas, not, for example, to piston rods, trunnions, etc.
In this connection, special measures may be necessary.
Class |
Properties |
Applications |
||
Inside |
Outside |
|||
Priming |
CP3 |
240 h salt spray test SST (DIN EN ISO 9227) |
Field of application e.g. hall atmosphere, air humidity ≤ 60%, no thermal load. |
Not suitable for outdoor exposure. |
Painting |
CP4 |
480 h salt spray test SST (DIN EN ISO 9227) |
Unheated buildings in which there may be condensation (production rooms, storage and sport halls). |
Urban and industrial atmosphere with little salt or sulfur dioxide load. |
CP5 |
720 h salt spray test SST (DIN EN ISO 9227) |
Silo and debris facilities, chemical plants, boathouses above seawater, laundries, breweries with high humidity and medium contamination. |
Industrial and coastal areas with medium salt load. |
|
CP6 |
1000 h salt spray test NSS (DIN EN ISO 9227) |
Buildings or areas with almost permanent condensation and serious contamination. |
Industrial areas with large humidity and aggressive atmosphere. |
|
CP7 |
1440 h salt spray test NSS (DIN EN ISO 9227) |
Buildings or areas with almost permanent condensation and serious contamination. |
Coastal and offshore areas with high salt load. |
|
| 1) | according to DIN EN ISO 12944-2 |
Installation position |
any | |
Priming |
Gentian blue (RAL 5010), see Table Corrosivity categories | |
Minimum layer thickness of the priming 1) |
µm |
40 |
Painting 2) |
in four corrosivity categories in the RAL colors, see Table Corrosivity categories | |
| 1) | Other colors upon request. With cylinders and attachment parts, the following surfaces are not primed: ▶ All fit diameters to the customer side ▶ Sealing surfaces for line connection ▶ Sealing surfaces for flange connection ▶ Connection surface for valve mounting ▶ Inductive proximity switches ▶ Position measurement system ▶ Measuring coupling ▶ Spherical / plain bearing ▶ Lubricating nipples |
| 2) | With cylinders and attachment parts, the following surfaces are not painted: ▶ All fit diameters and connection surfaces to the customer side ▶ Sealing surfaces for line connection ▶ Sealing surfaces for flange connection ▶ Connection surface for valve mounting ▶ Inductive proximity switches ▶ Position measurement system ▶ Measuring coupling ▶ Spherical / plain bearing ▶ Lubricating nipples |
| The areas that are not primed or painted are protected by means of a solvent-free corrosion protection agent. | |
| Accessories that are ordered as separate order item are not primed or painted by default. Corresponding priming and/or painting on request. |
hydraulic
Nominal pressure 1) |
bar |
250 |
Operating pressure, min. (without load) 2) |
bar |
10 |
Static test pressure |
bar |
375 |
Reduced test pressure |
bar |
315 |
Operating viscosity range |
mm²/s |
12 \u2026 380 |
Optimum viscosity at operating temperature |
mm²/s |
20 \u2026 100 |
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3) |
Class 20/18/15 according to ISO 4406 (c) | |
Bleeding |
By default secured against screwing out | |
| 1) | The maximum operating pressures must be less than or equal to the applicable nominal pressures and apply to applications with shock-free operation with reference to excess pressure and/or external loads. With extreme loads like e. g. high sequence cycle, mounting elements and threaded piston rod connections must be designed for durability. |
| 2) | Depending on the application, application conditions and technical design, a certain minimum pressure (approx.10 bar) is required in order to guarantee technically unobjectionable functioning of the hydraulic cylinder. |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
Mineral oils |
HL, HLP |
FKM, NBR |
DIN 51524 |
90220 |
Oil-in-water emulsion |
HFA |
FKM, NBR |
ISO 12922 |
90223 |
Water glycol |
HFC |
upon request |
90223 |
|
Phosphate ester |
HFDR |
FKM |
ISO 12922 |
90222 |
Polyol ester |
HFDU |
FKM |
ISO 12922 |
90222 |
Piston |
Piston rod |
with 0 mm stroke length |
per 100 mm stroke length |
|||
ØAL |
ØMM |
MP3/MP5 |
MF3/MF4 |
MT4 |
MS2 |
|
mm |
mm |
kg |
kg |
kg |
kg |
kg |
| 40 | 25 | 7 | 9 | 9 | 9 | 0.9 |
| 28 | 7 | 9 | 9 | 9 | 1 | |
| 50 | 32 | 12 | 14 | 13 | 13 | 1.3 |
| 36 | 12 | 14 | 13 | 14 | 1.5 | |
| 63 | 40 | 20 | 21 | 21 | 21 | 2.3 |
| 45 | 20 | 21 | 21 | 21 | 2.6 | |
| 80 | 50 | 32 | 35 | 34 | 35 | 3.2 |
| 56 | 32 | 35 | 34 | 36 | 3.6 | |
| 100 | 63 | 51 | 54 | 54 | 55 | 5.2 |
| 70 | 51 | 55 | 54 | 56 | 5.7 | |
| 125 | 80 | 95 | 96 | 99 | 98 | 8.2 |
| 90 | 96 | 97 | 100 | 99 | 9.2 | |
| 140 | 90 | 131 | 132 | 136 | 137 | 10.7 |
| 100 | 132 | 133 | 137 | 138 | 11.9 | |
| 160 | 100 | 185 | 184 | 197 | 206 | 12.6 |
| 110 | 186 | 186 | 199 | 207 | 13.9 | |
| 180 | 110 | 255 | 253 | 264 | 274 | 14.7 |
| 125 | 258 | 256 | 267 | 277 | 16.8 | |
| 200 | 125 | 349 | 332 | 350 | 363 | 19 |
| 140 | 352 | 335 | 353 | 366 | 21.5 | |
| 220 | 140 | 527 | 512 | 546 | 518 | 27.1 |
| 160 | 527 | 512 | 546 | 518 | 30.9 | |
| 250 | 160 | 673 | 640 | 677 | 650 | 32.7 |
| 180 | 673 | 640 | 677 | 650 | 36.9 | |
| 280 | 180 | 976 | 966 | 1020 | 918 | 44.2 |
| 200 | 976 | 966 | 1020 | 918 | 48.8 | |
| 320 | 200 | 1251 | 1172 | 1223 | 1174 | 55.2 |
| 220 | 1251 | 1172 | 1223 | 1174 | 60.4 | |
Work and environmental conditions |
Seal versions |
|||||||||
M |
G |
V |
L |
A |
B |
T |
R |
S |
||
Medium/temperature |
Medium HL, HLP/operating temperature of medium \u201220 \u2026 +80 °C |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
Medium HFA/operating temperature of medium +5 \u2026 +55 °C |
+/\u2012 |
+/\u2012 |
+/- |
+/- |
+ |
+/\u2012 |
++ |
+/- |
+/\u2012 |
|
Medium HFC/operating temperature of medium \u201220 \u2026 +60 °C |
\u2012 |
++ |
\u2012 |
\u2012 |
+/\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
|
Medium HFDR/operating temperature of medium \u201215 \u2026 +80 °C |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
++ |
|
Medium HFDU/operating temperature of medium \u201215 \u2026 +80 °C |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
++ |
|
Ambient and rod temperature in the area of the piston rod \u201220 \u2026 +80 °C1) |
++ |
+ |
+2) |
++ |
++ |
+2) |
+ |
++ |
++2) |
|
Extended ambient and rod temperature in the area of the piston rod +80 \u2026 +120 °C |
\u2012 |
\u2012 |
++ |
\u2012 |
\u2012 |
+ |
\u2012 |
\u2012 |
++ |
|
Function/velocity \u2026 |
Static holding function more than 10 minutes: |
++ |
+ |
+ |
+ |
++ |
++ |
+ |
+ |
+ |
Static holding function short-time < 1 minute |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
|
Robust application conditions: steel works, mining, thin ice |
++ |
++ |
++ |
++ |
++ |
++ |
\u2012 |
++ |
\u2012 |
|
Zero point control, hardly any amplitude, frequency ≤ 5 Hz, max. 5 minutes |
\u2012 |
\u2012 |
\u2012 |
+/\u2012 |
\u2012 |
\u2012 |
++ |
+ |
++ |
|
Cylinder velocity ≥ 0.001 m/s stick-slip behavior |
++ |
+ |
+ |
++ |
\u2012 |
\u2012 |
++ |
++ |
++ |
|
Cylinder velocity 0.01 \u2026 0.5 m/s3) |
++ |
+ |
+ |
++ |
+ |
+ |
++ |
++ |
++ |
|
Cylinder velocity > 0.5 \u2026 ≤ 0.8 m/s3) |
\u2012 |
+/\u2012 |
+/\u2012 |
++ |
\u2012 |
\u2012 |
++ |
+ |
++ |
|
Stroke length > 1.0 m |
+/\u2012 |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
++ |
|
Standstill period (wear) |
++ |
+/\u2012 |
+/\u2012 |
++ |
+/\u2012 |
\u2012 |
++ |
++ |
++ |
|
Undissolved air in the oil4) |
\u2012 |
+ |
+ |
+ |
\u2012 |
\u2012 |
+ |
+ |
+ |
|
| ++ = very good + = good +/\u2013 = conditional, depending on the application parameters \u2013 = inappropriate General technical data in corresponding data sheets will remain valid! See table on hydraulic fluids! Generally, a medium temperature of approx. 40 °C is recommended. The specified values are to be regarded as guidelines; depending on the case of application, it may be necessary to check the suitability of the seal system. |
|
| 1) | Moreover, observe the corresponding medium temperature range |
| 2) | Lower temperature limit \u201315 °C |
| 3) | Standard line connections not designed for that velocity |
| 4) | \u2012 = Seal is destroyed, + = Seal is not directly destroyed, leakage may occur |
Piston Ø |
Line connection |
Maximum stroke velocity 1) |
mm |
m/s |
|
| 40 | G1/2 | 0.31 |
| G1/2 | 0.31 | |
| 50 | G1/2 | 0.2 |
| G1/2 | 0.2 | |
| 63 | G3/4 | 0.28 |
| G3/4 | 0.28 | |
| 80 | G3/4 | 0.18 |
| G3/4 | 0.18 | |
| 100 | G1 | 0.2 |
| G1 | 0.2 | |
| 125 | G1 | 0.13 |
| G1 | 0.13 | |
| 140 | G1 1/4 | 0.16 |
| G1 1/4 | 0.16 | |
| 160 | G1 1/4 | 0.12 |
| G1 1/4 | 0.12 | |
| 180 | G1 1/4 | 0.1 |
| G1 1/4 | 0.1 | |
| 200 | G1 1/4 | 0.08 |
| G1 1/4 | 0.08 | |
| 220 | G1 1/2 | 0.09 |
| G1 1/2 | 0.09 | |
| 250 | G1 1/2 | 0.07 |
| G1 1/2 | 0.07 | |
| 280 | G1 1/2 | 0.06 |
| G1 1/2 | 0.06 | |
| 320 | G1 1/2 | 0.04 |
| G1 1/2 | 0.04 |
| 1) | Please observe the guideline on max. stroke velocities (with recommended flow velocity of 5 m/s in the line connection) in the table. Higher stroke velocities upon request. If the extension velocity is considerably higher than the retraction velocity of the piston rod, drag-out losses of the medium may result. If necessary, please consult us. |
Boundary and application conditions:
The mechanical alignment of the movement axis and thus the mounting points of hydraulic cylinder and piston rod must be ensured. Lateral forces on the guides of piston rod and piston are to be avoided. It may be necessary to consider the own weight of the hydraulic cylinder (MP3/MP5 or MT4) or the piston rod.
The kinking length/kinking load of the piston rod and/or the hydraulic cylinder must be observed (see Kinking).
The maximum admissible stroke velocities with regard to the suitability/load of seals must be observed as must their compatibility with the properties of the fluid type (see seals).
The maximum admissible velocities/kinetic energies when moving into the end positions, also considering external loads, must be observed.
Danger: Excess pressure
The maximum admissible operating pressure must be complied with in any operating state of the hydraulic cylinder. Possible pressure intensification resulting from the area ratio of annulus area to piston area and possible throttling points are to be observed.
Detrimental environmental influences, like e. g. aggressive finest particles, vapors, high temperatures, etc. as well as contamination and deterioration of the hydraulic fluid are to be avoided.
Standards:
The installation dimensions and types of mounting of the cylinders comply with the standards ISO 6020/1 and VW 39 D 920.
Acceptance:
Each cylinder is tested according to Bosch Rexroth standard and in compliance with ISO 10100: 2001.
Safety instructions:
For assembly, commissioning and maintenance of hydraulic cylinders, observe the operating instructions 07100-B!
Service and repair work has to be performed by Bosch Rexroth AG or by personnel especially trained for this purpose. No warranty is accepted for damage as a consequence of assembly, maintenance or repair work not performed by Bosch Rexroth AG.
Check lists for hydraulic cylinders:
Cylinders the characteristics and/or application parameters of which deviate from the values specified in the data sheet can only be offered as a special version upon request. For offers, the variations of the characteristics and/or application parameters must be described in the check lists for hydraulic cylinders (07200).
Minimum strokes:
When using end position cushioning, the minimum stroke must also be observed, see "End position cushioning".
This list does not claim to be complete. In case of questions regarding the compatibility with the medium or exceedance of the boundary or application conditions, please contact us.
All graphical representations in the data sheet are examples. The product supplied may therefore differ from the figure.
The ICS (Interactive Catalog System) is a selection and project planning help for hydraulic cylinders. The ICS allows designers for machines and systems to quickly and reliably find the perfect hydraulic cylinder solution through logic-guided type key enquiries. This software helps to solve design and project planning tasks more quickly and efficiently. After having been guided through the product selection, the user quickly and reliably gets the exact technical data of the selected component as well as 2D and 3D CAD data in the correct file format for all common CAD systems.
This allows users to reduce costs while increasing their competitiveness.
www.boschrexroth.com/ics
Piston |
Piston rod |
Area ratio |
Areas |
Force at 250 bar |
Flow at 0.1 m/s |
Maximum available stroke length |
||||||
Piston |
Rod |
Ring |
Pressure |
Differential |
Traction |
Off |
Differential |
On |
||||
ØAL |
ØMM |
φ A1/A3 |
A1 |
A2 |
A3 |
F1 |
F2 |
F3 |
qV1 |
qV2 |
qV3 |
|
mm |
mm |
cm² |
cm² |
cm² |
kN |
kN |
kN |
l/min |
l/min |
l/min |
mm |
|
| 40 | 25 | 1.64 | 12.56 | 4.9 | 7.65 | 31.4 1) | 12.25 | 19.12 | 7.5 2) | 2.9 | 4.6 | 2000 |
| 28 | 1.96 | 12.56 | 6.16 | 6.4 | 31.4 1) | 15.4 | 16 | 7.5 2) | 3.7 | 3.8 | 2000 | |
| 50 | 32 | 1.69 | 19.63 | 8.04 | 11.59 | 49.1 1) | 20.12 | 28.98 | 11.8 2) | 4.8 | 7 | 2000 |
| 36 | 2.08 | 19.63 | 10.18 | 9.45 | 49.1 1) | 25.45 | 23.65 | 11.8 2) | 6.1 | 5.7 | 2000 | |
| 63 | 40 | 1.67 | 31.17 | 12.56 | 18.61 | 77.9 1) | 31.38 | 46.52 | 18.7 2) | 7.5 | 11.2 | 2000 |
| 45 | 2.04 | 31.17 | 15.9 | 15.27 | 77.9 1) | 39.75 | 38.15 | 18.7 2) | 9.5 | 9.2 | 2000 | |
| 80 | 50 | 1.66 | 50.26 | 19.63 | 30.63 | 125.65 1) | 49.07 | 76.58 | 30.2 2) | 11.8 | 18.4 | 2000 |
| 56 | 1.96 | 50.26 | 24.63 | 25.63 | 125.65 1) | 61.55 | 64.1 | 30.2 2) | 14.8 | 15.4 | 2000 | |
| 100 | 63 | 1.66 | 78.54 | 31.16 | 47.38 | 196.35 1) | 77.93 | 118.42 | 47.1 2) | 18.7 | 28.4 | 3000 |
| 70 | 1.96 | 78.54 | 38.48 | 40.06 | 196.35 1) | 96.2 | 100.15 | 47.1 2) | 23.1 | 24 | 3000 | |
| 125 | 80 | 1.69 | 122.72 | 50.24 | 72.48 | 306.75 1) | 125.62 | 181.13 | 73.6 2) | 30.1 | 43.5 | 3000 |
| 90 | 2.08 | 122.72 | 63.62 | 59.1 | 306.75 1) | 159.05 | 147.7 | 73.6 2) | 38.2 | 35.4 | 3000 | |
| 140 | 90 | 1.7 | 153.94 | 63.62 | 90.32 | 384.75 1) | 159.05 | 225.7 | 92.4 2) | 38.2 | 54.2 | 3000 |
| 100 | 2.04 | 153.94 | 78.54 | 75.4 | 384.75 1) | 196.35 | 188.4 | 92.4 2) | 47.1 | 45.3 | 3000 | |
| 160 | 100 | 1.64 | 201.06 | 78.54 | 122.5 | 502.5 1) | 196.35 | 306.15 | 120.6 2) | 47.1 | 73.5 | 3000 |
| 110 | 1.9 | 201.06 | 95.06 | 106 | 502.5 1) | 237.65 | 264.85 | 120.6 2) | 57 | 63.6 | 3000 | |
| 180 | 110 | 1.6 | 254.47 | 95.06 | 159.43 | 636.17 1) | 237.65 | 398.52 | 152.7 2) | 57 | 95.7 | 3000 |
| 125 | 1.93 | 254.47 | 122.72 | 131.75 | 636.17 1) | 306.8 | 329.37 | 152.7 2) | 73.6 | 79.1 | 3000 | |
| 200 | 125 | 1.64 | 314.16 | 122.72 | 191.44 | 785.25 1) | 306.8 | 478.45 | 188.5 2) | 73.6 | 114.9 | 3000 |
| 140 | 1.96 | 314.16 | 153.96 | 160.2 | 785.25 1) | 384.9 | 400.35 | 188.5 2) | 92.4 | 96.1 | 3000 | |
| 220 | 140 | 1.68 | 380.1 | 153.96 | 226.2 | 950.3 1) | 384.9 | 565.5 | 228.1 2) | 92.4 | 135.7 | 6000 |
| 160 | 2.12 | 380.1 | 201 | 179.1 | 950.3 1) | 502.6 | 447.7 | 228.1 2) | 120.7 | 107.4 | 6000 | |
| 250 | 160 | 1.69 | 490.8 | 201 | 289.8 | 1227.2 1) | 502.6 | 724.5 | 294.5 2) | 120.7 | 173.8 | 6000 |
| 180 | 2.08 | 490.8 | 254.4 | 236.4 | 1227.2 1) | 636.2 | 590 | 294.5 2) | 152.7 | 141.8 | 6000 | |
| 280 | 180 | 1.7 | 615.7 | 254.4 | 361.3 | 1539.4 1) | 636.2 | 903.2 | 369.4 2) | 152.7 | 216.7 | 6000 |
| 200 | 2.04 | 615.7 | 314.1 | 301.6 | 1539.4 1) | 785.4 | 753.9 | 369.4 2) | 188.5 | 180.9 | 6000 | |
| 320 | 200 | 1.64 | 804.2 | 314.1 | 490.1 | 2010.6 1) | 785.4 | 1225.2 | 482.5 2) | 188.5 | 294 | 6000 |
| 220 | 1.9 | 804.2 | 380.1 | 424.2 | 2010.6 1) | 950.3 | 1060.3 | 482.5 2) | 228.1 | 254.4 | 6000 | |
| 1) | Theoretical static cylinder force (without consideration of the efficiency and admissible load for attachment parts such as swivel heads, plates, or valves, etc.) |
| 2) | Stroke velocity |
Installation dimensions |
WC |
XC2) |
XO2) |
XS1;2) |
XV2) |
ZP2) |
|
Mounting type |
MF3 |
MP3 |
MP5 |
MS2 |
MT4 |
MF4 |
|
Stroke length in mm |
Tolerances in mm |
Stroke tolerances in mm 3) |
|||||
≤ 1250 |
±2 |
±1,5 |
±1,5 |
±2 |
±2 |
±1,5 |
+2 |
> 1250 \u2013 ≤ 3150 |
±4 |
±3 |
±3 |
±4 |
±4 |
±3 |
+5 |
> 3150 \u2013 ≤ 6000 |
±8 |
±5 |
±5 |
±8 |
±8 |
±5 |
+8 |
| 1) | Not standardized |
| 2) | Including stroke length |
| 3) | Stroke tolerances must not be added to the tolerances listed in this table. |
By default, a patented safety vent against unintended screwing out in head and base is delivered for all cylinders.
The port allows for the installation of a measuring coupling with check valve for pressure measurement or contamination-free bleeding. Measuring coupling with check valve function, i.e. the measuring or bleeding hose can also be connected when the system is pressurized.
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
Scope of delivery: Measuring coupling G1/4
MESSKUPPLUNG AB 20-11/K1 G1/4 with seal ring made of NBR
Material no. R900009090
MESSKUPPLUNG AB 20-11/K1V G1/4 with seal ring made of FKM
Material no. R900001264
Inductive proximity switches are used as reliable end position control for hydraulic cylinders. They are an important element for the safe and exact monitoring of safety equipment, locks and/or other machine functions in their end position by means of the output of signals. The proximity switch which is high-pressure resistant up to 500 bar works in a contactless manner. Consequently, it is wear-free. The proximity switch has been set at the factory. The switching distance must not be adjusted. The lock nut of the proximity switch is marked at the factory using sealing wax. On versions with proximity switch, the cylinders are equipped with proximity switches on both sides.
Function type |
PNP normally open contact | ||
Admissible pressure |
bar |
500 | |
Operating voltage |
V DC |
10 ... 30 | |
including residual ripple |
% |
≤ 15 | |
Voltage drop |
V |
≤ 1.5 | |
Rated operating voltage |
V DC |
24 | |
Rated operating current |
mA |
200 | |
Idle current |
mA |
≤ 8 | |
Residual current |
μA |
≤ 10 | |
Repetition accuracy |
% |
≤ 5 | |
Hysteresis |
% |
≤ 15 | |
Ambient temperature range |
°C |
-25 \u2026 +80 | |
Temperature drift |
% |
≤ 10 | |
Switching frequency |
Hz |
1000 | |
Protection class |
active area |
IP68 according to DIN 40050 | |
Proximity switch |
IP67 according to DIN 40050 | ||
Housing material |
Material no. 1.4104 | ||
Pin assignment
In this connection, observe the information on the color set-up in table general.
The specified resistances of the individual Bosch Rexroth classes only refer to the primed / painted cylinder areas, not, for example, to piston rods, trunnions, etc.
In this connection, special measures may be necessary.
Class |
Properties |
Applications |
||
Inside |
Outside |
|||
Priming |
CP3 |
240 h salt spray test SST (DIN EN ISO 9227) |
Field of application e.g. hall atmosphere, air humidity ≤ 60%, no thermal load. |
Not suitable for outdoor exposure. |
Painting |
CP4 |
480 h salt spray test SST (DIN EN ISO 9227) |
Unheated buildings in which there may be condensation (production rooms, storage and sport halls). |
Urban and industrial atmosphere with little salt or sulfur dioxide load. |
CP5 |
720 h salt spray test SST (DIN EN ISO 9227) |
Silo and debris facilities, chemical plants, boathouses above seawater, laundries, breweries with high humidity and medium contamination. |
Industrial and coastal areas with medium salt load. |
|
CP6 |
1000 h salt spray test NSS (DIN EN ISO 9227) |
Buildings or areas with almost permanent condensation and serious contamination. |
Industrial areas with large humidity and aggressive atmosphere. |
|
CP7 |
1440 h salt spray test NSS (DIN EN ISO 9227) |
Buildings or areas with almost permanent condensation and serious contamination. |
Coastal and offshore areas with high salt load. |
|
| 1) | according to DIN EN ISO 12944-2 |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
| 3) | Standard version \u201cW\u201d Lubricating nipple, cone head form A according to DIN 71412 |
| 4) | Related bolt Ø f8 |
MP3: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm
ØAL |
ØMM |
L |
L1 |
MR |
M1 |
ØCD |
EW |
ØRA 3) |
VE 3) |
ØRA 4) |
VE 4) |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 40 1) | 25 / 28 | 53 | 8 | 32 | 32 | 25 | H9 |
25 | h12 |
52 | 29 | 88 | - |
| 50 | 32 / 36 | 61 | 8 | 40 | 40 | 32 | H9 |
32 | h12 |
63 | 29 | 102 | - |
| 63 | 40 / 45 | 74 | 8 | 50 | 50 | 40 | H9 |
40 | h12 |
75 | 32 | 120 | - |
| 80 | 50 / 56 | 90 | 10 | 63 | 63 | 50 | H9 |
50 | h12 |
90 | 36 | 145 | - |
| 100 | 63 / 70 | 102 | 12 | 71 | 71 | 63 | H9 |
63 | h12 |
110 | 41 | 170 | - |
| 125 | 80 / 90 | 124 | 16 | 90 | 90 | 80 | H9 |
80 | h12 |
132 | 45 | 206 | - |
| 140 | 90 / 100 | 149 | 16 | 100 | 100 | 90 | H9 |
90 | h12 |
145 | 45 | 226 | - |
| 160 | 100 / 110 | 150 | 16 | 112 | 112 | 100 | H9 |
100 | h12 |
160 | 50 | 200 | 50 |
| 180 | 110 / 125 | 180 | 20 | 129 | 129 | 110 | H9 |
110 | h12 |
185 | 55 | 220 | 55 |
| 200 | 125 / 140 | 206 | 20 | 145 | 145 | 125 | H9 |
125 | h12 |
200 | 61 | 235 | 61 |
| 220 1) | 140 / 160 | 253 | 20 | 179 2) | 187 2) | 160 | H9 |
160 | h12 |
235 | 71 | 270 | 71 |
| 250 | 160 / 180 | 253 | 24 | 179 2) | 187 2) | 160 | H9 |
160 | h12 |
250 | 71 | 300 | 71 |
| 280 1) | 180 / 200 | 320 | 30 | 230 2) | 240 2) | 200 | H9 |
200 | h12 |
295 | 88 | 325 | 88 |
| 320 | 200 / 220 | 320 | 30 | 231 2) | 241 2) | 200 | H9 |
200 | h12 |
320 | 88 | 365 | 88 |
| 1) | Piston Ø not standardized |
| 2) | The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting |
| 3) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 4) | Dimensions for cylinders with seal design A and B |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
| 3) | Standard version \u201cW\u201d Lubricating nipple, cone head form A according to DIN 71412 |
| 4) | Related bolt Ø f8 |
MP5: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm
ØAL |
ØMM |
LT |
L1 |
MS |
M1 |
ØCX |
EP |
EX |
ØRA 4) |
VE 4) |
ØRA 5) |
VE 5) |
Z |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
° |
||
| 40 | 25 / 28 1) | 53 | 8 | 32 | 32 | 25 3) | H7 |
22 | 25 | h12 |
52 | 29 | 88 | - | 2 |
| 50 | 32 / 36 | 61 | 8 | 40 | 40 | 32 3) | H7 |
27 | 32 | h12 |
63 | 29 | 102 | - | 4 |
| 63 | 40 / 45 | 74 | 8 | 50 | 50 | 40 3) | H7 |
32 | 40 | h12 |
75 | 32 | 120 | - | 4 |
| 80 | 50 / 56 | 90 | 10 | 63 | 63 | 50 3) | H7 |
40 | 50 | h12 |
90 | 36 | 145 | - | 4 |
| 100 | 63 / 70 | 102 | 12 | 71 | 71 | 63 3) | H7 |
52 | 63 | h12 |
110 | 41 | 170 | - | 4 |
| 125 | 80 / 90 | 124 | 16 | 90 | 90 | 80 3) | H7 |
66 | 80 | h12 |
132 | 45 | 206 | - | 4 |
| 140 | 90 / 100 | 149 | 16 | 100 | 100 | 90 3) | H7 |
72 | 90 | h12 |
145 | 45 | 226 | - | 4 |
| 160 | 100 / 110 | 150 | 16 | 112 | 112 | 100 3) | H7 |
84 | 100 | h12 |
160 | 50 | 200 | 50 | 4 |
| 180 | 110 / 125 | 180 | 20 | 129 | 129 | 110 3) | H7 |
88 | 110 | h12 |
185 | 55 | 220 | 55 | 4 |
| 200 | 125 / 140 | 206 | 20 | 145 | 145 | 125 3) | H7 |
102 | 125 | h12 |
200 | 61 | 235 | 61 | 4 |
| 220 | 140 / 160 1) | 253 | 20 | 179 2) | 187 2) | 160 3) | H7 |
130 | 160 | h12 |
235 | 71 | 270 | 71 | 4 |
| 250 | 160 / 180 | 253 | 24 | 179 2) | 187 2) | 160 3) | H7 |
130 | 160 | h12 |
250 | 71 | 300 | 71 | 4 |
| 280 | 180 / 200 1) | 320 | 30 | 230 2) | 240 2) | 200 3) | H7 |
138 | 200 | h12 |
295 | 88 | 325 | 88 | 4 |
| 320 | 200 / 220 | 320 | 30 | 231 2) | 241 2) | 200 3) | H7 |
162 | 200 | h12 |
320 | 88 | 365 | 88 | 4 |
| 1) | Piston Ø not standardized |
| 2) | The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting |
| 3) | Related bolt Ø f8 |
| 4) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 5) | Dimensions for cylinders with seal design A and B |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
ØAL |
ØMM |
ØRD |
WC |
VD |
NF |
ZB |
ØFB |
ØFC |
ØUC |
|||||
max. |
||||||||||||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||
| 40 | 25 / 28 1) | 52 | f8 |
22 | 4 | 25 | js13 |
230 | 11 | H13 |
115 | js13 |
138 | 0 - 1 |
| 50 | 32 / 36 | 63 | f8 |
22 | 4 | 25 | js13 |
244 | 13.5 | H13 |
132 | js13 |
155 | 0 - 1 |
| 63 | 40 / 45 | 75 | f8 |
25 | 4 | 28 | js13 |
274 | 13.5 | H13 |
150 | js13 |
175 | 0 - 1 |
| 80 | 50 / 56 | 90 | f8 |
28 | 4 | 32 | js13 |
305 | 17.5 | H13 |
180 | js13 |
210 | 0 - 1 |
| 100 | 63 / 70 | 110 | f8 |
32 | 5 | 36 | js13 |
340 | 22 | H13 |
212 | js13 |
250 | 0 - 1 |
| 125 | 80 / 90 | 132 | f8 |
36 | 5 | 40 | js13 |
396 | 22 | H13 |
250 | js13 |
290 | 0 - 1 |
| 140 | 90 / 100 | 145 | f8 |
36 | 5 | 40 | js13 |
430 | 26 | H13 |
285 | js13 |
330 | 0 - 1 |
| 160 | 100 / 110 | 160 | f8 |
40 | 5 | 45 | js13 |
467 | 26 | H13 |
315 | js13 |
360 | 0 - 1 |
| 180 | 110 / 125 | 185 | f8 |
45 | 5 | 50 | js13 |
510 | 33 | H13 |
355 | js13 |
410 | 0 - 1 |
| 200 | 125 / 140 | 200 | f8 |
45 | 5 | 56 | js13 |
550 | 33 | H13 |
385 | js13 |
440 | 0 - 1 |
| 220 | 140 / 160 1) | 235 | f8 |
50 | 8 | 63 | js13 |
637 | 39 | H13 |
435 | js13 |
500 | 0 - 1 |
| 250 | 160 / 180 | 250 | f8 |
50 | 8 | 63 | js13 |
650 | 39 | H13 |
475 | js13 |
540 | 0 - 1 |
| 280 | 180 / 200 1) | 295 | f8 |
56 | 8 | 80 | js13 |
752 | 45 | H13 |
555 | js13 |
630 | 0 - 1 |
| 320 | 200 / 220 | 320 | f8 |
56 | 8 | 80 | js13 |
760 | 45 | H13 |
600 | js13 |
675 | 0 - 1 |
| 1) | Piston Ø not standardized |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
MF4: with seal design \u201cA\u201d, \u201cB\u201d and AL Ø 160 \u2026 320 mm
ØAL |
ØMM |
ZP |
NF |
VA |
ØBA |
ØFB |
ØFC |
ØUC |
ØRA 2) |
VE 2) |
ØRA 3) |
VE 3) |
|||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||
| 40 | 25 / 28 1) | 250 | 25 | js13 |
5 | 52 | H8 |
11 | H13 |
115 | js13 |
138 | 0 - 1 |
52 | 29 | 88 | - |
| 50 | 32 / 36 | 265 | 25 | js13 |
4 | 63 | H8 |
13.5 | H13 |
132 | js13 |
155 | 0 - 1 |
63 | 29 | 102 | - |
| 63 | 40 / 45 | 298 | 28 | js13 |
4 | 75 | H8 |
13.5 | H13 |
150 | js13 |
175 | 0 - 1 |
75 | 32 | 120 | - |
| 80 | 50 / 56 | 332 | 32 | js13 |
5 | 90 | H8 |
17.5 | H13 |
180 | js13 |
210 | 0 - 1 |
90 | 36 | 145 | - |
| 100 | 63 / 70 | 371 | 36 | js13 |
5 | 110 | H8 |
22 | H13 |
212 | js13 |
250 | 0 - 1 |
110 | 41 | 170 | - |
| 125 | 80 / 90 | 430 | 40 | js13 |
6 | 132 | H8 |
22 | H13 |
250 | js13 |
290 | 0 - 1 |
132 | 45 | 206 | - |
| 140 | 90 / 100 | 465 | 40 | js13 |
5 | 145 | H8 |
26 | H13 |
285 | js13 |
330 | 0 - 1 |
145 | 45 | 226 | - |
| 160 | 100 / 110 | 505 | 45 | js13 |
7 | 160 | H8 |
26 | H13 |
315 | js13 |
360 | 0 - 1 |
160 | 50 | 200 | 50 |
| 180 | 110 / 125 | 550 | 50 | js13 |
10 | 185 | H8 |
33 | H13 |
355 | js13 |
410 | 0 - 1 |
185 | 55 | 220 | 55 |
| 200 | 125 / 140 | 596 | 56 | js13 |
10 | 200 | H8 |
33 | H13 |
385 | js13 |
440 | 0 - 1 |
200 | 61 | 235 | 61 |
| 220 | 140 / 160 1) | 690 | 63 | js13 |
10 | 235 | H8 |
39 | H13 |
435 | js13 |
500 | 0 - 1 |
235 | 71 | 270 | 71 |
| 250 | 160 / 180 | 703 | 63 | js13 |
10 | 250 | H8 |
39 | H13 |
475 | js13 |
540 | 0 - 1 |
250 | 71 | 300 | 71 |
| 280 | 180 / 200 1) | 822 | 80 | js13 |
10 | 295 | H8 |
45 | H13 |
555 | js13 |
630 | 0 - 1 |
295 | 88 | 325 | 88 |
| 320 | 200 / 220 | 830 | 80 | js13 |
10 | 320 | H8 |
45 | H13 |
600 | js13 |
675 | 0 - 1 |
320 | 88 | 365 | 88 |
| 1) | Piston Ø not standardized |
| 2) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 3) | Dimensions for cylinders with seal design A and B |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
| 3) | Observe the minimum stroke length \u201cXmin.\u201c |
| 4) | Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV). |
MT4: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm
| 1) | Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV). |
Dimensions for cylinder with piston rod extension \u201cLY\u201c in retracted condition
ØAL |
ØMM |
ZB |
X |
XV |
XV |
XV |
BD |
UV |
ØTD |
TL |
TM |
r |
ØRA |
VE |
ØRA |
VE |
|||
max. |
min. |
average |
min. |
max. |
|||||||||||||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||
| 40 1) | 25 / 28 | 230 | 22 | 143 + X/2 2) | 154 3) | 140 + X 3) | 38 | 97 4) | 25 | f8 |
20 | js16 |
95 | h12 |
0.8 | 52 5) | 29 5) | 88 6) | - 6) |
| 50 | 32 / 36 | 244 | 32 | 158 + X/2 2) | 174 3) | 151 + X 3) | 38 | 111 4) | 32 | f8 |
25 | js16 |
112 | h12 |
0.8 | 63 5) | 29 5) | 102 6) | - 6) |
| 63 | 40 / 45 | 274 | 47 | 178.5 + X/2 2) | 202 3) | 167 + X 3) | 48 | 129 4) | 40 | f8 |
32 | js16 |
125 | h12 |
1 | 75 5) | 32 5) | 120 6) | - 6) |
| 80 | 50 / 56 | 305 | 58 | 197.5 + X/2 2) | 226.5 3) | 180.5 + X 3) | 58 | 163 4) | 50 | f8 |
40 | js16 |
150 | h12 |
1 | 90 5) | 36 5) | 145 6) | - 6) |
| 100 | 63 / 70 | 340 | 79 | 219.5 + X/2 2) | 259 3) | 195 + X 3) | 78 | 188 4) | 63 | f8 |
50 | js16 |
180 | h12 |
1.2 | 110 5) | 41 5) | 170 6) | - 6) |
| 125 | 80 / 90 | 396 | 91 | 255.5 + X/2 2) | 301 3) | 210 + X 3) | 98 | 234 4) | 80 | f8 |
63 | js16 |
224 | h12 |
1.2 | 132 5) | 45 5) | 206 6) | - 6) |
| 140 | 90 / 100 | 430 | 121 | 275.5 + X/2 2) | 336 3) | 215 + X 3) | 118 | 257 4) | 90 | f8 |
70 | js16 |
265 | h12 |
1.5 | 145 5) | 45 5) | 226 6) | - 6) |
| 160 | 100 / 110 | 467 | 142 | 302.5 + X/2 2) | 373 3) | 231.5 + X 3) | 128 | 287 4) | 100 | f8 |
80 | js16 |
280 | h12 |
1.5 | 160 5) | 50 5) | 200 6) | 50 6) |
| 180 | 110 / 125 | 510 | 158 | 326 + X/2 2) | 405 3) | 247 + X 3) | 138 | 328 4) | 110 | f8 |
90 | js16 |
320 | h12 |
1.5 | 185 5) | 55 5) | 220 6) | 55 6) |
| 200 | 125 / 140 | 550 | 204 | 359 + X/2 2) | 461 3) | 257 + X 3) | 178 | 343 4) | 125 | f8 |
100 | js16 |
335 | h12 |
1.5 | 200 5) | 61 5) | 235 6) | 61 6) |
| 220 1) | 140 / 160 | 637 | 200 | 407 + X/2 2) | 507 3) | 307 + X 3) | 180 | 393 4) | 160 | f8 |
125 | js16 |
385 | h12 |
1.5 | 235 5) | 71 5) | 270 6) | 71 6) |
| 250 | 160 / 180 | 650 | 210 | 420 + X/2 2) | 525 3) | 315 + X 3) | 180 | 433 4) | 160 | f8 |
125 | js16 |
425 | h12 |
1.5 | 250 5) | 71 5) | 300 6) | 71 6) |
| 280 1) | 180 / 200 | 752 | 241 | 477.5 + X/2 2) | 598 3) | 357 + X 3) | 220 | 486 4) | 200 | f8 |
160 | js16 |
480 | h12 |
2 | 295 5) | 88 5) | 325 6) | 88 6) |
| 320 | 200 / 220 | 760 | 245 | 477.5 + X/2 2) | 600 3) | 355 + X 3) | 220 | 536 4) | 200 | f8 |
160 | js16 |
530 | h12 |
2 | 320 5) | 88 5) | 365 6) | 88 6) |
| 1) | Piston Ø not standardized |
| 2) | XVcent. Recommendation: Trunnion position in cylinder center |
| 3) | When ordering, always specify the "XV" dimension in the plain text. Preferred XV dimension: Observe trunnion position in cylinder center XVmin. and XVmax. |
| 4) | The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting |
| 5) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 6) | Dimensions for cylinders with seal design A and B |
Important installation information:
During installation, it must be ensured that the trunnion bearings are installed up to the trunnion shoulders. Any variation may reduce the product's service life.
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
| 3) | Observe the minimum stroke length \u201cXmin.\u201c |
| 4) | Recess 2 mm deep, for hexagon socket head cap screws; ISO 4762 \u2012 The screws must not be subjected to shear force. Force distribution via additional external fitting strip. |
MS2: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm
ØAL |
ØMM |
XS |
ZB |
SS |
X |
S |
S1 |
ØSB |
ST |
TS |
US |
LH |
L1 |
ØRA |
VE |
ØRA |
VE |
||
max. |
min. |
||||||||||||||||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 40 1) | 25 / 28 | 118 | 230 | 50 | 1 2) | 30 | 15 | 11 | H13 |
32 | 110 | js13 |
140 3) | 45 | 93 | 52 4) | 29 4) | 88 5) | - 5) |
| 50 | 32 / 36 | 135.5 | 244 | 45 | 1 2) | 35 | 17.5 | 11 | H13 |
37 | 130 | js13 |
161 3) | 55 | 110 | 63 4) | 29 4) | 102 5) | - 5) |
| 63 | 40 / 45 | 154 | 274 | 49 | 1 2) | 40 | 20 | 13.5 | H13 |
42 | 150 | js13 |
183 3) | 65 | 129 | 75 4) | 32 4) | 120 5) | - 5) |
| 80 | 50 / 56 | 171.5 | 305 | 52 | 2 2) | 50 | 25 | 17.5 | H13 |
47 | 180 | js13 |
220 3) | 75 | 149 | 90 4) | 36 4) | 145 5) | - 5) |
| 100 | 63 / 70 | 189 | 340 | 61 | 3 2) | 60 | 30 | 22 | H13 |
57 | 210 | js13 |
260 3) | 90 | 181 | 110 4) | 41 4) | 170 5) | - 5) |
| 125 | 80 / 90 | 218 | 396 | 75 | 1 2) | 70 | 35 | 26 | H13 |
67 | 255 | js13 |
313 3) | 105 | 215 | 132 4) | 45 4) | 206 5) | - 5) |
| 140 | 90 / 100 | 240.5 | 430 | 70 | 19 2) | 85 | 42.5 | 30 | H13 |
72 | 290 | js13 |
359 3) | 115 | 235 | 145 4) | 45 4) | 226 5) | - 5) |
| 160 | 100 / 110 | 270 | 467 | 65 | 44 2) | 105 | 52.5 | 33 | H13 |
77 | 330 | js13 |
402 3) | 135 | 277 | 160 4) | 50 4) | 200 5) | 50 5) |
| 180 | 110 / 125 | 291.5 | 510 | 69 | 50 2) | 115 | 57.5 | 40 | H13 |
92 | 360 | js13 |
445 3) | 150 | 305 | 185 4) | 55 4) | 220 5) | 55 5) |
| 200 | 125 / 140 | 322.5 | 550 | 73 | 56 2) | 125 | 62.5 | 40 | H13 |
97 | 385 | js13 |
471 3) | 160 | 322 | 200 4) | 61 4) | 235 5) | 61 5) |
| 220 1) | 140 / 160 | 369.5 | 637 | 75 | 100 2) | 155 | 77.5 | 45 | H13 |
102 | 445 | js13 |
541 3) | 185 | 373 | 235 4) | 71 4) | 270 5) | 71 5) |
| 250 | 160 / 180 | 382.5 | 650 | 75 | 100 2) | 155 | 77.5 | 52 | H13 |
112 | 500 | js13 |
610 3) | 205 | 414 | 250 4) | 71 4) | 300 5) | 71 5) |
| 280 1) | 180 / 200 | 415.5 | 752 | 124 | 51 2) | 155 | 77.5 | 52 | H13 |
142 | 550 | js13 |
661 3) | 235 | 469 | 295 4) | 88 4) | 325 5) | 88 5) |
| 320 | 200 / 220 | 435 | 760 | 85 | 125 2) | 190 | 95 | 62 | H13 |
142 | 610 | js13 |
732 3) | 255 | 512 | 320 4) | 88 4) | 365 5) | 88 5) |
| 1) | Piston Ø not standardized |
| 2) | Observe the minimum stroke length \u201cXmin.\u201c |
| 3) | The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting |
| 4) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 5) | Dimensions for cylinders with seal design A and B |
Important notice:
Piston Ø 40, piston Ø 220 and piston Ø 280 not standardized
Dimensions for rectangular flange according to ISO 6162-1 tab. 2 type 1 and ISO 6162-2 tab. 2 type 1
Dimensions for square flange according to ISO 6164 tab. 1 and ISO 6164 tab. 2
ØAL |
Y |
PJ |
X1 |
Ød3 |
Ød3 1) |
c |
w |
d1 |
t1 2) |
t1 3) |
p 4) |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bar |
||
| 63 | 111 | 135 | 55 | 13 | 1/2\u2033 | 38.1 | ± 0.25 | 17.5 | ± 0.25 | M8 | 16 | 16 | 350 |
| 80 | 123.5 | 148 | 68 | 13 | 1/2\u2033 | 38.1 | ± 0.25 | 17.5 | ± 0.25 | M8 | 16 | 16 | 350 |
| 100 | 133 | 173 | 79 | 19 | 3/4\u2033 | 47.6 | ± 0.25 | 22.3 | ± 0.25 | M10 | 20 | 20 | 350 |
| 125 | 153 | 205 | 97.5 | 25 | 1\u2033 | 52.4 | ± 0.25 | 26.2 | ± 0.25 | M10 | 20 | 20 | 350 |
| 140 | 162 | 227 | 107 | 32 | 1 1/4\u2033 | 58.7 | ± 0.25 | 30.2 | ± 0.25 | M10 | 20 | 20 | 250 |
| 160 | 181.5 | 242 | 127 | 32 | 1 1/4\u2033 | 58.7 | ± 0.25 | 30.2 | ± 0.25 | M10 | 20 | 20 | 250 |
| 180 | 193 | 266 | 139 | 38 | 1 1/2\u2033 | 69.9 | ± 0.25 | 35.7 | ± 0.25 | M12 | 24 | 24 | 200 |
| 200 | 219 | 280 | 146.5 | 38 | 1 1/2\u2033 | 69.9 | ± 0.25 | 35.7 | ± 0.25 | M12 | 24 | 24 | 200 |
| 1) | Flange connection according to ISO 6162-1 tab. 2 type 1 corresponds to flange connection according to SAE 3000 PSI |
| 2) | Thread depth for seal design M, T, G, L, R, S and V |
| 3) | Thread depth for seal design A and B |
| 4) | Max. operating pressure for related flanges in bar |
ØAL |
Y |
PJ |
X1 |
Ød3 |
w |
d1 |
t1 1) |
t1 2) |
p 3) |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bar |
|
| 40 | 82 | 122 | 40.5 | 10 | 24.7 | ± 0.25 | M6 | 12.5 | 10 | 250 |
| 50 | 97 | 122 | 48 | 10 | 24.7 | ± 0.25 | M6 | 12.5 | 12.5 | 250 |
| 63 | 111 | 135 | 57 | 13 | 29.7 | ± 0.25 | M8 | 16 | 16 | 250 |
| 80 | 123.5 | 148 | 69.5 | 13 | 29.7 | ± 0.25 | M8 | 16 | 16 | 250 |
| 100 | 133 | 173 | 81.5 | 19 | 35.4 | ± 0.25 | M8 | 16 | 16 | 250 |
| 125 | 157 | 197 | 100 | 19 | 35.4 | ± 0.25 | M8 | 16 | 16 | 250 |
| 140 | 162 | 227 | 109 | 25 | 43.8 | ± 0.25 | M10 | 20 | 20 | 250 |
| 160 | 181.5 | 242 | 128.5 | 25 | 43.8 | ± 0.25 | M10 | 20 | 20 | 250 |
| 180 | 194 | 264 | 142 | 32 | 51.6 | ± 0.25 | M12 | 24 | 24 | 250 |
| 200 | 220 | 278 | 148.5 | 32 | 51.6 | ± 0.25 | M12 | 24 | 24 | 250 |
| 1) | Thread depth for seal design M, T, G, L, R, S and V |
| 2) | Thread depth for seal design A and B |
| 3) | Max. operating pressure for related flanges in bar |
ØAL |
Y |
PJ |
X1 |
Ød3 |
Ød3 |
c |
w |
d1 |
t1 |
t1 |
p |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bar |
||
| 80 | 120 | 155 | 67 | 13 | 1/2\u2033 1) | 40.5 | ± 0.25 | 18.2 | ± 0.25 | M8 | 16 2) | 14 3) | 400 4) |
| 100 | 134 | 171 | 80.5 | 13 | 1/2\u2033 1) | 40.5 | ± 0.25 | 18.2 | ± 0.25 | M8 | 16 2) | 16 3) | 400 4) |
| 125 | 153 | 205 | 97 | 19 | 3/4\u2033 1) | 50.8 | ± 0.25 | 23.8 | ± 0.25 | M10 | 20 2) | 20 3) | 400 4) |
| 140 | 162 | 227 | 107 | 25 | 1\u2033 1) | 57.2 | ± 0.25 | 27.8 | ± 0.25 | M12 | 24 2) | 24 3) | 400 4) |
| 160 | 181.5 | 242 | 127 | 25 | 1\u2033 1) | 57.2 | ± 0.25 | 27.8 | ± 0.25 | M12 | 24 2) | 24 3) | 400 4) |
| 180 | 194 | 264 | 139.5 | 32 | 1 1/4\u2033 1) | 66.6 | ± 0.25 | 31.8 | ± 0.25 | M14 | 26 2) | 26 3) | 400 4) |
| 200 | 220 | 278 | 147 | 32 | 1 1/4\u2033 1) | 66.6 | ± 0.25 | 31.8 | ± 0.25 | M14 | 26 2) | 26 3) | 400 4) |
| 220 | 244 | 326 | 168 | 38 | 1 1/2\u2033 1) | 79.3 | ± 0.25 | 36.5 | ± 0.25 | M16 | 30 2) | 30 3) | 400 4) |
| 250 | 257 | 326 | 189 | 38 | 1 1/2\u2033 1) | 79.3 | ± 0.25 | 36.5 | ± 0.25 | M16 | 30 2) | 30 3) | 400 4) |
| 280 | 290 | 375 | 215 | 38 | 1 1/2\u2033 1) | 79.3 | ± 0.25 | 36.5 | ± 0.25 | M16 | 30 2) | 30 3) | 400 4) |
| 320 | 282 | 391 | 236 | 51 | 2\u2033 1) | 96.8 | ± 0.25 | 44.5 | ± 0.25 | M20 | 30 2) | 36 3) | 400 4) |
| 1) | Flange connection according to ISO 6162-2 tab. 2 type 1 corresponds to flange connection according to SAE 6000 PSI |
| 2) | Thread depth for seal design M, T, G, L, R, S and V |
| 3) | Thread depth for seal design A and B |
| 4) | Max. operating pressure for related flanges in bar |
ØAL |
Y |
PJ |
X1 |
Ød3 |
w |
d1 |
t1 |
t1 |
p |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bar |
|
| 40 | 82 | 122 | 40.5 | 10 | 24.7 | ± 0.25 | M6 | 12.5 1) | 10 2) | 400 3) |
| 50 | 97 | 122 | 48 | 10 | 24.7 | ± 0.25 | M6 | 12.5 1) | 12.5 2) | 400 3) |
| 63 | 111 | 135 | 57 | 13 | 29.7 | ± 0.25 | M8 | 16 1) | 16 2) | 400 3) |
| 80 | 123.5 | 148 | 69.5 | 13 | 29.7 | ± 0.25 | M8 | 16 1) | 16 2) | 400 3) |
| 100 | 133 | 173 | 81.5 | 19 | 35.4 | ± 0.25 | M8 | 16 1) | 16 2) | 400 3) |
| 125 | 157 | 197 | 100 | 19 | 35.4 | ± 0.25 | M8 | 16 1) | 16 2) | 400 3) |
| 140 | 162 | 227 | 109 | 25 | 43.8 | ± 0.25 | M10 | 20 1) | 20 2) | 400 3) |
| 160 | 181.5 | 242 | 128.5 | 25 | 43.8 | ± 0.25 | M10 | 20 1) | 20 2) | 400 3) |
| 180 | 194 | 264 | 142 | 32 | 51.6 | ± 0.25 | M12 | 24 1) | 24 2) | 400 3) |
| 200 | 220 | 278 | 148.5 | 32 | 51.6 | ± 0.25 | M12 | 24 1) | 24 2) | 400 3) |
| 220 | 244 | 326 | 171 | 38 | 60.1 | ± 0.25 | M16 | 30 1) | 30 2) | 400 3) |
| 250 | 257 | 326 | 192 | 38 | 60.1 | ± 0.25 | M16 | 30 1) | 30 2) | 400 3) |
| 280 | 290 | 375 | 218 | 38 | 60.1 | ± 0.25 | M16 | 30 1) | 30 2) | 400 3) |
| 320 | 282 | 391 | 240 | 51 | 69.3 | ± 0.25 | M16 | 30 1) | 30 2) | 400 3) |
| 1) | Thread depth for seal design M, T, G, L, R, S and V |
| 2) | Thread depth for seal design A and B |
| 3) | Max. operating pressure for related flanges in bar |
Installation situation with MT4
Notice:
Porting pattern according to DIN 24340 form A and ISO 4401 (NG6) and form D and ISO 5781 (NG10; NG20 and NG30)
Note:
Valves, fittings and piping are not included in the scope of delivery!
Important notice:
Subplates for SL and SV valves (isolator valves)
Please note:
Seal designs T, G, L, R, S and V are not designed for the static holding function!
Plate dimensions |
Port size, porting pattern |
Position point Valve |
|||||||||||||||||||
ØAL |
Valve size |
PJ |
EE |
Minimum stroke |
Minimum stroke for MT4 |
X0 |
L1 |
L4 |
L5 |
LG |
b1 |
h1 |
h9 |
h2 |
A |
X |
Y |
X3 |
X4 |
X1 |
X2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||||
| 40 | 6 | 121 | G1/2 | 50 | 50 | 40.5 | 90 | 20 | 4 | 110 | 55 | 40 | 10 | 20 | G1/2 | G1/4 | G1/4 | 21.5 | 21.5 | 65.5 | 15.5 |
| 50 | 6 | 121 | G1/2 | 50 | 50 | 48 | 90 | 20 | 4 | 110 | 55 | 40 | 10 | 20 | G1/2 | G1/4 | G1/4 | 21.5 | 21.5 | 65.5 | 15.5 |
| 63 | 6 | 134 | G3/4 | 64 | 64 | 57 | 100 | 25 | 5 | 125 | 55 | 47 | 20 | 23.5 | G3/4 | G1/4 | G1/4 | 21.5 | 21.5 | 70.5 | 15.5 |
| 10 | 134 | G3/4 | 64 | 64 | 57 | 105 | 25 | 5 | 130 | 85 | 47 | 20 | 23.5 | G3/4 | G1/4 | G1/4 | 21.4 | 21.4 | 73 | 33.3 | |
| 80 | 6 | 151.5 | G3/4 | 58 | 58 | 69.5 | 100 | 25 | 5 | 125 | 55 | 47 | 20 | 23.5 | G3/4 | G1/4 | G1/4 | 21.5 | 21.5 | 70.5 | 15.5 |
| 10 | 151.5 | G3/4 | 58 | 58 | 69.5 | 105 | 25 | 5 | 130 | 85 | 47 | 20 | 23.5 | G3/4 | G1/4 | G1/4 | 21.4 | 21.4 | 73 | 33.3 | |
| 100 | 10 | 172 | G1 | 50 | 79 | 81.5 | 102 | 28 | 5 | 130 | 85 | 50 | 20 | 25 | G1 | G1/4 | G1/4 | 21.4 | 21.4 | 70 | 33.3 |
| 125 | 10 | 201 | G1 | 50 | 91 | 100 | 102 | 28 | 5 | 130 | 85 | 50 | 20 | 25 | G1 | G1/4 | G1/4 | 21.4 | 21.4 | 70 | 33.3 |
| 20 | 201 | G1 | 50 | 91 | 100 | 137 | 28 | 5 | 165 | 100 | 50 | 20 | 25 | G1 | G1/4 | G1/4 | 20.8 | 39.7 | 92 | 39.7 | |
| 140 | 10 | 223 | G1 1/4 | 50 | 121 | 109 | 115 | 35 | 5 | 150 | 85 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 21.4 | 21.4 | 80 | 33.3 |
| 20 | 223 | G1 1/4 | 50 | 121 | 109 | 140 | 35 | 5 | 175 | 100 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 20.8 | 39.7 | 95 | 39.7 | |
| 160 | 10 | 238.5 | G1 1/4 | 30 1) | 142 | 128.5 | 115 | 35 | 5 | 150 | 85 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 21.4 | 21.4 | 80 | 33.3 |
| 20 | 238.5 | G1 1/4 | 30 1) | 142 | 128.5 | 140 | 35 | 5 | 175 | 100 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 20.8 | 39.7 | 95 | 39.7 | |
| 180 | 10 | 264 | G1 1/4 | 30 1) | 158 | 142 | 120 | 40 | 5 | 160 | 85 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 21.4 | 21.4 | 90 | 33.3 |
| 20 | 264 | G1 1/4 | 30 1) | 158 | 142 | 135 | 50 | 5 | 185 | 100 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 20.8 | 39.7 | 105 | 39.7 | |
| 30 | 264 | G1 1/4 | 30 1) | 158 | 142 | 160 | 50 | 5 | 210 | 125 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 24.6 | 59.6 | 130 | 48.4 | |
| 200 | 10 | 278 | G1 1/4 | 30 1) | 204 | 148.5 | 120 | 40 | 5 | 160 | 85 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 21.4 | 21.4 | 90 | 33.3 |
| 20 | 278 | G1 1/4 | 30 1) | 204 | 148.5 | 135 | 50 | 5 | 185 | 100 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 20.8 | 39.7 | 105 | 39.7 | |
| 30 | 278 | G1 1/4 | 30 1) | 204 | 148.5 | 160 | 50 | 5 | 210 | 125 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 24.6 | 59.6 | 130 | 48.4 | |
| 1) | For type of mounting \u201cMS2\u201d, observe the Xmin values of the dimension tables |
ØAL |
= |
Piston Ø |
The minimum stroke only applies to the following connection situation!
Installation situation with MT4
Notice:
Porting pattern according to DIN 24340 form A and ISO 4401
With larger stroke lengths and depending on the piston diameter, the pipeline is mounted at the cylinder pipe using pipe supports. A maximum of two sandwich plates is admissible.
Plate and piping dimensions |
Port size, porting pattern |
Position point Valve |
|||||||||||||||||||||||||||||||||||||
ØAL |
Valve size |
PJ |
EE |
Minimum stroke |
L1 |
L4 |
L5 |
H1 |
H2 |
H2 for MT4 |
SW1 |
ØRa |
b1 |
h1 |
LG |
HG |
HG for MT4 |
b2 |
X0 |
h7 |
h9 |
P |
X3 |
h3 |
T |
X4 |
h4 |
X |
X5 |
h5 |
Y |
X6 |
h6 |
MA |
MB |
X8 |
h8 |
X1 |
X2 |
max. |
|||||||||||||||||||||||||||||||||||||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||||||
| 40 | 6 | 121 | G1/2 | 242 | 90 | 20 | 4 | 96 | 60.5 | 70.5 | 30 | 16 x 2.5 | 65 | 40 | 110 | 80.5 | 90.5 | 32.5 | 40.5 | 20 | 10 | - | 21.5 | 20 | G1/2 | 21.5 | 20 | - | - | - | - | - | - | - | - | - | - | 25 | 15.5 |
| 50 | 6 | 121 | G1/2 | 242 | 90 | 20 | 4 | 103.5 | 68 | 78 | 30 | 16 x 2.5 | 65 | 40 | 110 | 88 | 98 | 32.5 | 48 | 20 | 10 | - | 21.5 | 20 | G1/2 | 21.5 | 20 | - | - | - | - | - | - | - | - | - | - | 25 | 15.5 |
| 63 | 6 | 134 | G3/4 | 276 | 100 | 25 | 5 | 121.5 | 80.5 | 100.5 | 36 | 20 x 3 | 75 | 47 | 125 | 104 | 124 | 37.5 | 57 | 23.5 | 20 | G3/4 | 21.5 | 23.5 | G3/4 | 21.5 | 23.5 | - | - | - | - | - | - | - | - | - | - | 30 | 15.5 |
| 10 | 134 | G3/4 | 301 | 125 | 25 | 5 | 121.5 | 80 | 100 | 36 | 20 x 3 | 90 | 70 | 150 | 127 | 147 | 45 | 57 | 23 | 20 | G3/4 | 27 | 33 | G3/4 | 3.5 | 33 | G1/4 | 18 | 47 | G1/4 | 65 | 47 | G1/4 | G1/4 | 60 | 17 | 45 | 21.4 | |
| 80 | 6 | 151.5 | G3/4 | 259 | 100 | 25 | 5 | 134.5 | 93 | 113 | 36 | 20 x 3 | 75 | 47 | 125 | 116.5 | 136.5 | 37.5 | 69.5 | 23.5 | 20 | G3/4 | 21.5 | 23.5 | G3/4 | 21.5 | 23.5 | - | - | - | - | - | - | - | - | - | - | 30 | 15.5 |
| 10 | 151.5 | G3/4 | 284 | 125 | 25 | 5 | 134.5 | 92.5 | 112.5 | 36 | 20 x 3 | 90 | 70 | 150 | 139.5 | 159.5 | 45 | 69.5 | 23 | 20 | G3/4 | 27 | 33 | G3/4 | 3.5 | 33 | G1/4 | 18 | 47 | G1/4 | 65 | 47 | G1/4 | G1/4 | 60 | 17 | 45 | 21.4 | |
| 100 | 10 | 172 | G1 | 317 | 132 | 28 | 5 | 155 | 111.5 | 131.5 | 46 | 25 x 4 | 90 | 80 | 160 | 161.5 | 181.5 | 45 | 81.5 | 30 | 20 | - | 27 | 30 | G1 | 3.5 | 40 | G1/4 | 18 | 57 | G1/4 | 65 | 57 | G1/4 | G1/4 | 58 | 20 | 52 | 21.4 |
| 125 | 10 | 201 | G1 | 288 | 132 | 28 | 5 | 173.5 | 130 | 150 | 46 | 25 x 4 | 90 | 80 | 160 | 180 | 200 | 45 | 100 | 30 | 20 | - | 27 | 30 | G1 | 3.5 | 40 | G1/4 | 18 | 57 | G1/4 | 65 | 57 | G1/4 | G1/4 | 58 | 20 | 52 | 21.4 |
| 16 | 201 | G1 | 318 | 162 | 28 | 5 | 173.5 | 140 | 160 | 46 | 25 x 4 | 115 | 90 | 190 | 190 | 210 | 57.5 | 100 | 40 | 20 | - | 50 | 26 | G1 | 17 | 25 | G1/4 | 76.5 | 60 | G1/4 | 88 | 70 | G1/4 | G1/4 | 88 | 35 | 37 | 37.5 | |
| 140 | 10 | 223 | G1 1/4 | 315 | 135 | 35 | 5 | 188 | 144 | 174 | 50 | 30 x 5 | 105 | 95 | 170 | 204 | 234 | 52.5 | 109 | 35 | 30 | G1 1/4 | 27 | 35 | G1 1/4 | 3.5 | 45 | G1/4 | 20 | 72 | G1/4 | 65 | 72 | G1/4 | G1/4 | 55 | 25 | 55 | 21.4 |
| 16 | 223 | G1 1/4 | 355 | 175 | 35 | 5 | 188 | 154 | 184 | 50 | 30 x 5 | 120 | 100 | 210 | 209 | 239 | 60 | 109 | 45 | 30 | G1 1/4 | 52 | 32 | G1 1/4 | 15 | 32 | G1/4 | 76.5 | 75 | G1/4 | 88 | 80 | G1/4 | G1/4 | 88 | 40 | 45 | 40 | |
| 160 | 10 | 238.5 | G1 1/4 | 300 | 135 | 35 | 5 | 208 | 163.5 | 193.5 | 50 | 30 x 5 | 105 | 95 | 170 | 223.5 | 253.5 | 52.5 | 128.5 | 35 | 30 | G1 1/4 | 27 | 35 | G1 1/4 | 3.5 | 45 | G1/4 | 20 | 72 | G1/4 | 65 | 72 | G1/4 | G1/4 | 55 | 25 | 55 | 21.4 |
| 16 | 238.5 | G1 1/4 | 340 | 175 | 35 | 5 | 208 | 173.5 | 203.5 | 50 | 30 x 5 | 120 | 100 | 210 | 228.5 | 258.5 | 60 | 128.5 | 45 | 30 | G1 1/4 | 52 | 32 | G1 1/4 | 15 | 32 | G1/4 | 76.5 | 75 | G1/4 | 88 | 80 | G1/4 | G1/4 | 88 | 40 | 45 | 40 | |
| 180 | 10 | 264 | G1 1/4 | 289 | 150 | 40 | 5 | 222 | 177 | 207 | 50 | 30 x 5 | 105 | 95 | 190 | 237 | 267 | 52.5 | 142 | 35 | 30 | G1 1/4 | 27 | 35 | G1 1/4 | 3.5 | 45 | G1/4 | 20 | 72 | G1/4 | 62 | 72 | G1/4 | G1/4 | 55 | 25 | 60 | 21.4 |
| 16 | 264 | G1 1/4 | 319 | 180 | 40 | 5 | 222 | 192 | 222 | 50 | 30 x 5 | 125 | 105 | 220 | 247 | 277 | 62.5 | 142 | 50 | 30 | G1 1/4 | 57 | 35 | G1 1/4 | 15 | 34 | G1/4 | 76.5 | 80 | G1/4 | 86 | 85 | G1/4 | G1/4 | 86 | 45 | 50 | 40 | |
| 25 | 264 | G1 1/4 | 339 | 200 | 50 | 0 | 222 | 197 | 227 | 50 | 30 x 5 | 155 | 110 | 250 | 252 | 282 | 77.5 | 142 | 55 | 30 | G1 1/4 | 77 | 42 | G1 1/4 | 29.4 | 32 | G1/4 | 17.5 | 90 | G1/4 | 112.7 | 90 | G1/4 | G1/4 | 110 | 50 | 50 | 52.1 | |
| 200 | 10 | 278 | G1 1/4 | 275 | 150 | 40 | 5 | 229 | 183.5 | 213.5 | 50 | 30 x 5 | 105 | 95 | 190 | 243.5 | 273.5 | 52.5 | 148.5 | 35 | 30 | G1 1/4 | 27 | 35 | G1 1/4 | 3.5 | 45 | G1/4 | 20 | 72 | G1/4 | 62 | 72 | G1/4 | G1/4 | 55 | 25 | 60 | 21.4 |
| 16 | 278 | G1 1/4 | 305 | 180 | 40 | 5 | 229 | 198.5 | 228.5 | 50 | 30 x 5 | 125 | 105 | 220 | 253.5 | 283.5 | 62.5 | 148.5 | 50 | 30 | G1 1/4 | 57 | 35 | G1 1/4 | 15 | 34 | G1/4 | 76.5 | 80 | G1/4 | 86 | 58 | G1/4 | G1/4 | 86 | 45 | 50 | 40 | |
| 25 | 278 | G1 1/4 | 325 | 200 | 50 | 0 | 229 | 203.5 | 233.5 | 50 | 30 x 5 | 155 | 110 | 250 | 258.5 | 288.5 | 77.5 | 148.5 | 55 | 30 | G1 1/4 | 77 | 42 | G1 1/4 | 29.4 | 32 | G1/4 | 17.5 | 90 | G1/4 | 112.7 | 90 | G1/4 | G1/4 | 110 | 50 | 50 | 52.1 | |
ØAL |
= |
Piston Ø |
ØAL |
mm |
40 | 50 | 63 | 80 | 100 | 125 | 140 | 160 | 180 | 200 | 220 | 250 | 280 | 320 |
Protrusion A 1) |
mm |
1 | 0 | 9.5 | 0 | ||||||||||
Nominal width |
mm |
4 | 5 | 8 | 20 | ||||||||||
| 1) | Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition |
ØAL |
= |
Piston Ø |
| 1) | Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition |
| 1) | The proximity switch is always located opposite of the line connection |
| 1) | Piston Ø 220 ... 320 mm Angled mating connector not possible |
ØAL |
ØMM |
PL |
L7 |
X3 |
X4 |
X5 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 40 | 25 / 28 | 112 | 87 | 94 | 170 | 125 |
| 50 | 32 / 36 | 110 | 103 | 98 | 175 | 130 |
| 63 | 40 / 45 | 125 | 116 | 103 | 180 | 135 |
| 80 | 50 / 56 | 138 | 128.5 | 108 | 185 | 140 |
| 100 | 63 / 70 | 161 | 139 | 116 | 195 | 150 |
| 125 | 80 / 90 | 189 | 161 | 126 | 205 | 160 |
| 140 | 90 / 100 | 209 | 171 | 146 | 225 | 180 |
| 160 | 100 / 110 | 228 | 188.5 | 151 | 230 | 185 |
| 180 | 110 / 125 | 254 | 199 | 159 | 235 | 190 |
| 200 | 125 / 140 | 264 | 227 | 166 | 245 | 200 |
| 220 | 140 / 160 | 310 | 252 | 177 1) | 255 | - |
| 250 | 160 / 180 | 310 | 265 | 187 1) | 265 | - |
| 280 | 180 / 200 | 369 | 293 | 199 1) | 275 | - |
| 320 | 200 / 220 | 375 | 290 | 209 1) | 285 | - |
| 1) | Piston Ø 220 ... 320 mm Proximity switch not protruding |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
| 3) | Standard version \u201cW\u201d Lubricating nipple, cone head form A according to DIN 71412 |
| 4) | Related bolt Ø f8 |
MP3: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm
ØAL |
ØMM |
L |
L1 |
MR |
M1 |
ØCD |
EW |
ØRA 3) |
VE 3) |
ØRA 4) |
VE 4) |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 40 1) | 25 / 28 | 53 | 8 | 32 | 32 | 25 | H9 |
25 | h12 |
52 | 29 | 88 | - |
| 50 | 32 / 36 | 61 | 8 | 40 | 40 | 32 | H9 |
32 | h12 |
63 | 29 | 102 | - |
| 63 | 40 / 45 | 74 | 8 | 50 | 50 | 40 | H9 |
40 | h12 |
75 | 32 | 120 | - |
| 80 | 50 / 56 | 90 | 10 | 63 | 63 | 50 | H9 |
50 | h12 |
90 | 36 | 145 | - |
| 100 | 63 / 70 | 102 | 12 | 71 | 71 | 63 | H9 |
63 | h12 |
110 | 41 | 170 | - |
| 125 | 80 / 90 | 124 | 16 | 90 | 90 | 80 | H9 |
80 | h12 |
132 | 45 | 206 | - |
| 140 | 90 / 100 | 149 | 16 | 100 | 100 | 90 | H9 |
90 | h12 |
145 | 45 | 226 | - |
| 160 | 100 / 110 | 150 | 16 | 112 | 112 | 100 | H9 |
100 | h12 |
160 | 50 | 200 | 50 |
| 180 | 110 / 125 | 180 | 20 | 129 | 129 | 110 | H9 |
110 | h12 |
185 | 55 | 220 | 55 |
| 200 | 125 / 140 | 206 | 20 | 145 | 145 | 125 | H9 |
125 | h12 |
200 | 61 | 235 | 61 |
| 220 1) | 140 / 160 | 253 | 20 | 179 2) | 187 2) | 160 | H9 |
160 | h12 |
235 | 71 | 270 | 71 |
| 250 | 160 / 180 | 253 | 24 | 179 2) | 187 2) | 160 | H9 |
160 | h12 |
250 | 71 | 300 | 71 |
| 280 1) | 180 / 200 | 320 | 30 | 230 2) | 240 2) | 200 | H9 |
200 | h12 |
295 | 88 | 325 | 88 |
| 320 | 200 / 220 | 320 | 30 | 231 2) | 241 2) | 200 | H9 |
200 | h12 |
320 | 88 | 365 | 88 |
| 1) | Piston Ø not standardized |
| 2) | The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting |
| 3) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 4) | Dimensions for cylinders with seal design A and B |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
| 3) | Standard version \u201cW\u201d Lubricating nipple, cone head form A according to DIN 71412 |
| 4) | Related bolt Ø f8 |
MP5: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm
ØAL |
ØMM |
LT |
L1 |
MS |
M1 |
ØCX |
EP |
EX |
ØRA 4) |
VE 4) |
ØRA 5) |
VE 5) |
Z |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
° |
||
| 40 | 25 / 28 1) | 53 | 8 | 32 | 32 | 25 3) | H7 |
22 | 25 | h12 |
52 | 29 | 88 | - | 2 |
| 50 | 32 / 36 | 61 | 8 | 40 | 40 | 32 3) | H7 |
27 | 32 | h12 |
63 | 29 | 102 | - | 4 |
| 63 | 40 / 45 | 74 | 8 | 50 | 50 | 40 3) | H7 |
32 | 40 | h12 |
75 | 32 | 120 | - | 4 |
| 80 | 50 / 56 | 90 | 10 | 63 | 63 | 50 3) | H7 |
40 | 50 | h12 |
90 | 36 | 145 | - | 4 |
| 100 | 63 / 70 | 102 | 12 | 71 | 71 | 63 3) | H7 |
52 | 63 | h12 |
110 | 41 | 170 | - | 4 |
| 125 | 80 / 90 | 124 | 16 | 90 | 90 | 80 3) | H7 |
66 | 80 | h12 |
132 | 45 | 206 | - | 4 |
| 140 | 90 / 100 | 149 | 16 | 100 | 100 | 90 3) | H7 |
72 | 90 | h12 |
145 | 45 | 226 | - | 4 |
| 160 | 100 / 110 | 150 | 16 | 112 | 112 | 100 3) | H7 |
84 | 100 | h12 |
160 | 50 | 200 | 50 | 4 |
| 180 | 110 / 125 | 180 | 20 | 129 | 129 | 110 3) | H7 |
88 | 110 | h12 |
185 | 55 | 220 | 55 | 4 |
| 200 | 125 / 140 | 206 | 20 | 145 | 145 | 125 3) | H7 |
102 | 125 | h12 |
200 | 61 | 235 | 61 | 4 |
| 220 | 140 / 160 1) | 253 | 20 | 179 2) | 187 2) | 160 3) | H7 |
130 | 160 | h12 |
235 | 71 | 270 | 71 | 4 |
| 250 | 160 / 180 | 253 | 24 | 179 2) | 187 2) | 160 3) | H7 |
130 | 160 | h12 |
250 | 71 | 300 | 71 | 4 |
| 280 | 180 / 200 1) | 320 | 30 | 230 2) | 240 2) | 200 3) | H7 |
138 | 200 | h12 |
295 | 88 | 325 | 88 | 4 |
| 320 | 200 / 220 | 320 | 30 | 231 2) | 241 2) | 200 3) | H7 |
162 | 200 | h12 |
320 | 88 | 365 | 88 | 4 |
| 1) | Piston Ø not standardized |
| 2) | The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting |
| 3) | Related bolt Ø f8 |
| 4) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 5) | Dimensions for cylinders with seal design A and B |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
ØAL |
ØMM |
ØRD |
WC |
VD |
NF |
ZB |
ØFB |
ØFC |
ØUC |
|||||
max. |
||||||||||||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||
| 40 | 25 / 28 1) | 52 | f8 |
22 | 4 | 25 | js13 |
230 | 11 | H13 |
115 | js13 |
138 | 0 - 1 |
| 50 | 32 / 36 | 63 | f8 |
22 | 4 | 25 | js13 |
244 | 13.5 | H13 |
132 | js13 |
155 | 0 - 1 |
| 63 | 40 / 45 | 75 | f8 |
25 | 4 | 28 | js13 |
274 | 13.5 | H13 |
150 | js13 |
175 | 0 - 1 |
| 80 | 50 / 56 | 90 | f8 |
28 | 4 | 32 | js13 |
305 | 17.5 | H13 |
180 | js13 |
210 | 0 - 1 |
| 100 | 63 / 70 | 110 | f8 |
32 | 5 | 36 | js13 |
340 | 22 | H13 |
212 | js13 |
250 | 0 - 1 |
| 125 | 80 / 90 | 132 | f8 |
36 | 5 | 40 | js13 |
396 | 22 | H13 |
250 | js13 |
290 | 0 - 1 |
| 140 | 90 / 100 | 145 | f8 |
36 | 5 | 40 | js13 |
430 | 26 | H13 |
285 | js13 |
330 | 0 - 1 |
| 160 | 100 / 110 | 160 | f8 |
40 | 5 | 45 | js13 |
467 | 26 | H13 |
315 | js13 |
360 | 0 - 1 |
| 180 | 110 / 125 | 185 | f8 |
45 | 5 | 50 | js13 |
510 | 33 | H13 |
355 | js13 |
410 | 0 - 1 |
| 200 | 125 / 140 | 200 | f8 |
45 | 5 | 56 | js13 |
550 | 33 | H13 |
385 | js13 |
440 | 0 - 1 |
| 220 | 140 / 160 1) | 235 | f8 |
50 | 8 | 63 | js13 |
637 | 39 | H13 |
435 | js13 |
500 | 0 - 1 |
| 250 | 160 / 180 | 250 | f8 |
50 | 8 | 63 | js13 |
650 | 39 | H13 |
475 | js13 |
540 | 0 - 1 |
| 280 | 180 / 200 1) | 295 | f8 |
56 | 8 | 80 | js13 |
752 | 45 | H13 |
555 | js13 |
630 | 0 - 1 |
| 320 | 200 / 220 | 320 | f8 |
56 | 8 | 80 | js13 |
760 | 45 | H13 |
600 | js13 |
675 | 0 - 1 |
| 1) | Piston Ø not standardized |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
MF4: with seal design \u201cA\u201d, \u201cB\u201d and AL Ø 160 \u2026 320 mm
ØAL |
ØMM |
ZP |
NF |
VA |
ØBA |
ØFB |
ØFC |
ØUC |
ØRA 2) |
VE 2) |
ØRA 3) |
VE 3) |
|||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||
| 40 | 25 / 28 1) | 250 | 25 | js13 |
5 | 52 | H8 |
11 | H13 |
115 | js13 |
138 | 0 - 1 |
52 | 29 | 88 | - |
| 50 | 32 / 36 | 265 | 25 | js13 |
4 | 63 | H8 |
13.5 | H13 |
132 | js13 |
155 | 0 - 1 |
63 | 29 | 102 | - |
| 63 | 40 / 45 | 298 | 28 | js13 |
4 | 75 | H8 |
13.5 | H13 |
150 | js13 |
175 | 0 - 1 |
75 | 32 | 120 | - |
| 80 | 50 / 56 | 332 | 32 | js13 |
5 | 90 | H8 |
17.5 | H13 |
180 | js13 |
210 | 0 - 1 |
90 | 36 | 145 | - |
| 100 | 63 / 70 | 371 | 36 | js13 |
5 | 110 | H8 |
22 | H13 |
212 | js13 |
250 | 0 - 1 |
110 | 41 | 170 | - |
| 125 | 80 / 90 | 430 | 40 | js13 |
6 | 132 | H8 |
22 | H13 |
250 | js13 |
290 | 0 - 1 |
132 | 45 | 206 | - |
| 140 | 90 / 100 | 465 | 40 | js13 |
5 | 145 | H8 |
26 | H13 |
285 | js13 |
330 | 0 - 1 |
145 | 45 | 226 | - |
| 160 | 100 / 110 | 505 | 45 | js13 |
7 | 160 | H8 |
26 | H13 |
315 | js13 |
360 | 0 - 1 |
160 | 50 | 200 | 50 |
| 180 | 110 / 125 | 550 | 50 | js13 |
10 | 185 | H8 |
33 | H13 |
355 | js13 |
410 | 0 - 1 |
185 | 55 | 220 | 55 |
| 200 | 125 / 140 | 596 | 56 | js13 |
10 | 200 | H8 |
33 | H13 |
385 | js13 |
440 | 0 - 1 |
200 | 61 | 235 | 61 |
| 220 | 140 / 160 1) | 690 | 63 | js13 |
10 | 235 | H8 |
39 | H13 |
435 | js13 |
500 | 0 - 1 |
235 | 71 | 270 | 71 |
| 250 | 160 / 180 | 703 | 63 | js13 |
10 | 250 | H8 |
39 | H13 |
475 | js13 |
540 | 0 - 1 |
250 | 71 | 300 | 71 |
| 280 | 180 / 200 1) | 822 | 80 | js13 |
10 | 295 | H8 |
45 | H13 |
555 | js13 |
630 | 0 - 1 |
295 | 88 | 325 | 88 |
| 320 | 200 / 220 | 830 | 80 | js13 |
10 | 320 | H8 |
45 | H13 |
600 | js13 |
675 | 0 - 1 |
320 | 88 | 365 | 88 |
| 1) | Piston Ø not standardized |
| 2) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 3) | Dimensions for cylinders with seal design A and B |
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
| 3) | Observe the minimum stroke length \u201cXmin.\u201c |
| 4) | Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV). |
MT4: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm
| 1) | Trunnion nut with ØAL ≥ 125 mm either at head or at base side depending on the position of the trunnion (XV). |
Dimensions for cylinder with piston rod extension \u201cLY\u201c in retracted condition
ØAL |
ØMM |
ZB |
X |
XV |
XV |
XV |
BD |
UV |
ØTD |
TL |
TM |
r |
ØRA |
VE |
ØRA |
VE |
|||
max. |
min. |
average |
min. |
max. |
|||||||||||||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||
| 40 1) | 25 / 28 | 230 | 22 | 143 + X/2 2) | 154 3) | 140 + X 3) | 38 | 97 4) | 25 | f8 |
20 | js16 |
95 | h12 |
0.8 | 52 5) | 29 5) | 88 6) | - 6) |
| 50 | 32 / 36 | 244 | 32 | 158 + X/2 2) | 174 3) | 151 + X 3) | 38 | 111 4) | 32 | f8 |
25 | js16 |
112 | h12 |
0.8 | 63 5) | 29 5) | 102 6) | - 6) |
| 63 | 40 / 45 | 274 | 47 | 178.5 + X/2 2) | 202 3) | 167 + X 3) | 48 | 129 4) | 40 | f8 |
32 | js16 |
125 | h12 |
1 | 75 5) | 32 5) | 120 6) | - 6) |
| 80 | 50 / 56 | 305 | 58 | 197.5 + X/2 2) | 226.5 3) | 180.5 + X 3) | 58 | 163 4) | 50 | f8 |
40 | js16 |
150 | h12 |
1 | 90 5) | 36 5) | 145 6) | - 6) |
| 100 | 63 / 70 | 340 | 79 | 219.5 + X/2 2) | 259 3) | 195 + X 3) | 78 | 188 4) | 63 | f8 |
50 | js16 |
180 | h12 |
1.2 | 110 5) | 41 5) | 170 6) | - 6) |
| 125 | 80 / 90 | 396 | 91 | 255.5 + X/2 2) | 301 3) | 210 + X 3) | 98 | 234 4) | 80 | f8 |
63 | js16 |
224 | h12 |
1.2 | 132 5) | 45 5) | 206 6) | - 6) |
| 140 | 90 / 100 | 430 | 121 | 275.5 + X/2 2) | 336 3) | 215 + X 3) | 118 | 257 4) | 90 | f8 |
70 | js16 |
265 | h12 |
1.5 | 145 5) | 45 5) | 226 6) | - 6) |
| 160 | 100 / 110 | 467 | 142 | 302.5 + X/2 2) | 373 3) | 231.5 + X 3) | 128 | 287 4) | 100 | f8 |
80 | js16 |
280 | h12 |
1.5 | 160 5) | 50 5) | 200 6) | 50 6) |
| 180 | 110 / 125 | 510 | 158 | 326 + X/2 2) | 405 3) | 247 + X 3) | 138 | 328 4) | 110 | f8 |
90 | js16 |
320 | h12 |
1.5 | 185 5) | 55 5) | 220 6) | 55 6) |
| 200 | 125 / 140 | 550 | 204 | 359 + X/2 2) | 461 3) | 257 + X 3) | 178 | 343 4) | 125 | f8 |
100 | js16 |
335 | h12 |
1.5 | 200 5) | 61 5) | 235 6) | 61 6) |
| 220 1) | 140 / 160 | 637 | 200 | 407 + X/2 2) | 507 3) | 307 + X 3) | 180 | 393 4) | 160 | f8 |
125 | js16 |
385 | h12 |
1.5 | 235 5) | 71 5) | 270 6) | 71 6) |
| 250 | 160 / 180 | 650 | 210 | 420 + X/2 2) | 525 3) | 315 + X 3) | 180 | 433 4) | 160 | f8 |
125 | js16 |
425 | h12 |
1.5 | 250 5) | 71 5) | 300 6) | 71 6) |
| 280 1) | 180 / 200 | 752 | 241 | 477.5 + X/2 2) | 598 3) | 357 + X 3) | 220 | 486 4) | 200 | f8 |
160 | js16 |
480 | h12 |
2 | 295 5) | 88 5) | 325 6) | 88 6) |
| 320 | 200 / 220 | 760 | 245 | 477.5 + X/2 2) | 600 3) | 355 + X 3) | 220 | 536 4) | 200 | f8 |
160 | js16 |
530 | h12 |
2 | 320 5) | 88 5) | 365 6) | 88 6) |
| 1) | Piston Ø not standardized |
| 2) | XVcent. Recommendation: Trunnion position in cylinder center |
| 3) | When ordering, always specify the "XV" dimension in the plain text. Preferred XV dimension: Observe trunnion position in cylinder center XVmin. and XVmax. |
| 4) | The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting |
| 5) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 6) | Dimensions for cylinders with seal design A and B |
Important installation information:
During installation, it must be ensured that the trunnion bearings are installed up to the trunnion shoulders. Any variation may reduce the product's service life.
| 1) | Bleeding: with view to the piston rod, the position is always offset by 90° in relation to the line connection (clockwise) |
| 2) | Throttle valve only with end position cushioning "E" (180° for bleeding) |
| 3) | Observe the minimum stroke length \u201cXmin.\u201c |
| 4) | Recess 2 mm deep, for hexagon socket head cap screws; ISO 4762 \u2012 The screws must not be subjected to shear force. Force distribution via additional external fitting strip. |
MS2: with seal design \u201cA\u201d, \u201cB\u201d, and AL Ø 160 \u2026 320 mm
ØAL |
ØMM |
XS |
ZB |
SS |
X |
S |
S1 |
ØSB |
ST |
TS |
US |
LH |
L1 |
ØRA |
VE |
ØRA |
VE |
||
max. |
min. |
||||||||||||||||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 40 1) | 25 / 28 | 118 | 230 | 50 | 1 2) | 30 | 15 | 11 | H13 |
32 | 110 | js13 |
140 3) | 45 | 93 | 52 4) | 29 4) | 88 5) | - 5) |
| 50 | 32 / 36 | 135.5 | 244 | 45 | 1 2) | 35 | 17.5 | 11 | H13 |
37 | 130 | js13 |
161 3) | 55 | 110 | 63 4) | 29 4) | 102 5) | - 5) |
| 63 | 40 / 45 | 154 | 274 | 49 | 1 2) | 40 | 20 | 13.5 | H13 |
42 | 150 | js13 |
183 3) | 65 | 129 | 75 4) | 32 4) | 120 5) | - 5) |
| 80 | 50 / 56 | 171.5 | 305 | 52 | 2 2) | 50 | 25 | 17.5 | H13 |
47 | 180 | js13 |
220 3) | 75 | 149 | 90 4) | 36 4) | 145 5) | - 5) |
| 100 | 63 / 70 | 189 | 340 | 61 | 3 2) | 60 | 30 | 22 | H13 |
57 | 210 | js13 |
260 3) | 90 | 181 | 110 4) | 41 4) | 170 5) | - 5) |
| 125 | 80 / 90 | 218 | 396 | 75 | 1 2) | 70 | 35 | 26 | H13 |
67 | 255 | js13 |
313 3) | 105 | 215 | 132 4) | 45 4) | 206 5) | - 5) |
| 140 | 90 / 100 | 240.5 | 430 | 70 | 19 2) | 85 | 42.5 | 30 | H13 |
72 | 290 | js13 |
359 3) | 115 | 235 | 145 4) | 45 4) | 226 5) | - 5) |
| 160 | 100 / 110 | 270 | 467 | 65 | 44 2) | 105 | 52.5 | 33 | H13 |
77 | 330 | js13 |
402 3) | 135 | 277 | 160 4) | 50 4) | 200 5) | 50 5) |
| 180 | 110 / 125 | 291.5 | 510 | 69 | 50 2) | 115 | 57.5 | 40 | H13 |
92 | 360 | js13 |
445 3) | 150 | 305 | 185 4) | 55 4) | 220 5) | 55 5) |
| 200 | 125 / 140 | 322.5 | 550 | 73 | 56 2) | 125 | 62.5 | 40 | H13 |
97 | 385 | js13 |
471 3) | 160 | 322 | 200 4) | 61 4) | 235 5) | 61 5) |
| 220 1) | 140 / 160 | 369.5 | 637 | 75 | 100 2) | 155 | 77.5 | 45 | H13 |
102 | 445 | js13 |
541 3) | 185 | 373 | 235 4) | 71 4) | 270 5) | 71 5) |
| 250 | 160 / 180 | 382.5 | 650 | 75 | 100 2) | 155 | 77.5 | 52 | H13 |
112 | 500 | js13 |
610 3) | 205 | 414 | 250 4) | 71 4) | 300 5) | 71 5) |
| 280 1) | 180 / 200 | 415.5 | 752 | 124 | 51 2) | 155 | 77.5 | 52 | H13 |
142 | 550 | js13 |
661 3) | 235 | 469 | 295 4) | 88 4) | 325 5) | 88 5) |
| 320 | 200 / 220 | 435 | 760 | 85 | 125 2) | 190 | 95 | 62 | H13 |
142 | 610 | js13 |
732 3) | 255 | 512 | 320 4) | 88 4) | 365 5) | 88 5) |
| 1) | Piston Ø not standardized |
| 2) | Observe the minimum stroke length \u201cXmin.\u201c |
| 3) | The specified dimensions are maximum values, tolerance classes 342 according to ISO 9013 Thermal cutting |
| 4) | Dimensions for cylinders with seal design M, T, G, L, R, S and V |
| 5) | Dimensions for cylinders with seal design A and B |
Important notice:
Piston Ø 40, piston Ø 220 and piston Ø 280 not standardized
Dimensions for rectangular flange according to ISO 6162-1 tab. 2 type 1 and ISO 6162-2 tab. 2 type 1
Dimensions for square flange according to ISO 6164 tab. 1 and ISO 6164 tab. 2
ØAL |
Y |
PJ |
X1 |
Ød3 |
Ød3 1) |
c |
w |
d1 |
t1 2) |
t1 3) |
p 4) |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bar |
||
| 63 | 111 | 135 | 55 | 13 | 1/2\u2033 | 38.1 | ± 0.25 | 17.5 | ± 0.25 | M8 | 16 | 16 | 350 |
| 80 | 123.5 | 148 | 68 | 13 | 1/2\u2033 | 38.1 | ± 0.25 | 17.5 | ± 0.25 | M8 | 16 | 16 | 350 |
| 100 | 133 | 173 | 79 | 19 | 3/4\u2033 | 47.6 | ± 0.25 | 22.3 | ± 0.25 | M10 | 20 | 20 | 350 |
| 125 | 153 | 205 | 97.5 | 25 | 1\u2033 | 52.4 | ± 0.25 | 26.2 | ± 0.25 | M10 | 20 | 20 | 350 |
| 140 | 162 | 227 | 107 | 32 | 1 1/4\u2033 | 58.7 | ± 0.25 | 30.2 | ± 0.25 | M10 | 20 | 20 | 250 |
| 160 | 181.5 | 242 | 127 | 32 | 1 1/4\u2033 | 58.7 | ± 0.25 | 30.2 | ± 0.25 | M10 | 20 | 20 | 250 |
| 180 | 193 | 266 | 139 | 38 | 1 1/2\u2033 | 69.9 | ± 0.25 | 35.7 | ± 0.25 | M12 | 24 | 24 | 200 |
| 200 | 219 | 280 | 146.5 | 38 | 1 1/2\u2033 | 69.9 | ± 0.25 | 35.7 | ± 0.25 | M12 | 24 | 24 | 200 |
| 1) | Flange connection according to ISO 6162-1 tab. 2 type 1 corresponds to flange connection according to SAE 3000 PSI |
| 2) | Thread depth for seal design M, T, G, L, R, S and V |
| 3) | Thread depth for seal design A and B |
| 4) | Max. operating pressure for related flanges in bar |
ØAL |
Y |
PJ |
X1 |
Ød3 |
w |
d1 |
t1 1) |
t1 2) |
p 3) |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bar |
|
| 40 | 82 | 122 | 40.5 | 10 | 24.7 | ± 0.25 | M6 | 12.5 | 10 | 250 |
| 50 | 97 | 122 | 48 | 10 | 24.7 | ± 0.25 | M6 | 12.5 | 12.5 | 250 |
| 63 | 111 | 135 | 57 | 13 | 29.7 | ± 0.25 | M8 | 16 | 16 | 250 |
| 80 | 123.5 | 148 | 69.5 | 13 | 29.7 | ± 0.25 | M8 | 16 | 16 | 250 |
| 100 | 133 | 173 | 81.5 | 19 | 35.4 | ± 0.25 | M8 | 16 | 16 | 250 |
| 125 | 157 | 197 | 100 | 19 | 35.4 | ± 0.25 | M8 | 16 | 16 | 250 |
| 140 | 162 | 227 | 109 | 25 | 43.8 | ± 0.25 | M10 | 20 | 20 | 250 |
| 160 | 181.5 | 242 | 128.5 | 25 | 43.8 | ± 0.25 | M10 | 20 | 20 | 250 |
| 180 | 194 | 264 | 142 | 32 | 51.6 | ± 0.25 | M12 | 24 | 24 | 250 |
| 200 | 220 | 278 | 148.5 | 32 | 51.6 | ± 0.25 | M12 | 24 | 24 | 250 |
| 1) | Thread depth for seal design M, T, G, L, R, S and V |
| 2) | Thread depth for seal design A and B |
| 3) | Max. operating pressure for related flanges in bar |
ØAL |
Y |
PJ |
X1 |
Ød3 |
Ød3 |
c |
w |
d1 |
t1 |
t1 |
p |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bar |
||
| 80 | 120 | 155 | 67 | 13 | 1/2\u2033 1) | 40.5 | ± 0.25 | 18.2 | ± 0.25 | M8 | 16 2) | 14 3) | 400 4) |
| 100 | 134 | 171 | 80.5 | 13 | 1/2\u2033 1) | 40.5 | ± 0.25 | 18.2 | ± 0.25 | M8 | 16 2) | 16 3) | 400 4) |
| 125 | 153 | 205 | 97 | 19 | 3/4\u2033 1) | 50.8 | ± 0.25 | 23.8 | ± 0.25 | M10 | 20 2) | 20 3) | 400 4) |
| 140 | 162 | 227 | 107 | 25 | 1\u2033 1) | 57.2 | ± 0.25 | 27.8 | ± 0.25 | M12 | 24 2) | 24 3) | 400 4) |
| 160 | 181.5 | 242 | 127 | 25 | 1\u2033 1) | 57.2 | ± 0.25 | 27.8 | ± 0.25 | M12 | 24 2) | 24 3) | 400 4) |
| 180 | 194 | 264 | 139.5 | 32 | 1 1/4\u2033 1) | 66.6 | ± 0.25 | 31.8 | ± 0.25 | M14 | 26 2) | 26 3) | 400 4) |
| 200 | 220 | 278 | 147 | 32 | 1 1/4\u2033 1) | 66.6 | ± 0.25 | 31.8 | ± 0.25 | M14 | 26 2) | 26 3) | 400 4) |
| 220 | 244 | 326 | 168 | 38 | 1 1/2\u2033 1) | 79.3 | ± 0.25 | 36.5 | ± 0.25 | M16 | 30 2) | 30 3) | 400 4) |
| 250 | 257 | 326 | 189 | 38 | 1 1/2\u2033 1) | 79.3 | ± 0.25 | 36.5 | ± 0.25 | M16 | 30 2) | 30 3) | 400 4) |
| 280 | 290 | 375 | 215 | 38 | 1 1/2\u2033 1) | 79.3 | ± 0.25 | 36.5 | ± 0.25 | M16 | 30 2) | 30 3) | 400 4) |
| 320 | 282 | 391 | 236 | 51 | 2\u2033 1) | 96.8 | ± 0.25 | 44.5 | ± 0.25 | M20 | 30 2) | 36 3) | 400 4) |
| 1) | Flange connection according to ISO 6162-2 tab. 2 type 1 corresponds to flange connection according to SAE 6000 PSI |
| 2) | Thread depth for seal design M, T, G, L, R, S and V |
| 3) | Thread depth for seal design A and B |
| 4) | Max. operating pressure for related flanges in bar |
ØAL |
Y |
PJ |
X1 |
Ød3 |
w |
d1 |
t1 |
t1 |
p |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bar |
|
| 40 | 82 | 122 | 40.5 | 10 | 24.7 | ± 0.25 | M6 | 12.5 1) | 10 2) | 400 3) |
| 50 | 97 | 122 | 48 | 10 | 24.7 | ± 0.25 | M6 | 12.5 1) | 12.5 2) | 400 3) |
| 63 | 111 | 135 | 57 | 13 | 29.7 | ± 0.25 | M8 | 16 1) | 16 2) | 400 3) |
| 80 | 123.5 | 148 | 69.5 | 13 | 29.7 | ± 0.25 | M8 | 16 1) | 16 2) | 400 3) |
| 100 | 133 | 173 | 81.5 | 19 | 35.4 | ± 0.25 | M8 | 16 1) | 16 2) | 400 3) |
| 125 | 157 | 197 | 100 | 19 | 35.4 | ± 0.25 | M8 | 16 1) | 16 2) | 400 3) |
| 140 | 162 | 227 | 109 | 25 | 43.8 | ± 0.25 | M10 | 20 1) | 20 2) | 400 3) |
| 160 | 181.5 | 242 | 128.5 | 25 | 43.8 | ± 0.25 | M10 | 20 1) | 20 2) | 400 3) |
| 180 | 194 | 264 | 142 | 32 | 51.6 | ± 0.25 | M12 | 24 1) | 24 2) | 400 3) |
| 200 | 220 | 278 | 148.5 | 32 | 51.6 | ± 0.25 | M12 | 24 1) | 24 2) | 400 3) |
| 220 | 244 | 326 | 171 | 38 | 60.1 | ± 0.25 | M16 | 30 1) | 30 2) | 400 3) |
| 250 | 257 | 326 | 192 | 38 | 60.1 | ± 0.25 | M16 | 30 1) | 30 2) | 400 3) |
| 280 | 290 | 375 | 218 | 38 | 60.1 | ± 0.25 | M16 | 30 1) | 30 2) | 400 3) |
| 320 | 282 | 391 | 240 | 51 | 69.3 | ± 0.25 | M16 | 30 1) | 30 2) | 400 3) |
| 1) | Thread depth for seal design M, T, G, L, R, S and V |
| 2) | Thread depth for seal design A and B |
| 3) | Max. operating pressure for related flanges in bar |
Installation situation with MT4
Notice:
Porting pattern according to DIN 24340 form A and ISO 4401 (NG6) and form D and ISO 5781 (NG10; NG20 and NG30)
Note:
Valves, fittings and piping are not included in the scope of delivery!
Important notice:
Subplates for SL and SV valves (isolator valves)
Please note:
Seal designs T, G, L, R, S and V are not designed for the static holding function!
Plate dimensions |
Port size, porting pattern |
Position point Valve |
|||||||||||||||||||
ØAL |
Valve size |
PJ |
EE |
Minimum stroke |
Minimum stroke for MT4 |
X0 |
L1 |
L4 |
L5 |
LG |
b1 |
h1 |
h9 |
h2 |
A |
X |
Y |
X3 |
X4 |
X1 |
X2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||||
| 40 | 6 | 121 | G1/2 | 50 | 50 | 40.5 | 90 | 20 | 4 | 110 | 55 | 40 | 10 | 20 | G1/2 | G1/4 | G1/4 | 21.5 | 21.5 | 65.5 | 15.5 |
| 50 | 6 | 121 | G1/2 | 50 | 50 | 48 | 90 | 20 | 4 | 110 | 55 | 40 | 10 | 20 | G1/2 | G1/4 | G1/4 | 21.5 | 21.5 | 65.5 | 15.5 |
| 63 | 6 | 134 | G3/4 | 64 | 64 | 57 | 100 | 25 | 5 | 125 | 55 | 47 | 20 | 23.5 | G3/4 | G1/4 | G1/4 | 21.5 | 21.5 | 70.5 | 15.5 |
| 10 | 134 | G3/4 | 64 | 64 | 57 | 105 | 25 | 5 | 130 | 85 | 47 | 20 | 23.5 | G3/4 | G1/4 | G1/4 | 21.4 | 21.4 | 73 | 33.3 | |
| 80 | 6 | 151.5 | G3/4 | 58 | 58 | 69.5 | 100 | 25 | 5 | 125 | 55 | 47 | 20 | 23.5 | G3/4 | G1/4 | G1/4 | 21.5 | 21.5 | 70.5 | 15.5 |
| 10 | 151.5 | G3/4 | 58 | 58 | 69.5 | 105 | 25 | 5 | 130 | 85 | 47 | 20 | 23.5 | G3/4 | G1/4 | G1/4 | 21.4 | 21.4 | 73 | 33.3 | |
| 100 | 10 | 172 | G1 | 50 | 79 | 81.5 | 102 | 28 | 5 | 130 | 85 | 50 | 20 | 25 | G1 | G1/4 | G1/4 | 21.4 | 21.4 | 70 | 33.3 |
| 125 | 10 | 201 | G1 | 50 | 91 | 100 | 102 | 28 | 5 | 130 | 85 | 50 | 20 | 25 | G1 | G1/4 | G1/4 | 21.4 | 21.4 | 70 | 33.3 |
| 20 | 201 | G1 | 50 | 91 | 100 | 137 | 28 | 5 | 165 | 100 | 50 | 20 | 25 | G1 | G1/4 | G1/4 | 20.8 | 39.7 | 92 | 39.7 | |
| 140 | 10 | 223 | G1 1/4 | 50 | 121 | 109 | 115 | 35 | 5 | 150 | 85 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 21.4 | 21.4 | 80 | 33.3 |
| 20 | 223 | G1 1/4 | 50 | 121 | 109 | 140 | 35 | 5 | 175 | 100 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 20.8 | 39.7 | 95 | 39.7 | |
| 160 | 10 | 238.5 | G1 1/4 | 30 1) | 142 | 128.5 | 115 | 35 | 5 | 150 | 85 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 21.4 | 21.4 | 80 | 33.3 |
| 20 | 238.5 | G1 1/4 | 30 1) | 142 | 128.5 | 140 | 35 | 5 | 175 | 100 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 20.8 | 39.7 | 95 | 39.7 | |
| 180 | 10 | 264 | G1 1/4 | 30 1) | 158 | 142 | 120 | 40 | 5 | 160 | 85 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 21.4 | 21.4 | 90 | 33.3 |
| 20 | 264 | G1 1/4 | 30 1) | 158 | 142 | 135 | 50 | 5 | 185 | 100 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 20.8 | 39.7 | 105 | 39.7 | |
| 30 | 264 | G1 1/4 | 30 1) | 158 | 142 | 160 | 50 | 5 | 210 | 125 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 24.6 | 59.6 | 130 | 48.4 | |
| 200 | 10 | 278 | G1 1/4 | 30 1) | 204 | 148.5 | 120 | 40 | 5 | 160 | 85 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 21.4 | 21.4 | 90 | 33.3 |
| 20 | 278 | G1 1/4 | 30 1) | 204 | 148.5 | 135 | 50 | 5 | 185 | 100 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 20.8 | 39.7 | 105 | 39.7 | |
| 30 | 278 | G1 1/4 | 30 1) | 204 | 148.5 | 160 | 50 | 5 | 210 | 125 | 60 | 30 | 30 | G1 1/4 | G1/4 | G1/4 | 24.6 | 59.6 | 130 | 48.4 | |
| 1) | For type of mounting \u201cMS2\u201d, observe the Xmin values of the dimension tables |
ØAL |
= |
Piston Ø |
The minimum stroke only applies to the following connection situation!
Installation situation with MT4
Notice:
Porting pattern according to DIN 24340 form A and ISO 4401
With larger stroke lengths and depending on the piston diameter, the pipeline is mounted at the cylinder pipe using pipe supports. A maximum of two sandwich plates is admissible.
Plate and piping dimensions |
Port size, porting pattern |
Position point Valve |
|||||||||||||||||||||||||||||||||||||
ØAL |
Valve size |
PJ |
EE |
Minimum stroke |
L1 |
L4 |
L5 |
H1 |
H2 |
H2 for MT4 |
SW1 |
ØRa |
b1 |
h1 |
LG |
HG |
HG for MT4 |
b2 |
X0 |
h7 |
h9 |
P |
X3 |
h3 |
T |
X4 |
h4 |
X |
X5 |
h5 |
Y |
X6 |
h6 |
MA |
MB |
X8 |
h8 |
X1 |
X2 |
max. |
|||||||||||||||||||||||||||||||||||||||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||||||
| 40 | 6 | 121 | G1/2 | 242 | 90 | 20 | 4 | 96 | 60.5 | 70.5 | 30 | 16 x 2.5 | 65 | 40 | 110 | 80.5 | 90.5 | 32.5 | 40.5 | 20 | 10 | - | 21.5 | 20 | G1/2 | 21.5 | 20 | - | - | - | - | - | - | - | - | - | - | 25 | 15.5 |
| 50 | 6 | 121 | G1/2 | 242 | 90 | 20 | 4 | 103.5 | 68 | 78 | 30 | 16 x 2.5 | 65 | 40 | 110 | 88 | 98 | 32.5 | 48 | 20 | 10 | - | 21.5 | 20 | G1/2 | 21.5 | 20 | - | - | - | - | - | - | - | - | - | - | 25 | 15.5 |
| 63 | 6 | 134 | G3/4 | 276 | 100 | 25 | 5 | 121.5 | 80.5 | 100.5 | 36 | 20 x 3 | 75 | 47 | 125 | 104 | 124 | 37.5 | 57 | 23.5 | 20 | G3/4 | 21.5 | 23.5 | G3/4 | 21.5 | 23.5 | - | - | - | - | - | - | - | - | - | - | 30 | 15.5 |
| 10 | 134 | G3/4 | 301 | 125 | 25 | 5 | 121.5 | 80 | 100 | 36 | 20 x 3 | 90 | 70 | 150 | 127 | 147 | 45 | 57 | 23 | 20 | G3/4 | 27 | 33 | G3/4 | 3.5 | 33 | G1/4 | 18 | 47 | G1/4 | 65 | 47 | G1/4 | G1/4 | 60 | 17 | 45 | 21.4 | |
| 80 | 6 | 151.5 | G3/4 | 259 | 100 | 25 | 5 | 134.5 | 93 | 113 | 36 | 20 x 3 | 75 | 47 | 125 | 116.5 | 136.5 | 37.5 | 69.5 | 23.5 | 20 | G3/4 | 21.5 | 23.5 | G3/4 | 21.5 | 23.5 | - | - | - | - | - | - | - | - | - | - | 30 | 15.5 |
| 10 | 151.5 | G3/4 | 284 | 125 | 25 | 5 | 134.5 | 92.5 | 112.5 | 36 | 20 x 3 | 90 | 70 | 150 | 139.5 | 159.5 | 45 | 69.5 | 23 | 20 | G3/4 | 27 | 33 | G3/4 | 3.5 | 33 | G1/4 | 18 | 47 | G1/4 | 65 | 47 | G1/4 | G1/4 | 60 | 17 | 45 | 21.4 | |
| 100 | 10 | 172 | G1 | 317 | 132 | 28 | 5 | 155 | 111.5 | 131.5 | 46 | 25 x 4 | 90 | 80 | 160 | 161.5 | 181.5 | 45 | 81.5 | 30 | 20 | - | 27 | 30 | G1 | 3.5 | 40 | G1/4 | 18 | 57 | G1/4 | 65 | 57 | G1/4 | G1/4 | 58 | 20 | 52 | 21.4 |
| 125 | 10 | 201 | G1 | 288 | 132 | 28 | 5 | 173.5 | 130 | 150 | 46 | 25 x 4 | 90 | 80 | 160 | 180 | 200 | 45 | 100 | 30 | 20 | - | 27 | 30 | G1 | 3.5 | 40 | G1/4 | 18 | 57 | G1/4 | 65 | 57 | G1/4 | G1/4 | 58 | 20 | 52 | 21.4 |
| 16 | 201 | G1 | 318 | 162 | 28 | 5 | 173.5 | 140 | 160 | 46 | 25 x 4 | 115 | 90 | 190 | 190 | 210 | 57.5 | 100 | 40 | 20 | - | 50 | 26 | G1 | 17 | 25 | G1/4 | 76.5 | 60 | G1/4 | 88 | 70 | G1/4 | G1/4 | 88 | 35 | 37 | 37.5 | |
| 140 | 10 | 223 | G1 1/4 | 315 | 135 | 35 | 5 | 188 | 144 | 174 | 50 | 30 x 5 | 105 | 95 | 170 | 204 | 234 | 52.5 | 109 | 35 | 30 | G1 1/4 | 27 | 35 | G1 1/4 | 3.5 | 45 | G1/4 | 20 | 72 | G1/4 | 65 | 72 | G1/4 | G1/4 | 55 | 25 | 55 | 21.4 |
| 16 | 223 | G1 1/4 | 355 | 175 | 35 | 5 | 188 | 154 | 184 | 50 | 30 x 5 | 120 | 100 | 210 | 209 | 239 | 60 | 109 | 45 | 30 | G1 1/4 | 52 | 32 | G1 1/4 | 15 | 32 | G1/4 | 76.5 | 75 | G1/4 | 88 | 80 | G1/4 | G1/4 | 88 | 40 | 45 | 40 | |
| 160 | 10 | 238.5 | G1 1/4 | 300 | 135 | 35 | 5 | 208 | 163.5 | 193.5 | 50 | 30 x 5 | 105 | 95 | 170 | 223.5 | 253.5 | 52.5 | 128.5 | 35 | 30 | G1 1/4 | 27 | 35 | G1 1/4 | 3.5 | 45 | G1/4 | 20 | 72 | G1/4 | 65 | 72 | G1/4 | G1/4 | 55 | 25 | 55 | 21.4 |
| 16 | 238.5 | G1 1/4 | 340 | 175 | 35 | 5 | 208 | 173.5 | 203.5 | 50 | 30 x 5 | 120 | 100 | 210 | 228.5 | 258.5 | 60 | 128.5 | 45 | 30 | G1 1/4 | 52 | 32 | G1 1/4 | 15 | 32 | G1/4 | 76.5 | 75 | G1/4 | 88 | 80 | G1/4 | G1/4 | 88 | 40 | 45 | 40 | |
| 180 | 10 | 264 | G1 1/4 | 289 | 150 | 40 | 5 | 222 | 177 | 207 | 50 | 30 x 5 | 105 | 95 | 190 | 237 | 267 | 52.5 | 142 | 35 | 30 | G1 1/4 | 27 | 35 | G1 1/4 | 3.5 | 45 | G1/4 | 20 | 72 | G1/4 | 62 | 72 | G1/4 | G1/4 | 55 | 25 | 60 | 21.4 |
| 16 | 264 | G1 1/4 | 319 | 180 | 40 | 5 | 222 | 192 | 222 | 50 | 30 x 5 | 125 | 105 | 220 | 247 | 277 | 62.5 | 142 | 50 | 30 | G1 1/4 | 57 | 35 | G1 1/4 | 15 | 34 | G1/4 | 76.5 | 80 | G1/4 | 86 | 85 | G1/4 | G1/4 | 86 | 45 | 50 | 40 | |
| 25 | 264 | G1 1/4 | 339 | 200 | 50 | 0 | 222 | 197 | 227 | 50 | 30 x 5 | 155 | 110 | 250 | 252 | 282 | 77.5 | 142 | 55 | 30 | G1 1/4 | 77 | 42 | G1 1/4 | 29.4 | 32 | G1/4 | 17.5 | 90 | G1/4 | 112.7 | 90 | G1/4 | G1/4 | 110 | 50 | 50 | 52.1 | |
| 200 | 10 | 278 | G1 1/4 | 275 | 150 | 40 | 5 | 229 | 183.5 | 213.5 | 50 | 30 x 5 | 105 | 95 | 190 | 243.5 | 273.5 | 52.5 | 148.5 | 35 | 30 | G1 1/4 | 27 | 35 | G1 1/4 | 3.5 | 45 | G1/4 | 20 | 72 | G1/4 | 62 | 72 | G1/4 | G1/4 | 55 | 25 | 60 | 21.4 |
| 16 | 278 | G1 1/4 | 305 | 180 | 40 | 5 | 229 | 198.5 | 228.5 | 50 | 30 x 5 | 125 | 105 | 220 | 253.5 | 283.5 | 62.5 | 148.5 | 50 | 30 | G1 1/4 | 57 | 35 | G1 1/4 | 15 | 34 | G1/4 | 76.5 | 80 | G1/4 | 86 | 58 | G1/4 | G1/4 | 86 | 45 | 50 | 40 | |
| 25 | 278 | G1 1/4 | 325 | 200 | 50 | 0 | 229 | 203.5 | 233.5 | 50 | 30 x 5 | 155 | 110 | 250 | 258.5 | 288.5 | 77.5 | 148.5 | 55 | 30 | G1 1/4 | 77 | 42 | G1 1/4 | 29.4 | 32 | G1/4 | 17.5 | 90 | G1/4 | 112.7 | 90 | G1/4 | G1/4 | 110 | 50 | 50 | 52.1 | |
ØAL |
= |
Piston Ø |
ØAL |
mm |
40 | 50 | 63 | 80 | 100 | 125 | 140 | 160 | 180 | 200 | 220 | 250 | 280 | 320 |
Protrusion A 1) |
mm |
1 | 0 | 9.5 | 0 | ||||||||||
Nominal width |
mm |
4 | 5 | 8 | 20 | ||||||||||
| 1) | Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition |
ØAL |
= |
Piston Ø |
| 1) | Throttle valve only with end position cushioning "E" (180° for bleeding) Protrusion A in closed condition |
| 1) | The proximity switch is always located opposite of the line connection |
| 1) | Piston Ø 220 ... 320 mm Angled mating connector not possible |
ØAL |
ØMM |
PL |
L7 |
X3 |
X4 |
X5 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 40 | 25 / 28 | 112 | 87 | 94 | 170 | 125 |
| 50 | 32 / 36 | 110 | 103 | 98 | 175 | 130 |
| 63 | 40 / 45 | 125 | 116 | 103 | 180 | 135 |
| 80 | 50 / 56 | 138 | 128.5 | 108 | 185 | 140 |
| 100 | 63 / 70 | 161 | 139 | 116 | 195 | 150 |
| 125 | 80 / 90 | 189 | 161 | 126 | 205 | 160 |
| 140 | 90 / 100 | 209 | 171 | 146 | 225 | 180 |
| 160 | 100 / 110 | 228 | 188.5 | 151 | 230 | 185 |
| 180 | 110 / 125 | 254 | 199 | 159 | 235 | 190 |
| 200 | 125 / 140 | 264 | 227 | 166 | 245 | 200 |
| 220 | 140 / 160 | 310 | 252 | 177 1) | 255 | - |
| 250 | 160 / 180 | 310 | 265 | 187 1) | 265 | - |
| 280 | 180 / 200 | 369 | 293 | 199 1) | 275 | - |
| 320 | 200 / 220 | 375 | 290 | 209 1) | 285 | - |
| 1) | Piston Ø 220 ... 320 mm Proximity switch not protruding |
For the admissible stroke length with flexibly guided load and a factor of 3.5 for safety against kinking, please refer to the relevant table. For other installation positions of the cylinder, the admissible stroke length must be interpolated.
Admissible stroke length for non-guided load on request.
Kinking calculations are carried out according to the following formulas:
1. Calculation according to Euler
if λ > λg
2. Calculation according to Tetmajer
if λ ≤ λg
E |
= |
module of elasticity in N/mm2 |
|
= |
2.1 x 105 for steel |
||
l |
= |
Geometrical moment of inertia in mm4 |
|
for circular cross-section |
|
||
v |
= |
3.5 (safety factor) |
|
LK |
= |
free kinking length in mm (dependent on type of mounting; see sketches A, B, C) |
|
d |
= |
Piston rod Ø in mm |
|
λ |
= |
Slenderness ratio |
|
= |
|
|
|
Re |
= |
Yield strength of the piston rod material |
|
|
|
|
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 40 | 25 | 195 | 200 | 215 | 130 | 135 | 140 | 40 | 45 | 55 |
| 28 | 385 | 400 | 445 | 295 | 300 | 320 | 215 | 220 | 225 | |
| 50 | 32 | 380 | 390 | 430 | 280 | 285 | 300 | 195 | 200 | 205 |
| 36 | 505 | 525 | 595 | 395 | 405 | 430 | 290 | 295 | 305 | |
| 63 | 40 | 480 | 500 | 550 | 365 | 370 | 385 | 255 | 260 | 265 |
| 45 | 640 | 660 | 750 | 505 | 515 | 550 | 380 | 385 | 395 | |
| 80 | 50 | 590 | 615 | 690 | 455 | 465 | 495 | 330 | 335 | 345 |
| 56 | 765 | 800 | 930 | 615 | 630 | 385 | 470 | 475 | 495 | |
| 100 | 63 | 750 | 780 | 910 | 595 | 610 | 660 | 445 | 455 | 470 |
| 70 | 940 | 985 | 1195 | 775 | 800 | 885 | 605 | 615 | 650 | |
| 125 | 80 | 970 | 1015 | 1200 | 780 | 805 | 880 | 595 | 605 | 635 |
| 90 | 1235 | 1300 | 1610 | 1030 | 1070 | 1200 | 825 | 840 | 895 | |
| 140 | 90 | 1075 | 1130 | 1360 | 875 | 905 | 1000 | 675 | 685 | 725 |
| 100 | 1335 | 1405 | 1770 | 1120 | 1165 | 1325 | 900 | 920 | 985 | |
| 160 | 100 | 1175 | 1230 | 1480 | 955 | 985 | 1085 | 735 | 750 | 785 |
| 110 | 1430 | 1500 | 1875 | 1195 | 1240 | 1400 | 955 | 975 | 1040 | |
| 180 | 110 | 1250 | 1310 | 1570 | 1010 | 1045 | 1150 | 775 | 790 | 830 |
| 125 | 1620 | 1710 | 2160 | 1365 | 1420 | 1620 | 1100 | 1125 | 1205 | |
| 200 | 125 | 1435 | 1510 | 1860 | 1180 | 1220 | 1365 | 915 | 935 | 990 |
| 140 | 1795 | 1900 | 2450 | 1525 | 1590 | 1840 | 1240 | 1270 | 1370 | |
| 220 | 140 | 1620 | 1710 | 2180 | 1360 | 1415 | 1630 | 1090 | 1120 | 1200 |
| 160 | 2075 | 2200 | 3000 | 1810 | 1890 | 2280 | 1510 | 1560 | 1730 | |
| 250 | 160 | 1805 | 1910 | 2490 | 1520 | 1590 | 1850 | 1220 | 1250 | 1360 |
| 180 | 2250 | 2395 | 3300 | 1960 | 2060 | 2500 | 1630 | 1690 | 1880 | |
| 280 | 180 | 2075 | 2200 | 2900 | 1775 | 1880 | 2170 | 1450 | 1490 | 1620 |
| 200 | 2510 | 2670 | 3700 | 2200 | 2310 | 2820 | 1850 | 1920 | 2140 | |
| 320 | 200 | 2135 | 2270 | 3030 | 1820 | 1900 | 2260 | 1470 | 1510 | 1660 |
| 220 | 2550 | 2720 | 3820 | 2230 | 2340 | 2880 | 1860 | 1930 | 2170 | |
| 1) | Adm. stroke length |
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 40 | 25 mm / - | 895 | 915 | 980 | 730 | 735 | 760 | 440 | 450 | 510 |
| 28 mm / - | 1400 | 1415 | 1630 | 1180 | 1205 | 1275 | 970 | 980 | 1010 | |
| 50 | 32 mm / - | 1440 | 1490 | 1670 | 1210 | 1230 | 1300 | 985 | 995 | 1025 |
| 36 mm / - | 1760 | 1830 | 2000 | 1510 | 1545 | 1675 | 1255 | 1270 | 1320 | |
| 63 | 40 mm / - | 1735 | 1800 | 2000 | 1475 | 1510 | 1620 | 1215 | 1230 | 1270 |
| 45 mm / - | 2000 | 2000 | 2000 | 1830 | 1880 | 2080 | 1540 | 1560 | 1640 | |
| 80 | 50 mm / - | 2000 | 2000 | 2000 | 1810 | 1850 | 1995 | 1495 | 1515 | 1570 |
| 56 mm / - | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 1870 | 1900 | 2000 | |
| 100 | 63 mm / - | 2580 | 2690 | 3000 | 2235 | 2300 | 2550 | 1875 | 1910 | 2010 |
| 70 mm / - | 3000 | 3000 | 3000 | 2690 | 2780 | 3000 | 2300 | 2350 | 2520 | |
| 125 | 80 mm / - | 3000 | 3000 | 3000 | 2840 | 2930 | 3000 | 2400 | 2450 | 2590 |
| 90 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 140 | 90 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2700 | 2760 | 2950 |
| 100 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 160 | 100 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2920 | 2980 | 3000 |
| 110 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 180 | 110 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 125 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 200 | 125 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 140 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 220 | 140 mm / - | 5400 | 5680 | 6000 | 4800 | 4980 | 5780 | 4120 | 4220 | 4560 |
| 160 mm / - | 6000 | 6000 | 6000 | 5820 | 6000 | 6000 | 5150 | 5330 | 6000 | |
| 250 | 160 mm / - | 5850 | 6000 | 6000 | 5270 | 5500 | 6000 | 4600 | 4740 | 5250 |
| 180 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 5650 | 5850 | 6000 | |
| 280 | 180 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 5270 | 5420 | 5970 |
| 200 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
| 320 | 200 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 5950 | 6000 | 6000 |
| 220 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
| 1) | Adm. stroke length |
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 40 | 25 | 325 | 340 | 370 | 245 | 250 | 260 | 105 | 110 | 140 |
| 28 | 565 | 590 | 695 | 465 | 475 | 520 | 365 | 370 | 385 | |
| 50 | 32 | 600 | 625 | 715 | 485 | 495 | 530 | 370 | 375 | 390 |
| 36 | 755 | 790 | 950 | 630 | 650 | 715 | 505 | 515 | 540 | |
| 63 | 40 | 730 | 765 | 905 | 600 | 615 | 675 | 470 | 480 | 500 |
| 45 | 920 | 965 | 1190 | 780 | 805 | 905 | 630 | 645 | 685 | |
| 80 | 50 | 910 | 950 | 1130 | 750 | 775 | 845 | 595 | 605 | 630 |
| 56 | 1125 | 1185 | 1470 | 960 | 990 | 1120 | 785 | 800 | 850 | |
| 100 | 63 | 1120 | 1175 | 1460 | 945 | 980 | 1105 | 770 | 785 | 835 |
| 70 | 1350 | 1430 | 1860 | 1175 | 1220 | 1420 | 980 | 1000 | 1090 | |
| 125 | 80 | 1430 | 1510 | 1910 | 1225 | 1270 | 1450 | 1000 | 1025 | 1100 |
| 90 | 1750 | 1855 | 2490 | 1540 | 1610 | 1910 | 1300 | 1340 | 1470 | |
| 140 | 90 | 1585 | 1675 | 2170 | 1370 | 1425 | 1650 | 1135 | 1165 | 1260 |
| 100 | 1895 | 2010 | 2750 | 1675 | 1755 | 2110 | 1425 | 1470 | 1630 | |
| 160 | 100 | 1725 | 1820 | 2340 | 1490 | 1545 | 1780 | 1230 | 1260 | 1360 |
| 110 | 2030 | 2150 | 2900 | 1785 | 1870 | 2230 | 1510 | 1560 | 1720 | |
| 180 | 110 | 1855 | 1960 | 2510 | 1595 | 1660 | 1910 | 1315 | 1350 | 1450 |
| 125 | 2300 | 2440 | 3350 | 2040 | 2130 | 2580 | 1735 | 1790 | 1990 | |
| 200 | 125 | 2105 | 2230 | 2950 | 1830 | 1910 | 2250 | 1530 | 1570 | 1715 |
| 140 | 2535 | 2700 | 3000 | 2260 | 2370 | 2920 | 1940 | 2010 | 2255 | |
| 220 | 140 | 2250 | 2400 | 3350 | 1990 | 2090 | 2550 | 1685 | 1740 | 1950 |
| 160 | 2800 | 2990 | 4500 | 2530 | 2680 | 3480 | 2220 | 2310 | 2700 | |
| 250 | 160 | 2600 | 2770 | 3900 | 2310 | 2430 | 3000 | 1975 | 2040 | 2300 |
| 180 | 3130 | 3350 | 5050 | 2840 | 3000 | 3910 | 2500 | 2600 | 3040 | |
| 280 | 180 | 2850 | 3050 | 4400 | 2550 | 2680 | 3370 | 2190 | 2270 | 2600 |
| 200 | 3370 | 3610 | 5550 | 3070 | 3250 | 4300 | 2700 | 2820 | 3330 | |
| 320 | 200 | 3070 | 3270 | 4750 | 2750 | 2890 | 3650 | 2150 | 2460 | 2810 |
| 220 | 3560 | 3820 | 5850 | 3250 | 3430 | 4550 | 2860 | 2980 | 3530 | |
| 1) | Adm. stroke length |
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 40 | 25 mm / - | 340 | 345 | 365 | 250 | 255 | 260 | 130 | 135 | 145 |
| 28 mm / - | 590 | 605 | 665 | 470 | 480 | 500 | 365 | 370 | 375 | |
| 50 | 32 mm / - | 600 | 615 | 670 | 470 | 480 | 495 | 355 | 360 | 365 |
| 36 mm / - | 770 | 795 | 890 | 625 | 635 | 670 | 485 | 490 | 505 | |
| 63 | 40 mm / - | 740 | 765 | 845 | 590 | 600 | 630 | 450 | 455 | 465 |
| 45 mm / - | 940 | 975 | 1115 | 770 | 790 | 845 | 610 | 620 | 640 | |
| 80 | 50 mm / - | 920 | 950 | 1055 | 735 | 750 | 790 | 570 | 575 | 590 |
| 56 mm / - | 1155 | 1195 | 1375 | 950 | 975 | 1045 | 755 | 765 | 790 | |
| 100 | 63 mm / - | 1145 | 1190 | 1365 | 940 | 960 | 1030 | 740 | 750 | 775 |
| 70 mm / - | 1400 | 1460 | 1740 | 1180 | 1210 | 1330 | 955 | 970 | 1015 | |
| 125 | 80 mm / - | 1470 | 1530 | 1780 | 1220 | 1250 | 1350 | 970 | 985 | 1020 |
| 90 mm / - | 1820 | 1910 | 2320 | 1550 | 1600 | 1780 | 1275 | 1300 | 1370 | |
| 140 | 90 mm / - | 1640 | 1710 | 2020 | 1370 | 1410 | 1540 | 1100 | 1120 | 1170 |
| 100 mm / - | 1980 | 2080 | 2570 | 1700 | 1755 | 1970 | 1400 | 1430 | 1515 | |
| 160 | 100 mm / - | 1780 | 1850 | 2180 | 1485 | 1520 | 1660 | 1190 | 1210 | 1260 |
| 110 mm / - | 2110 | 2210 | 2710 | 1800 | 1860 | 2080 | 1480 | 1510 | 1595 | |
| 180 | 110 mm / - | 1910 | 1990 | 2340 | 1590 | 1635 | 1780 | 1275 | 1295 | 1350 |
| 125 mm / - | 2405 | 2530 | 3000 | 2065 | 2130 | 2400 | 1710 | 1740 | 1850 | |
| 200 | 125 mm / - | 2180 | 2280 | 2740 | 1840 | 1890 | 2090 | 1490 | 1510 | 1590 |
| 140 mm / - | 2660 | 2800 | 3000 | 2300 | 2380 | 2720 | 1915 | 1960 | 2100 | |
| 220 | 140 mm / - | 2490 | 2510 | 3150 | 2050 | 2120 | 2400 | 1685 | 1720 | 1835 |
| 160 mm / - | 3000 | 3170 | 4230 | 2640 | 2750 | 3260 | 2240 | 2310 | 2530 | |
| 250 | 160 mm / - | 2730 | 2870 | 3640 | 2350 | 2440 | 2790 | 1950 | 1990 | 2140 |
| 180 mm / - | 3320 | 3520 | 4720 | 2940 | 3060 | 3650 | 2500 | 2570 | 2830 | |
| 280 | 180 mm / - | 3040 | 3210 | 4140 | 2640 | 2750 | 3170 | 2210 | 2260 | 2440 |
| 200 mm / - | 3620 | 3840 | 5210 | 3210 | 3360 | 4040 | 2750 | 2830 | 3140 | |
| 320 | 200 mm / - | 3250 | 3430 | 4455 | 2820 | 2930 | 3410 | 2360 | 2420 | 2620 |
| 220 mm / - | 3800 | 4030 | 5500 | 3370 | 3530 | 4250 | 2880 | 2970 | 3290 | |
| 1) | Adm. stroke length |
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 40 | 25 mm / - | 825 | 840 | 885 | 645 | 650 | 665 | 370 | 375 | 410 |
| 28 mm / - | 1305 | 1350 | 1535 | 1085 | 1110 | 1180 | 875 | 885 | 910 | |
| 50 | 32 mm / - | 1330 | 1375 | 1560 | 1095 | 1120 | 1190 | 875 | 885 | 910 |
| 36 mm / - | 1645 | 1715 | 2030 | 1395 | 1430 | 1560 | 1140 | 1160 | 1210 | |
| 63 | 40 mm / - | 1610 | 1670 | 1950 | 1345 | 1380 | 1490 | 1085 | 1100 | 1145 |
| 45 mm / - | 1980 | 2000 | 2000 | 1700 | 1750 | 1950 | 1410 | 1435 | 1510 | |
| 80 | 50 mm / - | 1980 | 2000 | 2000 | 1665 | 1710 | 1850 | 1350 | 1370 | 1425 |
| 56 mm / - | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 1730 | 1760 | 1860 | |
| 100 | 63 mm / - | 2420 | 2535 | 3000 | 2080 | 2140 | 2390 | 1720 | 1750 | 1850 |
| 70 mm / - | 2880 | 3000 | 3000 | 2530 | 2630 | 3000 | 2140 | 2190 | 2360 | |
| 125 | 80 mm / - | 3000 | 3000 | 3000 | 2660 | 2750 | 3000 | 2220 | 2270 | 2410 |
| 90 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2810 | 2890 | 3000 | |
| 140 | 90 mm / - | 3000 | 3000 | 3000 | 2970 | 3000 | 3000 | 2490 | 2550 | 2740 |
| 100 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 160 | 100 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2690 | 2750 | 2950 |
| 110 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 180 | 110 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2890 | 2960 | 3000 |
| 125 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 200 | 125 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 140 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 220 | 140 mm / - | 5090 | 5370 | 6000 | 4490 | 4670 | 5470 | 3820 | 3910 | 4260 |
| 160 mm / - | 6000 | 6000 | 6000 | 5510 | 5800 | 6000 | 4850 | 5020 | 5750 | |
| 250 | 160 mm / - | 5520 | 5860 | 6000 | 4940 | 5170 | 6000 | 4270 | 4410 | 4920 |
| 180 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 5320 | 5520 | 6000 | |
| 280 | 180 mm / - | 6000 | 6000 | 6000 | 5700 | 5960 | 6000 | 4930 | 5070 | 5630 |
| 200 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
| 320 | 200 mm / - | 6000 | 6000 | 6000 | 5890 | 6000 | 6000 | 4750 | 5310 | 6000 |
| 220 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
| 1) | Adm. stroke length |
With longer strokes, an extended guide and/or the use of guide rings may be reasonable for increasing the service life, depending on the respective case of application and installation position. Recommendation upon request.
ØAL |
= |
Piston Ø |
ØMM |
= |
Piston rod Ø |
For the admissible stroke length with flexibly guided load and a factor of 3.5 for safety against kinking, please refer to the relevant table. For other installation positions of the cylinder, the admissible stroke length must be interpolated.
Admissible stroke length for non-guided load on request.
Kinking calculations are carried out according to the following formulas:
1. Calculation according to Euler
if λ > λg
2. Calculation according to Tetmajer
if λ ≤ λg
E |
= |
module of elasticity in N/mm2 |
|
= |
2.1 x 105 for steel |
||
l |
= |
Geometrical moment of inertia in mm4 |
|
for circular cross-section |
|
||
v |
= |
3.5 (safety factor) |
|
LK |
= |
free kinking length in mm (dependent on type of mounting; see sketches A, B, C) |
|
d |
= |
Piston rod Ø in mm |
|
λ |
= |
Slenderness ratio |
|
= |
|
|
|
Re |
= |
Yield strength of the piston rod material |
|
|
|
|
|
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 40 | 25 | 195 | 200 | 215 | 130 | 135 | 140 | 40 | 45 | 55 |
| 28 | 385 | 400 | 445 | 295 | 300 | 320 | 215 | 220 | 225 | |
| 50 | 32 | 380 | 390 | 430 | 280 | 285 | 300 | 195 | 200 | 205 |
| 36 | 505 | 525 | 595 | 395 | 405 | 430 | 290 | 295 | 305 | |
| 63 | 40 | 480 | 500 | 550 | 365 | 370 | 385 | 255 | 260 | 265 |
| 45 | 640 | 660 | 750 | 505 | 515 | 550 | 380 | 385 | 395 | |
| 80 | 50 | 590 | 615 | 690 | 455 | 465 | 495 | 330 | 335 | 345 |
| 56 | 765 | 800 | 930 | 615 | 630 | 385 | 470 | 475 | 495 | |
| 100 | 63 | 750 | 780 | 910 | 595 | 610 | 660 | 445 | 455 | 470 |
| 70 | 940 | 985 | 1195 | 775 | 800 | 885 | 605 | 615 | 650 | |
| 125 | 80 | 970 | 1015 | 1200 | 780 | 805 | 880 | 595 | 605 | 635 |
| 90 | 1235 | 1300 | 1610 | 1030 | 1070 | 1200 | 825 | 840 | 895 | |
| 140 | 90 | 1075 | 1130 | 1360 | 875 | 905 | 1000 | 675 | 685 | 725 |
| 100 | 1335 | 1405 | 1770 | 1120 | 1165 | 1325 | 900 | 920 | 985 | |
| 160 | 100 | 1175 | 1230 | 1480 | 955 | 985 | 1085 | 735 | 750 | 785 |
| 110 | 1430 | 1500 | 1875 | 1195 | 1240 | 1400 | 955 | 975 | 1040 | |
| 180 | 110 | 1250 | 1310 | 1570 | 1010 | 1045 | 1150 | 775 | 790 | 830 |
| 125 | 1620 | 1710 | 2160 | 1365 | 1420 | 1620 | 1100 | 1125 | 1205 | |
| 200 | 125 | 1435 | 1510 | 1860 | 1180 | 1220 | 1365 | 915 | 935 | 990 |
| 140 | 1795 | 1900 | 2450 | 1525 | 1590 | 1840 | 1240 | 1270 | 1370 | |
| 220 | 140 | 1620 | 1710 | 2180 | 1360 | 1415 | 1630 | 1090 | 1120 | 1200 |
| 160 | 2075 | 2200 | 3000 | 1810 | 1890 | 2280 | 1510 | 1560 | 1730 | |
| 250 | 160 | 1805 | 1910 | 2490 | 1520 | 1590 | 1850 | 1220 | 1250 | 1360 |
| 180 | 2250 | 2395 | 3300 | 1960 | 2060 | 2500 | 1630 | 1690 | 1880 | |
| 280 | 180 | 2075 | 2200 | 2900 | 1775 | 1880 | 2170 | 1450 | 1490 | 1620 |
| 200 | 2510 | 2670 | 3700 | 2200 | 2310 | 2820 | 1850 | 1920 | 2140 | |
| 320 | 200 | 2135 | 2270 | 3030 | 1820 | 1900 | 2260 | 1470 | 1510 | 1660 |
| 220 | 2550 | 2720 | 3820 | 2230 | 2340 | 2880 | 1860 | 1930 | 2170 | |
| 1) | Adm. stroke length |
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 40 | 25 mm / - | 895 | 915 | 980 | 730 | 735 | 760 | 440 | 450 | 510 |
| 28 mm / - | 1400 | 1415 | 1630 | 1180 | 1205 | 1275 | 970 | 980 | 1010 | |
| 50 | 32 mm / - | 1440 | 1490 | 1670 | 1210 | 1230 | 1300 | 985 | 995 | 1025 |
| 36 mm / - | 1760 | 1830 | 2000 | 1510 | 1545 | 1675 | 1255 | 1270 | 1320 | |
| 63 | 40 mm / - | 1735 | 1800 | 2000 | 1475 | 1510 | 1620 | 1215 | 1230 | 1270 |
| 45 mm / - | 2000 | 2000 | 2000 | 1830 | 1880 | 2080 | 1540 | 1560 | 1640 | |
| 80 | 50 mm / - | 2000 | 2000 | 2000 | 1810 | 1850 | 1995 | 1495 | 1515 | 1570 |
| 56 mm / - | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 1870 | 1900 | 2000 | |
| 100 | 63 mm / - | 2580 | 2690 | 3000 | 2235 | 2300 | 2550 | 1875 | 1910 | 2010 |
| 70 mm / - | 3000 | 3000 | 3000 | 2690 | 2780 | 3000 | 2300 | 2350 | 2520 | |
| 125 | 80 mm / - | 3000 | 3000 | 3000 | 2840 | 2930 | 3000 | 2400 | 2450 | 2590 |
| 90 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 140 | 90 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2700 | 2760 | 2950 |
| 100 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 160 | 100 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2920 | 2980 | 3000 |
| 110 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 180 | 110 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 125 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 200 | 125 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 140 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 220 | 140 mm / - | 5400 | 5680 | 6000 | 4800 | 4980 | 5780 | 4120 | 4220 | 4560 |
| 160 mm / - | 6000 | 6000 | 6000 | 5820 | 6000 | 6000 | 5150 | 5330 | 6000 | |
| 250 | 160 mm / - | 5850 | 6000 | 6000 | 5270 | 5500 | 6000 | 4600 | 4740 | 5250 |
| 180 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 5650 | 5850 | 6000 | |
| 280 | 180 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 5270 | 5420 | 5970 |
| 200 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
| 320 | 200 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 5950 | 6000 | 6000 |
| 220 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
| 1) | Adm. stroke length |
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 40 | 25 | 325 | 340 | 370 | 245 | 250 | 260 | 105 | 110 | 140 |
| 28 | 565 | 590 | 695 | 465 | 475 | 520 | 365 | 370 | 385 | |
| 50 | 32 | 600 | 625 | 715 | 485 | 495 | 530 | 370 | 375 | 390 |
| 36 | 755 | 790 | 950 | 630 | 650 | 715 | 505 | 515 | 540 | |
| 63 | 40 | 730 | 765 | 905 | 600 | 615 | 675 | 470 | 480 | 500 |
| 45 | 920 | 965 | 1190 | 780 | 805 | 905 | 630 | 645 | 685 | |
| 80 | 50 | 910 | 950 | 1130 | 750 | 775 | 845 | 595 | 605 | 630 |
| 56 | 1125 | 1185 | 1470 | 960 | 990 | 1120 | 785 | 800 | 850 | |
| 100 | 63 | 1120 | 1175 | 1460 | 945 | 980 | 1105 | 770 | 785 | 835 |
| 70 | 1350 | 1430 | 1860 | 1175 | 1220 | 1420 | 980 | 1000 | 1090 | |
| 125 | 80 | 1430 | 1510 | 1910 | 1225 | 1270 | 1450 | 1000 | 1025 | 1100 |
| 90 | 1750 | 1855 | 2490 | 1540 | 1610 | 1910 | 1300 | 1340 | 1470 | |
| 140 | 90 | 1585 | 1675 | 2170 | 1370 | 1425 | 1650 | 1135 | 1165 | 1260 |
| 100 | 1895 | 2010 | 2750 | 1675 | 1755 | 2110 | 1425 | 1470 | 1630 | |
| 160 | 100 | 1725 | 1820 | 2340 | 1490 | 1545 | 1780 | 1230 | 1260 | 1360 |
| 110 | 2030 | 2150 | 2900 | 1785 | 1870 | 2230 | 1510 | 1560 | 1720 | |
| 180 | 110 | 1855 | 1960 | 2510 | 1595 | 1660 | 1910 | 1315 | 1350 | 1450 |
| 125 | 2300 | 2440 | 3350 | 2040 | 2130 | 2580 | 1735 | 1790 | 1990 | |
| 200 | 125 | 2105 | 2230 | 2950 | 1830 | 1910 | 2250 | 1530 | 1570 | 1715 |
| 140 | 2535 | 2700 | 3000 | 2260 | 2370 | 2920 | 1940 | 2010 | 2255 | |
| 220 | 140 | 2250 | 2400 | 3350 | 1990 | 2090 | 2550 | 1685 | 1740 | 1950 |
| 160 | 2800 | 2990 | 4500 | 2530 | 2680 | 3480 | 2220 | 2310 | 2700 | |
| 250 | 160 | 2600 | 2770 | 3900 | 2310 | 2430 | 3000 | 1975 | 2040 | 2300 |
| 180 | 3130 | 3350 | 5050 | 2840 | 3000 | 3910 | 2500 | 2600 | 3040 | |
| 280 | 180 | 2850 | 3050 | 4400 | 2550 | 2680 | 3370 | 2190 | 2270 | 2600 |
| 200 | 3370 | 3610 | 5550 | 3070 | 3250 | 4300 | 2700 | 2820 | 3330 | |
| 320 | 200 | 3070 | 3270 | 4750 | 2750 | 2890 | 3650 | 2150 | 2460 | 2810 |
| 220 | 3560 | 3820 | 5850 | 3250 | 3430 | 4550 | 2860 | 2980 | 3530 | |
| 1) | Adm. stroke length |
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 40 | 25 mm / - | 340 | 345 | 365 | 250 | 255 | 260 | 130 | 135 | 145 |
| 28 mm / - | 590 | 605 | 665 | 470 | 480 | 500 | 365 | 370 | 375 | |
| 50 | 32 mm / - | 600 | 615 | 670 | 470 | 480 | 495 | 355 | 360 | 365 |
| 36 mm / - | 770 | 795 | 890 | 625 | 635 | 670 | 485 | 490 | 505 | |
| 63 | 40 mm / - | 740 | 765 | 845 | 590 | 600 | 630 | 450 | 455 | 465 |
| 45 mm / - | 940 | 975 | 1115 | 770 | 790 | 845 | 610 | 620 | 640 | |
| 80 | 50 mm / - | 920 | 950 | 1055 | 735 | 750 | 790 | 570 | 575 | 590 |
| 56 mm / - | 1155 | 1195 | 1375 | 950 | 975 | 1045 | 755 | 765 | 790 | |
| 100 | 63 mm / - | 1145 | 1190 | 1365 | 940 | 960 | 1030 | 740 | 750 | 775 |
| 70 mm / - | 1400 | 1460 | 1740 | 1180 | 1210 | 1330 | 955 | 970 | 1015 | |
| 125 | 80 mm / - | 1470 | 1530 | 1780 | 1220 | 1250 | 1350 | 970 | 985 | 1020 |
| 90 mm / - | 1820 | 1910 | 2320 | 1550 | 1600 | 1780 | 1275 | 1300 | 1370 | |
| 140 | 90 mm / - | 1640 | 1710 | 2020 | 1370 | 1410 | 1540 | 1100 | 1120 | 1170 |
| 100 mm / - | 1980 | 2080 | 2570 | 1700 | 1755 | 1970 | 1400 | 1430 | 1515 | |
| 160 | 100 mm / - | 1780 | 1850 | 2180 | 1485 | 1520 | 1660 | 1190 | 1210 | 1260 |
| 110 mm / - | 2110 | 2210 | 2710 | 1800 | 1860 | 2080 | 1480 | 1510 | 1595 | |
| 180 | 110 mm / - | 1910 | 1990 | 2340 | 1590 | 1635 | 1780 | 1275 | 1295 | 1350 |
| 125 mm / - | 2405 | 2530 | 3000 | 2065 | 2130 | 2400 | 1710 | 1740 | 1850 | |
| 200 | 125 mm / - | 2180 | 2280 | 2740 | 1840 | 1890 | 2090 | 1490 | 1510 | 1590 |
| 140 mm / - | 2660 | 2800 | 3000 | 2300 | 2380 | 2720 | 1915 | 1960 | 2100 | |
| 220 | 140 mm / - | 2490 | 2510 | 3150 | 2050 | 2120 | 2400 | 1685 | 1720 | 1835 |
| 160 mm / - | 3000 | 3170 | 4230 | 2640 | 2750 | 3260 | 2240 | 2310 | 2530 | |
| 250 | 160 mm / - | 2730 | 2870 | 3640 | 2350 | 2440 | 2790 | 1950 | 1990 | 2140 |
| 180 mm / - | 3320 | 3520 | 4720 | 2940 | 3060 | 3650 | 2500 | 2570 | 2830 | |
| 280 | 180 mm / - | 3040 | 3210 | 4140 | 2640 | 2750 | 3170 | 2210 | 2260 | 2440 |
| 200 mm / - | 3620 | 3840 | 5210 | 3210 | 3360 | 4040 | 2750 | 2830 | 3140 | |
| 320 | 200 mm / - | 3250 | 3430 | 4455 | 2820 | 2930 | 3410 | 2360 | 2420 | 2620 |
| 220 mm / - | 3800 | 4030 | 5500 | 3370 | 3530 | 4250 | 2880 | 2970 | 3290 | |
| 1) | Adm. stroke length |
ØAL |
ØMM |
admissible stroke length with |
||||||||
100 bar |
160 bar |
250 bar |
||||||||
0° |
45° |
90° |
0° |
45° |
90° |
0° |
45° |
90° |
||
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 40 | 25 mm / - | 825 | 840 | 885 | 645 | 650 | 665 | 370 | 375 | 410 |
| 28 mm / - | 1305 | 1350 | 1535 | 1085 | 1110 | 1180 | 875 | 885 | 910 | |
| 50 | 32 mm / - | 1330 | 1375 | 1560 | 1095 | 1120 | 1190 | 875 | 885 | 910 |
| 36 mm / - | 1645 | 1715 | 2030 | 1395 | 1430 | 1560 | 1140 | 1160 | 1210 | |
| 63 | 40 mm / - | 1610 | 1670 | 1950 | 1345 | 1380 | 1490 | 1085 | 1100 | 1145 |
| 45 mm / - | 1980 | 2000 | 2000 | 1700 | 1750 | 1950 | 1410 | 1435 | 1510 | |
| 80 | 50 mm / - | 1980 | 2000 | 2000 | 1665 | 1710 | 1850 | 1350 | 1370 | 1425 |
| 56 mm / - | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 1730 | 1760 | 1860 | |
| 100 | 63 mm / - | 2420 | 2535 | 3000 | 2080 | 2140 | 2390 | 1720 | 1750 | 1850 |
| 70 mm / - | 2880 | 3000 | 3000 | 2530 | 2630 | 3000 | 2140 | 2190 | 2360 | |
| 125 | 80 mm / - | 3000 | 3000 | 3000 | 2660 | 2750 | 3000 | 2220 | 2270 | 2410 |
| 90 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2810 | 2890 | 3000 | |
| 140 | 90 mm / - | 3000 | 3000 | 3000 | 2970 | 3000 | 3000 | 2490 | 2550 | 2740 |
| 100 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 160 | 100 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2690 | 2750 | 2950 |
| 110 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 180 | 110 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2890 | 2960 | 3000 |
| 125 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 200 | 125 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 140 mm / - | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 220 | 140 mm / - | 5090 | 5370 | 6000 | 4490 | 4670 | 5470 | 3820 | 3910 | 4260 |
| 160 mm / - | 6000 | 6000 | 6000 | 5510 | 5800 | 6000 | 4850 | 5020 | 5750 | |
| 250 | 160 mm / - | 5520 | 5860 | 6000 | 4940 | 5170 | 6000 | 4270 | 4410 | 4920 |
| 180 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 5320 | 5520 | 6000 | |
| 280 | 180 mm / - | 6000 | 6000 | 6000 | 5700 | 5960 | 6000 | 4930 | 5070 | 5630 |
| 200 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
| 320 | 200 mm / - | 6000 | 6000 | 6000 | 5890 | 6000 | 6000 | 4750 | 5310 | 6000 |
| 220 mm / - | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |
| 1) | Adm. stroke length |
With longer strokes, an extended guide and/or the use of guide rings may be reasonable for increasing the service life, depending on the respective case of application and installation position. Recommendation upon request.
ØAL |
= |
Piston Ø |
ØMM |
= |
Piston rod Ø |
