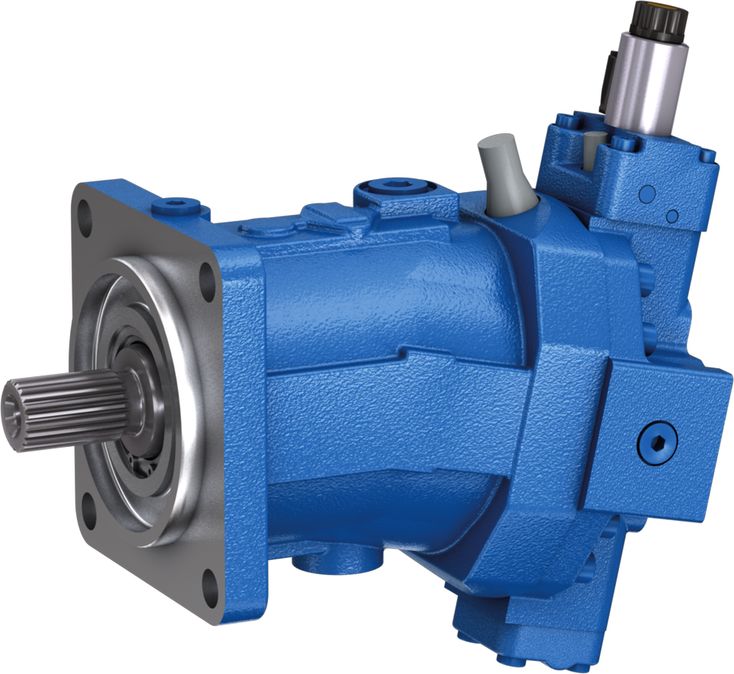

A6VE series 6x

High pressure motor for integration in mechanical gearboxes.
Size 28 … 250.
Nominal pressure up to 400 bar.
Maximum pressure up 450 bar.
Open and closed circuits.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • Space-saving construction due to recessed mounting flange

  • Easy to install, simply slide into the mechanical gearbox

  • Wide control range (can be swiveled to zero)

  • Approved for very high speeds

  • High torque

  • Optional with attached flushing and boost-pressure valve

  • Optional with integrated or attached counterbalance valve

  • Bent-axis design

Table of values

Size

285580107160200250

Series

6363656365636563656563

Displacement


Vg max

cm³

28.154.854.88080107107160160200250

Vg x

cm³

18353551516868616176188

Vg min

cm³

00000000000

Nominal pressure


pnom

bar

400400400400400400400400400400350

Maximum pressure


pmax

bar

450450450450450450450450450450400

Maximum speed

at Vg max 1)

nnom

rpm

55504450445039003900355035503100310029002700

at Vg < Vg x

nmax

rpm

87507000700061506150560056004900490046003300

at Vg min

nmax 0

rpm

104508350835073507350630063005500550051003300

Inlet flow 2)

at Vg max and nnom

qV nom

l/min

156244244312312380380496496580675

Torque

at Vg max and pnom

M

Nm

1793493495095096816811019101912731391

Weight (approx.)


m

kg

16262834364746646278110
1)Maximum permissible inlet flow qV nom to be noted
2)In operation with a counterbalance valve BVD/BVE restricted values to be noted
