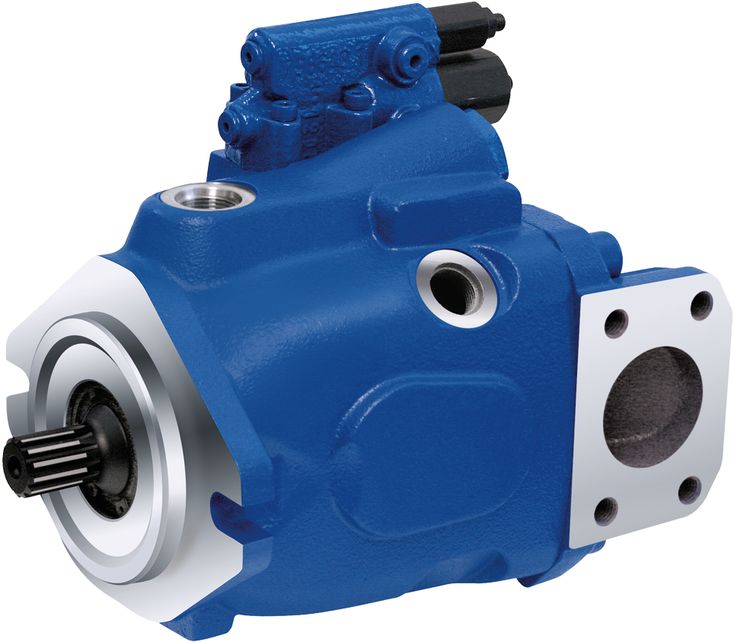

A10VO series 5x

For machines with medium pressure requirements.
Size 10 … 100.
Nominal pressure 250 bar.
Maximum pressure 315 bar.
Open circuit.

Size				10	18	28	45	60	63	72	85	100
Displacement geometric, per revolution		V_g max	cm³	10.5	18	28	45	60	63	72	85	100
Nominal pressure		p_nom	bar	250	250	250	250	250	250	250	250	250
Maximum pressure		p_max	bar	315	315	315	315	315	315	315	315	315
Maximum speed ¹⁾	at V_g max	n_nom	rpm	3600	3300	3000	2600	2600	2600	2600 ²⁾	2500	2300
Flow	at V_g max and n_nom	q_V nom	l/min	37	59	84	117	156	163	187	212	230
Flow	at V_g maxand n = 1500 rpm	q_V 1500	l/min	15	27	42	68	90	95	108	128	150
Power	at q_{V nom} and p_nom	P	kW	16	25	35	49	65	68	77	89	96
Power	at q_{V 1500} and p_nom	P ₁₅₀₀	kW	7	11	18	28	37	39	45	53	62
Torque	at V_g max and p_nom	M	Nm	42	71	111	179	238	250	286	338	398
Weight (approx.)		m	kg	8	11.5	14	18	22	22	22	36	36

¹⁾	These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range ν_opt
²⁾	Please contact us regarding higher speeds

Size	10	18	28	45	60	63	72	85	100
Displacement geometric, per revolution		V_g max	cm³	10.5	18	28	45	60	63	72	85	100
Nominal pressure		p_nom	bar	250	250	250	250	250	250	250	250	250
Maximum pressure		p_max	bar	315	315	315	315	315	315	315	315	315
Maximum speed ¹⁾	at V_g max	n_nom	rpm	3600	3300	3000	2600	2600	2600	2600 ²⁾	2500	2300
Flow	at V_g max and n_nom	q_V nom	l/min	37	59	84	117	156	163	187	212	230
at V_g maxand n = 1500 rpm	q_V 1500	l/min	15	27	42	68	90	95	108	128	150
Power	at q_{V nom} and p_nom	P	kW	16	25	35	49	65	68	77	89	96
at q_{V 1500} and p_nom	P ₁₅₀₀	kW	7	11	18	28	37	39	45	53	62
Torque	at V_g max and p_nom	M	Nm	42	71	111	179	238	250	286	338	398
Weight (approx.)		m	kg	8	11.5	14	18	22	22	22	36	36
